Example 2: Bisection- Part of a Cube Additional Task to the multimedia book „Darstellende Geometrie/ 3 D-Geometry“, published by Veritas Educational Edition Student Edition ISBN - 978 -3 -7058 -9079 -4 ISBN - 978 -3 -7058 -9293 -4 Special edition for teachers: The print version shows handouts of theory and worked-out examples. Each handout can be printed in colour and is also suitable as a solutions handout. Through the use of animated Power. Point files it is possible to structure the lessons in a contemporary and innovative manner for students. Special edition for students: The print version consists of well prepared worksheets to start working right away. On the CD you will find colourful Power. Point presentations, including theory as well as solved examples with step-by-step explanations. This provides a highly efficient technique in developing an understanding of geometry and its concepts. for more DETAILS and ORDER 1

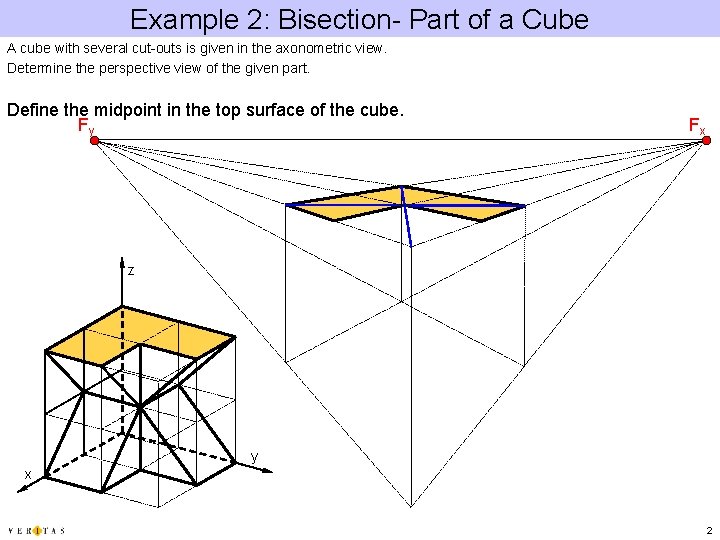

Example 2: Bisection- Part of a Cube A cube with several cut-outs is given in the axonometric view. Determine the perspective view of the given part. Define the midpoint in the top surface of the cube. Fy Fx z y x 2

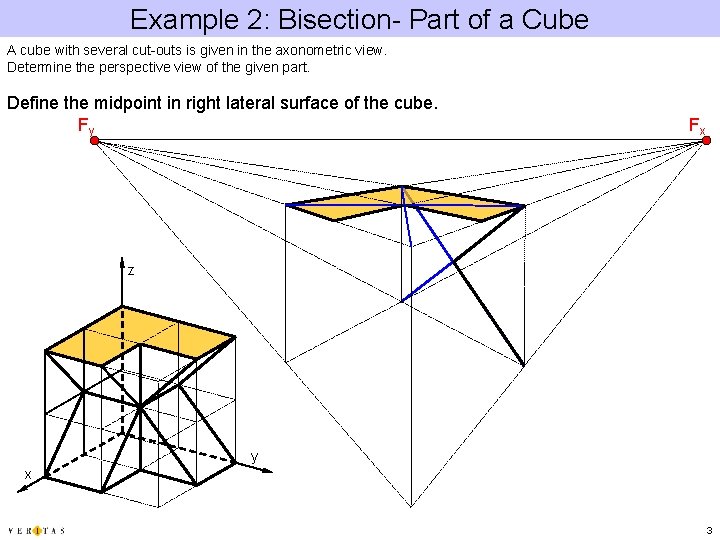

Example 2: Bisection- Part of a Cube A cube with several cut-outs is given in the axonometric view. Determine the perspective view of the given part. Define the midpoint in right lateral surface of the cube. Fy Fx z y x 3

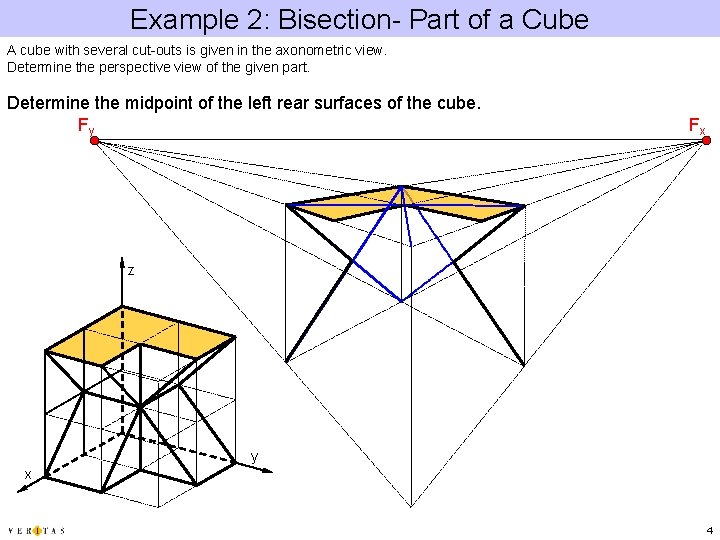

Example 2: Bisection- Part of a Cube A cube with several cut-outs is given in the axonometric view. Determine the perspective view of the given part. Determine the midpoint of the left rear surfaces of the cube. Fy Fx z y x 4

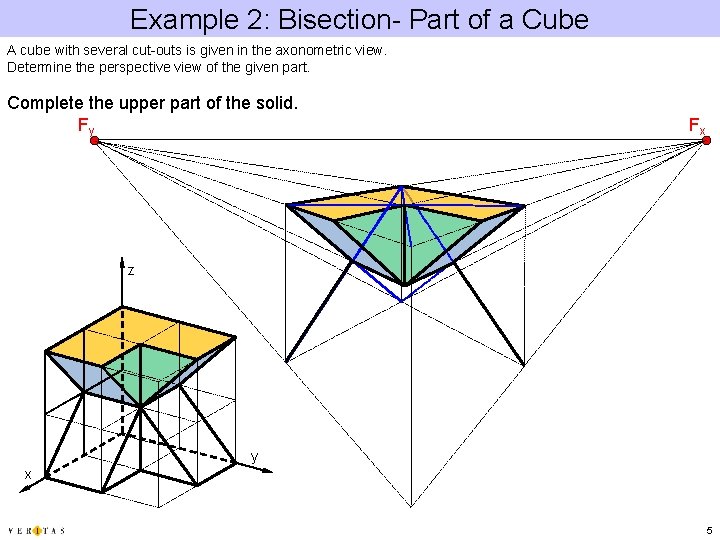

Example 2: Bisection- Part of a Cube A cube with several cut-outs is given in the axonometric view. Determine the perspective view of the given part. Complete the upper part of the solid. Fy Fx z y x 5

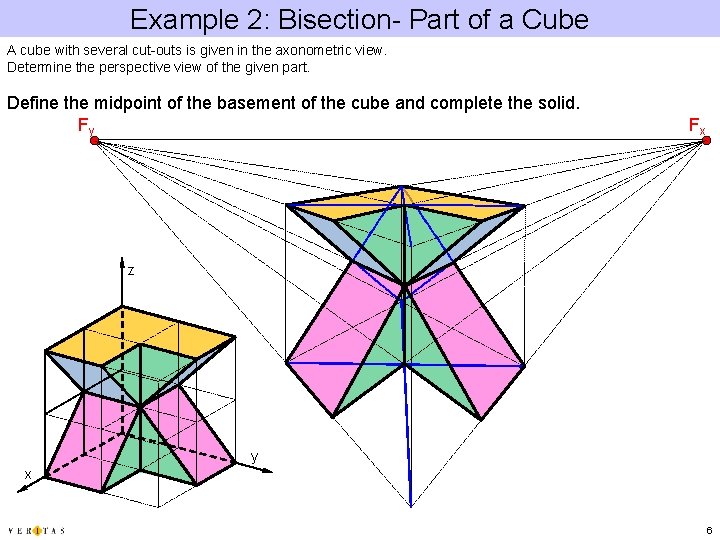

Example 2: Bisection- Part of a Cube A cube with several cut-outs is given in the axonometric view. Determine the perspective view of the given part. Define the midpoint of the basement of the cube and complete the solid. Fy Fx z y x 6

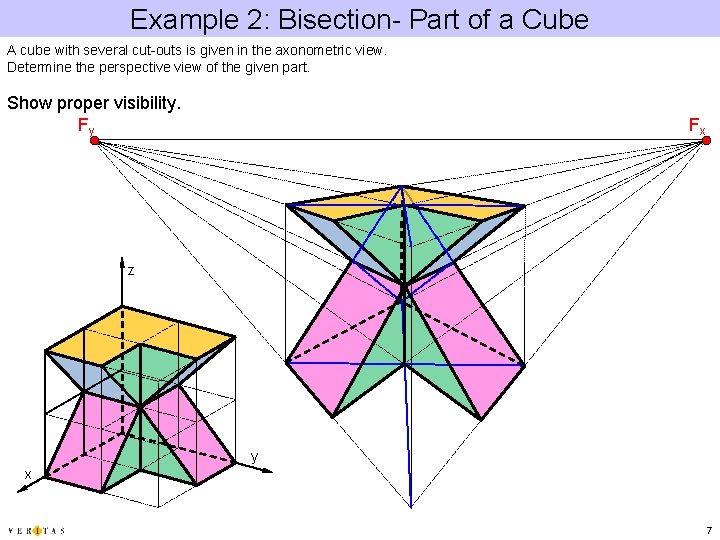

Example 2: Bisection- Part of a Cube A cube with several cut-outs is given in the axonometric view. Determine the perspective view of the given part. Show proper visibility. Fy Fx z y x 7
