EXAMPLE 1 Graph a function 1 Graph the

EXAMPLE 1 Graph a function 1 Graph the function y = 2 x with domain 0, 2, 4, 6, and 8. SOLUTION STEP 1 Make an input-output table. x 0 2 4 6 8 y 0 1 2 3 4

EXAMPLE 1 Graph a function STEP 2 Plot a point for each ordered pair (x, y).

EXAMPLE 2 Graph a function SAT Scores The table shows the average score s on the mathematics section of the Scholastic Aptitude Test (SAT) in the United States from 1997 to 2003 as a function of the time t in years since 1997. In the table, 0 corresponds to the year 1997, 1 corresponds to 1998, and so on. Graph the function. Years since 1997, t 0 1 2 3 4 5 6 Average score, s 511 512 511 514 516 519

EXAMPLE 2 Graph a function SOLUTION STEP 1 Choose a scale. The scale should allow you to plot all the points on a graph that is a reasonable size. The t-values range from 0 to 6, so label the t-axis from 0 to 6 in increments of 1 unit. The s-values range from 511 to 519, so label the saxis from 510 to 520 in increments of 2 units.

EXAMPLE 2 Graph a function STEP 2 Plot the points.

GUIDED PRACTICE for Example 2 2. WHAT IF? In Example 2, suppose that you use a scale on the s-axis from 0 to 520 in increments of 1 unit. Describe the appearance of the graph. ANSWER The graph would be very large with all the points near the top of the graph.

EXAMPLE 3 Write a function rule for a graph Write a rule for the function represented by the graph. Identify the domain and the range of the function. SOLUTION STEP 1 Make a table for the graph. x 1 2 3 4 5 y 2 3 4 5 6

EXAMPLE 3 Write a function rule for a graph STEP 2 Find a relationship between the inputs and the outputs. Notice from the table that each output value is 1 more than the corresponding input value. STEP 3 Write a function rule that describes the relationship: y = x + 1. ANSWER A rule for the function is y = x + 1. The domain of the function is 1, 2, 3, 4, and 5. The range is 2, 3, 4, 5, and 6.

GUIDED PRACTICE for Example 3 Write a rule for the function represented by the graph. Identify the domain and the range of the function. 3. ANSWER y = 5 – x; domain: 0, 1, 2, 3, and 4, range: 1, 2, 3, 4, and 5

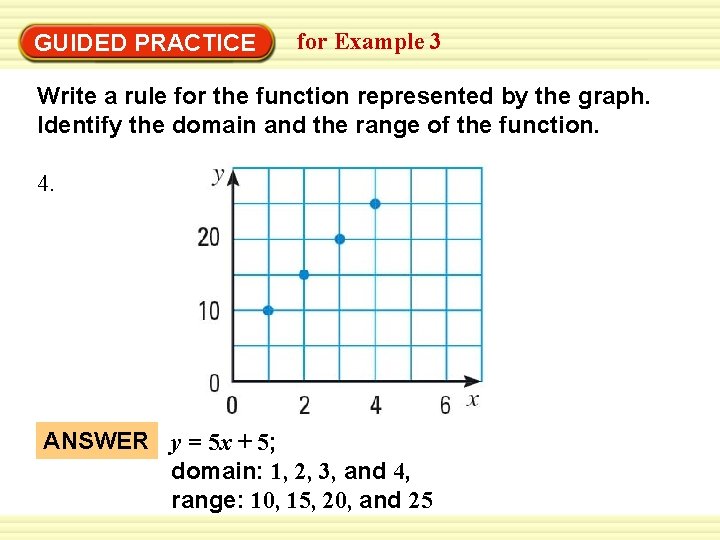

GUIDED PRACTICE for Example 3 Write a rule for the function represented by the graph. Identify the domain and the range of the function. 4. ANSWER y = 5 x + 5; domain: 1, 2, 3, and 4, range: 10, 15, 20, and 25

EXAMPLE 4 Analyze a graph Guitar Sales The graph shows guitar sales (in millions of dollars) for a chain of music stores for the period 1999– 2005. Identify the independent variable and the dependent variable. Describe how sales changed over the period and how you would expect sales in 2006 to compare to sales in 2005.

EXAMPLE 4 Analyze a graph SOLUTION The independent variable is the number of years since 1999. The dependent variable is the sales (in millions of dollars). The graph shows that sales were increasing. If the trend continued, sales would be greater in 2006 than in 2005.

GUIDED PRACTICE for Example 4 5. REASONING Based on the graph in Example 4, is $1. 4 million a reasonable prediction of the chain’s sales for 2006? Explain. ANSWER Yes; the graph seems to increase about $0. 2 million every two years.
