Examination of Peripheral Blood Smear A well Made

Examination of Peripheral Blood Smear

A well Made and well Stained Smear can provide: �Estimates of cell count �Proportions of the different types of WBC �Morphology

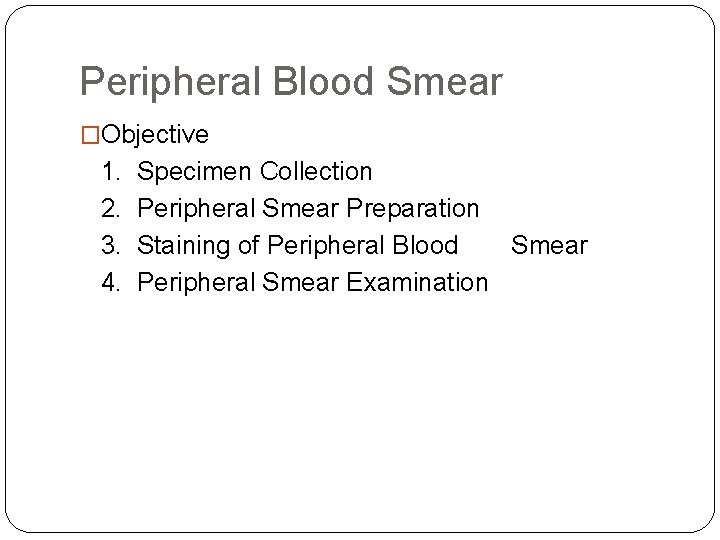

Peripheral Blood Smear �Objective 1. 2. 3. 4. Specimen Collection Peripheral Smear Preparation Staining of Peripheral Blood Smear Peripheral Smear Examination

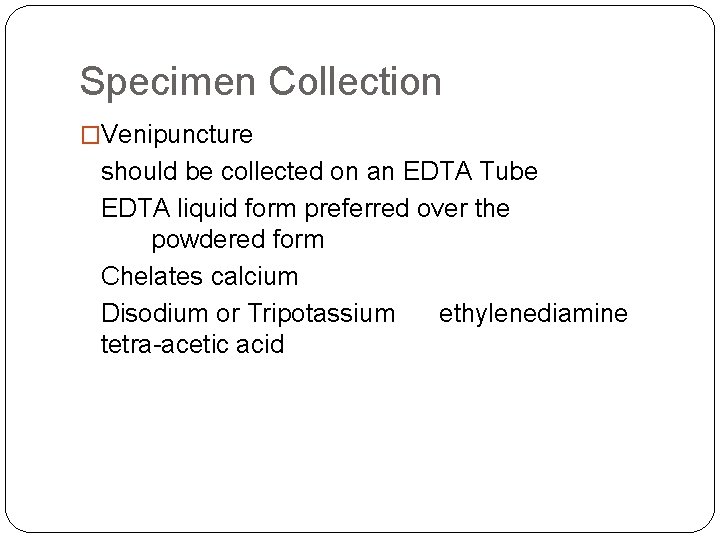

Specimen Collection �Venipuncture should be collected on an EDTA Tube EDTA liquid form preferred over the powdered form Chelates calcium Disodium or Tripotassium ethylenediamine tetra-acetic acid

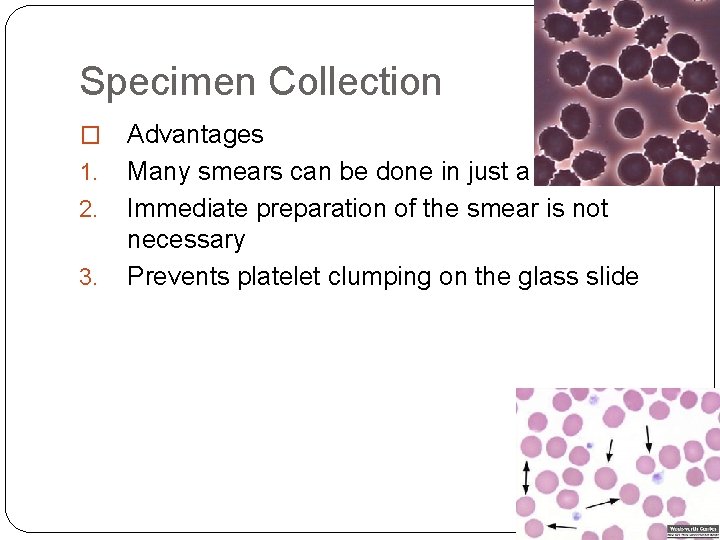

Specimen Collection � 1. 2. 3. Advantages Many smears can be done in just a single draw Immediate preparation of the smear is not necessary Prevents platelet clumping on the glass slide

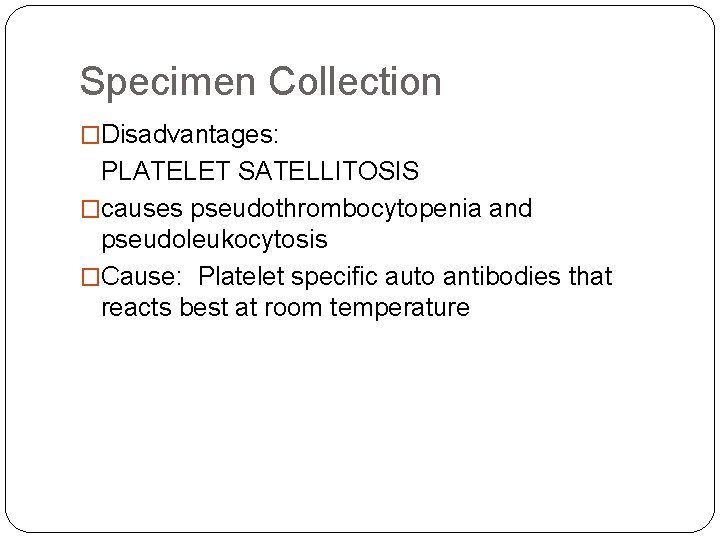

Specimen Collection �Disadvantages: PLATELET SATELLITOSIS �causes pseudothrombocytopenia and pseudoleukocytosis �Cause: Platelet specific auto antibodies that reacts best at room temperature

Specimen Collection �Platelet satellitosis

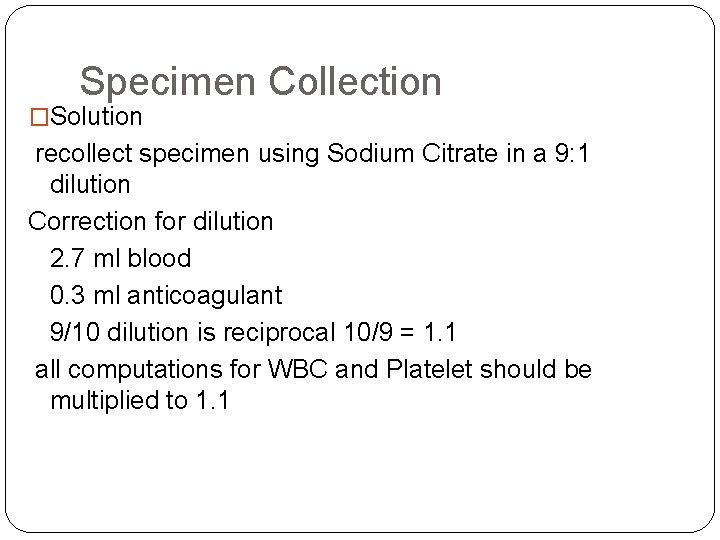

Specimen Collection �Solution recollect specimen using Sodium Citrate in a 9: 1 dilution Correction for dilution 2. 7 ml blood 0. 3 ml anticoagulant 9/10 dilution is reciprocal 10/9 = 1. 1 all computations for WBC and Platelet should be multiplied to 1. 1

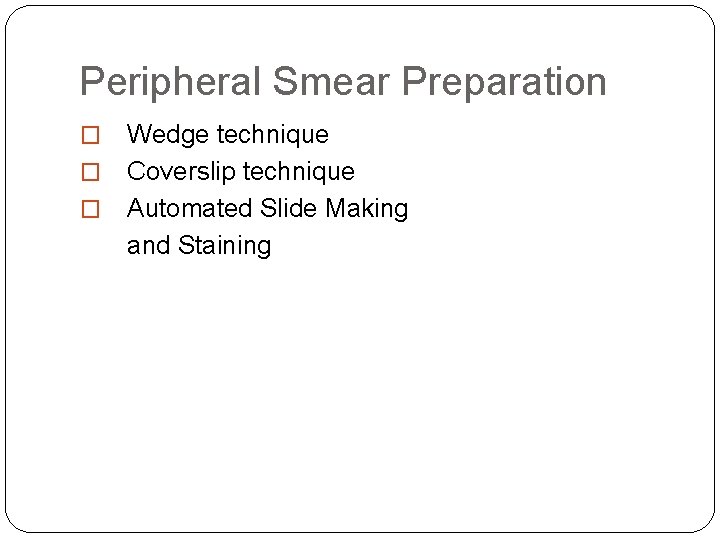

Peripheral Smear Preparation Wedge technique � Coverslip technique � Automated Slide Making and Staining �

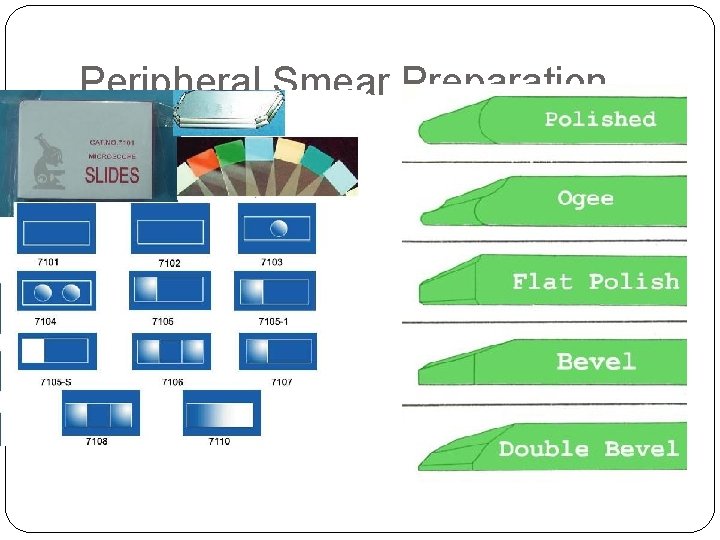

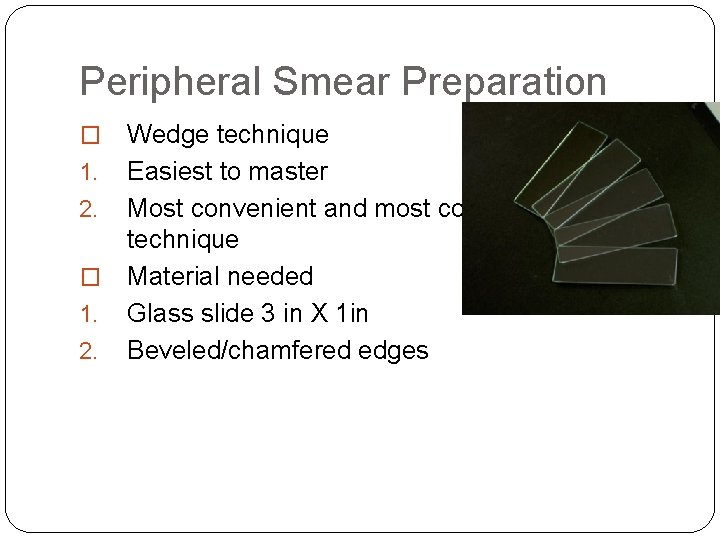

Peripheral Smear Preparation Wedge technique 1. Easiest to master 2. Most convenient and most commonly used technique � Material needed 1. Glass slide 3 in X 1 in 2. Beveled/chamfered edges �

Peripheral Smear Preparation

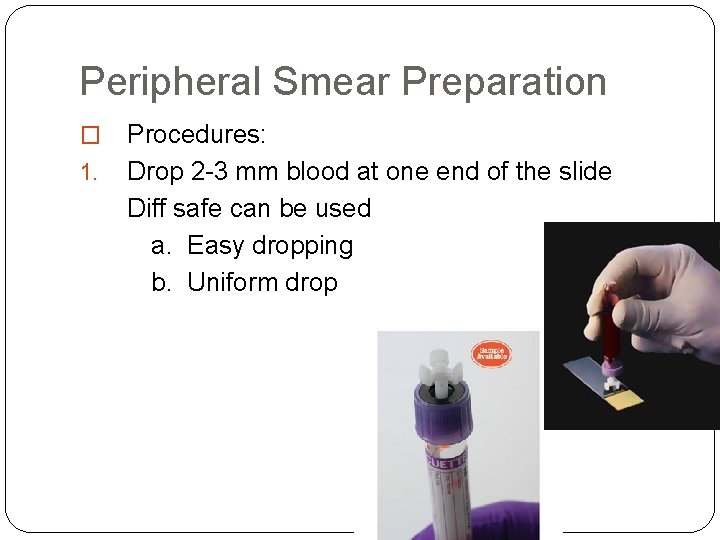

Peripheral Smear Preparation � 1. Procedures: Drop 2 -3 mm blood at one end of the slide Diff safe can be used a. Easy dropping b. Uniform drop

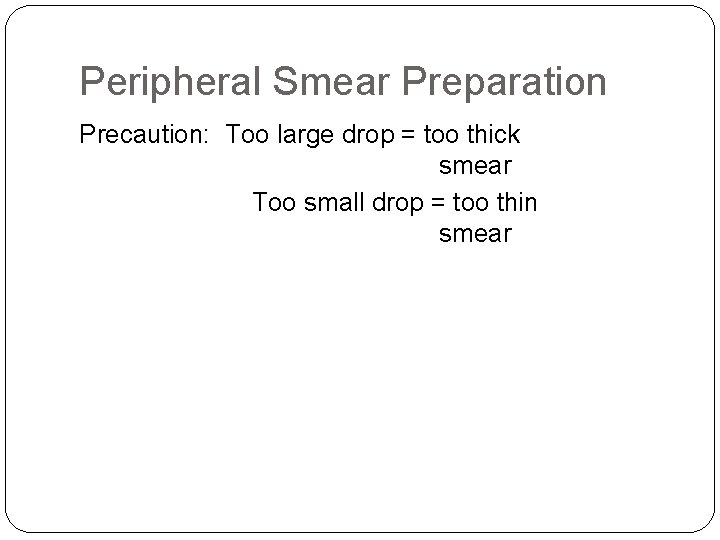

Peripheral Smear Preparation Precaution: Too large drop = too thick smear Too small drop = too thin smear

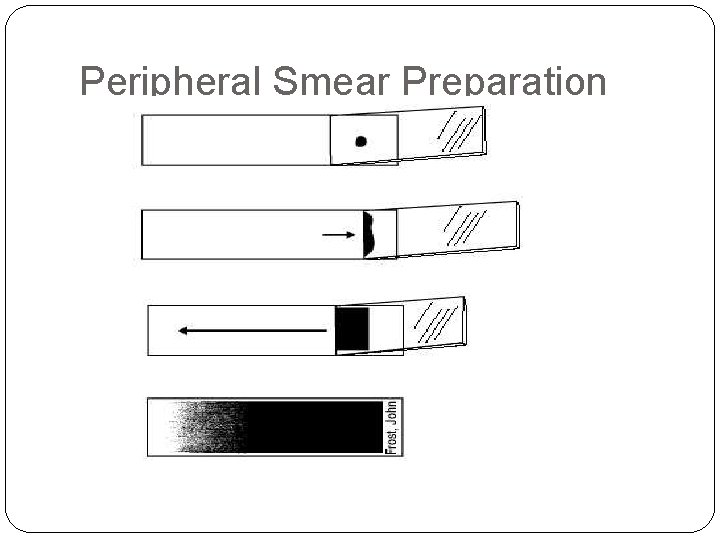

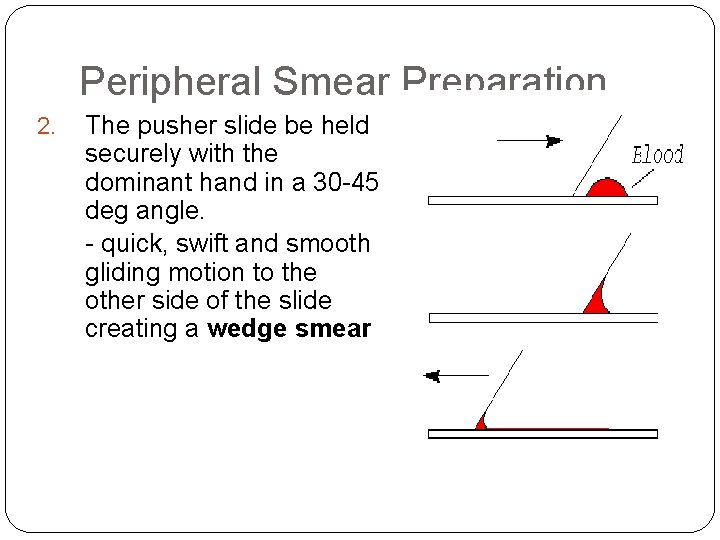

Peripheral Smear Preparation 2. The pusher slide be held securely with the dominant hand in a 30 -45 deg angle. - quick, swift and smooth gliding motion to the other side of the slide creating a wedge smear

Peripheral Smear Preparation

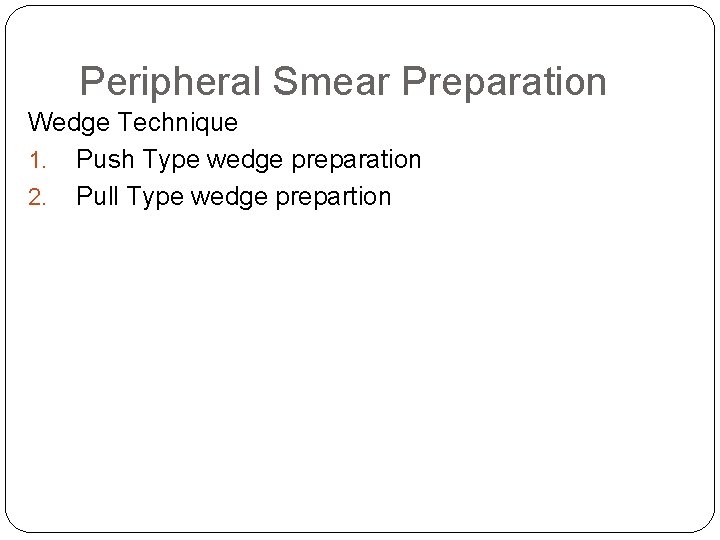

Peripheral Smear Preparation Wedge Technique 1. Push Type wedge preparation 2. Pull Type wedge prepartion

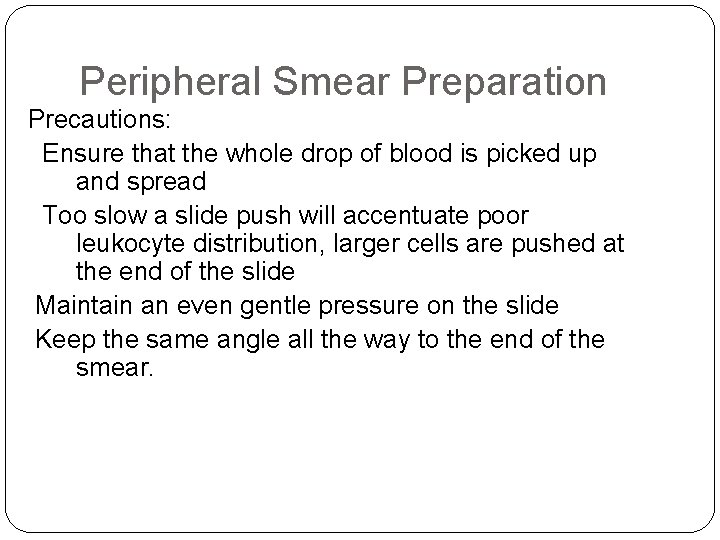

Peripheral Smear Preparation Precautions: Ensure that the whole drop of blood is picked up and spread Too slow a slide push will accentuate poor leukocyte distribution, larger cells are pushed at the end of the slide Maintain an even gentle pressure on the slide Keep the same angle all the way to the end of the smear.

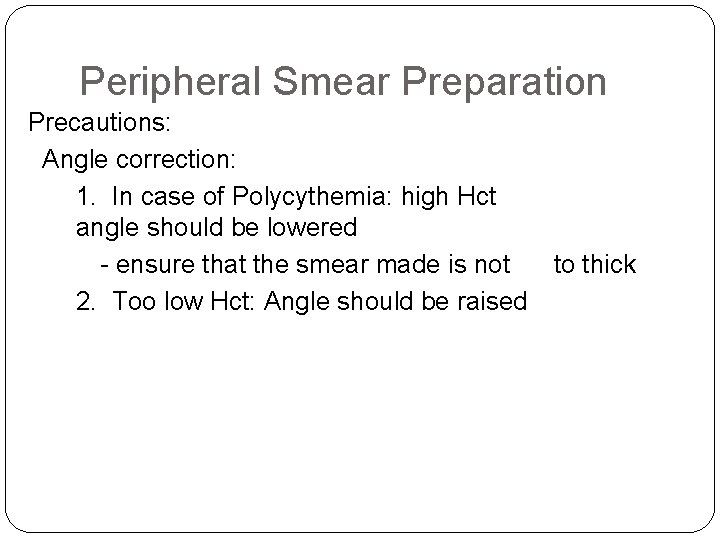

Peripheral Smear Preparation Precautions: Angle correction: 1. In case of Polycythemia: high Hct angle should be lowered - ensure that the smear made is not to thick 2. Too low Hct: Angle should be raised

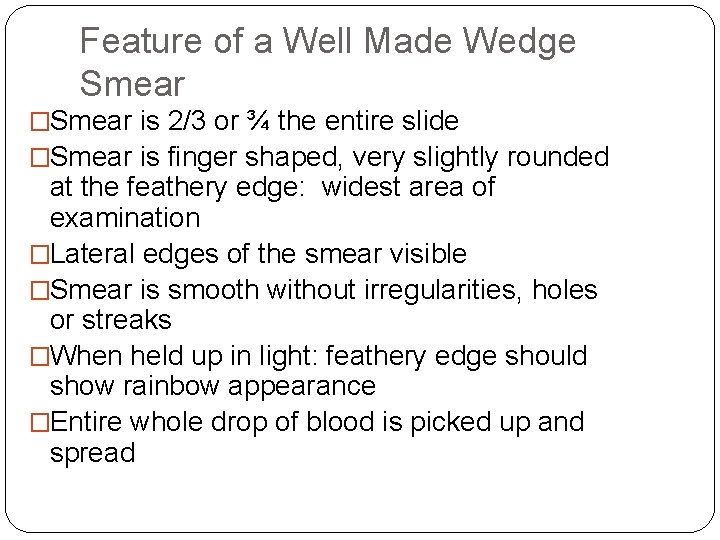

Feature of a Well Made Wedge Smear �Smear is 2/3 or ¾ the entire slide �Smear is finger shaped, very slightly rounded at the feathery edge: widest area of examination �Lateral edges of the smear visible �Smear is smooth without irregularities, holes or streaks �When held up in light: feathery edge should show rainbow appearance �Entire whole drop of blood is picked up and spread

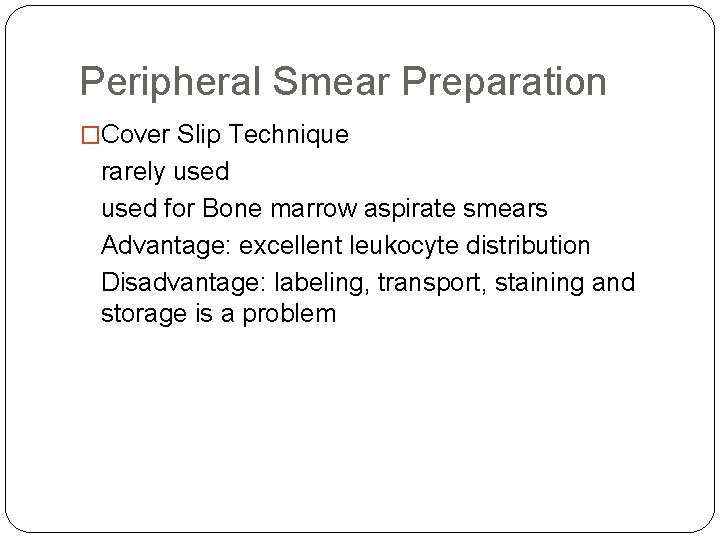

Peripheral Smear Preparation �Cover Slip Technique rarely used for Bone marrow aspirate smears Advantage: excellent leukocyte distribution Disadvantage: labeling, transport, staining and storage is a problem

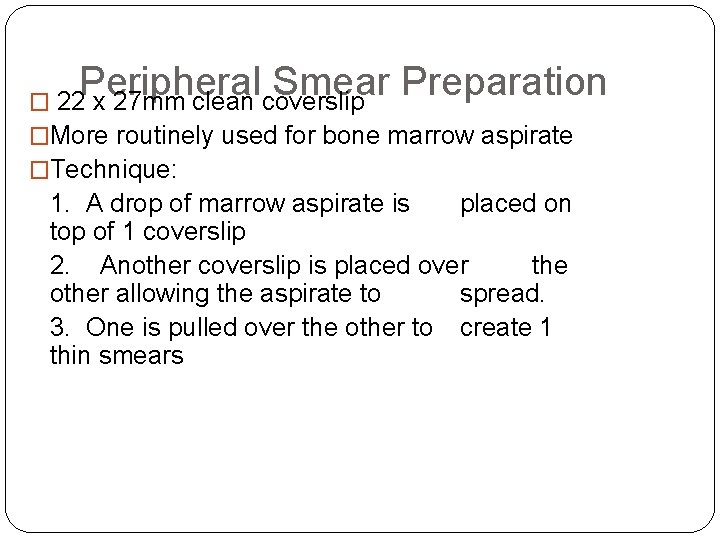

Peripheral Smear Preparation � 22 x 27 mm clean coverslip �More routinely used for bone marrow aspirate �Technique: 1. A drop of marrow aspirate is placed on top of 1 coverslip 2. Another coverslip is placed over the other allowing the aspirate to spread. 3. One is pulled over the other to create 1 thin smears

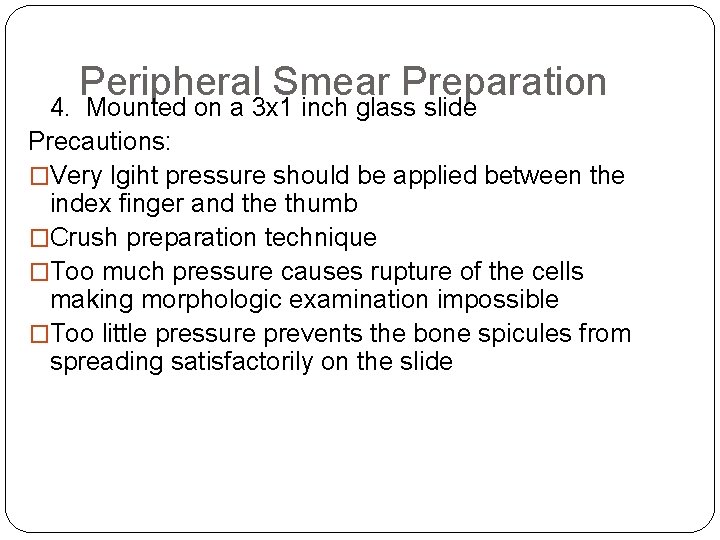

Peripheral Smear Preparation 4. Mounted on a 3 x 1 inch glass slide Precautions: �Very lgiht pressure should be applied between the index finger and the thumb �Crush preparation technique �Too much pressure causes rupture of the cells making morphologic examination impossible �Too little pressure prevents the bone spicules from spreading satisfactorily on the slide

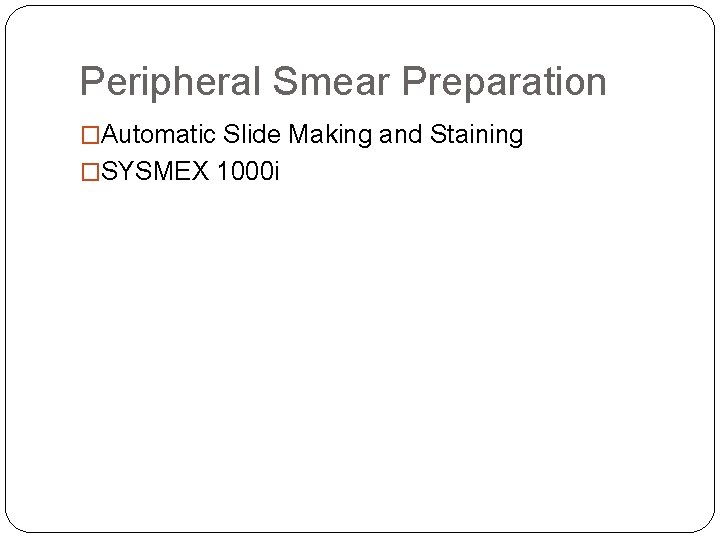

Peripheral Smear Preparation �Automatic Slide Making and Staining �SYSMEX 1000 i

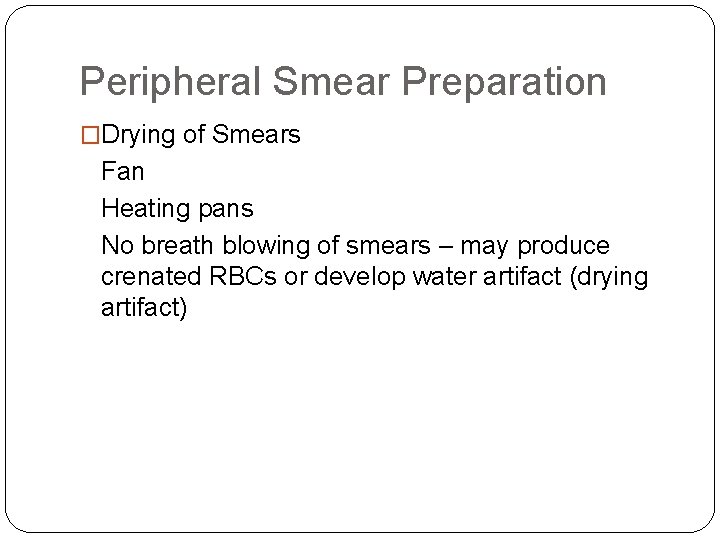

Peripheral Smear Preparation �Drying of Smears Fan Heating pans No breath blowing of smears – may produce crenated RBCs or develop water artifact (drying artifact)

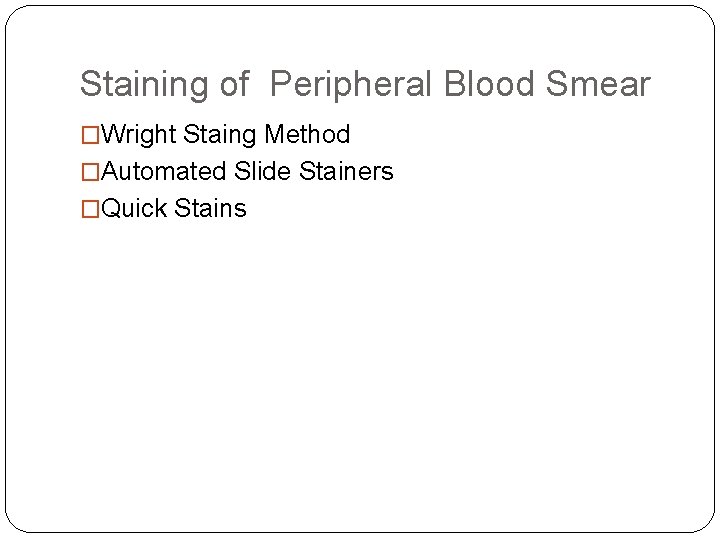

Staining of Peripheral Blood Smear �Wright Staing Method �Automated Slide Stainers �Quick Stains

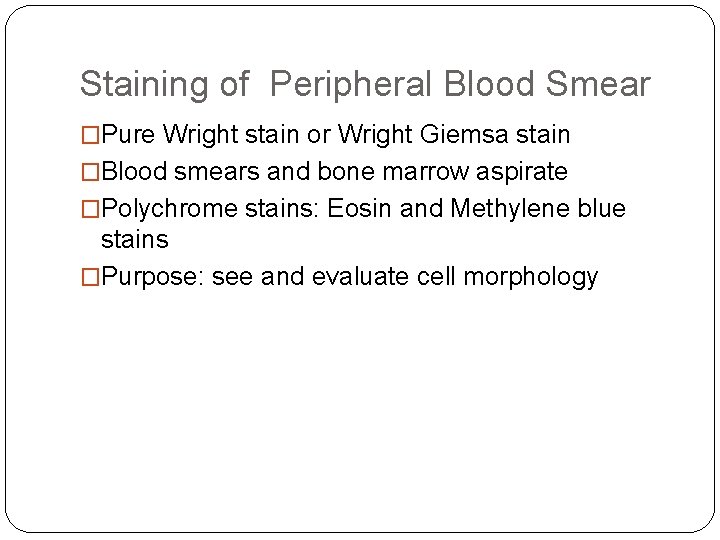

Staining of Peripheral Blood Smear �Pure Wright stain or Wright Giemsa stain �Blood smears and bone marrow aspirate �Polychrome stains: Eosin and Methylene blue stains �Purpose: see and evaluate cell morphology

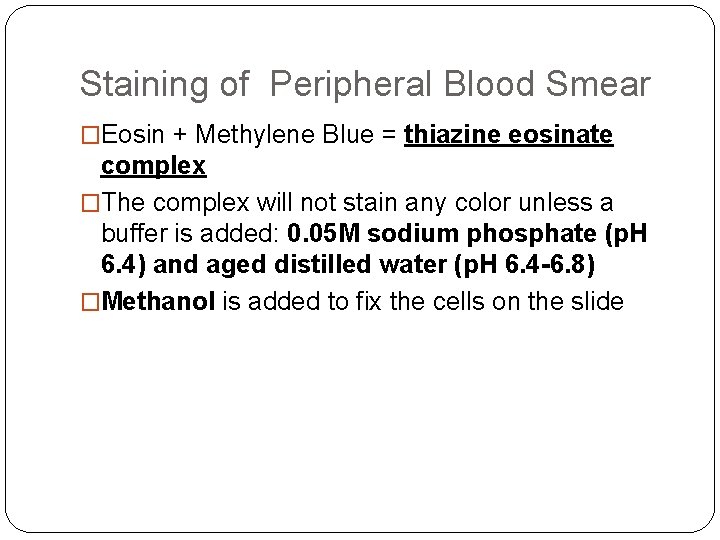

Staining of Peripheral Blood Smear �Eosin + Methylene Blue = thiazine eosinate complex �The complex will not stain any color unless a buffer is added: 0. 05 M sodium phosphate (p. H 6. 4) and aged distilled water (p. H 6. 4 -6. 8) �Methanol is added to fix the cells on the slide

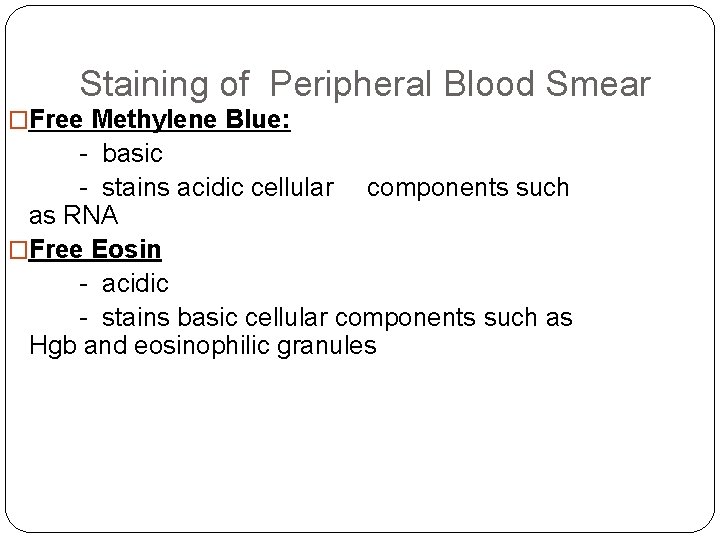

Staining of Peripheral Blood Smear �Free Methylene Blue: - basic - stains acidic cellular components such as RNA �Free Eosin - acidic - stains basic cellular components such as Hgb and eosinophilic granules

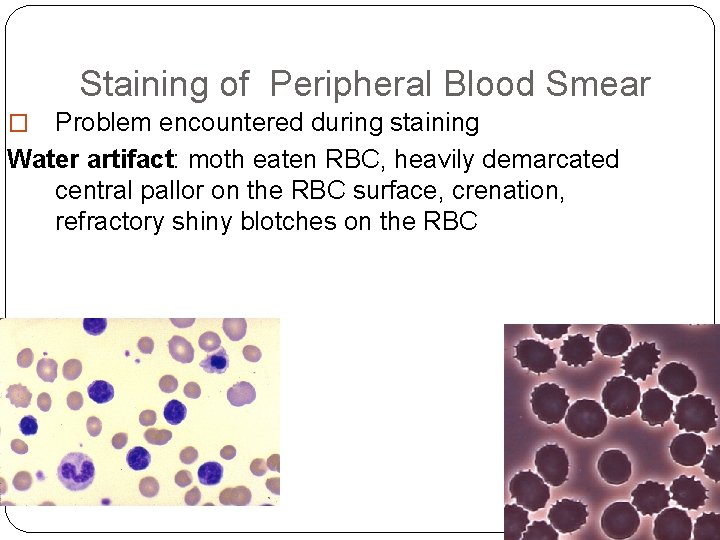

Staining of Peripheral Blood Smear Problem encountered during staining Water artifact: moth eaten RBC, heavily demarcated central pallor on the RBC surface, crenation, refractory shiny blotches on the RBC �

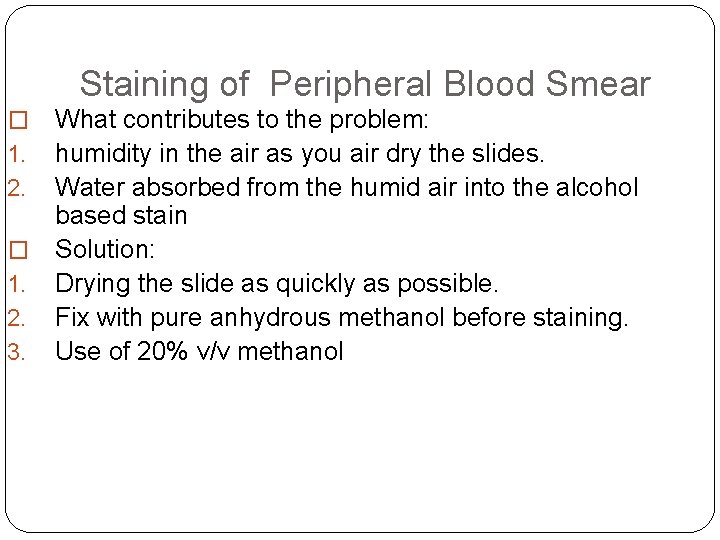

Staining of Peripheral Blood Smear What contributes to the problem: humidity in the air as you air dry the slides. Water absorbed from the humid air into the alcohol based stain � Solution: 1. Drying the slide as quickly as possible. 2. Fix with pure anhydrous methanol before staining. 3. Use of 20% v/v methanol � 1. 2.

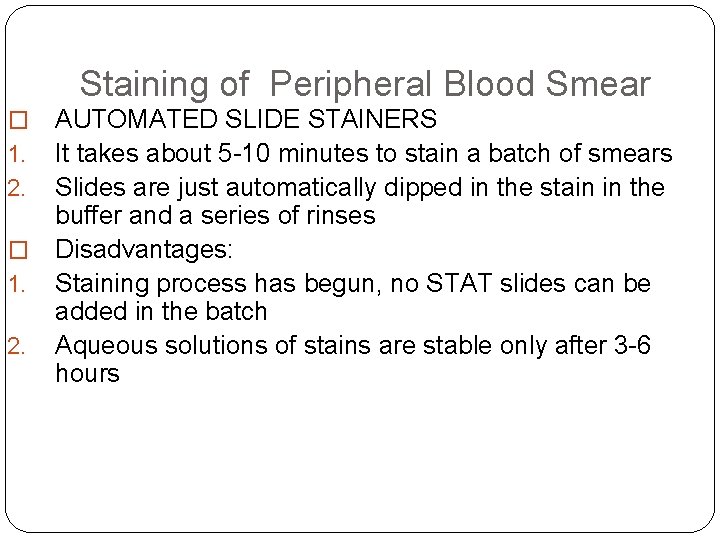

Staining of Peripheral Blood Smear AUTOMATED SLIDE STAINERS It takes about 5 -10 minutes to stain a batch of smears Slides are just automatically dipped in the stain in the buffer and a series of rinses � Disadvantages: 1. Staining process has begun, no STAT slides can be added in the batch 2. Aqueous solutions of stains are stable only after 3 -6 hours � 1. 2.

Staining of Peripheral Blood Smear HEMA-TEK STAINER

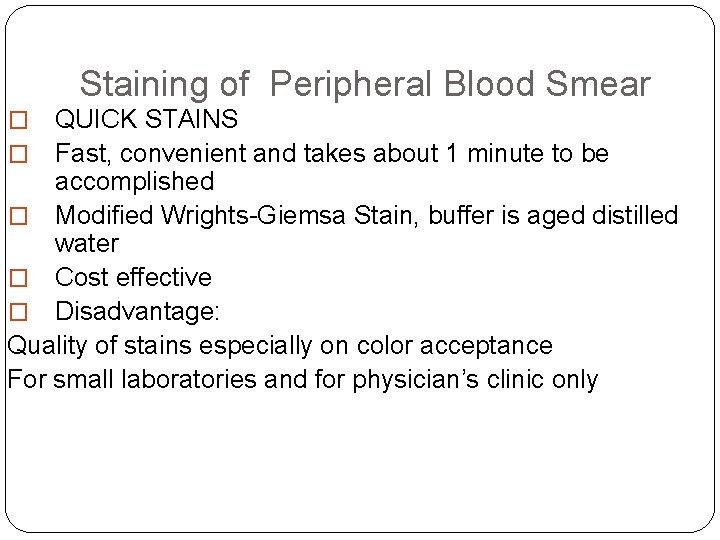

Staining of Peripheral Blood Smear QUICK STAINS Fast, convenient and takes about 1 minute to be accomplished � Modified Wrights-Giemsa Stain, buffer is aged distilled water � Cost effective � Disadvantage: Quality of stains especially on color acceptance For small laboratories and for physician’s clinic only � �

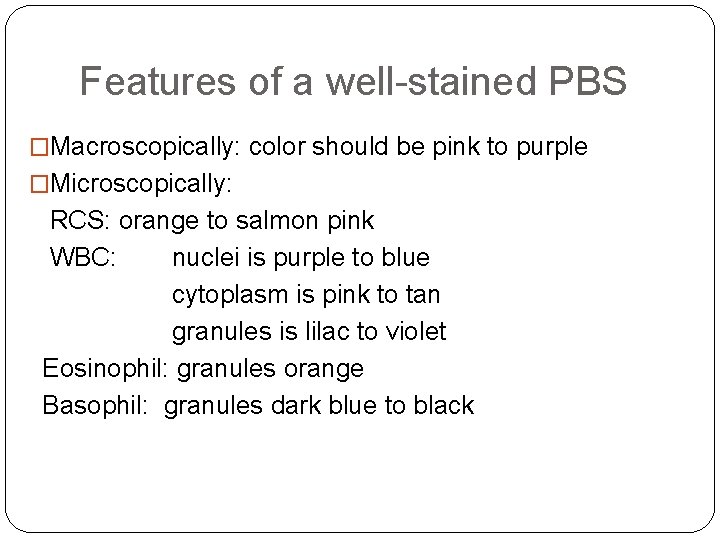

Features of a well-stained PBS �Macroscopically: color should be pink to purple �Microscopically: RCS: orange to salmon pink WBC: nuclei is purple to blue cytoplasm is pink to tan granules is lilac to violet Eosinophil: granules orange Basophil: granules dark blue to black

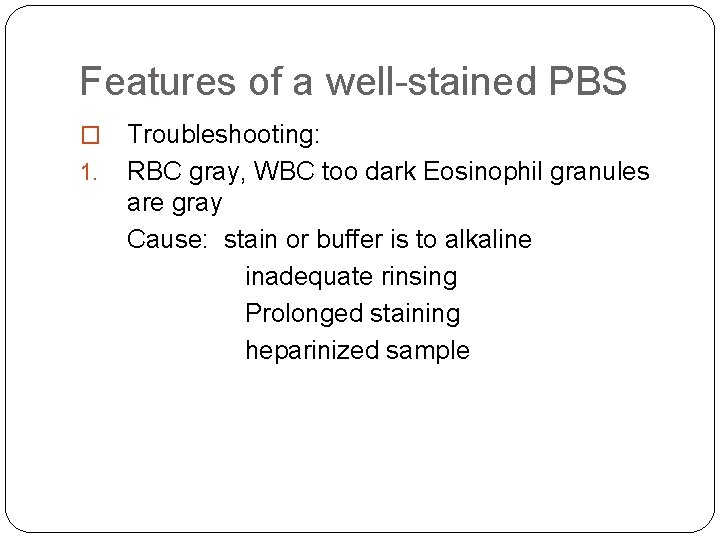

Features of a well-stained PBS � 1. Troubleshooting: RBC gray, WBC too dark Eosinophil granules are gray Cause: stain or buffer is to alkaline inadequate rinsing Prolonged staining heparinized sample

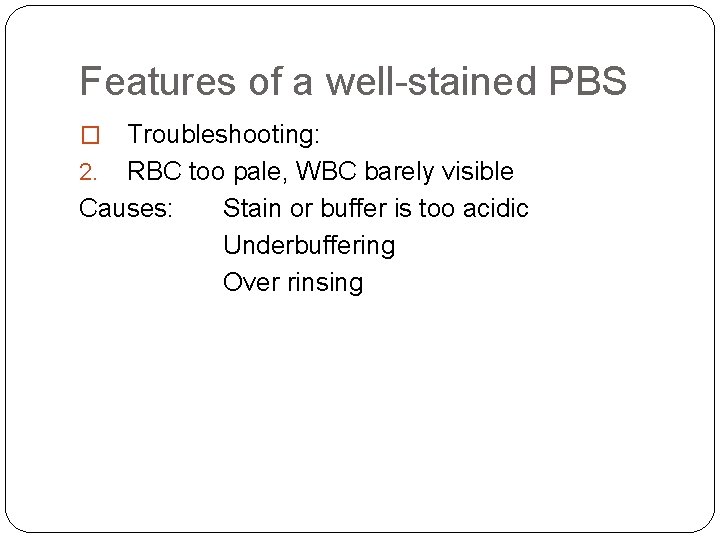

Features of a well-stained PBS Troubleshooting: 2. RBC too pale, WBC barely visible Causes: Stain or buffer is too acidic Underbuffering Over rinsing �

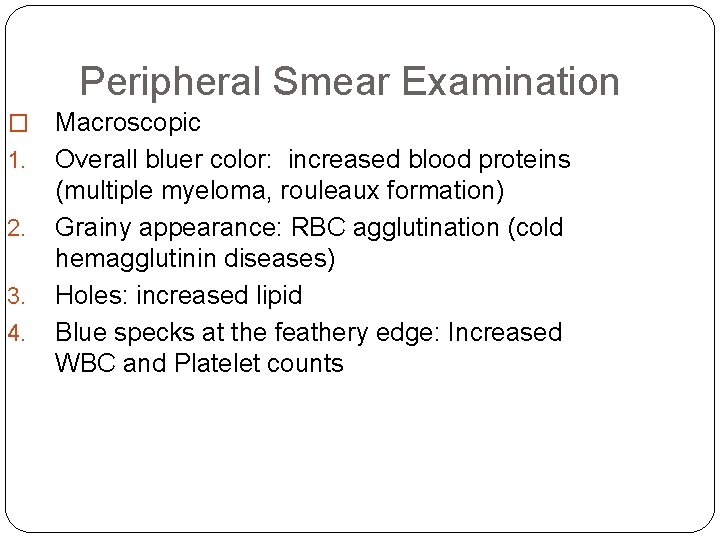

Peripheral Smear Examination � 1. 2. 3. 4. Macroscopic Overall bluer color: increased blood proteins (multiple myeloma, rouleaux formation) Grainy appearance: RBC agglutination (cold hemagglutinin diseases) Holes: increased lipid Blue specks at the feathery edge: Increased WBC and Platelet counts

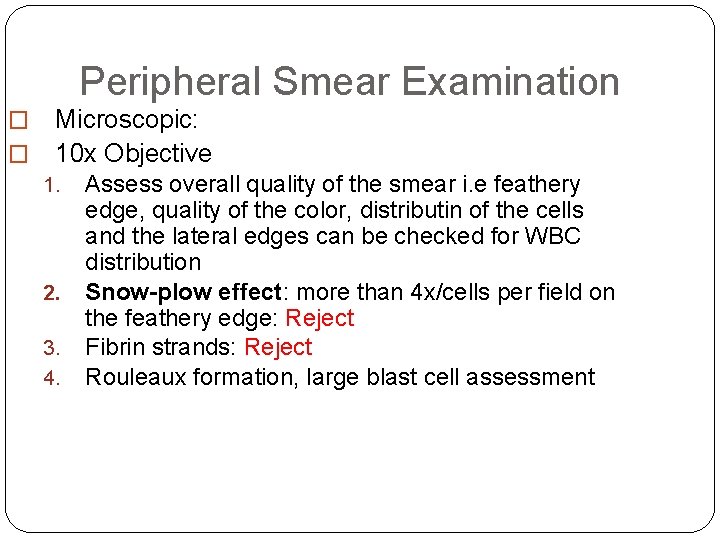

Peripheral Smear Examination � � Microscopic: 10 x Objective 1. 2. 3. 4. Assess overall quality of the smear i. e feathery edge, quality of the color, distributin of the cells and the lateral edges can be checked for WBC distribution Snow-plow effect: more than 4 x/cells per field on the feathery edge: Reject Fibrin strands: Reject Rouleaux formation, large blast cell assessment

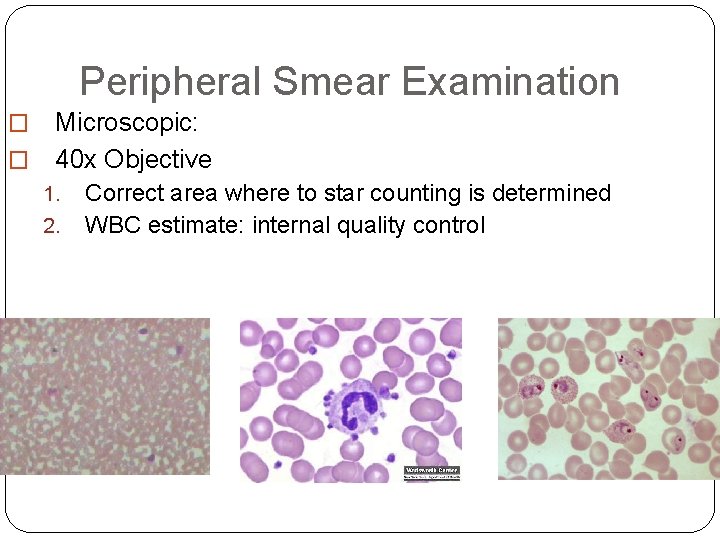

Peripheral Smear Examination Microscopic: � 40 x Objective � 1. 2. Correct area where to star counting is determined WBC estimate: internal quality control

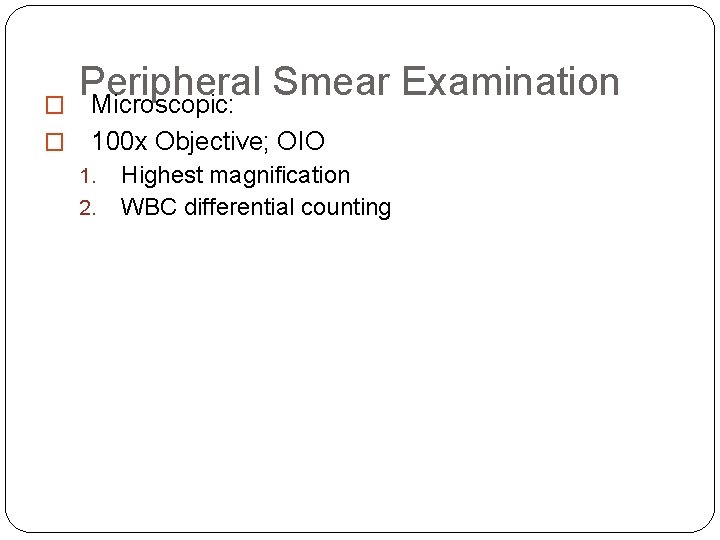

� � Peripheral Smear Examination Microscopic: 100 x Objective; OIO 1. 2. Highest magnification WBC differential counting

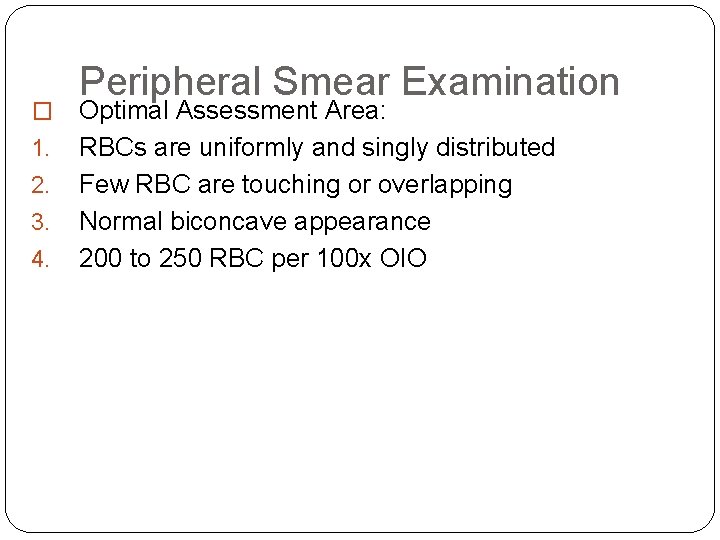

� 1. 2. 3. 4. Peripheral Smear Examination Optimal Assessment Area: RBCs are uniformly and singly distributed Few RBC are touching or overlapping Normal biconcave appearance 200 to 250 RBC per 100 x OIO

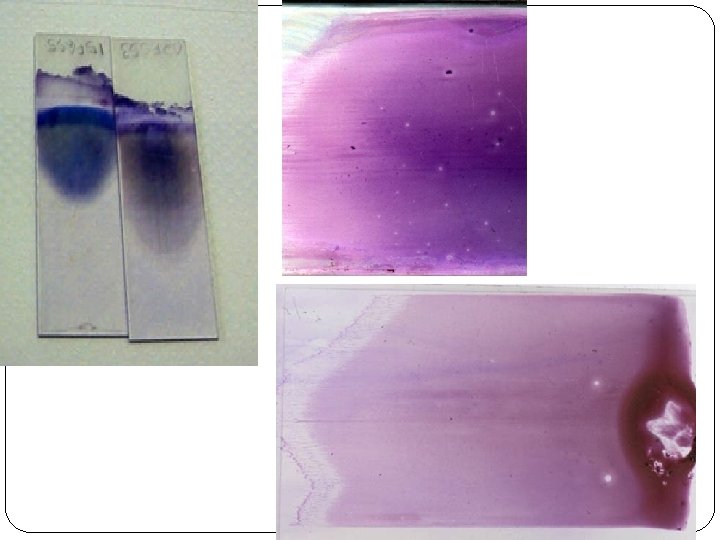

Peripheral Smear Examination �Too thin Too thick

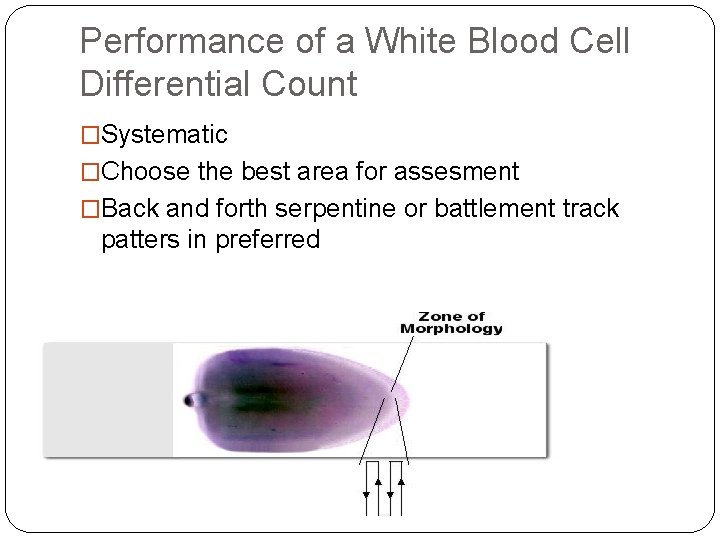

Performance of a White Blood Cell Differential Count �Systematic �Choose the best area for assesment �Back and forth serpentine or battlement track patters in preferred

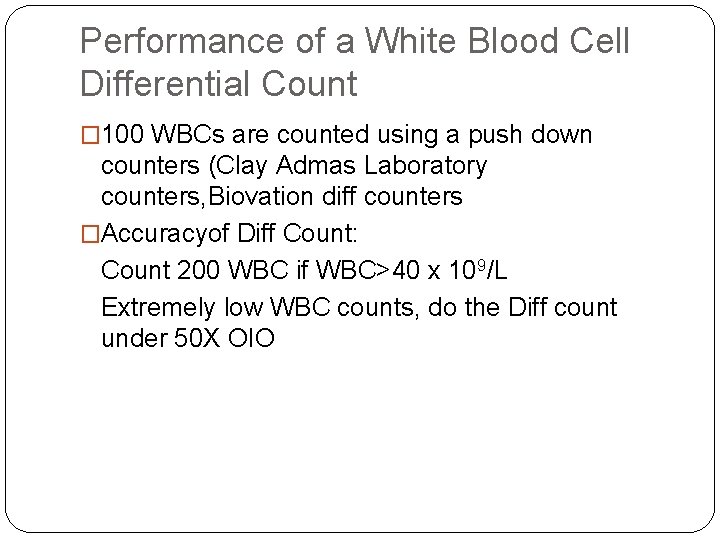

Performance of a White Blood Cell Differential Count � 100 WBCs are counted using a push down counters (Clay Admas Laboratory counters, Biovation diff counters �Accuracyof Diff Count: Count 200 WBC if WBC>40 x 109/L Extremely low WBC counts, do the Diff count under 50 X OIO

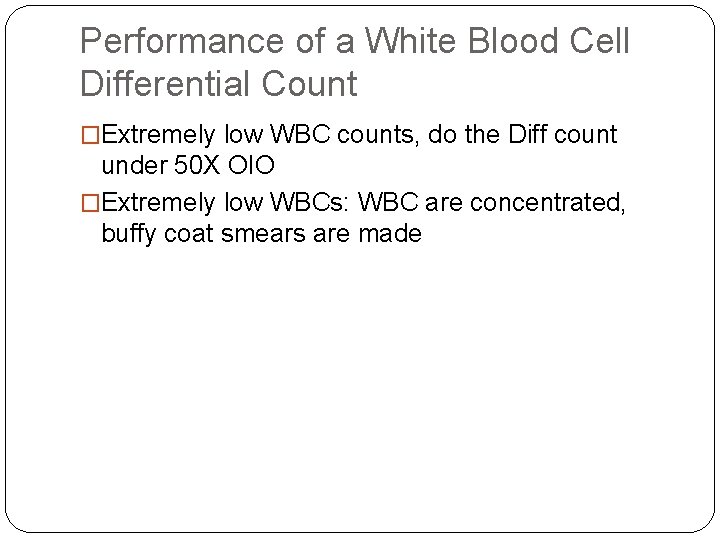

Performance of a White Blood Cell Differential Count �Extremely low WBC counts, do the Diff count under 50 X OIO �Extremely low WBCs: WBC are concentrated, buffy coat smears are made

RBC Morphology Anisocytosis Poikilocytosis Cellular Inclusions

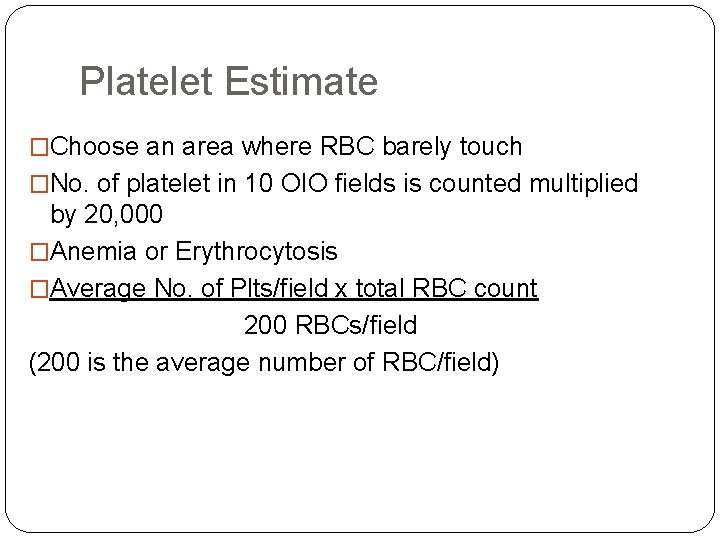

Platelet Estimate �Choose an area where RBC barely touch �No. of platelet in 10 OIO fields is counted multiplied by 20, 000 �Anemia or Erythrocytosis �Average No. of Plts/field x total RBC count 200 RBCs/field (200 is the average number of RBC/field)

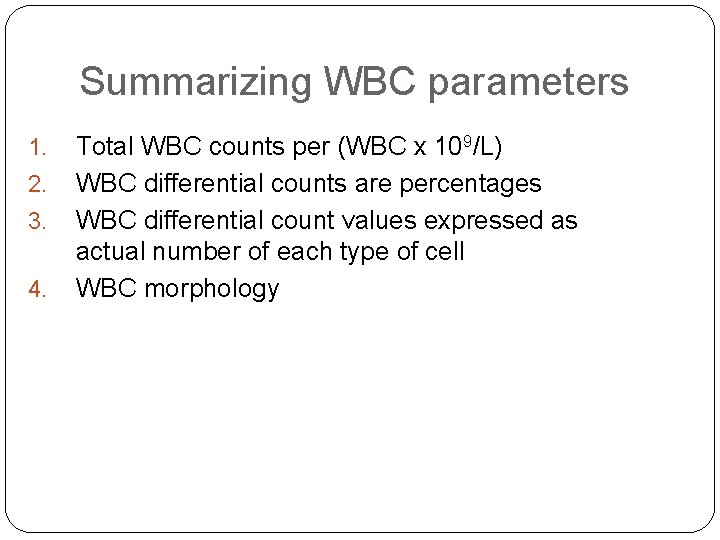

Summarizing WBC parameters 1. 2. 3. 4. Total WBC counts per (WBC x 109/L) WBC differential counts are percentages WBC differential count values expressed as actual number of each type of cell WBC morphology

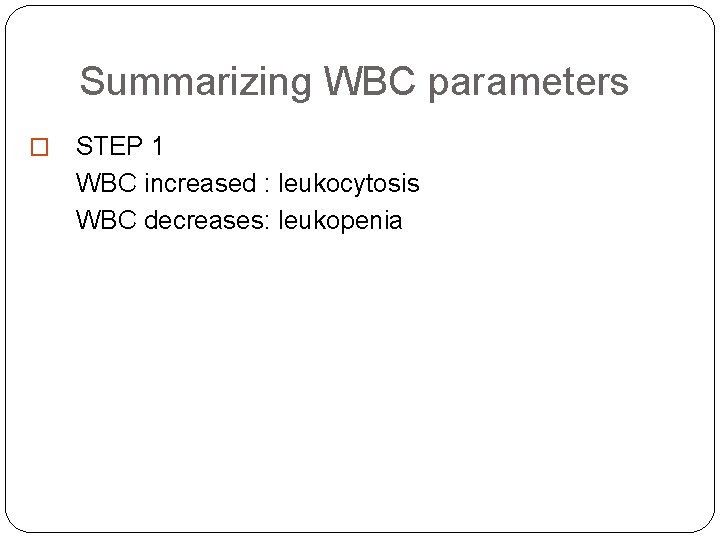

Summarizing WBC parameters � STEP 1 WBC increased : leukocytosis WBC decreases: leukopenia

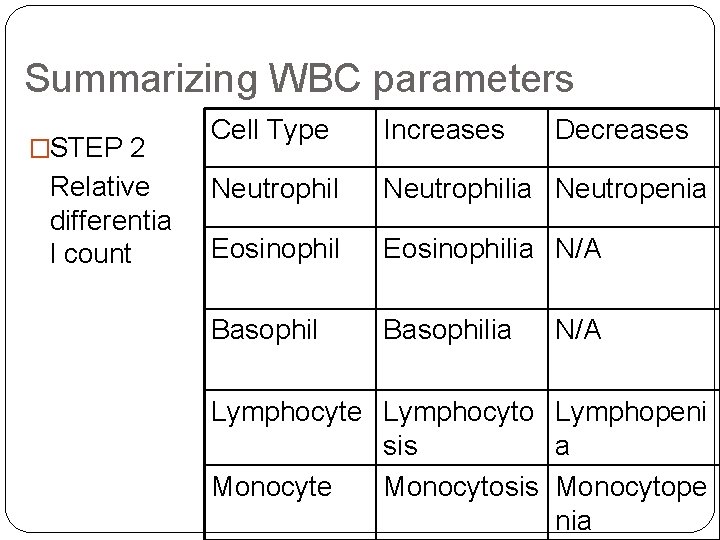

Summarizing WBC parameters �STEP 2 Relative differentia l count Cell Type Increases Decreases Neutrophilia Neutropenia Eosinophilia N/A Basophilia N/A Lymphocyte Lymphocyto Lymphopeni sis a Monocyte Monocytosis Monocytope nia

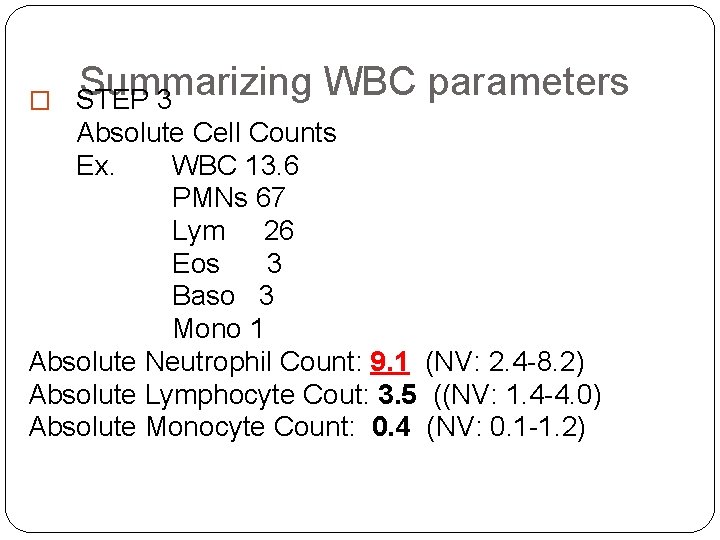

� Summarizing WBC parameters STEP 3 Absolute Cell Counts Ex. WBC 13. 6 PMNs 67 Lym 26 Eos 3 Baso 3 Mono 1 Absolute Neutrophil Count: 9. 1 (NV: 2. 4 -8. 2) Absolute Lymphocyte Cout: 3. 5 ((NV: 1. 4 -4. 0) Absolute Monocyte Count: 0. 4 (NV: 0. 1 -1. 2)

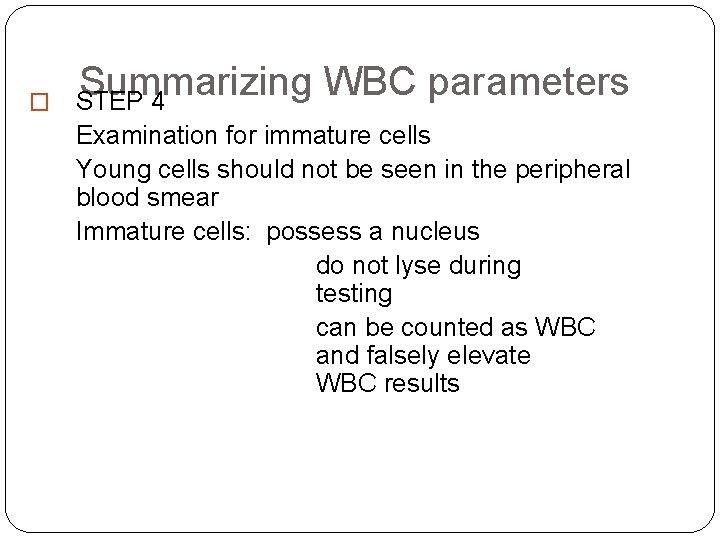

� Summarizing WBC parameters STEP 4 Examination for immature cells Young cells should not be seen in the peripheral blood smear Immature cells: possess a nucleus do not lyse during testing can be counted as WBC and falsely elevate WBC results

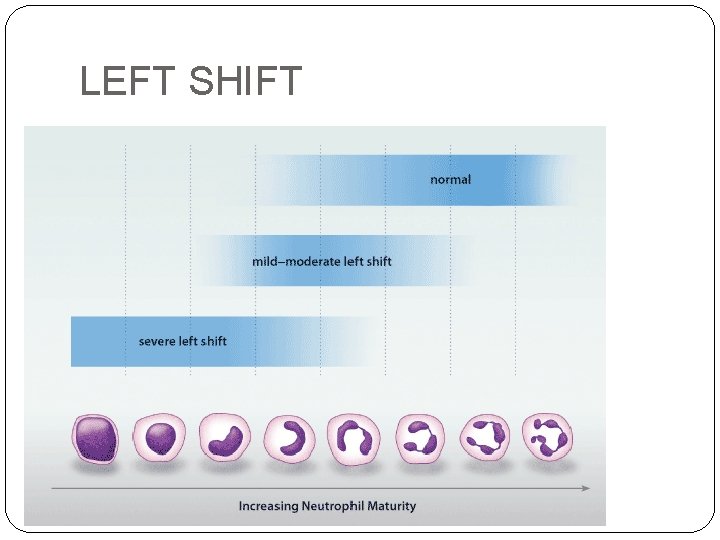

LEFT SHIFT

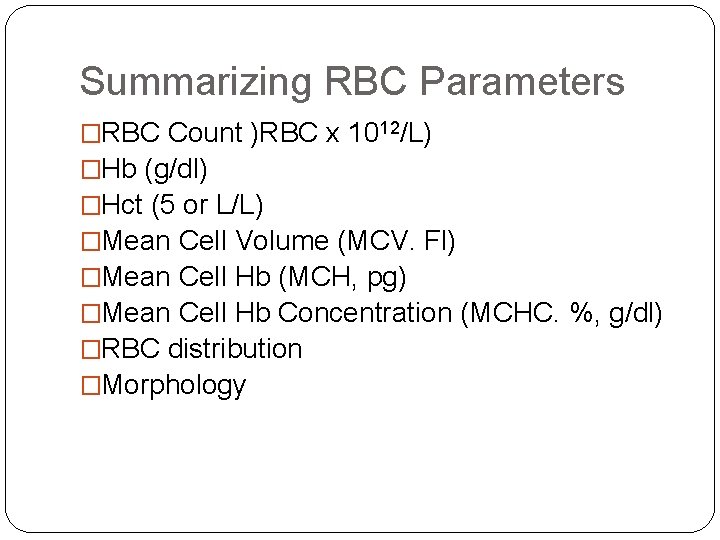

Summarizing RBC Parameters �RBC Count )RBC x 1012/L) �Hb (g/dl) �Hct (5 or L/L) �Mean Cell Volume (MCV. Fl) �Mean Cell Hb (MCH, pg) �Mean Cell Hb Concentration (MCHC. %, g/dl) �RBC distribution �Morphology

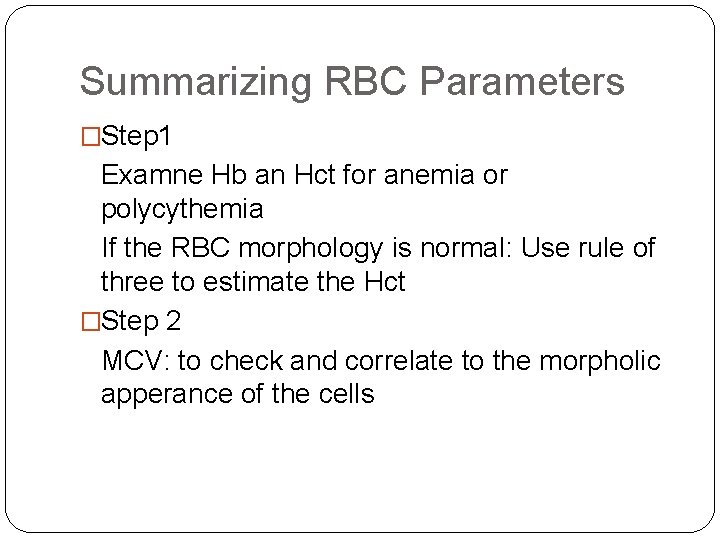

Summarizing RBC Parameters �Step 1 Examne Hb an Hct for anemia or polycythemia If the RBC morphology is normal: Use rule of three to estimate the Hct �Step 2 MCV: to check and correlate to the morpholic apperance of the cells

Summarizing RBC Parameters �Step 3 Examine MCHC Describes how well the cells are filled with Hb Hypochromic, normochromic 2 conditions when MCHC should be evaluated: 1. spherocytosis: slight elevation 2. lipemia/icterus: markedly increase

Summarizing RBC Parameters �Step 4 Examine MCHC Describes how well the cells are filled with Hb Hypochromic, normochromic 2 conditions when MCHC should be evaluated: 1. spherocytosis: slight elevation 2. lipemia/icterus: markedly increase

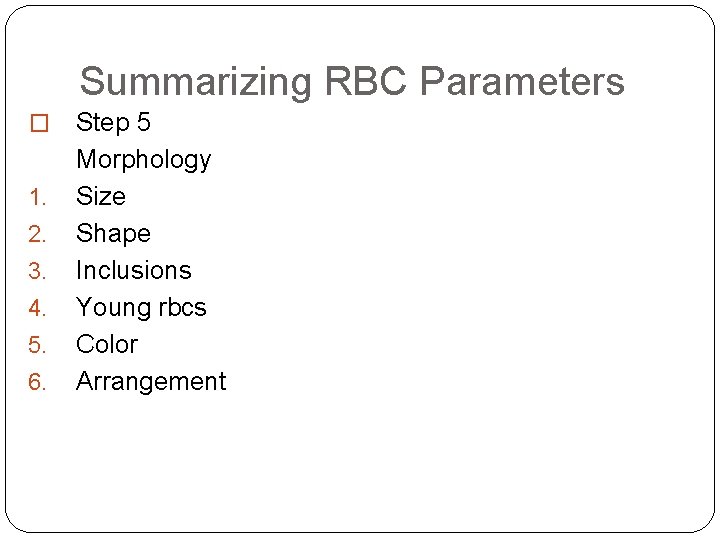

Summarizing RBC Parameters � 1. 2. 3. 4. 5. 6. Step 5 Morphology Size Shape Inclusions Young rbcs Color Arrangement

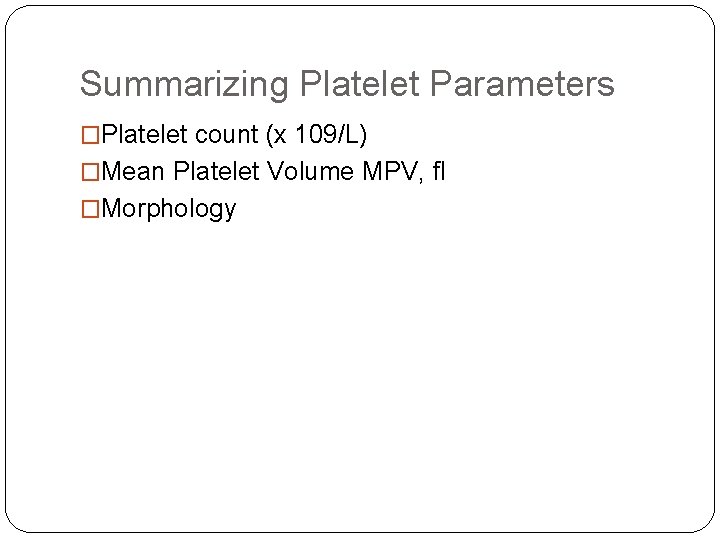

Summarizing Platelet Parameters �Platelet count (x 109/L) �Mean Platelet Volume MPV, fl �Morphology
