EX PbSn EUTECTIC SYSTEM 1 For a 40

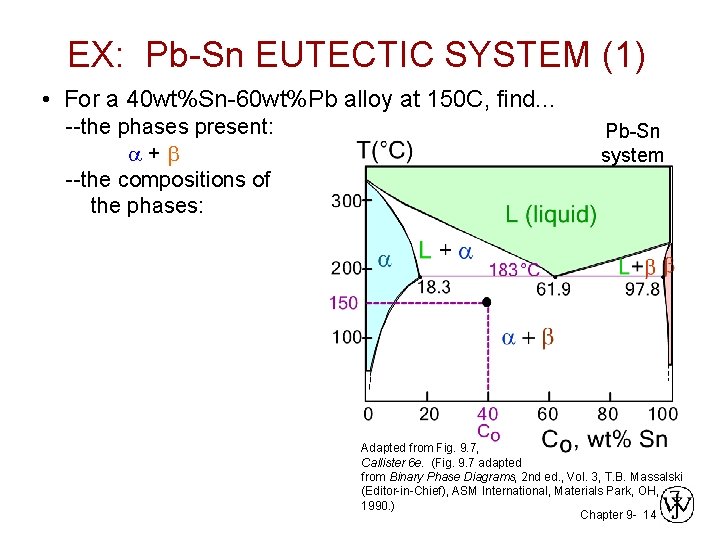

EX: Pb-Sn EUTECTIC SYSTEM (1) • For a 40 wt%Sn-60 wt%Pb alloy at 150 C, find. . . --the phases present: a+b --the compositions of the phases: Pb-Sn system Adapted from Fig. 9. 7, Callister 6 e. (Fig. 9. 7 adapted from Binary Phase Diagrams, 2 nd ed. , Vol. 3, T. B. Massalski (Editor-in-Chief), ASM International, Materials Park, OH, 1990. ) Chapter 9 - 14

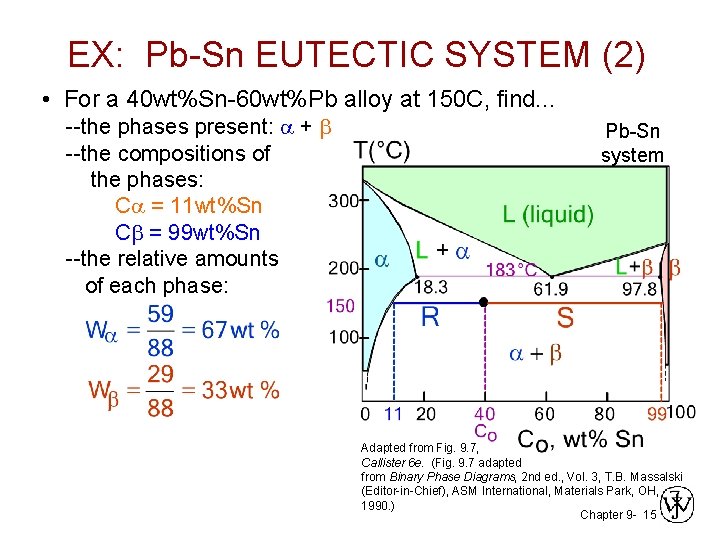

EX: Pb-Sn EUTECTIC SYSTEM (2) • For a 40 wt%Sn-60 wt%Pb alloy at 150 C, find. . . --the phases present: a + b --the compositions of the phases: Ca = 11 wt%Sn Cb = 99 wt%Sn --the relative amounts of each phase: Pb-Sn system Adapted from Fig. 9. 7, Callister 6 e. (Fig. 9. 7 adapted from Binary Phase Diagrams, 2 nd ed. , Vol. 3, T. B. Massalski (Editor-in-Chief), ASM International, Materials Park, OH, 1990. ) Chapter 9 - 15

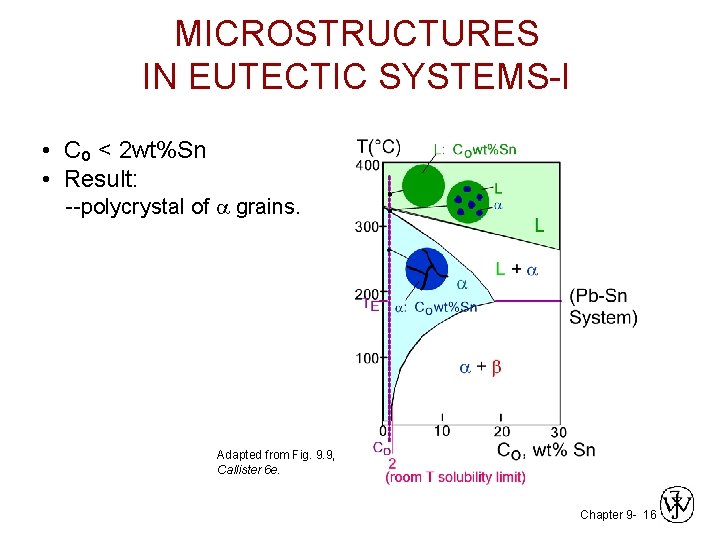

MICROSTRUCTURES IN EUTECTIC SYSTEMS-I • Co < 2 wt%Sn • Result: --polycrystal of a grains. Adapted from Fig. 9. 9, Callister 6 e. Chapter 9 - 16

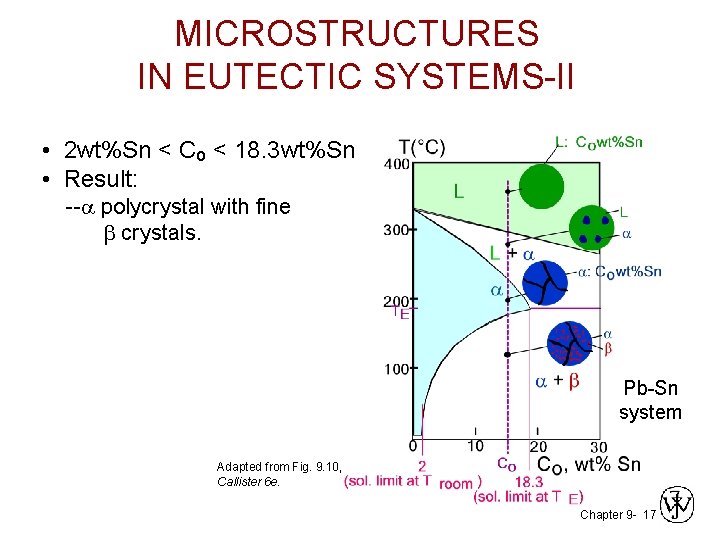

MICROSTRUCTURES IN EUTECTIC SYSTEMS-II • 2 wt%Sn < Co < 18. 3 wt%Sn • Result: --a polycrystal with fine b crystals. Pb-Sn system Adapted from Fig. 9. 10, Callister 6 e. Chapter 9 - 17

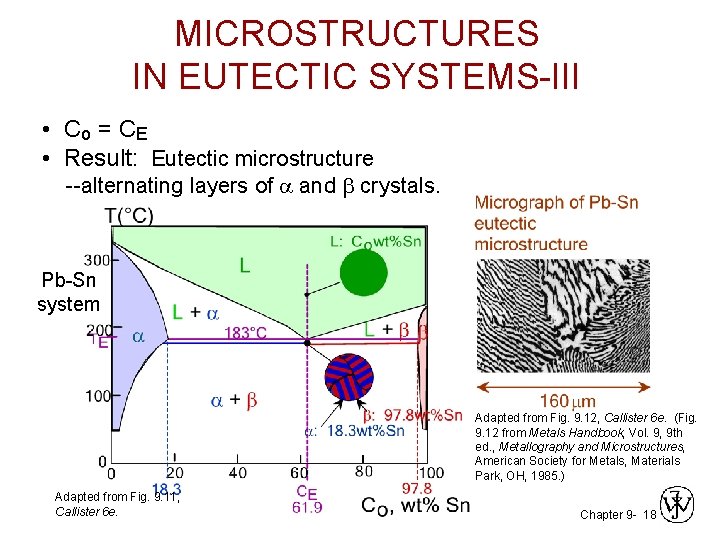

MICROSTRUCTURES IN EUTECTIC SYSTEMS-III • Co = C E • Result: Eutectic microstructure --alternating layers of a and b crystals. Pb-Sn system Adapted from Fig. 9. 12, Callister 6 e. (Fig. 9. 12 from Metals Handbook, Vol. 9, 9 th ed. , Metallography and Microstructures, American Society for Metals, Materials Park, OH, 1985. ) Adapted from Fig. 9. 11, Callister 6 e. Chapter 9 - 18

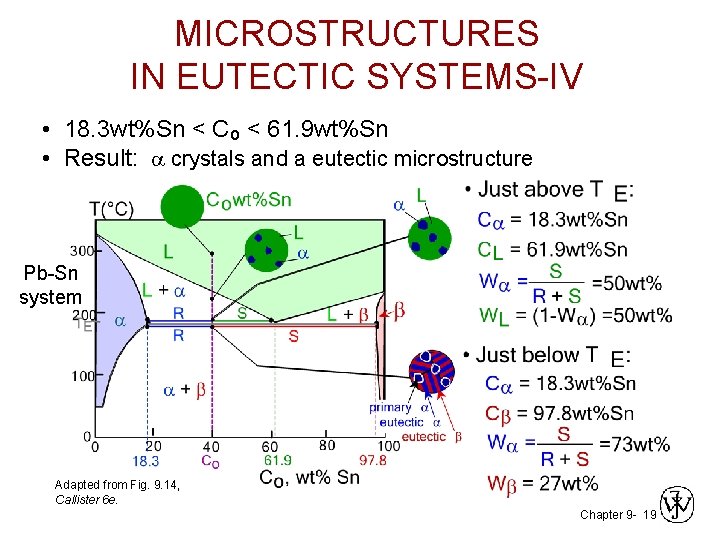

MICROSTRUCTURES IN EUTECTIC SYSTEMS-IV • 18. 3 wt%Sn < Co < 61. 9 wt%Sn • Result: a crystals and a eutectic microstructure Pb-Sn system Adapted from Fig. 9. 14, Callister 6 e. Chapter 9 - 19
