Evolving from VNFs to CNFs VNFs Architecture VNFsPNFs

Evolving from VNFs to CNFs VNFs Architecture VNFs/PNFs CNF Architecture OSS/BSS MANO CNFs Multi-Cloud and/or Bare Metal VNFs OSS/BSS Kube. Virt/Virtlet/ Open. Stack MANO Kubernetes Bare Metal Any Cloud Notes: 1. Several variations of VNF implementation exists on multi-cloud with Standards based OSS/BSS integration through MANO frameworks like ONAP under LF Networking. Current implementations include ONAP running on K 8 s and a variety of Clouds including Openstack 2. CNF Architecture diagram is aligned to ETSI with VIM as K 8 s and options to run CNFs on K 8 s and Bare Metal as well as hybrid (brownfield) scenarios with VNF and CNF on any cloud while still utilizing the Standard de-facto implementation of OSS/BSS on MANO like ONAP. 1 © 2019 Cloud Native Computing Foundation

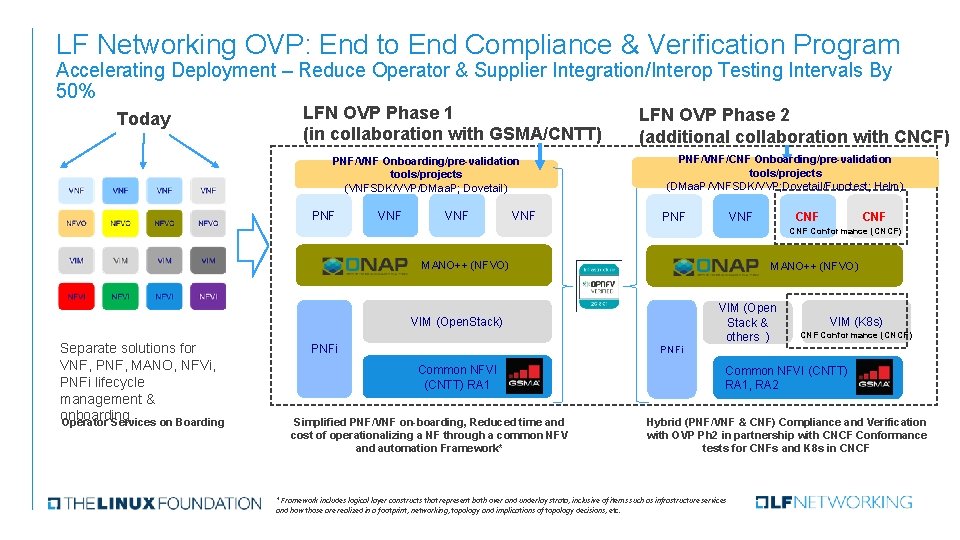

LF Networking OVP: End to End Compliance & Verification Program Accelerating Deployment – Reduce Operator & Supplier Integration/Interop Testing Intervals By 50% Today LFN OVP Phase 1 (in collaboration with GSMA/CNTT) PNF/VNF Onboarding/pre-validation tools/projects (VNFSDK/VVP/DMaa. P; Dovetail) PNF VNF VNF LFN OVP Phase 2 (additional collaboration with CNCF) PNF/VNF/CNF Onboarding/pre-validation tools/projects (DMaa. P/VNFSDK/VVP; Dovetail/Functest; Helm) PNF VNF CNF Conformance (CNCF) MANO++ (NFVO) VIM (Open. Stack) Separate solutions for VNF, PNF, MANO, NFVi, PNFi lifecycle management & onboarding Operator Services on Boarding PNFi Common NFVI (CNTT) RA 1 Simplified PNF/VNF on-boarding, Reduced time and cost of operationalizing a NF through a common NFV and automation Framework* VIM (Open Stack & others ) VIM (K 8 s) CNF Conformance (CNCF) Common NFVI (CNTT) RA 1, RA 2 Hybrid (PNF/VNF & CNF) Compliance and Verification with OVP Ph 2 in partnership with CNCF Conformance tests for CNFs and K 8 s in CNCF * Framework includes logical layer constructs that represent both over and underlay strata, inclusive of items such as infrastructure services and how those are realized in a footprint, networking, topology and implications of topology decisions, etc.
