EVM Setting Condition 1 Setting Default 2 Battery

[EVM Setting] [ Condition ] 1. Setting : Default 2. Battery Voltage : 3. 8 V~3. 9 V CD = High CD = Low

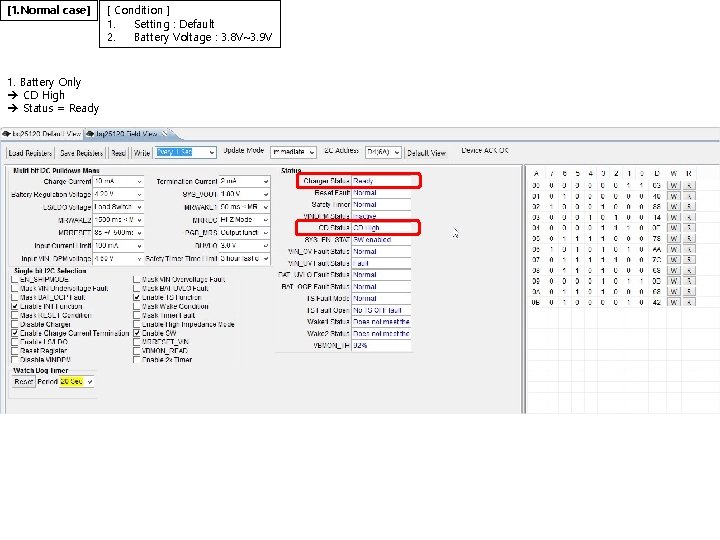

[1. Normal case] 1. Battery Only CD High Status = Ready [ Condition ] 1. Setting : Default 2. Battery Voltage : 3. 8 V~3. 9 V

[1. Normal case] [ Condition ] 1. Setting : Default 2. Battery Voltage : 3. 8 V~3. 9 V 2. VIN 5 V is inserted CD High->Low Status = Charging in Progress

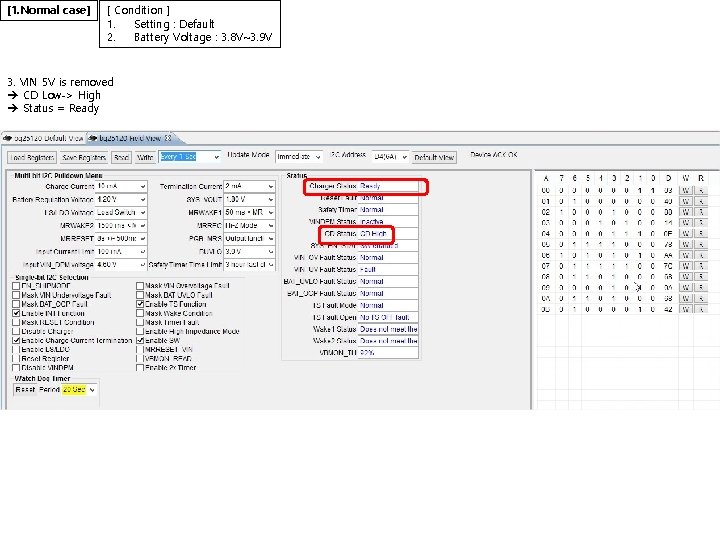

[1. Normal case] [ Condition ] 1. Setting : Default 2. Battery Voltage : 3. 8 V~3. 9 V 3. VIN 5 V is removed CD Low-> High Status = Ready

[1. Normal case] 4. EN_SHIPMODE Power Off [ Condition ] 1. Setting : Default 2. Battery Voltage : 3. 8 V~3. 9 V Power Off by SHIPMODE

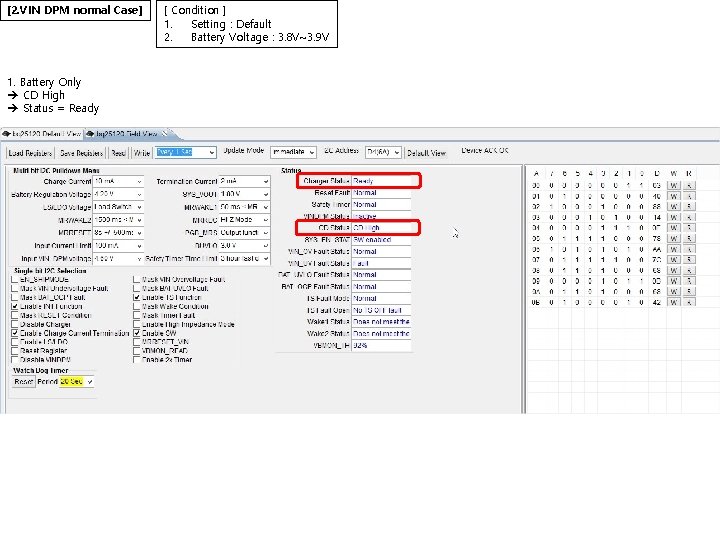

[2. VIN DPM normal Case] 1. Battery Only CD High Status = Ready [ Condition ] 1. Setting : Default 2. Battery Voltage : 3. 8 V~3. 9 V

[2. VIN DPM normal Case] [ Condition ] 1. Setting : Default 2. Battery Voltage : 3. 8 V~3. 9 V 2. VIN 5 V is inserted CD High-> Low Status = Charging in Progress

[2. VIN DPM normal Case] 3. VIN 5 V -> 4. 5 V CD Low VINDPM = Actice Status = Fault [ Condition ] 1. Setting : Default 2. Battery Voltage : 3. 8 V~3. 9 V

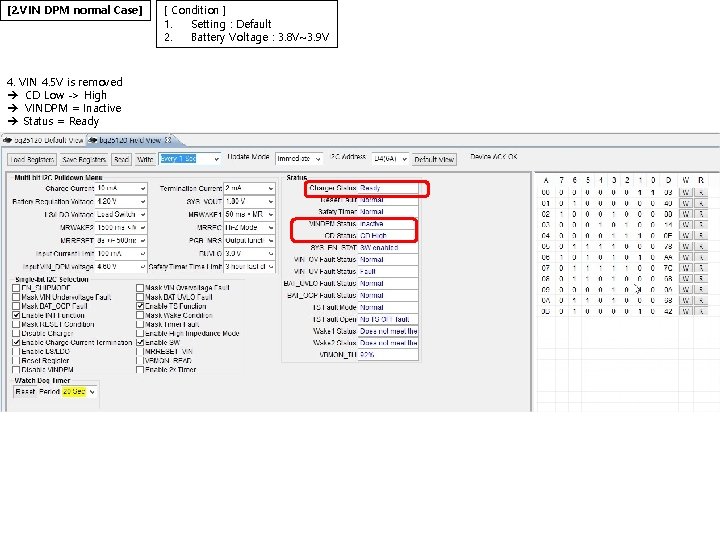

[2. VIN DPM normal Case] 4. VIN 4. 5 V is removed CD Low -> High VINDPM = Inactive Status = Ready [ Condition ] 1. Setting : Default 2. Battery Voltage : 3. 8 V~3. 9 V

[2. VIN DPM normal Case] 5. EN_SHIPMODE Power Off [ Condition ] 1. Setting : Default 2. Battery Voltage : 3. 8 V~3. 9 V Power Off by SHIPMODE

[3. VIN =4. 5 V abnormal Case] 1. Battery Only CD High Status = Ready [ Condition ] 1. Setting : Default 2. Battery Voltage : 3. 8 V~3. 9 V

[3. VIN =4. 5 V abnormal Case] 2. VIN = 4. 5 V is inserted CD High Status = Fault VINDPM = Active [ Condition ] 1. Setting : Default 2. Battery Voltage : 3. 8 V~3. 9 V

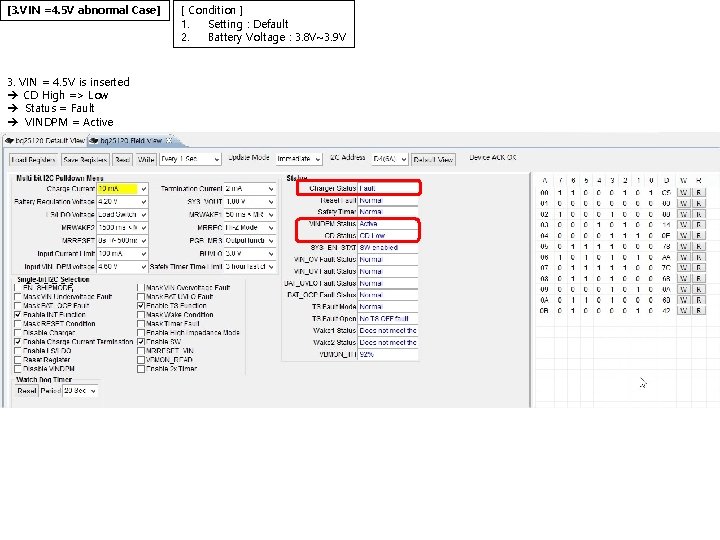

[3. VIN =4. 5 V abnormal Case] 3. VIN = 4. 5 V is inserted CD High => Low Status = Fault VINDPM = Active [ Condition ] 1. Setting : Default 2. Battery Voltage : 3. 8 V~3. 9 V

[3. VIN =4. 5 V abnormal Case] 4. VIN = 4. 5 V is removed CD Low Status = Fault VINDPM = Active [ Condition ] 1. Setting : Default 2. Battery Voltage : 3. 8 V~3. 9 V VIN is not present, but VINDPM is active

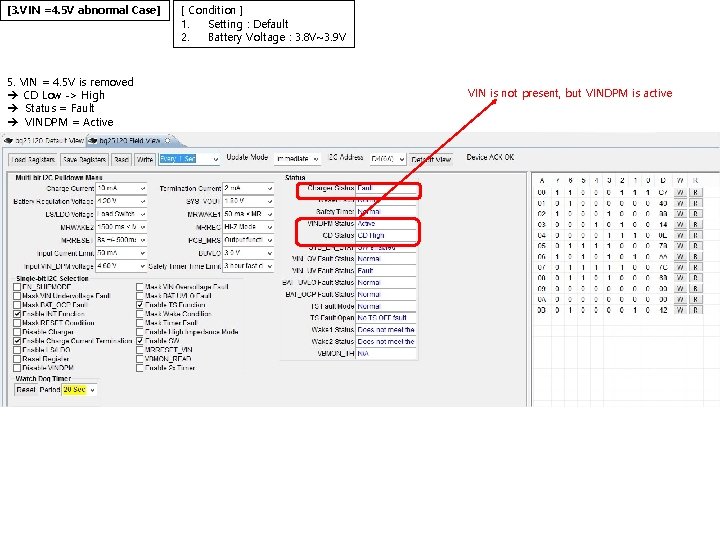

[3. VIN =4. 5 V abnormal Case] 5. VIN = 4. 5 V is removed CD Low -> High Status = Fault VINDPM = Active [ Condition ] 1. Setting : Default 2. Battery Voltage : 3. 8 V~3. 9 V VIN is not present, but VINDPM is active

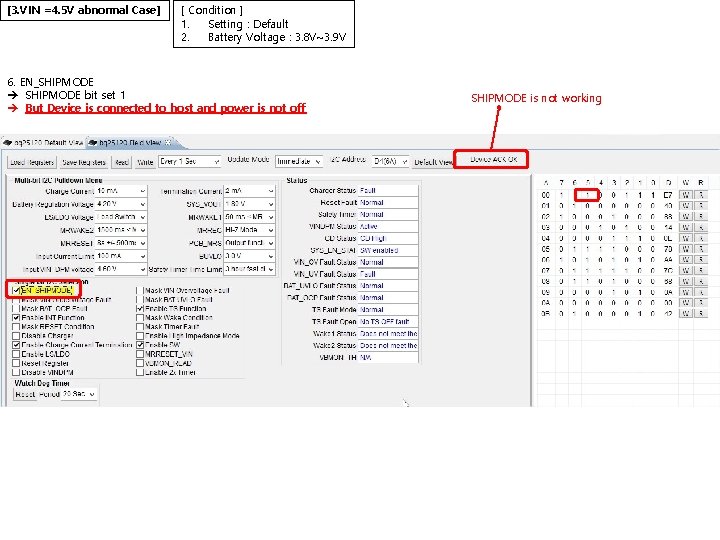

[3. VIN =4. 5 V abnormal Case] [ Condition ] 1. Setting : Default 2. Battery Voltage : 3. 8 V~3. 9 V 6. EN_SHIPMODE bit set 1 But Device is connected to host and power is not off SHIPMODE is not working

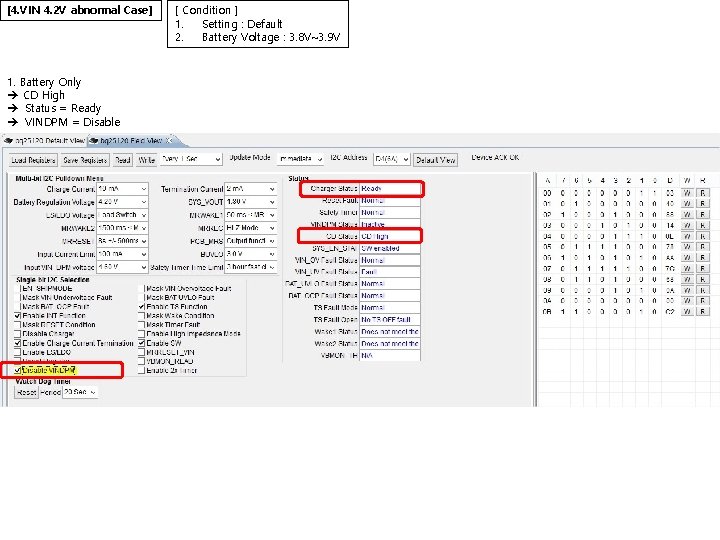

[4. VIN 4. 2 V abnormal Case] 1. Battery Only CD High Status = Ready VINDPM = Disable [ Condition ] 1. Setting : Default 2. Battery Voltage : 3. 8 V~3. 9 V

[4. VIN 4. 2 V abnormal Case] [ Condition ] 1. Setting : Default 2. Battery Voltage : 3. 8 V~3. 9 V 2. VIN = 4. 2 V in inserted CD High Status = Ready VINDPM = Disable (so VINDPM status is inactive) VIN_UV = Normal (because VIN = 4. 2 V is inserted)

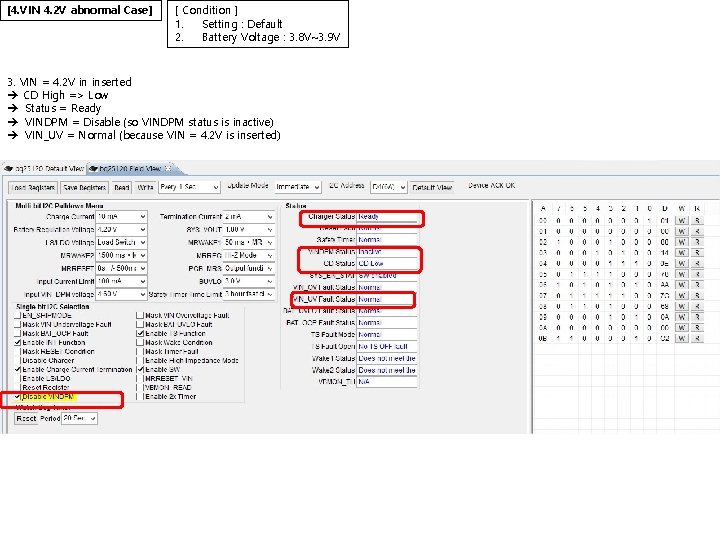

[4. VIN 4. 2 V abnormal Case] [ Condition ] 1. Setting : Default 2. Battery Voltage : 3. 8 V~3. 9 V 3. VIN = 4. 2 V in inserted CD High => Low Status = Ready VINDPM = Disable (so VINDPM status is inactive) VIN_UV = Normal (because VIN = 4. 2 V is inserted)

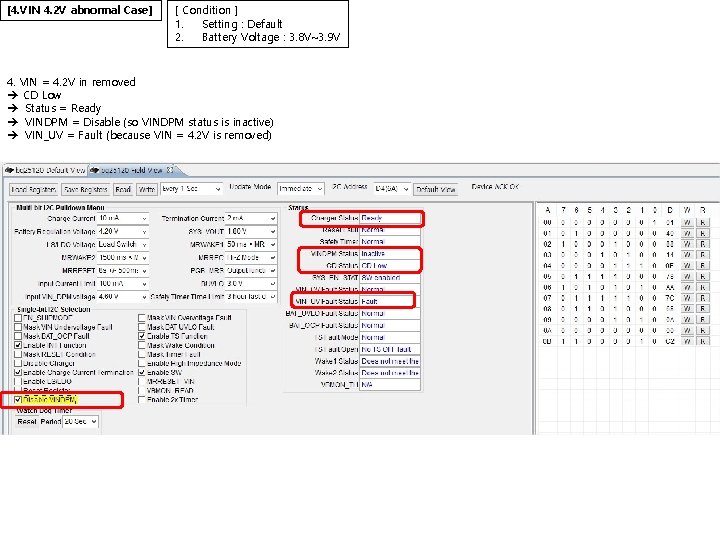

[4. VIN 4. 2 V abnormal Case] [ Condition ] 1. Setting : Default 2. Battery Voltage : 3. 8 V~3. 9 V 4. VIN = 4. 2 V in removed CD Low Status = Ready VINDPM = Disable (so VINDPM status is inactive) VIN_UV = Fault (because VIN = 4. 2 V is removed)

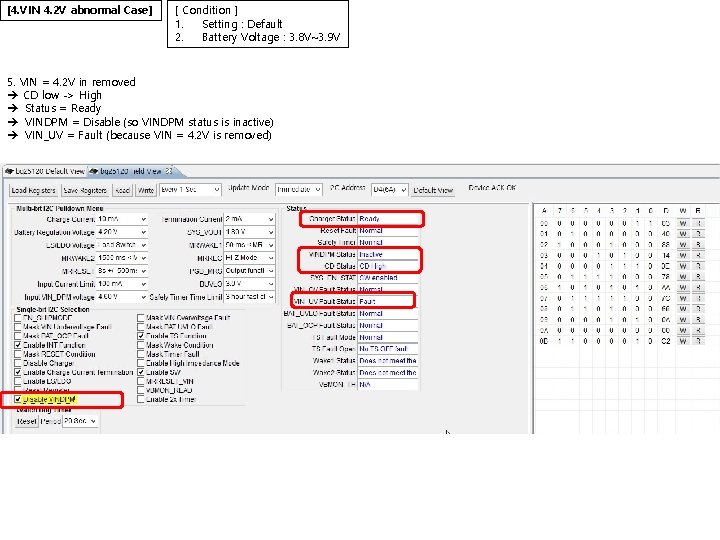

[4. VIN 4. 2 V abnormal Case] [ Condition ] 1. Setting : Default 2. Battery Voltage : 3. 8 V~3. 9 V 5. VIN = 4. 2 V in removed CD low -> High Status = Ready VINDPM = Disable (so VINDPM status is inactive) VIN_UV = Fault (because VIN = 4. 2 V is removed)

[4. VIN 4. 2 V abnormal Case] [ Condition ] 1. Setting : Default 2. Battery Voltage : 3. 8 V~3. 9 V 6. EN_SHIPMODE bit set 1 But Device is connected to Host and power is not off SHIPMODE is not working
