Everything you always wanted to know about…

…CERN’s new mobile operator Peter JURCSO BE-CO-IN

Why to change now? • CERN regularly re-tendering service contracts to have the “Best value for money” • Call for tender for new mobile operator was launched in 2014 after 8 years with Sunrise • Contract with new provider approved by Finance Committee in December 2014 • 4 years initial contract with optional extensions up to 16 years for mobile voice and data services

Swisscom • Improved mobile services • • New tariffs: • • • LTE (4 G) available on Swiss side UMTS (3 G) and LTE (4 G) under authorization for French side UMTS (3 G) and LTE (4 G) in the underground facilities up to 150 Mbps download speed in LHC experimental areas ~ 50% cost reduction in average Significantly cheaper data roaming New SIM cards and new numbers 5

Network migration challenges • The network must be installed while operating the current one: • • • The complexity of the network : • • • 2 G, 3 G and 4 G in all sites 14 outdoor & 37 indoor sites 17 CERN indoor sites in the LHC (REs & TI 8) Advanced services must be integrated: • • New space, fibers & power supplies required in all sites New mast/antennae for outdoor coverage Roaming control, switch board interconnection… Regulation and legal permits in two countries The new network will be ready by 1 st of June 6

Outdoor (14 installations) • Meyrin (3 sites): • • Prevessin (2 sites): • • • Building 866 Building 887 SPS (1 site): • • Building 60 Water tower Building 361 (PS) BB 4 LHC (8 sites) • • • SD 2, 4, 5, 6, 7, 8 SZ 33 SDX 1 7

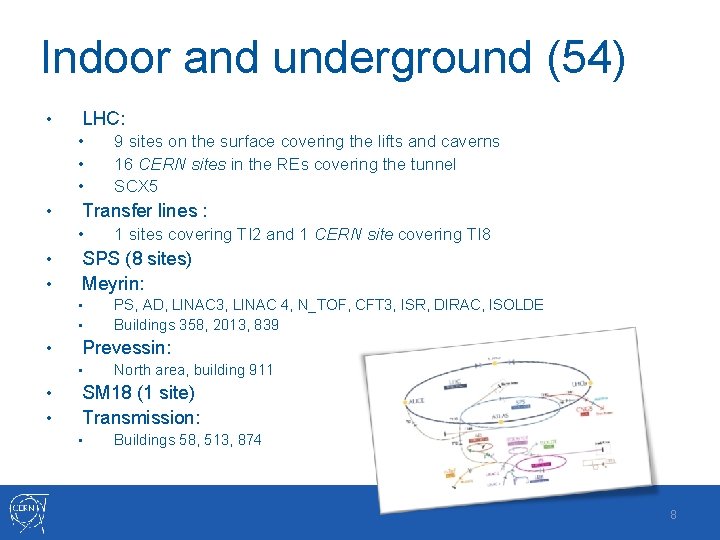

Indoor and underground (54) • LHC: • • Transfer lines : • • PS, AD, LINAC 3, LINAC 4, N_TOF, CFT 3, ISR, DIRAC, ISOLDE Buildings 358, 2013, 839 Prevessin: • • 1 sites covering TI 2 and 1 CERN site covering TI 8 SPS (8 sites) Meyrin: • • • 9 sites on the surface covering the lifts and caverns 16 CERN sites in the REs covering the tunnel SCX 5 North area, building 911 SM 18 (1 site) Transmission: • Buildings 58, 513, 874 8

Migration • New number range: +41 75 411 xxxx • 16 xxxx will not change • You are responsible to inform your outside contacts and update your websites, databases, applications, documentation etc. • SIM cards distributed from 1 st of June • • • In 774 -1 -032 as already confirmed by email Same size as your current one (mini/micro or nano) Activation of cards on 15 th of June • to be able to test them with your phone Change of SIM cards on 24 th of June at 09: 00 9

Service update schedule • 23 June 17: 30 -23: 00 • • 24 June 0: 00 -3: 00 • • Lync and Exchange servers, Service Now 24 June 8: 30 -9: 00 • • Foundation database, Active directory LDAP, XLDAP, CSDB (landb) E-groups using mail 2 sms gateway, phonebook Switchboard for 16 xxxx EDH, CET, HR databases 24 June after 9: 00 • • Mobicall, DIAMON notifications, LASER Spectrum, ODM, CSAM, BAAN 10

After the migration • Update your contacts by using the web tool https: //cern. ch/resources/Manage/EMail/gsmmigration. aspx Attention! Do not use it before the migration: no roll back possible! • From 24 th June 12: 00 until 31 st August • • • 1 st of July: Sunrise equipment switched off • • Old numbers will be redirected to an automatic message informing the caller on the new number Impossible to inform SMS senders! Expect loss of Sunrise coverage in Pays de Gex: consider to change your private subscriptions Private option temporary will be unavailable on Swisscom network 11

Mail 2 sms gateway change • Only the international format will be accepted (which can be already used): +fullnumber@mail 2 sms. cern. ch 16 xxxx -> +4175411 xxxx@mail 2 sms. cern. ch Check your applications and databases! • E-groups containing mail 2 sms addresses will be automatically converted • SMS will contain the first 160 chars of: Sender_address + space + Email_subject + space + Email_body 12

Unchanged after the migration • Short 16 xxxx numbers • Subscription type (professional/private) • Calling privileges (outside calls, roaming) • Mail 2 sms with full international number 10/2/2020 Document reference 13

Summary: Important dates • 1 June • • 15 June • • 9: 00 change of SIM cards 12: 00 no more incoming calls on the old number 1 July • • Activation of SIM cards 24 June: Migration day • • • Start of SIM card distribution Sunrise equipment switched off 31 August • End of number new number announcement on the old numbers 14

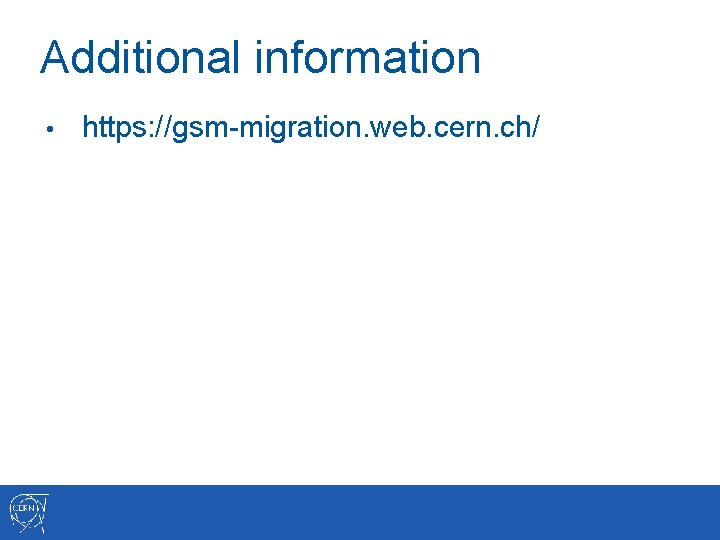

Additional information • https: //gsm-migration. web. cern. ch/
