EVERY DSTAR RADIO HAS A SERIAL DATA PORT
- Slides: 28
EVERY D-STAR RADIO HAS A SERIAL DATA PORT
Connecting a D-STAR radio
Connecting a D-STAR radio 2. 5 mm OPC-1529 R
D-RATS By Dan Smith - KK 7 DS
D-RATS By Dan Smith - KK 7 DS

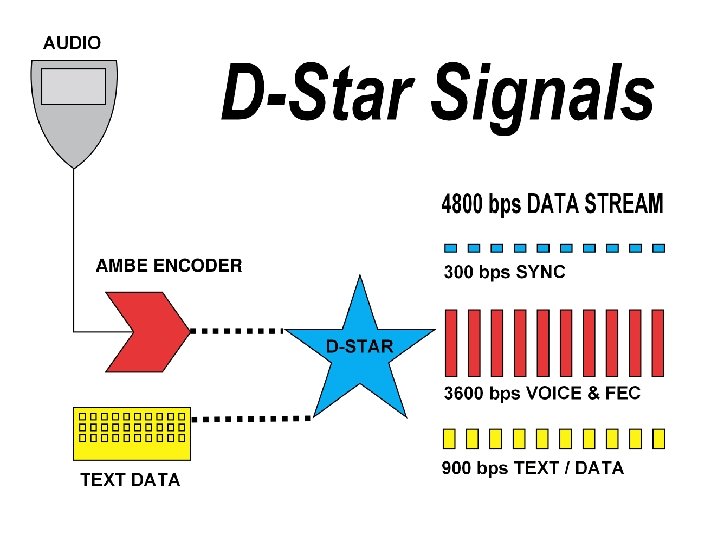

Goal All-in-one tool for D-STAR data ops Make use of the low speed data channel Oriented to Em. Comm operations No dependence on infrastructure Originally targeted for simplex All network interaction at endpoints Interface with existing technologies
OVERVIEW IRC style chat FTP style file transfers E-mail messaging APRS like mapping
Typical Station
TNC – The analog gateway to D-RATS data Use a KISS-mode TNC with D-RATS Gives you point-to-point data transfer Limited AX. 25 support Simpler to setup Lower overhead Interface with D-STAR users through stations running both formats WL 2 K Connectivity
Data in an Emergency Fast, error-free transfer of electronic records Situation status reports Resource requests Patient manifests Pictures of damage Quiet operation Put radio operators directly in an EOC Field stations in noisy environments Integrated logging of messages with times and dates

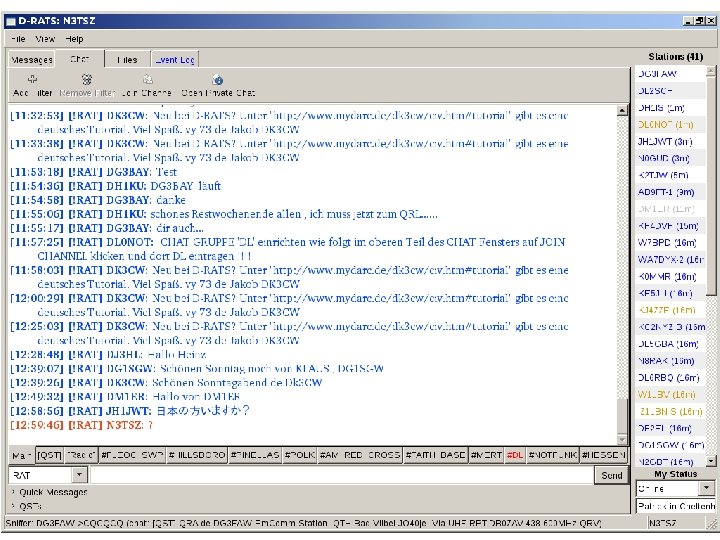

Chat Free-form multicast chat messages – Checksum-protected – Channels – “Private” chat – Text filters – Automated QSTs – Quick messages – Highlight and lowlight text

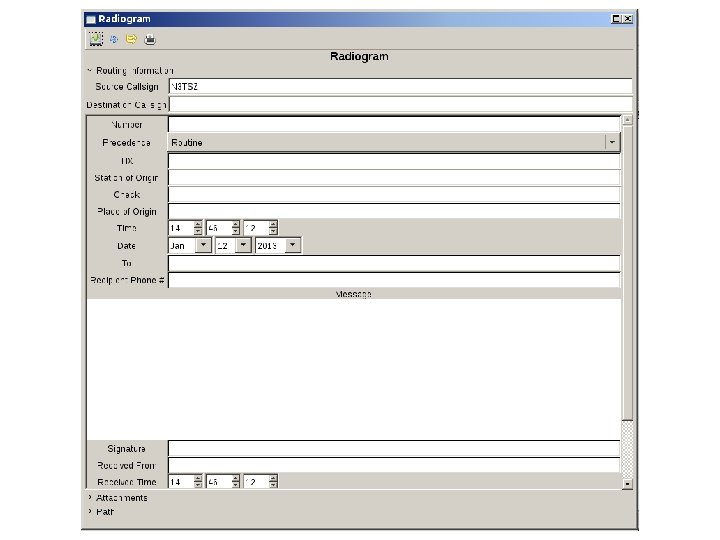

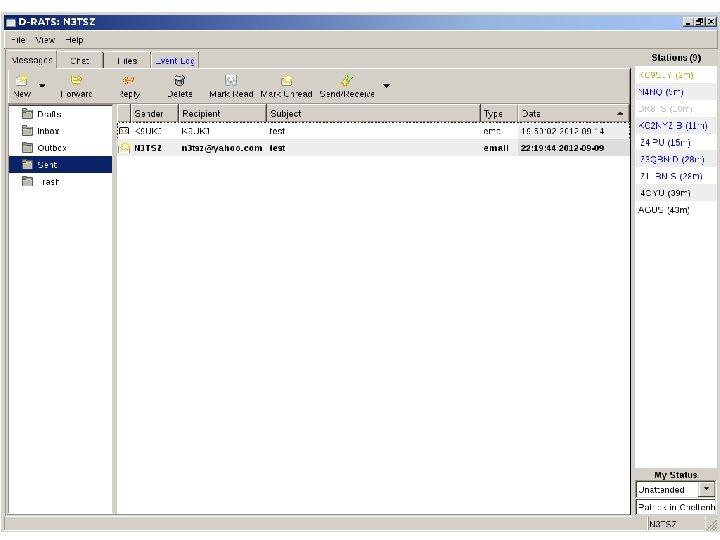

Messaging Structured messages (Forms) Use XML to convey structure and content XSL at the endpoints for presentation Messages can contain attachments Automatic message routing support Email-like interface Custom form builder

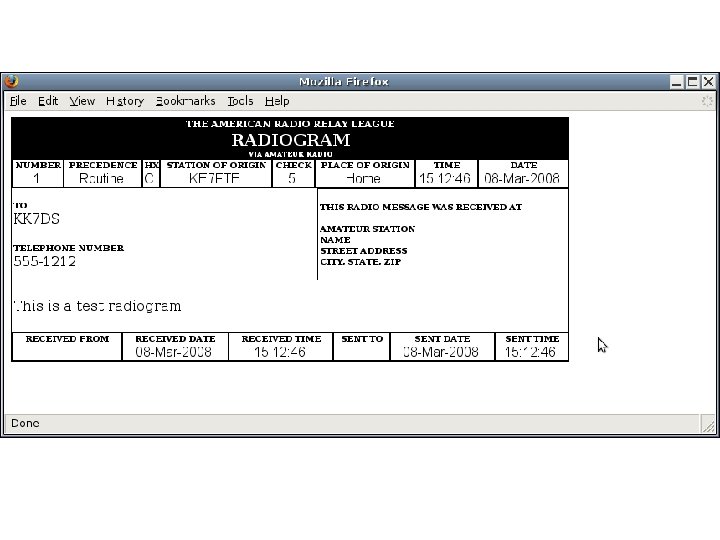

Messaging Email gateway SMTP for outgoing emails Rich forms go as HTML emails POP 3 gateway for remote mail checks WL 2 K gateway Any internet-connected station can gateway Experimental RMS packet client Seamless and bi-directional SMTP/POP 3 servers integrated Paclink-like functionality

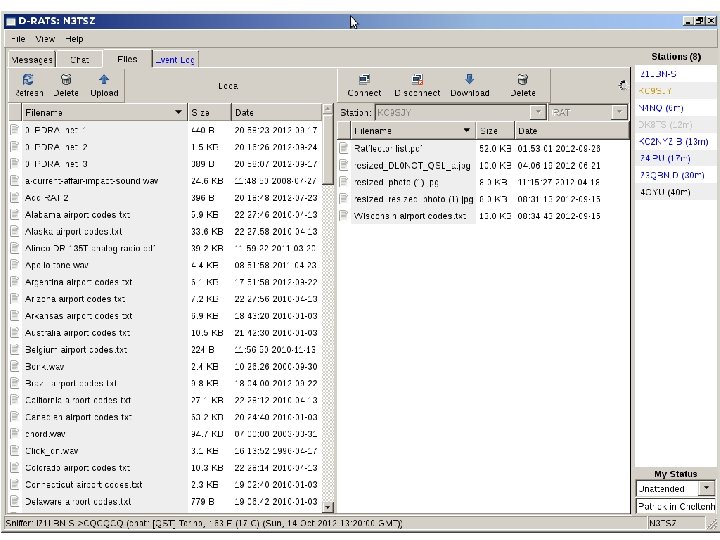

Files and Images Arbitrary file transfers with sliding window, compression, and resume “File server” for remote retrieval Integrated resize/resample of image files Block size and window scaling

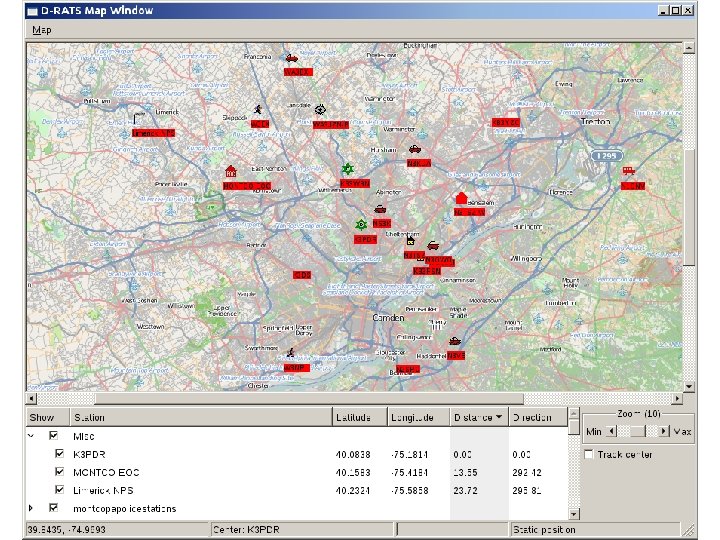

Positional Awareness Captures and sends ICOM GPS/GPS-A strings Distance and direction calculation Integrated map display (free!) Moving stations updated in real-time Input for external GPS receiver
Ratflector Connect to other D-RATS users via Internet Easy and clean for testing Data-only reflector Configure D-RATS radio port for one of: Network port on ref. d-rats. com, port 9000 Network port on ref. d-rats. com, port 9001 User-run ratflectors too! Included in download
Repeater (Ratflector)
Implementation Written in Python/GTK Runs on Linux, Mac, and Windows Open. Street. Map. org for free maps
Availability Windows: Installer. exe Linux: . deb, . rpm APT and Yum repositories available Thanks to Mike, N 0 SO! Mac. OS: . app (and one-time base package)
References D-RATS Website http: //www. d-rats. com D-RATS Mailing List Yahoo! Group – http: //groups. yahoo. com/group/d-rats_group/
