Event-related potentials (ERPs) Jarrod Blinch motorbehaviour. wordpress. com May 31 st, 2011

Type of electrodes • Non-polarised silver-chloride (Ag/Ag. Cl) • Tin • Gold or platinum 2

How many trials? • EEG 50 u. V • ERPs – 60 trials for large component (~10 u. V, P 300, RP/LRP) – 150 medium (~5 u. V) – 400 small (~1 -2 u. V) 3

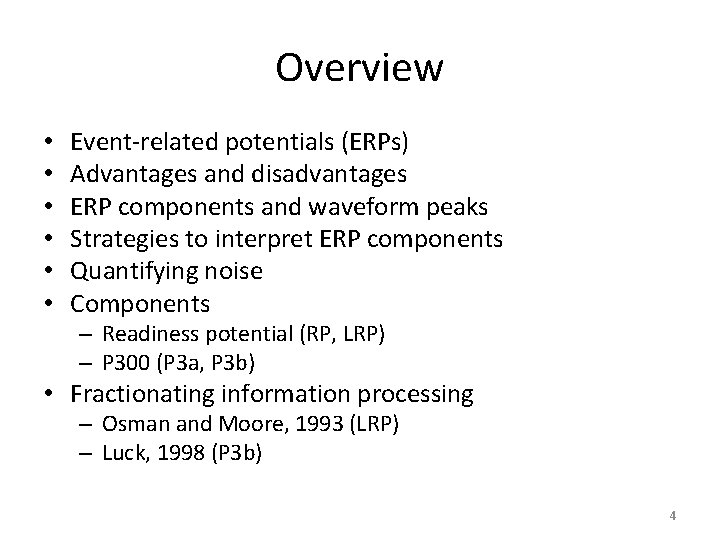

Overview • • • Event-related potentials (ERPs) Advantages and disadvantages ERP components and waveform peaks Strategies to interpret ERP components Quantifying noise Components – Readiness potential (RP, LRP) – P 300 (P 3 a, P 3 b) • Fractionating information processing – Osman and Moore, 1993 (LRP) – Luck, 1998 (P 3 b) 4

Event-related potentials (ERPs) • • Averaging to generate ERPs Tiny effects Relying on previous ERPology Reliability – Low within-participant variability – High between-participant variability 5

6

7

8

9

10

Advantages and disadvantages Advantages Disadvantages • Continuous measure of processing • Independent of a behavioural response • Evoked or emitted potentials • Noninvasive • Temporal resolution • Functional significance • Tiny effects • Spontaneous or induced potentials • Spatial resolution • Peaks versus components… • Latency jitter… 11

Imperative stimulus Stimulus identification Response initiation Response selection Reaction time Response programming 12

13

ERP components and waveform peaks 14

15

16

17

Strategies to interpret ERP components 1. 2. 3. 4. 5. 6. Focus on a specific component Use well-studied experimental manipulations Focus on large components Isolate components with difference waves Focus on components that are easily isolated Use component-independent experimental designs 7. Hijack useful components from other domains 18

Quantifying Noise 19

20

21

Overview • • • Event-related potentials (ERPs) Advantages and disadvantages ERP components and waveform peaks Strategies to interpret ERP components Quantifying noise Components – P 300 (P 3 a, P 3 b) – Readiness potential (RP, LRP) • Fractionating information processing – Osman and Moore, 1993 (LRP) – Luck, 1998 (P 3 b) 22

P 300 23

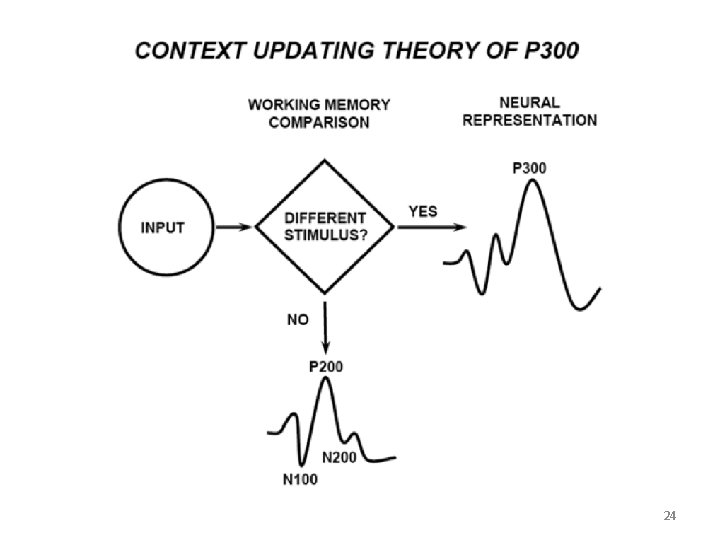

24

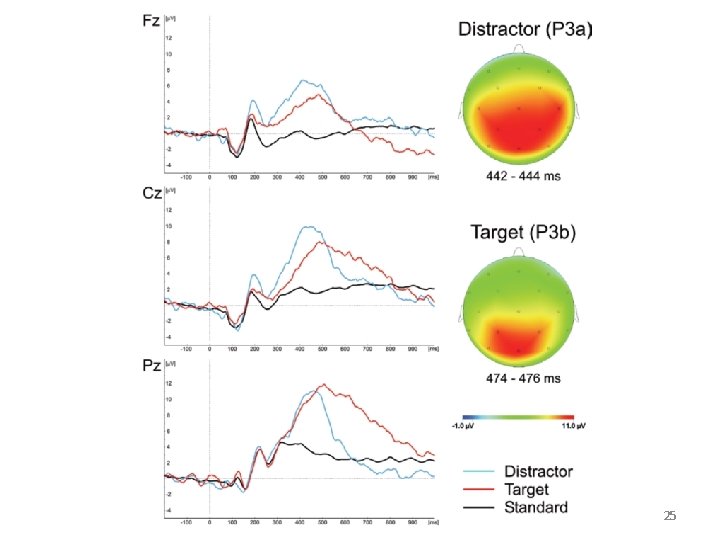

25

Readiness potential (RP) MP Late RP Early RP 26

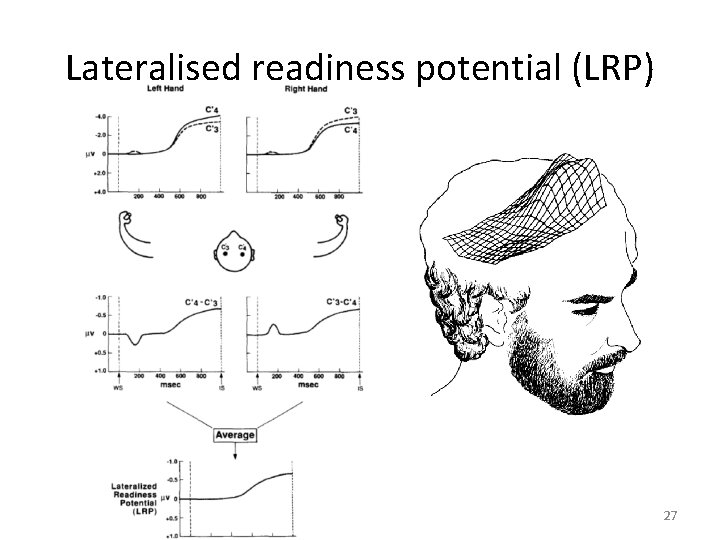

Lateralised readiness potential (LRP) 27

28

Imperative stimulus LRP P 300 Stimulus identification Response selection Reaction time Response initiation Response programming 29

Psychological refractory period 30

Bottleneck Stimulus onset asynchrony (SOA) 31

Osman & Moore, 1993 LRP Stimulus identification Response selection Response programming Stimulus identification Bottleneck Response selection Response programming Stimulus identification Response selection Bottleneck Response programming 32

* L * 33

34

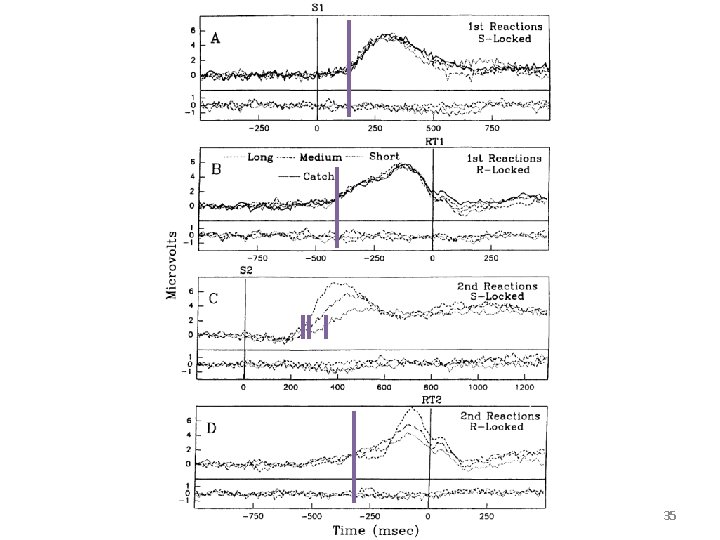

35

Luck, 1998 P 300 Stimulus identification Response selection Stimulus identification and Bottleneck Stimulus identification Response programming Response selection and Bottleneck Response programming 36

37

38

39
