EVDA 541 ARST 541 MAPPING MATERIAL DIMENSIONS MACHINEDRAWINGMACHINES
- Slides: 70
EVDA 541 / ARST 541: MAPPING MATERIAL DIMENSIONS MACHINEDRAWINGMACHINES – Pablo Garcia (2012)

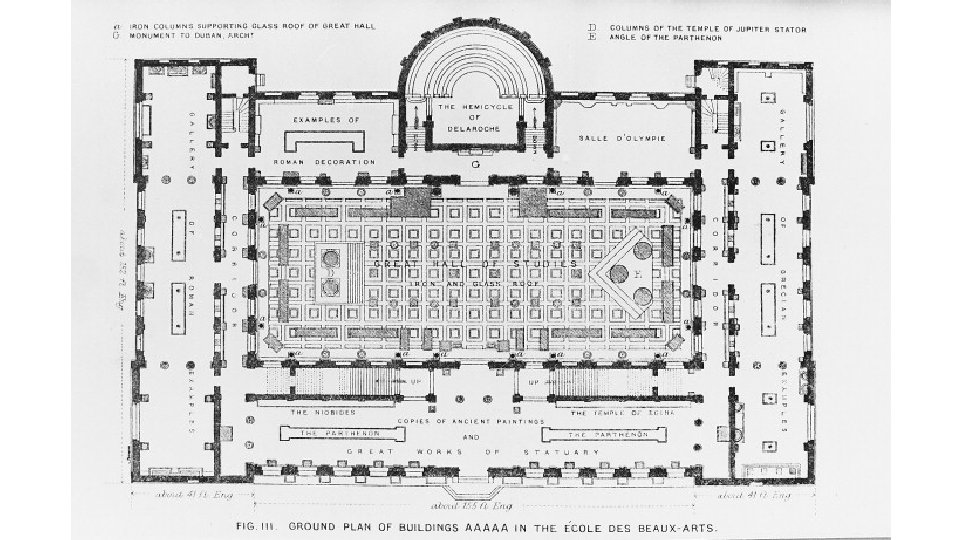

At its most reductive – the role of the architect is to generate and communicate information
US Pavilion Venice Biennale – Greg Lynn (2016)

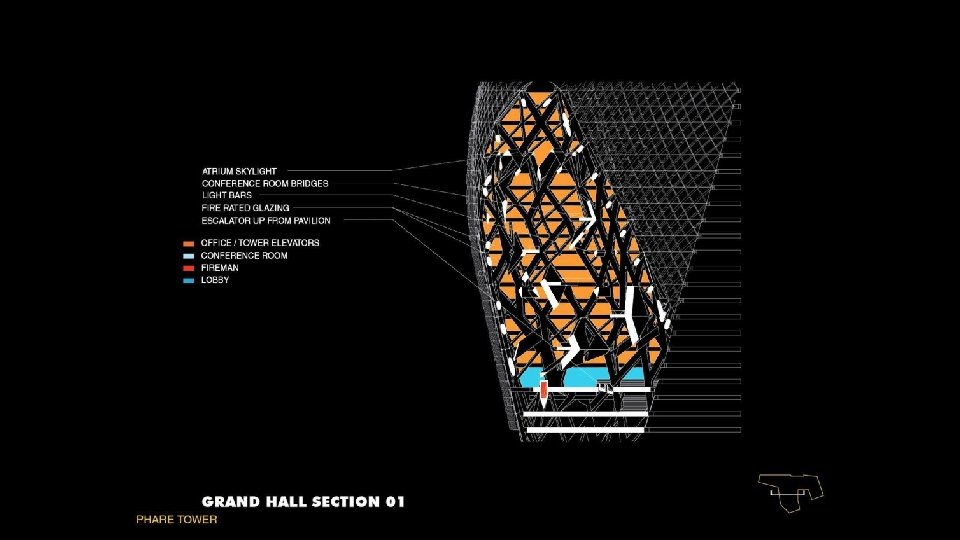

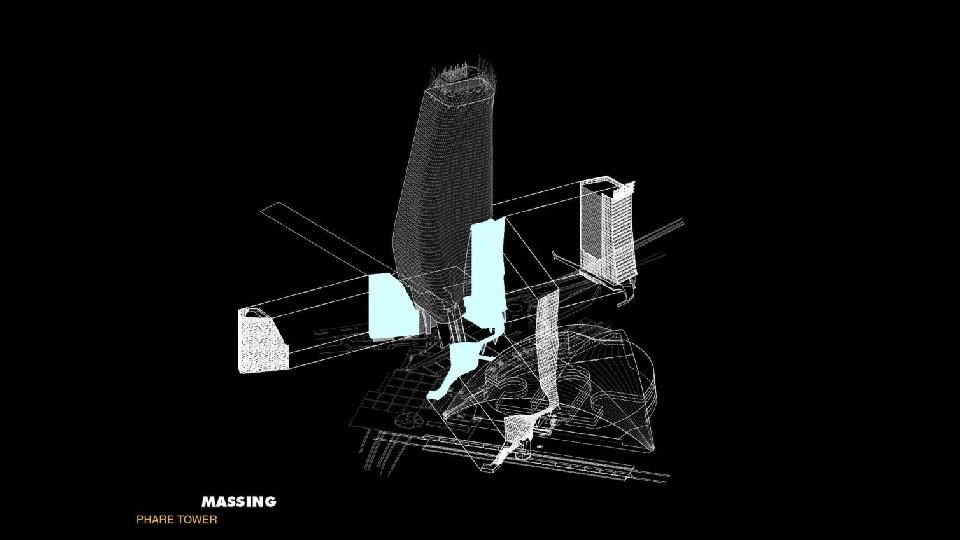

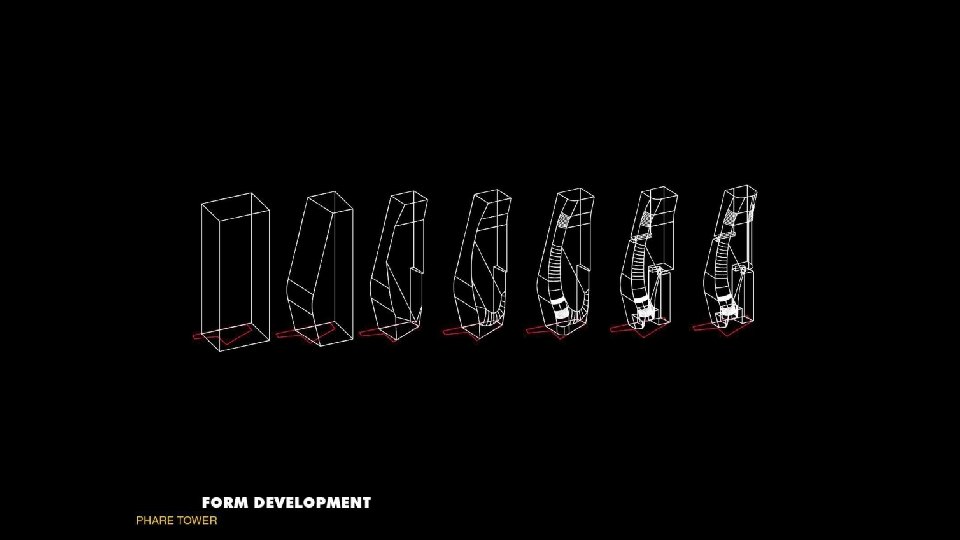

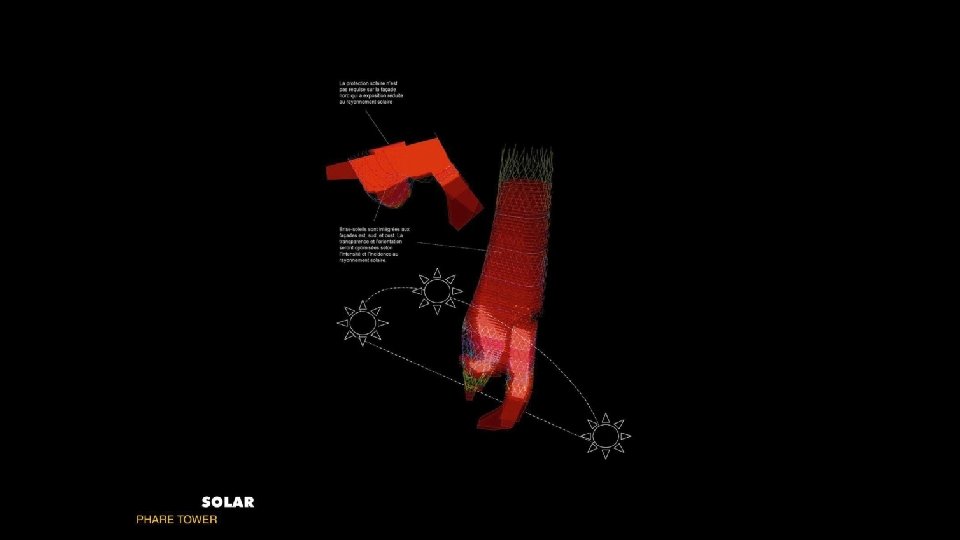

What are the opportunities for an architecture that exists in the digital age?
FLAT 2 FAT : NURBS modeling
NURBS vs. Polygons
FLAT 2 FAT : NURBS modeling trajectories Solid Modeling: Solid Works Surface Modeling: Rhino Surface Modeling + Animation: Maya, Houdini, 3 D Studio Max, Cinema 4 D Parametric / BIM Systems: CATIA / Digital Project, Generative Components, Revit
FLAT 2 FAT : NURBS modeling (why rhino? ) Intuitive Interface Robust Toolset Affordable Easy to Customize – Macros, Scripts (visual basic), Plug-ins (. NET) *Trial Download Available at http: //www. rhino 3 d. com
FLAT 2 FAT : surface
FLAT 2 FAT : solid vs surface
FLAT 2 FAT : NURBS modeling Non-Uniform Rational BSplines
FLAT 2 FAT : NURBS modeling Knot s Weigh ts
FLAT 2 FAT : first degree curve
FLAT 2 FAT : third degree curve
FLAT 2 FAT : first-seven degrees

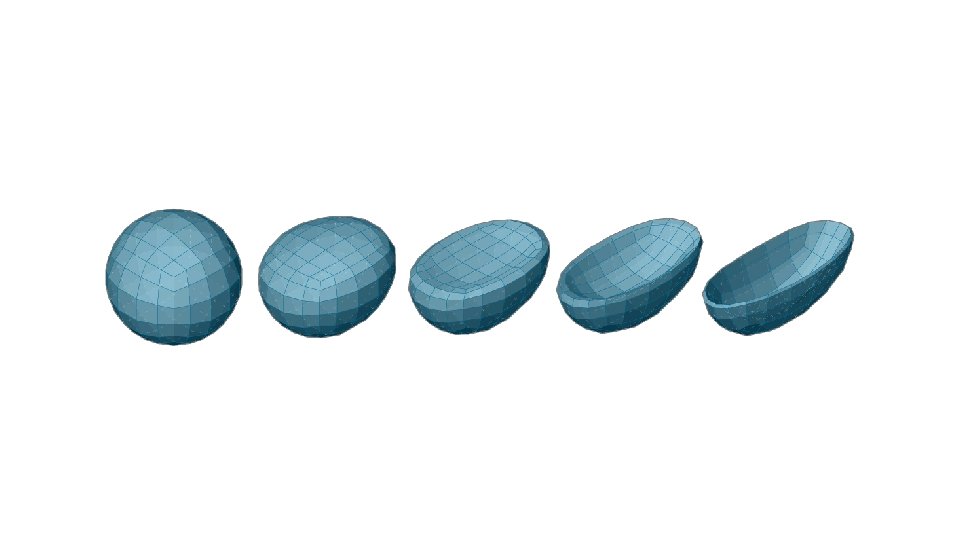

FLAT 2 FAT : transformability
FLAT 2 FAT : transformability
FLAT 2 FAT : NURBS surfaces
FLAT 2 FAT : NURBS surfaces • Offer one common mathematical form for both standard analytical shapes and free-form shapes • Flexible for designing a large variety of shapes • Can be described Implicitly or Parametrically
FLAT 2 FAT : surface creation
FLAT 2 FAT : loft
FLAT 2 FAT : extrude
FLAT 2 FAT : revolve
FLAT 2 FAT : sweep
FLAT 2 FAT : third degree surface Described by cubic polynomial
FLAT 2 FAT : first degree surface Described by linear polynomial
FLAT 2 FAT : surface anatomy U Direction V Direction Isopar ms

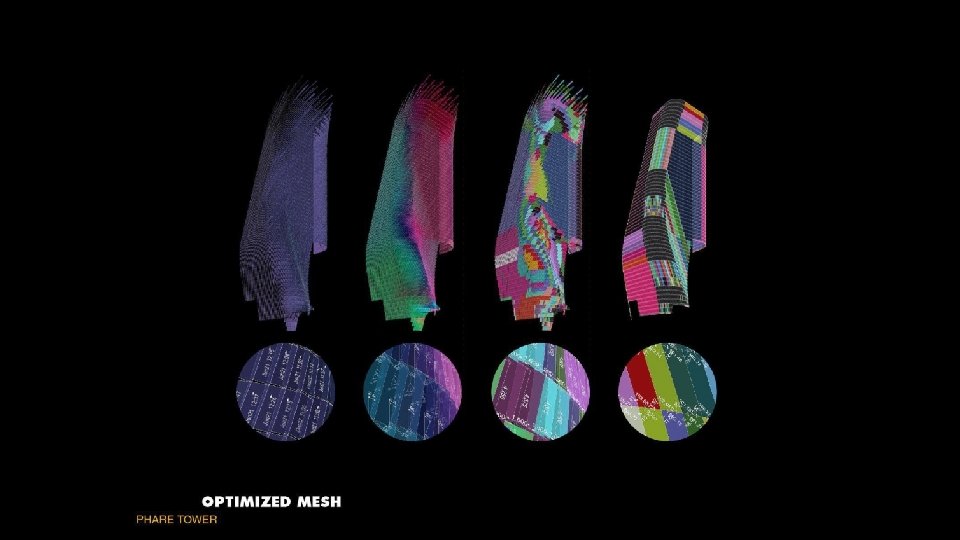

FLAT 2 FAT : doubly curved vs ruled surfaces

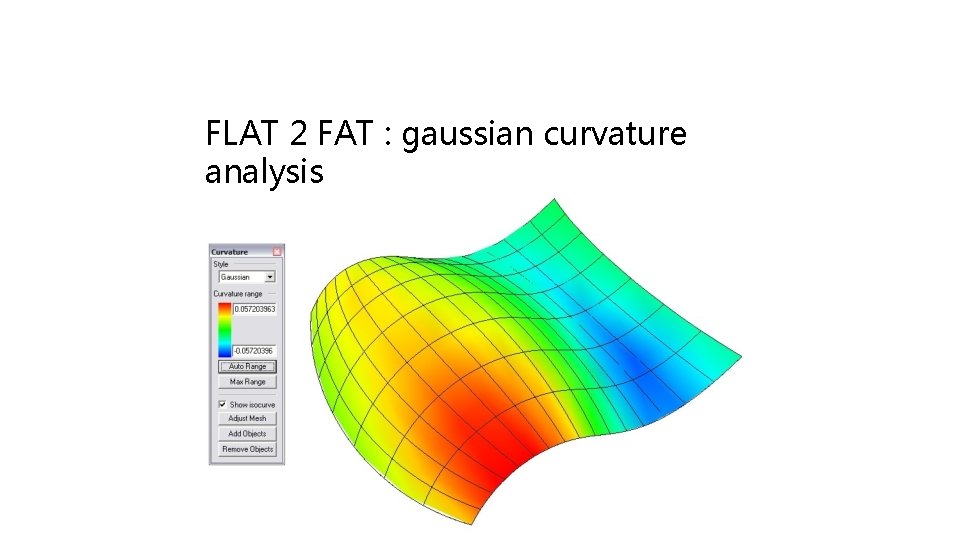

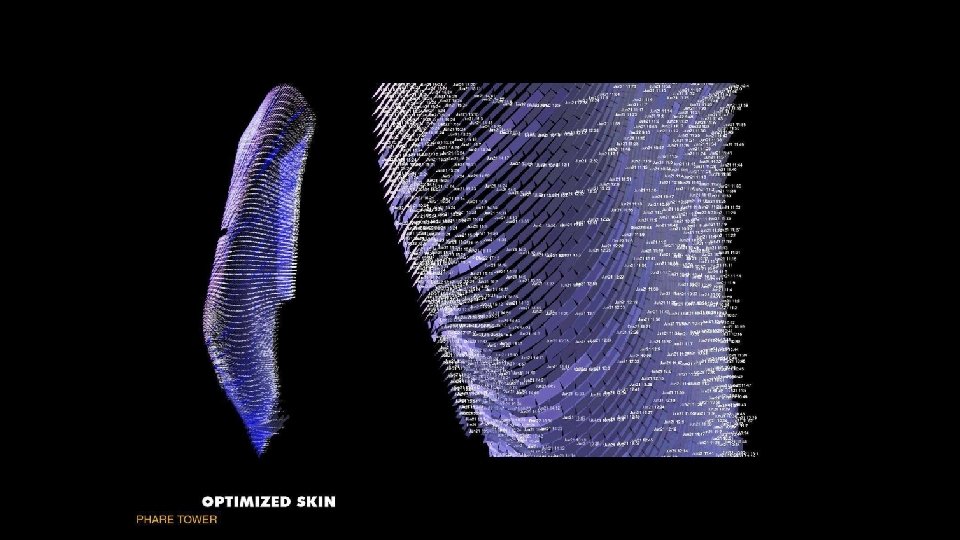

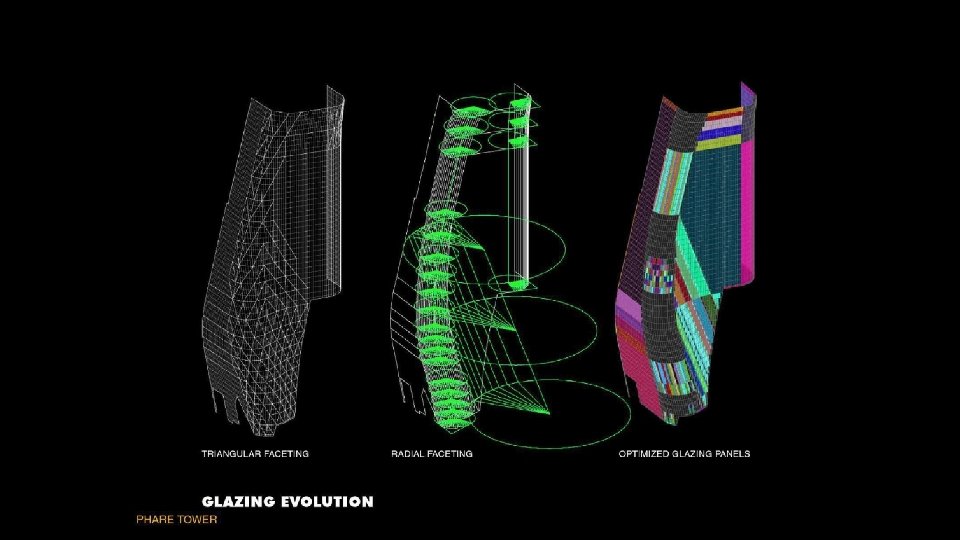

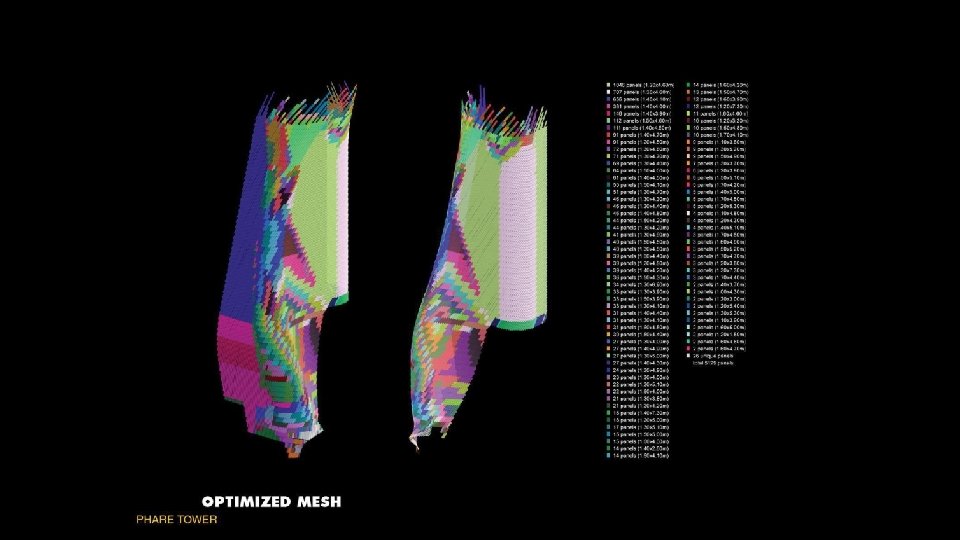

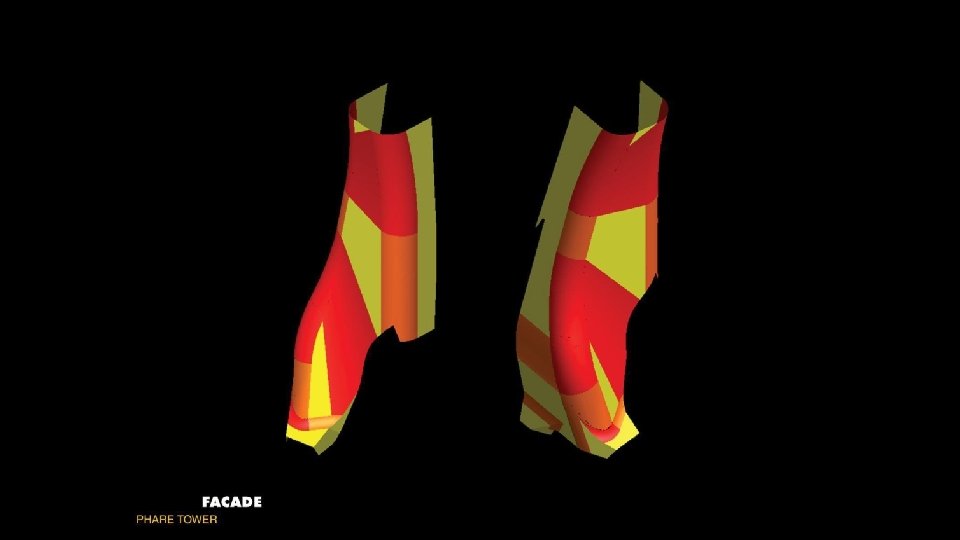

FLAT 2 FAT : gaussian curvature analysis
FLAT 2 FAT : gaussian curvature analysis
FLAT 2 FAT : ruled surfaces
FLAT 2 FAT : developable surfaces
FLAT 2 FAT : extracting curves from surfaces Extracting Isoparms or Edge Curves
FLAT 2 FAT : contouring / sectioning
FLAT 2 FAT : projecting curves onto surfaces
FLAT 2 FAT : curve from intersection
FLAT 2 FAT : transformations
FLAT 2 FAT : rhino toolbar cheat sheet Curve Creation Curve Tools / Modification Surface Creation Surface Tools / Modification Curve From Object Join / Explode Trim / Split Weights / Knots Toggle Transform Tools
3 D Primitives
Topology

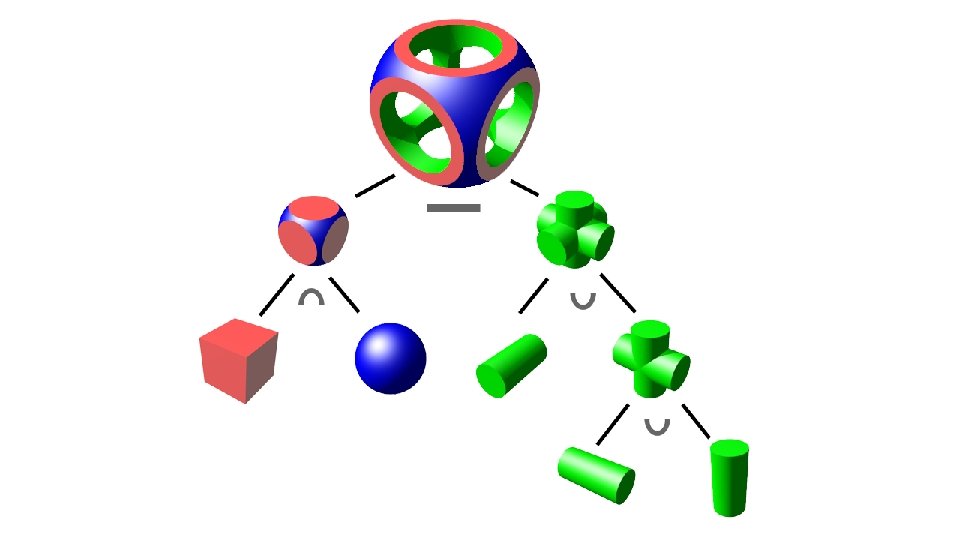

Boolean Operations
