Evaluation of Safety Critical Software by D. Parnas, A. J. van Schouwen, and P. Kwan Presented by: Hatem Halaoui

Presentation Outline v Paper Introduction v Why is software used? v Software controllers and other controllers v Software concerns v Modular Structure v Reliability Assessment for Safety-critical software v Conclusions v Uncovered issues v Statistical software crisis information due to bad software engineering v

Introduction The failure of programmable computer applications could be life threatening. Computers now have safety-critical functions. v To reduce application failures these questions need some answers: v what standards must a software product satisfy? v What documentation is needed? v How much testing is needed? v How should software be structured? v

Why is software a special concern? Many tragedies were caused by software failures. v Software systems do not work well until they have been used and have failed repeatedly v Software products may fail in their first use because situations that were anticipated by the programmers were also overlooked by the test planners v The use of randomly generated data reduces the likelihood of shared oversight v

Why is software used? v Software makes it practical to build more logic into the system. They can distinguish a large number of situations and provide suitable outputs. v Logic implemented in software is easier to change than that implemented in hardware v Software provide more information in more suitable form

How are software controllers like other controllers? v Similar to other controllers (hardware), software controllers has the following properties: 1. 2. 3. 4. Inputs can be described as mathematical functions Outputs can be described as mathematical functions of the inputs Values of the variables can also be described as mathematical function of the controller output Relations between variables can be described

How are software controllers different from other controllers? v Complexity: v v Error Sensitivity: software is much more sensitive to small errors. Hard to test: v v v Huge number of testing cases in software what about points between the testing points Correlated failures: v v v Programs need more precise documentation which might fill a book case programs need much more time (years ) before being trusted Assumptions for hardware design are invalid for software: like assuming that a hardware failures are not strongly correlated In contrast to hardware, duplicating software components does not imply higher reliability Lack of professional standards v v No professional software engineers No agreement on the skills and knowledge that a software engineer should have

Software Testing Concerns v v v We cannot test software for correctness: large number of states It is difficult to make accurate predictions of software reliability and availability It is not practical to measure the trustworthiness of software: a software is trustworthy if the probability of having a potentially catastrophic flaw is acceptably low. There is a role for testing: some scientist argue that one should test rather than spending this time review and does mathematical verifications There is a need for an independent validation agency: it is difficult to test one’s own design in an unbiased way

Software Reviewability Concerns v Why is the reviewability concern for software? v Before, there were not too much care about software, its documentation, and its trustworthiness v Now, much more software controllers in big equipments and industry v Reviews are very important to increase the correctness of software v Engineers are required to do documentations

What Reviews are needed Review for the correct intended function v Review for maintainable, understandable, well documented structure. v Review each module to verify the algorithm and date structure design are consistent with the specified behavior v Review the code for consistency with the algorithm and data structure design. v Review test adequacy: was the testing sufficient to provide sound confidence in the software functioning. v

What documentation is required to review functional requirements? v v Should be done by engineers and scientists who understand the situation to be monitored and devices to be controlled. The functional requirement can be stated by giving three mathematical functions: 1. 2. 3. v The required values of the controlled variables in terms of values of the relevant observable environmental parameters The computer inputs in terms of those observable environmental variables The values of the controlled environmental variables in terms of the computer output This can be given as a set of tables and formulae

What documentation is required to review software structure? v v Documents that describe the breakdown of the program into modules (each module is a unit which could be a set of programs). The purpose of this review is to make sure that: 1. 2. 3. 4. v The structure allow independent development and change All programs need are included once and only once Module interfaces are defined Modules are compatible to each other and meet the requirements Three types of documents are needed: 1. 2. 3. Requirements and specifications Informal document describing responsibilities of each module Module specification (black box description)

What documentation is required to review module’s internal design? v Design documentation which include description of two types of mathematical functions: program functions and abstraction functions v Programs must be described in a hierarchical way where each small program or subprogram is described v This needs software engineers and specialist in the areas that the software is dealing with

What documentation is required to review the code? v Algorithms and data structures v The reviewers should be experienced users of the hardware and compilers

What documentation is required to review the test plan review? v Mathematical verification of the code v The test plan should be described in a document not available for designers v Random testing is required v Should be reviewed by specialists in software testing and application area

Reviewing relationships between these documents Relationship between these documents should be verified v Main issues about documents relationships v Module guide should show no ambiguity about module’s responsibilities v Each module design document should show arguments that verify the module specifications v The module design document, which describes the algorithms should be mapped on the code v Test plans must show the tests are derived and how they cover the requirements v

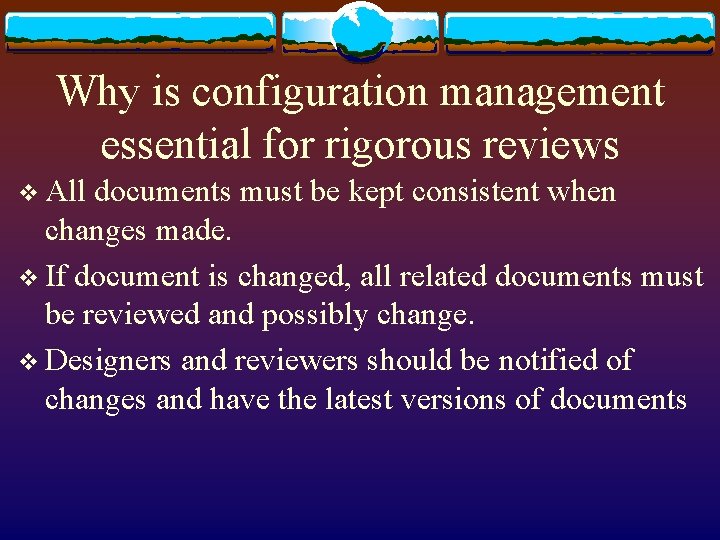

Why is configuration management essential for rigorous reviews v All documents must be kept consistent when changes made. v If document is changed, all related documents must be reviewed and possibly change. v Designers and reviewers should be notified of changes and have the latest versions of documents

Modular Structure Software should be organized in accordance with the modern principles of “information hiding”, “Object Orientation”, “Separation of Concerns”, “Encapsulation”, “Data Abstraction”, etc. v Large programs should be organized in smaller and simpler assignments known as modules. v Software engineers should be trained to use abstract mathematical specifications v Details that change a lot should be hidden v

Reliability Assessments for Safety. Critical Software v Some engineers argue that the correctness of a software is not probabilistic v Not true!! Software appears to exhibit stochastic properties v We can never say that a software is 100% reliable

What should be measuring? Encountering the sequence of input that lead to failures v Different kinds of software needs different measuring v Example v v v In Safety-critical applications errors are not acceptable We cannot predict the failure rate from failure rates of individual lines or subprograms (a failure in a subprogram might lead into a failure in others)

The finite state machine model of programs Software is a machine that is described by two functions: Next State and Output v Software can be viewed as a finite state machine described by large tables v Loading a program in the machine selects a terminal submachine consisting of all states can be reached from the initial state v It helps to know the number of tests we need to perform v

Use of hypothesis testing v We need to confirm that failure probability is below upper bound v Assume the upper bound probability of a failure is 1/h => reliability is 1 -1/h v For N random tests the probability there will be no failure during testing is M=(1 -1/h)N

Hypothesis testing example

Reliability estimates of programs Three classes of programs: v Memoryless batch programs (each run is independent of others) Batch programs with memory (a run might depend on previous one) Real time programs (run continuously) 1. 2. 3. v v v Reliability of memoryless batch programs : tests consist of single run for each set of inputs Reliability of batch programs: test consist of single run of input data and internal state Reliability of Real time programs: v v v when testing the concept of inputs must be replaced with a multidimensional trajectory. Each trajectory gives the input values as continuous functions of time Length of trajectories should be estimated

Conclusions Information hiding should be used v Documentation should be complete, precise and making use of mathematical notations rather than natural language v Mathematical verification techniques must be used v An independent agency should test the software using valid random testing to get estimates of the reliability of the software at critical situations. v Hypothesis testing should be used to allow us to know the probability that the software meet the requirements v

Uncovered Issues v One of the most important issues that lead into software crisis is the errors resulting from discreatizing continuous data v Such data will not be accurate v Operations applied on multiple of such data will lead to high loss of precision

Software Crisis Examples v v Source: http: //www. unt. edu/benchmarks/archives/1999/july 99/crisis. htm Software crisis: v v v The cost of owning and maintaining software in the 1980’s was twice as expensive as developing the software. During the 1990’s, the cost of ownership and maintenance increased by 30% over the 1980’s. In 1995, statistics showed that half of surveyed development projects were operational, but were not considered successful. The average software project overshoots its schedule by half. Three quarters of all large software products delivered to the customer are failures that are either not used at all, or do not meet the customer’s requirements. Main reasons v v Software development is seen as a craft, rather than an engineering discipline. The approach to education taken by most higher education institutions encourages that "craft" mentality.
