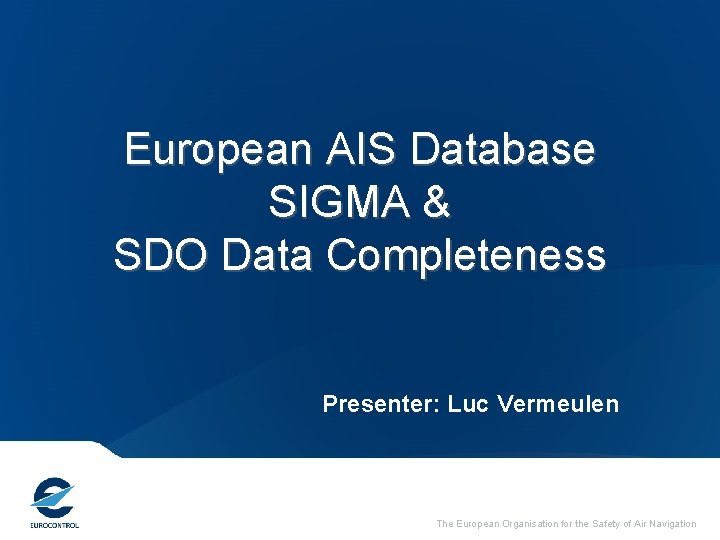

European AIS Database SIGMA & SDO Data Completeness Presenter: Luc Vermeulen The European Organisation for the Safety of Air Navigation

§ § What is SIGMA Legacy what. . ? The power of SIGMA DEMO:

What is SIGMA? § SIGMA stands for SDO Input Guidance Manual. § SIGMA is a support tool to ease for SDO Data Entry experts § SIGMA addresses the EAD DP's need for a single access to all SDO material. § The SIGMA gateway offers several information access gates: – The SDO view, with descriptions and definitions and referenced information to the AIP specimen annex SDO rules. – The e. AIP Specimen view with links to the SDO view – The Rules view with an overview of all SDO Rules with additional information on the applied rule

Legacy Content conversion to XML Topics how…? § § § § § Old Input Manual 2000 pages of Word AICM manual HTML pages SDO Data Base Rules excel sheets & XML data SDO Operational Rules Word AICM/AIXM Data formats HTML AICM Domain values XML AIP examples Pdf Specimen of the e. AIP (HTML) ICAO Annex references pictures STRUCTURED XML CONTENT

CMS - DITA § § DITA (Darwin Information Typing Architecture) is one important flavor of XML that is designed for managing technical information in reusable topics or components which are stored as XML.

The Power of SIGMA Toggle to Rules perspective view Toggle to AIP perspective view Toggle to SDO perspective view Never get Lost with Breadcrumbs Navigation Tree Maximum 3 levels in tree AIS Main concepts

Search Field en Meta Tags Search field: Result expressed in HIT percentage Identify : All My EAD/EAD Pro Data Packages: To be able to Identify the Data Requirements Meta Tags Filter information relevant for my purpose

SIGMA DEMO

SDO Data Completeness

SDO DATA Completeness goals and objectives § SDC Why? – Following Permanent Commission decision 83 of July 2000 for establishment of the EAD, member states committed to support the implementation by becoming Participating State. – It is the obligation of the State to maintain its static data in EAD/SDO. Data providers have signed a data provider agreement with EUROCONTROL as official basis for data maintenance. – SDO is playing a major role according to the continuous increase of requests for operational use of the data: PANEuropean services, i. e. e. RAD, Flight Plan Validation, ADR, ANSP ATM services, FAB, ASM, Network Management etc

Two EAD processes hand in hand! § Quality DQR’s Data Quarterly Reviews – Known process of Quality monitoring based on samples taken from newly or updated Data Elements. – Verified against AIP published data § SDO Data Completeness – New process for Data Completeness – Validate Completeness Catalogues l l l ICAO Critical and Essential Minimum SDO ADR Navaids, Proc, Org and Auth

Closing the GAP’s will improve the Taste This is not a piece of my cheese s s e en et l p s m e Co ogu ed tal t a a lid C Data Completeness Va

Concept of Data Catalogues: • Min SDO • ADR • Etc… Aeronautical Information Conceptual Model (AICM) / Aeronautical Information Exchange Model (AIXM) Aerodrome + Ops Req = NAVAIDS + Ops Req = Routes + Ops Req = Points + Ops Req = Procedures + Ops Req = Airspaces + Ops Req = Organisations + Ops Req = Monitor Completeness

SDO Completeness Workflow SDC and SDO Data Base Replication Validation: • When Data Catalogues completed (100%) per Data Provider & GEO Area • Analysis (Assessment) of Completeness Quality (NIL reason X-check with AIP) SDO catalogues Validation and Reporting: SDO catalogues AIXM 4. 5: • Min SDO • ADR • Navaids (ILS) • Procedure (Basic • Org and Authority • ATC (TBD) • Completeness based on Catalogues • Data Analysis on critical Entities/Attributes

What will the EAD SDC offer for DP’s § § § § EAD SDC provides a Data Count on all countable AIXM 4. 5. Entities and Attributes per DP EAD SDC gives overviews and comparison views with other DP’s (ECAC & WW) SDC shows the Completeness for your Area of Responsibility based on the various Completeness Catalogues (e. g. Min SDO) EAD SDC Identifies Possible Missing Data Elements SDC allows Identification of Data Ownership e. g. Data not touched since Migration is Identified. EAD provides a feedback overview to monitor the Data Completeness progress Reporting tools for Managers and SDO Operators

SDC Workflow for a DP Progress Overview Data Missing Actions Is this Mine? NIL Reason SDO to do Checklist Reject Ownership Identification & Coordination DOP Assign Rejected NOTICES Assign Unknown Data Owner

SDC DEMO • https: //sdc-pilot. solitec. com

From Aeronautical Data to Quality Assured Aeronautical Information European AIS Database Questions? The European Organisation for the Safety of Air Navigation
