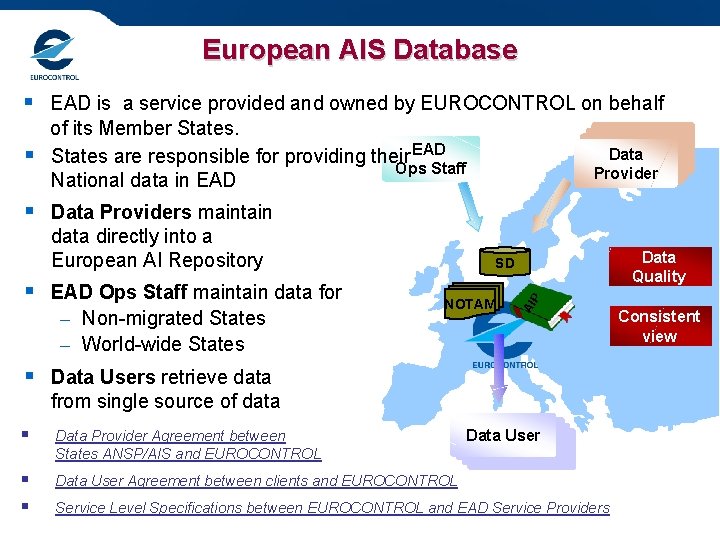

European AIS Database § § Data Providers maintain data directly into a European AI Repository EAD Ops Staff maintain data for – Non-migrated States – World-wide States Data Quality SD NOTAM § Data Users retrieve data from single source of data § Data Provider Agreement between States ANSP/AIS and EUROCONTROL § § Data User Agreement between clients and EUROCONTROL P § EAD is a service provided and owned by EUROCONTROL on behalf of its Member States. Data States are responsible for providing their EAD Ops Staff Provider National data in EAD AI § Data User Service Level Specifications between EUROCONTROL and EAD Service Providers Consistent view

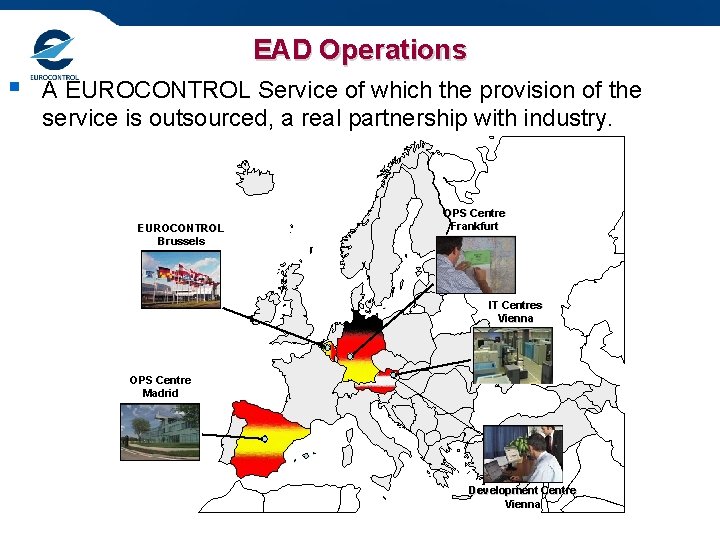

EAD Operations § A EUROCONTROL Service of which the provision of the service is outsourced, a real partnership with industry. EUROCONTROL Brussels OPS Centre Frankfurt IT Centres Vienna OPS Centre Madrid Development Centre Vienna

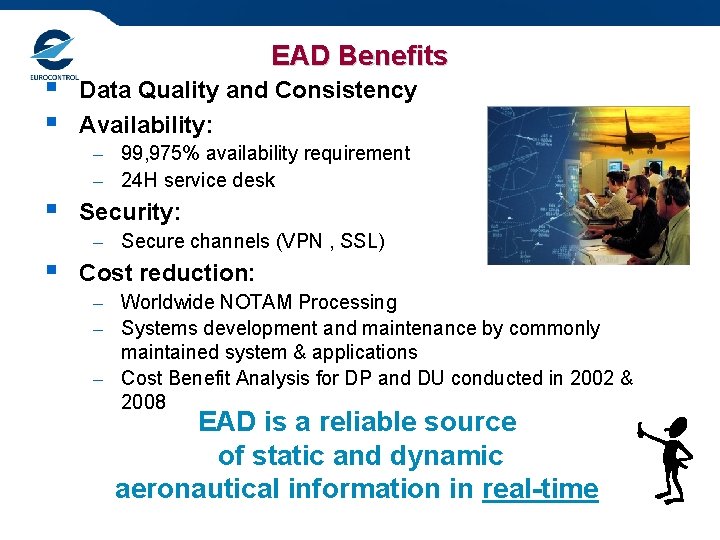

§ § EAD Benefits Data Quality and Consistency Availability: – 99, 975% availability requirement – 24 H service desk § Security: – Secure channels (VPN , SSL) § Cost reduction: – Worldwide NOTAM Processing – Systems development and maintenance by commonly maintained system & applications – Cost Benefit Analysis for DP and DU conducted in 2002 & 2008 EAD is a reliable source of static and dynamic aeronautical information in real-time

EAD Stakeholders Data Providers • CAA • ANSP • EUROCONTROL • Military Organisations Data Users • Aircraft Operators (commercial & business) • Pilots • ATC • Commercial • General Public Software developers

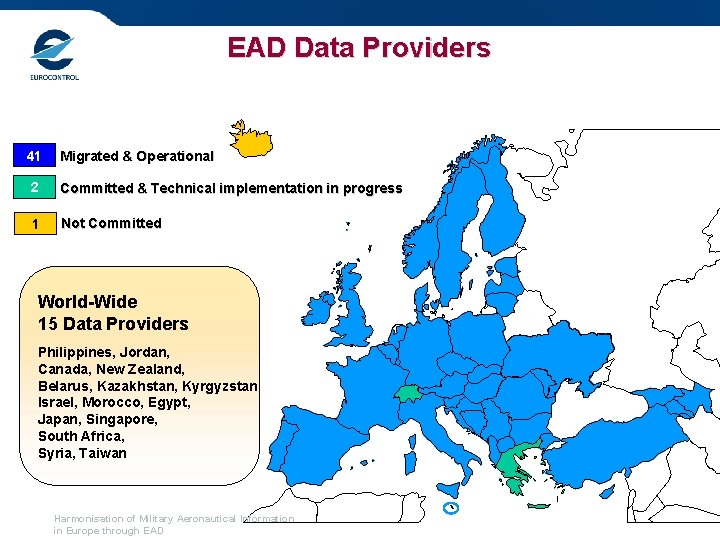

EAD Data Providers 41 Migrated & Operational 2 Committed & Technical implementation in progress 1 Not Committed World-Wide 15 Data Providers Philippines, Jordan, Canada, New Zealand, Belarus, Kazakhstan, Kyrgyzstan Israel, Morocco, Egypt, Japan, Singapore, South Africa, Syria, Taiwan Harmonisation of Military Aeronautical Information in Europe through EAD

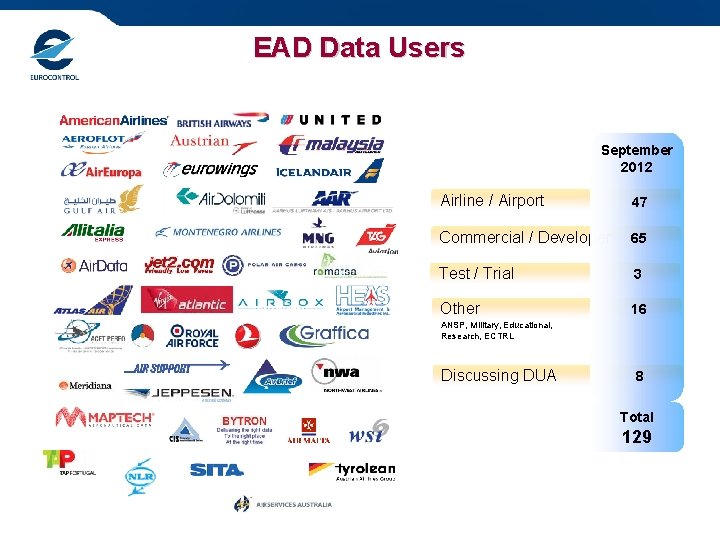

EAD Data Users September 2012 Airline / Airport 47 Commercial / Developer 65 Test / Trial 3 Other 16 ANSP, Military, Educational, Research, ECTRL Discussing DUA 8 Total 129

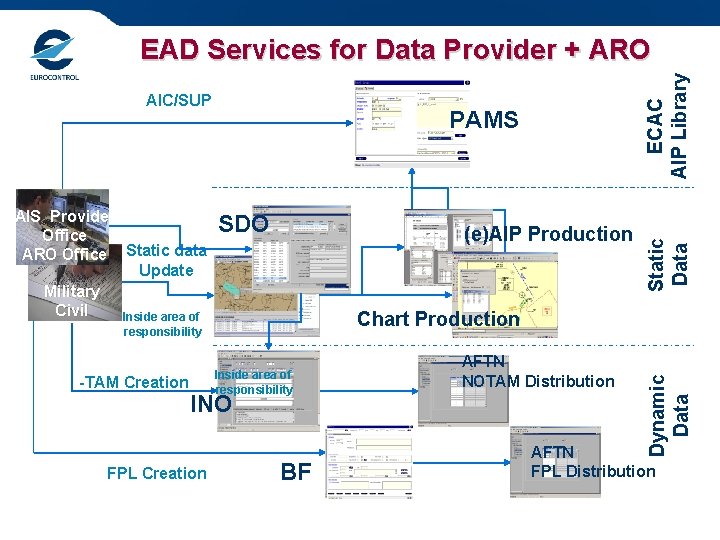

SDO (e)AIP Production Chart Production responsibility -TAM Creation Inside area of responsibility INO FPL Creation BF AFTN NOTAM Distribution Dynamic Data AIS Provider Office ARO Office Static data Update Military Civil Inside area of PAMS Static Data AIC/SUP ECAC AIP Library EAD Services for Data Provider + ARO AFTN FPL Distribution

AIP Publication/Update PAMS World-wide Minimum Static data set Update AFTN, worldwide NOTAM Reception Static Data EAD Service SDO INO -TAM Processing Dynamic Data World-wide AIP Subscription ECAC AIP Library EAD Service Provision

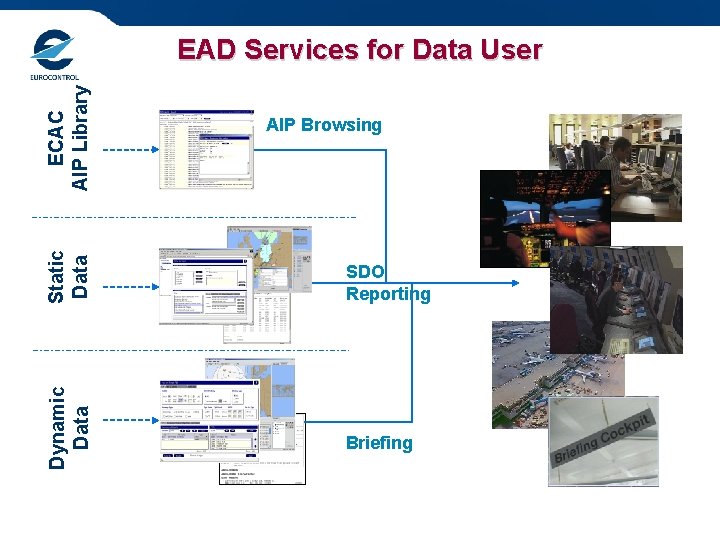

Dynamic Data Static Data ECAC AIP Library EAD Services for Data User AIP Browsing SDO Reporting Briefing

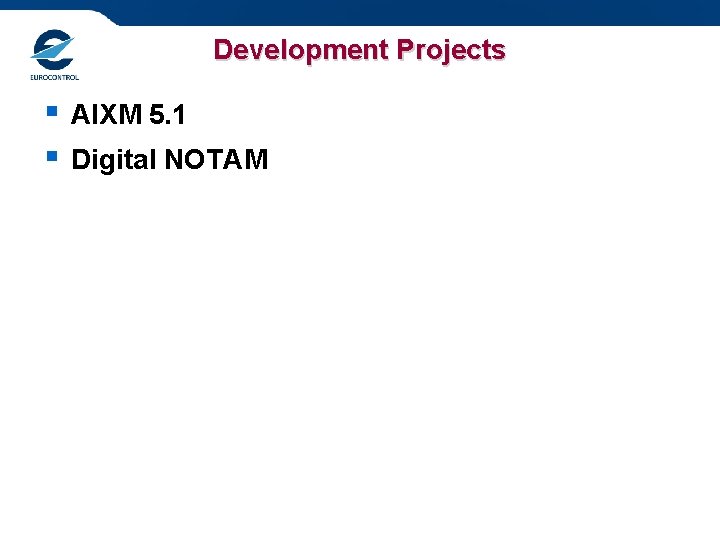

Development Projects § § AIXM 5. 1 Digital NOTAM

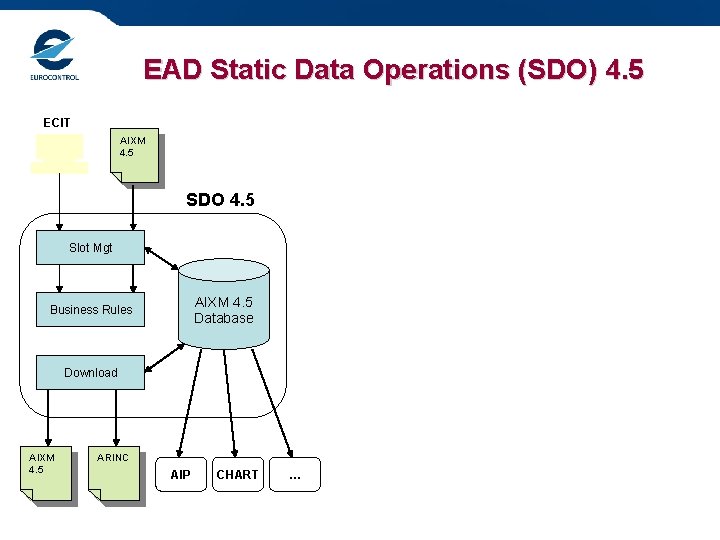

EAD Static Data Operations (SDO) 4. 5 ECIT AIXM 4. 5 SDO 4. 5 Slot Mgt AIXM 4. 5 Database Business Rules Download AIXM 4. 5 ARINC AIP CHART …

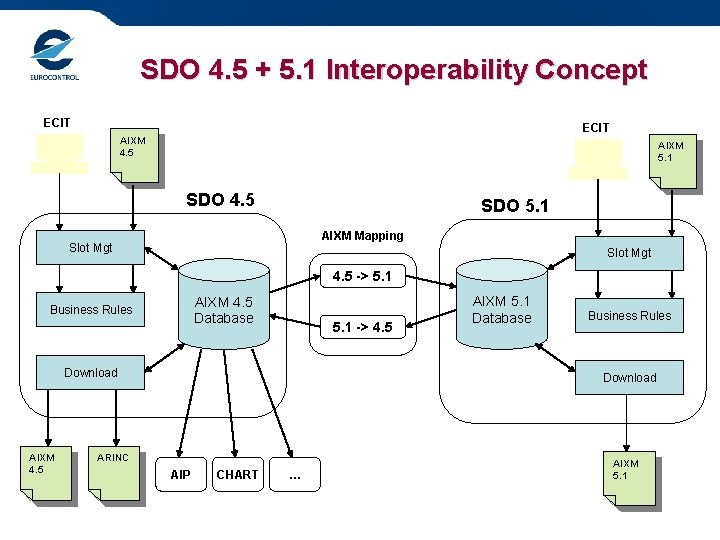

SDO 4. 5 + 5. 1 Interoperability Concept ECIT AIXM 4. 5 AIXM 5. 1 SDO 4. 5 SDO 5. 1 AIXM Mapping Slot Mgt 4. 5 -> 5. 1 AIXM 4. 5 Database Business Rules 5. 1 -> 4. 5 Download AIXM 4. 5 AIXM 5. 1 Database Business Rules Download ARINC AIP CHART … AIXM 5. 1

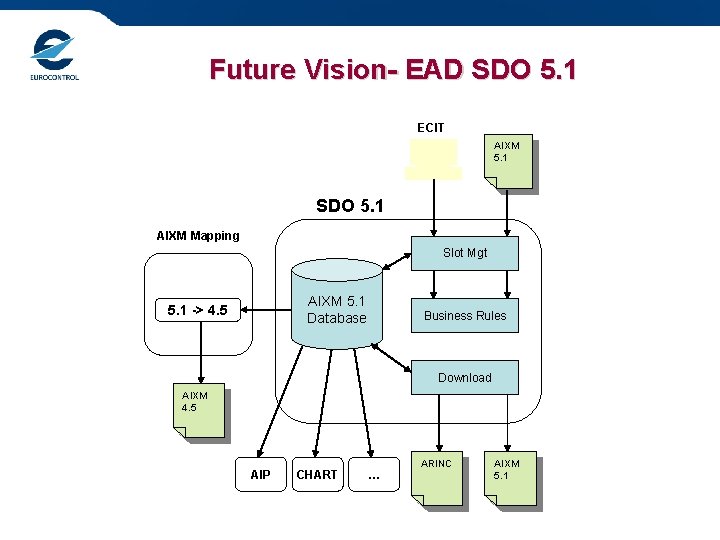

Future Vision- EAD SDO 5. 1 ECIT AIXM 5. 1 SDO 5. 1 AIXM Mapping Slot Mgt AIXM 5. 1 Database 5. 1 -> 4. 5 Business Rules Download AIXM 4. 5 AIP CHART … ARINC AIXM 5. 1

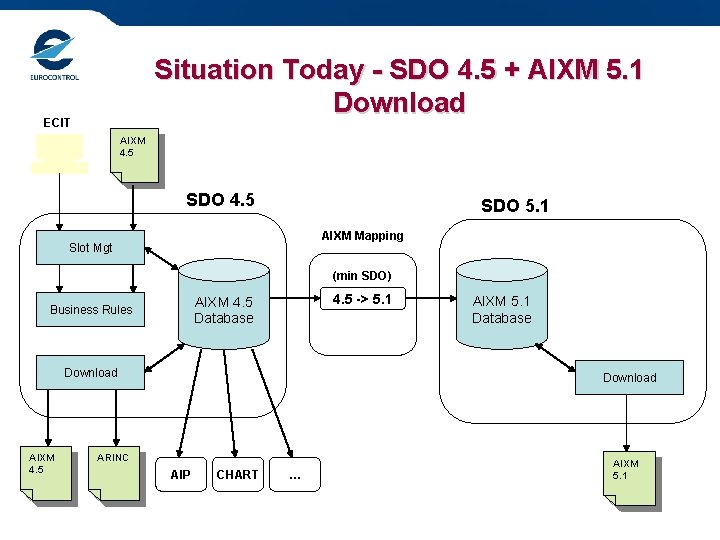

Situation Today - SDO 4. 5 + AIXM 5. 1 Download ECIT AIXM 4. 5 SDO 5. 1 AIXM Mapping Slot Mgt (min SDO) 4. 5 -> 5. 1 AIXM 4. 5 Database Business Rules Download AIXM 4. 5 AIXM 5. 1 Database Download ARINC AIP CHART … AIXM 5. 1

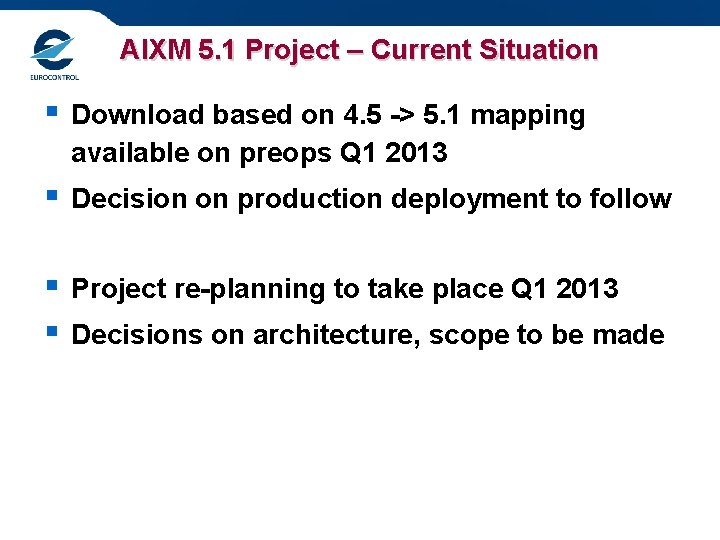

AIXM 5. 1 Project – Current Situation § Download based on 4. 5 -> 5. 1 mapping available on preops Q 1 2013 § Decision on production deployment to follow § § Project re-planning to take place Q 1 2013 Decisions on architecture, scope to be made

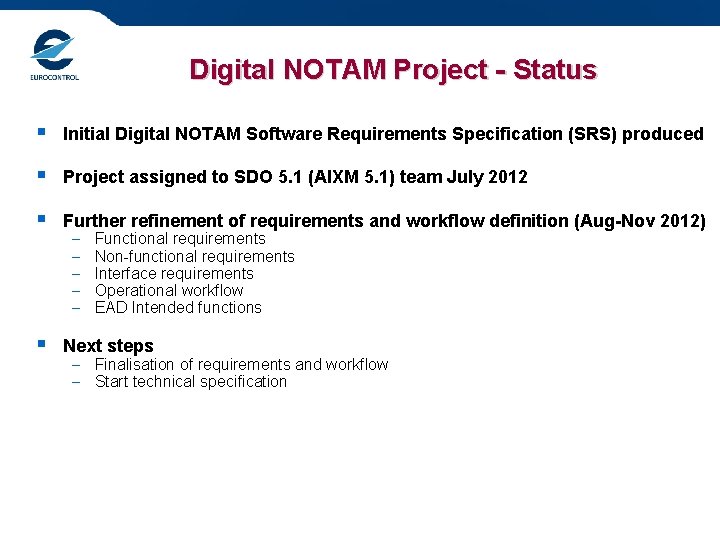

Digital NOTAM Project - Status § Initial Digital NOTAM Software Requirements Specification (SRS) produced § Project assigned to SDO 5. 1 (AIXM 5. 1) team July 2012 § Further refinement of requirements and workflow definition (Aug-Nov 2012) § Next steps – – – Functional requirements Non-functional requirements Interface requirements Operational workflow EAD Intended functions – Finalisation of requirements and workflow – Start technical specification

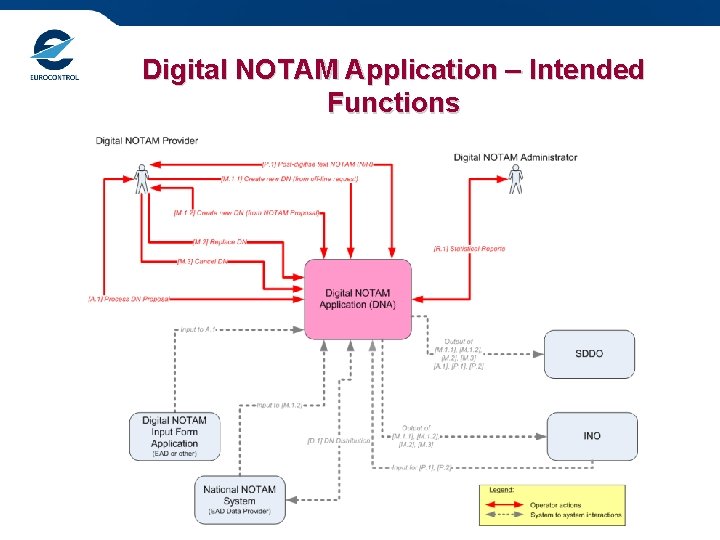

Digital NOTAM Application – Intended Functions

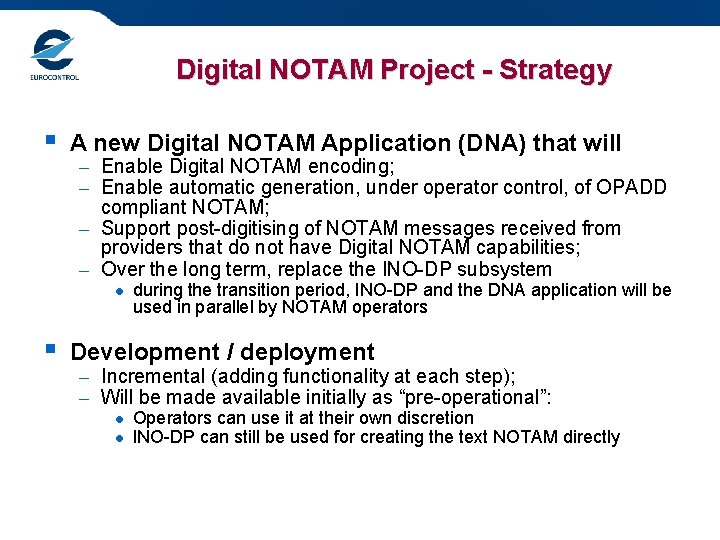

Digital NOTAM Project - Strategy § A new Digital NOTAM Application (DNA) that will – Enable Digital NOTAM encoding; – Enable automatic generation, under operator control, of OPADD compliant NOTAM; – Support post-digitising of NOTAM messages received from providers that do not have Digital NOTAM capabilities; – Over the long term, replace the INO-DP subsystem l § during the transition period, INO-DP and the DNA application will be used in parallel by NOTAM operators Development / deployment – Incremental (adding functionality at each step); – Will be made available initially as “pre-operational”: l l Operators can use it at their own discretion INO-DP can still be used for creating the text NOTAM directly
