EURO FAN 69 inch November 2014 Introducing Euro

EURO FAN – 69 inch November 2014

Introducing Euro Fan 69 inch Performance Result Euro Fan 69” Motor 2. 0 HP 0. 00" CFM/W 42, 595 20. 28 0. 04" CFM 40, 909 CFM/W 19. 48 0. 08" CFM/W 38, 917 18. 53 0. 12" CFM/W 36, 826 17. 54 *Tested at U. N. I. rules 7179 -73 P

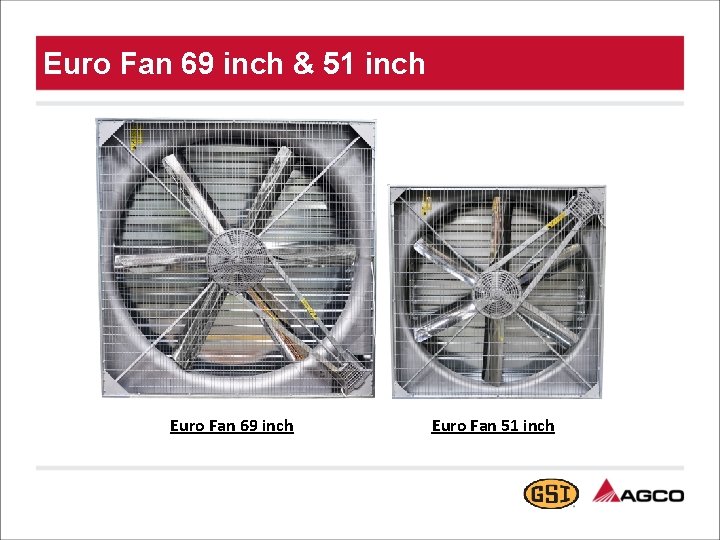

Euro Fan 69 inch & 51 inch Euro Fan 69 inch Euro Fan 51 inch

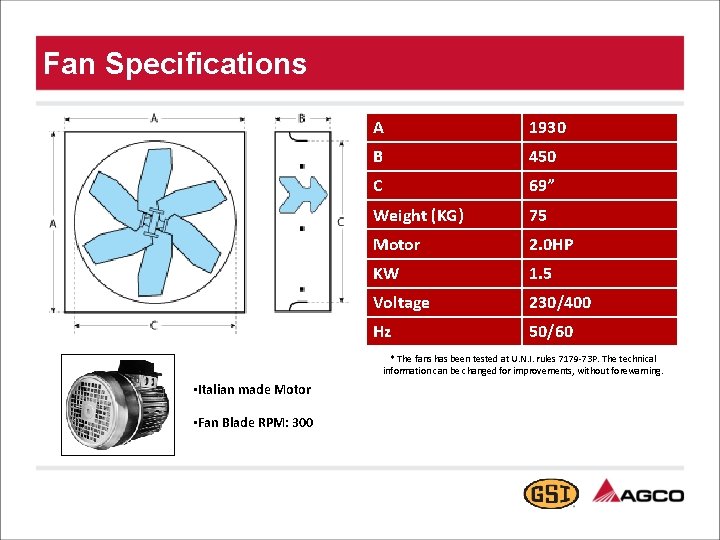

Fan Specifications A 1930 B 450 C 69” Weight (KG) 75 Motor 2. 0 HP KW 1. 5 Voltage 230/400 Hz 50/60 * The fans has been tested at U. N. I. rules 7179 -73 P. The technical information can be changed for improvements, without forewarning. • Italian made Motor • Fan Blade RPM: 300

Euro Fan 69 inch Features Plastic Venturi • The venturi injected out in one piece provides easy installation and maintenance. • Made of strong plastic. • Corrosion free and easy to clean for optimal hygiene • More durable.

Euro Fan 69 inch Features 6 Stainless Steel Blades • Stainless Steel fan blade provided excellent corrosion resistance. • Longer lasting than galvanized blade

Euro Fan 69 inch Features Plastic Belt Cover Safety feature to prevent injured of worker from direct contacting to the moving belt and pulley during operation of fan. Competitors Offer: Worker prone to get injured if they accidentally place their fingers into the grill.

Euro Fan 69 inch Features “X” Support Structure • Robust and strong support which able to withstand in-house pressure and reduced fan vibration. • Made of triangular profile tube for better rigidity and strength. Competitors Offer: Single post support structure that is less stable & fan will vibrate during operation.

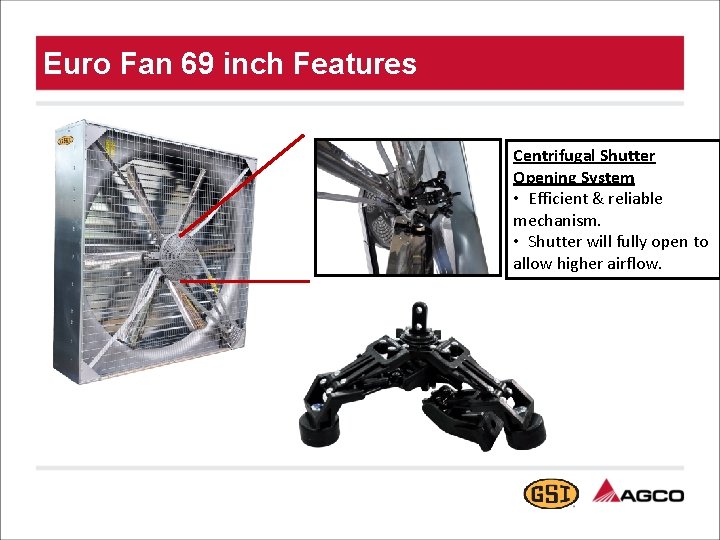

Euro Fan 69 inch Features Centrifugal Shutter Opening System • Efficient & reliable mechanism. • Shutter will fully open to allow higher airflow.

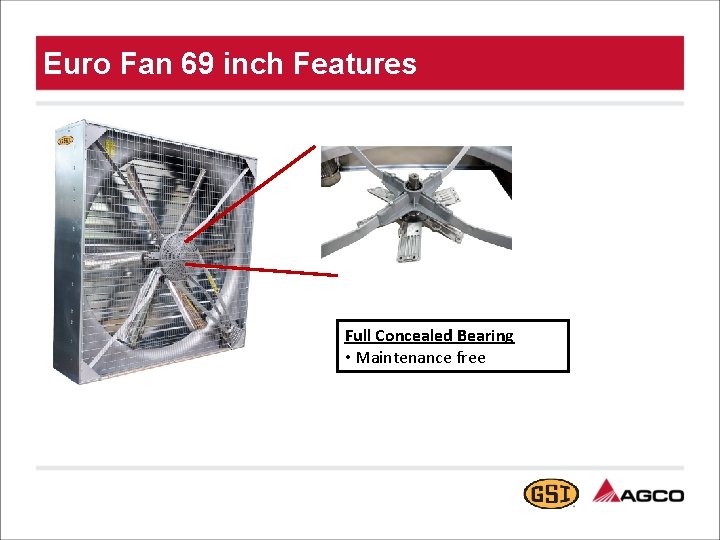

Euro Fan 69 inch Features Full Concealed Bearing • Maintenance free

Euro Fan 69 inch Features Metal Die Forming Side Ribs Metal die forming ribs at both sides of shutter frame for strong and lasting stopper with less components assembly issues. Competitors Offer: Side ribs made of plastic tend to break over time.

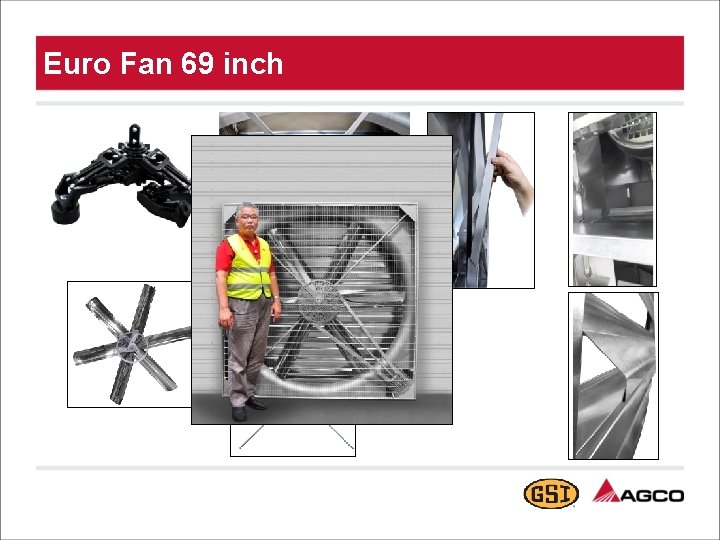

Euro Fan 69 inch

THANK YOU Contact your local dealer or sales representatives today. GSI Tel: +604 508 3319 ( Mon - Fri : 8: 30 am - 5: 30 pm ) Fax: +604 508 4876 Email: customerservice@gsiasia. com. my
