EURISOL DS • Latest. Technical Achievements • Managerial achievements • Proposals for the Future
H- HWRs 176 MHz RFQ 176 MHz 100 ke. V 3 -spoke ISCL Elliptical ISCL 325 MHz 704 MHz b = 0. 09, b = 0. 15 1. 5 Me. V/u b = 0. 3 60 Me. V/q 1 Ge. V/q H-, H+, 3 He++ n-generator UCx target b = 0. 65 b = 0. 78 4 -MW target station 1+ ion source 140 Me. V/q H+, D+, 3 He++ Ion sources b = 0. 47 Elliptical ISCL 704 MHz >200 Me. V/q D+, A/q=2 A possible schematic layout for a EURISOL facility Secondary fragmentation target Spoke ISCL 264 MHz 8 HWRs ISCL 176 MHz 3 QWRs ISCL 88 MHz QWR ISCL 88 MHz One of several 100 -k. W direct target stations Bunching RFQs RFQ Lowresolution mass-selector Charge breeder b = 0. 385 b = 0. 27 b = 0. 14 b = 0. 065 20 -150 Me. V/u 9. 3 - 62. 5 Me. V/u 2. 1 -19. 9 Me. V/u (for 132 Sn) To high-energy To low-energy areas experimental areas To medium-energy experimental areas High-resolution mass-selector
Spoke cavities development @ IPN Orsay • 2 prototypes at =0. 15 and =0. 35 fabricated and successfully tested at 4. 2 K. • This technology is the basis for the 3 -Spoke required by the Driver linac Spoke cavity tuner EURISOL Task 8: Sébastien Bousson – IPN Orsay
Liquid Hg converters Coaxial Guided Stream Windowless Transverse Mercury Film
Off-line test in Hg loop at IPUL Mats Lindroos
Liquid mercury converter The CGS design The WTMF design Mats Lindroos

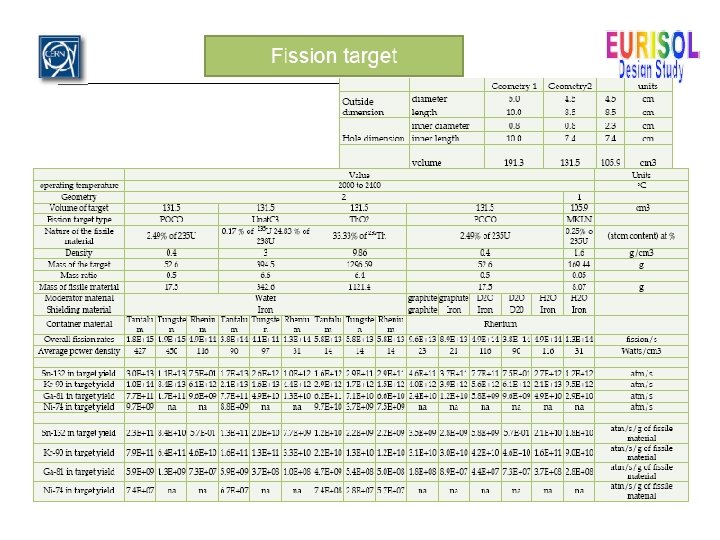

New Target Concept
100 k. W Targets 17 th September 2007
Ca. O 344 online Apr 2007 Experimental data 35 Ar O: Open F: Closed valve leak rate : 0. 3% 34 Ar : 95% Ratio (OO)/(OF+FO) 35 Ar : 83% Symmetry : (FO)/(OF) 34 Ar : 94% 35 Ar : 92% Ion source efficiency : (FO or OF) Ar : 5. 1% (OO) Ar : 4. 9% E. Bouquerel, L. Penescu, E. Barbero, D. Carminati, R. Catherall, B. Crepieux, J. Lettry, S. Marzari, E. Noah, T. Stora, R. Wilfinger T. Stora
ISOL targets and ion sources Hf. O 2 felts 100 mm Target materials (30): Ion sources (>5): • Refractory oxides and carbides (Al 2 O 3, Si. C) • Surface • Solid metals (Ta, Nb, Mo) • RILIS • FEBIAD, ECR • Molten metals (Pb, La, Sn). 2 mm nm/sub-mm Si. C High density UCx 4 sk Ta foils a o L. Te hi c c r. T fo 20 mm ISOLDE UCxpressed pellets 17 th September 2007 4 Targets 4 Ion-sources 1 Front-end
100 k. W oxide target design • Prototype test preparation at TRIUMF • Proton E=0. 5 Ge. V, Pmax= 50 k. W wobbling envisaged 17 th September 2007
Liquid metal loop Irradiation cell Diffusion chamber EM pump Heat exchanger To be tested at IPUL Mats Lindroos
MUST 2 + TIARA Testing Instrumentation Concepts for EURISOL Task 10 : Physics and Instrumentation Robert Page
• EURISOL has a stable Design, validated by worldwide experts • During the final year, the work is concentrated on prototype building and testing
Management Achievements • EURISOL User Group: Angela Bonaccorso, chair. First workshop Jan. 2008; Charter established; election of executive committee: 27 candidates for 8 seats, 354 voters. • Site Investigation Panel : A. Shotter, G. Cuttone, D. Geesaman, A. Mueller, S. Myers. 3 meetings. Will report to steering committee in November • Third annual report accepted for scientific part. Comments on financial part received last week. • Review panels organized for MMW converter and post accelerator. • Production of brochure for General Public • Next Town Meeting March 30 -April 1 2009 in Pisa. • Defining strategy for the future of EURISOL
Proposal for the Future of EURISOL • EURISOL has made use of EC instruments: 5 th framework RTD and 6 th framework DS. • Major advances have been achieved and a large community with varied technical expertise has developed and must continue to be nurtured • Full engineering report necessary before Preconstruction phase: No (evident) EC instrument for funding. • We (the EURISOL DS MB) propose to form a EURISOL collaboration consisting of laboratories interested in participating in the continuing effort.
Role of the EURISOL Collaboration • Follow the scientific and policy recommendations of • • • Nu. PECC Promote and Coordinate the R&D to further EURISOL, including work at intermediate generation facilities Solicit support of the funding agencies, in particular through the Nu. PNET Eranet, and explore other funding opportunities (EC, intercontinental…) Interact with the EC >> entry on the ESFRI list. Goal : Produce an engineering report for the facility Support the EURISOL User Group; organize Town Meetings Has been endorsed by Nu. PECC, thank you!
Multi-Community Design Study on High Power Targets : Neutrinos, Neutrons and Ions • Establish limits for Liquid metal and solid target technology • Study common infrastructure and collect data for licensing work • Computer studies of cavitation and bubble development, determination of shock fronts and studies of the beam/pressure pulse • Off-line studies at liquid metal target laboratories such as IPUL in Latvia, SNS in Oak Ridge and J-Parc in Tokai • Beam tests to study cavitation and mitigation at high instantaneous beam intensity facilities such as ISOLDE and AGS • In-beam tests at a high power facility of new concepts Under Discussion
Organization of the EURISOL Collaboration • Collaboration board representing participants >> Elects collaboration chairperson and appoints project leader. • Project office supported by a modest collaboration fee (~5000 E/year/lab). • Engineering work coordinated by project leader and funded by funding agencies (+ other), preferably coordinated by Nu. PNET. • Work divided into work packages
EURISOL Work Packages (3 -5 years) • Management (Project Office) • RIB production: Specific prototyping and tests – – Neutron converter in beam Fission target in n flux New target materials; liquid metal direct target Novel beam splitter system… • Prototyping at “intermediate” facilities; linked to EURISOL Net in ENSAR • Documentation and licensing • Infrastructure • Updating the science case : coordinated by EURISOL User group
Requests • Very approximate price tag: 2 M€/year for 4 years. • We would like the support of Nu. PECC to implement this plan (and welcome your suggestions). • Collaboration launched by the EURISOL Steering Committee in Nov. 2008 • Startup should be in fall 2009
