Euler’s Method y True value Slope Φ x 0, y 0 y 1, Predicted value Step size, h x Figure 1 Graphical interpretation of the first step of Euler’s method 3 lmethods. eng. usf. edu http: //numerica

Euler’s Method y True Value yi+1, Predicted value Φ yi h Step size xi xi+1 x Figure 2. General graphical interpretation of Euler’s method 4 lmethods. eng. usf. edu http: //numerica

How to write Ordinary Differential Equation How does one write a first order differential equation in the form of Example is rewritten as In this case 5 lmethods. eng. usf. edu http: //numerica

Example The open loop response, that is, the speed of the motor to a voltage input of 20 V, assuming a system without damping is If the initial speed is zero , and using Euler’s method, what is the speed at ? Assume a step size of 6 lmethods. eng. usf. edu http: //numerica

Solution Step 1: For is the approximate speed of the motor at 7 lmethods. eng. usf. edu http: //numerica

Solution Cont Step 2: For is the approximate speed of the motor at 8 lmethods. eng. usf. edu http: //numerica

Solution Cont The exact solution of the ordinary differential equation is given by The solution to this nonlinear equation at t = 0. 8 s is 9 lmethods. eng. usf. edu http: //numerica

Comparison of Exact and Numerical Solutions Figure 3. Comparing exact and Euler’s method 10 lmethods. eng. usf. edu http: //numerica

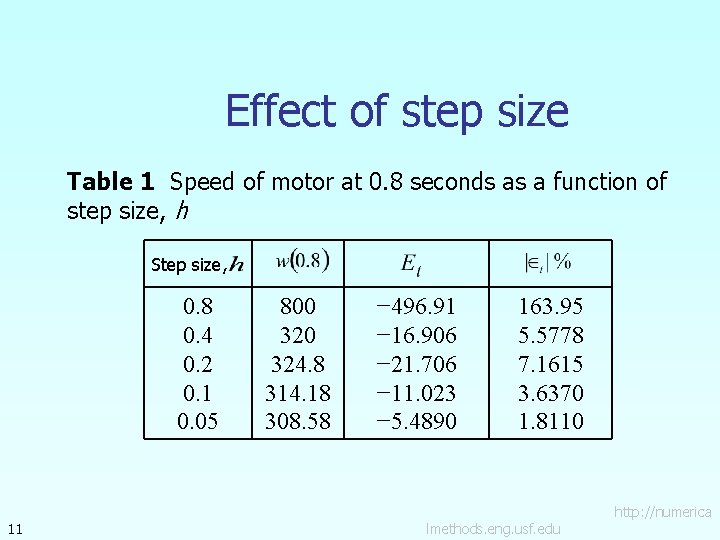

Effect of step size Table 1 Speed of motor at 0. 8 seconds as a function of step size, h Step size, 0. 8 0. 4 0. 2 0. 1 0. 05 11 800 324. 8 314. 18 308. 58 − 496. 91 − 16. 906 − 21. 706 − 11. 023 − 5. 4890 163. 95 5. 5778 7. 1615 3. 6370 1. 8110 lmethods. eng. usf. edu http: //numerica

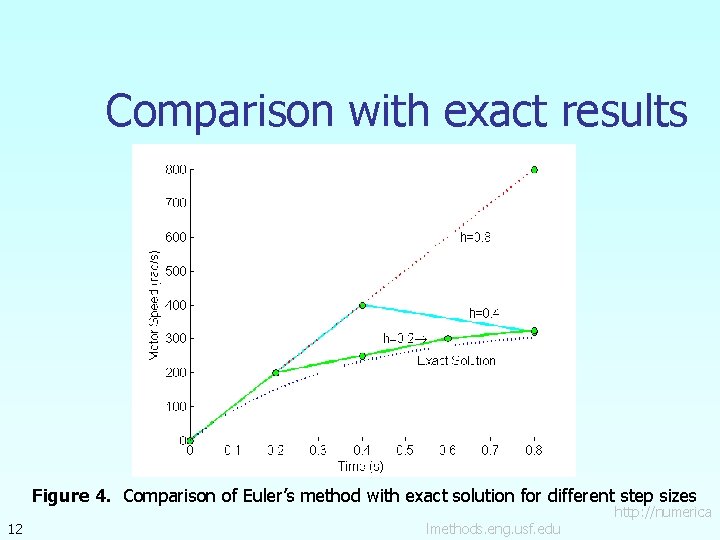

Comparison with exact results Figure 4. Comparison of Euler’s method with exact solution for different step sizes 12 lmethods. eng. usf. edu http: //numerica

Effects of step size on Euler’s Method Figure 5. Effect of step size in Euler’s method. 13 lmethods. eng. usf. edu http: //numerica

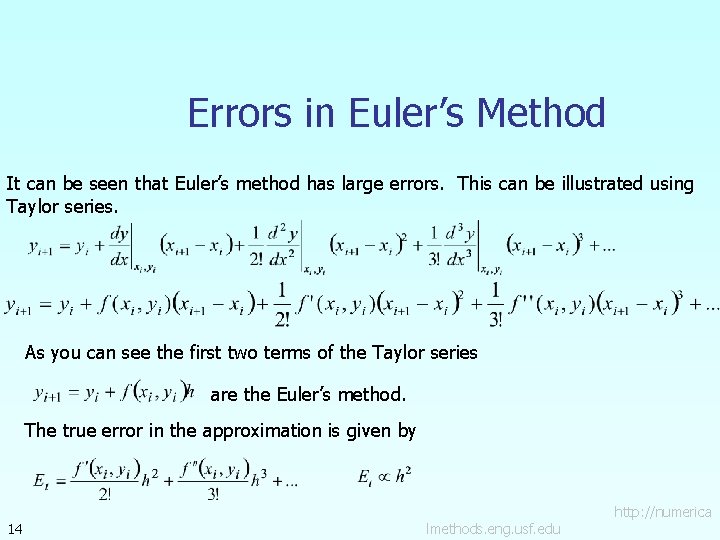

Errors in Euler’s Method It can be seen that Euler’s method has large errors. This can be illustrated using Taylor series. As you can see the first two terms of the Taylor series are the Euler’s method. The true error in the approximation is given by 14 lmethods. eng. usf. edu http: //numerica
