ETSI TECHNICAL ACTIVITIES REPORT JULY 2014 TCAM EG

ETSI TECHNICAL ACTIVITIES REPORT: JULY 2014 & TCAM EG EMCWP Michael Sharpe © ETSI 2013. All rights reserved

Content 1) Impact of legislative developments: RED, EMCD, LVD 2) Digital Dividend 3) Wireless Access Systems and Wireless Industrial 4) 5) 6) 7) 8) 9) 2 Applications DECT Subclass definition Antenna Characteristics of Mobile Phones Automotive EMC Directive EMC Immunity for Multimedia Equipment Man Over Board recovery OJ citation © ETSI 2013. All rights reserved

1) New EU Legislation in 2014 Electromagnetic Compatibility (EMC) Directive 2014/30/EU • OJ L 96 29 March 2014 • To be applied from April 2016 Replaces 2004/108/EC • Low Voltage Directive 2014/35/EU • OJ L 96 29 March 2014 • To be applied from April 2016 Replaces 2006/95/EC • Radio Equipment Directive 2014/53/EU • OJ L 153 22 May 2014 • To be applied from 13 June 2016 (+ 1 year for manufacturers to • 3 comply) Replaces Radio & Telecommunication Terminal Equipment Directive (RTTED) 1999/5/EC, repealed on 13 June 2016

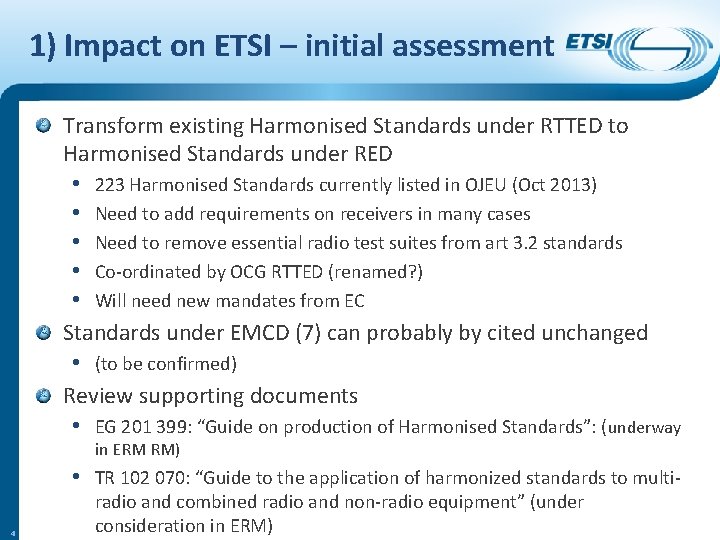

1) Impact on ETSI – initial assessment Transform existing Harmonised Standards under RTTED to Harmonised Standards under RED • 223 Harmonised Standards currently listed in OJEU (Oct 2013) • Need to add requirements on receivers in many cases • Need to remove essential radio test suites from art 3. 2 standards • Co-ordinated by OCG RTTED (renamed? ) • Will need new mandates from EC Standards under EMCD (7) can probably by cited unchanged • (to be confirmed) Review supporting documents • EG 201 399: “Guide on production of Harmonised Standards”: (underway in ERM RM) • TR 102 070: “Guide to the application of harmonized standards to multi 4 radio and combined radio and non-radio equipment” (under consideration in ERM)

1) Impact on ETSI – initial assessment New mandates expected from the Commission for: • Clarification of scope of RED • Receiver performance • Chargers • Software-Defined Radio • Access to Galileo Further mandates as needed • Need for EC to clarify transitional provisions Many more products under the scope of RED • Anything with a GPS receiver • Anything with a Bluetooth device • M 2 M devices • Radar devices 5

1) Impact on ETSI – initial assessment Impact on ETSI Directives • Drafting rules (at least annexes D, E, G) EDM procedures and skeleton documents • To be reviewed Update training material • ETSI Seminar, staff training Update communications material • CEPT/ETSI/EC Regulatory brochure • ETSI Web site 6

1) Impact on ETSI – initial assessment Impact on co-operation with other bodies • CEPT-ETSI Mo. U refers specifically to 1999/5/EC • Needs an editorial update: no substantial change foreseen • CEN-CENELEC-ETSI co-operation • (art 3. 1 (a)): Safety Standards are developed by CENELEC • (art 3. 1(b)): EMC for comms network equipment and other radio equipment by ETSI; EMC Standards for broadast receivers by CENELEC (art 3. 2 & art 3. 3) : Radio spectrum standards by ETSI No identified need to change the above 7 • • • Continuing need for close co-operation with: • RTTE Compliance Association (renamed? ) • Administrations Co-operation group (ADCO) • European Commission (TCAM & RSCOM) • Radio Spectrum Policy Group (RSPG)

1) RED – working assumptions Mandates: ETSI is working under the assumption that: • Existing mandates under 1999/5/EC shall be construed as mandates • under 2014/53/EU Any new “mandates” will take the form of Standardisation Requests under Regulation 1025/2012: implementing acts which follow the examination procedure of that Regulation, requiring a positive opinion of the Committee of Standards Additional requirements of article 3. 3: • Any Decisions invoking additional essential requirements under • 8 1999/5/EC shall be construed as invoking the equivalent essential requirements under 2014/53/EU The Commission may invoke new additional requirements as a delegated act. © ETSI 2011. All rights reserved

2) Digital Dividend Joint ETSI CENELEC WG on Digital Dividend now operational • Initial report expected in October, to provide input to the Commission on a possible 700 MHz mandate Final report expected November 2014 Active co-operation with CEPT/ECC • • Technical specification of “idle mode” provided to CENELEC ECC Report 207 (2014 -01) under study in ERM/MSG TFES, as the basis to review LTE emission masks for Base Stations & User Equipment Short-Range Devices standard (EN 300 220) under review to improve Rx performance Improvements made to GSM-R Rx performance specification(TS 102 933 : 2014 -06) Next meetings: • ERM TG 28: 4 to 6 November, Sophia Antipolis • TFES: 25 to 26 September, Sophia Antipolis • JWG: 2 to 3 September, Brussels 9 © ETSI 2013. All rights reserved

3) Wireless Access Systems in 2. 45 GHz (including Wireless Industrial Applications) EN 300 328 V 1. 8. 2 currently on ENAP until 29 July • Includes improvements in test methods and improvement in spectrum -sharing methods, principally for Bluetooth equipment. Expected to be published as v. 1. 9. 1 (31 January 2015) • Subsequent version is being developed to include additional solutions for WIA and meets the requirements of the 2008 TCAM Decision • i. e. including a spectrum-sharing mechanism facilitating “sharing • • 10 between the various technologies and applications which currently exist and in case of congestion, users will be ensured equal access (and as a consequence a graceful degradation of service to all users)”. Expected to be v. 1. 10. 1, as the WIA community had asked for more time to prepare proposals that are in line with the TCAM decision Work progressing in ERM TG 11 with co-operation of CENELEC TC 65 X under “mode 4” © ETSI 2013. All rights reserved

3) Wireless Industrial Applications in 5. 8 GHz Based on an ETSI System Reference Document (TR 102 889 -2), CEPT had developed ECC Report 206 (WIA in the band 57255875 MHz). This report indicates sharing is possible and hence CEPT FM has suggested to ETSI to start to develop a Harmonised Standard covering WIA applications, assuming an e. i. r. p. of less than 400 m. W, and that appropriate interference mitigation methods are specified. ERM TG 41 (Wireless Industrial Applications) are considering a system approach based on a Central Control Point (CCP) ) to facilitate intra-system sharing but also to protect incumbent services (Radar, ITS, BFWA, . . ) (similar to the master-slave concept used by DFS - RLAN to protect radar in 5 GHz). 11 © ETSI 2011. All rights reserved

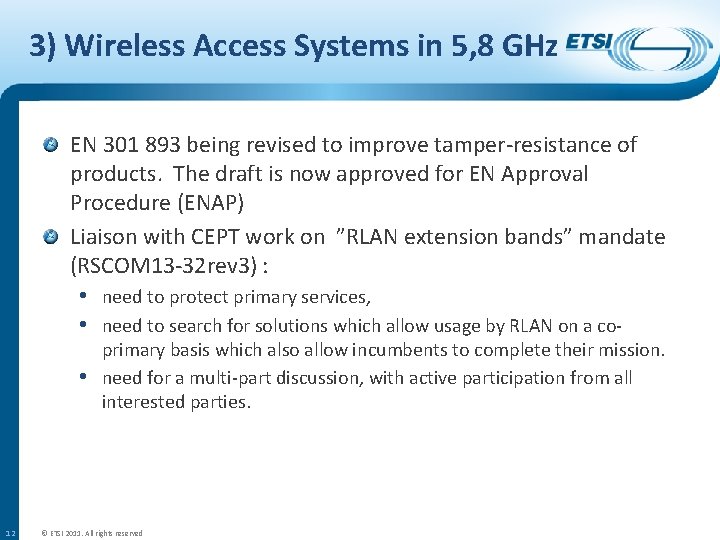

3) Wireless Access Systems in 5, 8 GHz EN 301 893 being revised to improve tamper-resistance of products. The draft is now approved for EN Approval Procedure (ENAP) Liaison with CEPT work on ”RLAN extension bands” mandate (RSCOM 13 -32 rev 3) : • need to protect primary services, • need to search for solutions which allow usage by RLAN on a co- • 12 primary basis which also allow incumbents to complete their mission. need for a multi-part discussion, with active participation from all interested parties. © ETSI 2011. All rights reserved

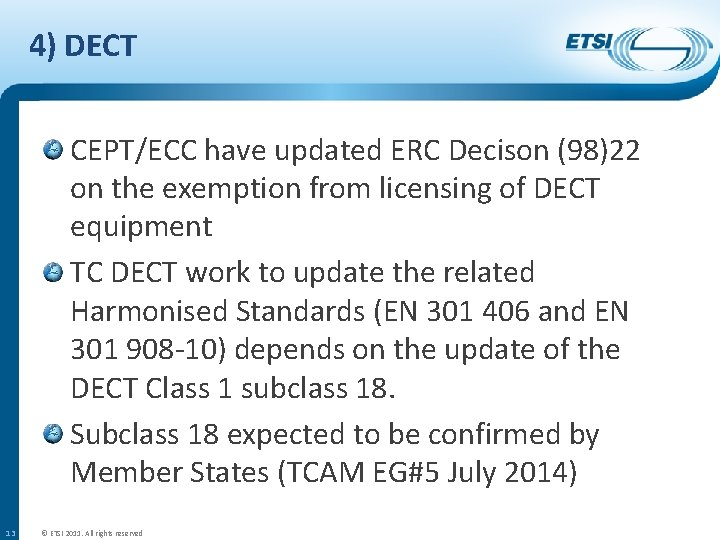

4) DECT CEPT/ECC have updated ERC Decison (98)22 on the exemption from licensing of DECT equipment TC DECT work to update the related Harmonised Standards (EN 301 406 and EN 301 908 -10) depends on the update of the DECT Class 1 subclass 18. Subclass 18 expected to be confirmed by Member States (TCAM EG#5 July 2014) 13 © ETSI 2011. All rights reserved

5) Antenna Characteristics of Mobile Phones ETSI presented at EC workshop on 10 June 2014 ETSI is well-placed to respond to a standarisation request if necessary • Probably in TC MSG • Responsible for European requirements for 3 GPP Important that all stakeholders contribute • Mobile Network Operators • Mobile Equipment Manufacturers • National Administrations • User Representative organisations • The European Commission All of the above are directly represented in ETSI EC to consult stakeholders and propose action if necessary 14 © ETSI 2011. All rights reserved

6) Automotive EMC Directive to be replaced by UNECE Reg 10, with effect from November 2014. • Applies to vehicles, and “Electronic Sub Assemblies” (ESA) EC paper EMC(19)10 clarifying the application to after-market equipment, adopted after consulting EMCWP Subsequent clarifications (via email from EC): • Reg 10 is intended to apply to equipment essential to operation of the vehicle • Not intended to apply to special vehicles (e. g. for emergency services) • 2004/104/EC to remain in force (? ) Technical issues remain, but difficult to influence UNECE • Single spurious emissions requirements inappropriate for radio equipment EUANB advised the Notified Bodies, based a modification of EMC(19)10 ETSI request Commission either to confirm or modify its position as published in EMC(19)10. • Necessary for the update of EN 301 489 -1 15 © ETSI 2013. All rights reserved

7) EMC immunity for multimedia equipment CISPR 35 not adopted by IEC pr. EN 55035 approved in National Vote in CENELEC • Not ratified by CENELEC BT • Not to be presented for the OJEU Generic in scope: • EN 300 386 (EMC Telecommunications Network Equipment); and • EN 301 489 ( EMC for Radiocommunications Equipment) take precedence as more specific (according to CENELEC Guides). Clear to the user? 16 © ETSI 2011. All rights reser

8) Man Over Board recovery ERM TG 26 is also working on standards for locating people lost at sea: using DSC (EN 303 132 -1) and using the Automatic Identification System (AIS) signalling (EN 303 098 -1 parts 1 and 2) and using homing beacons (EN 302 961). A final draft of the DSC MOB standard (EN 303 132 -1) • Consultation with ECC Maritime Forum, June 2014 • ERM TG 26 may propose work items for Harmonized Standards EN 303 098 -1 (MOB using AIS signalling) failed NV, • negative votes from DE, DK, IS, NL, NO & UK, and abstention from CH, • • 17 IT, MT, RO, SE. Vote comments have been resolved a revised version of EN 303 098 (2 parts) will be sent for a 2 nd NV. © ETSI 2011. All rights reserved

8) Man Over Board recovery (contd) The EN 302 961 series using maritime personal homing beacons at 121, 5 MHz was published in July 2013 and cited in the OJEU in October 2013. ETSI has contributed to discussions within TCAM on the application of article 3. 3 e) to these devices, and has contributed to discussions in ITU-R WP 8 B. 18 © ETSI 2011. All rights reserved

9) OJ citation under R&TTED The latest list OJ C 297 on 12 October 2013 (223 ETSI Harmonized Standards) Since the publication of the last list, ETSI has published a further 23 Harmonized Standards, which are awaiting citation. • List annexed to separate report. 5 Standards on ENAP, or approved to start 21 open work items pre-TB approval Members urge the EC to publish a new list as soon as possible Working assumption: Standards currently under public approval process will be cited under RTTED Many RTTED standards may be suitable under RED with no (or minimal) modification 19 © ETSI 2013. All rights reserved

9) OJ citation under EMCD The last list to be published under the EMC Directive was on 25 May 2014 (OJC 53). 7 ETSI Harmonized Standards No published ETSI Harmonised Standards awaiting citation 1 Harmonised Standard in drafting stage ETSI standards can be downloaded free of charge from the ETSI web site. 20 © ETSI 2013. All rights reserved

Thank you for your attention ETSI website (http: //www. etsi. org) • general public information • free standards download • promotional aspects ETSI portal (http: //portal. etsi. org) • easy access to data • • for each Technical Body Working documents ETSI applications and databases 3 GPP website (www. 3 gpp. org) Forapolis website (www. forapolis. org) 21 © ETSI 2013. All rights reserved
