ETSI TECHNICAL ACTIVITIES REPORT FOR ECC NOVEMBER 2016
ETSI TECHNICAL ACTIVITIES REPORT FOR ECC NOVEMBER 2016 CEPT/ECC#43 - Prague Michael Sharpe © ETSI 2016 All rights reserved
Radio Equipment Directive (RED) 2014/53/EU: OJ L 153 22 May 2014 Replaces Radio & Telecommunication Terminal Equipment Directive (RTTED) 1999/5/EC, repealed with effect from 13 June 2016 RED applied from 13 June 2016 (+ 1 year for manufacturers to comply) Covers equipment which intentionally transmits or receives radio waves for communications or radiodetermination, regardless of primary function • Operating up to 3000 GHz (NB: no lower frequency limit) • LVD & EMCD will no longer apply to RED equipment • Many products under the scope of RED: e. g. anything with a GPS, Bluetooth, RFID, RLAN, NFC…. 2 © ETSI 2016. All rights reserved
Standardisation request M/536 of 4. 8. 2015 under 2014/53/EU (RED) Work programme underway: 216 (originally 176) Work Items for Harmonised Standards 22 Harmonised Standards cited in the OJEU (11. 2016) 71 Harmonised Standards published awaiting citation in the OJEU 61 in Public Approval / Resolution of comments 17 Approved by TB – awaiting start of ENAP 5 Scheduled for TB Approval before end December 2016 30 Scheduled for TB Approval January to June 2017 • 10 July 2017 and after © ETSI 3 ²
Issues relevant for CEPT/ECC#43 Ultra Wide Band Obstacle Detection Radar (including Heliborne) 2, 45 GHz & 5 GHz Wideband Access Systems Short-Range Devices (& “GSM-R Extension bands”) • Including equipment operating below 9 k. Hz Intelligent Transport Systems • Including e. Tachograph Antenna performance of terminals 4 © ETSI 2011. All rights reserved
UWB Harmonised Standards EN 302 065 -1 2. 1. 1 REN/ERM-TGUWB-139 EN 302 065 -2 2. 1. 1 REN/ERM-TGUWB-130 EN 302 065 -3 2. 1. 1 EN 302 065 -4 1. 1. 1 UWB Material Sensing devices Draft Review after PE EN 302 065 -5 0. 0. 6 UWB onboard aircraft TB approval DEN/ERM-TGUWB 132 DEN/ERM-TGUWB 142 REN/ERM-TGUWB-138 EN 302 066 2. 1. 1 REN/ERM-TGUWB-131 EN 302 372 2. 1. 1 REN/ERM-TGUWB-136 5 SRD equipment using Ultra Draft Review Wide Band technology (UWB) after PE REN/ERM-TGUWB-128 © ETSI 2011. All rights reserved EN 302 729 2. 1. 1 HEN for UWB Location Tracking Draft Review after PE HEN for UWB for ground Draft Review based vehicular applications after PE Ground- and Wall- Probing Radar applications Start of Vote (GPR/WPR) imaging systems; TLPR update Start of Vote Level Probing Radar in 6 -8, 5 GHz; 24, 05 -26, 5 GHz; 57 -64 Start of Vote GHz; 75 -85 GHz
Ultra Wide Band Studies underway in SE 24 (SE 24_58) based in ETSI SRDoc TR 103 416 for UWB vehicular access systems. SRDoc TR 103 313 under development to address medical UWB SRDoc TR 103 314 under development to address amended mitigation techniques for UWB sensors Technical report TR 103 181 -3 on World-wide regulation for UWB published August 2016 • Follows from part 1 (2015 -07): UWB signal characteristics • 6 and overview CEPT/ECC and EC regulation Part 2: (2014 -06): UWB mitigation techniques © ETSI 2011. All rights reserved

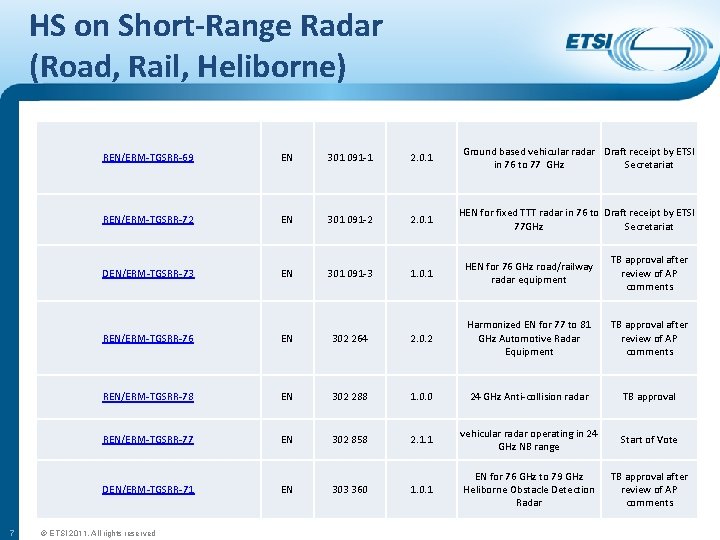

HS on Short-Range Radar (Road, Rail, Heliborne) 7 REN/ERM-TGSRR-69 EN 301 091 -1 2. 0. 1 Ground based vehicular radar Draft receipt by ETSI in 76 to 77 GHz Secretariat REN/ERM-TGSRR-72 EN 301 091 -2 2. 0. 1 HEN for fixed TTT radar in 76 to Draft receipt by ETSI 77 GHz Secretariat TB approval after review of AP comments DEN/ERM-TGSRR-73 EN 301 091 -3 1. 0. 1 HEN for 76 GHz road/railway radar equipment REN/ERM-TGSRR-76 EN 302 264 2. 0. 2 Harmonized EN for 77 to 81 GHz Automotive Radar Equipment TB approval after review of AP comments REN/ERM-TGSRR-78 EN 302 288 1. 0. 0 24 GHz Anti-collision radar TB approval REN/ERM-TGSRR-77 EN 302 858 2. 1. 1 vehicular radar operating in 24 GHz NB range Start of Vote DEN/ERM-TGSRR-71 EN 303 360 1. 0. 1 EN for 76 GHz to 79 GHz Heliborne Obstacle Detection Radar TB approval after review of AP comments © ETSI 2011. All rights reserved
5, 8 GHz: Wideband Transmission Systems Review of EN 301 893 for RED underway in TC BRAN • Wi. Fi and LTE-LAA with a common sharing mechanism • Receiver blocking included in latest draft • “Two-stage” receiver improvements expected (as EN 300 328 in 2, 45 GHz) ENAP forecast January 2017 • Sharing techniques under study in extension bands: • TR 103 317 (with EESS in 5 350 to 5 470 MHz) • TR 103 318 (with radiolocation in 5 350 to 5 470 MHz and • 8 5 725 to 5 850 MHz) TR 103 319 (with Road Tolling and Intelligent Transport systems in 5 725 to 5 925 MHz band) © ETSI 2011. All rights reserved

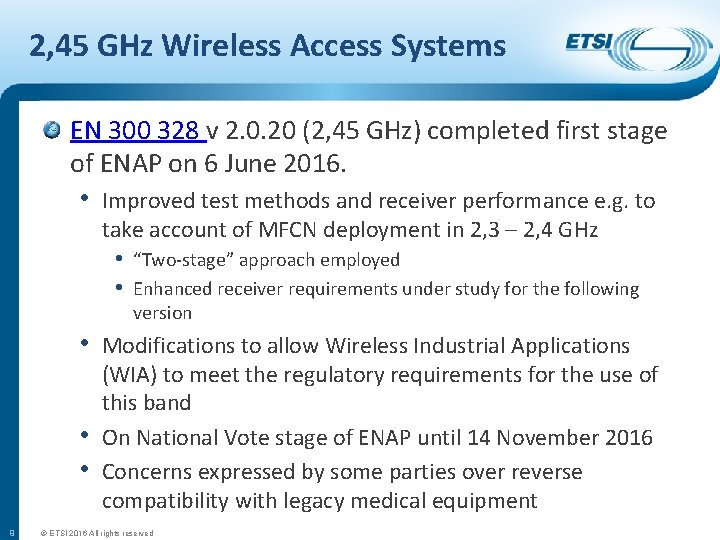

2, 45 GHz Wireless Access Systems EN 300 328 v 2. 0. 20 (2, 45 GHz) completed first stage of ENAP on 6 June 2016. • Improved test methods and receiver performance e. g. to take account of MFCN deployment in 2, 3 – 2, 4 GHz • “Two-stage” approach employed • Enhanced receiver requirements under study for the following version • Modifications to allow Wireless Industrial Applications • • 9 (WIA) to meet the regulatory requirements for the use of this band On National Vote stage of ENAP until 14 November 2016 Concerns expressed by some parties over reverse compatibility with legacy medical equipment © ETSI 2016 All rights reserved
Implanted medical equipment operating in 2, 45 GHz New implants already implement “polite” protocols After June 13 2017 – new programmers will need to include a mode to continue to communicate with existing implanted devices • Medical devices’ backward compatibility which existed in v 1. 8. 1 and 1. 9. 1 is no longer permitted in the version of EN 300 328 currently on NV 10 EN 303 490 being developed in ERM TG 30 Expected to be needed for five years ETSI will contact the RED Desk Officer to receive feedback from the EC on implemented legacy mode for new programmers to interact with old pacemaker © ETSI 2011. All rights reserved
Non-specific Short-Range Devices EN 300 220 (multi-part) • Separate parts mapped to developing update of EC Decision • • 11 on SRD Part 2 v 3. 1. 1 Includes Rx requirements (“ 2 -stage approach”: Cat 3 Rx to be removed in part 2 of v 3. 2. 1 by the end of 2018) EC Desk Officer requests the addition of a Note; ETSI to clarify with EC Completed ENAP on 1 August 2016, comments resolved where necessary, approved for National Vote (NV) EN 303 406 (Social Alarms, complementary to EN 300 220 -2) approved for NV after resolution of ENAP comments © ETSI 2016. All rights reserved
Rail equipment ETSI TC RT (Railway Telecommunications) formed WG Next Generation Radio for Rail (NG 2 R) in July 2015 TR 103 333: SRDoc; GSM-R Networks Evolution under development (ETSI internal enquiry foreseen November 2016), requesting ECC to: • harmonise the 873 -880 MHz UL / 918 -925 MHz DL band for railway purposes. allow the use of other radio technologies than GSM in this band. undertake the necessary coexistence studies. • • Other ETSI published SRDocs addressing “GSM-R extension bands”: • TR 102 649 -2 (2012 -08): Additional spectrum requirements for UHF • 12 RFID, non-specific SRDs and specific SRDs TR 103 245 (2014 -11): wideband SRDs with advanced spectrum sharing capability © ETSI 2016. All rights reserved
Non-specific Short-Range Devices EN 300 330: Comments resolved & TB approved; awaiting NV • Incorporates old EN 302 291 (13, 56 MHz NFC) • EN 302 291 will not provide Po. C after June 2017 EN 300 440: Comments resolved & TB approved; awaiting NV EN 305 550 (SRDs operating between 40 to 246 GHz) • Receiver requirements under development 13 © ETSI 2016. All rights reserved
Other Short-Range Devices Low Throughput Networks: • DTS/ERM-TG 28 -503 (TS 103 357) LTN architecture. • DTS/ERM-TG 28 -504 (TS 103 358) LTN functional blocks, • interoperability scenarios and network deployment DTR/ERM-TG 28 -505 (TR 103 249) LTN Use Cases and System Requirements Ultra Narrow Band systems • DTR/ERM-551 (TR 103 435): System Reference Document: for Ultra-Narrow-Band systems (865 – 868 MHz; 915 – 921 MHz) • under developmen 14 Network-Based SRD (EN 303 204) • Reworked after EC comments: waiting citation © ETSI 2011. All rights reserved
Other Short-Range Devices Railway systems EN 302 608 (Eurobalise): TB Approved – waiting for ENAP EN 302 609 (Euroloop): ENAP comments resolved. On NV until 12 December 15 © ETSI 2011. All rights reserved
Equipment operating below 9 k. Hz Specific standards • Robotic lawnmowers (EN 303 447) (**) • TB Approved, awaiting start of ENAP • Inductive-loop hearing aids (EN 303 348) • ENAP comments (DE, UK) being resolved • TB Approval for NV expected soon • Metal and object detection sensors in the frequency range 1 k. Hz to 148, 5 k. Hz (EN 303 454) Non-specific standard (EN 303 660) under consideration 16 © ETSI 2011. All rights reserved
M/536: Metal and object detection sensors Industrial capacitive/inductive sensors discussed in the context of the RED Guide drafting group • ETSI has started work on Harmonised Standard (EN 303 • • 17 454) on the working assumption that metal and object detection sensors are covered by RED Covers inductive & capacitive sensors (e. g. wood detection inside plaster walls) Applications include power tools, security systems (at airports) or for packaging applications All devices operate by creating emissions into free space • Commission Decision 2006/771/EC footnote (14): “The inductive device category covers …. Typical uses include … cable detection, …, proximity sensors …” © ETSI 2011. All rights reserved
M/536: Non-regulated frequencies (e. g. below 9 k. Hz) Duties of manufacturers (as discussed in RSCOM-TCAM#3 (8 October 2015)) • Article 7 of the RED requires Member States to allow the putting • • 18 into service and use of radio equipment if it complies with the Directive. Member States may introduce additional restrictions on certain grounds, including the effective and efficient use of the radio spectrum. Article 10. 2 requires manufacturers to ensure that radio equipment shall be so constructed that it can be operated in at least one Member State when placing it on the market. As the Radio Spectrum Decision (676/2002/EC) does not provide for Community harmonisation measures below 9 k. Hz, restrictions in these bands can only be introduced by individual Member States. © ETSI 2011. All rights reserved
Non-regulated frequencies (e. g. below 9 k. Hz) ETSI therefore assumes that equipment may be: • placed on the market throughout the Community unless all • Member States have introduced National restrictions preventing its use, and operated in Member States that have not introduced such National restrictions. ETSI further assumes that: • Harmonised Standards contain requirements in order to enable • • 19 compliance with essential requirements (article 3) to be presumed Harmonised Standards do not address restrictions on the use of equipment (article 7) nor the duty of a manufacturer to place on the market equipment which can be used in at least one Member State (article 10. 2) Nevertheless, Harmonised Standards should not be produced for radio equipment that is known to only use frequencies that are forbidden in all MS. © ETSI 2011. All rights reserved
Intelligent Transport Systems EN 302 571 HS under art 3. 2 Approved for National Vote phase of ENAP Comments on technology neutrality resolved Does not favour the use of any technology Provided that the technical specifications implementing the essential requirements are respected Channel access • Different technologies should have equal probability to • • 20 access a channel. Algorithm is not known today: investigations needed Once a solution is developed and agreed upon, it is recommended to implement it in a later revision of EN 302 571 © ETSI 2016. All rights reserved
ITS Cooperative Mobility Services Plugtests™ 06 -10 February 2017 at the CETECOM Test Lab, Milpitas, US Open to any vendor or organization developing ITS equipment and implementations. Multi-stack implementations (US-Europe) are especially invited to participate. Vendors will have the opportunity to run tests in order to assess compliance with the base standards and to demonstrate interoperability of their ITS equipment. See ETSI Collective Letter CL 16_3328 21 © ETSI 2011. All rights reserved
Intelligent Transport Systems Urban Rail & ITS TR 103 442 V 1. 2. 1, published Sept 2016 Shared use of spectrum between Communication Based Train Control (CBTC) and ITS applications • Rail enjoys priority • Options proposed: • Mitigation techniques (e. g. Detect & Avoid) in ITS • ITS-like access mechanisms in CBTC • Full integration of CBTC in ITS Decentralized Congestion Control (DCC) 22 © ETSI 2011. All rights reserved
Intelligent Transport Systems e. Tachograph Development of System Reference Document TR 103 441 initiated to support implementation of EC Regulation 165/2014 Original rapporteur (EC JRC) no longer available • ERM TG 37 seeking solutions 23 © ETSI 2011. All rights reserved
IMT Cellular equipment: antenna performance Standardisation Request asks for antenna performance to be considered with particular importance for User Equipment Under study in 3 GPP • Currently too many ‘tbd’ statements • Will be introduced to HS via ETSI TC MSG when stable • Input from Member States strongly encouraged Discussed in resolution of ENAP comments of EN 301 908 series Agreed with Administrations that antenna performance will be included in future version 24 © ETSI 2011. All rights reserved
Events at ETSI Looking forward: • “ 53 shades of RE-D, Six months to go”, http: //www. etsi. org/RE-D-WORKSHOP, 1 December 2016 – ETSI HQ (after General Assembly) Looking back: • CEPT-ETSI workshop on PPDR, • 25 29 September 2016, www. etsi. org/PPDR-workshop “Developing the Next Generation Radio for Rail”, 2 to 3 November 2016, www. etsi. org/ws-rail-mobile © ETSI 2011. All rights reserved
Summary of major concerns 26 Need to improve EC/ETSI process for review of Harmonised Standards for citation in the OJEU Current process requires frequent changes to ENs post adoption, which: a) Create delays in citation, with a risk that HS are not cited in time b) Create a mis-match between the versions adopted (and transposed into National standards) and versions cited in the OJEU ETSI requests that EC assess standards during Public Approval, allowing their comments to be taken into account in a timely & transparent manner © ETSI 2011. All rights reserved
If standards are not cited in time Draft standards on ENAP can be used by manufacturers as the basis of a technical file EG 203 336 (Guide to selection of technical parameters for Harmonised Standards) can be used by Notified Bodies (art 3. 2) if no public draft exists EG 203 367 (EMC for Combined Equipment) provides an agreed technical basis, and is being used as the basis for Harmonised Standards under development Can also be used by enforcement authorities as a technical basis for assessment. 27 © ETSI 2011. All rights reserved
Work programme 28 © ETSI 2011. All rights reserved
Workshop “ 53 shades of RE-D” In co-operation with ADCO RED & the RED Compliance Association • “How to place compliant radio equipment on the European market”, see CL 16_3324 1 December 2016 – ETSI HQ (after General Assembly) • Follow-up of previous workshop on 4 November 2015, http: //www. etsi. org/RE-D-WORKSHOP Please register early! 29 © ETSI 2016. All rights reserved
Thank you for listening Extra slides on: Michael Sharpe • OJ listing presentation michael. sharpe@etsi. org • EMC www. etsi. org • IMT portal. etsi. org • Aeronautical • Maritime • Rail, Road & Urban Rail • 5, 8 GHz Wireless Industrial Applications • Wireless Power Transfer • Broadcast • Radiodeterminaton • Avalanche Beacons 30 © ETSI 2016. All rights reserved
Harmonised Standards: Presentation of OJEU listing CEN, CENELEC & ETSI received a Commission letter (19 October 2015) on publication of OJ lists under NLF Directives: Listing for 2014/53/EU (not 2014/30/EU) will identify the Essential Requirement addressed by each Harmonised Standard During transition period, only one line will appear in the OJ per standard, which will also include details of previous versions and the dates of cessation of Po. C Two Notes specific to RTTED will be deleted: • In addition standards published under Directives 2006/95/EC, • 31 2004/108/EC, 90/385/EEC and 93/42/EEC may be used to demonstrate compliance with articles 3. 1. a and 3. 1. b of Directive 1999/5/EC. Products are presumed to comply with the Directive when they meet the requirements within the usage conditions for which they are intended. © ETSI 2016. All rights reserved
EMC issues RED article 3. 1 b incorporates essential requirements of EMC Directive 2014/30/EU EMCD does not apply to equipment covered by RED “Possible Future Standardisation Request” under 2014/30/EU notified 1 October 2015 Adopted by the Committee on Standards over summer 2016 – awaiting formal delivery to ETSI continuing to work under existing EMC mandates pending receipt of the definitive Standardisation Request HS under RED article 3. 1 b covered by M/536 32 © ETSI 2016. All rights reserved
EMC Directive (2014/30/EU) Work Programme Working assumption: EMC standards for non-radio equipment will not be cited under the RED (*) EN 300 386 (Telecommunications Network Equipment) to be proposed under the EMCD only EN 301 489 -1 (EMC for radio and ancillary equipment) and EN 301 489 -34 (Specific conditions for External Power Supply (EPS) for use exclusively with mobile phones) to be proposed under EMCD and RED art 3. 1 b (TBC**) • May manufacturer supply an EPS as part of a mobile phone package placed on the market under the RED? “Double Do. C”? Awaiting clarification in TCAM • Remaining parts of EN 301 489 series (specific conditions for other radio services) to be proposed under RED art 3. 1 b only 33 © ETSI 2016 All rights reserved

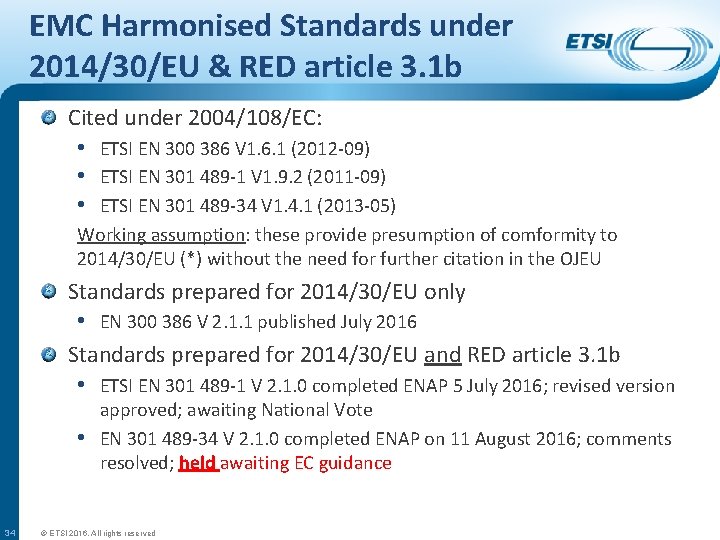

EMC Harmonised Standards under 2014/30/EU & RED article 3. 1 b Cited under 2004/108/EC: • ETSI EN 300 386 V 1. 6. 1 (2012 -09) • ETSI EN 301 489 -1 V 1. 9. 2 (2011 -09) • ETSI EN 301 489 -34 V 1. 4. 1 (2013 -05) Working assumption: these provide presumption of comformity to 2014/30/EU (*) without the need for further citation in the OJEU Standards prepared for 2014/30/EU only • EN 300 386 V 2. 1. 1 published July 2016 Standards prepared for 2014/30/EU and RED article 3. 1 b • ETSI EN 301 489 -1 V 2. 1. 0 completed ENAP 5 July 2016; revised version • 34 approved; awaiting National Vote EN 301 489 -34 V 2. 1. 0 completed ENAP on 11 August 2016; comments resolved; held awaiting EC guidance © ETSI 2016. All rights reserved
EMC for “Combined Equipment” (“smart” or “connected” devices) Trend towards “connected” electrotechnical devices (e. g. light bulbs, domestic appliances, industrial machines) • Products using radiocomms or radiodetermination) covered by RED; LVD & EMCD do not apply • Working Assumption: RED also applies if the radio frequencies used are in ISM bands (e. g. Short-range devices, Radio LAN, Wireless Power Transfer) Different EMC requirements need to be reconciled (different frequency ranges, limits & exclusion bands, different performance criteria & test set-ups) ETSI Guide EG 203 367: published June 2016 35 © ETSI 2016. All rights reserved

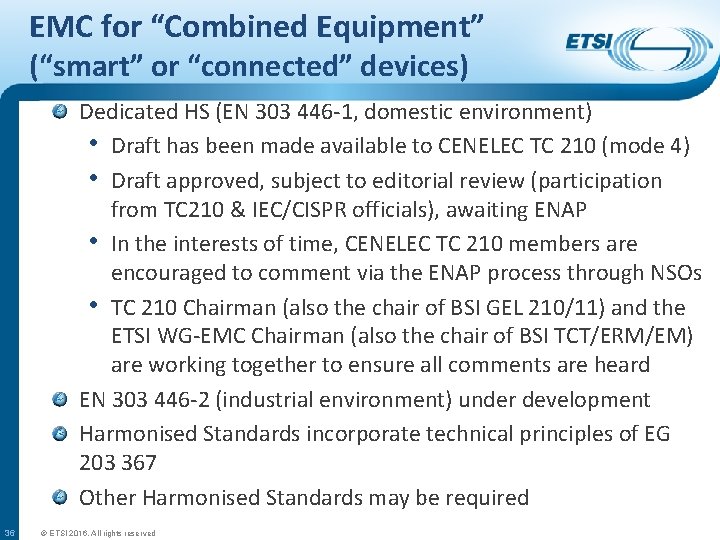

EMC for “Combined Equipment” (“smart” or “connected” devices) Dedicated HS (EN 303 446 -1, domestic environment) • Draft has been made available to CENELEC TC 210 (mode 4) • Draft approved, subject to editorial review (participation from TC 210 & IEC/CISPR officials), awaiting ENAP • In the interests of time, CENELEC TC 210 members are encouraged to comment via the ENAP process through NSOs • TC 210 Chairman (also the chair of BSI GEL 210/11) and the ETSI WG-EMC Chairman (also the chair of BSI TCT/ERM/EM) are working together to ensure all comments are heard EN 303 446 -2 (industrial environment) under development Harmonised Standards incorporate technical principles of EG 203 367 Other Harmonised Standards may be required 36 © ETSI 2016. All rights reserved
Co-operation with CISPR/CENELEC on EMC ETSI takes part regularly in CENELEC TC 210 • Close co-ordination on European Common Modifications • Small group on “annex ZZ” to avoid gaps/overlaps between • 37 CENELEC & ETSI EMC standards CISPR/CENELEC/ETSI meeting planned to co-ordinate work on Wireless Power Transfer (CISPR 11 (EN 55011) and EN 303 417 (Radiocommunications used in Wireless Power Transfer)) ETSI is an active member of the CEN-CENELEC BT WG 10 on the impact of the RED Joint meeting CISPR I/ETSI ERM WG EMC Many industrial members active in both CENELEC and ETSI © ETSI 2016. All rights reserved
IMT Cellular equipment ETSI EN Details EN 301 908 -1 EN 301 908 -2 General Part UTRA UE EN 301 908 -3 UTRA BS EN 301 908 -11 UTRA Repeaters EN 301 908 -12 EN 301 908 -13 EN 301 908 -14 CDMA 2000 Repeaters E-UTRA UE E-UTRA BS EN 301 908 -15 E-UTRA Repeaters EN 301 908 -18 EN 301 908 -19 EN 301 908 -20 EN 301 908 -21 EN 301 908 -22 MSR BS Wi. MAX TDD UE Wi. MAX TDD BS Wi. MAX FDD UE Wi. MAX FDD BS Status Published on ETSI level Next Stage Citation in OJ Citation in OJ Published on ETSI level Published on ETSI level Published on ETSI level Citation in OJ Citation in OJ Status of OJ Citation Awaiting evaluation Awaiting citation Comments received Cited in OJ Awaiting evaluation Awaiting citation Comments received Awaiting evaluation Cited in OJ Awaiting evaluation Comments from EC • Use restrictions: HS also to ensure that a manufacturer can meet • 38 article 10(2) (to ensure that equipment can be taken into service in at least one Member State) (Informative) Note added in Scope: “Radio equipment in band XXXII is only allowed to operate between 1 452 MHz and 1 492 MHz ” © ETSI 2011. All rights reserved
Avionics equipment Interface with EASA regulation ETSI took part in the ad-hoc group to clarify the interface between the RED and the EASA Regulation New EASA Regulation under development Pending final conclusion ETSI operates under a working assumption that: • Radar for helicopters flying in confined spaces and wing-tip radar for • • aircraft taxiing on the ground will be covered by the RED. “Small” UAV are covered by Machinery Directive 2006/42/EC and RED, and not EASA • EASA Regulation under review • https: //www. easa. europa. eu/easa-and-you/civil-drones-rpas GSM/LTE on Board will not be covered by EASA as they are not involved in the direct control of the aircraft in flight ETSI will continue to develop HS for the above 39 © ETSI 2016 All rights reserved

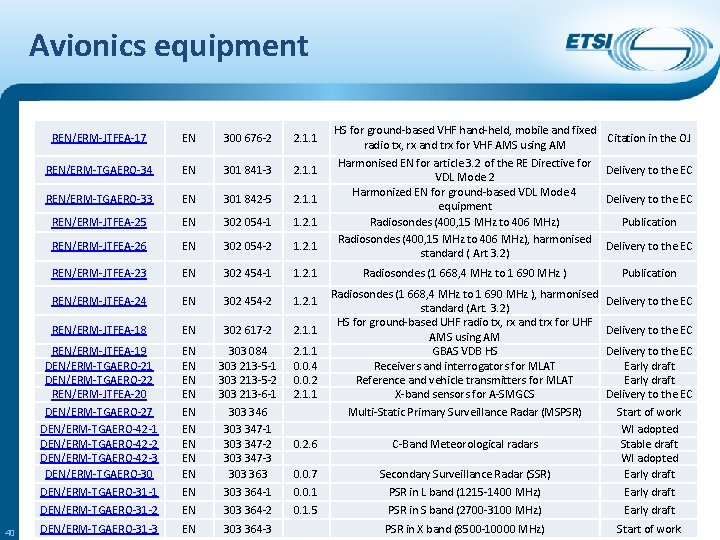

Avionics equipment 40 REN/ERM-JTFEA-17 EN 300 676 -2 2. 1. 1 REN/ERM-TGAERO-34 EN 301 841 -3 2. 1. 1 REN/ERM-TGAERO-33 EN 301 842 -5 2. 1. 1 REN/ERM-JTFEA-25 EN 302 054 -1 1. 2. 1 REN/ERM-JTFEA-26 EN 302 054 -2 1. 2. 1 REN/ERM-JTFEA-23 EN 302 454 -1 1. 2. 1 REN/ERM-JTFEA-24 EN 302 454 -2 1. 2. 1 REN/ERM-JTFEA-18 EN 302 617 -2 2. 1. 1 REN/ERM-JTFEA-19 DEN/ERM-TGAERO-21 DEN/ERM-TGAERO-22 REN/ERM-JTFEA-20 DEN/ERM-TGAERO-27 DEN/ERM-TGAERO-42 -1 DEN/ERM-TGAERO-42 -2 DEN/ERM-TGAERO-42 -3 DEN/ERM-TGAERO-30 DEN/ERM-TGAERO-31 -1 EN EN EN 303 084 303 213 -5 -1 303 213 -5 -2 303 213 -6 -1 303 346 303 347 -1 303 347 -2 303 347 -3 303 364 -1 2. 1. 1 0. 0. 4 0. 0. 2 2. 1. 1 DEN/ERM-TGAERO-31 -2 EN 303 364 -2 DEN/ERM-TGAERO-31 -3 © ETSI 2011. All rights reserved EN 303 364 -3 HS for ground-based VHF hand-held, mobile and fixed radio tx, rx and trx for VHF AMS using AM Harmonised EN for article 3. 2 of the RE Directive for VDL Mode 2 Harmonized EN for ground-based VDL Mode 4 equipment Radiosondes (400, 15 MHz to 406 MHz), harmonised standard ( Art 3. 2) Radiosondes (1 668, 4 MHz to 1 690 MHz ), harmonised standard (Art. 3. 2) HS for ground-based UHF radio tx, rx and trx for UHF AMS using AM GBAS VDB HS Receivers and interrogators for MLAT Reference and vehicle transmitters for MLAT X-band sensors for A-SMGCS Multi-Static Primary Surveillance Radar (MSPSR) Citation in the OJ Delivery to the EC Publication Delivery to the EC 0. 2. 6 C-Band Meteorological radars 0. 0. 7 0. 0. 1 Secondary Surveillance Radar (SSR) PSR in L band (1215 -1400 MHz) Delivery to the EC Early draft Delivery to the EC Start of work WI adopted Stable draft WI adopted Early draft 0. 1. 5 PSR in S band (2700 -3100 MHz) Early draft PSR in X band (8500 -10000 MHz) Start of work

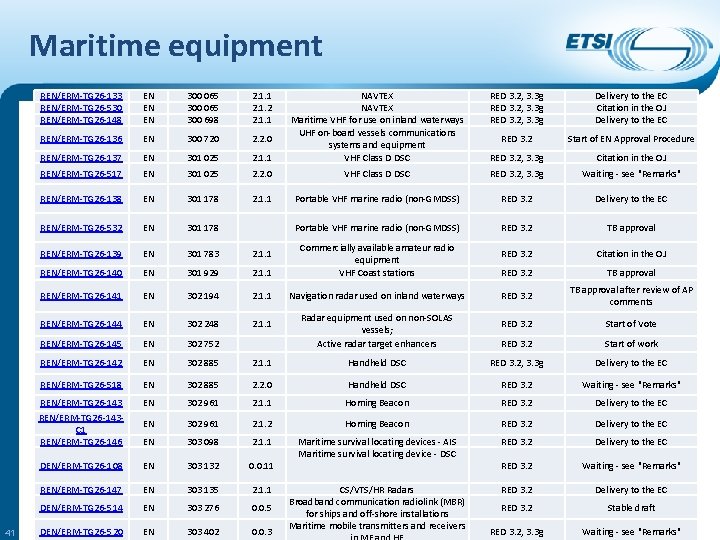

Maritime equipment 41 REN/ERM-TG 26 -133 REN/ERM-TG 26 -530 REN/ERM-TG 26 -148 EN EN EN 300 065 300 698 2. 1. 1 2. 1. 2 2. 1. 1 RED 3. 2, 3. 3 g Delivery to the EC Citation in the OJ Delivery to the EC RED 3. 2 Start of EN Approval Procedure 2. 1. 1 NAVTEX Maritime VHF for use on inland waterways UHF on-board vessels communications systems and equipment VHF Class D DSC REN/ERM-TG 26 -136 EN 300 720 2. 2. 0 REN/ERM-TG 26 -137 EN 301 025 RED 3. 2, 3. 3 g Citation in the OJ REN/ERM-TG 26 -517 EN 301 025 2. 2. 0 VHF Class D DSC RED 3. 2, 3. 3 g Waiting - see "Remarks" REN/ERM-TG 26 -138 EN 301 178 2. 1. 1 Portable VHF marine radio (non-GMDSS) RED 3. 2 Delivery to the EC REN/ERM-TG 26 -532 EN 301 178 Portable VHF marine radio (non-GMDSS) RED 3. 2 TB approval REN/ERM-TG 26 -139 EN 301 783 2. 1. 1 RED 3. 2 Citation in the OJ REN/ERM-TG 26 -140 EN 301 929 2. 1. 1 Commercially available amateur radio equipment VHF Coast stations RED 3. 2 TB approval REN/ERM-TG 26 -141 EN 302 194 2. 1. 1 Navigation radar used on inland waterways RED 3. 2 TB approval after review of AP comments REN/ERM-TG 26 -144 EN 302 248 2. 1. 1 RED 3. 2 Start of Vote REN/ERM-TG 26 -145 EN 302 752 RED 3. 2 Start of work REN/ERM-TG 26 -142 EN 302 885 2. 1. 1 Handheld DSC RED 3. 2, 3. 3 g Delivery to the EC REN/ERM-TG 26 -518 EN 302 885 2. 2. 0 Handheld DSC RED 3. 2 Waiting - see "Remarks" REN/ERM-TG 26 -143 C 1 REN/ERM-TG 26 -146 EN 302 961 2. 1. 1 Homing Beacon RED 3. 2 Delivery to the EC EN 302 961 2. 1. 2 Homing Beacon RED 3. 2 Delivery to the EC EN 303 098 2. 1. 1 RED 3. 2 Delivery to the EC DEN/ERM-TG 26 -108 EN 303 132 0. 0. 11 Maritime survival locating devices - AIS Maritime survival locating device - DSC RED 3. 2 Waiting - see "Remarks" REN/ERM-TG 26 -147 EN 303 135 2. 1. 1 RED 3. 2 Delivery to the EC DEN/ERM-TG 26 -514 EN 303 276 0. 0. 5 RED 3. 2 Stable draft DEN/ERM-TG 26 -520 EN © ETSI 2011. All rights reserved 303 402 0. 0. 3 CS/VTS/HR Radars Broadband communication radiolink (MBR) for ships and off-shore installations Maritime mobile transmitters and receivers RED 3. 2, 3. 3 g Waiting - see "Remarks" Radar equipment used on non-SOLAS vessels; Active radar target enhancers
Wireless Industrial Applications in 5, 8 GHz ERM TG 41 continuing work on EN 303 258 (WIA in 5, 8 GHz) • includes mitigation mechanisms to protect incumbent services ENAP forecast March 2017 • TS 103 329: WIA system approach to sharing in the 5, 725 GHz to 5, 875 GHz band, published June 2016 Liaison statement to ITU WP 1 A to study WIA requirements based on existing SRDoc (TR 102 889 -2) 42 © ETSI 2016 All rights reserved
Wireless Power Transfer EN 303 417 – Wireless Power Transfer for Electric Vehicles • TB approved – awaiting ENAP New work item adopted for System Reference Document to identify spectrum requirements for WPT other than for electric vehicles • Identifies spectrum requirements in support of ITU-R studies CENELEC to set up a group to co-ordinate work on CISPR 11 & EN 303 417 (q. v. ) 43 © ETSI 2011. All rights reserved
M/536: Broadcast Receivers EMC standards provided by CENELEC (EN 55032, EN 55035) • Co-ordination (mode 4) with CENELEC TC 210 for European Common Modifications to IEC/CISPR standards (e. g. EN 55035) ETSI EN 303 340 (TV B’cast Rx) published May 2016 • Version with EC modifications published September 2016, awaiting citation in OJEU EN 303 345 (Radio B’cast Rx) • Completed second ENAP on 11 October with technical comments (DE, DK, GB) to be resolved EN 303 372 -1 (Satellite B’cast Rx Outdoor unit) • Published August 2016, awaiting citation in OJEU EN 303 372 -2 (Satellite B’cast Rx Indoor unit) • Cited on in OJEU September 2016 44 © ETSI 2016. All rights reserved

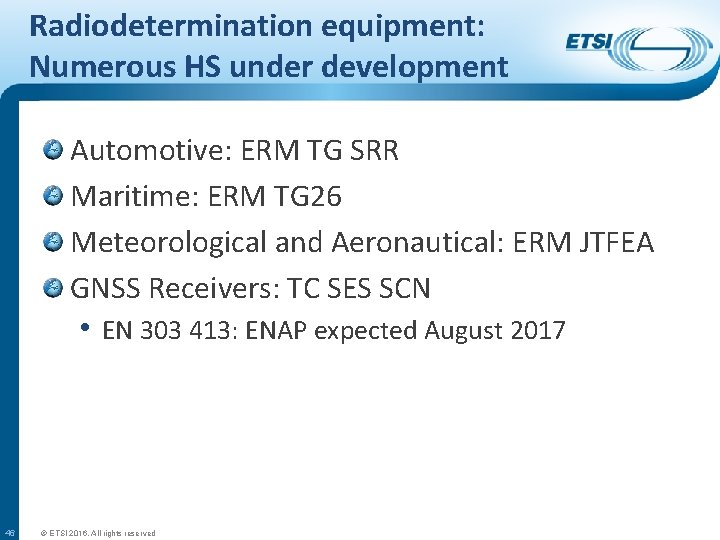

Radiodetermination equipment: Numerous HS under development Automotive: ERM TG SRR Maritime: ERM TG 26 Meteorological and Aeronautical: ERM JTFEA GNSS Receivers: TC SES SCN • EN 303 413: ENAP expected August 2017 46 © ETSI 2016. All rights reserved
Avalanche beacons EN 300 718 (3 parts) approved for ENAP June 2016 Article 3. 3(g) “access to emergency services” enacted by Commission Decision 2001/148/EC of 21 February 2001 • Applies to Emergency Detection of Buried People 5 th update of SRD Decision designates 456, 9 k. Hz to 457, 1 k. Hz also applies for detection of valuable items Held from ENAP pending resolution of RED Desk Officer’s comments on structure • Also includes environmental requirements, robustness etc • Small industry – resource limited – need to understand • 47 requirements before making more changes Need a specific meeting with the Desk Officer © ETSI 2011. All rights reserved
Custom-built evaluation kits Such kits are specifically excluded from EMCD or RED The precise definition is under study and is expected to be included in the LVD, EMCD & RED Guides ETSI assumes that Harmonised Standards are not necessary National regulations may apply to limit the circulation of such equipment ETSI working assumption • Use of radio spectrum is governed by National frequency plans or the Radio Spectrum Decision 48 © ETSI 2016. All rights reserved
