Ethernet Switch Solution Ethernet Switch Products u Layer
- Slides: 64
Ethernet Switch Solution
Ethernet Switch Products u Layer 3 Switch/Chassis u Metro Switch u Industrial Switch u Stackable Switch u Standard Switch u Security Managed Switch u SOHO Switch 2
Product Features Layer 3 Switch/Chassis
Features Layer 3 Telecom Switch/Chassis New Version XGS 3 -42000 R 4 -Slot Layer 3 IPv 6/IPv 4 Routing Chassis Switch New Version XGS 3 -24242 24 -Port 100/1000 X SFP + 16 -Port Shared TP + 4 -Port 10 G SFP+ Layer 3 Stackable Managed Switch XGS 3 -24042 24 -Port Gigabit + 4 -Port 10 G SFP+ Layer 3 Stackable Managed Switch u Target Markets – High Performance Network Service u 10 Gb Ethernet u Single IP Management l ISP/Telecom/Network Service Provider u IPv 6/IPv 4 Dynamic Routing l Tender Market u IPv 6/IPv 4 Multicast Routing l Government/Campus/Hospital u IPv 6/IPv 4 Tunneling l Enterprise Secure Office & Factory u IPv 6/IPv 4 Dual Stack u IPv 6/IPv 4 ACL & Qo. S u Enhanced Security 4
Chassis Switch Applications Enterprise ü High Density ü High Performance ü Highly Reliable 5
10 G Switch Applications ISP/Telecom 10 Gb. E Backbone 6

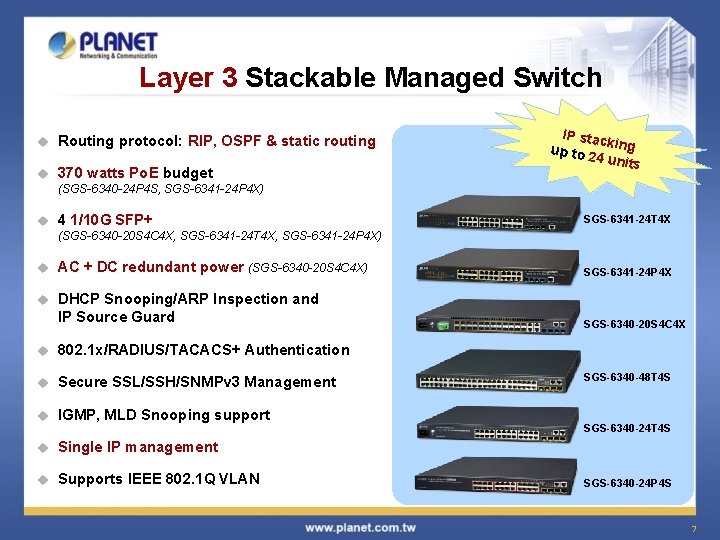

Layer 3 Stackable Managed Switch u Routing protocol: RIP, OSPF & static routing u 370 watts Po. E budget IP stac k up to 2 ing 4 units (SGS-6340 -24 P 4 S, SGS-6341 -24 P 4 X) u 4 1/10 G SFP+ SGS-6341 -24 T 4 X (SGS-6340 -20 S 4 C 4 X, SGS-6341 -24 T 4 X, SGS-6341 -24 P 4 X) u AC + DC redundant power (SGS-6340 -20 S 4 C 4 X) SGS-6341 -24 P 4 X u DHCP Snooping/ARP Inspection and IP Source Guard SGS-6340 -20 S 4 C 4 X u 802. 1 x/RADIUS/TACACS+ Authentication u Secure SSL/SSH/SNMPv 3 Management u IGMP, MLD Snooping support u Single IP management u Supports IEEE 802. 1 Q VLAN SGS-6340 -48 T 4 S SGS-6340 -24 P 4 S 7
Layer 3 All-port 10 G SFP+ Stackable Managed Switch u Layer 3 10 Gigabit static routing with 16 SFP+ fiber interfaces u 320 Gbps switching fabric u IP stacking up to 24 units u SSH/ACL/WRR/ RADIUS authentication u AC + DC redundant power u IPv 4/IPv 6 static routing, RIP & OSPF SGS-6340 -16 XR 8
Layer 3 Stackable Managed Switch Family Gb. E TP Ports Po. E Budget SFP Ports 10 G SFP+ Ports Power SGS-6340 -16 XR - - 16 AC SGS-6341 -24 T 4 X 24 - - - 4 AC SGS-6341 -24 P 4 X 24 24 370 -watt - 4 AC SGS-6340 -20 S 4 C 4 X 4 - - 24 4 AC/DC SGS-6340 -48 T 4 S 48 - - 4 - AC SGS-6340 -24 T 4 S 24 - - 4 - AC SGS-6340 -24 P 4 S 24 24 370 -watt 4 - AC Model 9
Product Features Layer 2+ Metro Ethernet Switch
Managed Metro Ethernet Switch u IPv 6/IPv 4 Layer 3 Static Routing u IPv 6/IPv 4 dual stack management u Fully front panel access design u Layer 2/3/4 Access control list and port security u ERPS (Ethernet Ring Protection Switching) 24 + 4 10 G Fiber MGSW-28240 F (for MGSW-28240 F, MGSD-10080 F) u STP/RSTP/MSTP connection redundancy u Intelligent SFP Diagnosis Mechanism - Digital Diagnostic Monitor (DDM) u SSH/SSL secure management u DI/DO for event and alarm u Dual power system for power redundancy ü ü u - 36 V ~ -72 V DC 16 -port Fiber MGSW-24160 F 8 -port Fiber 100 V ~ 240 V AC - 10 to 60 degrees C operating temperature MGSD-10080 F 11

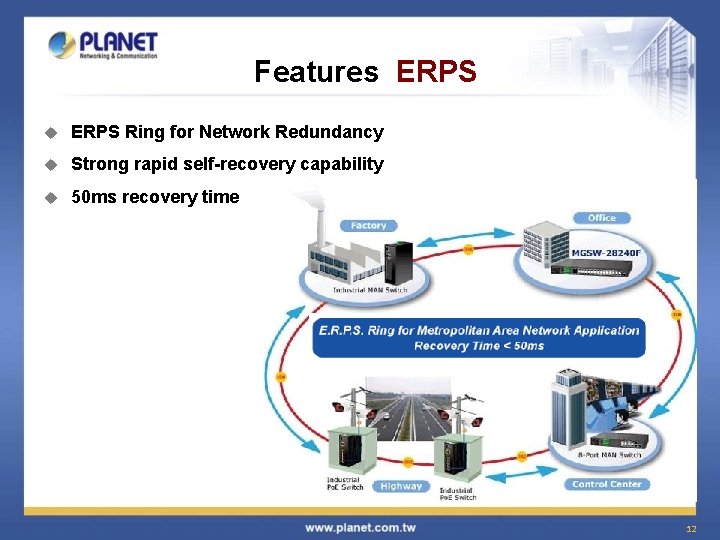

Features ERPS u ERPS Ring for Network Redundancy u Strong rapid self-recovery capability u 50 ms recovery time 12
Features DDM u Digital Diagnostic Monitor (DDM) ü Efficient management by real-time monitoring of the SFP status 13
Metro Ethernet Application ü High Density ü High Performance ü Highly Reliable 14
Product Features Layer 2+ Security Managed Switch
Layer 2+ Managed Switches IPv 6/IPv 4 Gigabit Backbone Switch with Layer 3 Static Routing GS-5220 -46 S 2 C 4 X GS-5220 -44 S 4 C GS-5220 -16 S 8 CR (Redundant power) 48 -port Gigabit with 4 -Port 10 G SFP+ XGSW-28040 GS-5220 -48 T 4 X 48 -port Gigabit with 4 -Port 10 G SFP+ WGSW-24040 R (Redundant power) WGSD-10020 16
Layer 2+ IPv 6 Backbone Switch u IPv 6/IPv 4 Layer 3 Static Routing u 48 -Port 10/1000 BASE-T, 4 shared SFP slots u 48 -Port 100/1000 BASE-X SFP slots u 4 -Port 10 G SFP+ slots u Telecom class Gigabit solution for Enterprise Backbone and Data Center Networking u High Performance Full Wire-Speed Forward u IPv 6/IPv 4 Dual Stack Management u Strong IPv 6/IPv 4 Multicast Protocols u IPv 6/IPv 4 RADIUS, ACL and Qo. S u Advanced Secure Network Management GS-5220 -46 S 2 C 4 X GS-5220 -48 T 4 X 17

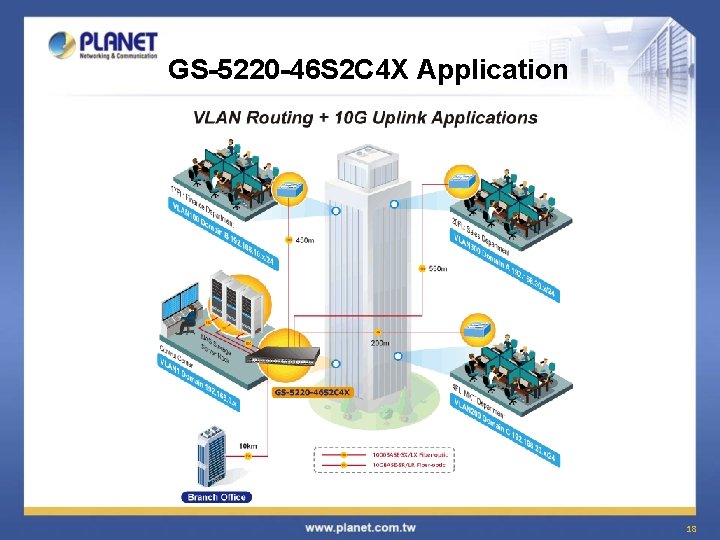

GS-5220 -46 S 2 C 4 X Application 18
Layer 2+ Managed Po. E+ Switches IPv 6/IPv 4 Gigabit Po. E Switch with Layer 3 Static Routing WGSW-48040 HP (48 port 802. 2 at Po. E+) WGSW-24040 HPx (24 -port 802. 3 at Po. E+) XGSW-28040 HP 24 -port Gigabit Po. E+ with 4 -Port 10 G SFP+ WGSW-20160 HP (16 -port 802. 3 at Po. E+) WGSD-10020 HP (8 -port 802. 3 at Po. E+) GS-5220 -8 P 2 T 2 S (8 -port 802. 3 at Po. E+) 19
Layer 2+ Backbone Po. E Switch with 10 G SFP+ u IPv 6/IPv 4 Layer 3 Static Routing u Complies with IEEE 802. 3 at Po. E+, up to 440 -watt power Budget u Po. E Schedule, Schedule Power Recycle and PD Alive Check functions u ERPS Ring Data Recovery time < 50 ms u Secure SSL/SSH/SNMPv 3 Management u Supports IEEE 802. 1 Q VLAN u DHCP Snooping/ARP Inspection and IP Source Guard u 802. 1 x/RADIUS/TACACS+ Authentication u IGMP Snooping, MLD Snooping support XGSW-28040 HP 20
Feature Po. E Schedule u Po. E Schedule for energy saving ü Per Port/Per Profile/Per day, schedulable Po. E ON/OFF Control Daily Work Off-Business Hours 4 profiles Per Day setting Per Hour setting Daily Works Power Consumption 21
Feature Po. E PD Alive Check u PLANET Managed Po. E Switches series can be configured to monitor connected PD (Powered Device) status in real-time via ping action. u Once the PD stops working and responding, the Managed Po. E Switches will resume the Po. E port power and bring the PD back to work. …… PD Status Good !! Alarm Notification PD Alive !! 22
Layer 2+ Managed Po. E+ Switch u 30 W IEEE 802. 3 at Po. E support u Total 600 W Po. E budget u Hardware-based IPv 6/IPv 4 Layer 3 Static Routing u Layer 2/4 IPv 6 Managed Gigabit Switch u 4 SFP slots, flexible for Gigabit Fiber-Optic network extension u SSH/SSL Secure Management u Integrate Security and Qo. S for Po. E PD operating u Po. E Power management ü ü WGSW-48040 HP Po. E Port power limit/Total limit to ensure stable system operating Monitor power usage, current usage, power consumption on Powered Devices 23

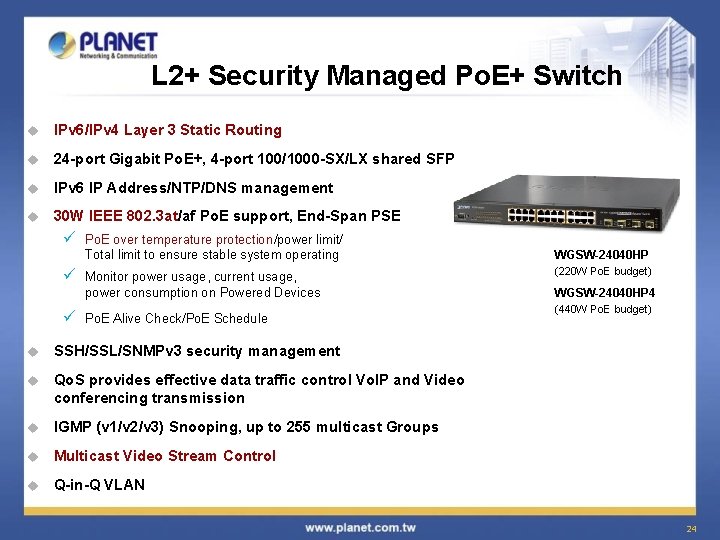

L 2+ Security Managed Po. E+ Switch u IPv 6/IPv 4 Layer 3 Static Routing u 24 -port Gigabit Po. E+, 4 -port 100/1000 -SX/LX shared SFP u IPv 6 IP Address/NTP/DNS management u 30 W IEEE 802. 3 at/af Po. E support, End-Span PSE ü ü ü Po. E over temperature protection/power limit/ Total limit to ensure stable system operating Monitor power usage, current usage, power consumption on Powered Devices Po. E Alive Check/Po. E Schedule u SSH/SSL/SNMPv 3 security management u Qo. S provides effective data traffic control Vo. IP and Video conferencing transmission u IGMP (v 1/v 2/v 3) Snooping, up to 255 multicast Groups u Multicast Video Stream Control u Q-in-Q VLAN WGSW-24040 HP (220 W Po. E budget) WGSW-24040 HP 4 (440 W Po. E budget) 24
WGSW-24040 HP Series Applications u Integration Solution for IP Po. E Camera and NVR System 25
Product Features Layer 2+ Stackable Managed Switch
Layer 2+ Stackable Managed Switch u Hardware-based two 10 G SFP+ Stacking ports ü Stacking up to 16 units ü Stacking up to 384 Gigabit Ethernet ports ü Stacking up to 64 Gigabit TP/SFP ports ü Stacking up to 32 high-capacity 10 G SFP+ Uplink ports u 440 watts Po. E budget (SGS-5220 -24 P 2 X) SGS-5220 -24 T 2 X SGS-5220 -24 S 2 XR SGS-5220 -24 P 2 X u AC + DC redundant power (SGS-5220 -24 S 2 XR) u DHCP Snooping/ARP Inspection and IP Source Guard u IGMP Snooping, MLD Snooping support u 802. 1 x/RADIUS/TACACS+ Authentication u Secure SSL/SSH/SNMPv 3 Management u Single IP management u IPv 6/IPv 4 Layer 3 Static Routing u Supports IEEE 802. 1 Q VLAN 27
Layer 2+ Stackable Managed Switch u Physical 10 G SFP+ Stacking Up to 16 Units Master 384 x Gigabit Port 32 x 10 G SFP+ Slots Single IP address stack management 28
Product Features Layer 2 Managed Switch
IPv 6/IPv 4 Managed Switches IPv 6 Gigabit Backbone Switch GS-4210 -48 T 4 S 48 -Port Gigabit + 4 -Port Gigabit SFP Standard Switch WGSW-28040 802. 3 at Po. E Switch Ultra Po. E Switch GS-4210 -48 P 4 S (440 watts) GS-4210 -24 T 2 S GS-4210 -24 P 4 C GS-4210 -24 PL 4 C GS-4210 -16 UP 4 C (400 watts) (220/440 watts) GS-4210 -24 P 2 S GS-4210 -16 T 2 S (300 watts) GS-4210 -16 P 4 C GSD-1020 S (220 watts) GS-4210 -24 UP 4 C (600 watts) GS-4210 -8 P 2 T 2 S (240 watts) GSD-1002 M (Desktop Po. E PD) GS-4210 -8 P 2 S (120 watts) 30
48 -port Managed Switch u 48 -port Gigabit Port with 4 -port 1000 X SFP u IPv 6/IPv 4 Protocol u SSH/SSL Secure Management u IEEE 802. 1 Q VLAN u IEEE 802. 1 w Spanning Tree Protocol u 802. 1 x/ACL/Port Security Network Access Control u IGMP & MLD Snooping GS-4210 -48 T 4 S 31
16/24 -port Managed Ultra Po. E Switch u 16/24 -port Gigabit Ultra Po. E u Up to 60 watts of Po. E power on 4 -pair UTP u 4 -port Gigabit TP/SFP combo Managed u 400 -watt/600 -watt Po. E Budget u IPv 6/IPv 4 Web/Telnet/SNMP (v 1, v 2 c, v 3)/ SSH/SSL Management u IEEE 802. 1 Q VLAN/Voice VLAN/ 802. 1 w Spanning Tree Protocol u Bandwidth Control/Storm Control u Layer 3/4 Access Control List/ Port Security/802. 1 x GS-4210 -16 UP 4 C (400 -watt) GS-4210 -24 UP 4 C (600 -watt) 32
24 -port Managed Po. E Switch u 24 -port Gigabit 802. 3 at/af Po. E u 4 -port Gigabit TP/SFP combo Managed u 220 -watt/440 -watt Po. E Budget u IPv 6/IPv 4 Web/Telnet/SNMP (v 1, v 2 c, v 3)/SSH/SSL Management u IEEE 802. 1 Q VLAN/Voice VLAN/802. 1 w Spanning Tree Protocol u Bandwidth Control/Storm Control u Layer 3/4 Access Control List/Port Security/802. 1 x GS-4210 -24 P 4 C (220 -watt) GS-4210 -24 PL 4 C (440 -watt) 33
IPv 4 Security Managed Switches FGSW-2840 FGSW-4840 S FNSW-2400 PS (Po. E) Web Smart Switches FGSW-1828 PS (Po. E) FGSD-1008 HPS (802. 3 at Po. E) FGSW-1816 HPS (802. 3 at Po. E) FGSW-2624 HPS 4 (802. 3 at Po. E) FGSW-2624 HPS (802. 3 at Po. E) 34
Product Features Layer 2 Web Smart Switch
Layer 2 Web Smart Switch u 4 10 GBASE-SR/LR SFP+ u SSH/SSL Secure Management u IEEE 802. 1 Q VLAN u IEEE 802. 1 w Spanning Tree Protocol u IGMP Snooping v 1, v 2, v 3 u IPv 4 Web/Telnet/SNMP v 1, v 2 c Management u Link Aggregation GS-2240 -48 T 4 X (48 Gigabit + 4 10 G SFP+) GS-2240 -24 T 4 X (24 Gigabit + 4 10 G SFP+) 36
Po. E+ Switch with LCD Display u Up to 60 watts of Po. E power on 4 -pair UTP u (GSW-1222 VUP) GSW-1222 VUP (8 x Ultra Po. E, 380 W Budget) u 2 -port Gigabit TP and 2 -port Gigabit SFP for uplink (GSW-1222 VUP) Ultra Po. E Switch u u IEEE 802. 3 at Po. E+, up to 32 watts per Po. E port Po. E+ Gigabit Switch GSW-2620 VHP (24 x 802. 3 at Po. E, 300 W Budget) u 2 -port Gigabit TP/SFP for uplink GSW-1820 VHP (16 x 802. 3 at Po. E, 300 W Budget) u LCD with real-time Po. E port status display, and power and alarm alerts GSD-1002 VHP (8 x 802. 3 at Po. E, 120 W Budget) u Auto-negotiation and auto MDI/MDI-X u Automatic address learning and address aging u Plug and Play design u Po. E+ Fast Ethernet Switch FGSW-2622 VHP (24 x 802. 3 at Po. E, 300 W Budget) FGSW-1822 VHP (16 x 802. 3 at Po. E, 300 W Budget) FGSD-1022 VHP (8 x 802. 3 at Po. E, 120 W Budget) 37
Real-time Display of Po. E Usage/System Status LCD Monitor FGSW-2622 VHP 38
Po. E Distance Extended Mode 100 meters (328 feet) 250 meters (820 feet) 39
Product Features Standard/SOHO Switch
Standard (Unmanaged) Switch Family 10~12 -inch Desktop Switches GSD-808 HP (8 -port Po. E+, 130 W Po. E budget, 12”) Gigabit Ethernet GSD-908 HP (8 -port Po. E+, 1 -Port TP, 120 W Po. E budget, fanless) 19 -inch Switches GSW-4800 (48 -port) GSW-2620 HP (24 -port Po. E+) GSW-1600 HP GSD-604 HP (16 -port Po. E+) (4 -port Po. E+, 2 -Port TP, 60 W Po. E budget) GSW-2401 (24 -port) GSD-804 P (8 -port Gigabit with 4 -Port Po. E, 10”) GSW-1601 (16 -port) FGSD-910 HP Fast Ethernet (8 -port Po. E+, 1 -port Gigabit, 12”) FSD-808 HP (8 -port Po. E+, 12”) FNSW-1600 P (16 -port Po. E) FNSW-2401 (24 -port) FSD-804 P (8 -port 10/100 Mbps with 4 -Port Po. E, 10”) FSD-504 HP FNSW-1601 (16 -port) (4 -port Po. E+, 60 W Po. E budget, 10”) 41
Gigabit High Power Po. E Switch u 8 -port full Gigabit with 802. 3 at Po. E injector function u 52 V DC, 30 Watts Po. E power output u Auto detect powered device (PD) u Energy Saving technology ü ü u GSD-908 HP (120 W Po. E budget) Link down power saving Intelligent scales power based on cable length 9 K Jumbo Frame supports all speeds (10/1000 Mbps) u Supports Pre-Energy-Efficient Ethernet (EEE) function (802. 3 az) u Safe, reliable power solution for SOHO and SMB GSD-808 HP (130 W Po. E budget) 42
Fast Ethernet High Power Po. E Switch u Facilitates Po. E IP camera deployment with power feeding u 8 -port 802. 3 at/af Po. E with 1 -port Gigabit u 130 -watt Po. E budget u Auto detects powered device (PD) FGSD-910 HP 43
Home / SOHO Switch Family Gigabit Ethernet GSD-803 PD (8 -Port Po. E PD Switch) GSD-503 (5 -Port) GSD-803 (8 -Port) GSD-504 (5 -Port) GSD-804 (8 -Port) (Metal case) (Plastic case) GSD-1603 (16 -Port, Energy saving) GSD-805 (8 -Port, Internal power) Fast Ethernet FSD-503 (5 -Port) FSD-803 (8 -Port) SW-504 (5 -Port) SW-804 (8 -Port) (Metal case) (Plastic case) FSD-1606 (16 -Port, wall mountable) 44

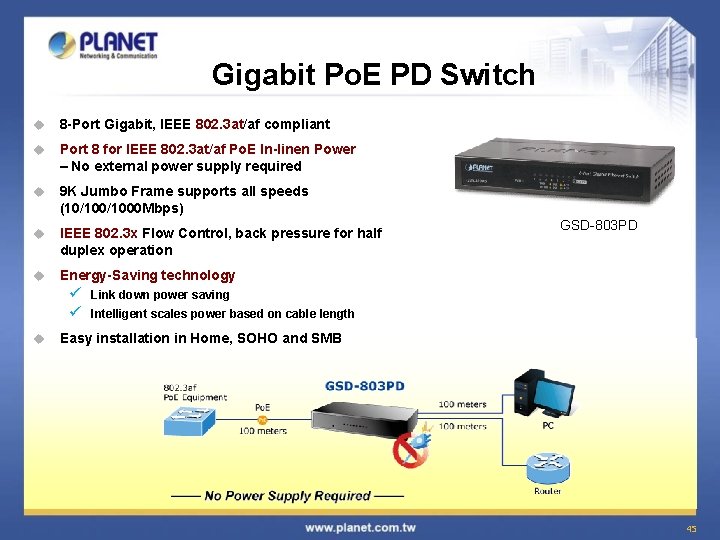

Gigabit Po. E PD Switch u 8 -Port Gigabit, IEEE 802. 3 at/af compliant u Port 8 for IEEE 802. 3 at/af Po. E In-linen Power – No external power supply required u 9 K Jumbo Frame supports all speeds (10/1000 Mbps) u IEEE 802. 3 x Flow Control, back pressure for half duplex operation u Energy-Saving technology ü ü u GSD-803 PD Link down power saving Intelligent scales power based on cable length Easy installation in Home, SOHO and SMB 45
Product Features Industrial Switch
Industrial Rack-mount Layer 2+ Managed Switch u Layer 3 static routing u 2 1/10 G SFP+ (IGS-5225 -20 T 4 C 2 X) u -40~75 degrees C operating temperature u IP 30 case with the fanless cooling system u 100~240 V AC, 36~60 V DC redundant power design u Full Management ü ü Web interface Console IGS-5225 -20 T 4 C 2 X IGSW-24040 T SNMP v 1, v 2 c and v 3 SSH and SSL management u IEEE 802. 1 Q VLAN/Q-in-Q/Protocol-based VLAN u IGMP Snooping v 1, v 2 and v 3/ACL/Port-based 802. 1 x u ITU-T G. 8032 ERPS function, recovery time at 20 ~ 50 ms u 400 watts Po. E budget (IGS-5225 -24 P 4 S) IGS-5225 -16 T 4 S IGS-5225 -24 P 4 S 47
Industrial Metro Switch u Backbone of Industrial Environment u Full Ports Gigabit u Fiber Optical, 100/1000 X SFP u 20 Gbps per second of non-blocking switch fabric u IPv 6/IPv 4 management u ERPS (Ethernet Ring Protection Switching) u DDM (Digital Diagnostic Monitor) u High security u -40~75 degrees C operating temperature u IP 30 rugged case IGS-10080 MFT 48
Industrial Layer 2+ Po. E+ Switch u 2 x 10 G SFP+ slots for High-bandwidth Link u 2/4 x 100/1000 X SFP slots for Fiber-optical Link u IPv 6/IPv 4 Static routing u IPv 6 IP Address/NTP/DNS management u Po. E Power up to 36 watts for each Po. E ports u Auto detect powered device (PD) u -40 ~ 75 degrees C operating temperature u VLAN, Spanning Tree Protocol u IEEE 802. 1 x Port-based/MAC-based network access authentication u ERPS (Ethernet Ring Protection Switching) u DDM (Digital Diagnostic Monitor) u IP 30 rugged case u 2 x DI/DO IGS-20160 HPT IGS-10020 HPT (16 -port Gigabit Po. E+, 48~56 V DC redundant power) (8 -port Gigabit Po. E+, 48 V DC redundant power) IGS-5225 -8 P 4 S IGS-5225 -8 P 2 S 2 X (8 -port Gigabit Po. E+, 4 x 1 G SFP slots) (8 -port Gigabit Po. E+, 2 x 1 G SFP slots, 2 x 10 G SFP+ slots) 49
Industrial Layer 2/4 Po. E+ Switch u Fiber-optical Link Capability (IGS-4215 -8 P 2 T 2 S, IGS-4215 -4 P 4 T 2 S) u IPv 6/IPv 4 Web/Telnet/SNMP (v 1, v 2 c, v 3)/ SSH/SSL Management IGS-4215 -8 P 2 T 2 S (2 x 100/1000 X SFP slots) u IPv 6 IP Address/NTP/DNS management u Po. E Power up to 36 watts for each Po. E ports u Auto detect powered device (PD) u -40 ~ 75 degrees C operating temperature u VLAN, Spanning Tree Protocol u IEEE 802. 1 x Port-based/MAC-based network access authentication u DDM (Digital Diagnostic Monitor) u IP 30 rugged case IGS-4215 -4 P 4 T 2 S (2 x 100/1000 X SFP slots) IGS-4215 -4 P 4 T 50
EN 50155 Railway Po. E+ Switch u IPv 6 IP Address/NTP/DNS management u Po. E Power up to 36 watts for each Po. E ports u Auto detect powered device (PD) u VLAN, Spanning Tree Protocol u ERPS (Ethernet Ring Protection Switching) u IEEE 802. 1 x Port-based/MAC-based network access authentication u -40 ~ 75 degrees C operating temperature u Waterproof and dustproof RJ 45 copper IGS-604 HPT-RJ IGS-5226 -4 P 2 T (IGS-604 HPT-RJ, IGS-5226 -4 P 2 T) u Waterproof M 12 connectors (IGS-604 HPT-M 12) u IP 67 -rated aluminum case; IP 50 -rated metal case for IGS-5226 -4 P 2 T IGS-604 HPT-M 12 51

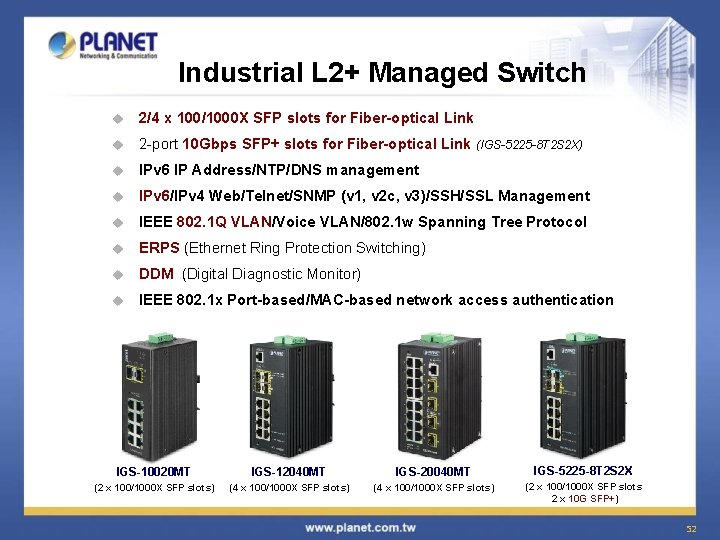

Industrial L 2+ Managed Switch u 2/4 x 100/1000 X SFP slots for Fiber-optical Link u 2 -port 10 Gbps SFP+ slots for Fiber-optical Link u IPv 6 IP Address/NTP/DNS management u IPv 6/IPv 4 Web/Telnet/SNMP (v 1, v 2 c, v 3)/SSH/SSL Management u IEEE 802. 1 Q VLAN/Voice VLAN/802. 1 w Spanning Tree Protocol u ERPS (Ethernet Ring Protection Switching) u DDM (Digital Diagnostic Monitor) u IEEE 802. 1 x Port-based/MAC-based network access authentication (IGS-5225 -8 T 2 S 2 X) IGS-10020 MT IGS-12040 MT IGS-20040 MT IGS-5225 -8 T 2 S 2 X (2 x 100/1000 X SFP slots) (4 x 100/1000 X SFP slots) (2 x 100/1000 X SFP slots 2 x 10 G SFP+) 52
Industrial Po. E+ Fiber Switch u Fiber-Optical Link Capability u 802. 3 af/at Po. E injector u 48 V DC to 52 V DC Po. E+ power boost u High power budget for Po. E extension u Intelligent LED indicator for real-time Po. E usage u Redundant power system u - 40~75 degrees C operating temperature u IP 30 rugged case IGS-624 HPT 53
Industrial Po. E+ Fiber Switch Application u Fiber-Optical Link Capability Extends the Range of Network Deployment 54
Industrial Solar Power Po. E Switch u Integrates green energy solar power, wind power and Po. E u Smart power management system ü Co-works with 300 watts solar PV kit or wind power generator and battery u 2/4 -port IEEE 802. 3 at Po. E+ compliant u 24 V DC output u Remote Web-based power monitoring, power usage statistics u Remote Po. E power management u SNMP Trap, Event log Po. E Port Po. E Output IP Management BSP-360 4 Max. 100 W V BSP-300 2 Max. 60 W -- Model 55
Industrial Solar Power Po. E Switch u Efficiently Remote Po. E Power Management ü Po. E Status Configuration Statistics 56
Solar Power Po. E Switch Application BSP-300 Site: Desert in Chile 57
Product Features Industrial Flat-type Switch
59
Flat-type Switch Family RJ 45 Port Po. E Power Output 1 G SFP Port Operating Temp. WGS-803 8 - -10~60 o. C WGS-804 HP 4 4 144 -watt - -10~60 o. C WGS-804 HPT 4 4 144 -watt - -40~75 o. C WGS-4215 -8 P 2 S 8 - 200 -watt 2 -40~75 o. C WGS-4215 -8 T 8 - -40~75 o. C WGS-4215 -8 T 2 S 8 - - 2 -40~75 o. C Model 60
Flat-type Managed Gigabit Po. E+ Switch u Designed for Home/Building automation u Wall-mount, Magnetic wall-mount, DIN-rail type u 802. 3 af/at Po. E injector, 144 -watt Po. E budget u LED indicators for per port Po. E In-Use and Po. E Power Usage u Dual redundant power input: terminal block and DC jack u IP 30 Slime Case, -40 ~ 75 degrees C operating temperature u IPv 6/IPv 4 Web/Telnet/SNMP v 1, v 2 c & v 3/SSH/SSL Management u Po. E Schedule/Schedule Power Recycle/ PD Alive Check WGS-804 HPT 61
Flat-type Po. E+ Switch Application 62
u View PLANET Ethernet Switch solution online LAN Switches Industrial Switches 63
