Ethernet Switch Solution Ethernet Switch Products u Layer

Ethernet Switch Solution

Ethernet Switch Products u Layer 3 Switch/Chassis u Metro Switch u Industrial Switch u Stackable Switch u Standard Switch u Security Managed Switch u SOHO Switch 2

Product Features Layer 3 Switch/Chassis

Features Layer 3 Telecom Switch/Chassis XGS 3 -42000 R 4 -Slot Layer 3 IPv 6/IPv 4 Routing Chassis Switch XGS 3 -24242 24 -Port 100/1000 X SFP + 16 -Port Shared TP + 4 -Port 10 G SFP+ 10/1000 100/1000 1/10 G 40 G BASE-X Type Layer 3 Stackable Managed Switch BASE-T BASE-X SFP+ QSFP+ Module XGS 3 -24042 XGS 3 -M 16 C 8 S 24 Management 16 24 -Port Gigabit + 4 -Port 10 G SFP+ (16 Shared) Layer 3 Stackable Managed Switch XGS 3 -S 16 C 8 S 4 X Standard -- -- 24 4 -Shared) u Target Markets(16 – High Performance Network Service 16 u 10 Gb Ethernet u Single IP Management l ISP/Telecom/Network Service Provider u XGS 3 -S 48 G Standard IPv 6/IPv 4 Dynamic Routing l 48 Tender Market u IPv 6/IPv 4 Multicast Routing u XGS 3 -S 20 X 2 Q IPv 6/IPv 4 Tunneling Standard u IPv 6/IPv 4 Dual Stack u XGS 3 -S 44 S 4 X IPv 6/IPv 4 ACL & Qo. S Standard u Enhanced Security -- -- l Government/Campus/Hospital l -20 Enterprise Secure--Office & Factory 2 -- -- 44 4 -- 4

Chassis Switch Applications Enterprise ü High Density ü High Performance ü Highly Reliable 5

10 G Switch Applications ISP/Telecom 10 Gb. E Backbone 6

Layer 3 Stackable Managed Switch u Routing protocol: RIP, OSPF & static routing u 370 watts Po. E budget IP stac k up to 2 ing 4 units (SGS-6341 -24 P 4 X) u 4 1/10 G SFP+ (SGS-6340 -20 S 4 C 4 X, SGS-6341 -24 T 4 X, SGS-6341 -24 P 4 X, SGS-6341 -48 T 4 X) u AC + DC redundant power (SGS-6340 -20 S 4 C 4 X) u DHCP Snooping/ARP Inspection and IP Source Guard u 802. 1 x/RADIUS/TACACS+ Authentication u Secure SSL/SSH/SNMPv 3 Management u IGMP, MLD Snooping support u Single IP management u Supports IEEE 802. 1 Q VLAN SGS-6341 -24 T 4 X SGS-6341 -24 P 4 X SGS-6341 -48 T 4 X SGS-6340 -20 S 4 C 4 X SGS-6340 -48 T 4 S 7

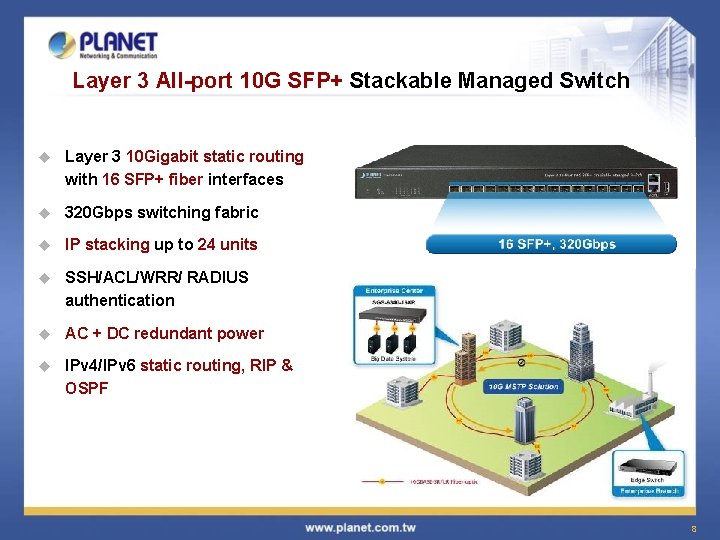

Layer 3 All-port 10 G SFP+ Stackable Managed Switch u Layer 3 10 Gigabit static routing with 16 SFP+ fiber interfaces u 320 Gbps switching fabric u IP stacking up to 24 units u SSH/ACL/WRR/ RADIUS authentication u AC + DC redundant power u IPv 4/IPv 6 static routing, RIP & OSPF SGS-6340 -16 XR 8

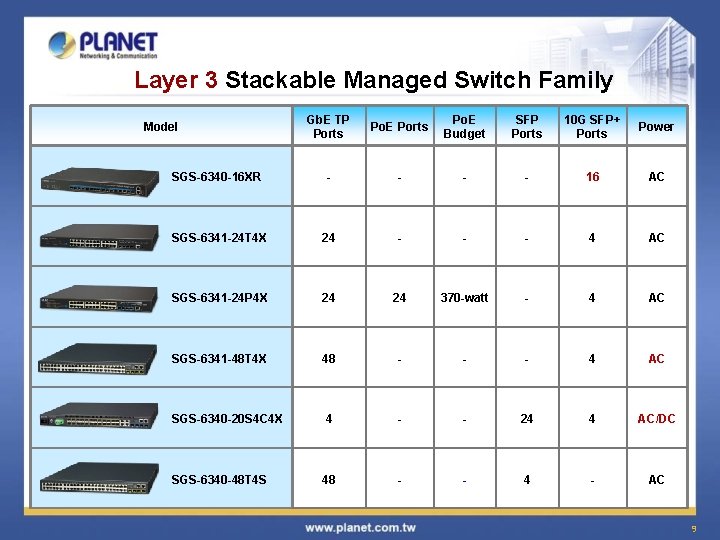

Layer 3 Stackable Managed Switch Family Gb. E TP Ports Po. E Budget SFP Ports 10 G SFP+ Ports Power SGS-6340 -16 XR - - 16 AC SGS-6341 -24 T 4 X 24 - - - 4 AC SGS-6341 -24 P 4 X 24 24 370 -watt - 4 AC SGS-6341 -48 T 4 X 48 - - - 4 AC SGS-6340 -20 S 4 C 4 X 4 - - 24 4 AC/DC SGS-6340 -48 T 4 S 48 - - 4 - AC Model 9

Product Features Layer 2+ Metro Ethernet Switch

Managed Metro Ethernet Switch u IPv 6/IPv 4 Layer 3 Static Routing u IPv 6/IPv 4 dual stack management u Fully front panel access design u Layer 2/3/4 Access control list and port security u ERPS (Ethernet Ring Protection Switching) 24 + 4 10 G Fiber MGSW-28240 F (for MGSW-28240 F, MGSD-10080 F) u STP/RSTP/MSTP connection redundancy u Intelligent SFP Diagnosis Mechanism - Digital Diagnostic Monitor (DDM) u SSH/SSL secure management u DI/DO for event and alarm u Dual power system for power redundancy ü ü u - 36 V ~ -72 V DC 16 -port Fiber MGSW-24160 F 8 -port Fiber 100 V ~ 240 V AC - 10 to 60 degrees C operating temperature MGSD-10080 F 11

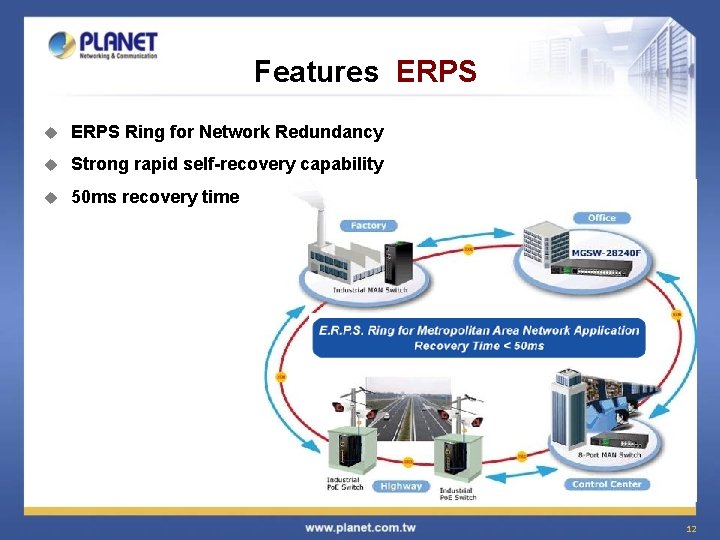

Features ERPS u ERPS Ring for Network Redundancy u Strong rapid self-recovery capability u 50 ms recovery time 12

Features DDM u Digital Diagnostic Monitor (DDM) ü Efficient management by real-time monitoring of the SFP status 13

Metro Ethernet Application ü High Density ü High Performance ü Highly Reliable 14

Product Features Layer 2+ Security Managed Switch

Layer 2+ Managed Switches IPv 6/IPv 4 Gigabit Backbone Switch with Layer 3 Static Routing GS-5220 -44 S 4 C GS-5220 -16 S 8 CR (Redundant power) GS-5220 -46 S 2 C 4 X (48 -port Gigabit with 4 -Port 10 G SFP+) GS-5220 -16 T 4 S 2 XR (Redundant power) GS-5220 -20 T 4 C 4 XR (Redundant power) GS-5220 -48 T 4 X (48 -port Gigabit with 4 -Port 10 G SFP+) WGSW-24040 R (Redundant power) WGSD-10020 16

Layer 2+ IPv 6 Backbone Switch u IPv 6/IPv 4 Layer 3 Static Routing u 48 -Port 10/1000 BASE-T, 4 shared SFP slots u 48 -Port 100/1000 BASE-X SFP slots u 4 -Port 10 G SFP+ slots u Telecom class Gigabit solution for Enterprise Backbone and Data Center Networking u High Performance Full Wire-Speed Forward u IPv 6/IPv 4 Dual Stack Management u Strong IPv 6/IPv 4 Multicast Protocols u IPv 6/IPv 4 RADIUS, ACL and Qo. S u Advanced Secure Network Management GS-5220 -46 S 2 C 4 X GS-5220 -48 T 4 X 17

GS-5220 -46 S 2 C 4 X Application 18

Layer 2+ Managed Ultra Po. E 10 G Switches 400 W IPv 6/IPv 4 Gigabit Ultra Po. E Switch with Color LCD Touch Screen 600 W GS-5220 -24 UPL 4 XV / GS-5220 -24 UPL 4 XVR (24 -port Gigabit 802. 3 bt Ultra Po. E + 4 -port 10 G SFP+ with LCD) GS-5220 -24 UP 4 XVR (24 -port 802. 3 bt Ultra Po. E, touch color LCD Display) 600 W GS-5220 -24 UPL 4 XR (24 -port 802. 3 bt Ultra Po. E) 400 W GS-5220 -16 UP 2 XVR (16 -port 802. 3 bt Ultra Po. E, touch color LCD Display) 400 W GS-5220 -24 UP 4 XR (24 -port 802. 3 bt Ultra Po. E) 400 W GS-5220 -16 UP 4 S 2 XR (16 -port 802. 3 bt Ultra Po. E) 19

Layer 2+ Managed Po. E+ 10 G Switches 400 W 600 W GS-5220 -48 P 4 XR (48 -port 802. at Po. E+ with 4 -port 10 G SFP+) GS-5220 -48 PL 4 XR (48 -port 802. at Po. E+ with 4 -port 10 G SFP+) IPv 6/IPv 4 Gigabit Po. E+ Switch with Color LCD Touch Screen 600 W 400 W GS-5220 -24 P 4 XVR (24 -port 802. 3 at Po. E+, touch color LCD Display) 400 W GS-5220 -16 P 2 XVR (16 -port 802. 3 at Po. E+, touch color LCD Display) 400 W 600 W GS-5220 -24 PL 4 XV / GS-5220 -24 PL 4 XVR (24 -port Gigabit Po. E+ + 4 -port 10 G SFP+ with LCD) GS-5220 -24 PL 4 XR (24 -port 802. at Po. E+ with 4 -port 10 G SFP+) 240 W GS-5220 -24 P 4 XR (24 -port 802. 3 at Po. E+ with 4 -port 10 G SFP+) MGS-5220 -8 P 2 X (8 -port 2. 5 GBASE-T 802. 3 at Po. E+ with 2 -port 10 G SFP+) 20

Layer 2+ Managed Po. E+ Switches 220 W IPv 6/IPv 4 Gigabit Po. E Switch with Layer 3 Static Routing 440 W WGSW-24040 HP 4 (24 -port 802. 3 at Po. E+) 220 W 600 W WGSW-20160 HP (16 -port 802. 3 at Po. E+) 240 W WGSW-48040 HP (48 -port 802. 3 at Po. E+) GS-5220 -8 P 2 T 2 S (8 -port 802. 3 at Po. E+) 150 W WGSD-10020 HP (8 -port 802. 3 at Po. E+) 21

Layer 2+ LCD Ultra Po. E Switch with 10 G SFP+ u IPv 6/IPv 4 Layer 3 Static Routing u Complies with IEEE 802. 3 bt Ultra Po. E, backward compatible with 802. 3 at/af Po. E, up to 600 -watt Po. E budget u Po. E Schedule, Schedule Power Recycle and PD Alive Check functions u Secure SSL/SSH/SNMPv 3 Management u Supports IEEE 802. 1 Q VLAN u DHCP Snooping/ARP Inspection and IP Source Guard u 802. 1 x/RADIUS/TACACS+ Authentication u IGMP Snooping, MLD Snooping support Color Touch LCD GS-5220 -24 UPL 4 XV (600 -watt Po. E Budget) GS-5220 -24 UPL 4 XVR (600 -watt Po. E Budget) GS-5220 -24 UP 4 XV (400 -watt Po. E Budget) GS-5220 -24 UP 4 XVR (400 -watt Po. E Budget) Color Touch LCD GS-5220 -16 UP 2 XV (400 -watt Po. E Budget) GS-5220 -16 UP 2 XVR (400 -watt Po. E Budget) 22

Layer 2+ LCD Ultra Po. E Switch with 10 G SFP+ u Unique & User-friendly Touch Color LCD Display ü Po. E Port Management ü Po. E port Status ü PD Devices Status 23

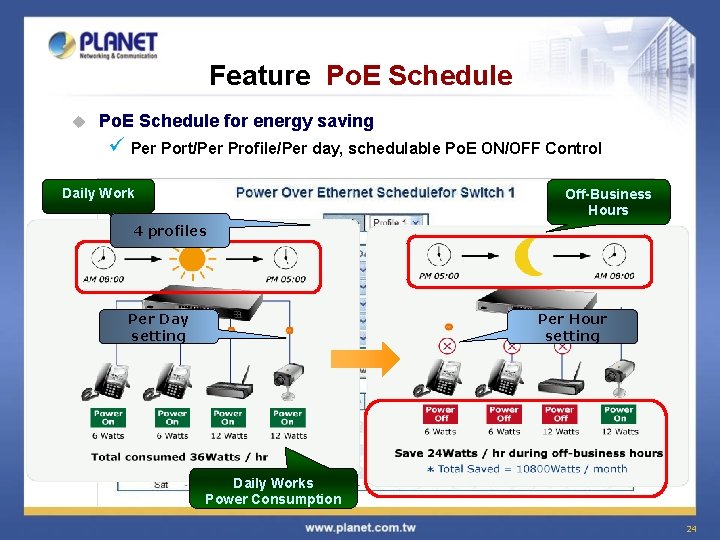

Feature Po. E Schedule u Po. E Schedule for energy saving ü Per Port/Per Profile/Per day, schedulable Po. E ON/OFF Control Daily Work Off-Business Hours 4 profiles Per Day setting Per Hour setting Daily Works Power Consumption 24

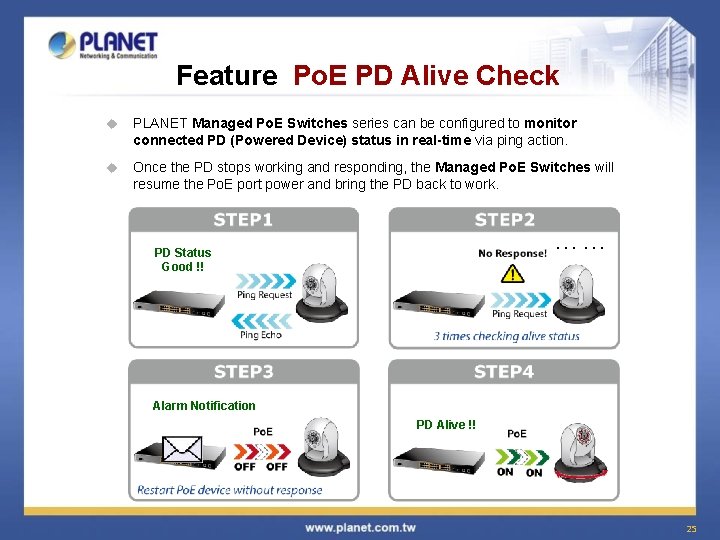

Feature Po. E PD Alive Check u PLANET Managed Po. E Switches series can be configured to monitor connected PD (Powered Device) status in real-time via ping action. u Once the PD stops working and responding, the Managed Po. E Switches will resume the Po. E port power and bring the PD back to work. …… PD Status Good !! Alarm Notification PD Alive !! 25

Layer 2+ Managed Po. E+ Switch u 30 W IEEE 802. 3 at Po. E support u Total 600 W Po. E budget u Hardware-based IPv 6/IPv 4 Layer 3 Static Routing u Layer 2/4 IPv 6 Managed Gigabit Switch u 4 SFP slots, flexible for Gigabit Fiber-Optic network extension u SSH/SSL Secure Management u Integrate Security and Qo. S for Po. E PD operating u Po. E Power management ü ü WGSW-48040 HP Po. E Port power limit/Total limit to ensure stable system operating Monitor power usage, current usage, power consumption on Powered Devices 26

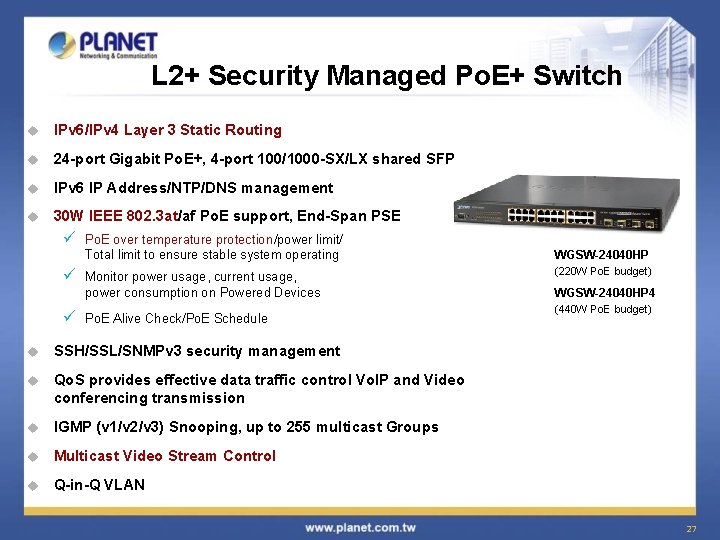

L 2+ Security Managed Po. E+ Switch u IPv 6/IPv 4 Layer 3 Static Routing u 24 -port Gigabit Po. E+, 4 -port 100/1000 -SX/LX shared SFP u IPv 6 IP Address/NTP/DNS management u 30 W IEEE 802. 3 at/af Po. E support, End-Span PSE ü ü ü Po. E over temperature protection/power limit/ Total limit to ensure stable system operating Monitor power usage, current usage, power consumption on Powered Devices Po. E Alive Check/Po. E Schedule u SSH/SSL/SNMPv 3 security management u Qo. S provides effective data traffic control Vo. IP and Video conferencing transmission u IGMP (v 1/v 2/v 3) Snooping, up to 255 multicast Groups u Multicast Video Stream Control u Q-in-Q VLAN WGSW-24040 HP (220 W Po. E budget) WGSW-24040 HP 4 (440 W Po. E budget) 27

WGSW-24040 HP Series Applications u Integration Solution for IP Po. E Camera and NVR System 28

Product Features Layer 2+ Stackable Managed Switch

Layer 2+ Stackable Managed Switch u Hardware-based two 10 G SFP+ Stacking ports ü Stacking up to 16 units ü Stacking up to 384 Gigabit Ethernet ports ü Stacking up to 64 Gigabit TP/SFP ports ü Stacking up to 32 high-capacity 10 G SFP+ Uplink ports u 440 watts Po. E budget (SGS-5220 -24 P 2 X) SGS-5220 -24 T 2 X SGS-5220 -24 S 2 XR SGS-5220 -24 P 2 X u AC + DC redundant power (SGS-5220 -24 S 2 XR) u DHCP Snooping/ARP Inspection and IP Source Guard u IGMP Snooping, MLD Snooping support u 802. 1 x/RADIUS/TACACS+ Authentication u Secure SSL/SSH/SNMPv 3 Management u Single IP management u IPv 6/IPv 4 Layer 3 Static Routing u Supports IEEE 802. 1 Q VLAN 30

Layer 2+ Stackable Managed Switch u Physical 10 G SFP+ Stacking Up to 16 Units Master 384 x Gigabit Port 32 x 10 G SFP+ Slots Single IP address stack management 31

Product Features Layer 2 Managed Switch

IPv 6/IPv 4 Managed Switches IPv 6 Gigabit Backbone Switch GS-4210 -48 T 4 S 48 -port Gigabit + 4 -port Gigabit SFP Standard Switch WGSW-28040 802. 3 at Po. E Switch Ultra Po. E Switch GS-4210 -48 P 4 S (440 watts) GS-4210 -24 T 2 S GS-4210 -24 P 4 C GS-4210 -24 PL 4 C GS-4210 -16 UP 4 C (400 watts) (220/440 watts) GS-4210 -24 P 2 S GS-4210 -16 T 2 S (300 watts) GS-4210 -16 P 4 C GS-4210 -16 P 2 S GSD-1020 S GS-4210 -24 UP 4 C (600 watts) (220 watts) GS-4210 -8 P 2 T 2 S GSD-1002 M (240 watts) (Desktop Po. E PD) GS-4210 -8 P 2 S (120 watts) 33

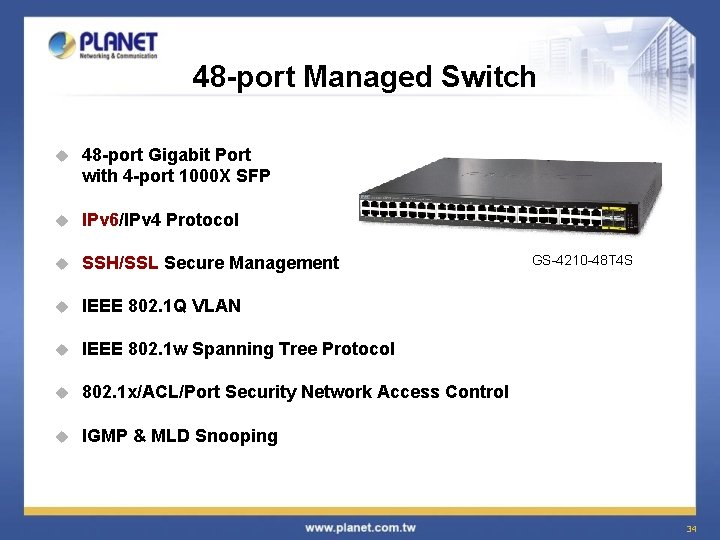

48 -port Managed Switch u 48 -port Gigabit Port with 4 -port 1000 X SFP u IPv 6/IPv 4 Protocol u SSH/SSL Secure Management u IEEE 802. 1 Q VLAN u IEEE 802. 1 w Spanning Tree Protocol u 802. 1 x/ACL/Port Security Network Access Control u IGMP & MLD Snooping GS-4210 -48 T 4 S 34

16/24 -port Managed Ultra Po. E Switch u 16/24 -port Gigabit Ultra Po. E u Up to 60 watts of Po. E power on 4 -pair UTP u 4 -port Gigabit TP/SFP combo Managed u 400 -watt/600 -watt Po. E Budget u IPv 6/IPv 4 Web/Telnet/SNMP (v 1, v 2 c, v 3)/ SSH/SSL Management u IEEE 802. 1 Q VLAN/Voice VLAN/ 802. 1 w Spanning Tree Protocol u Bandwidth Control/Storm Control u Layer 3/4 Access Control List/ Port Security/802. 1 x GS-4210 -16 UP 4 C (400 -watt) GS-4210 -24 UP 4 C (600 -watt) 35

24 -port Managed Po. E Switch u 24 -port Gigabit 802. 3 at/af Po. E u 4 -port Gigabit TP/SFP combo Managed u 220 -watt/440 -watt Po. E Budget u IPv 6/IPv 4 Web/Telnet/SNMP (v 1, v 2 c, v 3)/SSH/SSL Management u IEEE 802. 1 Q VLAN/Voice VLAN/802. 1 w Spanning Tree Protocol u Bandwidth Control/Storm Control u Layer 3/4 Access Control List/Port Security/802. 1 x GS-4210 -24 P 4 C (220 -watt) GS-4210 -24 PL 4 C (440 -watt) 36

Product Features Layer 2 Web Smart Switch

Layer 2 Web Smart Switch u 4 10 GBASE-SR/LR SFP+ u SSH/SSL Secure Management u IEEE 802. 1 Q VLAN u IEEE 802. 1 w Spanning Tree Protocol u IGMP Snooping v 1, v 2, v 3 u IPv 4 Web/Telnet/SNMP v 1, v 2 c Management u Link Aggregation GS-2240 -48 T 4 X (48 Gigabit + 4 10 G SFP+) GS-2240 -24 T 4 X (24 Gigabit + 4 10 G SFP+) 38

Po. E Switch with LCD Display u Up to 60 watts of Po. E power on 4 -pair UTP u (GSW-1222 VUP) GSW-1222 VUP (8 x Ultra Po. E, 380 W budget) u 2 -port Gigabit TP and 2 -port Gigabit SFP for uplink (GSW-1222 VUP) Ultra Po. E Switch u u IEEE 802. 3 at Po. E+, up to 32 watts per Po. E port Po. E+ Gigabit Switch GSW-2620 VHP (24 x 802. 3 at Po. E, 300 W budget) u 2 -port Gigabit TP/SFP for uplink GSW-1820 VHP (16 x 802. 3 at Po. E, 300 W budget) u LCD with real-time Po. E port status display, and power and alarm alerts GSD-1002 VHP (8 x 802. 3 at Po. E, 120 W budget) u Auto-negotiation and auto MDI/MDI-X u Automatic address learning and address aging u Plug and Play design u Po. E+ Fast Ethernet Switch FGSW-2622 VHP (24 x 802. 3 at Po. E, 300 W budget) FGSW-1822 VHP (16 x 802. 3 at Po. E, 300 W budget) FGSD-1022 VHP (8 x 802. 3 at Po. E, 120 W budget) 39

Real-time Display of Po. E Usage/System Status LCD Monitor FGSW-2622 VHP 40

Po. E Distance Extended Mode 100 meters (328 feet) 250 meters (820 feet) 41

IPv 4 Security Web Smart Switches 802. 3 at Po. E+ Web Smart Switches FGSD-1008 HPS (802. 3 at Po. E) FGSW-1816 HPS (802. 3 at Po. E) FGSW-2624 HPS 4 (802. 3 at Po. E) FGSW-2624 HPS (802. 3 at Po. E) 802. 3 af Po. E Web Smart Switches FNSW-2400 PS (Po. E) 42

Product Features Standard/SOHO Switch

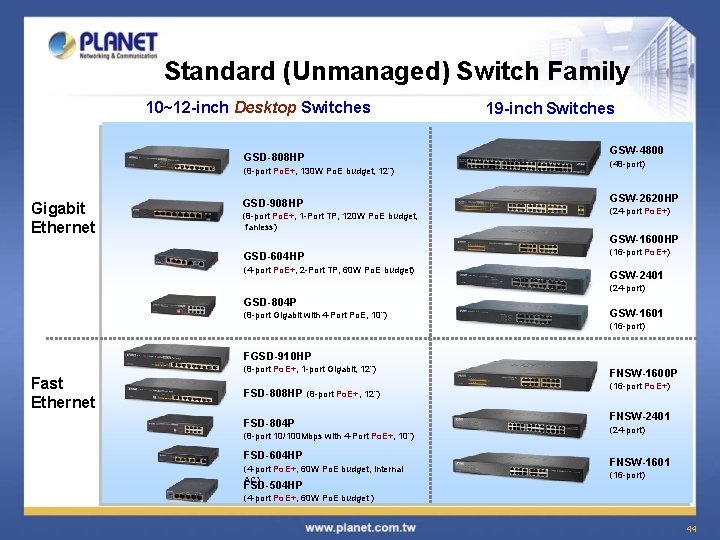

Standard (Unmanaged) Switch Family 10~12 -inch Desktop Switches GSD-808 HP (8 -port Po. E+, 130 W Po. E budget, 12”) Gigabit Ethernet GSD-908 HP (8 -port Po. E+, 1 -Port TP, 120 W Po. E budget, fanless) 19 -inch Switches GSW-4800 (48 -port) GSW-2620 HP (24 -port Po. E+) GSW-1600 HP GSD-604 HP (16 -port Po. E+) (4 -port Po. E+, 2 -Port TP, 60 W Po. E budget) GSW-2401 (24 -port) GSD-804 P (8 -port Gigabit with 4 -Port Po. E, 10”) GSW-1601 (16 -port) FGSD-910 HP (8 -port Po. E+, 1 -port Gigabit, 12”) Fast Ethernet FSD-808 HP (8 -port Po. E+, 12”) FSD-804 P (8 -port 10/100 Mbps with 4 -Port Po. E+, 10”) FSD-604 HP (4 -port Po. E+, 60 W Po. E budget, internal AC) FSD-504 HP FNSW-1600 P (16 -port Po. E+) FNSW-2401 (24 -port) FNSW-1601 (16 -port) (4 -port Po. E+, 60 W Po. E budget ) 44

Gigabit High Power Po. E Switch u 8 -port full Gigabit with 802. 3 at Po. E injector function u 52 V DC, 30 Watts Po. E power output u Auto detect powered device (PD) u Energy Saving technology ü ü u GSD-908 HP (120 W Po. E budget) Link down power saving Intelligent scales power based on cable length 9 K Jumbo Frame supports all speeds (10/1000 Mbps) u Supports Pre-Energy-Efficient Ethernet (EEE) function (802. 3 az) u Safe, reliable power solution for SOHO and SMB GSD-808 HP (130 W Po. E budget) 45

Fast Ethernet High Power Po. E Switch u Facilitates Po. E IP camera deployment with power feeding u 8 -port 802. 3 at/af Po. E with 1 -port Gigabit u 130 -watt Po. E budget u Auto detects powered device (PD) FGSD-910 HP 46

Home / SOHO Switch Family SFP Gigabit Ethernet GSD-603 F (4 -port Gb. E + 1 -port SFP) GSD-503 (5 -port) GSD-803 (8 -port) GSD-504 (5 -port) GSD-804 (8 -port) GSD-1603 (Metal case) (Plastic case) (16 -port, Energy saving) GSD-805 (8 -port, Internal power) Fast Ethernet FSD-503 (5 -port) FSD-803 (8 -port) SW-504 (5 -port) SW-804 (8 -port) (Metal case) (Plastic case) 47

Product Features Industrial Switch

Industrial Rack-mount Layer 2+ Managed Switch u Layer 3 static routing u 2 1/10 G SFP+ (IGS-5225 -20 T 4 C 2 X) u -40~75 degrees C operating temperature u IP 30 case with the fanless cooling system u 100~240 V AC, 36~60 V DC redundant power design u Full Management ü ü Web interface Console IGS-5225 -20 T 4 C 2 X IGSW-24040 T SNMP v 1, v 2 c and v 3 SSH and SSL management u IEEE 802. 1 Q VLAN/Q-in-Q/Protocol-based VLAN u IGMP Snooping v 1, v 2 and v 3/ACL/Port-based 802. 1 x u ITU-T G. 8032 ERPS function, recovery time at 20 ~ 50 ms u 400 watts Po. E budget (IGS-5225 -24 P 4 S) IGS-5225 -16 T 4 S IGS-5225 -24 P 4 S 49

Industrial Metro Switch u Backbone of Industrial Environment u Full Ports Gigabit u Fiber Optical, 100/1000 X SFP u 20 Gbps per second of non-blocking switch fabric u IPv 6/IPv 4 management u ERPS (Ethernet Ring Protection Switching) u DDM (Digital Diagnostic Monitor) u High security u -40~75 degrees C operating temperature u IP 30 rugged case IGS-10080 MFT 50

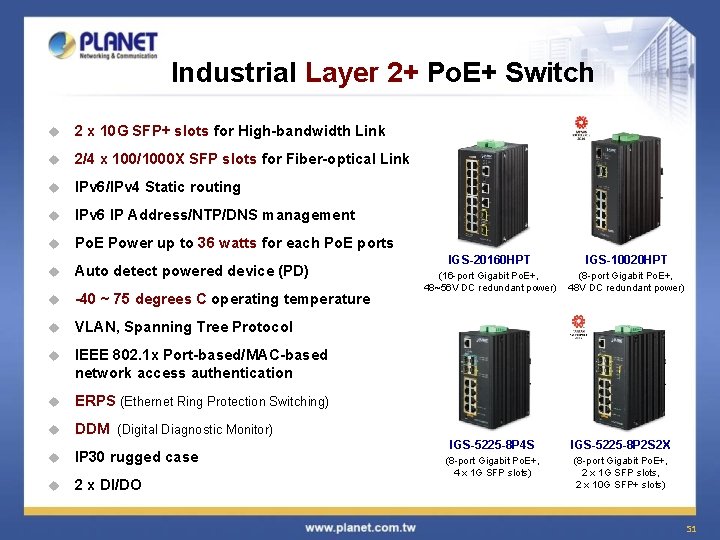

Industrial Layer 2+ Po. E+ Switch u 2 x 10 G SFP+ slots for High-bandwidth Link u 2/4 x 100/1000 X SFP slots for Fiber-optical Link u IPv 6/IPv 4 Static routing u IPv 6 IP Address/NTP/DNS management u Po. E Power up to 36 watts for each Po. E ports u Auto detect powered device (PD) u -40 ~ 75 degrees C operating temperature u VLAN, Spanning Tree Protocol u IEEE 802. 1 x Port-based/MAC-based network access authentication u ERPS (Ethernet Ring Protection Switching) u DDM (Digital Diagnostic Monitor) u IP 30 rugged case u 2 x DI/DO IGS-20160 HPT IGS-10020 HPT (16 -port Gigabit Po. E+, 48~56 V DC redundant power) (8 -port Gigabit Po. E+, 48 V DC redundant power) IGS-5225 -8 P 4 S IGS-5225 -8 P 2 S 2 X (8 -port Gigabit Po. E+, 4 x 1 G SFP slots) (8 -port Gigabit Po. E+, 2 x 1 G SFP slots, 2 x 10 G SFP+ slots) 51

Industrial Layer 2/4 Po. E+ Switch u Fiber-optical Link Capability (IGS-4215 -8 P 2 T 2 S, IGS-4215 -4 P 4 T 2 S) u IPv 6/IPv 4 Web/Telnet/SNMP (v 1, v 2 c, v 3)/ SSH/SSL Management IGS-4215 -8 P 2 T 2 S (2 x 100/1000 X SFP slots) u IPv 6 IP Address/NTP/DNS management u Po. E Power up to 36 watts for each Po. E ports u Auto detect powered device (PD) u -40 ~ 75 degrees C operating temperature u VLAN, Spanning Tree Protocol u IEEE 802. 1 x Port-based/MAC-based network access authentication u DDM (Digital Diagnostic Monitor) u IP 30 rugged case IGS-4215 -4 P 4 T 2 S (2 x 100/1000 X SFP slots) IGS-4215 -4 P 4 T 52

EN 50155 Railway Po. E+ Switch u IPv 6 IP Address/NTP/DNS management u Po. E Power up to 36 watts for each Po. E ports u Auto detect powered device (PD) u VLAN, Spanning Tree Protocol u ERPS (Ethernet Ring Protection Switching) u IEEE 802. 1 x Port-based/MAC-based network access authentication u -40 ~ 75 degrees C operating temperature u Waterproof and dustproof RJ 45 copper IGS-604 HPT-RJ IGS-5226 -4 P 2 T 24 V (IGS-604 HPT-RJ, IGS-5226 -4 P 2 T) u Waterproof M 12 connectors (IGS-604 HPT-M 12) u IP 67 -rated aluminum case; IP 50 -rated metal case for IGS-5226 -4 P 2 T IGS-604 HPT-M 12 IGS-5227 -4 MP 2 MT 53

EN 50155 Railway Switch u IPv 6 IP Address/NTP/DNS management u VLAN, Spanning Tree Protocol u ERPS (Ethernet Ring Protection Switching) u -40 ~ 75 degrees C operating temperature u Waterproof and dustproof M 12 A-coded to RJ 45 copper (IGS-5227 -6 MT) u Waterproof and dustproof M 12 X-coded to RJ 45 copper IGS-5227 -6 MT-X (IGS-5227 -6 MT-X) u Waterproof and dustproof RJ 45 to RJ 45 copper (IGS-5227 -6 T) u Waterproof M 12 connectors u IP 67 -rated aluminum case u IPv 6/IPv 4 Static routing u IPv 6 IP Address/NTP/DNS management IGS-5227 -6 T 54

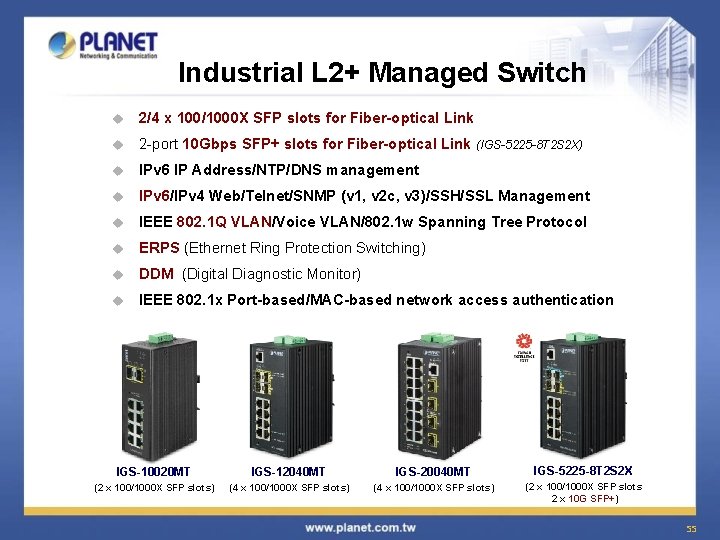

Industrial L 2+ Managed Switch u 2/4 x 100/1000 X SFP slots for Fiber-optical Link u 2 -port 10 Gbps SFP+ slots for Fiber-optical Link u IPv 6 IP Address/NTP/DNS management u IPv 6/IPv 4 Web/Telnet/SNMP (v 1, v 2 c, v 3)/SSH/SSL Management u IEEE 802. 1 Q VLAN/Voice VLAN/802. 1 w Spanning Tree Protocol u ERPS (Ethernet Ring Protection Switching) u DDM (Digital Diagnostic Monitor) u IEEE 802. 1 x Port-based/MAC-based network access authentication (IGS-5225 -8 T 2 S 2 X) IGS-10020 MT IGS-12040 MT IGS-20040 MT IGS-5225 -8 T 2 S 2 X (2 x 100/1000 X SFP slots) (4 x 100/1000 X SFP slots) (2 x 100/1000 X SFP slots 2 x 10 G SFP+) 55

Industrial Po. E+ Fiber Switch u 4 -port 802. 3 bt Ultra Po. E injector function u 2 100/1000 BASE-X mini-GBIC/SFP slots u Dual 48 V~56 V DC redundant power u Maximum 240 -watt Po. E budget u Supports Po. E power up to 72 watts per Po. E port u IP 30 aluminum case protection u -40 to 75 degrees C operating temperature u DIN rail kit and wall-mount kit u IPv 6/IPv 4 Static routing u IPv 6 IP Address/NTP/DNS management IGS-5225 -4 UP 1 T 2 S 56

Industrial Po. E+ Fiber Switch Application u Fiber-Optical Link Capability Extends the Range of Network Deployment 57

Industrial Renewable Energy Po. E Switch u Integrates green energy solar power, wind power and Po. E u Smart power management system ü Co-works with 300 watts solar PV kit or wind power generator and battery u 2/4 -port IEEE 802. 3 at Po. E+ compliant u 24 V DC output u Remote Web-based power monitoring, power usage statistics u Remote Po. E power management u SNMP Trap, Event log Po. E Port Po. E Output IP Management BSP-360 4 Max. 120 W V BSP-300 2 Max. 60 W -- Model 58

Industrial Renewable Energy Po. E Switch u Efficiently Remote Po. E Power Management ü Po. E Status Statistics Configuration 59

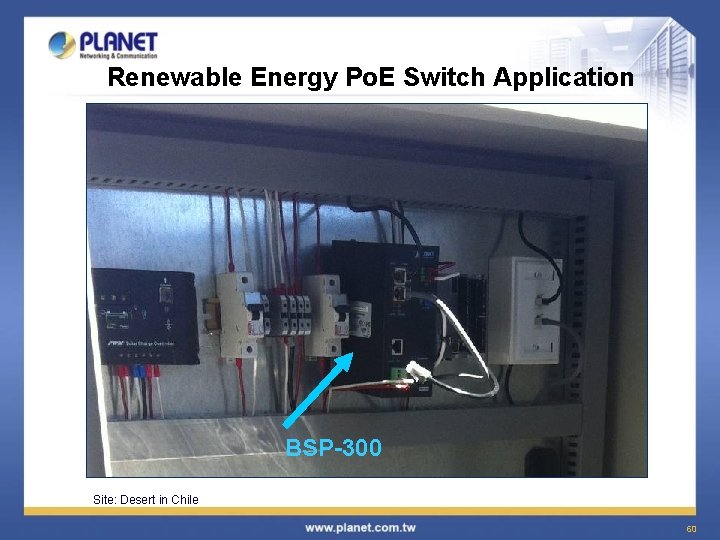

Renewable Energy Po. E Switch Application BSP-300 Site: Desert in Chile 60

Product Features Industrial Flat-type Switch

62

Flat-type Switch Family RJ 45 Port Po. E Power 1 G SFP Port LCD Operating Temp. WGS-803 8 - - -10~60 o. C WGS-804 HP 4 4 144 -watt - - -10~60 o. C WGS-804 HPT 4 4 144 -watt - - -40~75 o. C WGS-4215 -8 P 2 S 8 8 240 -watt 2 - -40~75 o. C WGS-4215 -8 T 8 - - -40~75 o. C WGS-4215 -8 T 2 S 8 - - 2 - -40~75 o. C WGS-5225 -8 P 2 SV 8 8 240 -watt 2 2. 4” Color Touch LCD -20~70 o. C Model 63

Flat-type LCD Managed Gigabit Po. E+ Switch u Unique & User-friendly Touch Color LCD Display ü ü ü Po. E Port Management Po. E port Status PD Devices Status u 2 x 100/1000 X SFP slots for Fiber-optical Link u IPv 6/IPv 4 Static routing u IPv 6 IP Address/NTP/DNS management u Po. E Power up to 36 watts for each Po. E ports u -20 ~ 70 degrees C operating temperature u VLAN, Spanning Tree Protocol u ERPS (Ethernet Ring Protection Switching) u DDM (Digital Diagnostic Monitor) u IP 30 rugged case, Wall-mount, Magnetic wallmount, DIN-rail type WGS-5225 -8 P 2 SV 64

Flat-type Managed Gigabit Po. E+ Switch u Designed for Home/Building automation u Wall-mount, Magnetic wall-mount, DIN-rail type u 802. 3 af/at Po. E injector, 144 -watt Po. E budget u LED indicators for per port Po. E In-Use and Po. E Power Usage u Dual redundant power input: terminal block and DC jack u IP 30 Slime Case, -40 ~ 75 degrees C operating temperature u IPv 6/IPv 4 Web/Telnet/SNMP v 1, v 2 c & v 3/SSH/SSL Management u Po. E Schedule/Schedule Power Recycle/ PD Alive Check WGS-804 HPT 65

Flat-type Po. E+ Switch Application 66

u View PLANET Ethernet Switch solution online LAN Switches Industrial Switches 67
