Ethernet Switch Solution 1 Ethernet Switch Products u
- Slides: 54
Ethernet Switch Solution 1
Ethernet Switch Products u Chassis / 10 G Switch Metro Switch Stackable Switch u Security Managed Switch u u u Industrial Switch Standard Switch u SOHO Switch u 2
Product Features Chassis / 10 G Switch 3
Features Chassis / 10 G Switch XGS 3 -42000 R 4 -Slot Layer 3 IPv 6/IPv 4 Routing Chassis Switch XGS 3 -24242 24 -Port 100/1000 X SFP with 4 Optional 10 G slots Layer 3 Managed Stackable Switch XGS 3 -24042 24 -Port Gigabit with 4 Optional 10 G slots Layer 3 Managed Stackable Switch u Target Markets – High Performance Network Service u 10 Gb Ethernet u Single IP Management l ISP / Telecom / Network Service Provider u Layer 3 IPv 6 / IPv 4 Routing l Tender Market u IPv 6 / IPv 4 Tunneling l Government / Campus / Hospital u IPv 6 / IPv 4 Dual Stack l Enterprise Secure Office & Factory u IPv 6 / IPv 4 ACL & Qo. S u Enhanced Security 4
Chassis Switch Applications Enterprise IPv 6 /IPv 4 Network Routing 10 G XGS 3 -42000 R 80 G fat pipe 10 Gb. E Backbone 10 G 10 G 5
10 G Switch Applications – ISP / Telecom 10 Gb. E Backbone 6
Product Features Metro Ethernet Switch 7
Managed Metro Ethernet Switch u IPv 6/IPv 4 Layer 3 Static Routing u IPv 6/IPv 4 dual stack management u Fully front panel access design u Layer 2/3/4 Access control list and port security u ERPS (Ethernet Ring Protection Switching) 24+4 10 G Fiber MGSW-28240 F (for MGSW-28240 F, MGSD-10080 F) u STP/RSTP/MSTP connection redundancy u Intelligent SFP Diagnosis Mechanism - Digital Diagnostic Monitor (DDM) 16 -port Fiber (for MGSW-28240 F, MGSD-10080 F) u SSH / SSL secure management u DI / DO for event and alarm u Dual power system for power redundancy ü - 36 V ~ -72 V DC ü 100 V ~ 240 V AC u - 10 to 60 o. C operating temperature MGSW-24160 F 8 -port Fiber MGSD-10080 F 8

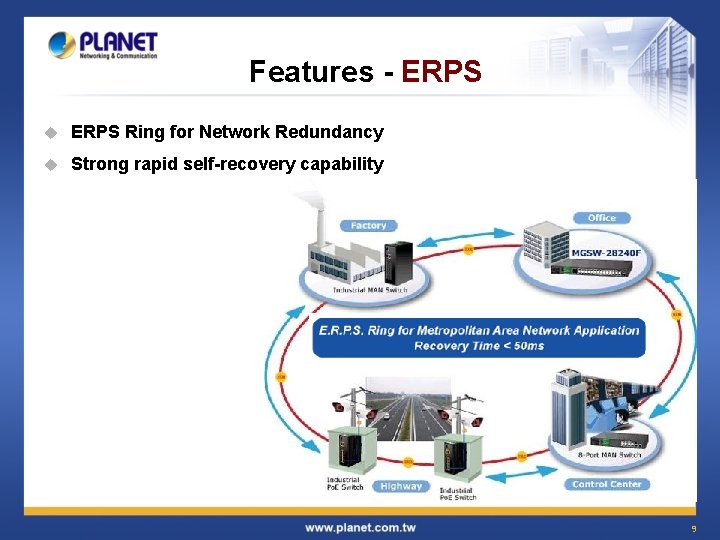

Features - ERPS u ERPS Ring for Network Redundancy u Strong rapid self-recovery capability 9
Features - DDM u Digital Diagnostic Monitor (DDM) ü Efficient management by real-time monitoring of the SFP status 10
Metro Ethernet Application ü High Density ü High Performance ü Highly Reliable XGS 3 -42000 R 11
Product Features Layer 2+ Security Managed Switch 12
Layer 2+ Managed Switches IPv 6/IPv 4 Gigabit Backbone Switch with Layer 3 Static Routing GS-5220 -44 S 4 C GS-5220 -16 S 8 CR (Redundant power) GS-5220 -46 S 2 C 4 X 48 -Port Gigabit with 4 -Port 10 G SFP+ WGSW-52040 GS-5220 -48 T 4 X 48 -Port Gigabit with 4 -Port 10 G SFP+ WGSW-24040 R (Redundant power) WGSD-10020 13
Layer 2+ IPv 6 Backbone Switch u IPv 6/IPv 4 Layer 3 Static Routing u 48 -Port 10/1000 Base-T, 4 shared SFP slots u 4 -Port 10 G SFP+ slots u Telecom class Gigabit solution for Enterprise Backbone and Data Center Networking u High Performance Full Wire-Speed Forward u IPv 6/IPv 4 Dual Stack Management u Strong IPv 6/IPv 4 Multicast Protocols u IPv 6/IPv 4 RADIUS, ACL and Qo. S u Advanced Secure Network Management GS-5220 -48 T 4 X 14
GS-5220 -48 T 4 X Applications 15
Layer 2+ Managed Po. E+ Switches IPv 6/IPv 4 Gigabit Backbone Switch with Layer 3 Static Routing WGSW-48040 HP (48 port 802. 2 at Po. E+) WGSW-24040 HPx (24 -port 802. 3 at Po. E+) XGSW-28040 HP 24 -port Gigabit Po. E+ with 4 -Port 10 G SFP+ WGSW-20160 HP (16 -port 802. 3 at Po. E+) WGSD-10020 HP (8 -port 802. 3 at Po. E+) 16
L 2+ Backbone Po. E Switch with 10 G SFP+ u IPv 6/IPv 4 Layer 3 Static Routing u Complies with IEEE 802. 3 at Po. E+, up to 440 -watt power Budget u Po. E Schedule, Schedule Power Recycle and PD Alive Check functions u ERPS Ring Data Recovery time < 50 ms u Secure SSL / SSH / SNMPv 3 Management u Supports IEEE 802. 1 Q VLAN u DHCP Snooping / ARP Inspection and IP Source Guard u 802. 1 x / RADIUS / TACACS+ Authentication u IGMP Snooping, MLD Snooping support XGSW-28040 HP 17
Feature – Po. E Schedule u Po. E Schedule for energy saving ü Per Port / Per Profile / Per day, schedulable Po. E ON/OFF Control Daily Work Off-Business Hours 4 profiles Per Day setting Per Hour setting Daily Works Power Consumption 18

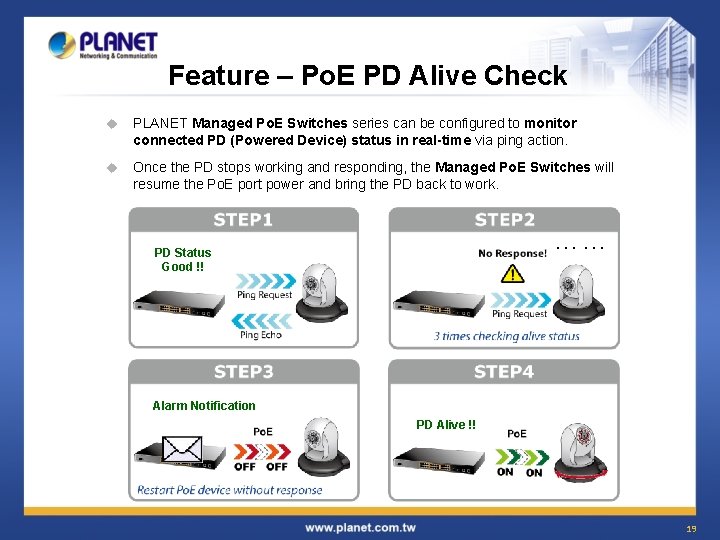

Feature – Po. E PD Alive Check u PLANET Managed Po. E Switches series can be configured to monitor connected PD (Powered Device) status in real-time via ping action. u Once the PD stops working and responding, the Managed Po. E Switches will resume the Po. E port power and bring the PD back to work. …… PD Status Good !! Alarm Notification PD Alive !! 19
Layer 2+ Managed Po. E Switch u 30 W IEEE 802. 3 at Po. E support u Total 600 W Po. E budget u Hardware-based IPv 6/IPv 4 Layer 3 Static Routing u Layer 2/4 IPv 6 Managed Gigabit Switch u 4 SFP slots, flexible for Gigabit Fiber-Optic network extension u SSH / SSL Secure Management u Integrate Security and Qo. S for Po. E PD operating u Po. E Power management ü ü WGSW-48040 HP Po. E Port power limit / Total limit to ensure stable system operating Monitor power usage, current usage, power consumption on Powered Devices 20
L 2+ Security Managed Po. E Switch u IPv 6 / IPv 4 Layer 3 Static Routing u 24 -Port Gigabit Po. E+, 4 -Port 100/1000 -SX/LX shared SFP u IPv 6 IP Address / NTP / DNS management u 30 W IEEE 802. 3 at / af Po. E support, End-Span PSE ü WGSW-24040 HP Po. E over temperature protection / power limit / Total limit to ensure stable system operating (220 W Po. E budget) ü Monitor power usage, current usage, power consumption on Powered Devices (440 W Po. E budget) ü Po. E Alive Check / Po. E Schedule u SSH / SSL / SNMPv 3 security management u Qo. S provides effective data traffic control Vo. IP and Video conferencing transmission u IGMP (v 1/v 2/v 3) Snooping, up to 255 multicast Groups u Multicast Video Stream Control u Q-in-Q VLAN WGSW-24040 HP 4 21
WGSW-24040 HP Series Applications u Integration Solution for IP Po. E Camera and NVR System 22
Product Features Stackable Managed Switch 23

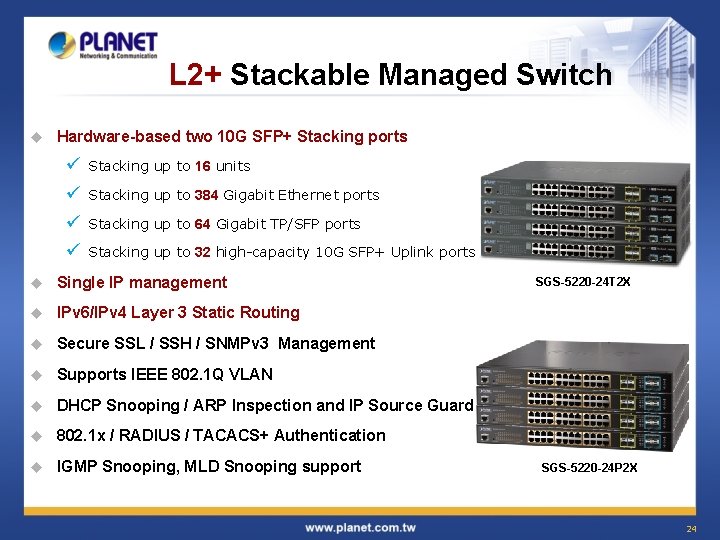

L 2+ Stackable Managed Switch u Hardware-based two 10 G SFP+ Stacking ports ü Stacking up to 16 units ü Stacking up to 384 Gigabit Ethernet ports ü Stacking up to 64 Gigabit TP/SFP ports ü Stacking up to 32 high-capacity 10 G SFP+ Uplink ports u Single IP management u IPv 6/IPv 4 Layer 3 Static Routing u Secure SSL / SSH / SNMPv 3 Management u Supports IEEE 802. 1 Q VLAN u DHCP Snooping / ARP Inspection and IP Source Guard u 802. 1 x / RADIUS / TACACS+ Authentication u IGMP Snooping, MLD Snooping support SGS-5220 -24 T 2 X SGS-5220 -24 P 2 X 24
L 2+ Stackable Managed Switch u Physical 10 G SFP+ Stacking Up to 16 Units Master 384 x Gigabit Port 32 x 10 G SFP+ Slots Single IP address stack management 25
Stackable Managed Switch IPv 6 Stacking Switch IPv 6 Gigabit Fiber Switch SGSW-24240 (24 FX/SX/LX) SGSW-24240 R (Redundant power) SGSW-24040 HP (802. 3 at Po. E) SGSW-24040 P 4 (Full Power Po. E) SGSW-24040 R (Redundant power) 26

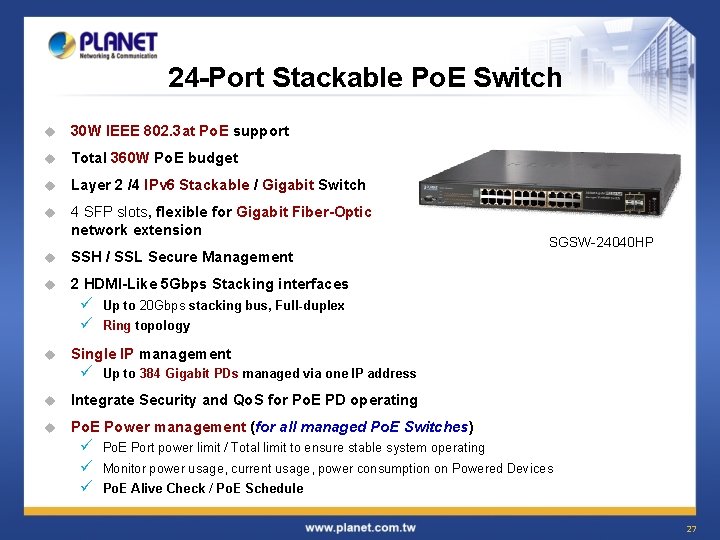

24 -Port Stackable Po. E Switch u 30 W IEEE 802. 3 at Po. E support u Total 360 W Po. E budget u Layer 2 /4 IPv 6 Stackable / Gigabit Switch u 4 SFP slots, flexible for Gigabit Fiber-Optic network extension u SSH / SSL Secure Management u 2 HDMI-Like 5 Gbps Stacking interfaces ü ü u SGSW-24040 HP Up to 20 Gbps stacking bus, Full-duplex Ring topology Single IP management ü Up to 384 Gigabit PDs managed via one IP address u Integrate Security and Qo. S for Po. E PD operating u Po. E Power management (for all managed Po. E Switches) ü ü ü Po. E Port power limit / Total limit to ensure stable system operating Monitor power usage, current usage, power consumption on Powered Devices Po. E Alive Check / Po. E Schedule 27

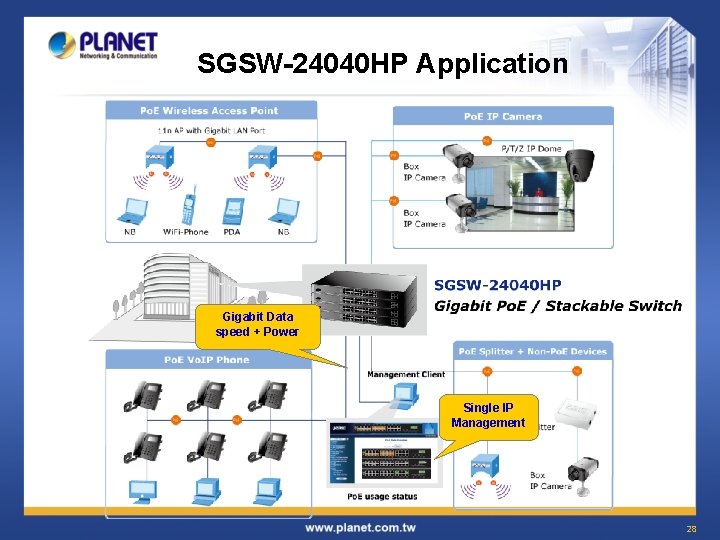

SGSW-24040 HP Application Gigabit Data speed + Power Single IP Management 28
Stackable Gigabit Po. E Switch Family SGSW-24040 P 4 SGSW-24040 HP 10/1000 T 24 24 1000 SX/LX 4 4 Compatible Model Feature Interface 100 FX Stacking Standard Po. E 2 x 5 Gbps / HDMI-Like 802. 3 af 802. 3 at, 802. 3 af Po. E Output 48 V / 15. 4 W 52 V / 30 W Po. E Budget 380 W 360 W No. of Class 2 24 24 No. of Class 3 24 24 No. of Class 4 -- 12 Stack Capability Hardware Stack, up to 16 units, 384 ports 29
Product Features Layer 2 Managed Switch 30
IPv 6 / IPv 4 Managed Switches IPv 6 Gigabit Backbone Switch GS-4210 -48 T 4 S 48 -Port Gigabit + 4 -Port Gigabit SFP Standard Switch WGSW-28040 Po. E Switch GS-4210 -48 P 4 S (802. 3 at Po. E) GS-4210 -24 T 2 S GS-4210 -24 P 4 C GS-4210 -24 PL 4 C (802. 3 at Po. E) GS-4210 -16 T 2 S GS-4210 -24 P 2 S GSD-1020 S GS-4210 -8 P 2 T 2 S GSD-1002 M GS-4210 -8 P 2 S (Desktop Po. E PD) (802. 3 at Po. E) 31
48 -Port Managed Switch u 48 -Port Gigabit Port with 4 -Port 1000 X SFP u IPv 6/IPv 4 Protocol GS-4210 -48 T 4 S u SSH / SSL Secure Management u IEEE 802. 1 Q VLAN u IEEE 802. 1 w Spanning Tree Protocol u 802. 1 x / ACL / Port Security Network Access Control u IGMP Snooping 32
24 -Port Managed Po. E Switch u 24 -Port Gigabit 802. 3 at/af Po. E u 4 -Port Gigabit TP/SFP combo Managed u 220 -watt / 440 -watt Po. E Budget u IPv 6/IPv 4 Web / Telnet / SNMP v 1, v 2 c / SSH / SSL Management u IEEE 802. 1 Q VLAN / Voice VLAN / 802. 1 w Spanning Tree Protocol u Bandwidth Control / Storm Control u Layer 3 / 4 Access Control List / Port Security / 802. 1 x GS-4210 -24 P 4 C (220 -watt) GS-4210 -24 PL 4 C (440 -watt) 33

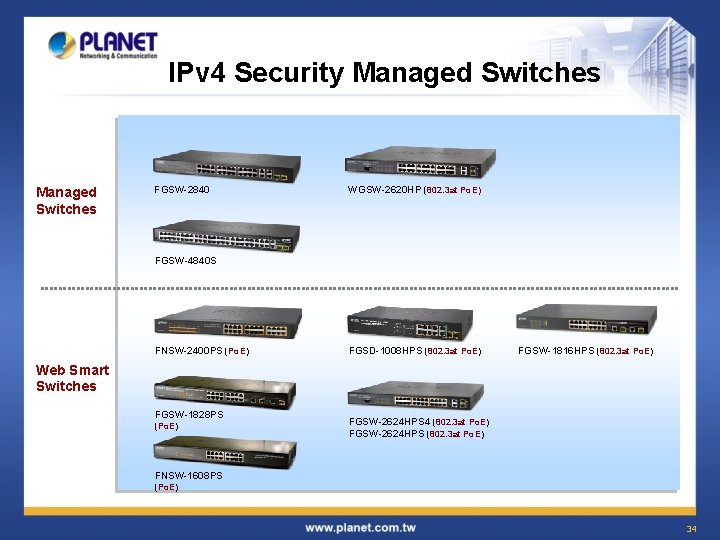

IPv 4 Security Managed Switches FGSW-2840 WGSW-2620 HP (802. 3 at Po. E) FGSW-4840 S FNSW-2400 PS (Po. E) FGSD-1008 HPS (802. 3 at Po. E) FGSW-1816 HPS (802. 3 at Po. E) Web Smart Switches FGSW-1828 PS (Po. E) FGSW-2624 HPS 4 (802. 3 at Po. E) FGSW-2624 HPS (802. 3 at Po. E) FNSW-1608 PS (Po. E) 34
Product Features Standard / SOHO Switch 35

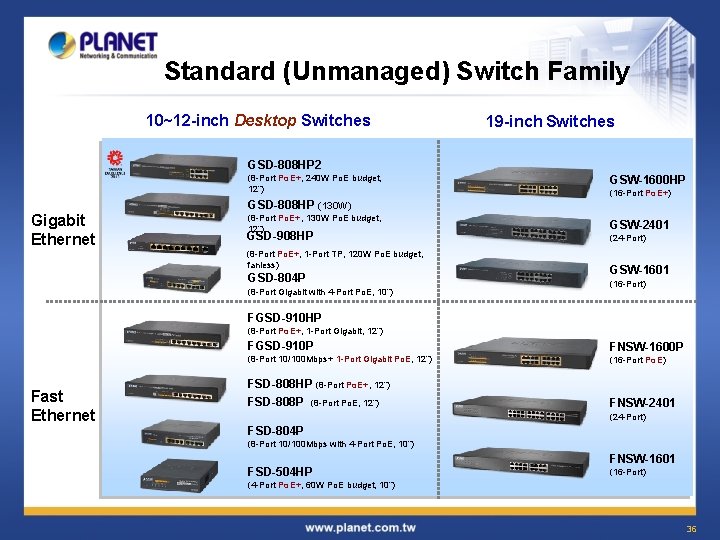

Standard (Unmanaged) Switch Family 10~12 -inch Desktop Switches 19 -inch Switches GSD-808 HP 2 (8 -Port Po. E+, 240 W Po. E budget, 12”) GSD-808 HP (130 W) Gigabit Ethernet (8 -Port Po. E+, 130 W Po. E budget, 12”) GSD-908 HP (8 -Port Po. E+, 1 -Port TP, 120 W Po. E budget, fanless) GSD-804 P (8 -Port Gigabit with 4 -Port Po. E, 10”) GSW-1600 HP (16 -Port Po. E+) GSW-2401 (24 -Port) GSW-1601 (16 -Port) FGSD-910 HP (8 -Port Po. E+, 1 -Port Gigabit, 12”) Fast Ethernet FGSD-910 P FNSW-1600 P (8 -Port 10/100 Mbps+ 1 -Port Gigabit Po. E, 12”) (16 -Port Po. E) FSD-808 HP (8 -Port Po. E+, 12”) FSD-808 P (8 -Port Po. E, 12”) FNSW-2401 (24 -Port) FSD-804 P (8 -Port 10/100 Mbps with 4 -Port Po. E, 10”) FSD-504 HP FNSW-1601 (16 -Port) (4 -Port Po. E+, 60 W Po. E budget, 10”) 36
Gigabit High Power Po. E Switch u 8 -Port full Gigabit with 802. 3 at Po. E injector function u 52 V DC, 30 Watts Po. E power output u Auto detect powered device (PD) u Per port Ethernet, Po. E In-Use / Po. E Power Usage Status LED display at front panel u GSD-908 HP (120 W Po. E budget) (130 W Po. E budget) Energy Saving technology ü ü GSD-808 HP Link down power saving Intelligent scales power based on cable length u 9 K Jumbo Frame supports all speeds (10/1000 Mbps) u Supports Pre-Energy-Efficient Ethernet (EEE) function (802. 3 az) u Safe, reliable power solution for SOHO and SMB GSD-808 HP 2 (240 W Po. E budget) Usage 240 Watts 95% 226 Watts 75% 197 Watts 50% 139 Watts 25% 84 Watts 37

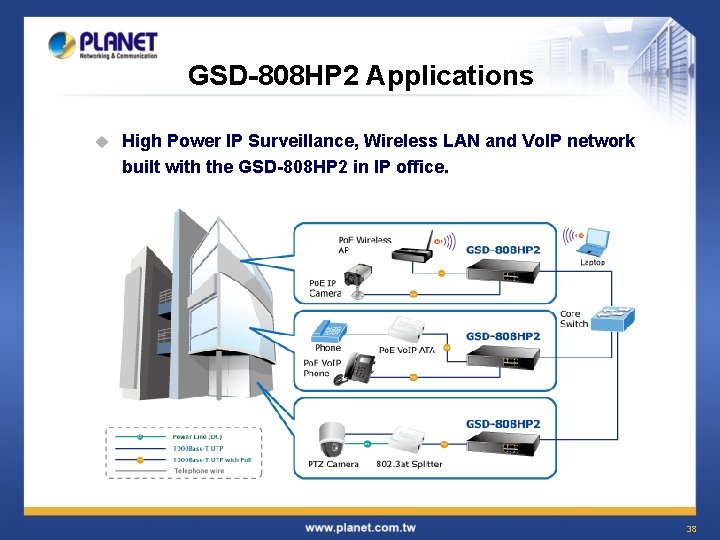

GSD-808 HP 2 Applications u High Power IP Surveillance, Wireless LAN and Vo. IP network built with the GSD-808 HP 2 in IP office. 38
Fast Ethernet High Power Po. E Switch u Facilitates Po. E IP camera deployment with power feeding u 8 -Port 802. 3 at / af Po. E with 1 -Port Gigabit u 130 -watt Po. E budget u Auto detects powered device (PD) FGSD-910 HP 39

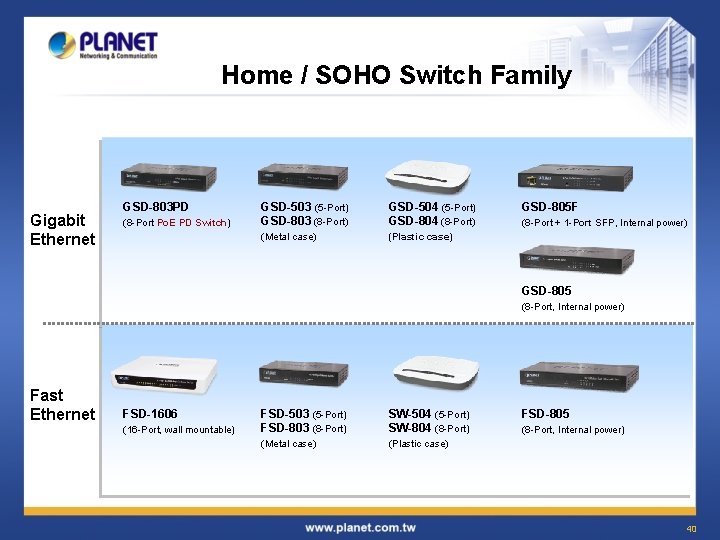

Home / SOHO Switch Family Gigabit Ethernet GSD-803 PD (8 -Port Po. E PD Switch) GSD-503 (5 -Port) GSD-803 (8 -Port) GSD-504 (5 -Port) GSD-804 (8 -Port) (Metal case) (Plastic case) GSD-805 F (8 -Port + 1 -Port SFP, Internal power) GSD-805 (8 -Port, Internal power) Fast Ethernet FSD-1606 (16 -Port, wall mountable) FSD-503 (5 -Port) FSD-803 (8 -Port) SW-504 (5 -Port) SW-804 (8 -Port) (Metal case) (Plastic case) FSD-805 (8 -Port, Internal power) 40
Gigabit Po. E PD Switch u 8 -Port Gigabit, IEEE 802. 3 at / af compliant u Port 8 for IEEE 802. 3 at / af Po. E In-linen Power – No external power supply required u 9 K Jumbo Frame supports all speeds (10/1000 Mbps) u IEEE 802. 3 x Flow Control, back pressure for half duplex operation u Energy-Saving technology ü ü u GSD-803 PD Link down power saving Intelligent scales power based on cable length Easy installation in Home, SOHO and SMB 41
Product Features Industrial Switches 42

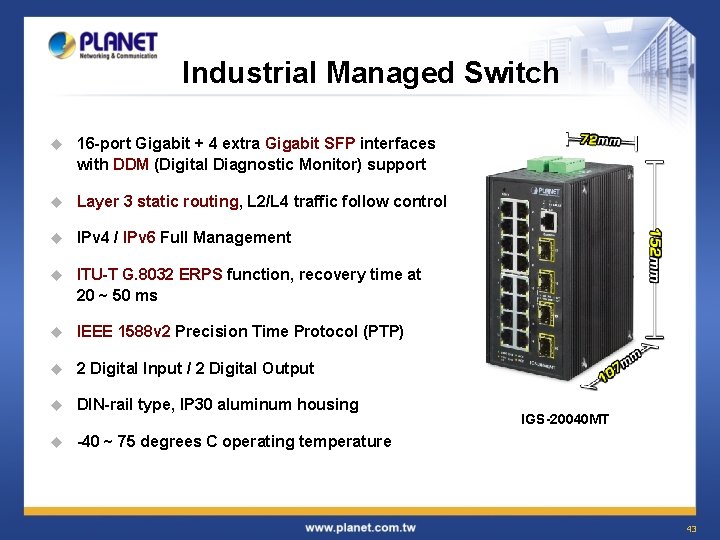

Industrial Managed Switch u 16 -port Gigabit + 4 extra Gigabit SFP interfaces with DDM (Digital Diagnostic Monitor) support u Layer 3 static routing, L 2/L 4 traffic follow control u IPv 4 / IPv 6 Full Management u ITU-T G. 8032 ERPS function, recovery time at 20 ~ 50 ms u IEEE 1588 v 2 Precision Time Protocol (PTP) u 2 Digital Input / 2 Digital Output u DIN-rail type, IP 30 aluminum housing u -40 ~ 75 degrees C operating temperature IGS-20040 MT 43
Industrial Metro Switch u Backbone of Industrial Environment u Full Ports Gigabit u Fiber Optical, 100/1000 X SFP u 20 Gbps per second of non-blocking switch fabric u IPv 6 / IPv 4 management u ERPS (Ethernet Ring Protection Switching) u DDM (Digital Diagnostic Monitor) u High security u -40~75 o. C operating temperature u IP 30 rugged case IGS-10080 MFT 44
High Power Po. E Switch IGS-10020 HPT u Fiber-Optical Link Capability - 2 x 100/1000 X SFP slots u IPv 6 IP Address / NTP / DNS management u Po. E Power up to 30. 8 Watts for each Po. E ports u Auto detect powered device (PD) u VLAN, Spanning Tree Protocol u ERPS (Ethernet Ring Protection Switching) u DDM (Digital Diagnostic Monitor) u IEEE 802. 1 x Port-Based / MAC-Based network access authentication 45
Industrial Po. E Fiber Switch u Fiber-Optical Link Capability u 802. 3 af/at Po. E injector u 48 V DC to 52 V DC Po. E+ power boost u High Power Budget for Po. E Extension u Intelligent LED Indicator for Real-time Po. E Usage u Redundant power system u - 40~75 o. C operating temperature u IP 30 rugged case IGS-624 HPT 46

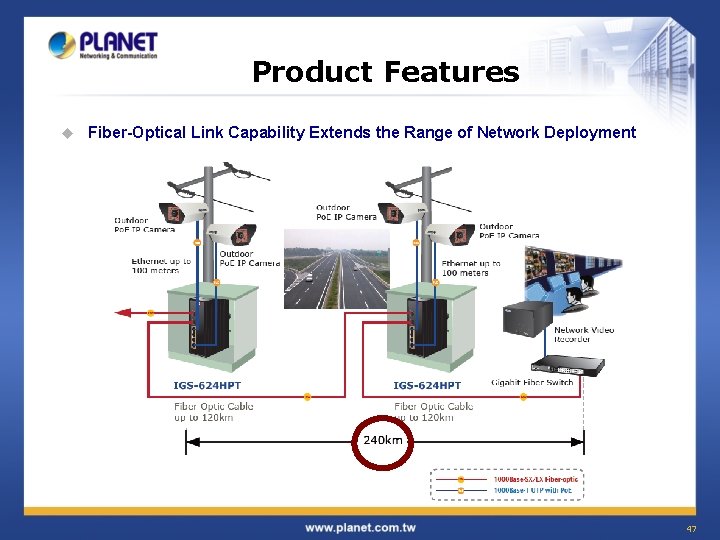

Product Features u Fiber-Optical Link Capability Extends the Range of Network Deployment 47
48
Solar Power Po. E Switch Application BSP-300 Site: Desert in Chile 49
Solar Power Po. E Switch Application 50
Wall-mounted Managed Gigabit Po. E+ Switch u Designed for Home / Building automation u Wall-mount, Magnetic wall-mount, DIN-rail type u 802. 3 af/at Po. E injector, 120 -watt Po. E budget u LED indicators for per port Po. E In-Use and Po. E Power Usage u Dual redundant power input: terminal block and DC jack u IP 30 Slime Case, -40 ~ 75 degrees C operating temperature u IPv 6/IPv 4 Web / Telnet / SNMP v 1, v 2 c / SSH / SSL Management u Po. E Schedule / Schedule Power Recycle / PD Alive Check WGS-804 HPT 51

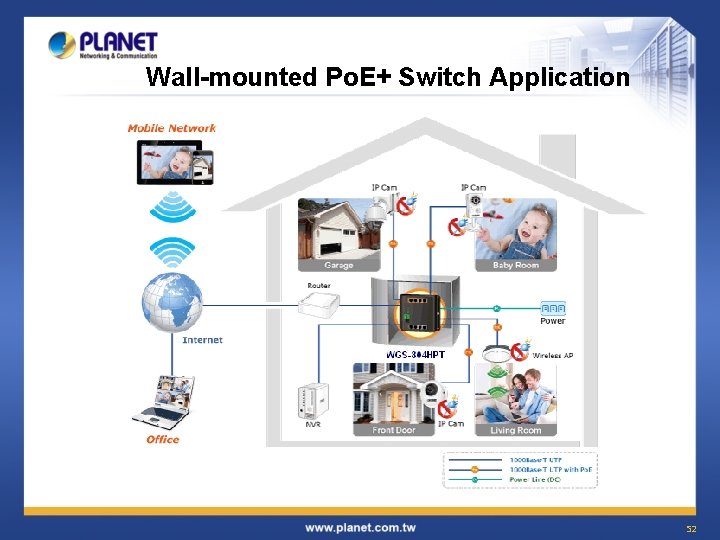

Wall-mounted Po. E+ Switch Application 52
u View PLANET Ethernet Switch solution online LAN Switches Industrial Switches 53
54
