ETHERNET SERVICE OVERVIEW THE BACKBONE OF YOUR BUSINESS
ETHERNET SERVICE OVERVIEW

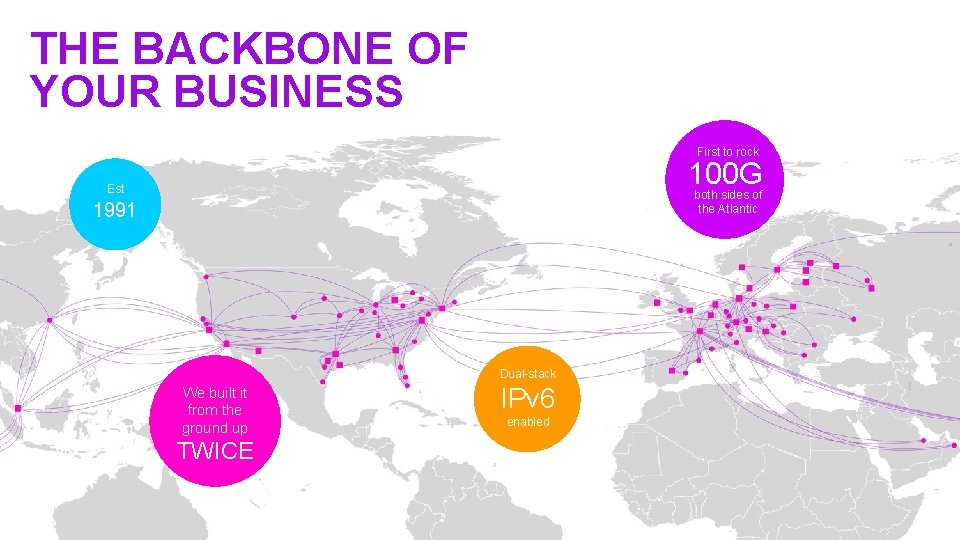

THE BACKBONE OF YOUR BUSINESS First to rock 100 G Est both sides of the Atlantic 1991 Dual-stack We built it from the ground up TWICE IPv 6 enabled

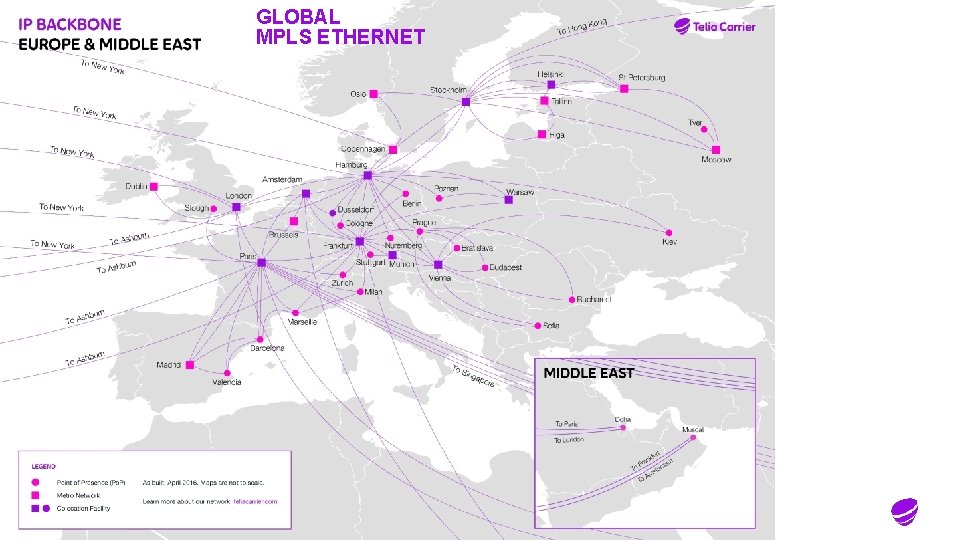

GLOBAL MPLS ETHERNET
GLOBAL MPLS ETHERNET
TELIA CARRIER ETHERNET ANY SIZE SHAPE ANYWHERE
Product EPL WAVE EVPL ELAN Topology Technology Ethernet over SDH/DWDM Ethernet over MPLS Quality High, Dedicated bandwidth High, optional with end-to-end SLA & Co. S (5 levels) Bandwidth 1 Gb/s - 100 Gb/s 1 Mb/s – 10 Gb/s Protection Deterministic / Ring / Unprotected Mesh Flexibility Limited bandwidth increments No burst Coverage Europe and US Global with managed NIDs in >120 countries Features - MPOP (Multiple Product Support) MEF Defined Service E-LINE – EPL Many bandwidth tiers Burst billing E-LINE – EVPL E-LINE – EPL Many bandwidth tiers Burst billing. Any-to-any traffic. EP-LAN EVP-LAN
ADVANCED OPTION Advanced Network Interface Device (NID) Telia Carrier managed Ethernet demarcation unit for EVPL/ELAN: • Health Summary of your network • Near real-time & historical view of bandwidth usage and end-to-end network performance (Bandwidth, Delay, Frame Loss, IFDV) via Ethernet Performance Portal • Global end-to-end SLA • NOC with visibility in the Local Tail to diagnose faults, decreasing trouble resolution time • Automated characterization test for new Local Tails
ANYWHERE • 135+ Ethernet enabled Po. Ps globally • Global Managed NID coverage in 120 countries • 150+ Telia Carrier Ethernet Certified Access Partners
END-TO-END QUALITY • MEF CE 2. 0 standards • Global End-to-End SLAs • Global ENNI rollouts

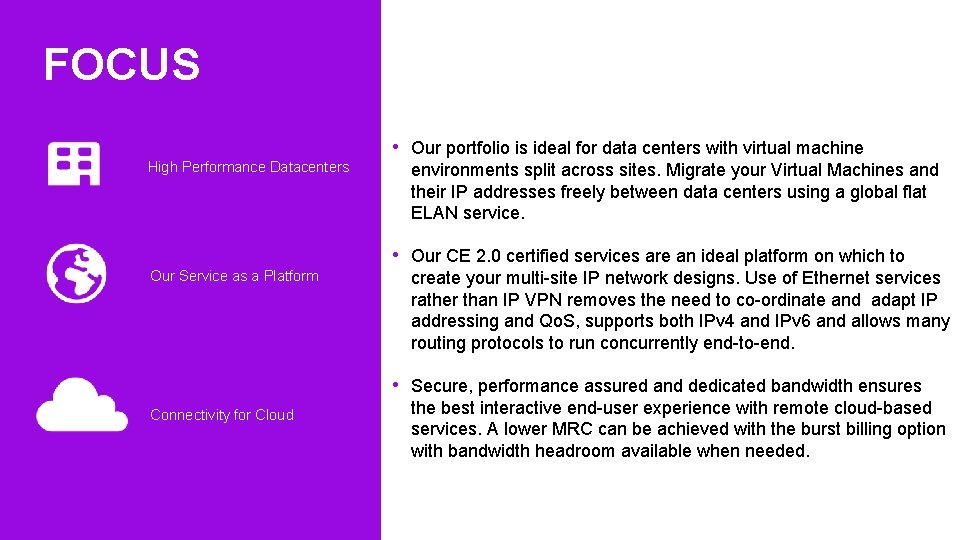

FOCUS High Performance Datacenters • Our portfolio is ideal for data centers with virtual machine environments split across sites. Migrate your Virtual Machines and their IP addresses freely between data centers using a global flat ELAN service. • Our CE 2. 0 certified services are an ideal platform on which to Our Service as a Platform create your multi-site IP network designs. Use of Ethernet services rather than IP VPN removes the need to co-ordinate and adapt IP addressing and Qo. S, supports both IPv 4 and IPv 6 and allows many routing protocols to run concurrently end-to-end. • Secure, performance assured and dedicated bandwidth ensures Connectivity for Cloud the best interactive end-user experience with remote cloud-based services. A lower MRC can be achieved with the burst billing option with bandwidth headroom available when needed.
Feature EVPL & ELAN Standard service Bandwidth 1 Mb/s – 2. 5 Gb/s (To be changed during Q 3 2016 to 10 Gb/s as standard) Backbone technology Layer 2 MPLS Availability 99. 99% POP to POP, 99. 5% end-to-end (with local tail and Advanced NID) Classes of service 5 levels (RT 1, RT 2, BC 1, BC 2, BE) Interfaces Optical and electrical standard interfaces for FE, GE and 10 GE Monitoring Proactive 24/7 Billing models Monthly, flat rate or usage-based (burst) billing using 95 th percentile providing 1. 5 days of free bursting at no additional charge Supported L 2 protocols IEEE 802. 3 - Ethernet, IEEE 802. 1 Q – VLAN. L 2 CP upon request Supported L 3 protocols Any L 3 Protocol managed by customer Supported Ethernet Frame size (DA to FCS) 4458 bytes, only restricted by local tail
CUSTOMER CASE WARGAMING • “TSIC has provided us with a cost-effective and reliable Ethernet solution that will underpin our need for dedicated, intercontinental bandwidth” Andre Reitenbach, Managing Director, Wargaming. net CHALLENGE Reliable EU-Asia Connectivity SOLUTION EVPL & ELAN with advanced NIDs & Co. S BENEFIT End-to-end control SUCCESS FACTORS Quality, coverage & cost

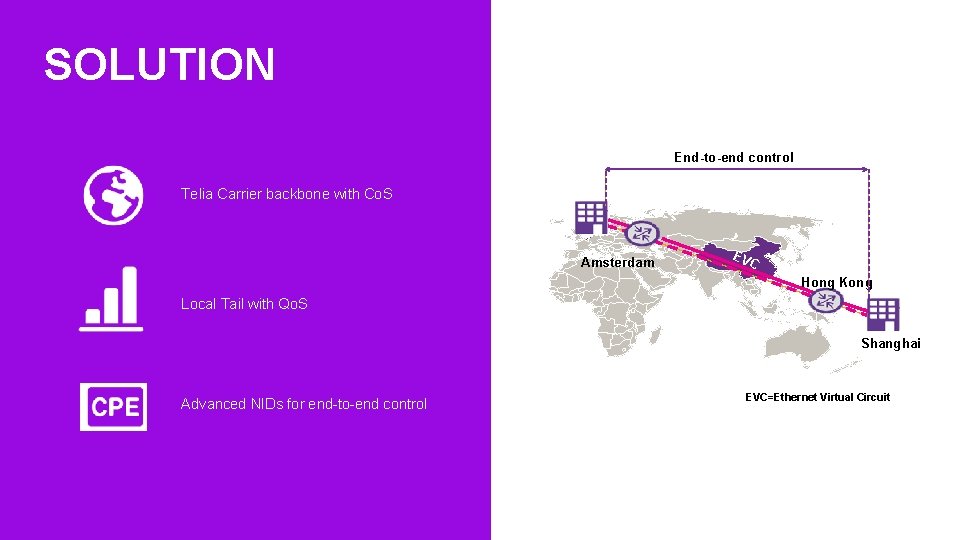

SOLUTION End-to-end control Telia Carrier backbone with Co. S Amsterdam EV C Hong Kong Local Tail with Qo. S Shanghai Advanced NIDs for end-to-end control EVC=Ethernet Virtual Circuit
THANK YOU
