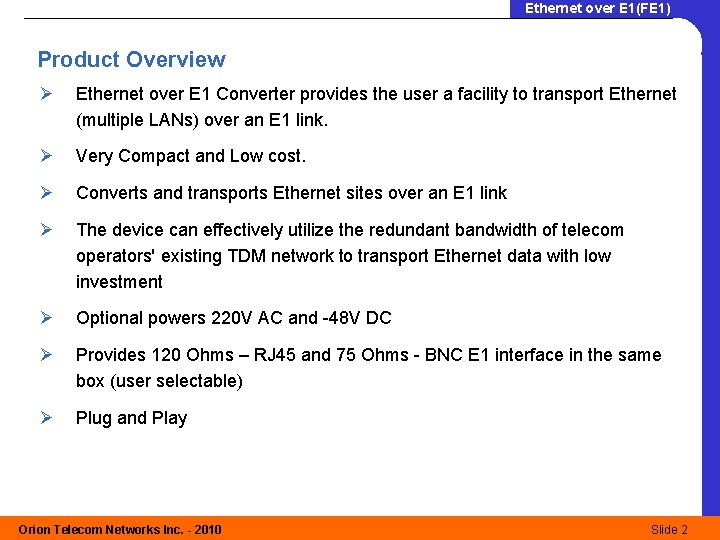

Ethernet over E 1(FE 1) Product Overview Ø Ethernet over E 1 Converter provides the user a facility to transport Ethernet (multiple LANs) over an E 1 link. Ø Very Compact and Low cost. Ø Converts and transports Ethernet sites over an E 1 link Ø The device can effectively utilize the redundant bandwidth of telecom operators' existing TDM network to transport Ethernet data with low investment Ø Optional powers 220 V AC and -48 V DC Ø Provides 120 Ohms – RJ 45 and 75 Ohms - BNC E 1 interface in the same box (user selectable) Ø Plug and Play Orion Telecom Networks Inc. - 2010 Slide 2

Ethernet over E 1(FE 1) Features and Highlights Ø The maximum transmission rate of Ethernet data over E 1 links is 2. 048 Mbit/s Ø Supporting 1600 frames, accordance with Interior Switching Link (ISL) Protocol Ø Supports unframed, framed and multi framed E 1 transmission mode Ø Supporting local E 1 port loop-back Ø The Ethernet Port is self-adaptive to crossover or shoot-through (Straight / Parallel) cable to avoid the trouble of re-wiring Ø Ethernet negotiation function. Supports 10 M/100 M and working modes of both full-duplex and semi-duplex Ø Transparently transmits ultra-long frames stipulated in IEEE 802. 1 Q, and supports Ethernet switches with VLAN function. Ø Transport the DATA transparently (No configuration required) Ø Visual alarms (LEDs) on front panel Orion Telecom Networks Inc. - 2010 Slide 3

Ethernet over E 1(FE 1) Features and Highlights Ø Imbedded, dynamic Ethernet MAC address list (1024 addresses), and filter function for local data frames Can support multiple LANs of different network addresses Ø Optional powers 220 V AC and -48 V DC Ø Supported fractional E 1 Bandwidth can be adjusted from 64 Kbps to 2048 Kbps and selected in N*64 Kbps format Ø Provides 120 Ohms – RJ 45 and 75 Ohms - BNC E 1 interface in the same box (user selectable) Ø Configurable Ethernet port speed (10 /100) and mode (Half / Full Duplex) Ø Ethernet port mode status (LEDs) Ø Plug and Play Ø Very compact and low power consumption. Orion Telecom Networks Inc. - 2010 Slide 4

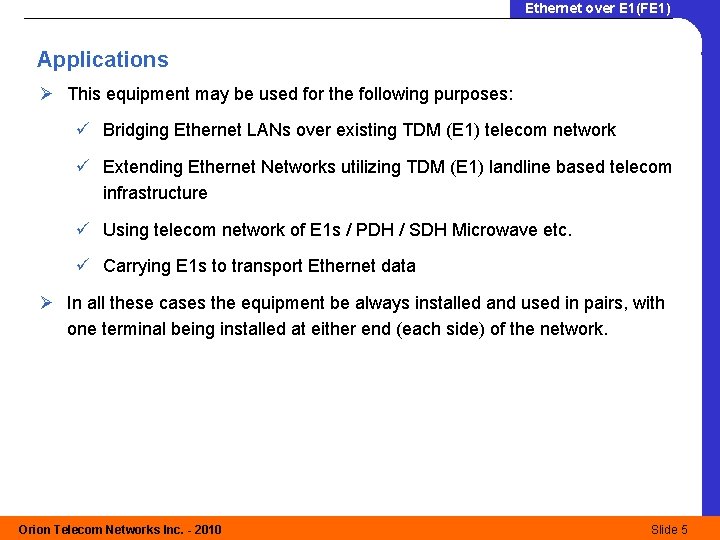

Ethernet over E 1(FE 1) Applications Ø This equipment may be used for the following purposes: ü Bridging Ethernet LANs over existing TDM (E 1) telecom network ü Extending Ethernet Networks utilizing TDM (E 1) landline based telecom infrastructure ü Using telecom network of E 1 s / PDH / SDH Microwave etc. ü Carrying E 1 s to transport Ethernet data Ø In all these cases the equipment be always installed and used in pairs, with one terminal being installed at either end (each side) of the network. Orion Telecom Networks Inc. - 2010 Slide 5

Ethernet over E 1(FE 1) Application Diagram LAN E 1 Link TDM Network E 1 Link LAN ROUTER LAN Ethernet over E 1 (FE 1) ROUTER Orion Telecom Networks Inc. - 2010 Ethernet over E 1 (FE 1) ROUTER Slide 6

Ethernet over E 1(FE 1) Front Panel Description Orion Telecom Networks Inc. - 2010 Slide 7

Ethernet over E 1(FE 1) Back Panel Description Ethernet over E 1 (220 V AC Mains input) Ethernet over E 1 (-48 V DC Mains input) Orion Telecom Networks Inc. - 2010 Slide 8

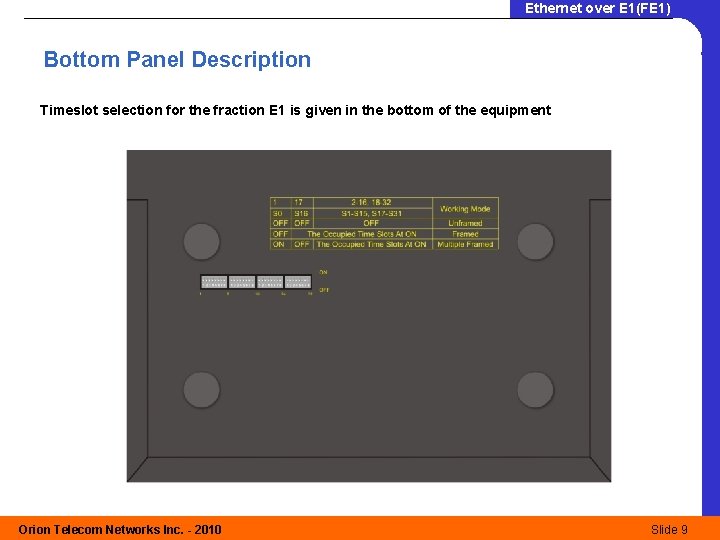

Ethernet over E 1(FE 1) Bottom Panel Description Timeslot selection for the fraction E 1 is given in the bottom of the equipment Orion Telecom Networks Inc. - 2010 Slide 9

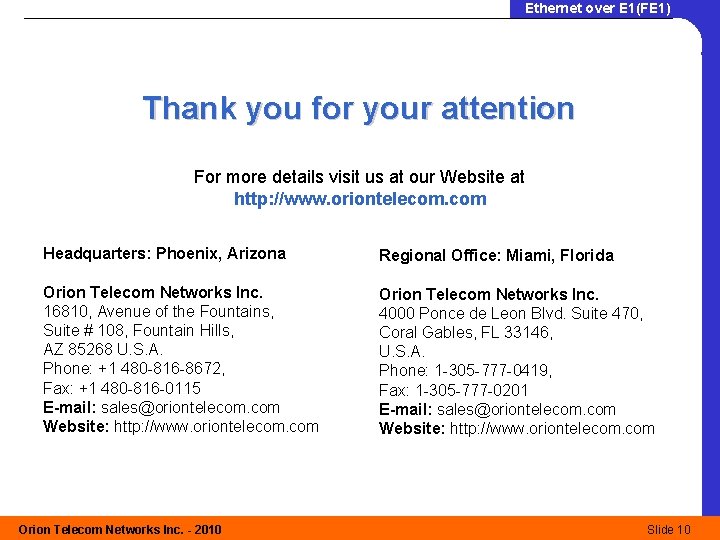

Ethernet over E 1(FE 1) Thank you for your attention For more details visit us at our Website at http: //www. oriontelecom. com Headquarters: Phoenix, Arizona Regional Office: Miami, Florida Orion Telecom Networks Inc. 16810, Avenue of the Fountains, Suite # 108, Fountain Hills, AZ 85268 U. S. A. Phone: +1 480 -816 -8672, Fax: +1 480 -816 -0115 E-mail: sales@oriontelecom. com Website: http: //www. oriontelecom. com Orion Telecom Networks Inc. 4000 Ponce de Leon Blvd. Suite 470, Coral Gables, FL 33146, U. S. A. Phone: 1 -305 -777 -0419, Fax: 1 -305 -777 -0201 E-mail: sales@oriontelecom. com Website: http: //www. oriontelecom. com Orion Telecom Networks Inc. - 2010 Slide 10
