Ethernet 802 3 Switched LANs Ethernet IEEE 802
- Slides: 64
Ethernet (802. 3) Switched LANs Ethernet IEEE 802. 3 Working Group LAN: Local Area Network Chapter 5 * LANs are networks on a customer premises. Panko and Panko Business Data Networks and Security, 10 th Edition, Global Edition Copyright © 2015 Pearson Education, Ltd.
Introduction Physical Layer Standards Data Link Layer Standards Advanced Switch Operation Ethernet Security Copyright © 2015 Pearson Education, Ltd.
Simple Switched Ethernet Network Core Switch Optical Fiber Trunk Lines Workgroup Switch UTP Access Lines Copyright © 2015 Pearson Education, Ltd.
5. 1 Simple Switched Ethernet Network Workgroup Switches Connect Hosts to the Network Copyright © 2015 Pearson Education, Ltd.
5. 1 Simple Switched Ethernet Network Core Switches Connect Switches to Other Switches Copyright © 2015 Pearson Education, Ltd.
5. 2 Ethernet Workgroup Switch with 48 Ports Hosts Normally Connect to Workgroup Switches Through UTP Copper Wiring Copyright © 2015 Pearson Education, Ltd. UTP: Unshielded Twisted Pair
5. 2 Ethernet Workgroup Switch with 48 Ports Switches Often Connect to Other Switches Through Optical Fiber Copyright © 2015 Pearson Education, Ltd.
5. 2 Ethernet Workgroup Switch with 48 Ports 19 inches 48 cm It can fit into a standard equipment rack. Copyright © 2015 Pearson Education, Ltd. 1 U 1 U = 1. 75 inches
Ethernet Begins Introduction Physical Layer Standards Data Link Layer Standards Advanced Switch Operation Ethernet Security Copyright © 2015 Pearson Education, Ltd.
UTP versus Optical Fiber Characteristic UTP (Unshielded Twisted Pair) Optical Fiber Medium Copper wire Glass Signal Electrical Light Maximum Usually 100 m Distance in LANs For LANs, usually 200 to 500 m Speed Similar Cost Lower Higher Copyright © 2015 Pearson Education, Ltd.
5. 4 IEEE LAN/MAN Standards Committee � IEEE Standards Association ◦ 802 LAN/MAN Standards Committee 802. 1 Working Group Standards used by multiple working groups Security Standards 802. 3 Working Group Ethernet standards 802. 11 Working Group Wi-Fi wireless LAN standards MAN: Metropolitan Area Network Copyright © 2015 Pearson Education, Ltd.
5. 6 Binary Signaling and Digital Signaling Copyright © 2015 Pearson Education, Ltd.
5. 6 Binary and Digital Signaling Copyright © 2015 Pearson Education, Ltd.
5. 7 Error Resistance in Binary and Digital Signaling Copyright © 2015 Pearson Education, Ltd.
5. 7 Error Resistance in Binary and Digital Signaling Copyright © 2015 Pearson Education, Ltd.
5. 8 Four-Pair Unshielded Twisted Pair Copper Wiring Copyright © 2015 Pearson Education, Ltd.
5. 9 RJ-45 (Ethernet) Connector and Jack RJ-45 Connector Copyright © 2015 Pearson Education, Ltd.
5. 10 Serial versus Parallel Transmission NOT just 4 pairs! Copyright © 2015 Pearson Education, Ltd.
5. 11 UTP Quality Category, Transmission Speed, and Maximum Distance Ethernet Signaling Standard Transmission Speed UTP Quality Category Maximum Cord Length 100 BASE-TX 100 Mbps Category 5 e, 6, or higher 100 meters 1000 BASE-T 1 Gbps Category 5 e, 6, or higher 100 meters 10 GBASE-T 10 Gbps Category 6 55 meters 10 GBASE-T 10 Gbps Category 6 A 100 meters Category is a measure of UTP QUALITY Copyright © 2015 Pearson Education, Ltd.
5. 12 Terminal Crosstalk Interference Copyright © 2015 Pearson Education, Ltd.
5. 12 Terminal Crosstalk Interference Copyright © 2015 Pearson Education, Ltd.
5. 12 Terminal Crosstalk Interference Copyright © 2015 Pearson Education, Ltd.
5. 13 Optical Fiber Transmission Copyright © 2015 Pearson Education, Ltd. 1 nm = 10 -9 m 1 µm = 10 -6 m
Optical Fiber Transmission
Multimode fiber vs. Single-mode fiber Multimode fiber Single-mode fiber 50 microns 8~9 microns Modal dispersion No modal dispersion used in LANs More expensive Copyright © 2015 Pearson Education, Ltd.
5. 14 Optical Fiber Cord Full Duplex, Half Duplex, Simplex Copyright © 2015 Pearson Education, Ltd.
5. 15 Light Amplitude and Wavelength ~ 3. 00× 108 m/s • Longer-wavelength light gives long transmission distances. • Longer-wavelength light sources are much more expensive. Copyright © 2015 Pearson Education, Ltd.
5. 16 Optical Fiber Quality Designations and Transmission Distance ISO 11801 Standard Core/ Cladding diameters (microns) Minimum Maximum Distance at 1 Gbps, 10 Gbp, 850 nm light (1000 BASE-SX) (10 GBASE-SR) Minimum Maximum Distance at 100 Gbps, 850 nm light OM 3 50/125 550 m 300 m 100 m OM 4 50/125 1, 000 m 440 m 150 m OM stands for Optical Multimode; a standard for multimode fiber. "Minimum" means minimum requirement. Copyright © 2015 Pearson Education, Ltd.
5. 17 Link Aggregation (Bonding) (short-wavelength) Copyright © 2015 Pearson Education, Ltd.
5. 18 Ethernet Physical Link Maximums and Unlimited Data Link Distances Copyright © 2015 Pearson Education, Ltd.
5. 18 Ethernet Physical Link Maximums and Unlimited Data Link Distances Copyright © 2015 Pearson Education, Ltd.
5. 18 Ethernet Physical Link Maximums and Unlimited Data Link Distances Copyright © 2015 Pearson Education, Ltd.
Ethernet Begins Introduction Physical Layer Standards Data Link Layer Standards Advanced Switch Operation Ethernet Security Copyright © 2015 Pearson Education, Ltd.
5. 19 Ethernet 802. 3 Frame Copyright © 2015 Pearson Education, Ltd.
5. 20 Hexadecimal Notation 4 Bits 0000 0001 0010 0011 0100 0101 0110 0111 Decimal (Base 10) 0 1 2 3 4 5 6 7 What is 0101 in hex? What is 0000 in hex? Copyright © 2015 Pearson Education, Ltd. Hexadecimal (Base 16) 0 hex 1 hex 2 hex 3 hex 4 hex 5 hex 6 hex 7 hex
5. 20 Hexadecimal Notation 4 Bits* 1000 1001 1010 1011 1100 1101 1110 Decimal (Base 10) 8 9 10 11 12 13 14 Hexadecimal (Base 16) 8 hex 9 hex A hex B hex C hex D hex E hex 1111 15 F hex What is 1001 in hex? What is 1111 in hex? Copyright © 2015 Pearson Education, Ltd.
5. 20 Hexadecimal Notation � Converting a 48 -bit MAC address to hex ◦ Write down the 48 -bit address in 12 four-bit nibbles. ◦ Represent each nibble as a hex symbol. ◦ Pair the hex symbols and put a dash between the 6 pairs. ◦ Try these four nibbles: 00001111010 Copyright © 2015 Pearson Education, Ltd.
5. 19 Ethernet 802. 3 Frame Copyright © 2015 Pearson Education, Ltd.
5. 19 Ethernet 802. 3 Frame Copyright © 2015 Pearson Education, Ltd.
5. 19 Ethernet 802. 3 Frame 46 octets Copyright © 2015 Pearson Education, Ltd.
5. 21 Multi-Switch Ethernet Operation A packet from A 1… to E 5… must pass through Switches 1, 2, and 3. Copyright © 2015 Pearson Education, Ltd.
5. 21 Multi-Switch Ethernet Operation Switch 1 sees that it should send the frame to E 5 out Port 5. Copyright © 2015 Pearson Education, Ltd.
5. 21 Multi-Switch Ethernet Operation Switch 2 sees that it should send the frame to E 5 out Port 7. Copyright © 2015 Pearson Education, Ltd.
5. 21 Multi-Switch Ethernet Operation Switch 3 sees that it should send the frame to E 5 out Port 6. Copyright © 2015 Pearson Education, Ltd.
Hierarchical Switch Organization Hierarchical topology • Each switch has only one parent switch above it. • There is only a single possible path between any two hosts. • The destination address in a frame will appear only once in the switching table. Copyright © 2015 Pearson Education, Ltd.
Ethernet Begins Introduction Physical Layer Standards Data Link Layer Standards Advanced Switch Operation Ethernet Security Copyright © 2015 Pearson Education, Ltd.
5. 22 Single Point of Failure Copyright © 2015 Pearson Education, Ltd.
5. 23 Backup Link and the Rapid Spanning Tree Protocol Loops are not allowed in Ethernet. A strict hierarchy is required. Copyright © 2015 Pearson Education, Ltd.
5. 23 Backup Link and the Rapid Spanning Tree Protocol Copyright © 2015 Pearson Education, Ltd.
5. 24 Advanced Ethernet Capabilities � Priority ◦ Ethernet switches can provide up to eight priority levels � Manageability Managed Switch ◦ Manageable switches can be managed by SNMP ◦ Although manageable switches cost much more than non-manageable switches, this is more than made up for by lower management costs ◦ Software-defined networking may bring a revolution in switch management http: //www. dlinktw. com. tw/business/type? id=23&hid=1 https: //www. dlink. com/en/products/dgs-3130 -30 ts-30 -port-litelayer-3 -stackable-managed-gigabit-switch Copyright © 2015 Pearson Education, Ltd.
5. 24 Advanced Ethernet Capabilities � Power over Ethernet (POE) ◦ Switches can supply power to devices via UTP. ◦ (Wired telephone systems and USB ports already do this. ) ◦ Less expensive than supplying power separately. Copyright © 2015 Pearson Education, Ltd.
5. 24 Advanced Ethernet Capabilities � Power Over Ethernet (POE) Plus ◦ Switches implementing POE Plus can provide up to 25 watts of power over UTP to hosts ◦ This is sufficient for voice over IP phones, surveillance cameras, and most access points ◦ This saves money because there is no need to install power lines to these devices ◦ Not sufficient for desktop or laptop PCs Copyright © 2015 Pearson Education, Ltd.
Ethernet Begins Introduction Physical Layer Standards Data Link Layer Standards Advanced Switch Operation Ethernet Security Copyright © 2015 Pearson Education, Ltd.
5. 25 802. 1 X Port-Based Access Control on an Ethernet Switch � The Problem ◦ Anyone can enter the building and plug their computer into a switch or into a wall RJ-45 port, which connects to a switch. ◦ This usually gives the attacker access to the network without going through a firewall. Copyright © 2015 Pearson Education, Ltd.
5. 25 802. 1 X Port-Based Access Control on an Ethernet Switch � Solution: access control at switch ports. ◦ 802. 1 X Port Based Access Control can do this. ◦ Created by the 802. 1 WG, not the 802. 3 WG. ◦ 802. 1 WG creates general standards, such as security standards. Copyright © 2015 Pearson Education, Ltd.
5. 25 802. 1 X Port-Based Access Control on an Ethernet Switch Copyright © 2015 Pearson Education, Ltd.
5. 25 802. 1 X Port-Based Access Control on an Ethernet Switch Copyright © 2015 Pearson Education, Ltd.
5. 25 802. 1 X Port-Based Access Control on an Ethernet Switch � Advantages of a Central Authentication Server ◦ Switch cost: Authentication server does heavy work. ◦ Consistency: Attacker cannot find a misconfigured switch. ◦ Reduced management cost: Only one authentication database to maintain. ◦ Rapid changes: When someone leaves, is hired, or needs credential changes. Copyright © 2015 Pearson Education, Ltd.

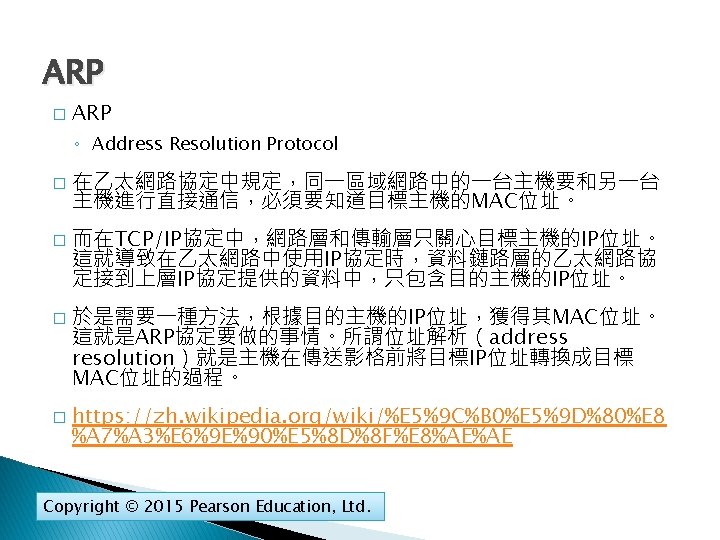

5. 26 Man in the Middle Attack in an Ethernet LAN Using ARP Poisoning ARP Cache tells a host where to send a frame to reach a particular IP address Copyright © 2015 Pearson Education, Ltd.
5. 26 Man in the Middle Attack in an Ethernet LAN Using ARP Poisoning Copyright © 2015 Pearson Education, Ltd.
5. 26 Man in the Middle Attack in an Ethernet LAN Using ARP Poisoning Copyright © 2015 Pearson Education, Ltd.
5. 26 Man in the Middle Attack in an Ethernet LAN Using ARP Poisoning Copyright © 2015 Pearson Education, Ltd.
arp 指令 � arp –a 顯示ARP Cache � arp –d * 清除ARP Cache � arp -s 157. 55. 85. 212 00 -aa-00 -62 -c 6 -09 手動設定 Copyright © 2015 Pearson Education, Ltd.
