ETERE HSM

ETERE HSM

Etere HSM Design • Etere HSM has a very open design • It use

Etere HSM Design • Etere HSM has a very open design • It use the standard windows technologies to interface any library • The hardware design allows system with the performance ratio required by the customer • In the following slides it shows different approach to design an enviroment with a tape library and 2 drives • The drawing does not show the ETERE Automation part as – Database server – Ingest – Videoservers www. etere. com etere@etere. com

Solution 1 CUT The Cost • In this you have a single windows 2003

Solution 1 CUT The Cost • In this you have a single windows 2003 server that runs media manager and ETERE HSM • The server has a cache that is MINIMUM 2 times the drive capacity (400 GB for LTO 2) • This is a good trial system or a system to choose where there is low traffic between the library and the system www. etere. com etere@etere. com

FC cable Media manager HSM FC cable Disk Array www. etere. com etere@etere. com

FC cable Media manager HSM FC cable Disk Array www. etere. com etere@etere. com

System 2 Performance • This is the system if you need performances • The

System 2 Performance • This is the system if you need performances • The Robot mover is on the media manager PC while 2 data pumps moves data to the drives at the maximum speed • The cache is MINIMUM 2 times the drive capacity (400 GB for LTO 2) www. etere. com etere@etere. com

FC cable Media manager Gigabit Switch Data Pump FC cable Disk Array www. etere.

FC cable Media manager Gigabit Switch Data Pump FC cable Disk Array www. etere. com Disk Array etere@etere. com

System 3 Bestperformance • This is the system if you need best performance and

System 3 Bestperformance • This is the system if you need best performance and integration • The cache is 2 complete 3 level cache managed my ETERE HSM • The prefect engine of ETERE HSM gives tyou the best performances against any competitor system even with less HW resources. www. etere. com etere@etere. com

FC cable Media manager Gigabit switch Data pump 2 level cache FC cable Disk

FC cable Media manager Gigabit switch Data pump 2 level cache FC cable Disk array www. etere. com Disk array etere@etere. com

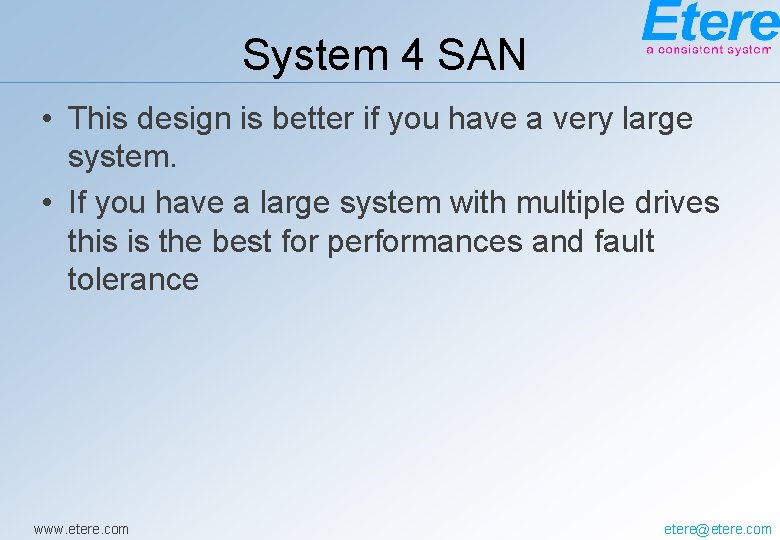

System 4 SAN • This design is better if you have a very large

System 4 SAN • This design is better if you have a very large system. • If you have a large system with multiple drives this is the best for performances and fault tolerance www. etere. com etere@etere. com

FC cable Data Pumps Robotic Control Media manager Gigabit Switch 2 level cache Tape

FC cable Data Pumps Robotic Control Media manager Gigabit Switch 2 level cache Tape drives Conrol Fc switch San storage www. etere. com etere@etere. com
