ET 2050 European Territorial Scenarios modelled by SASI

ET 2050 European Territorial Scenarios modelled by SASI Klaus Spiekermann and Michael Wegener ESPON 2013 Programme Workshop Territorial Vision for Europe towards 2050 Brussels, 11 October 2013

The SASI Model 2

The SASI model is a recursive dynamicsimulation model of socio economic development of regions in Europe under assumptions about • European economic development and external net migration, • European transport policies (TEN T), • regional subsidies (ERDF, EAFRD, ESF, CF). The SASI model differs from other regional economic models by modelling not only production (the demand side of regional labour markets) but also population (the supply side of labour markets) and travel and freight transport flows. 3

SASI model 4 Transfer policies Transport policies Production function Accessibility Migration function GDP Income Population Employment Unemploy ment Labour force

Questions answered in ET 2050 How will different spatial orientations of European • infrastructure investments (TEN T) • regional subsidies (ERDF, EAFRD, ESF, CF) affect • • • 5 regional economic development, regional population/migration, interregional travel and freight flows, territorial cohesion and polycentricity, energy consumption/CO 2 emissions?

Baseline and Exploratory Scenarios 6

Baseline Scenario The Baseline Scenario for 2030 and 2050 is based on BAU assumptions about • European economic development, • European net migration, • European regional subsidies, • European transport policies. and produces forecasts of: • regional economic development, • regional population/migration, • interregional travel and goods flows, • energy consumption/CO 2 emissions, • territorial cohesion and polycentricity. 7

Exploratory Scenarios The definition of the SASI exploratory scenarios is based on the same region typology as used by the MASST and MULTIPOLES models but translated into NUTS 3 regions: • In the MEGAs Scenario A large European metro politan areas are promoted in the interest of com petitiveness and economic growth. • In the Cities Scenario B major European cities are promoted in order to strengthen the balanced poly centric spatial structure of the European territory. • In the Regions Scenario C rural and peripheral regions are promoted to advance territorial cohesion between affluent and economically lagging regions. 8

Exploratory Scenarios In the SASI exploratory scenarios A, B and C the assumptions about total European development and European net migration remain the same as in the Baseline Scenario. However, the exploratory scenarios differ in their assumptions about • the allocation of EU Structural Funds subsidies (see next slide), • European transport policies (see three following slides). 9

Exploratory scenarios: Structural Funds The A (MEGAs) B (Cities) Baseline Scenario C (Regions) 1. 0 % 0. 5 0. 25% of total EU Structural Funds 10

Scenario A: Network improvements (if necessary) 11 MEGA Connections between MEGAs not more than 500 km apart. Minimum speed: Road: 90 km/h Rail: 200 km/h

Scenario B: Network improvements (if necessary) 12 City Baseline Scenario Connections between cities not more than 300 km apart. Minimum speed: Road: 80 km/h Rail: 160 km/h

Scenario C: Network improvements (if necessary) 13 Region Baseline Scenario Connections between regions and MEGAs/Cities not more than 200 km apart. Minimum speed: Road: 65 km/h Rail: 80 km/h

Scenario results 14

Baseline Scenario: Accessibility travel road/rail 2036 1981 1986 1991 1996 2001 2006 2011 2016 2021 2026 2031 2046 2051 15

Baseline Scenario: GDP per capita 2051 16 GDP per capita (1000 € of 2010)

Scenario A: GDP per capita Difference to Baseline Scenario 2051 17 Difference to Baseline Scenario (%) 2051

Scenario B: GDP per capita Difference to Baseline Scenario 2051 18 Difference to Baseline Scenario (%) 2051

Scenario C: GDP per capita Difference to Baseline Scenario 2051 19 Difference to Baseline Scenario (%) 2051

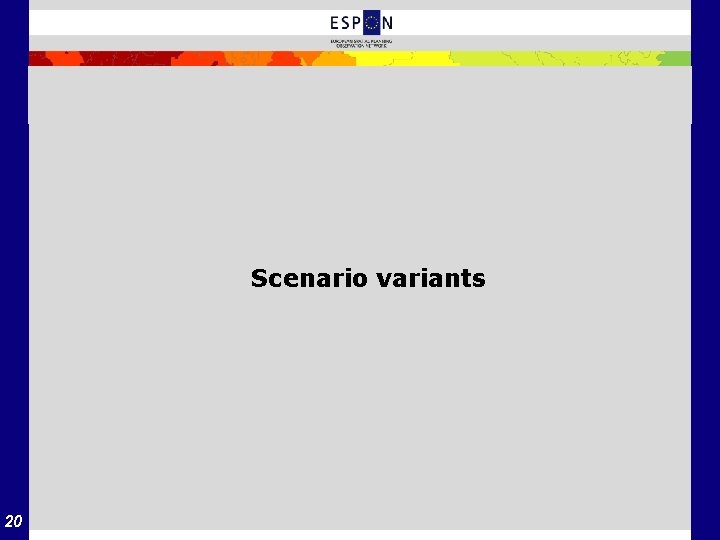

Scenario variants 20

Scenario variants In addition, the Baseline Scenario and the exploratory scenarios A, B and C are combined with alternative framework conditions: 1. Economic decline. Globalisation will lead to stagnation and almost decline of the European economy (only +0. 62 % GDP growth p. a. ) 2. Technology advance. Innovations will result in sig nificant growth in labour productivity (+1. 94 % p. a. ) and energy efficiency of transport (+0. 75 % p. a. ). 3. Energy/climate. Rising energy costs and/or green house gas emission taxes will lead to strong growth of production and transport costs (+5 % p. a. ). 21

Scenario variants The combination of the exploratoy scenarios and the variants leads to nine additional scenarios: 22

Scenario comparison Remaining East West gap: GDP per capita EU 15/EU 12 (1, 000 Euro of 2010) 1981 2051 23

Scenario comparison Declining overall regional disparities: Gini coefficient of GDP per capita 1981 2051 24

Scenario comparison Dynamic urban structures in EU 12: National polycentricity index 1981 2051 25

Scenario comparison Increase in energy efficiency & share of renewable energy: CO 2 emission by transport per capita p. a. (t) 1981 2051 26

Conclusions 27

Summary comparison 28

Conclusions The comparison of scenarios with respect to the three major EU goals gives a straightforward result: • Competitiveness: The A scenarios (MEGAs) produce the largest growth in GDP. The C scenarios (Regions) perform worst in terms of overall economic growth. The B scenarios (Cities) lie in between. • Cohesion: The C scenarios perform best in terms of cohesion and polycentricity. The A scenarios slow the convergence down. The B scenarios lie in between. • Sustainability: The B scenarios are most successful environmentally. The A and C scenarios use more energy and emit more CO 2 for transport. 29

Conclusions The results of the scenario simulations with the SASI model can be summarised as follows: • Promotion of metropolitan areas will maximise economic growth but increase spatial disparities and environmental damage. • Promotion of rural and peripheral regions will increase spatial cohesion but reduce economic growth and sustainability. • Promotion of large and medium sized cities is a rational trade off between competitiveness and cohesion and will be best for the environment. 30

Conclusions These results validate the balanced polycentric spatial organisation of Europe as suggested by the European Spatial Development Perspective (ESDP) and the Territorial Agenda (TA). The B scenarios (Cities) should therefore be taken as the point of departure for the territorial vision. 31

More information Wegener, M. , Bökemann, D. (1998): SASI Model: Model Structure. Berichte aus dem Institut für Raumplanung 40. Dortmund: Institute of Spatial Planning, University of Dortmund. http: //www. raumplanung. uni dortmund. de/irpud/ fileadmin/irpud/content/documents/publications/ber 40. pdf. Wegener, M. (2008): SASI Model Description. Working Paper 08/01. Dortmund: Spiekermann & Wegener Stadt und Regionalforschung. http: //www. spiekermann wegener. de/mod/pdf/AP_0801. pdf. Spiekermann, K. Wegener, M. (2013): The SASI Sce narios until 2050. Project Report for the ESPON Projekt ET 2050 (Territorial Scenarios and Visions for Europe). 32
