Essential Overview Louisiana Tech University Ruston Louisiana Charles
- Slides: 42
Essential Overview Louisiana Tech University Ruston, Louisiana Charles Grassl IBM January, 2006 © 2005 IBM
Agenda • Hardware • Software • Documentation 2 © 2005 IBM Corporation

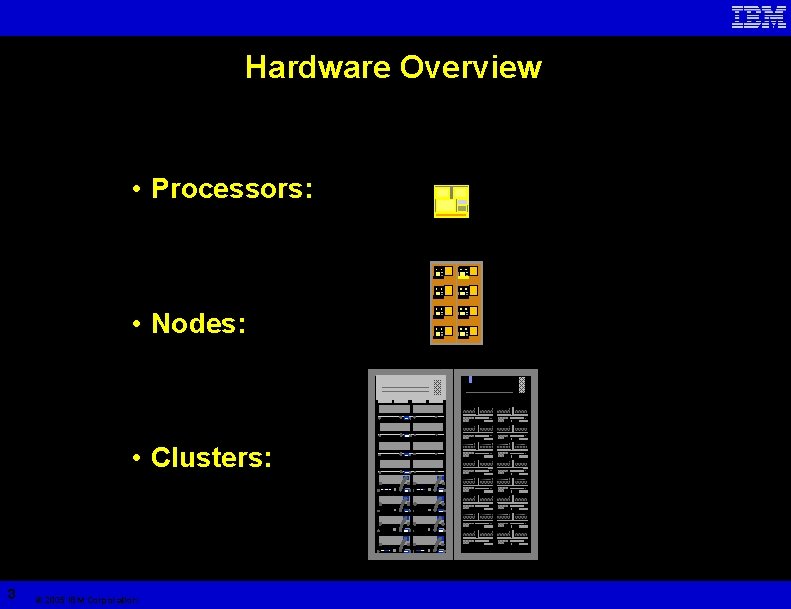

Hardware Overview • Processors: • Nodes: • Clusters: 3 © 2005 IBM Corporation
Product Naming New Name Old Name i. Series p. Series x. Series z. Series 4 © 2005 IBM Corporation AS 400 RS 600 SP SP 2 IA-32 IA-64 ES 9000 Market Processor Commercial RS 64 Technical Server Mainframe POWER 3 POWER 4 POWER 5 Xeon AMD RS 64
Processor Progression Processor Years Clock Rate Feature POWER 2 1990 - 1994 20 – 60 MHz RISC P 2 SC 1994 - 1998 60 – 150 MHz Bandwidth POWER 3 1998 – 2002 200 – 450 MHz Single Chip POWER 4 2001 – 2005 1 – 1. 9 GHz Dual Core 1. 5 – 1. 9 GHz Multi-Thread POWER 5 5 © 2005 IBM Corporation 2004 -
POWER 5 Systems • POWER 5 processors • Single and Dual processor chips • Modules • Dual Chip Modules (DCM) • Multi Chip Modules (MCM) • Nodes • Multiple modules • p 5 -575 • p 5 -595 • Cluster • Multiple nodes • Connected with High Speed Switch (HPS) 6 © 2005 IBM Corporation
Systems (“Nodes”) Model 7 Clock Rate Memory Processors (GHz) (x 2^30 byte) p 5 -595 16 -64 1. 65, 1. 9 2000 p 5 -590 8 -32 1. 65, 1. 9 1000 p 5 -575 8 1, 5, 1. 9 256 p 5 -570 2 -16 1. 65, 1. 9 512 p 5 -550 2 -4 1. 65 64 p 5 -520 2 1. 65 32 p 5 -510 1, 2 1. 65 1 - 32 © 2005 IBM Corporation
POWER 5 Processor Systems MCM p 5 -595 Processor Chip DCM 8 © 2005 IBM Corporation p 5 -575 Cluster
Cluster 1600 Network, Disk System Multi Processor Nodes Logical View 9 © 2005 IBM Corporation Physical View
Local System Name • IBM p 5 -575 nodes • 1. 9 GHz POWER 5 processors • Single processor chips • “ 575” distinction: • • • 8 processors per node • HPS interconnect Dual Chip Module (DCM) 8 DCMs One or two processors per chip • “ 595” distinction: • Multi Chip Module (MCM) construction • 10 © 2005 IBM Corporation Single Core (SC) Dual Core (DC) 8 MCMs
POWER 5 Processors • Multi-processor chip • High clock rate: Multiple GHz • Three cache levels • Bandwidth • Latency hiding • Shared Memory • Large memory size 11 © 2005 IBM Corporation
POWER 5 Features • • • 12 Private L 1 cache Shared L 2 cache Shared L 3 cache Interleaved memory Hardware Prefetch Multiple Page Size support © 2005 IBM Corporation
Processor Characteristics • High frequency clocks • Deep pipelines • High asymptotic rates • • • 13 Superscalar Speculative out-of-order instructions Up to 8 outstanding cache line misses Large number of instructions in flight Branch prediction Hardware Prefetching © 2005 IBM Corporation
Processor Features Clock Caches L 3 Speed POWER 5 1. 5 – 1. 9 - … GHz Three levels 1/3 clock frequency ½ clock frequency Virtualization Up to 32 partitions Partitions Unit processor Up to 254 partitions Power Mang. Static Dynamic Thread Execution Memory Store Renaming Registers 14 POWER 4 1. 0 – 1. 9 GHz © 2005 IBM Corporation Fractional Single Thread Multi Threading Single Buffer Double Buffer GP: 72 FP: 80 GP: 120 FP: 120
Caches and Memory POWER 4 POWER 5 Data: 32 kbyte L 1 Cache Instruction: 64 kbyte 2 -way Assoc. , FIFO 4 -way Assoc. , LRU L 2 Cache 1. 5 Mbyte 8 -way Assoc. , FIFO 1. 9 Mbyte 10 -way Assoc. , LRU L 3 Cache 32 Mbyte 8 -way Assoc. , LRU 120 Cycles 36 Mbyte 12 -way Assoc. , LRU ~80 Cycles 4 Gbyte/s / Chip 16 Gbyte/s / Chip Memory Bandwidth 15 © 2005 IBM Corporation

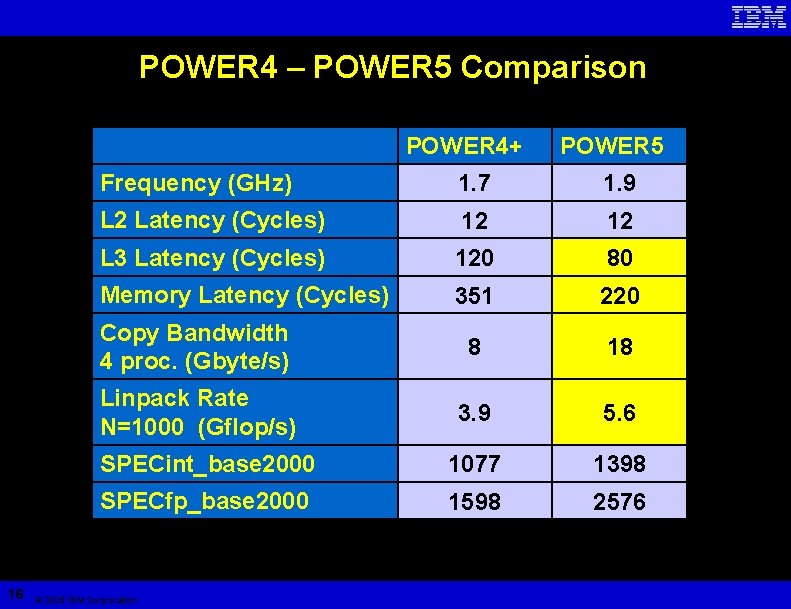

POWER 4 – POWER 5 Comparison POWER 4+ 16 POWER 5 Frequency (GHz) 1. 7 1. 9 L 2 Latency (Cycles) 12 12 L 3 Latency (Cycles) 120 80 Memory Latency (Cycles) 351 220 Copy Bandwidth 4 proc. (Gbyte/s) 8 18 Linpack Rate N=1000 (Gflop/s) 3. 9 5. 6 SPECint_base 2000 1077 1398 SPECfp_base 2000 1598 2576 © 2005 IBM Corporation
POWER 5 Design: Summary • More gates • 170 million 260 million • Enhancements • Increased cache associativity • Increased number of rename registers • Reduced L 3 and cache latency • New features • Simultaneous Multi Threading • Dynamic power management 17 © 2005 IBM Corporation
Processor Systems (Nodes) • Multiple processors • Multiple modules • Various construction formats • Multi Chip Modules • Dual Chip Modules • Shared memory 18 © 2005 IBM Corporation

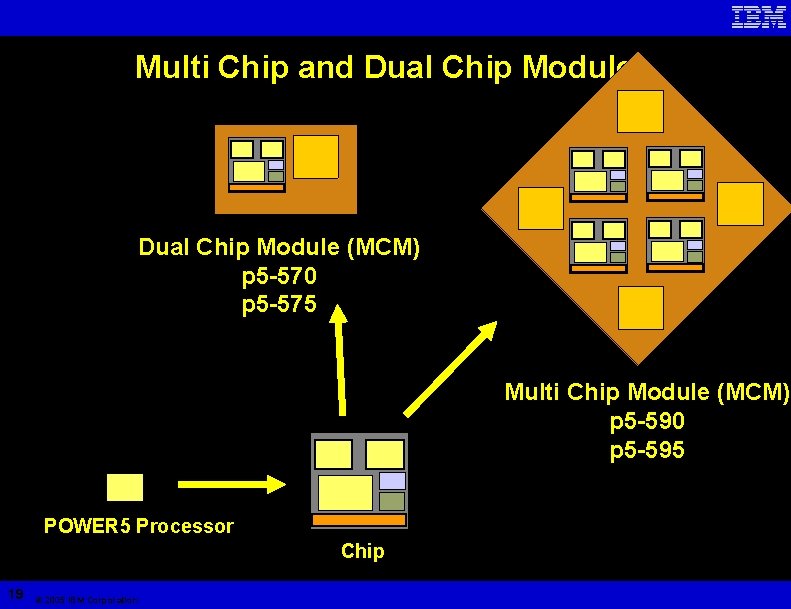

Multi Chip and Dual Chip Modules Dual Chip Module (MCM) p 5 -570 p 5 -575 Multi Chip Module (MCM) p 5 -590 p 5 -595 POWER 5 Processor Chip 19 © 2005 IBM Corporation
Dual Chip Module • Each Module: • 1 processor chip • 1 L 3 cache • 1 Memory card • Each Processor Chip • 2 processors • L 1 caches • Registers • Functional units • 1 L 2 cache • 1 path to memory 20 © 2005 IBM Corporation 36 Mbyte L 3 Memory
Multi Chip Module • Each Module: • 4 processor chips Memory • 4 L 3 cache chips • 2 Memory cards • Each Processor Chip • 2 processors • L 1 caches • Registers • Functional units • 1 L 2 cache • 1 path to memory 21 © 2005 IBM Corporation

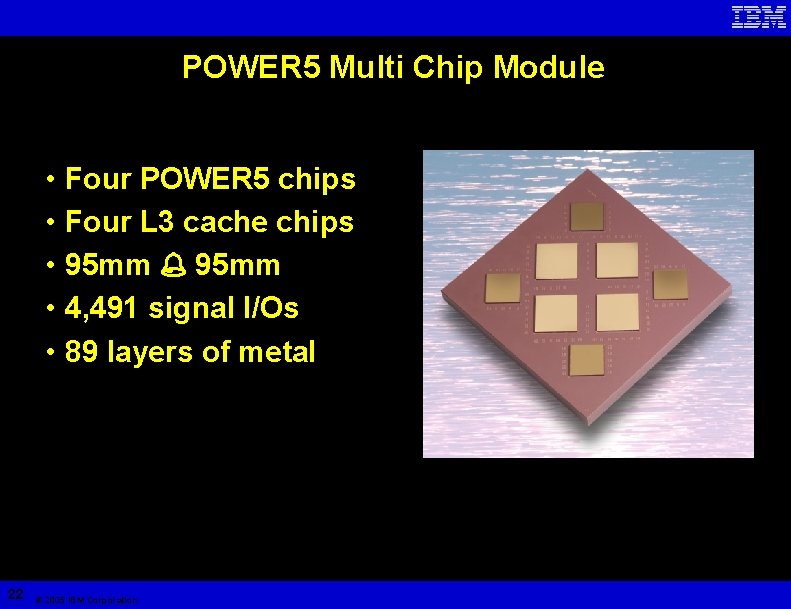

POWER 5 Multi Chip Module • • • 22 Four POWER 5 chips Four L 3 cache chips 95 mm 4, 491 signal I/Os 89 layers of metal © 2005 IBM Corporation
POWER 5 Dual Chip Module • One POWER 5 chip • Single or Dual Core • One L 3 cache chips 23 © 2005 IBM Corporation
Modifications to POWER 4 System Structure P L 3 24 © 2005 IBM Corporation P P P L 2 L 3 Fab Ctl Mem Ctl L 3 Mem Ctl Memory L 3
Switch Technology • Internal network • In lieu of Gig. Ethernet, Myrinet, Quadrics, etc. • Fourth generation • HPS Switch (POWER 2 generation) • SP Switch (POWER 2 -> POWER 3) • SP Switch 2 (POWER 3 -> POWER 4) • HPS (POWER 4 -> POWER 5) • Multiple links per node • Match number of links to number of processors 25 © 2005 IBM Corporation
High Performance Switch (HPS) • Also Known As “Federation” • Follow on to SP Switch 2 • Also known as “Colony” • Specifications: • 2 Gbyte/s (bidirectional) • 5 microsecond latency • Configuration: • Up to four adaptors per node • 2 links per adaptor • 16 Gbyte/s per node 26 © 2005 IBM Corporation

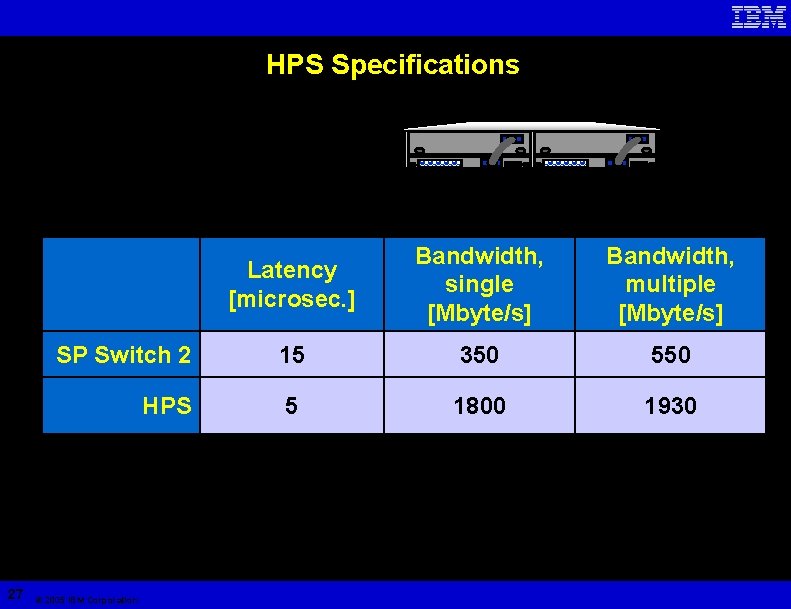

HPS Specifications 27 Latency [microsec. ] Bandwidth, single [Mbyte/s] Bandwidth, multiple [Mbyte/s] SP Switch 2 15 350 550 HPS 5 1800 1930 © 2005 IBM Corporation
Software Overview • Operating System • AIX • Compilers • C++ • Fortran • Batch Queue • Load. Leveler (IBM) • LSF (Platform) • PBS • Gridware 28 © 2005 IBM Corporation
AIX • Current Version: AIX 5. 3 • Processors: • POWER 3 • POWER 4 • POWER 5 • Linux Affinity • Logical PARtitions (LPAR) Nodes • Operating system • Memory • Network connections • Kernel Address Size: • 64 -bit • 32 -bit 29 © 2005 IBM Corporation

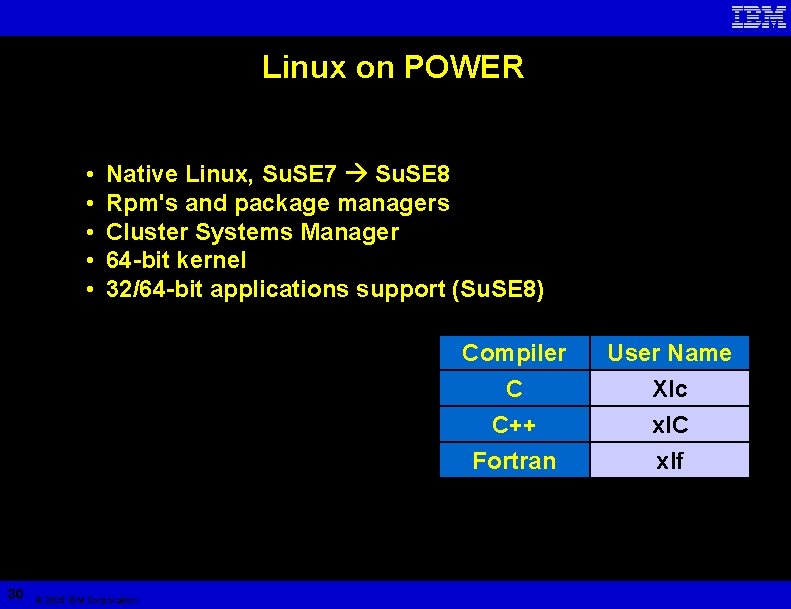

Linux on POWER • • • Native Linux, Su. SE 7 Su. SE 8 Rpm's and package managers Cluster Systems Manager 64 -bit kernel 32/64 -bit applications support (Su. SE 8) Compiler C C++ Fortran 30 © 2005 IBM Corporation User Name Xlc xl. C xlf
Compilers C and C++ • Visual Age C and C++ Professional for AIX • Versions 6, 7, 8 • ANSI C • C++ • Compiler names: • xlc • xl. C 31 © 2005 IBM Corporation Fortran • XL Fortran for AIX • Versions 8, 9, 10 • • Fortran 77 Fortran 90 • Compiler names: • xlf 77 • xlf 90

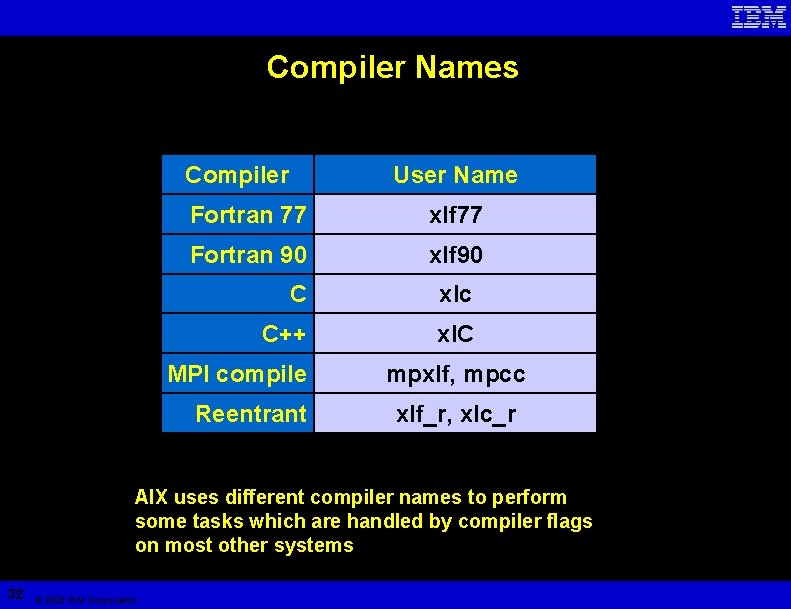

Compiler Names Compiler User Name Fortran 77 xlf 77 Fortran 90 xlf 90 C xlc C++ xl. C MPI compile Reentrant mpxlf, mpcc xlf_r, xlc_r AIX uses different compiler names to perform some tasks which are handled by compiler flags on most other systems 32 © 2005 IBM Corporation
Compiler Usage Language ANSI C Extended C MPI, C C++ Fortran 77 Fortran 90 MPI fortran 33 © 2005 IBM Corporation Command Feature Extension xlc_r ANSI Thread safe . c cc Pre-ANSI . c mpxlc MPI . c xl. C_r xlf_r xlf 90_r mpxlf Thread safe MPI . C. cc. cpp. f. f. f

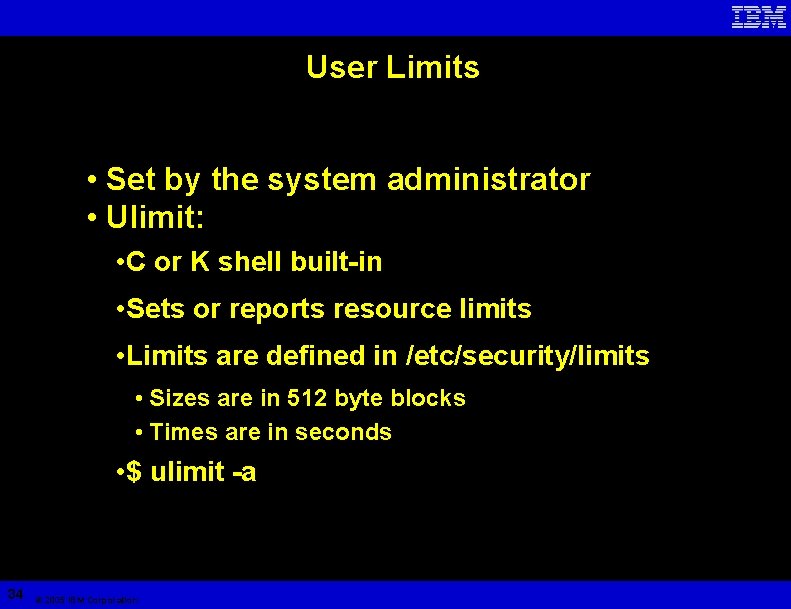

User Limits • Set by the system administrator • Ulimit: • C or K shell built-in • Sets or reports resource limits • Limits are defined in /etc/security/limits • Sizes are in 512 byte blocks • Times are in seconds • $ ulimit -a 34 © 2005 IBM Corporation
Ulimit Defaults Value Limit Definition Typical fsize File Size 2097151 Unlimited (-1) core Core File Size 2097151 Unlimited (-1) cpu Per Process limit data Data Segment Size 262144 Unlimited (-1) stack Segment Size 65536 *Unlimited (-1) No. files File Descriptor Limit 2000 * 64 -bit address mode 35 Default © 2005 IBM Corporation -1 (unlimited) Unlimited (-1)
Other Defaults • Thread control • /etc/environment • • • 36 © 2005 IBM Corporation AIXTHREAD_SCOPE=S AIXTHREAD_MNRATIO=1: 1 AIXTHREAD_COND_DEBUG=OFF AIXTHREAD_GUARDPAGES=4 AIXTHREAD_MUTEX_DEBUG=OFF AIXTHREAD_RWLOCK_DEBUG=OFF
Batch Queuing • Compile on any AIX node • Use –qarch=pwr 5 • Submit job with available batch utility • Use appropriate queue name • Available queuing systems: • Load. Leveler • PBS • Gridware • LSF 37 © 2005 IBM Corporation
Cluster Layout Node 0 Compile And Submit Node 38 © 2005 IBM Corporation Node 1 Network Node 2
Documentation • Software: • www. software. ibm. com • Products A-Z • X -> xl C, xl C/C++, xl Fortran • www. servers. ibm. com/aix • Compilers • /usr/vac/doc • /usr/vacpp/doc • /usr/lpp/xlf/doc • Redbooks: • www. redbooks. ibm. com/ • IBM e. Server p 5 590 and 595 System Handbook 39 © 2005 IBM Corporation
Documentation • AIX Commands Reference • AIX command: • /usr/sbin/infocenter • /opt/ibm_help/help_start. sh • http: //www. unet. univie. ac. at/aixgen/wbinfnav/ai xcmdsrefbooks. htm • Google search: “AIX Commands Reference” 40 © 2005 IBM Corporation
Documentation Library Google Search: AIX 5 L documentation Library http: //publibn. boulder. ibm. com/cgi-bin/ds_rslt 41 © 2005 IBM Corporation

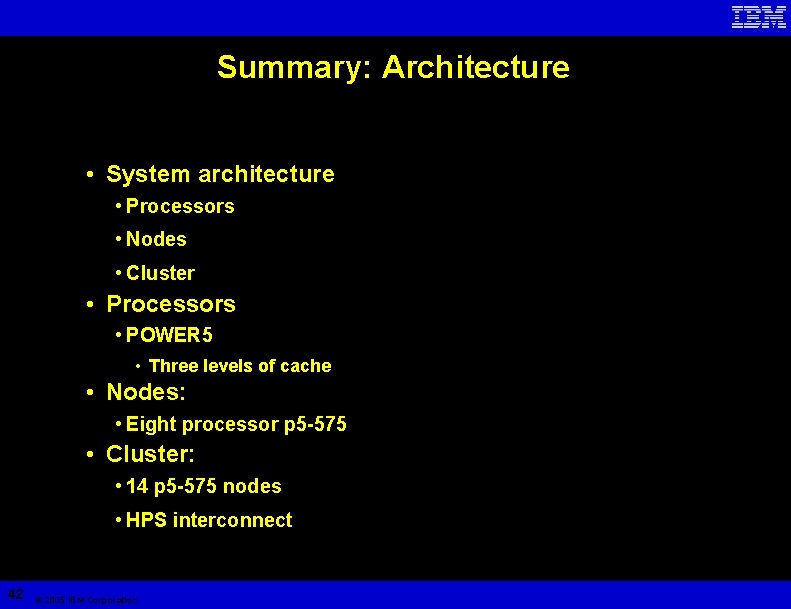

Summary: Architecture • System architecture • Processors • Nodes • Cluster • Processors • POWER 5 • Three levels of cache • Nodes: • Eight processor p 5 -575 • Cluster: • 14 p 5 -575 nodes • HPS interconnect 42 © 2005 IBM Corporation
