ESS RFQ Bruno POTTIN, Anne-Catherine CHAUVEAU and RFQ Team

STATUS RFQ PRESENTATION Ø ESS RFQ SCHEDULE Ø ESS RFQ SCOPE DELIVERABLES Ø ESS RFQ TEST BENCH Ø ESS RFQ TOOLING WHERE ARE WE TODAY? Ø RFQ MANUFACTURING PROCESS Ø SECTION MANUFACTURING PROCESS QUALIFICATION Ø STATUS Ø REALISATION PICTURES REMAINING QUESTIONS Ø TUNNEL DELIVERY AND ASSEMBLY Ø COOLING SYSTEM Ø OPEN DISCUSSIONS…… B. POTTIN, A-C. CHAUVEAU | PAGE 2

RFQ PRESENTATION B. POTTIN, A-C. CHAUVEAU | PAGE 3

SCHEDULE Lund delivery Q 2 2018 B. POTTIN, A-C. CHAUVEAU | PAGE 4

ESS RFQ SCOPE DELIVERABLES An RFQ conditionned ready to accelerate the beam RFQ and support system Wave guides and Support system Tuner RFQ cooling system and its control system Coupler Magic T + Load in the gallery Hydraulic plate B. POTTIN, A-C. CHAUVEAU | PAGE 5

ESS RFQ TESTS BENCH ESS bunker at Saclay for : - Coupler conditionning - A test cavity - RF distribution system from the pulsed klystron at the 352 MHz platform - Coupler conditioning control system (soft and hard) - RFQ assembly validation - Same condition as in the ESS tunnel - Portable crane - Same tools as in ESS tunnel - Same suppot… Test cavity test bench with support and load Test cavity ESS bunker B. POTTIN, A-C. CHAUVEAU | PAGE 6

ESS RFQ TOOLING RFQ support system for adjustment and alignment Transport chassis also used for rotating the sections for vertical brazing RF tuning system tools for voltage law measurement B. POTTIN, A-C. CHAUVEAU | PAGE 7

WHERE ARE WE TODAY? B. POTTIN, A-C. CHAUVEAU | PAGE 8

RFQ MANUFACTURING PROCESS 1 - Copper + HIP STARTED (MÉCACHROME) 3 - Section manufacturing DONE (BODYCOTE) 2 - Ancillaries 4 - Brazing process (BODYCOTE) ON-GOING (AMD) One RFQ section manufacturing’s steps process B. POTTIN, A-C. CHAUVEAU | PAGE 9

MANUFACTURING PROCESS ACCORDING TO IPHI (PROCESS AND MANUFACTURERS) Machining Bodycote Mécachrome Brazing IPHI li ke Vacuum leak test validation Tri. Dim RF validation CEA Bodycote B. POTTIN, A-C. CHAUVEAU | PAGE 10

RFQ MÉCACHROME PROCESS QUALIFICATION 2 major technical phases to be tested in parallel q Step 1 • Qualification of deep drilling and machining technic • Validation of process and manufacturer capacity with his equipment • Ultrasound test and tridim measurement p k-u ing in ch c mo -up Ma ling e De ril pd ck mo q Step 2 • Qualification of vertical brazing process • Validation of manufacturer brazing process • Tridim measurement and leak test ck-up Br mo azing IPHI B. POTTIN, A-C. CHAUVEAU | PAGE 11

RFQMANUFACTURING PROCESS QUALIFICATION ALMOST FINISHED …. . -up ling e De ck-up Br mo azing ril pd ck mo IPHI B. POTTIN, A-C. CHAUVEAU | PAGE 12

SECTION MÉCACHROME PROCESS QUALIFICATION q Step 3 STARTED…. . • Qualification of a total section manufacturing : Section 1 • Leak test, tridim and RF measurement To start the series production, the step 3 must be validated q Series production • Sections manufacturing : process adaptation with industrial • Process tracking to optimize the time • Leak test, tridim and RF measurement q Development plan and validation tests according to the qualification phase B. POTTIN, A-C. CHAUVEAU | PAGE 13

ANCILLARIES BRAZING BI-MATERIAL CU-INOX WITHOUT DEPOSIT + TEST CAVITY B. POTTIN, A-C. CHAUVEAU | PAGE 14

RF COUPLER B. POTTIN, A-C. CHAUVEAU | PAGE 15

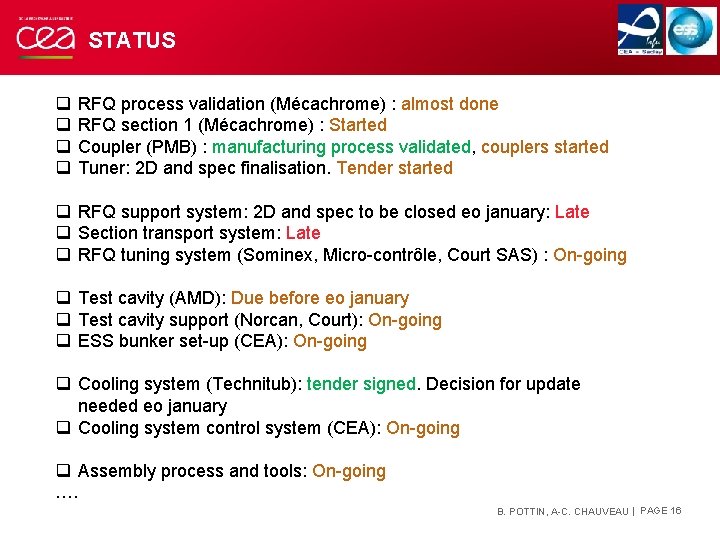

STATUS q q RFQ process validation (Mécachrome) : almost done RFQ section 1 (Mécachrome) : Started Coupler (PMB) : manufacturing process validated, couplers started Tuner: 2 D and spec finalisation. Tender started q RFQ support system: 2 D and spec to be closed eo january: Late q Section transport system: Late q RFQ tuning system (Sominex, Micro-contrôle, Court SAS) : On-going q Test cavity (AMD): Due before eo january q Test cavity support (Norcan, Court): On-going q ESS bunker set-up (CEA): On-going q Cooling system (Technitub): tender signed. Decision for update needed eo january q Cooling system control system (CEA): On-going q Assembly process and tools: On-going …. B. POTTIN, A-C. CHAUVEAU | PAGE 16

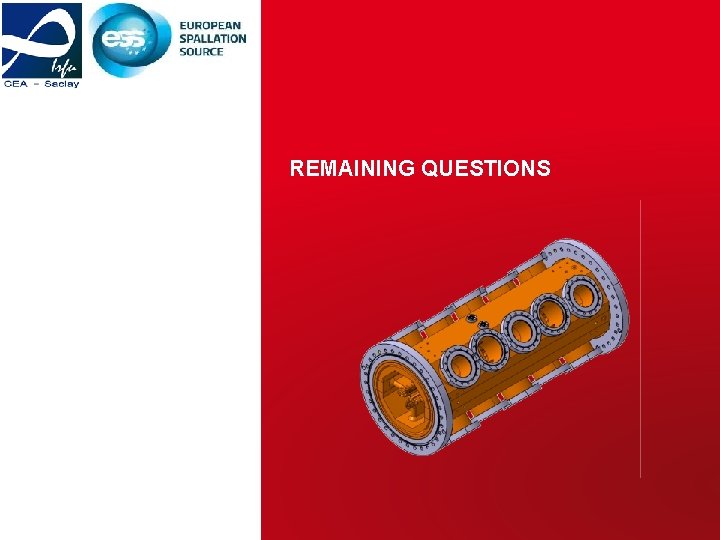

REMAINING QUESTIONS B. POTTIN, A-C. CHAUVEAU | PAGE 17

TUNNEL DELIVERY AND ASSEMBLY • Continuous work with ESS (thank you for good quality exchange with Walter, Georg, Nick…. . ) • This exchange is necessary because there are continuous changes (good or not. ) • It’s not an option to implement the assembly process on the building because we need to see the interfaces, tunnel insertion, space aorund RFQ …. • Simulation @ Saclay to validate strategy and tools Minimize the assembly time inside the tunnel • Implantation @ Saclay o o RFQ support tools manutention bead pull • Truck transport B. POTTIN, A-C. CHAUVEAU | PAGE 18

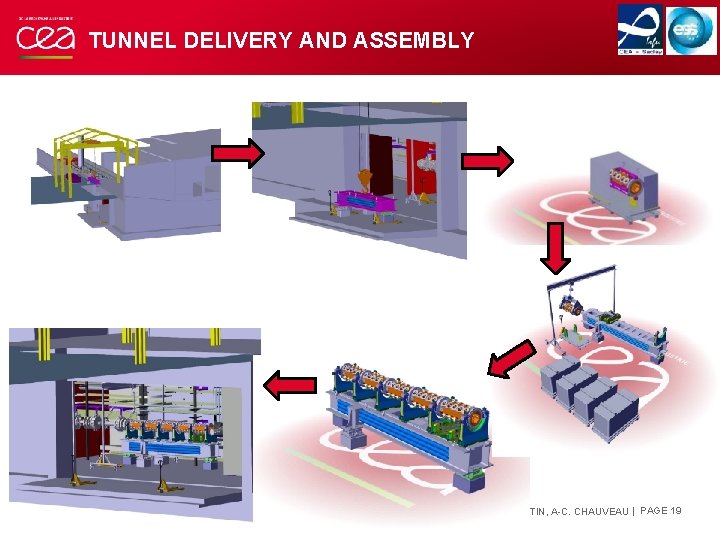

TUNNEL DELIVERY AND ASSEMBLY B. POTTIN, A-C. CHAUVEAU | PAGE 19

COOLING SYSTEM • Cooling pipes implantation • Possible changes from ESS: to decrease the distance between skid and RFQ not easy, and final decision must be done What is possible inside the tunnel ? • Study by CEA specialist on going B. POTTIN, A-C. CHAUVEAU | PAGE 20

LEBT AND MEBT INTERFACES EXAMPLE Input plate Input and ouput plate design finished. Next step will be reviewing by ESS for validation Output plate B. POTTIN, A-C. CHAUVEAU | PAGE 21

OPEN DISCUSSIONS • Conditionning procedure and command control : • RFQ Security (Power limitless, temperature acquisition, vacuum level to stop RFQ conditionning…) • LLRF strategy : who? How? When? • We have pick up on the RFQ, we need to speak with ESS what we want ESS must do with pick up information • C&C • We need those systems OK to start conditionning !!!!! • Not only assembly process: • transport from CEA • Delivery • storage before tunnel insertion • storage inside the tunnel • manutention space inside the tunnel • tools…. . • I think we need to find time to have small private meetings during these two days to be efficient (for example RF for RFQ) B. POTTIN, A-C. CHAUVEAU | PAGE 22
