Esri Production Mapping Automating Map Generalization Workflows Amber

Esri Production Mapping: Automating Map Generalization Workflows Amber Bethell

Why Generalize? • Data is collected and maintained in high detail 1: 12, 500

Why Generalize? • Data is collected and maintained in high detail • When drawn at a smaller scale: - Too detailed - Unclear 1: 12, 500 1: 50, 000

Why Generalize? • Data is collected and maintained in high detail • When drawn at a smaller scale: • - Too detailed - Unclear Generalization automates the creation of scalespecific data - Removes the need of multiple scale production lines - More consistency than manual generalization - Saves time and money 1: 12, 500 1: 50, 000

Dutch Kadaster Using Arc. GIS, including tools for map automation and generalization, Dutch Kadaster realized a 5, 000 percent savings in the time required by traditional cartographic methods for map production. Arc. News Winter 2013/2014 http: //www. esri. com/esri-news/arcnews/winter 1314 articles/transforming-national-map-production

Generalization Workflow

General Workflow

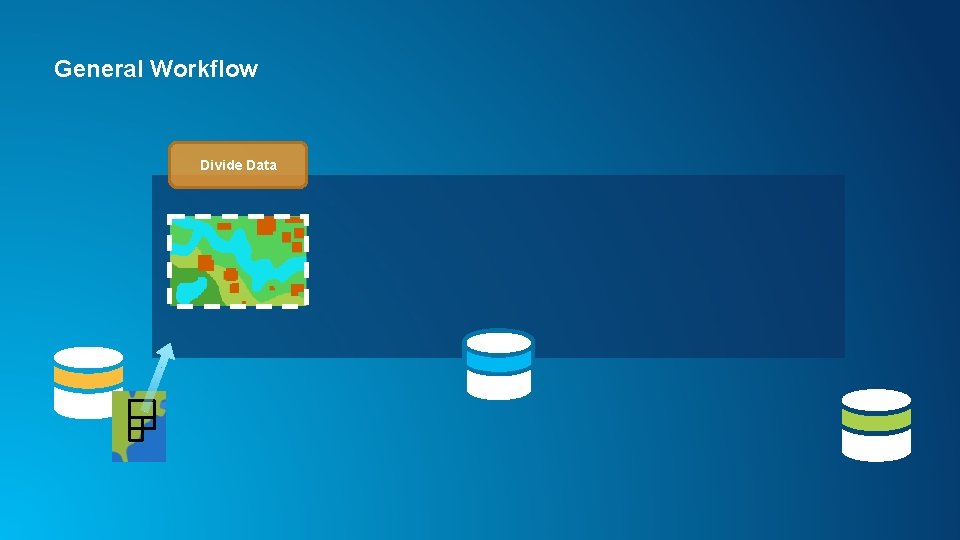

General Workflow Divide Data

General Workflow Divide Data Generalization

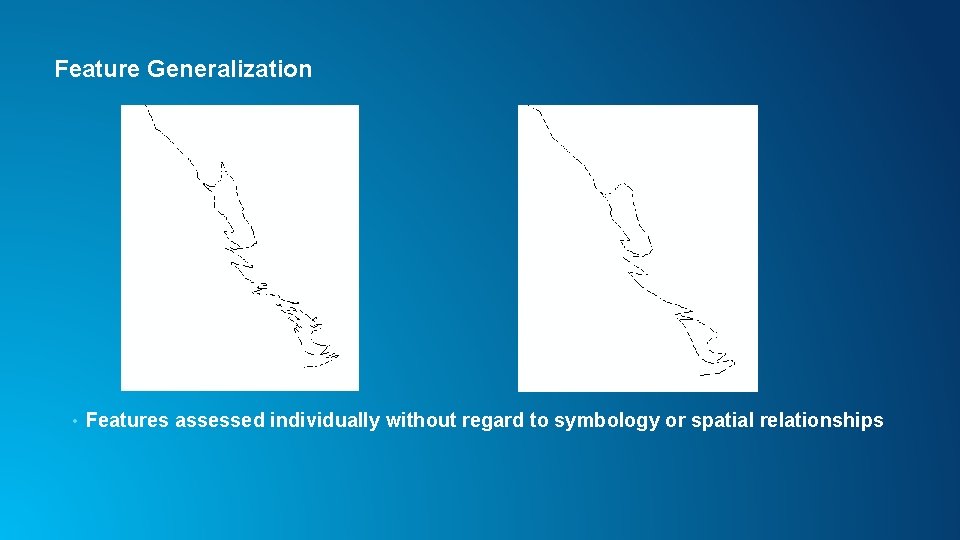

Feature Generalization • Features assessed individually without regard to symbology or spatial relationships

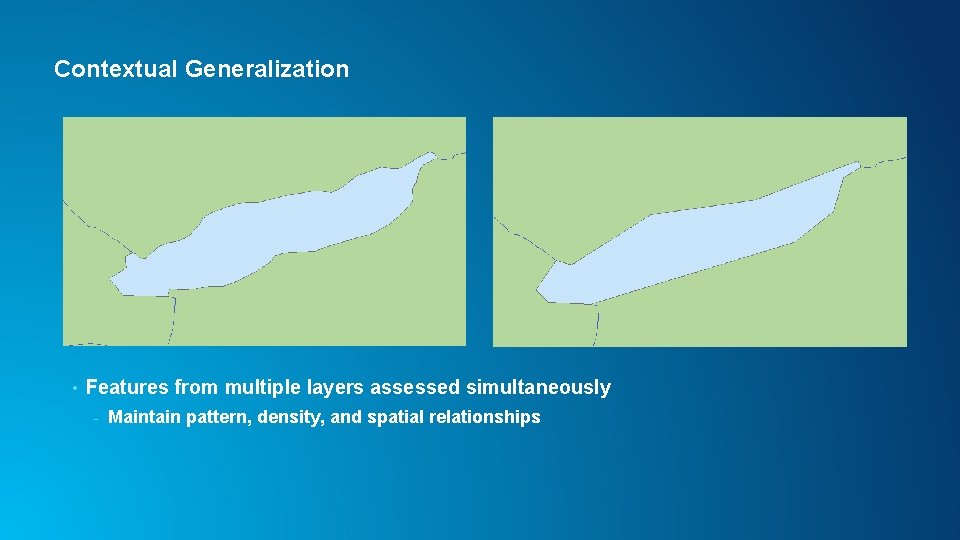

Contextual Generalization • Features from multiple layers assessed simultaneously - Maintain pattern, density, and spatial relationships

Contextual Generalization • Features from multiple layers assessed simultaneously - Maintain pattern, density, and spatial relationships

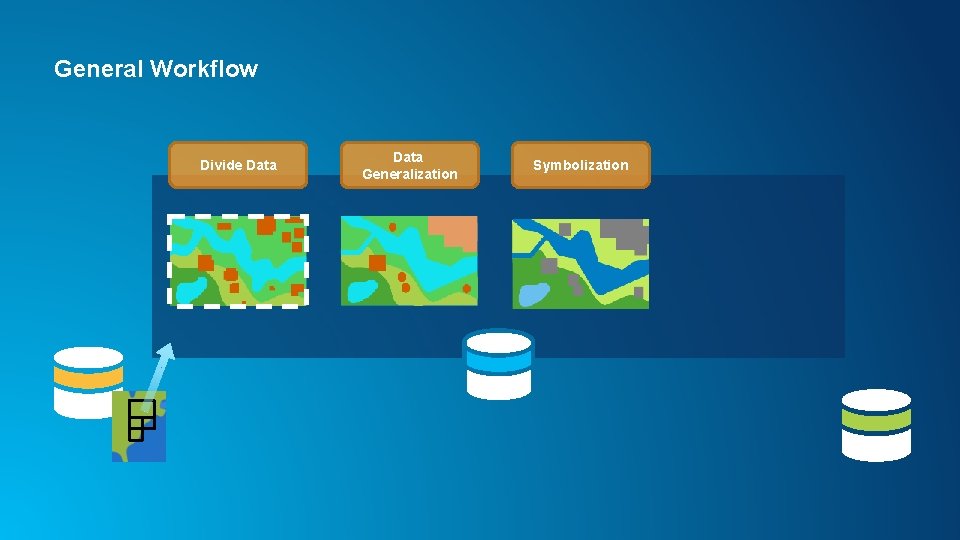

General Workflow Divide Data Generalization Symbolization

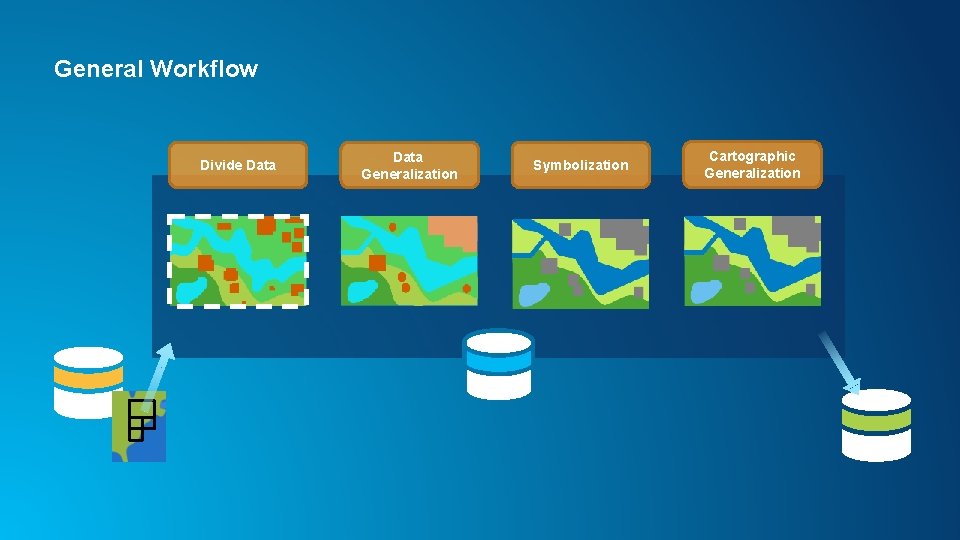

General Workflow Divide Data Generalization Symbolization Cartographic Generalization

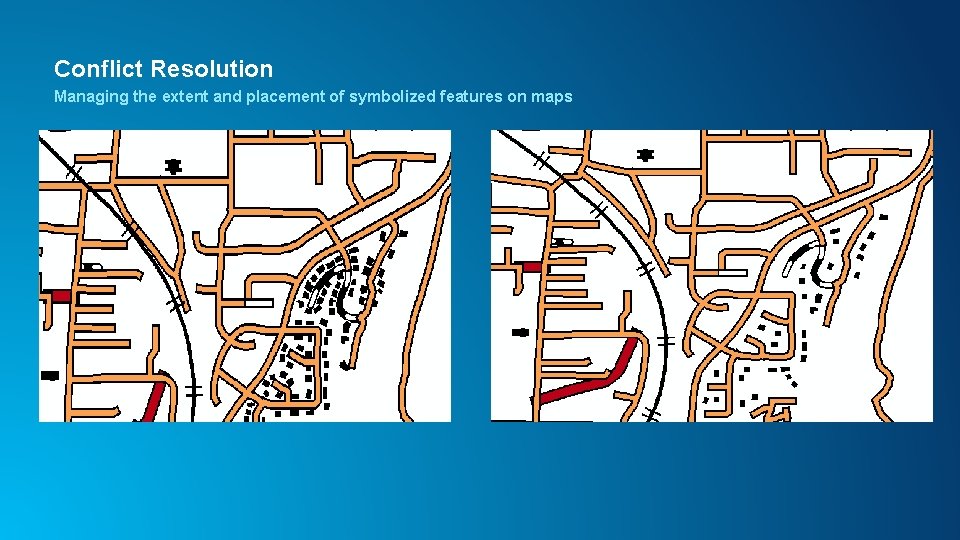

Conflict Resolution Managing the extent and placement of symbolized features on maps

General Workflow Divide Data Generalization Symbolization Cartographic Generalization

Production Mapping Tools

Generalization Techniques • Simplify • Smooth • Eliminate • Amalgamate • Exaggerate • Collapse • Typify • Thin

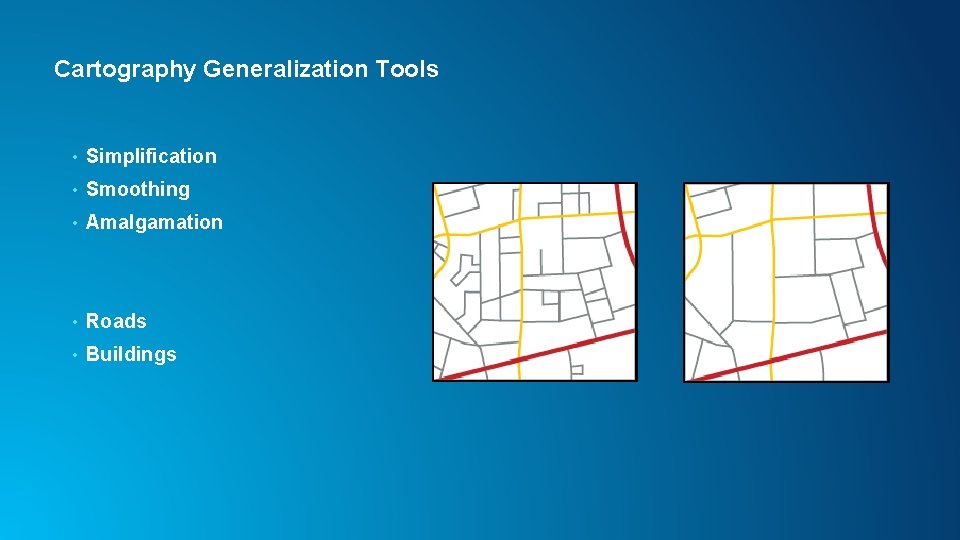

Cartography Generalization Tools • Simplification • Smoothing • Amalgamation • Roads • Buildings

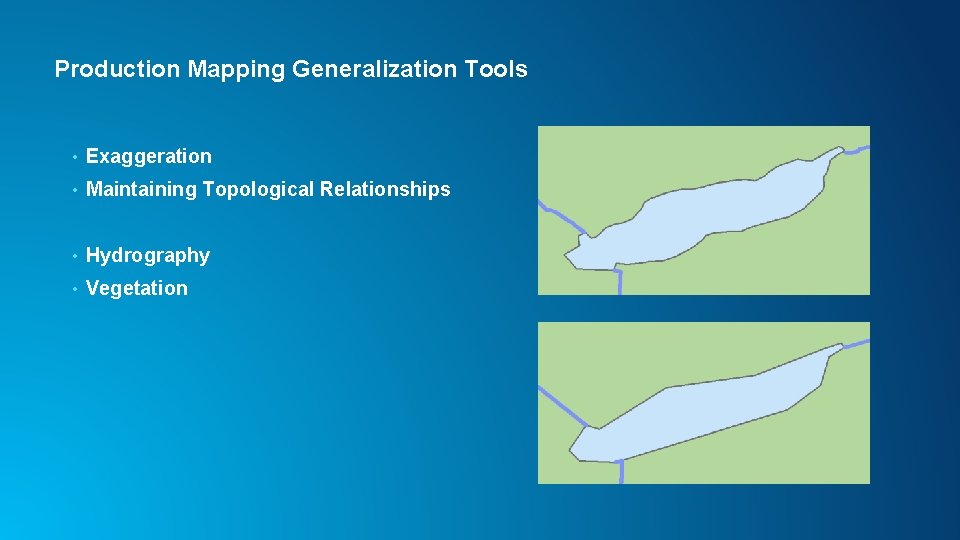

Production Mapping Generalization Tools • Exaggeration • Maintaining Topological Relationships • Hydrography • Vegetation

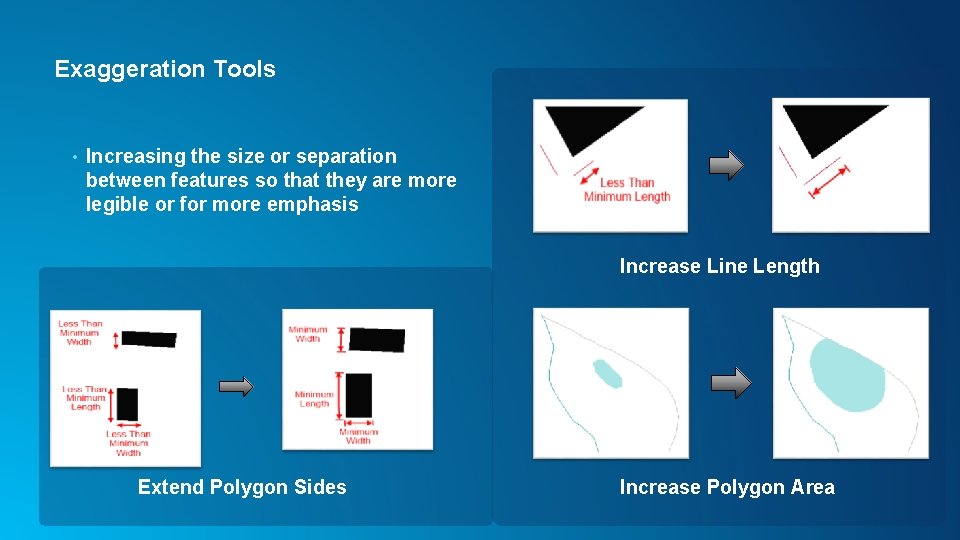

Exaggeration Tools • Increasing the size or separation between features so that they are more legible or for more emphasis Increase Line Length Extend Polygon Sides Increase Polygon Area

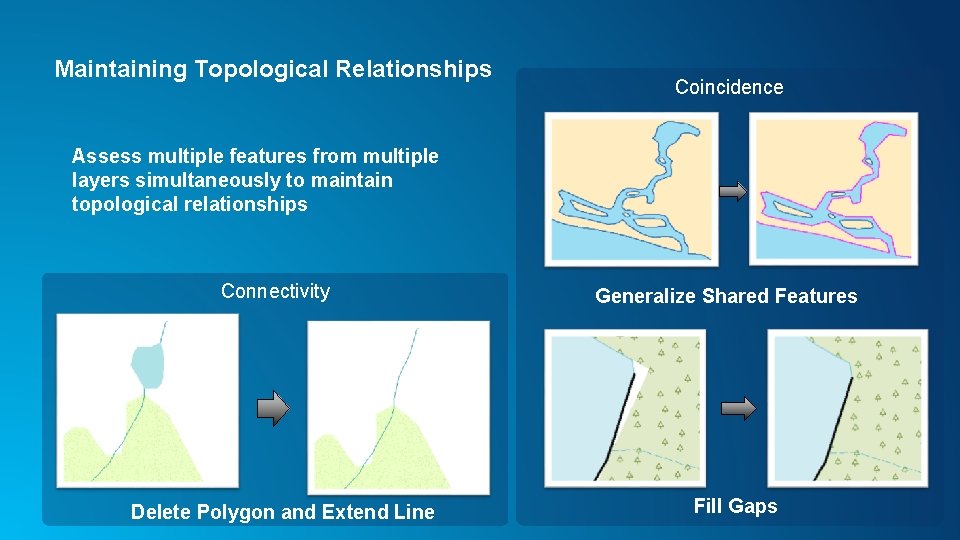

Maintaining Topological Relationships Coincidence Assess multiple features from multiple layers simultaneously to maintain topological relationships Connectivity Delete Polygon and Extend Line Generalize Shared Features Fill Gaps

Building Generalization Models

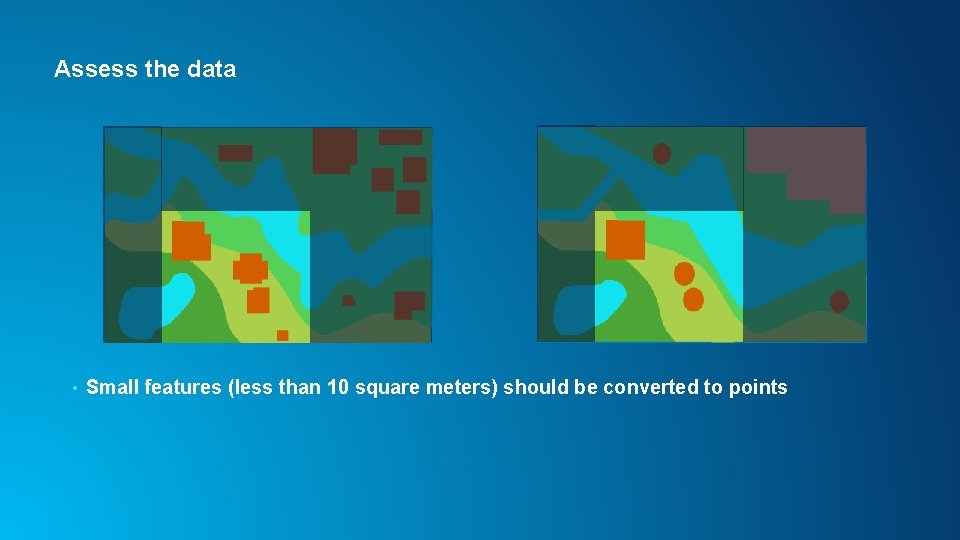

Assess the data • Small features (less than 10 square meters) should be converted to points

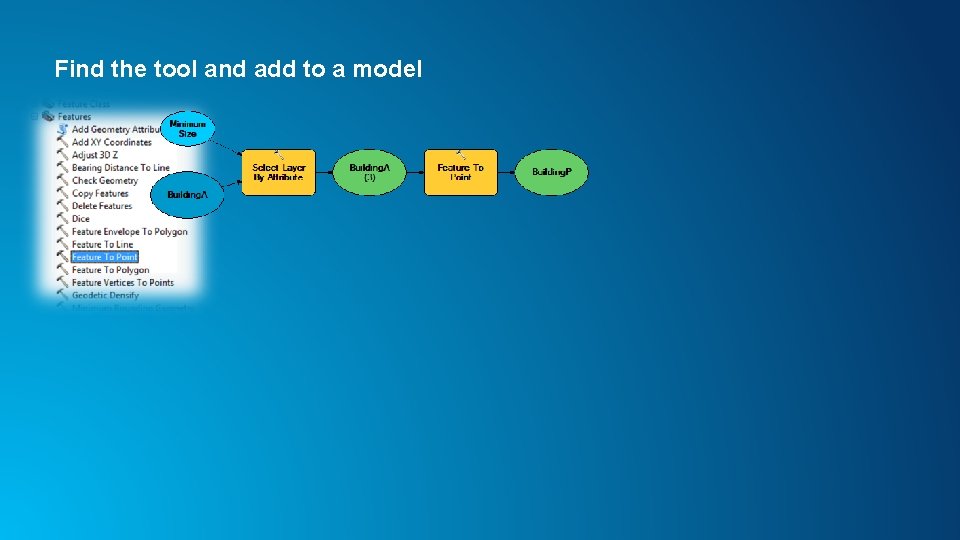

Find the tool and add to a model

Contextual Generalization • When a large number of buildings are close together create a built-up area

Find the tool and add to a model

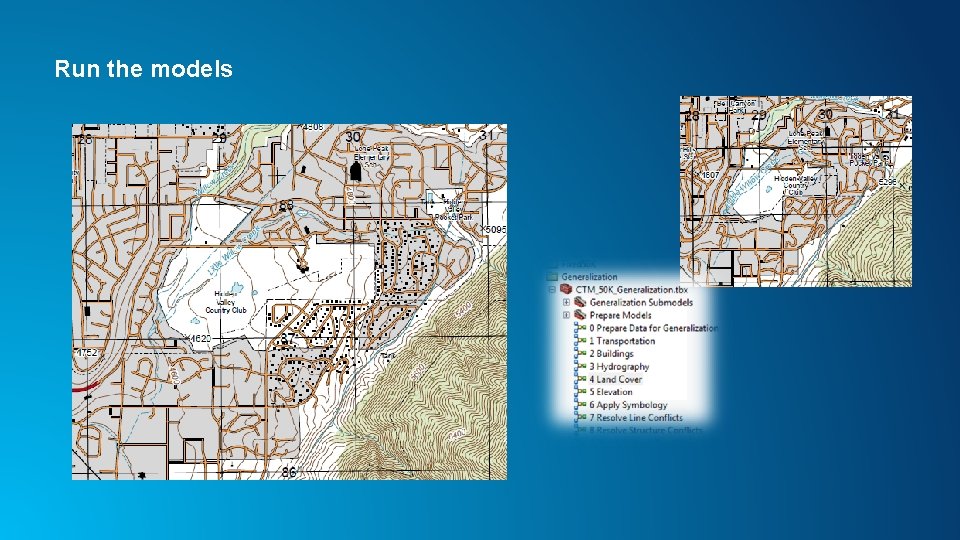

Run the models

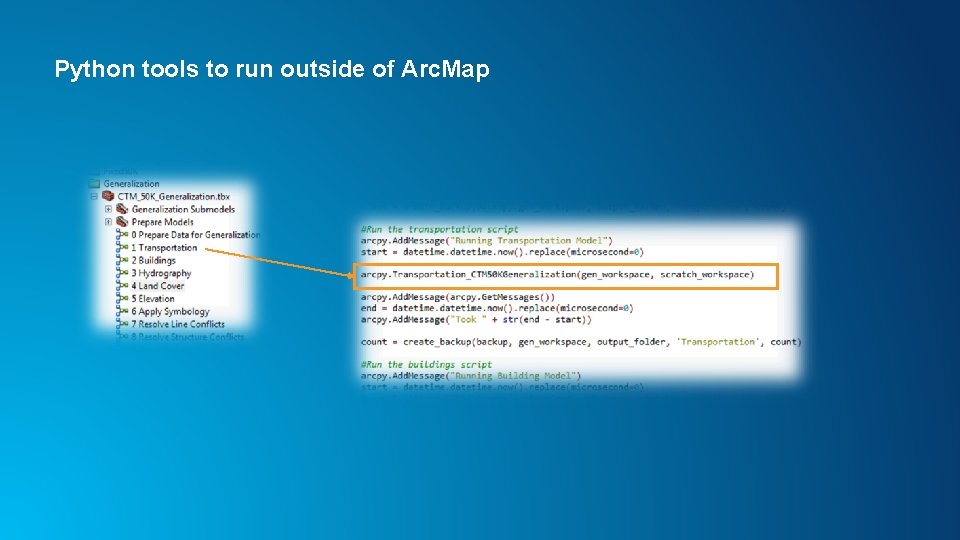

Python tools to run outside of Arc. Map

Generalization Samples

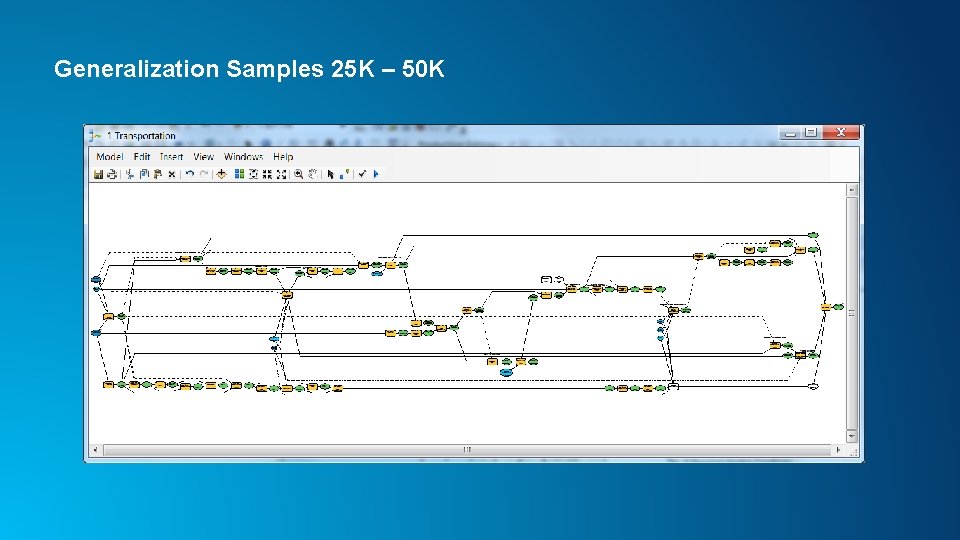

Generalization Samples 25 K – 50 K

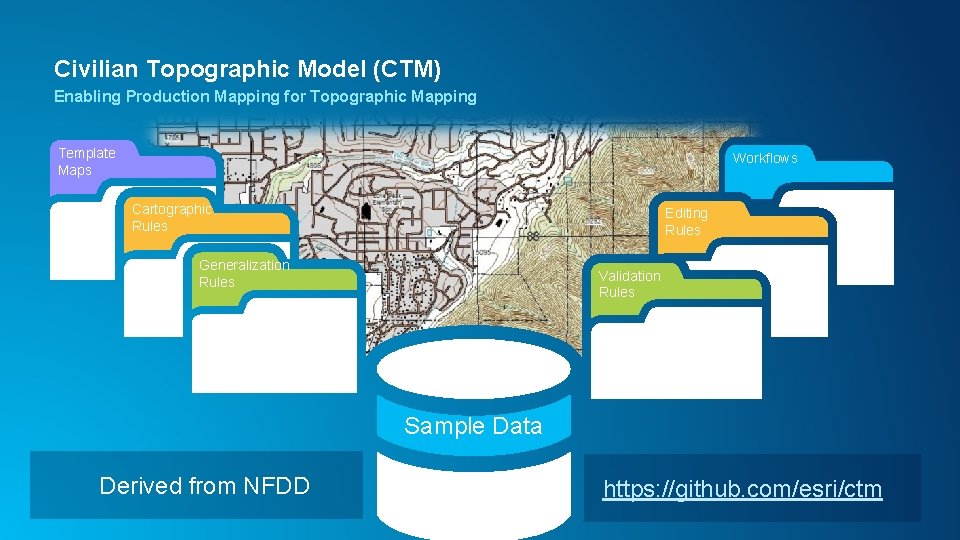

Civilian Topographic Model (CTM) Enabling Production Mapping for Topographic Mapping Template Maps Workflows Cartographic Rules Editing Rules Generalization Rules Validation Rules Sample Data Derived from NFDD https: //github. com/esri/ctm

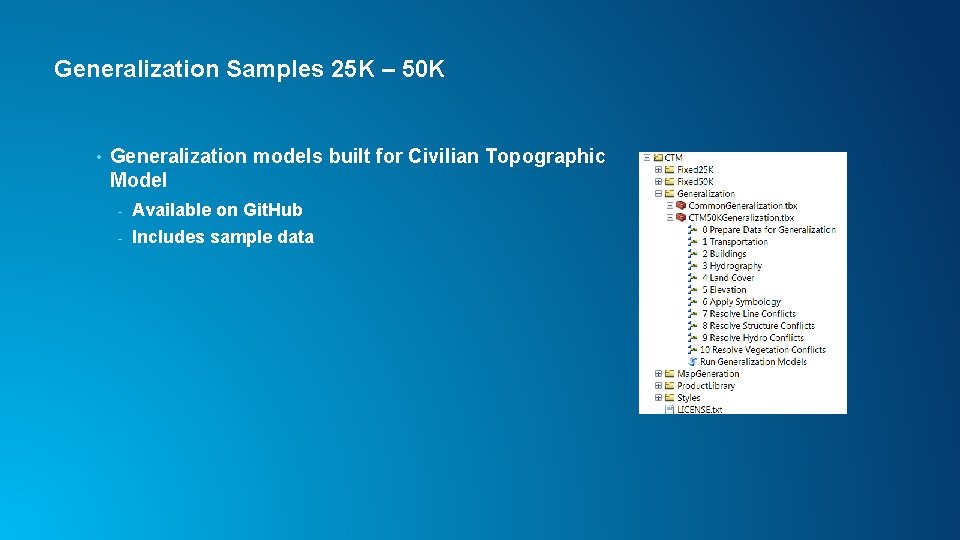

Generalization Samples 25 K – 50 K • Generalization models built for Civilian Topographic Model - Available on Git. Hub - Includes sample data

At the Conference Esri Pavilion Geodata Management Mapping & Visualization Esri Production Mapping: Map Automation & Advanced Cartography Wed. 10: 15 Room 31 B/C

Resources Get the configurations: Production Mapping https: //github. com/esri/ctm Learn More: http: //www. esri. com/productionmapping Reach out: productionmapping@esri. com 60 -day Free Evaluation
