ESMF Regridding Update Robert Oehmke, Peggy Li, Ryan O’Kuinghttons, Mat Rothstein, Joseph Jacob NOAA Cooperative Institute for Research in Environmental Sciences University of Colorado, Boulder robert. oehmke@noaa. gov 3 rd Workshop on Coupling Technologies for Earth System Models April 21, 2015

Context • The Earth System Modeling Framework (ESMF) is software for building and coupling weather, climate, and related models. • This talk is about the regridding part of ESMF • The work presented here is finished and we expect it to come out in ESMF 7. 0. 0 due late spring/early summer • Also available before that as a development snapshot

ESMF Regridding (or remapping or interpolation) is the process of moving data from one grid to another while preserving qualities of the original data. ESMF regridding is: • Flexible: – Computes weights between a wide range of grids: structured and unstructured, global and regional, 2 D and 3 D, spherical and Cartesian – Options for interpolation method, pole treatment, masked points, … • Well Tested and Portable: – >200 regridding cases tested every night – >40 different OS/Compiler/MPI combinations tested every night • Parallel and Fast: – Able to compute weights in minutes which before took hours – Able to compute weights between very large grids • Community developed: – Supported by NASA, NOAA, DOD and NSF funding – Well established (since 2005) community processes for prioritization, support and review. – Development priorities set by users through quarterly Change Review Board (CRB) meetings

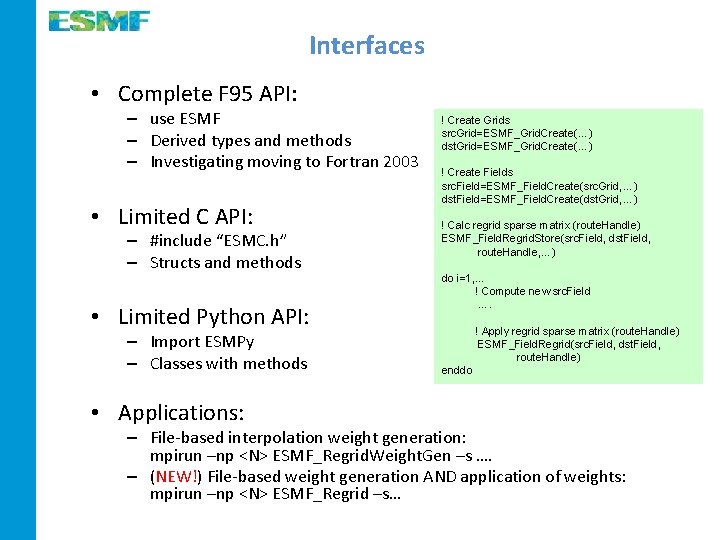

Interfaces • Complete F 95 API: – use ESMF – Derived types and methods – Investigating moving to Fortran 2003 • Limited C API: – #include “ESMC. h” – Structs and methods • Limited Python API: – Import ESMPy – Classes with methods • Applications: ! Create Grids src. Grid=ESMF_Grid. Create(…) dst. Grid=ESMF_Grid. Create(…) ! Create Fields src. Field=ESMF_Field. Create(src. Grid, …) dst. Field=ESMF_Field. Create(dst. Grid, …) ! Calc regrid sparse matrix (route. Handle) ESMF_Field. Regrid. Store(src. Field, dst. Field, route. Handle, …) do i=1, … ! Compute new src. Field …. ! Apply regrid sparse matrix (route. Handle) ESMF_Field. Regrid(src. Field, dst. Field, route. Handle) enddo – File-based interpolation weight generation: mpirun –np <N> ESMF_Regrid. Weight. Gen –s …. – (NEW!) File-based weight generation AND application of weights: mpirun –np <N> ESMF_Regrid –s…

Supported Geometry Types • Grid: – Structured representation of a region – A logically rectangular tile • Mesh: – Unstructured representation of a region – In 2 D: polygons with any number of sides • including concave – In 3 D: tetrahedrons & hexahedrons • Loc. Stream (Location Stream): – NEW! – Set of disconnected points • E. g. locations of observations – Very flexible and efficient – Can’t be used with every regrid method

Supported Grid File Formats • SCRIP: – Format used by SCRIP regridding tool – 2 D Spherical – Logically rectangular Grids or unstructured Meshes • ESMF unstructured: – Custom ESMF format – 2 D or 3 D / Spherical or Cartesian – Unstructured Meshes • UGRID: – Proposed CF convention – 2 D or 3 D / Spherical or Cartesian – Unstructured Meshes • GRIDSPEC: – CF convention – ESMF currently supports: 2 D spherical single tile Grids

Regrid Methods • Bilinear: – Destination is a linear combination of source cell corners – Weights based distance from corners – Loc. Streams can be destination • Higher order patch recovery: – – – Multiple polynomial patches represent region around source cell Destination is linear combination of patch values Yields better derivatives/smoother results than bilinear Based on “patch recovery” used in finite element modeling [1][2] Loc. Streams can be destination • Nearest neighbor: – Destination is equal to closest source point (or vise versa) – Loc. Streams can be source or destination • First order conservative: – Destination is combination of intersecting source cell areas – Preserves integral of data across interpolation

Other Options • (NEW!) Path between points in bilinear on a sphere: – Straight line – Great circle • Options for extrapolating across pole region: – – Full circle average N-point average Teeth No pole Full circle avg. N-point avg Teeth No Pole • Others: – Masking – (New!) Normalization options for conservative: destination area or fraction – User area – Ignore unmapped, Ignore degenerate

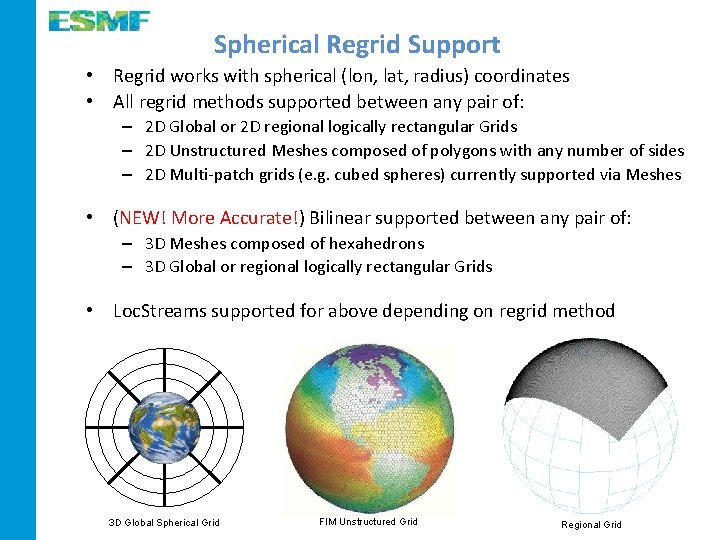

Spherical Regrid Support • Regrid works with spherical (lon, lat, radius) coordinates • All regrid methods supported between any pair of: – 2 D Global or 2 D regional logically rectangular Grids – 2 D Unstructured Meshes composed of polygons with any number of sides – 2 D Multi-patch grids (e. g. cubed spheres) currently supported via Meshes • (NEW! More Accurate!) Bilinear supported between any pair of: – 3 D Meshes composed of hexahedrons – 3 D Global or regional logically rectangular Grids • Loc. Streams supported for above depending on regrid method 3 D Global Spherical Grid FIM Unstructured Grid Regional Grid

Cartesian Regrid Support • Regrid works with Cartesian (x, y, z) coordinates • All regrid methods between any pair of: – 2 D Meshes composed of polygons with any number of sides – 2 D logically rectangular Grids • Bilinear, conservative, or nearest neighbor between any pair of: – 3 D Meshes composed of hexahedrons – 3 D logically rectangular Grids • Loc. Streams supported for above depending on regrid method 2 D Unstructured Mesh From www. ngdc. noaa. gov 3 D Grid 3 D Unstructured Mesh

Regrid Weight Calculation Performance First-Order Conservative Interpolation Weight Calculation (2 km unstructured land only grid to 1/8 degree global grid) 30 Time in Seconds 25 20 15 10 5 0 64 128 256 512 1024 Number of Processors 2048 Platform: IBM IData. Plex cluster (Yellowstone at NCAR) Grid size: ~30 million cells and ~4 millions cells 4096

Other Tools Using ESMF Regrid • Ultrascale Visualization Climate Data Analysis Tool (UV-CDAT): – Package designed for analyzing large climate data sets – Uses ESMF regridding via ESMPy – Recently won Federal Laboratory Consortium technology transfer award • Cf-python: – Python package for manipulating cf data and files – Uses ESMF regridding via ESMPy • NCAR Command Language (NCL): – Language for scientific data analysis and visualization – Uses ESMF regridding via ESMF_Regrid. Weight. Gen application

Selected Users • NOAA Environmental Modeling System (NEMS): – Under development – Aimed to be the backbone of next generation forecast systems – ESMF regridding used to transfer data between models • Community Earth System Model (CESM): – Has used ESMF regridding for 5+ years – Currently uses ESMF_Regrid. Weight. Gen, but are working towards online regridding • Met Office: – Multiple users of ESMF regridding there – Have been adding functionality for them (e. g. concave, great circle, …) • NOAA Space Weather Prediction Center (SWPC): – Working towards coupled 3 D ionosphere model using ESMF – New 3 D spherical bilinear reduces error by 40 x over Cartesian

Scheduled for Upcoming Releases • Higher-order conservative regridding (7. 1. 0) • Breaking up grid files to increase maximum grid size possible for interpolation weight generation (7. 1. 0) • Extrapolation of points that lie outside the source grid (7. 1. 0) • Dynamic masking during sparse matrix multiply (7. 1. 0) • Additional weight file formats for ESMF_Regrid. Weight. Gen (7. 1. 0) – Other SCRIP format – Slim version • Representation of higher-order elements (7. 2. 0)

References • Patch interpolation: 1. Khoei S. A. , Gharehbaghi A. R. The superconvergent patch recovery technique and data transfer operators in 3 d plasticity problems. Finite Elements in Analysis and Design, 43(8), 2007. 2. Hung K. C, Gu H. , Zong Z. A modified superconvergent patch recovery method and its application to large deformation problems. Finite Elements in Analysis and Design, 40(5 -6), 2004. If you have questions or requests, come talk to me, or email: esmf_support@list. woc. noaa. gov
