ESE 370: Circuit-Level Modeling, Design, and Optimization for Digital Systems Day 23: November 2, 2012 Pass Transistor Logic: part 2 (Cascading without Buffers) Penn ESE 370 Fall 2012 -- De. Hon 1

Previously Penn ESE 370 Fall 2012 -- De. Hon 2

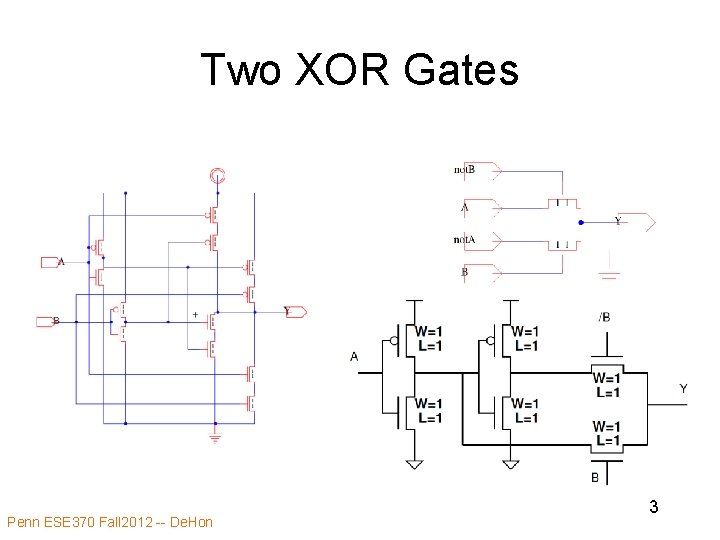

Two XOR Gates Penn ESE 370 Fall 2012 -- De. Hon 3

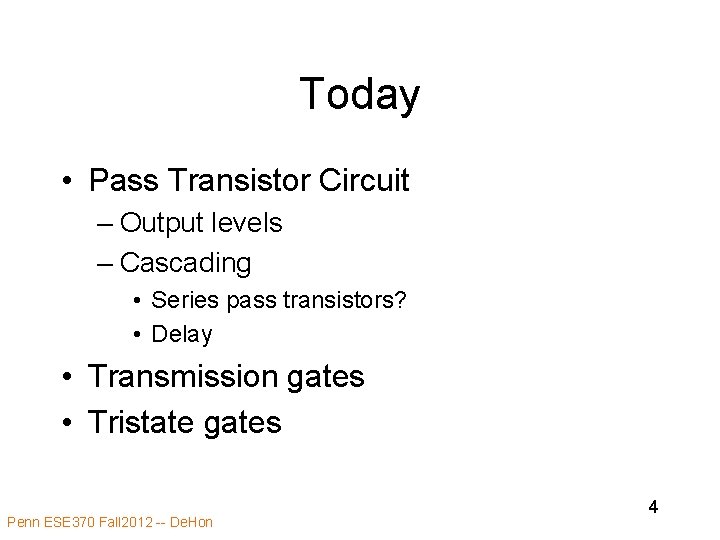

Today • Pass Transistor Circuit – Output levels – Cascading • Series pass transistors? • Delay • Transmission gates • Tristate gates Penn ESE 370 Fall 2012 -- De. Hon 4

Cascading Pass Transistors Penn ESE 370 Fall 2012 -- De. Hon 5

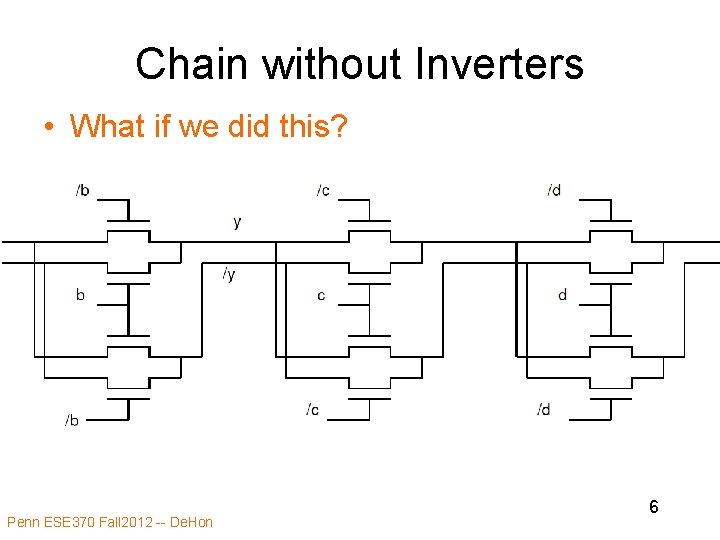

Chain without Inverters • What if we did this? Penn ESE 370 Fall 2012 -- De. Hon 6

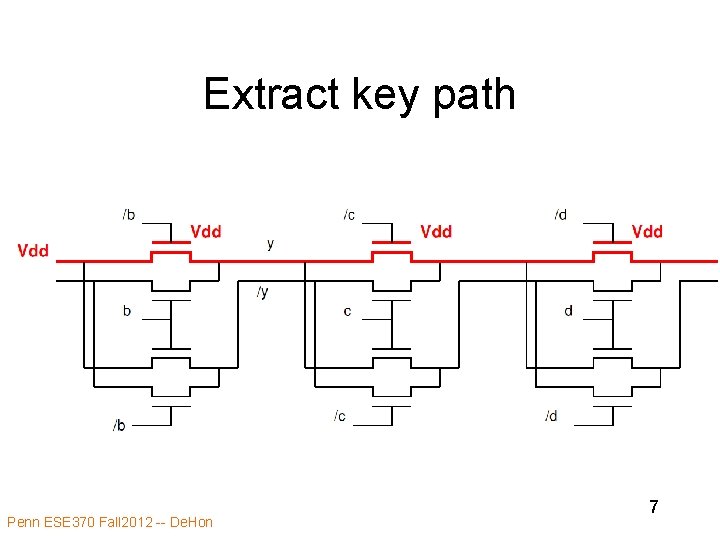

Extract key path Penn ESE 370 Fall 2012 -- De. Hon 7

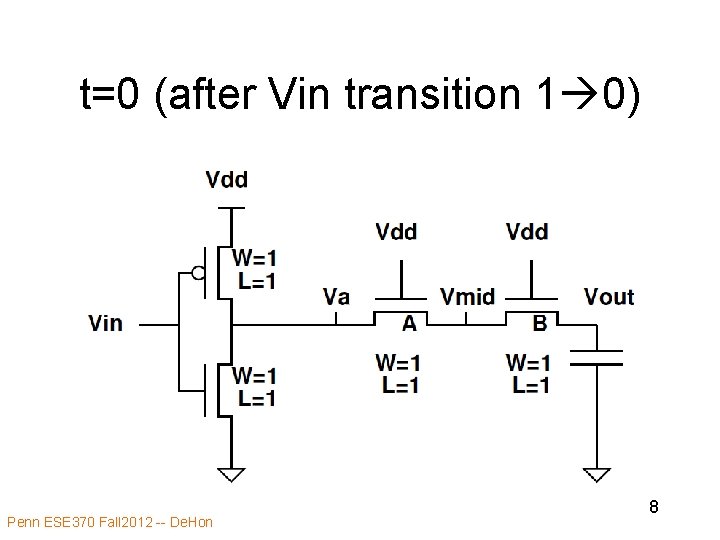

t=0 (after Vin transition 1 0) Penn ESE 370 Fall 2012 -- De. Hon 8

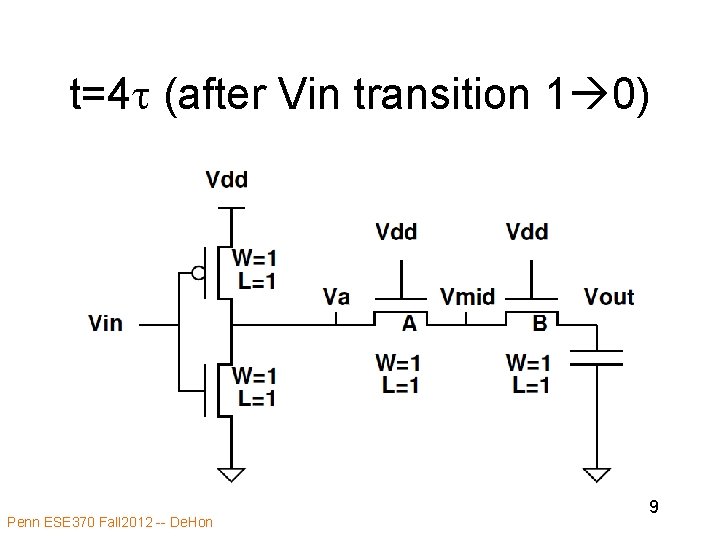

t=4 t (after Vin transition 1 0) Penn ESE 370 Fall 2012 -- De. Hon 9

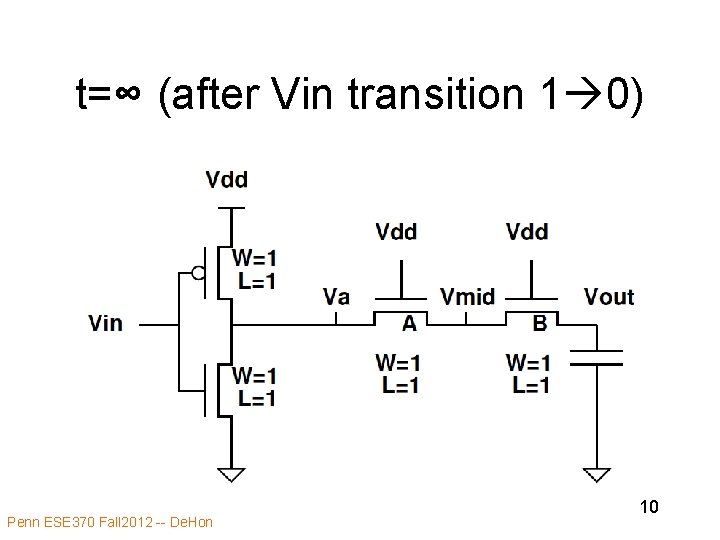

t=∞ (after Vin transition 1 0) Penn ESE 370 Fall 2012 -- De. Hon 10

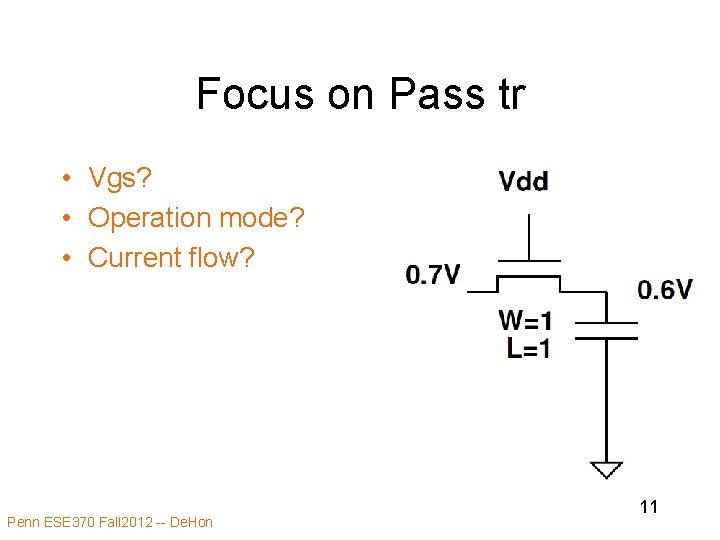

Focus on Pass tr • Vgs? • Operation mode? • Current flow? Penn ESE 370 Fall 2012 -- De. Hon 11

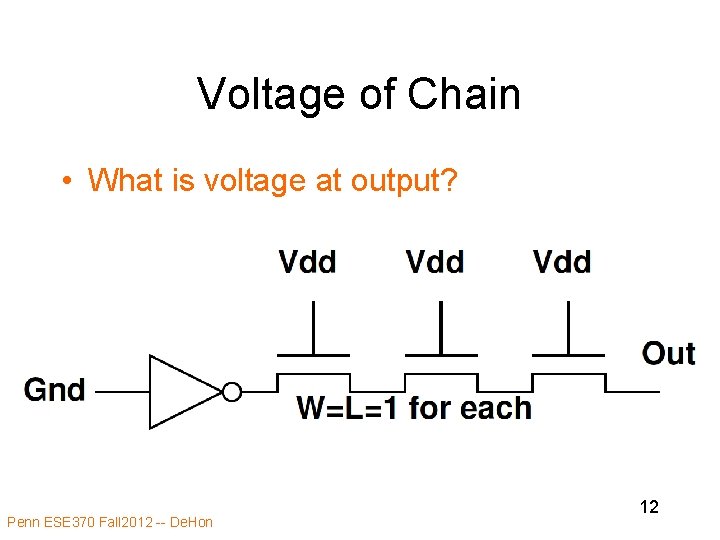

Voltage of Chain • What is voltage at output? Penn ESE 370 Fall 2012 -- De. Hon 12

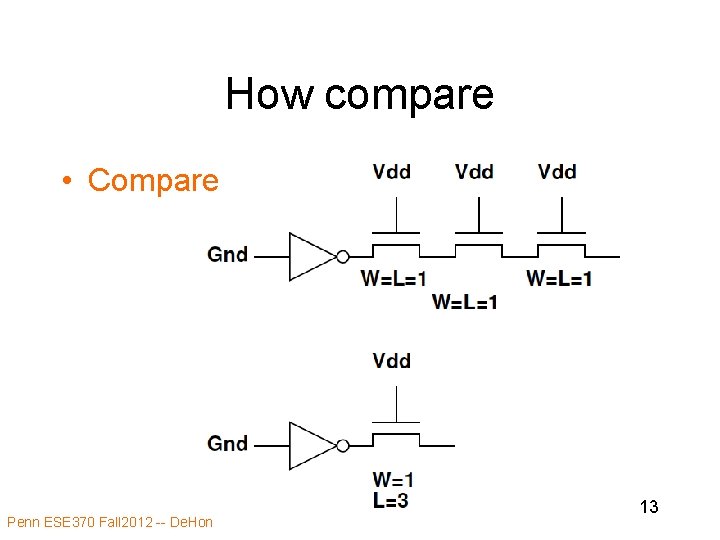

How compare • Compare Penn ESE 370 Fall 2012 -- De. Hon 13

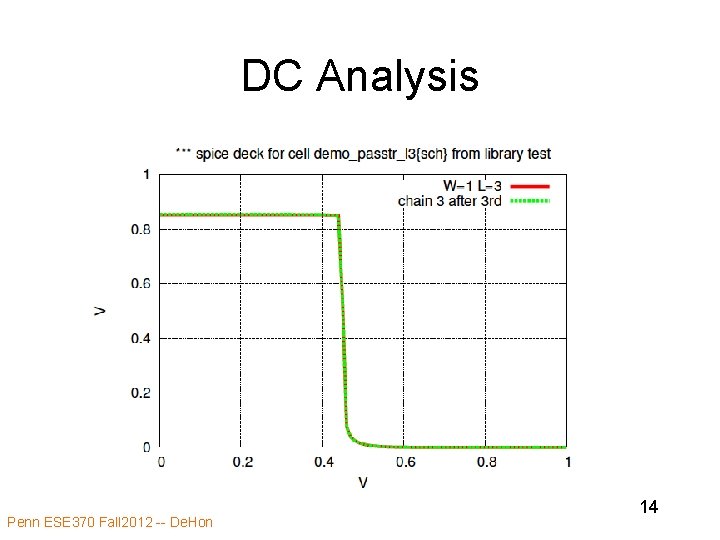

DC Analysis Penn ESE 370 Fall 2012 -- De. Hon 14

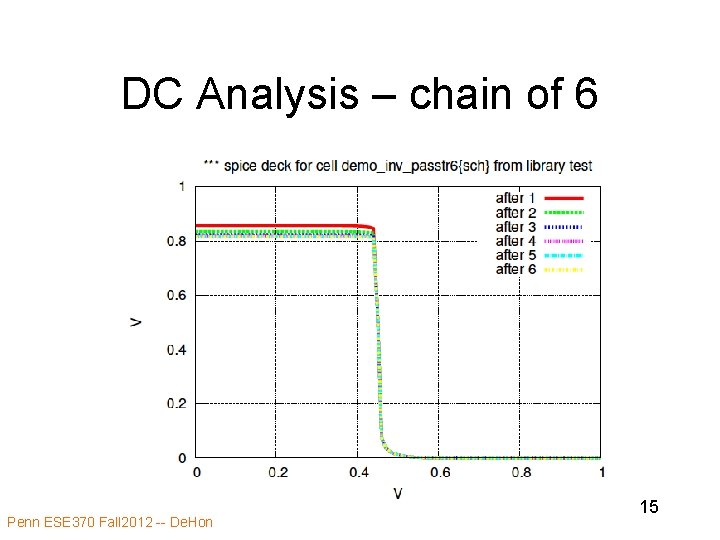

DC Analysis – chain of 6 Penn ESE 370 Fall 2012 -- De. Hon 15

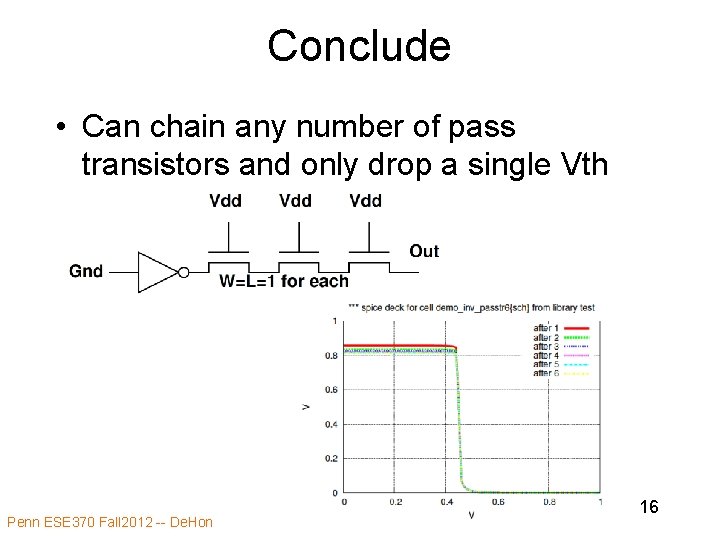

Conclude • Can chain any number of pass transistors and only drop a single Vth Penn ESE 370 Fall 2012 -- De. Hon 16

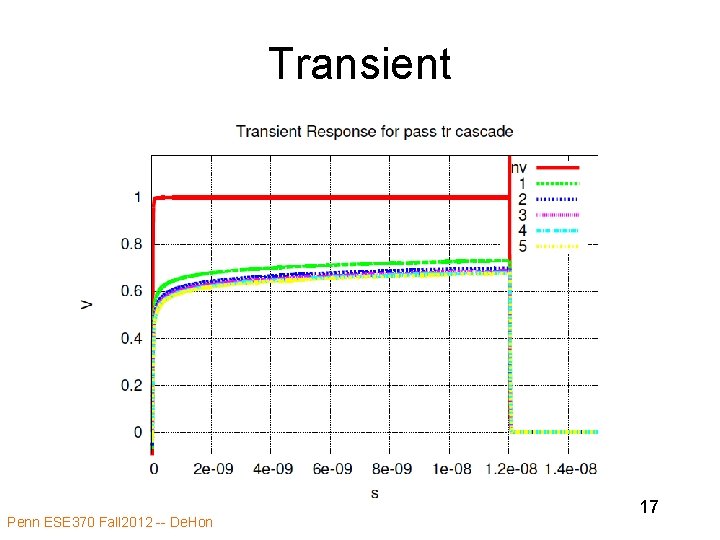

Transient Penn ESE 370 Fall 2012 -- De. Hon 17

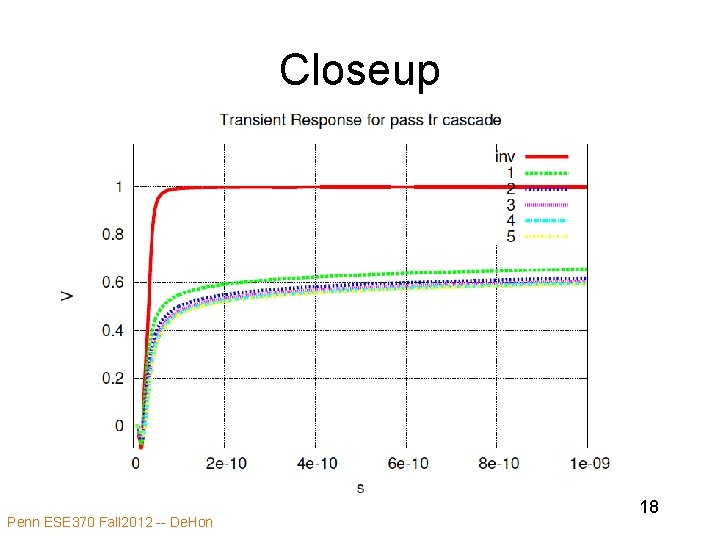

Closeup Penn ESE 370 Fall 2012 -- De. Hon 18

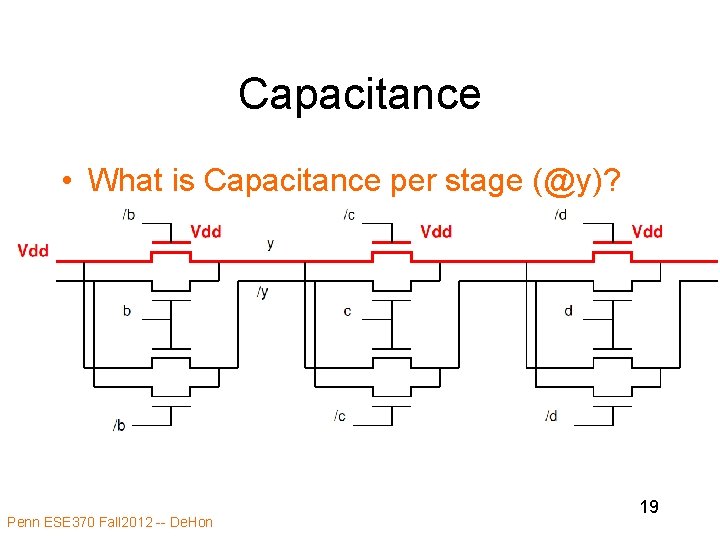

Capacitance • What is Capacitance per stage (@y)? Penn ESE 370 Fall 2012 -- De. Hon 19

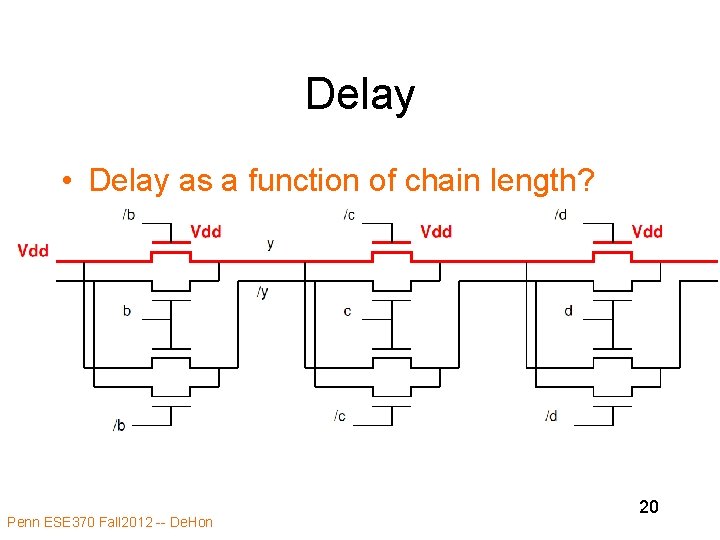

Delay • Delay as a function of chain length? Penn ESE 370 Fall 2012 -- De. Hon 20

Compare • CMOS • Buffered Pass TR • Unbuffered Pass TR • Delay • Area Penn ESE 370 Fall 2012 -- De. Hon 21

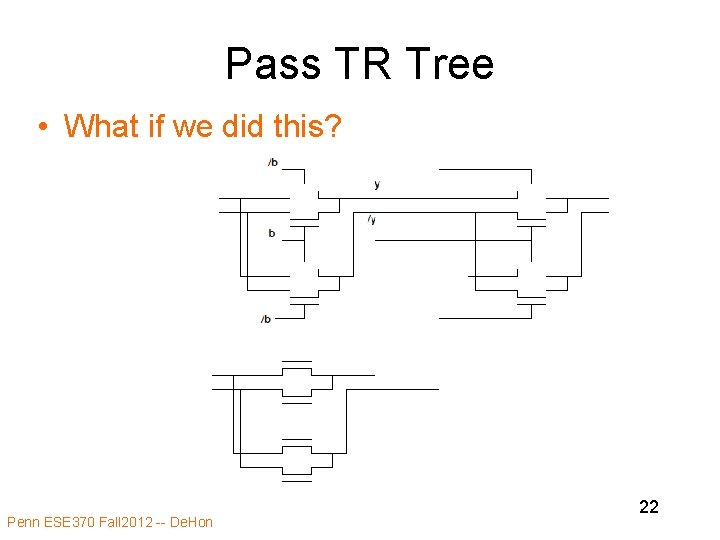

Pass TR Tree • What if we did this? Penn ESE 370 Fall 2012 -- De. Hon 22

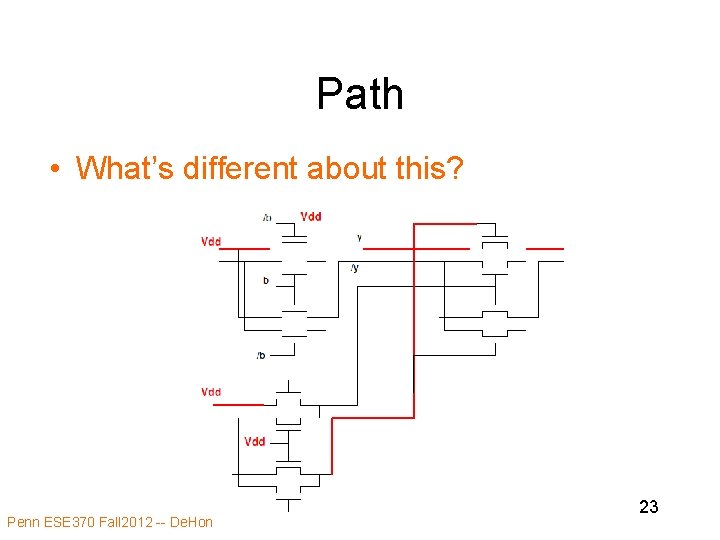

Path • What’s different about this? Penn ESE 370 Fall 2012 -- De. Hon 23

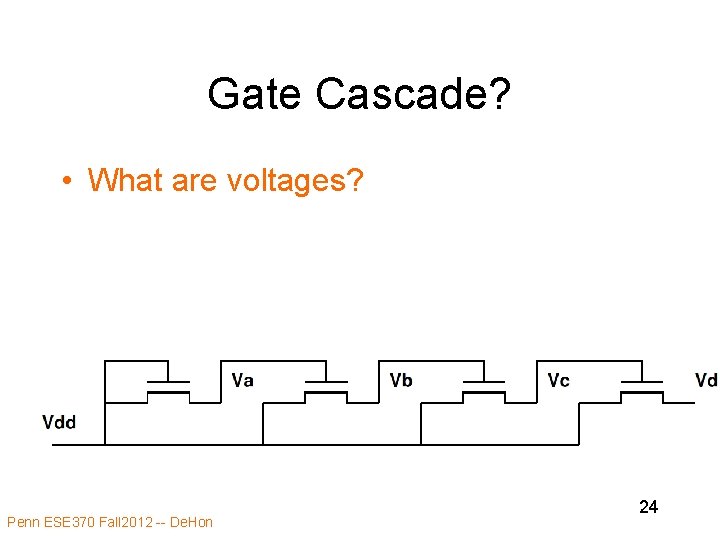

Gate Cascade? • What are voltages? Penn ESE 370 Fall 2012 -- De. Hon 24

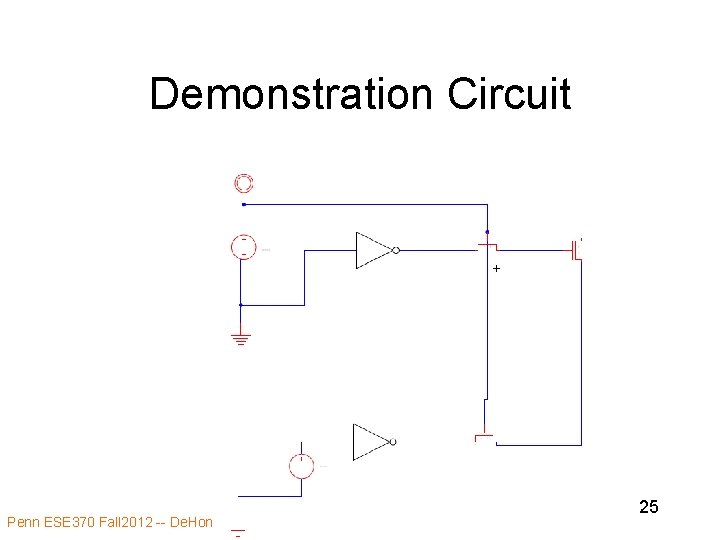

Demonstration Circuit Penn ESE 370 Fall 2012 -- De. Hon 25

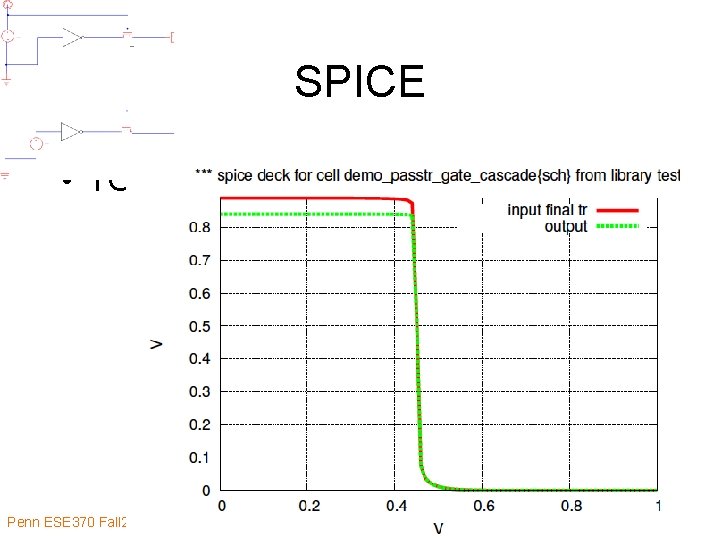

SPICE • TODO show spice results of voltages Penn ESE 370 Fall 2012 -- De. Hon 26

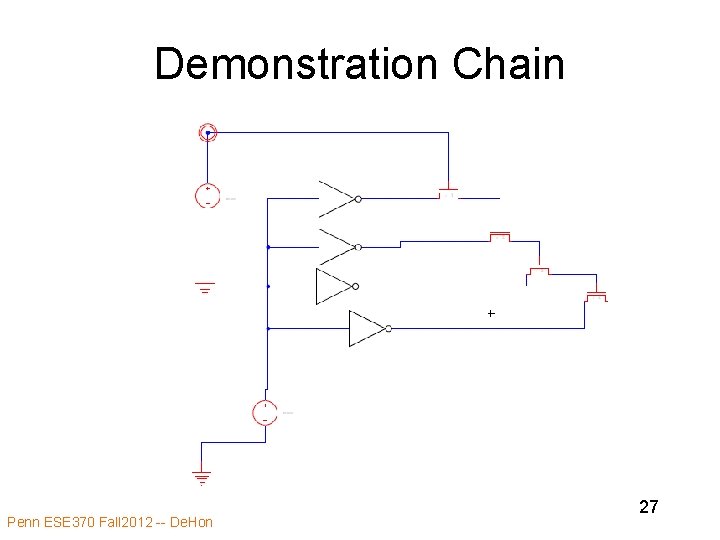

Demonstration Chain Penn ESE 370 Fall 2012 -- De. Hon 27

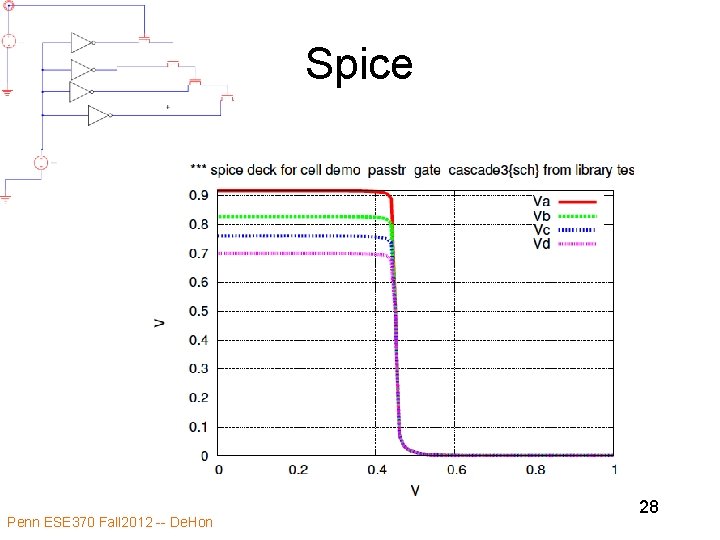

Spice Penn ESE 370 Fall 2012 -- De. Hon 28

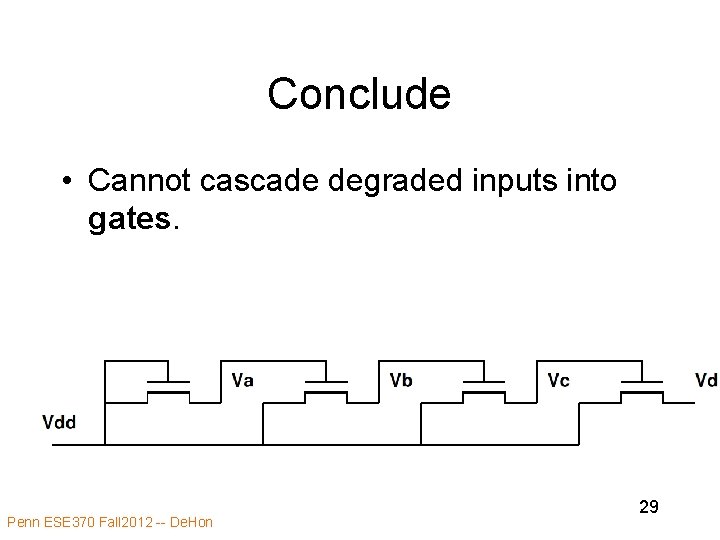

Conclude • Cannot cascade degraded inputs into gates. Penn ESE 370 Fall 2012 -- De. Hon 29

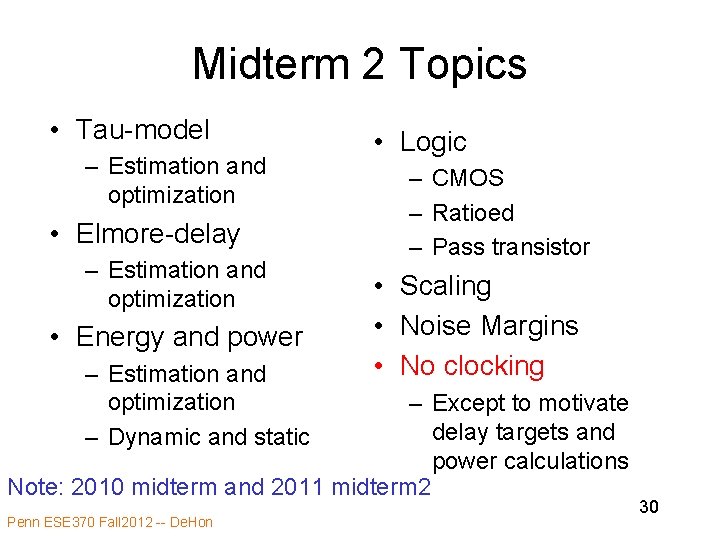

Midterm 2 Topics • Tau-model – Estimation and optimization • Elmore-delay – Estimation and optimization • Energy and power – Estimation and optimization – Dynamic and static • Logic – CMOS – Ratioed – Pass transistor • Scaling • Noise Margins • No clocking – Except to motivate delay targets and power calculations Note: 2010 midterm and 2011 midterm 2 Penn ESE 370 Fall 2012 -- De. Hon 30

Time Permitting… Penn ESE 370 Fall 2012 -- De. Hon 31

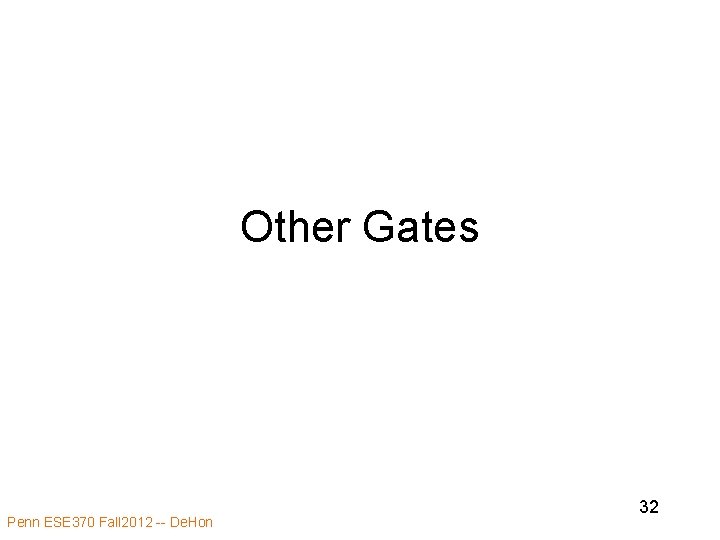

Other Gates Penn ESE 370 Fall 2012 -- De. Hon 32

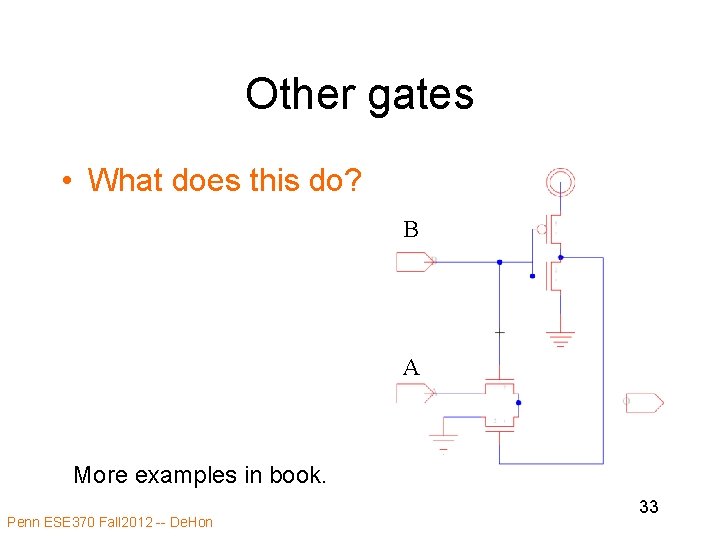

Other gates • What does this do? B A More examples in book. Penn ESE 370 Fall 2012 -- De. Hon 33

Pass Rail-to-Rail Penn ESE 370 Fall 2012 -- De. Hon 34

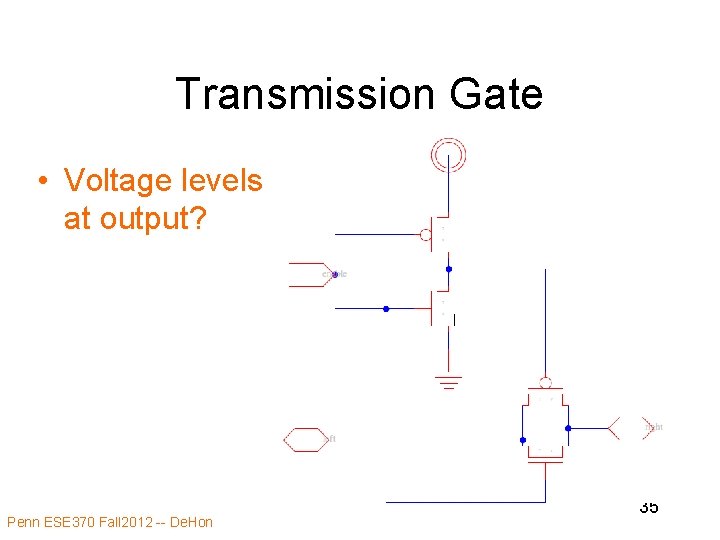

Transmission Gate • Voltage levels at output? Penn ESE 370 Fall 2012 -- De. Hon 35

Bus Drivers Penn ESE 370 Fall 2012 -- De. Hon 36

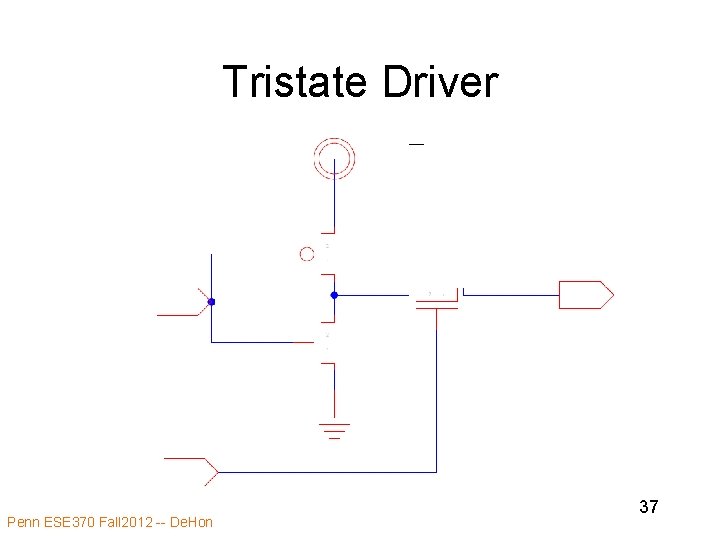

Tristate Driver Penn ESE 370 Fall 2012 -- De. Hon 37

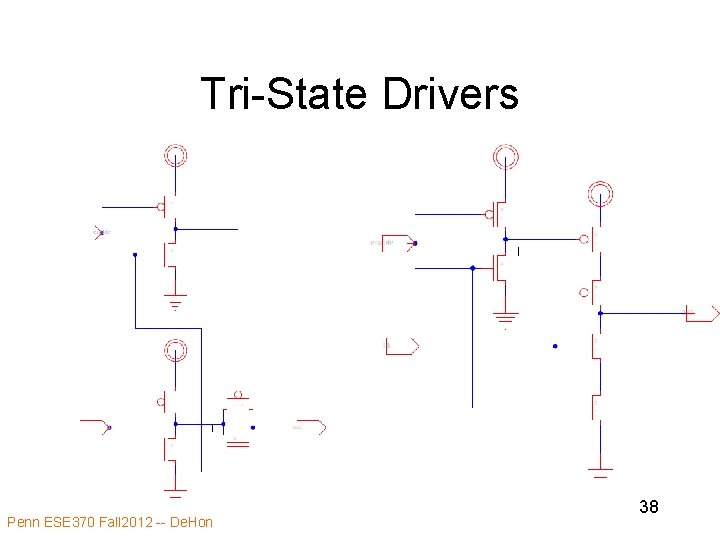

Tri-State Drivers Penn ESE 370 Fall 2012 -- De. Hon 38

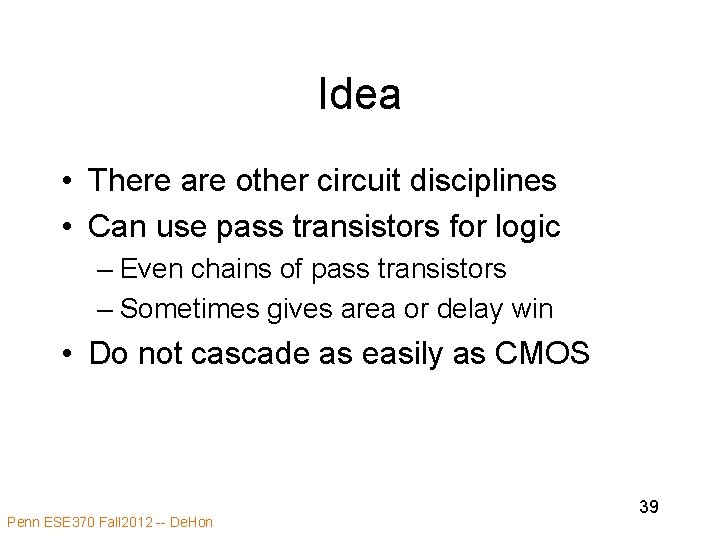

Idea • There are other circuit disciplines • Can use pass transistors for logic – Even chains of pass transistors – Sometimes gives area or delay win • Do not cascade as easily as CMOS Penn ESE 370 Fall 2012 -- De. Hon 39
