ESD Control Experts HBM vs CDM vs CBE

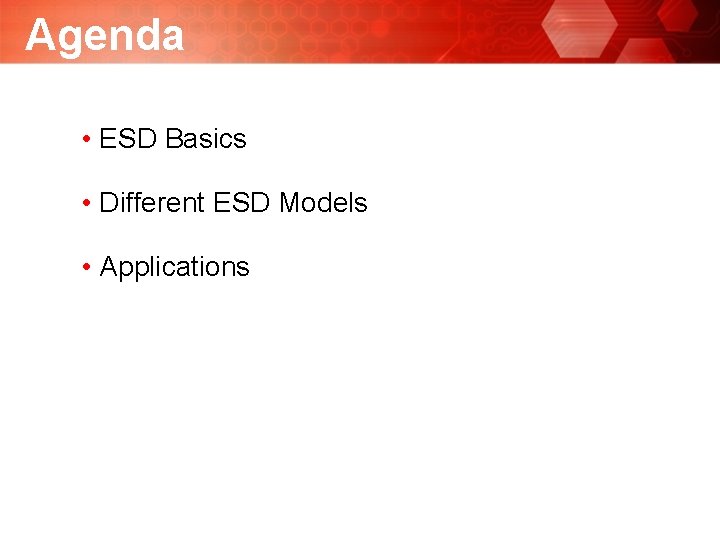

Agenda • ESD Basics • Different ESD Models • Applications

ESD Basics

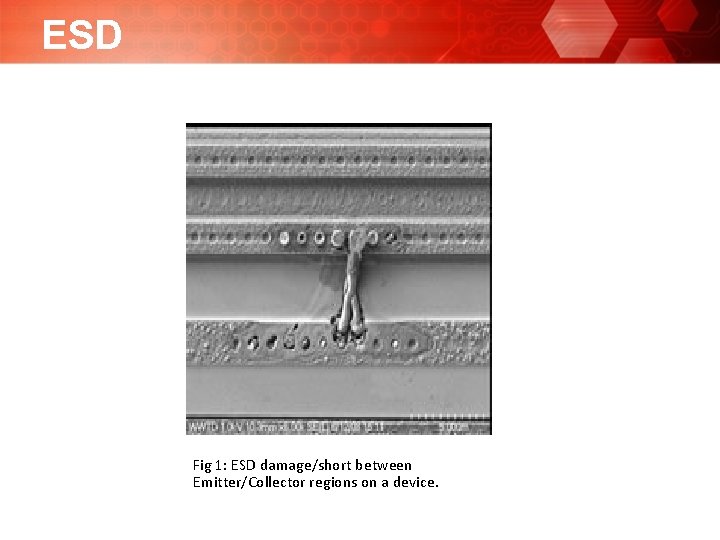

ESD Fig 1: ESD damage/short between Emitter/Collector regions on a device.

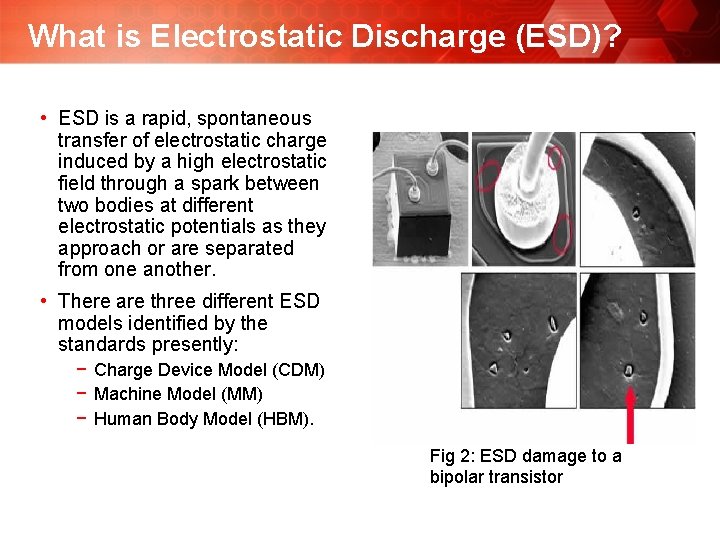

What is Electrostatic Discharge (ESD)? • ESD is a rapid, spontaneous transfer of electrostatic charge induced by a high electrostatic field through a spark between two bodies at different electrostatic potentials as they approach or are separated from one another. • There are three different ESD models identified by the standards presently: − Charge Device Model (CDM) − Machine Model (MM) − Human Body Model (HBM). Fig 2: ESD damage to a bipolar transistor

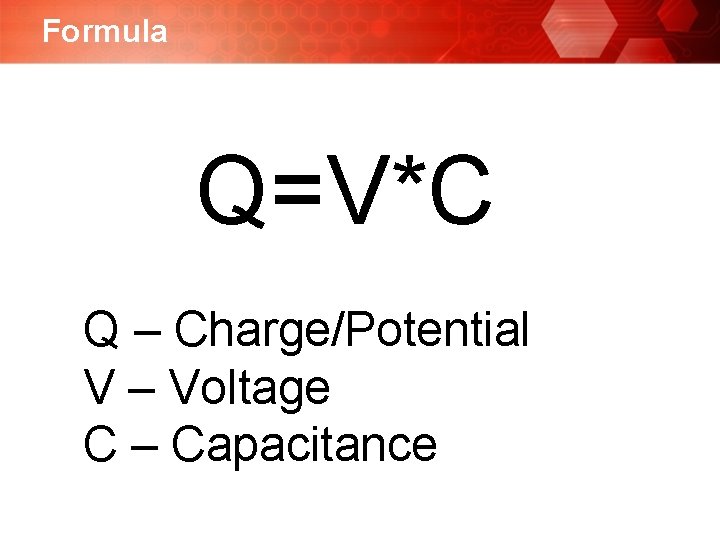

Formula Q=V*C Q – Charge/Potential V – Voltage C – Capacitance

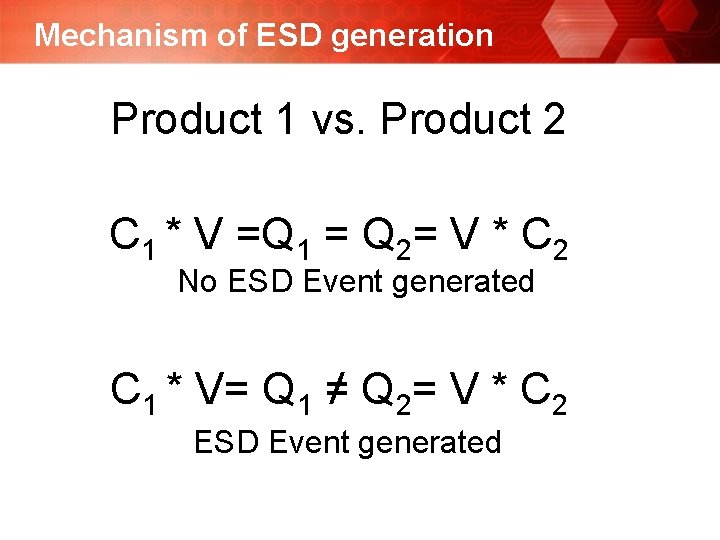

Mechanism of ESD generation Product 1 vs. Product 2 C 1 * V =Q 1 = Q 2= V * C 2 No ESD Event generated C 1 * V= Q 1 ≠ Q 2= V * C 2 ESD Event generated

ESD Models

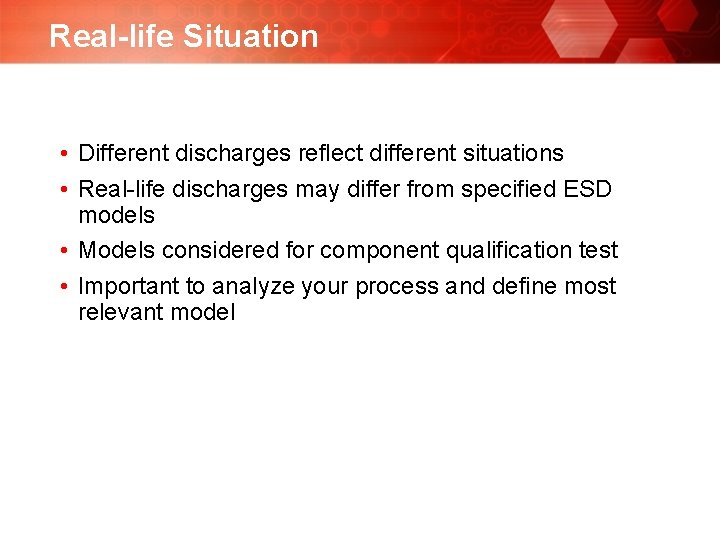

Real-life Situation • Different discharges reflect different situations • Real-life discharges may differ from specified ESD models • Models considered for component qualification test • Important to analyze your process and define most relevant model

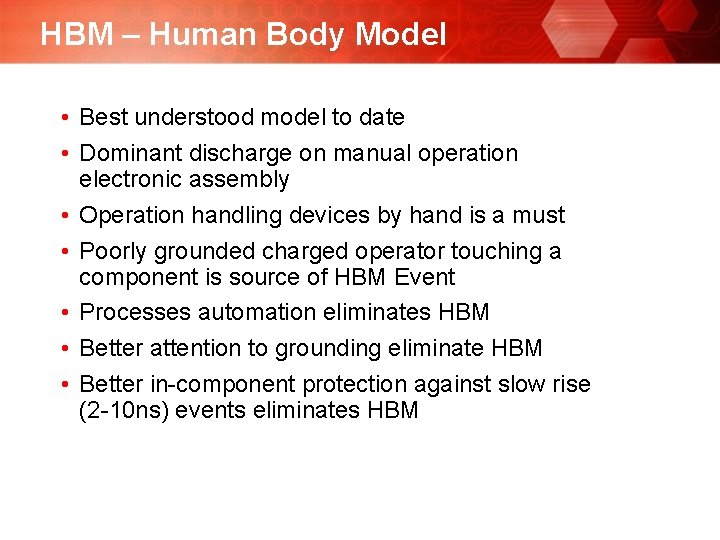

HBM – Human Body Model • Best understood model to date • Dominant discharge on manual operation electronic assembly • Operation handling devices by hand is a must • Poorly grounded charged operator touching a component is source of HBM Event • Processes automation eliminates HBM • Better attention to grounding eliminate HBM • Better in-component protection against slow rise (2 -10 ns) events eliminates HBM

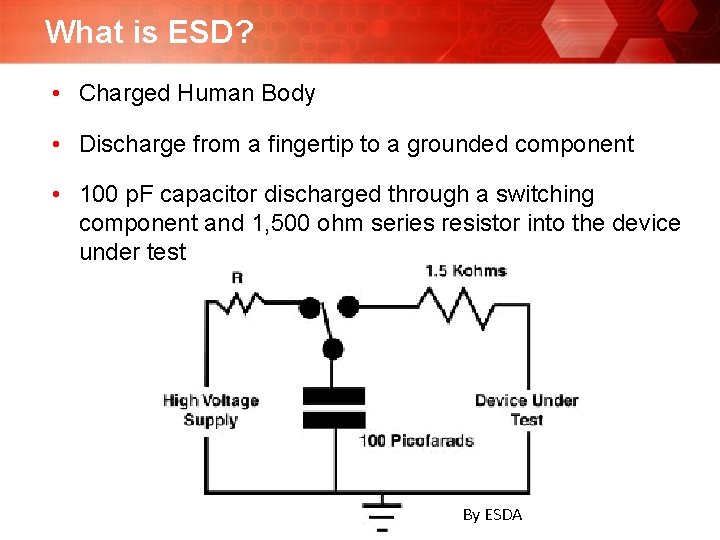

What is ESD? • Charged Human Body • Discharge from a fingertip to a grounded component • 100 p. F capacitor discharged through a switching component and 1, 500 ohm series resistor into the device under test By ESDA

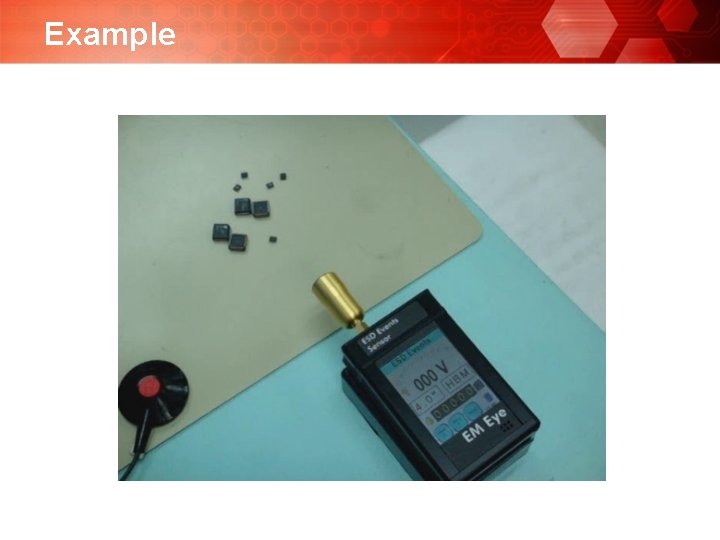

Example

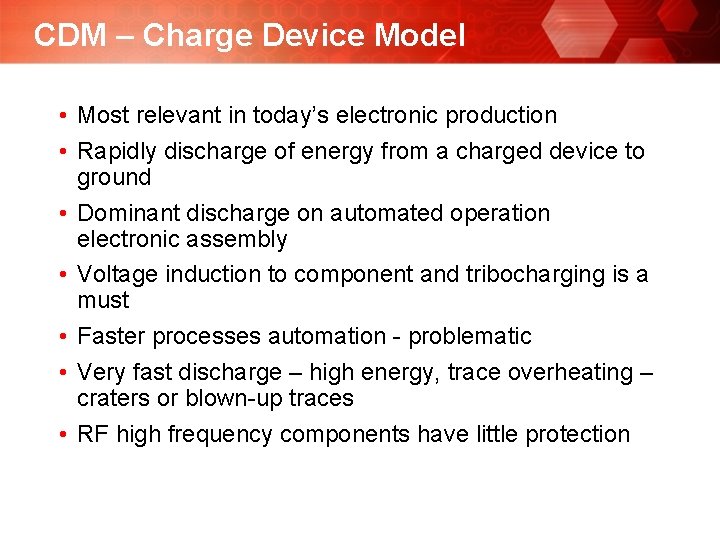

CDM – Charge Device Model • Most relevant in today’s electronic production • Rapidly discharge of energy from a charged device to ground • Dominant discharge on automated operation electronic assembly • Voltage induction to component and tribocharging is a must • Faster processes automation - problematic • Very fast discharge – high energy, trace overheating – craters or blown-up traces • RF high frequency components have little protection

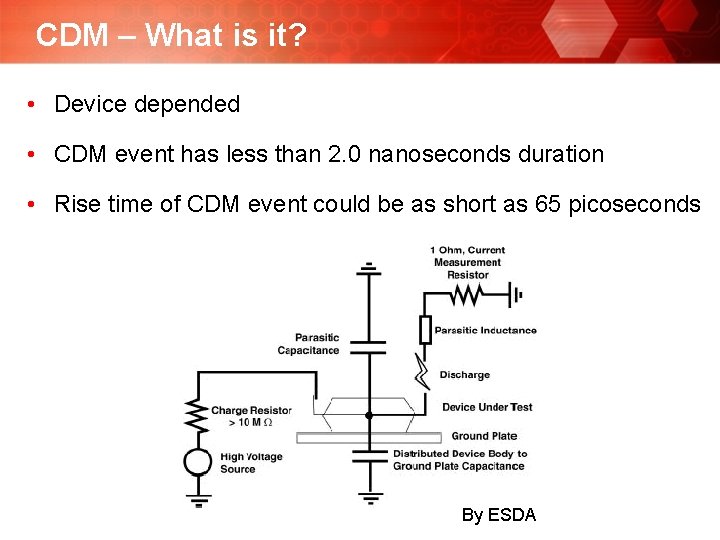

CDM – What is it? • Device depended • CDM event has less than 2. 0 nanoseconds duration • Rise time of CDM event could be as short as 65 picoseconds By ESDA

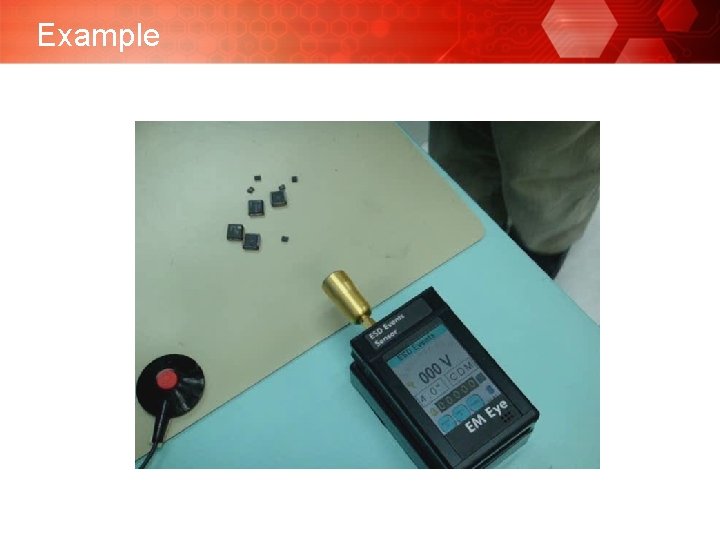

Example

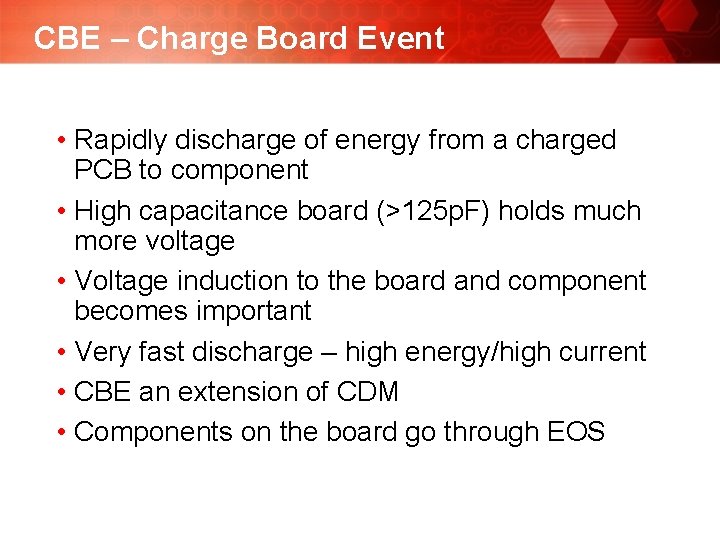

CBE – Charge Board Event • Rapidly discharge of energy from a charged PCB to component • High capacitance board (>125 p. F) holds much more voltage • Voltage induction to the board and component becomes important • Very fast discharge – high energy/high current • CBE an extension of CDM • Components on the board go through EOS

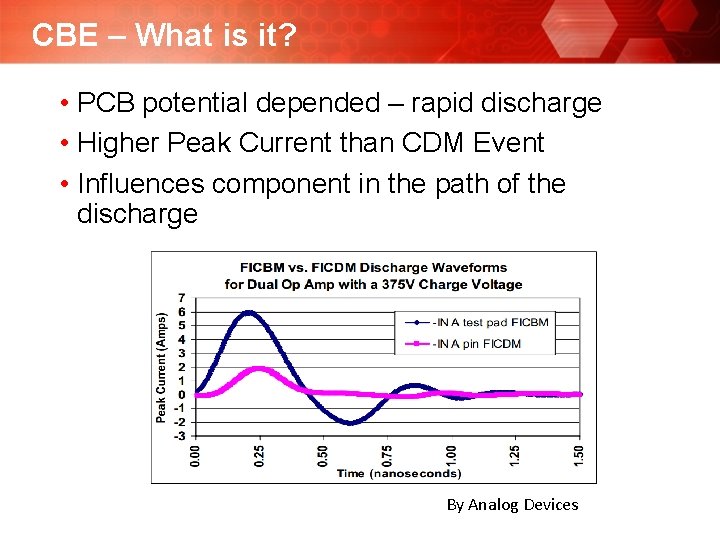

CBE – What is it? • PCB potential depended – rapid discharge • Higher Peak Current than CDM Event • Influences component in the path of the discharge By Analog Devices

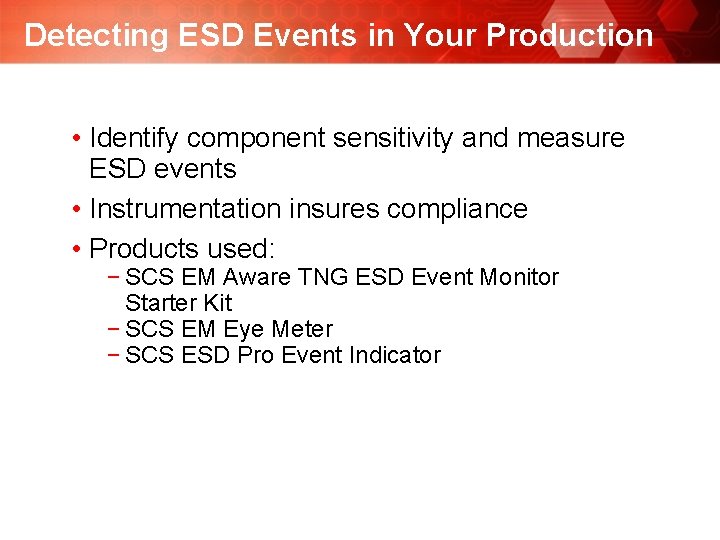

Detecting ESD Events in Your Production • Identify component sensitivity and measure ESD events • Instrumentation insures compliance • Products used: − SCS EM Aware TNG ESD Event Monitor Starter Kit − SCS EM Eye Meter − SCS ESD Pro Event Indicator

Applications

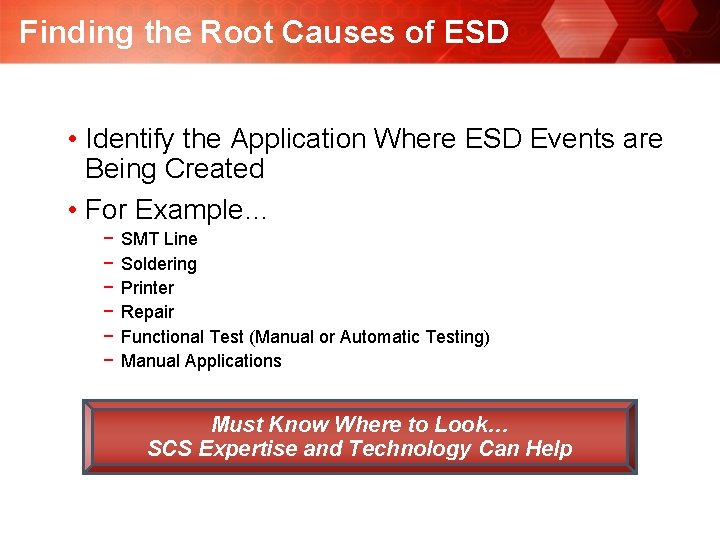

Finding the Root Causes of ESD • Identify the Application Where ESD Events are Being Created • For Example… − − − SMT Line Soldering Printer Repair Functional Test (Manual or Automatic Testing) Manual Applications Must Know Where to Look… SCS Expertise and Technology Can Help
