ERU WATSAN SPANISH RED CROSS Water Treatment Plant

ERU WATSAN SPANISH RED CROSS Water Treatment Plant SETA

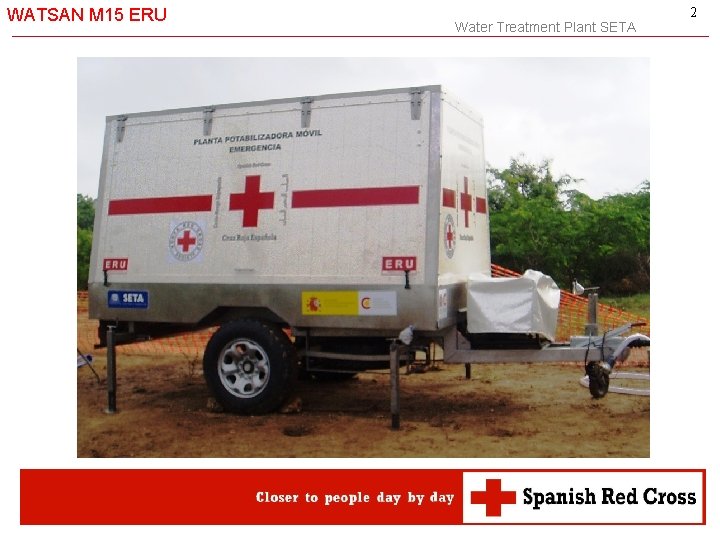

WATSAN M 15 ERU Water Treatment Plant SETA 2

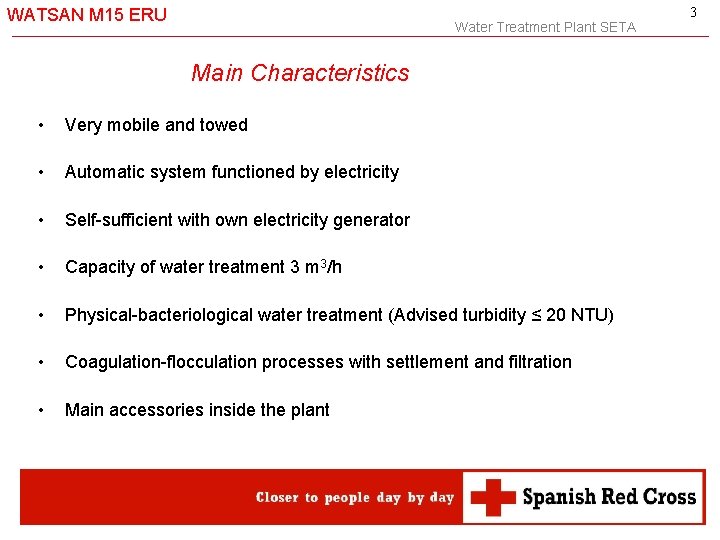

WATSAN M 15 ERU Water Treatment Plant SETA Main Characteristics • Very mobile and towed • Automatic system functioned by electricity • Self-sufficient with own electricity generator • Capacity of water treatment 3 m 3/h • Physical-bacteriological water treatment (Advised turbidity ≤ 20 NTU) • Coagulation-flocculation processes with settlement and filtration • Main accessories inside the plant 3

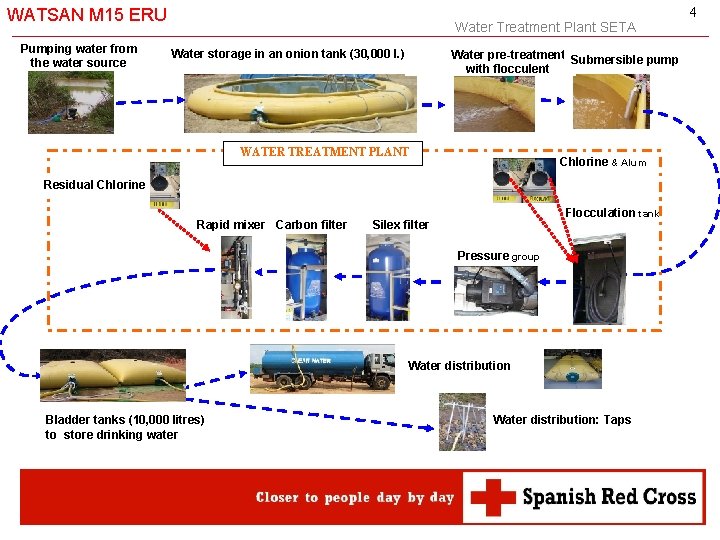

WATSAN M 15 ERU Pumping water from the water source Water Treatment Plant SETA Water storage in an onion tank (30, 000 l. ) Water pre-treatment Submersible pump with flocculent WATER TREATMENT PLANT Chlorine & Alum Residual Chlorine Rapid mixer Carbon filter Flocculation tank Silex filter Pressure group Water distribution Bladder tanks (10, 000 litres) to store drinking water Water distribution: Taps 4

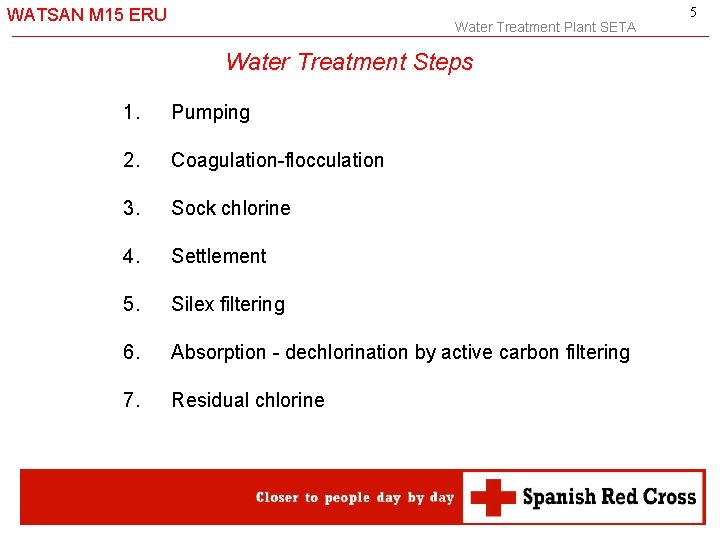

WATSAN M 15 ERU Water Treatment Plant SETA Water Treatment Steps 1. Pumping 2. Coagulation-flocculation 3. Sock chlorine 4. Settlement 5. Silex filtering 6. Absorption - dechlorination by active carbon filtering 7. Residual chlorine 5

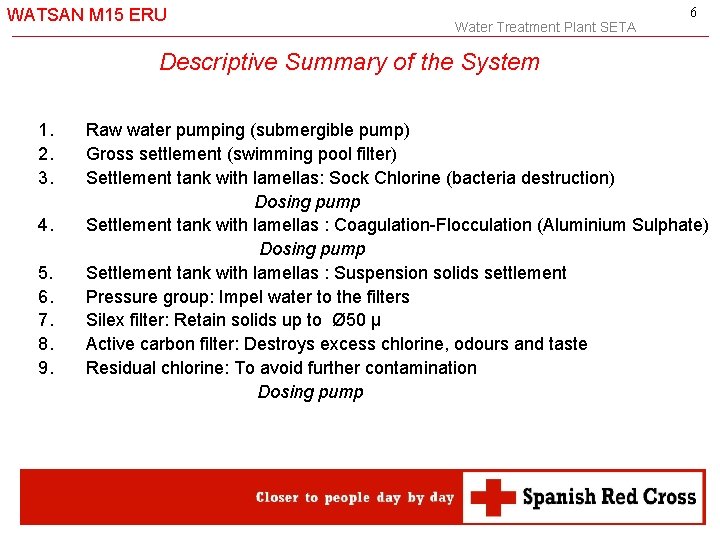

WATSAN M 15 ERU Water Treatment Plant SETA 6 Descriptive Summary of the System 1. 2. 3. 4. 5. 6. 7. 8. 9. Raw water pumping (submergible pump) Gross settlement (swimming pool filter) Settlement tank with lamellas: Sock Chlorine (bacteria destruction) Dosing pump Settlement tank with lamellas : Coagulation-Flocculation (Aluminium Sulphate) Dosing pump Settlement tank with lamellas : Suspension solids settlement Pressure group: Impel water to the filters Silex filter: Retain solids up to Ø 50 µ Active carbon filter: Destroys excess chlorine, odours and taste Residual chlorine: To avoid further contamination Dosing pump

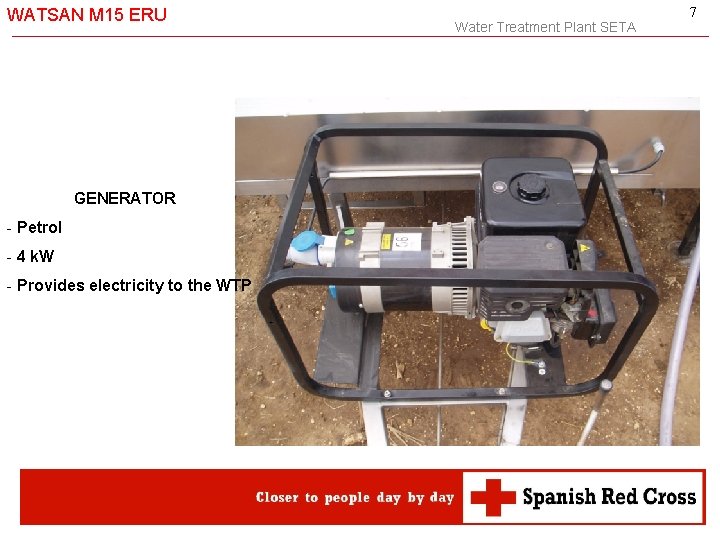

WATSAN M 15 ERU GENERATOR - Petrol - 4 k. W - Provides electricity to the WTP Water Treatment Plant SETA 7

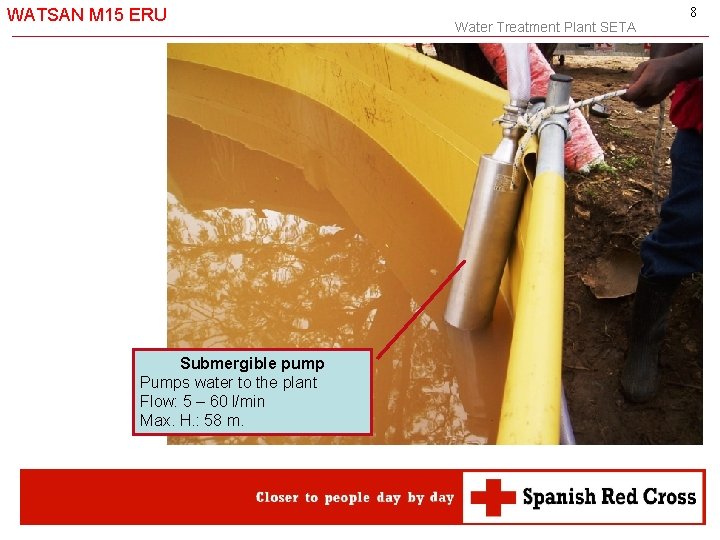

WATSAN M 15 ERU Submergible pump Pumps water to the plant Flow: 5 – 60 l/min Max. H. : 58 m. Water Treatment Plant SETA 8

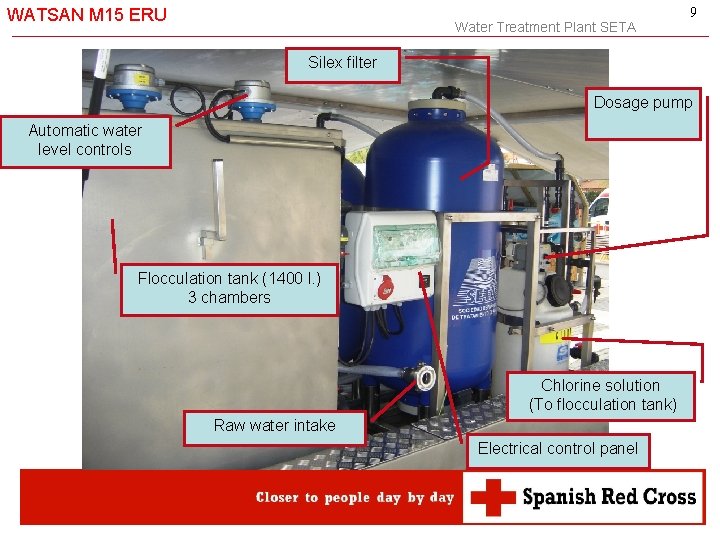

WATSAN M 15 ERU Water Treatment Plant SETA 9 Silex filter Dosage pump Automatic water level controls Flocculation tank (1400 l. ) 3 chambers Chlorine solution (To flocculation tank) Raw water intake Electrical control panel

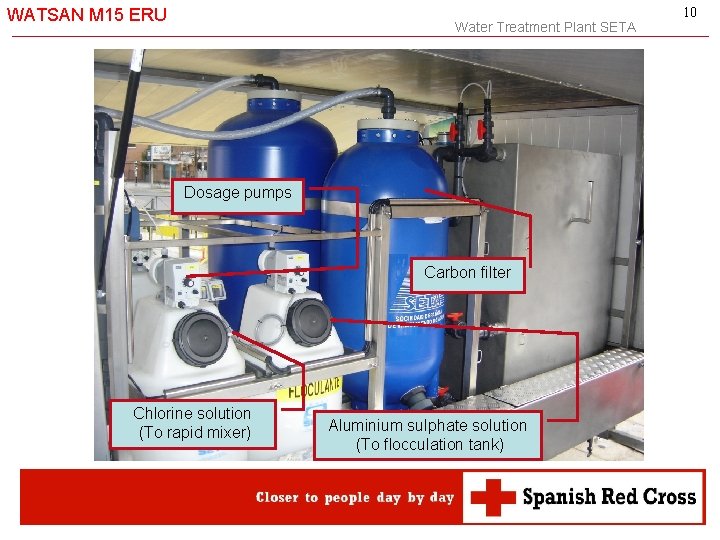

WATSAN M 15 ERU Water Treatment Plant SETA Dosage pumps Carbon filter Chlorine solution (To rapid mixer) Aluminium sulphate solution (To flocculation tank) 10

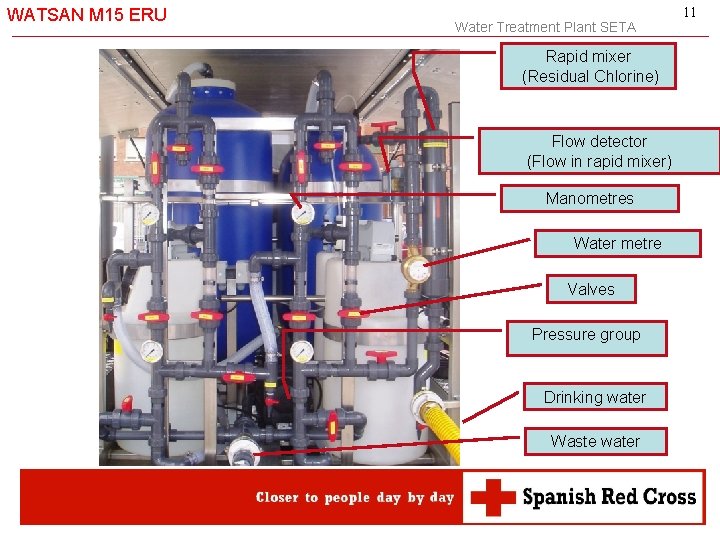

WATSAN M 15 ERU Water Treatment Plant SETA Rapid mixer (Residual Chlorine) Flow detector (Flow in rapid mixer) Manometres Water metre Valves Pressure group Drinking water Waste water 11

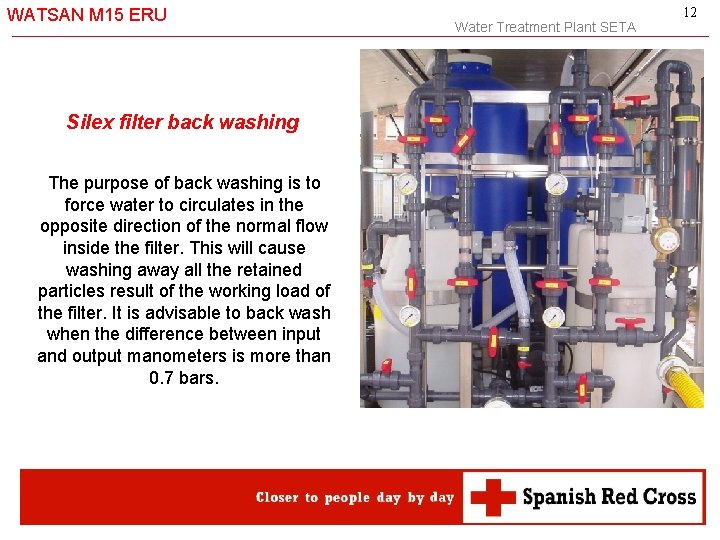

WATSAN M 15 ERU Silex filter back washing The purpose of back washing is to force water to circulates in the opposite direction of the normal flow inside the filter. This will cause washing away all the retained particles result of the working load of the filter. It is advisable to back wash when the difference between input and output manometers is more than 0. 7 bars. Water Treatment Plant SETA 12

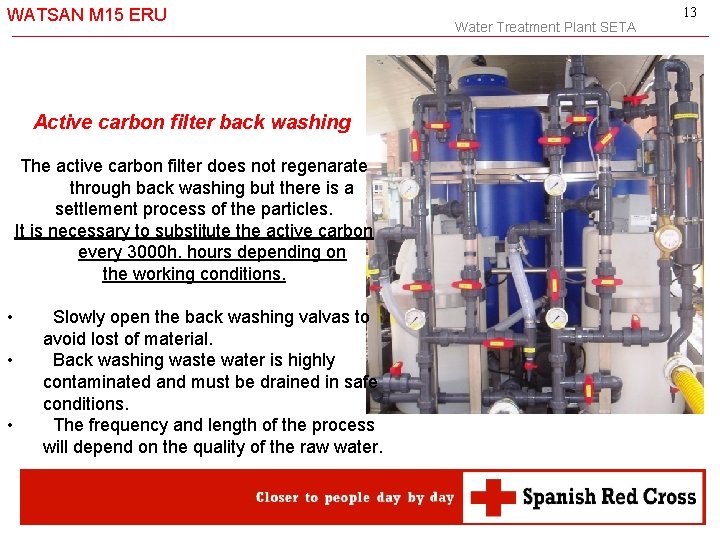

WATSAN M 15 ERU Active carbon filter back washing The active carbon filter does not regenarate through back washing but there is a settlement process of the particles. It is necessary to substitute the active carbon every 3000 h. hours depending on the working conditions. • • • Slowly open the back washing valvas to avoid lost of material. Back washing waste water is highly contaminated and must be drained in safe conditions. The frequency and length of the process will depend on the quality of the raw water. Water Treatment Plant SETA 13

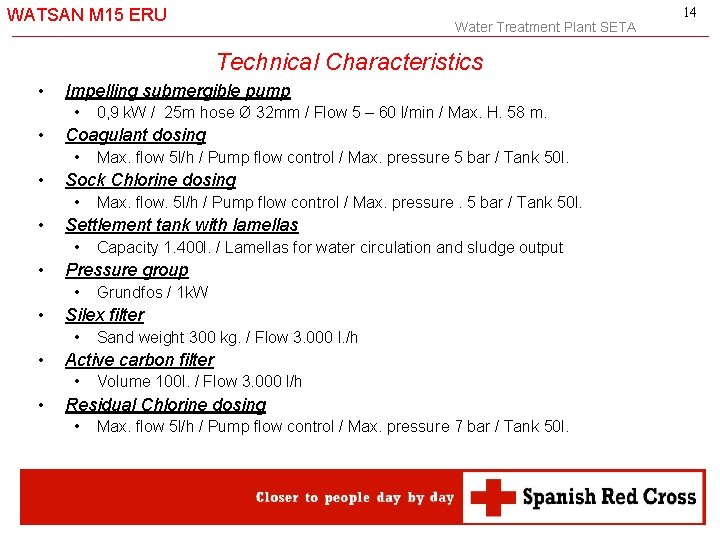

WATSAN M 15 ERU Water Treatment Plant SETA Technical Characteristics • Impelling submergible pump • • Coagulant dosing • • Sand weight 300 kg. / Flow 3. 000 l. /h Active carbon filter • • Grundfos / 1 k. W Silex filter • • Capacity 1. 400 l. / Lamellas for water circulation and sludge output Pressure group • • Max. flow. 5 l/h / Pump flow control / Max. pressure. 5 bar / Tank 50 l. Settlement tank with lamellas • • Max. flow 5 l/h / Pump flow control / Max. pressure 5 bar / Tank 50 l. Sock Chlorine dosing • • 0, 9 k. W / 25 m hose Ø 32 mm / Flow 5 – 60 l/min / Max. H. 58 m. Volume 100 l. / Flow 3. 000 l/h Residual Chlorine dosing • Max. flow 5 l/h / Pump flow control / Max. pressure 7 bar / Tank 50 l. 14

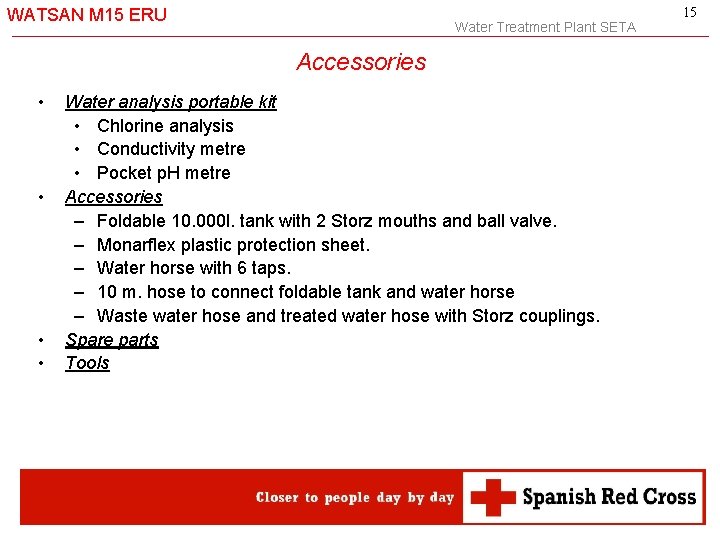

WATSAN M 15 ERU Water Treatment Plant SETA Accessories • • Water analysis portable kit • Chlorine analysis • Conductivity metre • Pocket p. H metre Accessories – Foldable 10. 000 l. tank with 2 Storz mouths and ball valve. – Monarflex plastic protection sheet. – Water horse with 6 taps. – 10 m. hose to connect foldable tank and water horse – Waste water hose and treated water hose with Storz couplings. Spare parts Tools 15

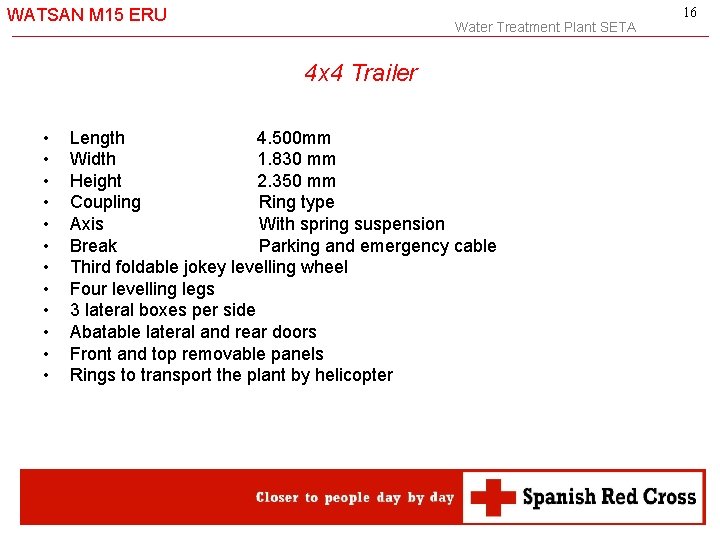

WATSAN M 15 ERU Water Treatment Plant SETA 4 x 4 Trailer • • • Length 4. 500 mm Width 1. 830 mm Height 2. 350 mm Coupling Ring type Axis With spring suspension Break Parking and emergency cable Third foldable jokey levelling wheel Four levelling legs 3 lateral boxes per side Abatable lateral and rear doors Front and top removable panels Rings to transport the plant by helicopter 16

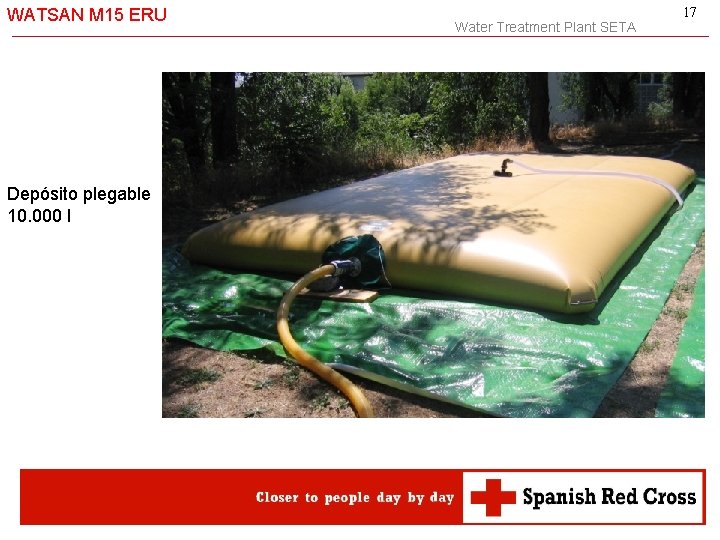

WATSAN M 15 ERU Depósito plegable 10. 000 l Water Treatment Plant SETA 17

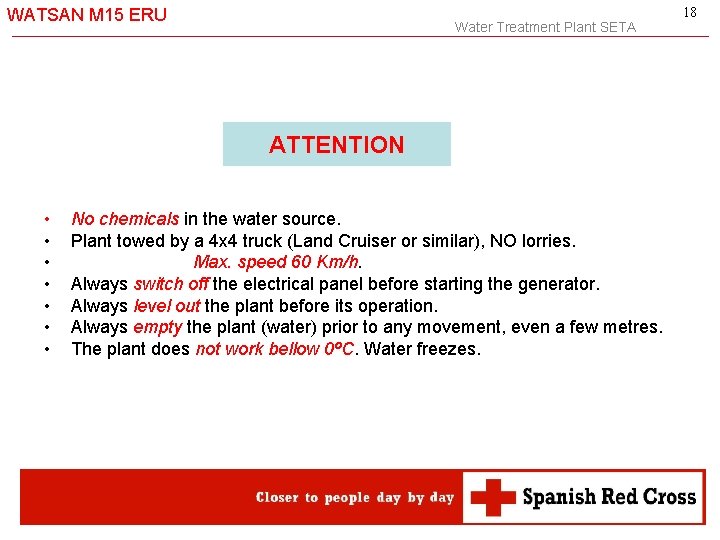

WATSAN M 15 ERU Water Treatment Plant SETA ATTENTION • • No chemicals in the water source. Plant towed by a 4 x 4 truck (Land Cruiser or similar), NO lorries. Max. speed 60 Km/h. Always switch off the electrical panel before starting the generator. Always level out the plant before its operation. Always empty the plant (water) prior to any movement, even a few metres. The plant does not work bellow 0ºC. Water freezes. 18

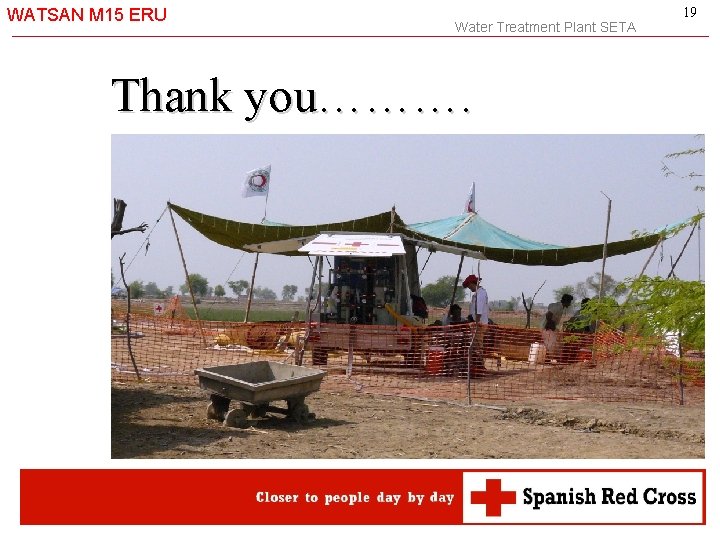

WATSAN M 15 ERU Water Treatment Plant SETA Thank you………. 19
