ERU WATSAN MOD 15 SETA plant Generator maintenance

ERU WATSAN MOD. 15 SETA plant Generator maintenance

WATSAN M 15 ERU Contents 1. Overview 2. Petrol 3. Air filter change 4. Oil change 5. Spark plug change SETA plant generator maintenance 2

WATSAN M 15 ERU 1. Overview SETA plant generator maintenance

Petrol level indicator Petrol tank Generator Main connection Auxiliary connection Engine Petrol sediment cup Air filter

WATSAN M 15 ERU SETA plant generator maintenance Manufacturer……………Gesan Model…………………G-5000 LWA 99 or similar Fuel…………………Petrol Revolutions per minute………………. . 3, 000 rpm Voltage………………. . 220 V monophase Engine power……………. 9 HP Refrigeration……………. . By air Petrol tank………………. . 6. 5 litres

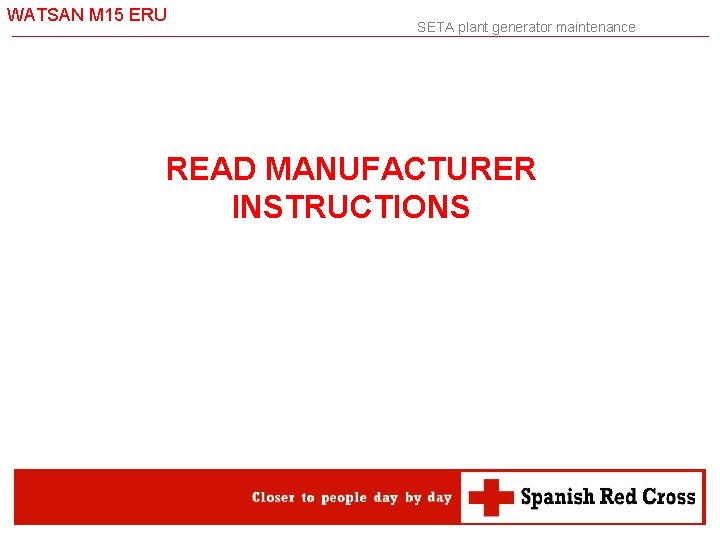

WATSAN M 15 ERU SETA plant generator maintenance READ MANUFACTURER INSTRUCTIONS

WATSAN M 15 ERU Manual start-up SETA plant generator maintenance

WATSAN M 15 ERU Starter Turtle position SETA plant generator maintenance

WATSAN M 15 ERU Stopping the engine SETA plant generator maintenance

Maintenance programme

WATSAN M 15 ERU 2. Petrol SETA plant generator maintenance

WATSAN M 15 ERU Petrol filter cleaning SETA plant generator maintenance

WATSAN M 15 ERU SETA plant generator maintenance Sedimentation cup cleaning (1) Petrol key closed

WATSAN M 15 ERU Sedimentation cup cleaning (2) SETA plant generator maintenance Filter emptying

WATSAN M 15 ERU SETA plant generator maintenance Sedimentation cup cleaning (3) Lower nut opening

WATSAN M 15 ERU SETA plant generator maintenance Sedimentation cup cleaning (4) Taking out the cup

WATSAN M 15 ERU Sedimentation cup cleaning (5) SETA plant generator maintenance

WATSAN M 15 ERU 3. Air filter change SETA plant generator maintenance

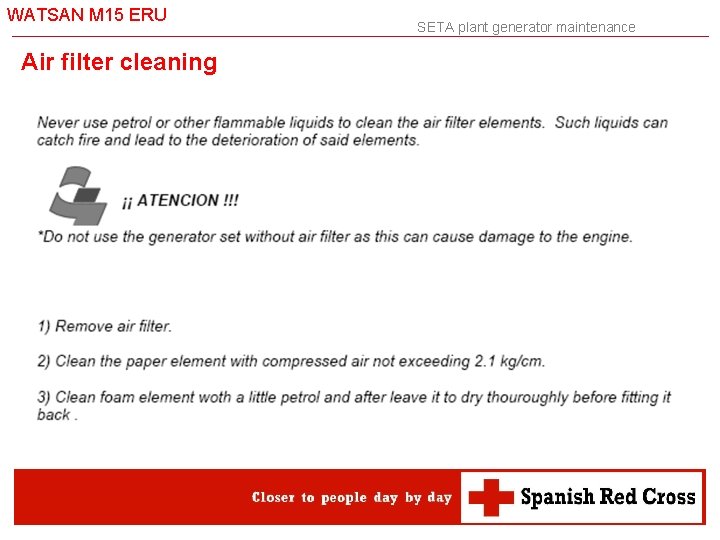

WATSAN M 15 ERU Air filter cleaning SETA plant generator maintenance

WATSAN M 15 ERU Air filter cleaning (1) Air filter SETA plant generator maintenance

WATSAN M 15 ERU Air filter cleaning (2) Paper element SETA plant generator maintenance

WATSAN M 15 ERU Air filter cleaning (3) Paper element SETA plant generator maintenance

WATSAN M 15 ERU Air filter cleaning (4) Foam element SETA plant generator maintenance

WATSAN M 15 ERU SETA plant generator maintenance Air filter cleaning (5) Foam element

WATSAN M 15 ERU 4. Oil change SETA plant generator maintenance

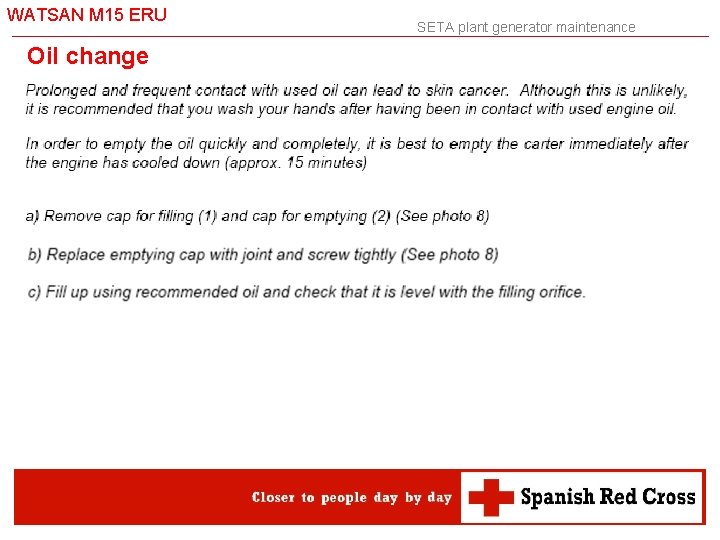

WATSAN M 15 ERU Oil change SETA plant generator maintenance

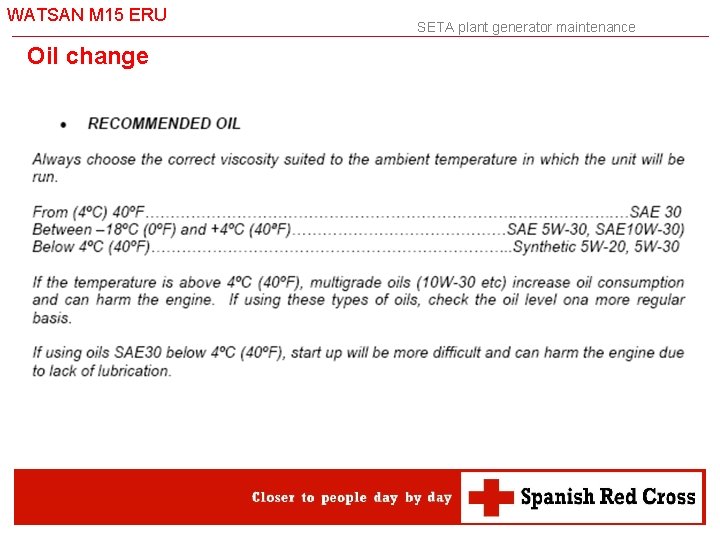

WATSAN M 15 ERU Oil change SETA plant generator maintenance

WATSAN M 15 ERU Checking oil level SETA plant generator maintenance

WATSAN M 15 ERU Oil change SETA plant generator maintenance

WATSAN M 15 ERU SETA plant generator maintenance 5. Spark plug change

WATSAN M 15 ERU Spark plug cleaning (1) SETA plant generator maintenance

WATSAN M 15 ERU Spark plug change (1) SETA plant generator maintenance

WATSAN M 15 ERU Spark plug change (2) SETA plant generator maintenance

WATSAN M 15 ERU Spark plug change (3) SETA plant generator maintenance

WATSAN M 15 ERU Spark plug change (4) SETA plant generator maintenance

WATSAN M 15 ERU SETA plant generator maintenance Gracias……….
