Errors in Physical Measurements Error definitions Measurement distributions
Errors in Physical Measurements Error definitions Measurement distributions Central measures Physics 310
Errors are uncertainties. . . Every physical measurement has an uncertainty, i. e. , it has an error. FRandom uncertainties (errors) þ Can be reduced but not eliminated. þ No measurement is infinitely precise. þ Determines the precision of the data. FSystematic uncertainties (errors) þ Can be reduced and eliminated þ Produces systematic shifts in the data þ Determines the accuracy of the data. Physics 310

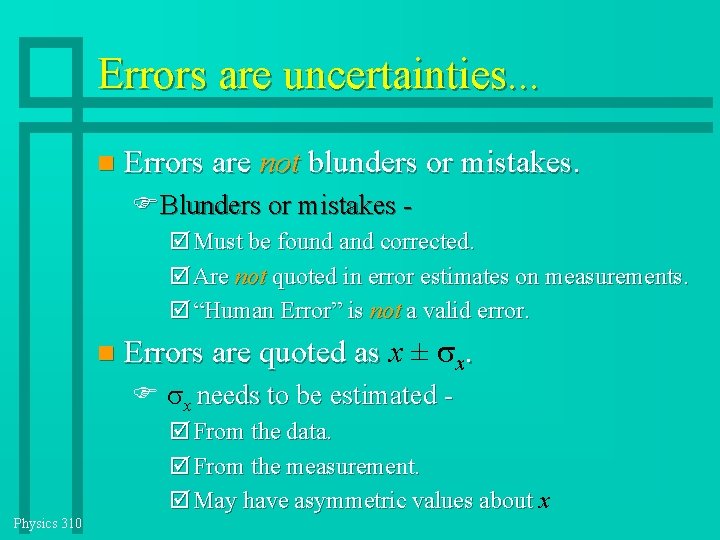

Errors are uncertainties. . . Errors are not blunders or mistakes. FBlunders or mistakes þ Must be found and corrected. þ Are not quoted in error estimates on measurements. þ “Human Error” is not a valid error. Errors are quoted as x ± sx. F sx needs to be estimated þ From the data. þ From the measurement. þ May have asymmetric values about x Physics 310

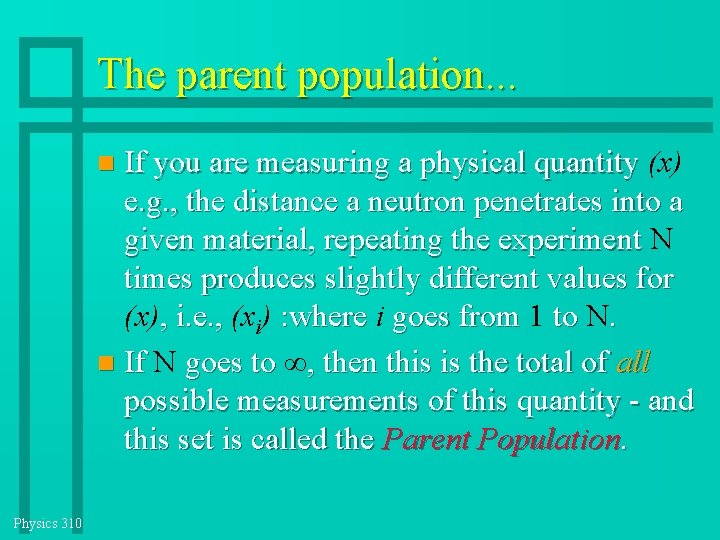

The parent population. . . If you are measuring a physical quantity (x) e. g. , the distance a neutron penetrates into a given material, repeating the experiment N times produces slightly different values for (x), i. e. , (xi) : where i goes from 1 to N. If N goes to ∞, then this is the total of all possible measurements of this quantity - and this set is called the Parent Population. Physics 310

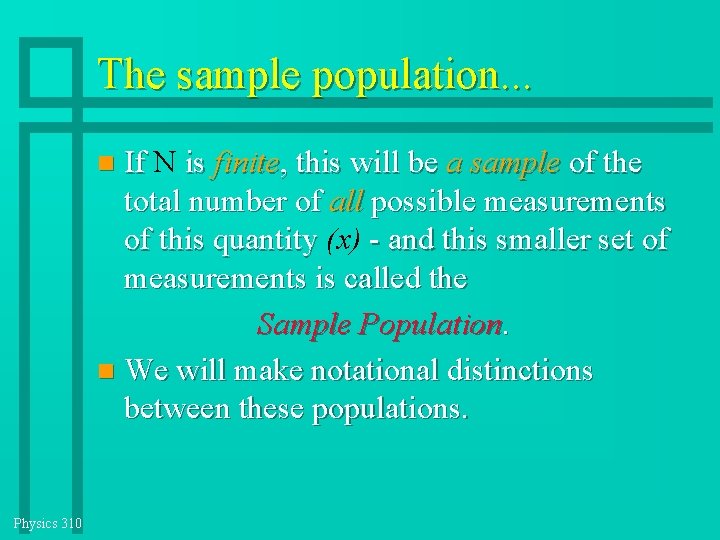

The sample population. . . If N is finite, this will be a sample of the total number of all possible measurements of this quantity (x) - and this smaller set of measurements is called the Sample Population. We will make notational distinctions between these populations. Physics 310

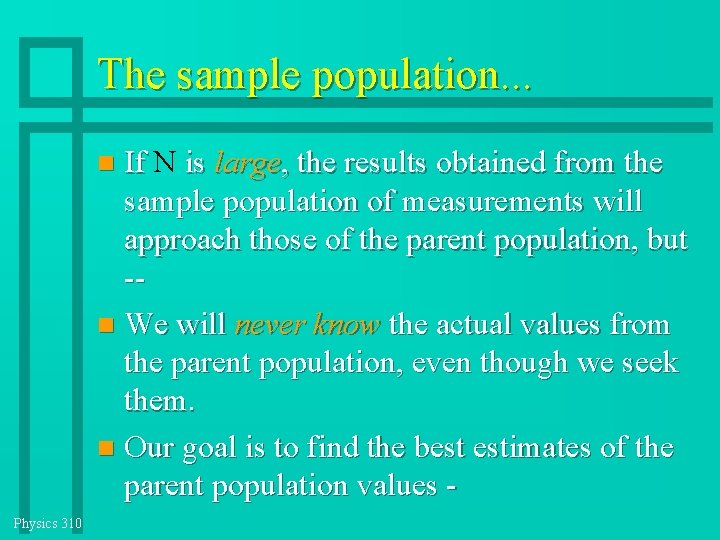

The sample population. . . If N is large, the results obtained from the sample population of measurements will approach those of the parent population, but - We will never know the actual values from the parent population, even though we seek them. Our goal is to find the best estimates of the parent population values Physics 310

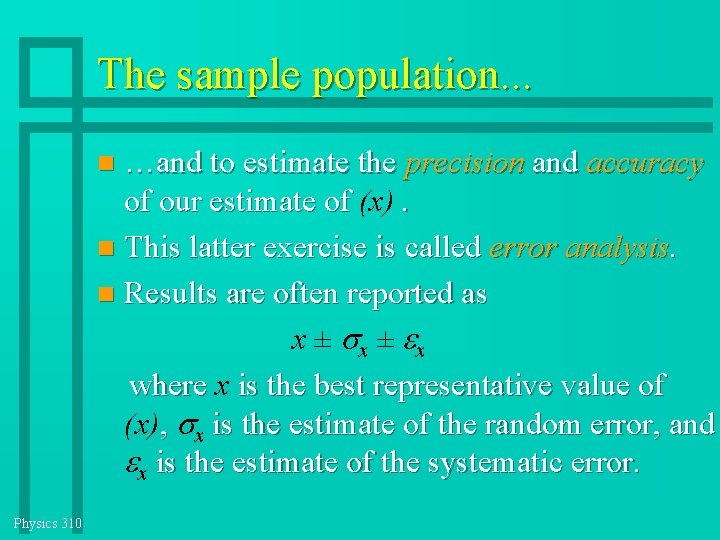

The sample population. . . …and to estimate the precision and accuracy of our estimate of (x). This latter exercise is called error analysis. Results are often reported as x ± sx ± e x where x is the best representative value of (x), sx is the estimate of the random error, and ex is the estimate of the systematic error. Physics 310

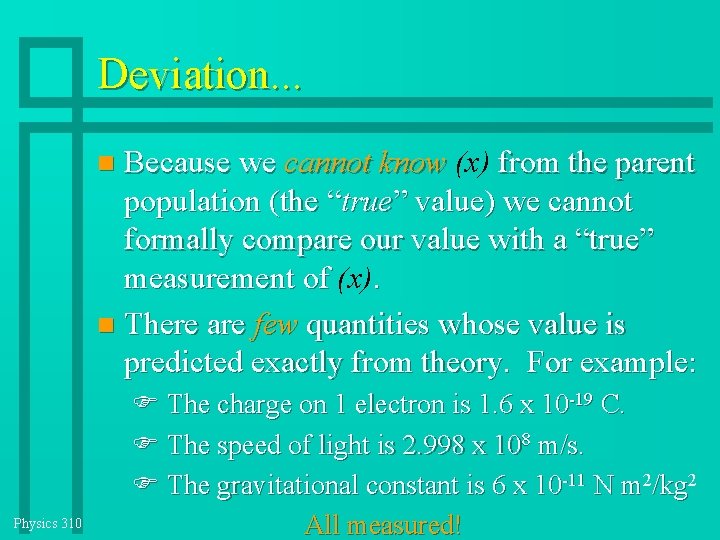

Deviation. . . Because we cannot know (x) from the parent population (the “true” value) we cannot formally compare our value with a “true” measurement of (x). There are few quantities whose value is predicted exactly from theory. For example: Physics 310 F The charge on 1 electron is 1. 6 x 10 -19 C. F The speed of light is 2. 998 x 108 m/s. F The gravitational constant is 6 x 10 -11 N m 2/kg 2 All measured!

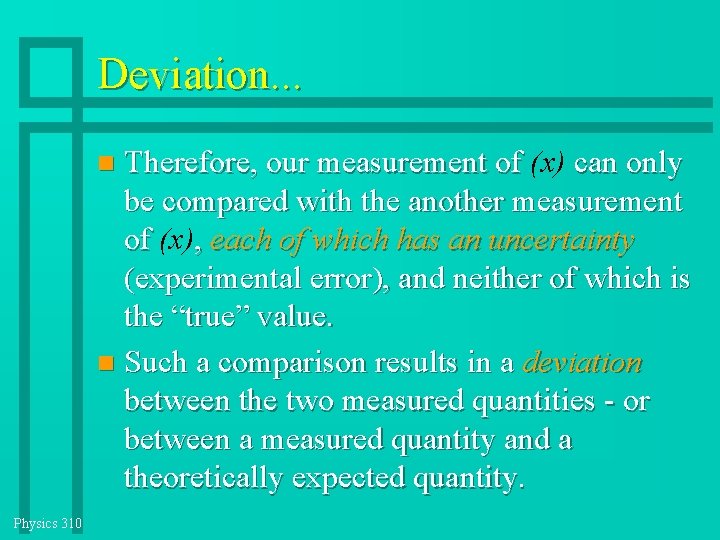

Deviation. . . Therefore, our measurement of (x) can only be compared with the another measurement of (x), each of which has an uncertainty (experimental error), and neither of which is the “true” value. Such a comparison results in a deviation between the two measured quantities - or between a measured quantity and a theoretically expected quantity. Physics 310

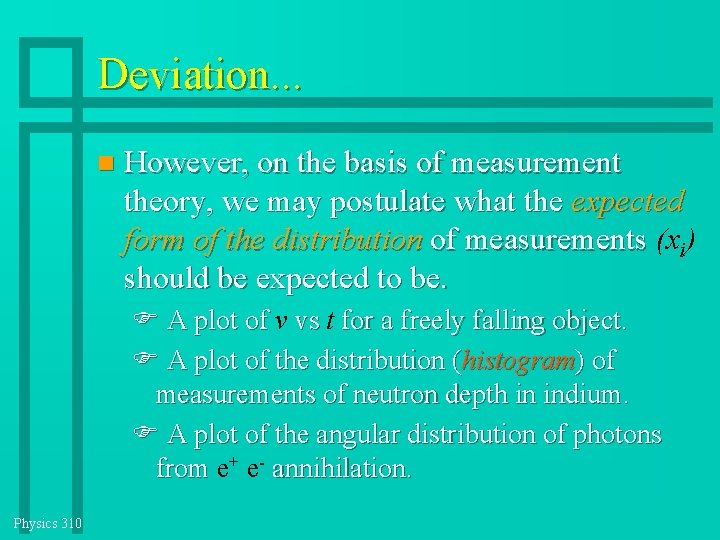

Deviation. . . However, on the basis of measurement theory, we may postulate what the expected form of the distribution of measurements (xi) should be expected to be. F A plot of v vs t for a freely falling object. F A plot of the distribution (histogram) of measurements of neutron depth in indium. F A plot of the angular distribution of photons from e+ e- annihilation. Physics 310

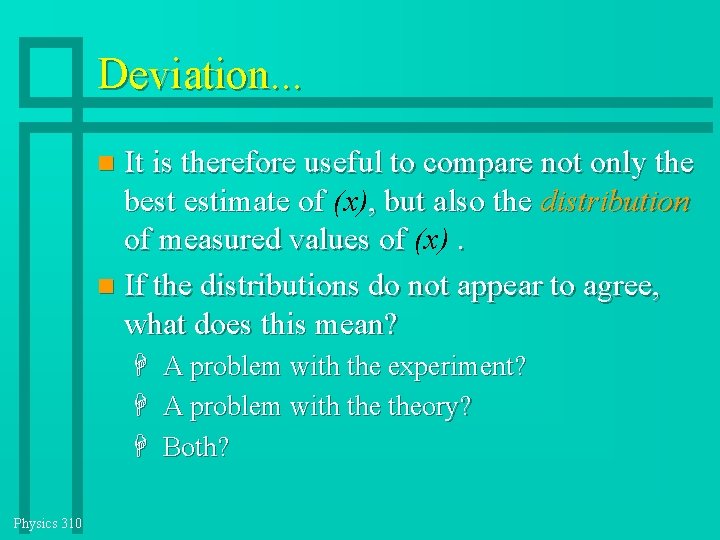

Deviation. . . It is therefore useful to compare not only the best estimate of (x), but also the distribution of measured values of (x). If the distributions do not appear to agree, what does this mean? H H H Physics 310 A problem with the experiment? A problem with theory? Both?
Quantitative representations. . . Given a set of N measurements, what are quantitative ways of expressing results? F The mean, F The deviation, F The variance, F The standard deviation m = <x> d = (x - <x>) s 2 = <(x - <x>)2> s = √<(x - <x>)2> Each quantity has physical units! Don’t forget to include them! Know how to compute each. Physics 310
Computatons: the mean Physics 310 _ The sample mean is defined as: _ The parent population mean is then:
Computatons: the deviation Physics 310 _ The sample deviation is defined as: _ The parent population deviation is then:
Computatons: the variance Physics 310 _ The sample variance is defined as: _ The parent population variance is then:
. . . the standard deviation Physics 310 _ The sample standard deviation is defined as: _ The parent population standard deviation is then:
Distributions. . . Take a set of N measurements. Form a histogram of the measurements. (This gives the distribution of the measurements. ) F This gives the number of measurements of between x and x + Dx as nj, j = 1, k where k is the total number of bins. (Dx is the fixed bin width. ) F Now, with this you can estimate m and s because nj represents a distribution function for the measurements xi. How do you do it? Physics 310
Distributions. . . Physics 310 The mean and standard deviation from a distribution are:

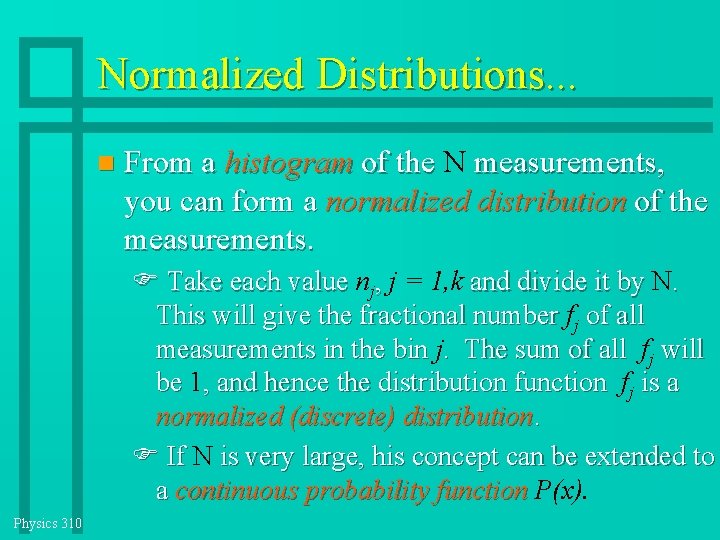

Normalized Distributions. . . From a histogram of the N measurements, you can form a normalized distribution of the measurements. F Take each value nj, j = 1, k and divide it by N. This will give the fractional number fj of all measurements in the bin j. The sum of all fj will be 1, and hence the distribution function fj is a normalized (discrete) distribution. F If N is very large, his concept can be extended to a continuous probability function P(x). Physics 310
Normalized distributions. . . Physics 310 The mean and standard deviation from a normalized discrete distribution are:
Normalized distributions. . . Physics 310 The mean and standard deviation from a continuous distribution are:
Normalized distributions. . . Physics 310 The denominator is just:
Normalized distributions. . . Physics 310 The standard deviation is then:
Normalized distributions. . . Physics 310 …or in terms of a probability function P(x):
Normalized distributions. . . Physics 310 Or for any function:
