B-PRO 4000 Bus Protection Relay 50 8 1 nt 6 IEC plia m Co 3

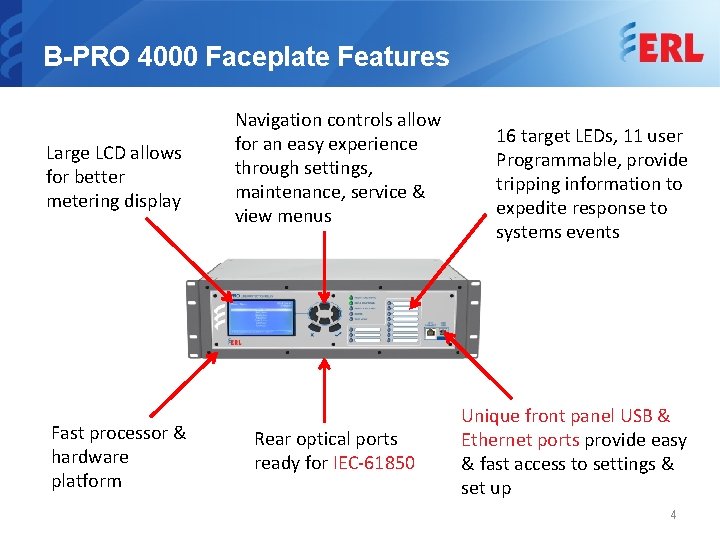

B-PRO 4000 Faceplate Features Large LCD allows for better metering display Fast processor & hardware platform Navigation controls allow for an easy experience through settings, maintenance, service & view menus Rear optical ports ready for IEC-61850 16 target LEDs, 11 user Programmable, provide tripping information to expedite response to systems events Unique front panel USB & Ethernet ports provide easy & fast access to settings & set up 4

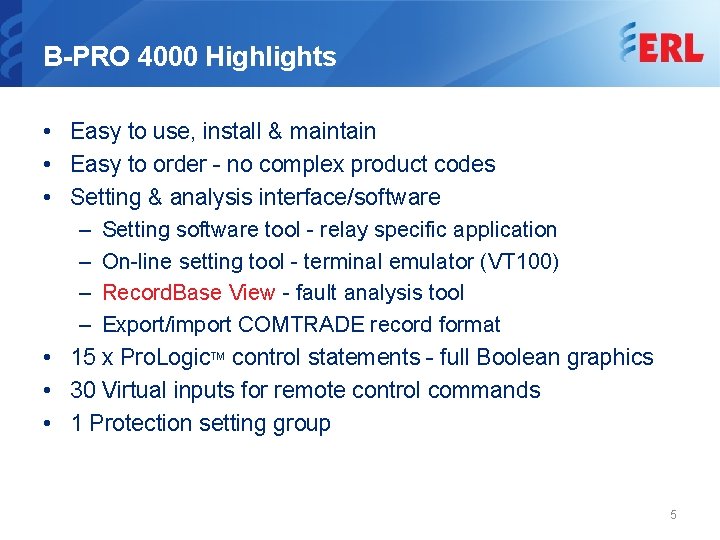

B-PRO 4000 Highlights • Easy to use, install & maintain • Easy to order - no complex product codes • Setting & analysis interface/software – Setting software tool - relay specific application – On-line setting tool - terminal emulator (VT 100) – Record. Base View - fault analysis tool – Export/import COMTRADE record format • 15 x Pro. Logic. TM control statements - full Boolean graphics • 30 Virtual inputs for remote control commands • 1 Protection setting group 5

B-PRO 4000 Highlights • Common Hardware Platform – Common look & feel across all products – Ambient temperature range: -40°C to 85°C for 16 hours & – – – – -40°C to 70°C continuous Advanced DSP & processor Wide range power supply (43 – 275 Vdc, 90 – 265 Vac) 48 -125 VDC or 125 -250 VDC contact wetting SCADA protocols(DNP 3. 0, Modbus, IEC 61850 Station Bus) Flash memory Watch-dog self checking diagnostics Analog & digital I/O - Electrical isolation, transient & surge withstand, RFI immunity Sampling rate: 96 samples/cycle 6

B-PRO 4000 Highlights Interface & Communications • Front panel – 240 x 128 graphics LCD – Panel indicator with 16 LEDs, 11 user programmable – Only relay in the market with both USB & RJ-45 100 BASETX Ethernet ports • Rear panel – Ethernet ports with 2 unique MAC addresses – 2 Fiber/Copper Ethernet • Copper: RJ-45, 100 BASE-TX • Fiber: 100 BASE-FX, 1300 µm Multimode, ST style connector – 2 x RS 232 ports – Modem: 33. 6 Kbps, V. 32 bis – IRIG-B, BNC style connector 7

B-PRO 4000 Highlights Recording • Transient recording – 96 samples/cycle – User configurable with a range 0. 2 to 2 seconds – User configurable pre-trigger range 0. 10 to 0. 5 seconds – With automatic extension to capture successive triggers – Capacity of up to 75 x 2 second records • Dynamic swing recording (1 sample/cycle) – 1 samples/cycle or 60 samples/second. Each swing record can extend to 2 minutes in duration – Capacity: up to 150 x 2 minute swing records – Pre-trigger set to 30 seconds • Relay maintains log of events in 250 entry circular log 8

B-PRO 4000 Highlights – Software 9

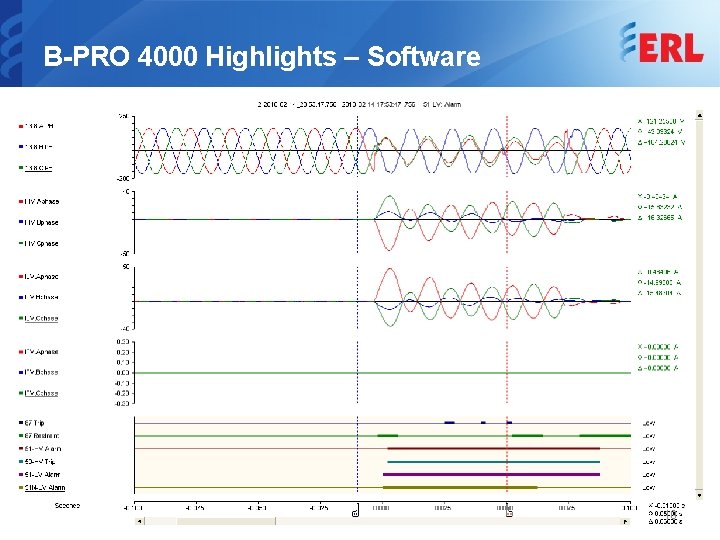

B-PRO 4000 Highlights – Software 10

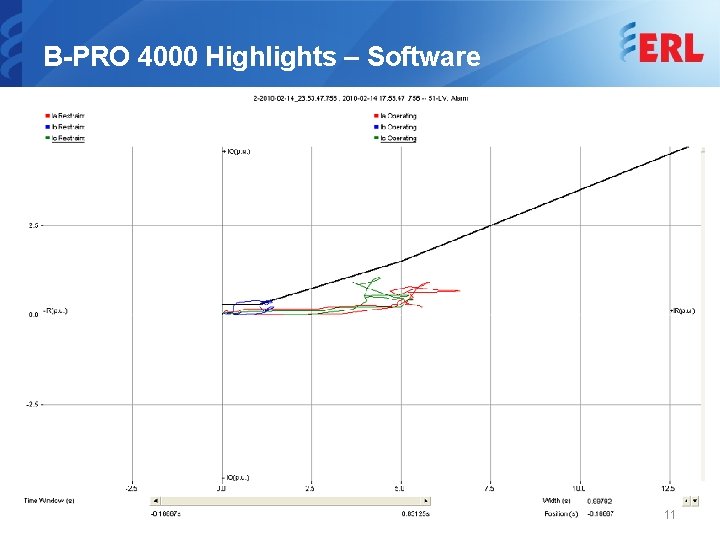

B-PRO 4000 Highlights – Software 11

B-PRO 4000 Highlights Sequence of Event Recording • Event logging (1 ms resolution) – Circular log of 250 events – Compressed event record capabilities – a compressed sequence of event file is created approximately every 230 events – Time of the event plus an event description – Trips, alarms, external input assertions, internal events o Trip example: 2000 Nov 21, 15: 34: 19. 832: 51 on ABC Trip – Data viewable via front panel or connected terminal 12

B-PRO – Bus Protection The B-PRO relay provides bus & substation differential protection (low impedance) with CT saturation security, integrated breaker failure, overcurrent protection & SCADA control in a fully integrated protective relay solution. 13 Home

B-PRO 4000 – Bus Protection • Multi-Function Bus Protection – 3 Phase – Multiple zones of protection - transformer, bus & dual bus zones • New Delta Phase & Rate of Change of Differential (ROCOD) Algorithm – A unique technique that ensures secure differential protection – Immune to harmonics, DC component, extreme CT saturation • Extensive testing using RTDS system fully validated the security of the new algorithms 14

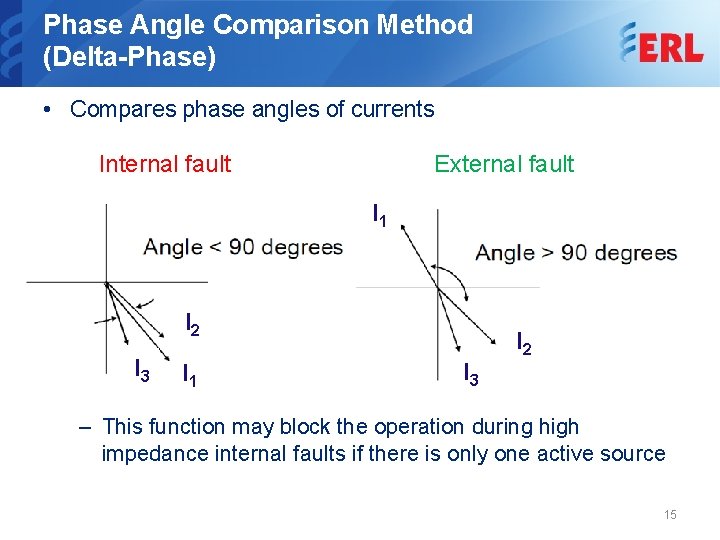

Phase Angle Comparison Method (Delta-Phase) • Compares phase angles of currents Internal fault External fault I 1 I 2 I 3 I 1 I 3 I 2 – This function may block the operation during high impedance internal faults if there is only one active source 15

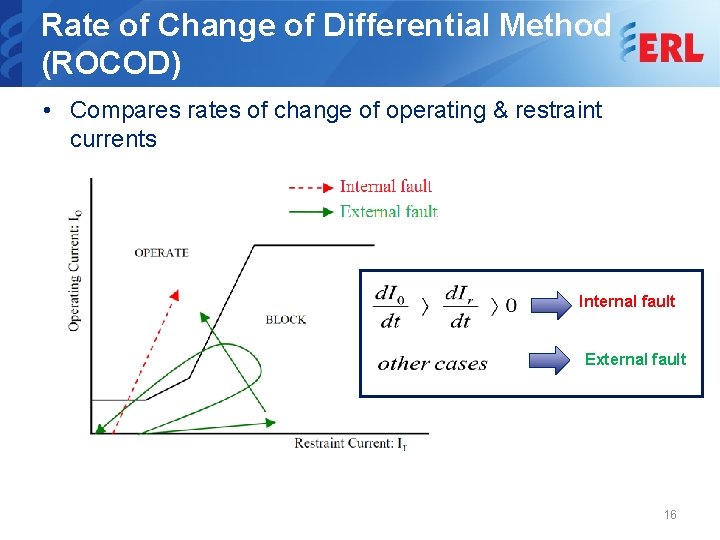

Rate of Change of Differential Method (ROCOD) • Compares rates of change of operating & restraint currents Internal fault External fault 16

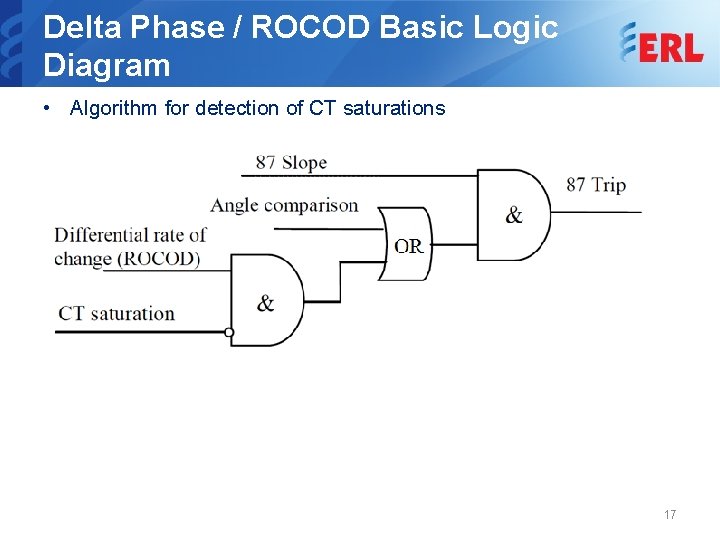

Delta Phase / ROCOD Basic Logic Diagram • Algorithm for detection of CT saturations 17

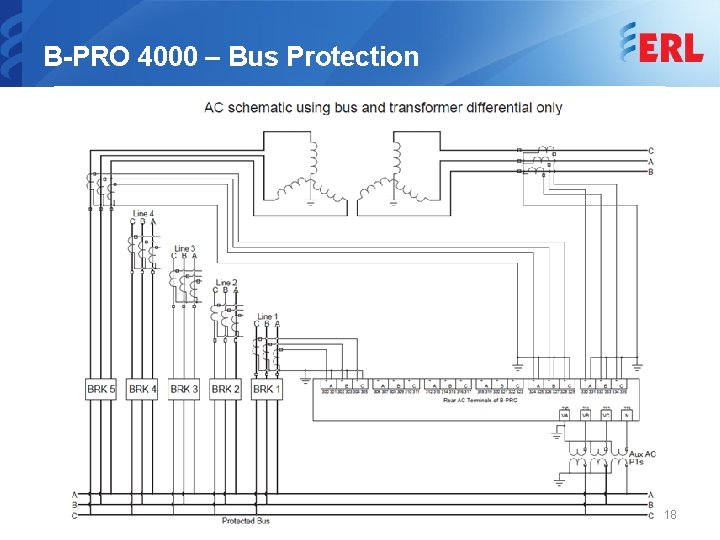

B-PRO 4000 – Bus Protection 18

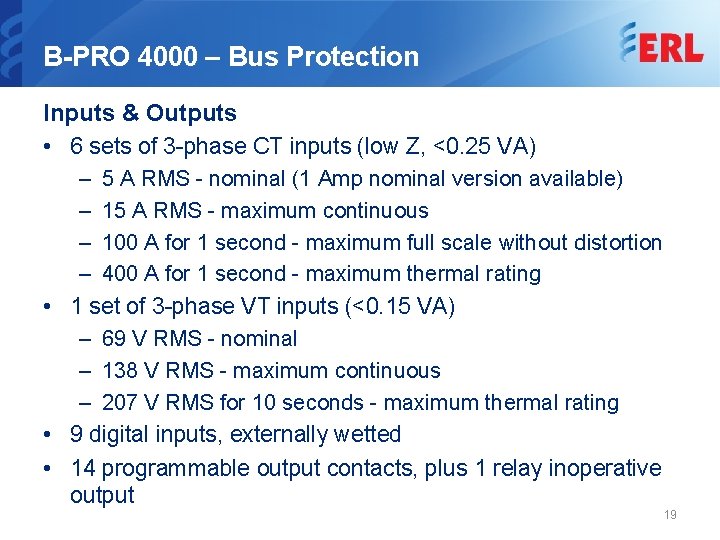

B-PRO 4000 – Bus Protection Inputs & Outputs • 6 sets of 3 -phase CT inputs (low Z, <0. 25 VA) – 5 A RMS - nominal (1 Amp nominal version available) – 15 A RMS - maximum continuous – 100 A for 1 second - maximum full scale without distortion – 400 A for 1 second - maximum thermal rating • 1 set of 3 -phase VT inputs (<0. 15 VA) – 69 V RMS - nominal – 138 V RMS - maximum continuous – 207 V RMS for 10 seconds - maximum thermal rating • 9 digital inputs, externally wetted • 14 programmable output contacts, plus 1 relay inoperative output 19

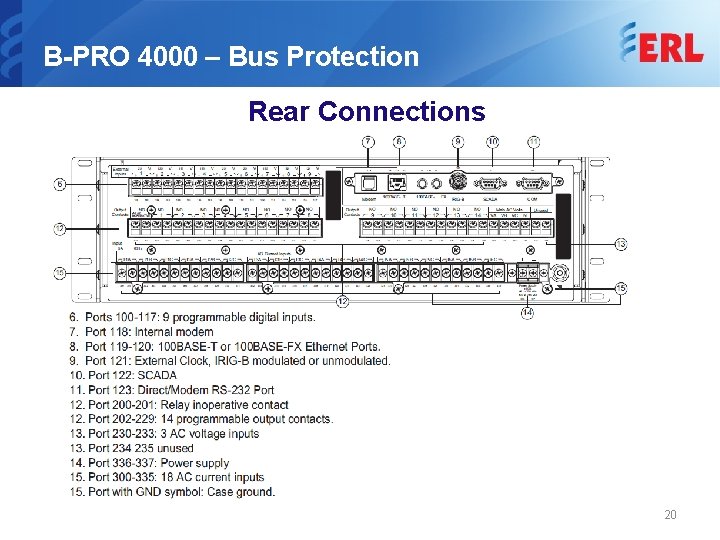

B-PRO 4000 – Bus Protection Rear Connections 20

B-PRO 4000 – Bus Protection 21

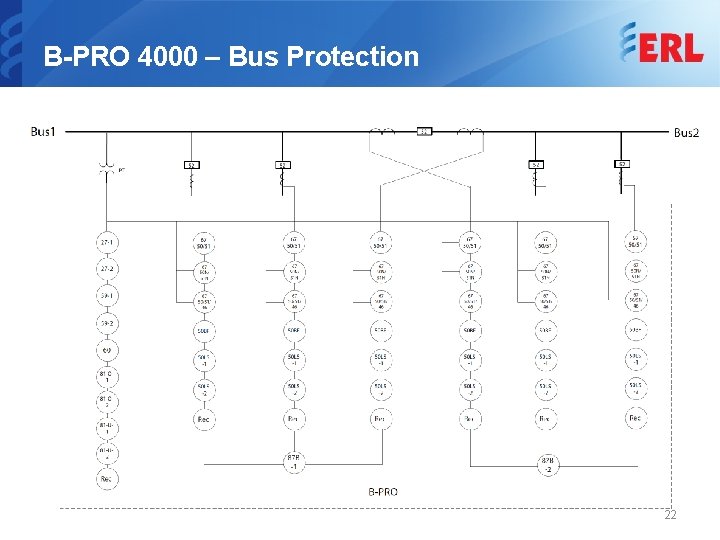

B-PRO 4000 – Bus Protection 22

B-PRO 4000 – Bus Protection 23

B-PRO 4000 – Bus Protection • Protection functions include IEEE devices 87 B, 27, 59, 60, 81, 87 T, 50 LS, 50 BF, 50/51/67, 50 N/51 N/67, 46/50/51/67 • Pro. Logic – 15 statements, 5 inputs per statement • Operating time (including output relay operation) – 87 B: 8 -20 ms – 87 T: 12 -24 ms 24

ERLPhase PRO Relays • Last thoughts – Designed by electric utility protection engineers – Practical, intuitive & easy-to-use software – Application engineering support team that will assist with application, implementation & record analysis – History of satisfied customers • Seminole Electric Coop - Florida, USA • National Grid - USA 25

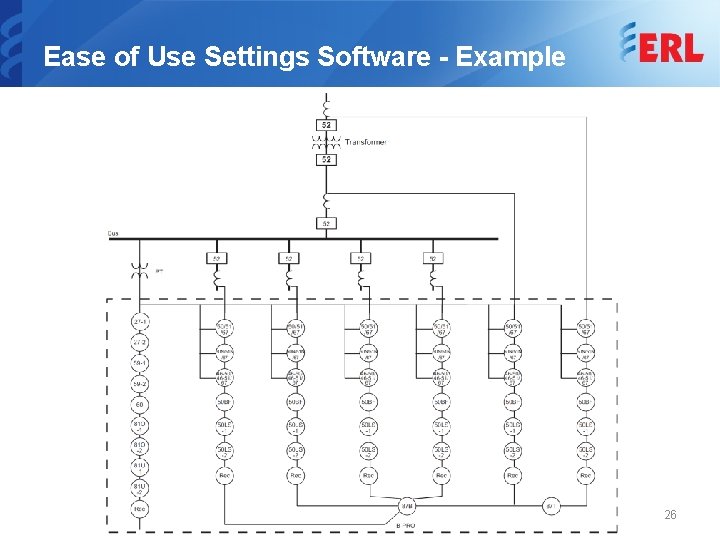

Ease of Use Settings Software - Example 26

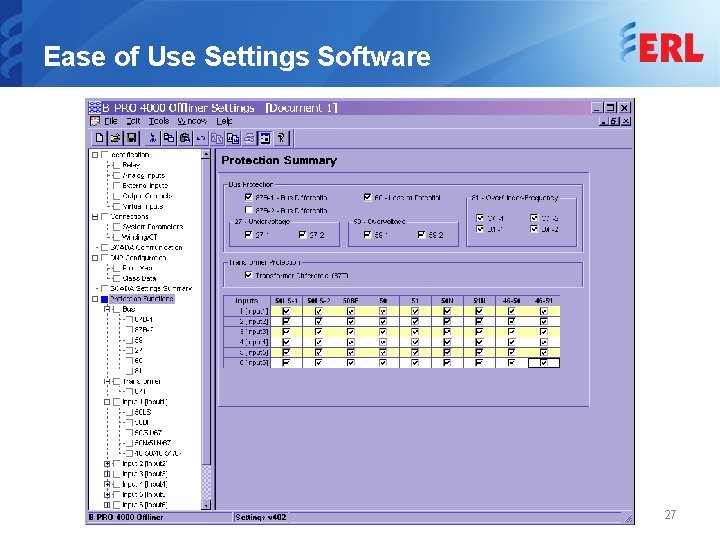

Ease of Use Settings Software 27

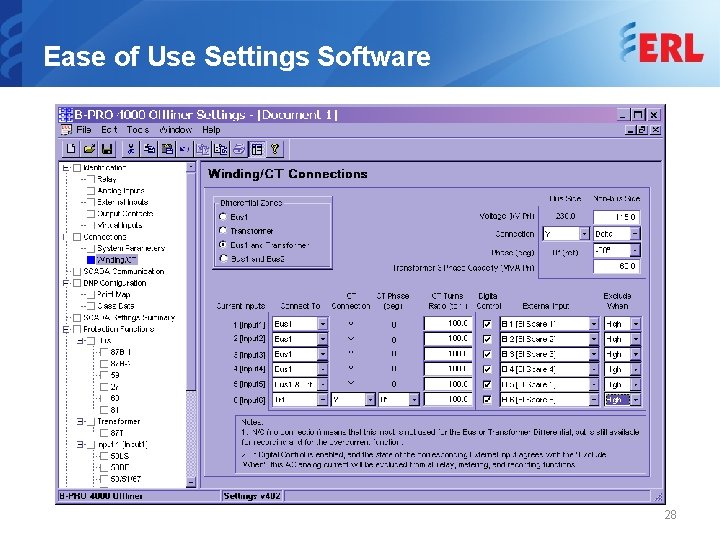

Ease of Use Settings Software 28

Ease of Use Settings Software 87 B Protection Settings 87 T Protection Settings 29

Ease of Use Settings Software 30

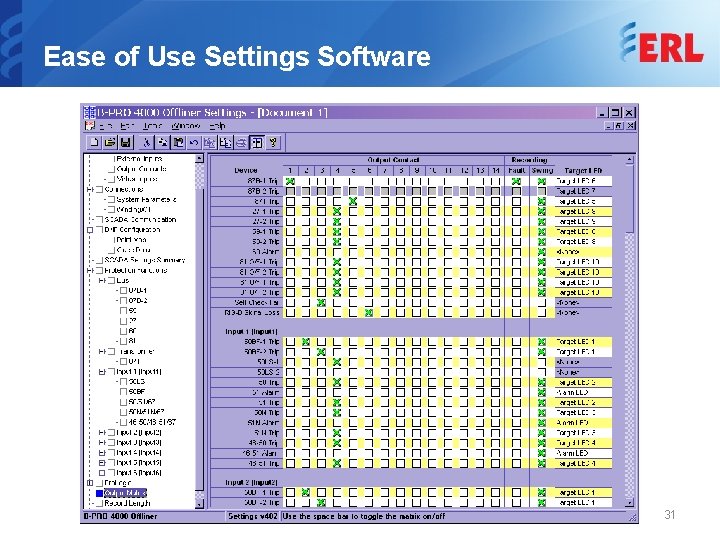

Ease of Use Settings Software 31

Thank you! René Midence Business Unit Manager – Protection Products rmidence@erlphase. com 905 -554

Additional Information © ERLPhase Power Technologies Ltd. All Rights Reserved.

Common Features • Environmental – Ambient temperature • IEC 60068 -2 -1, 2 • -40°C to 85°C for 16 hours, -40°C to 70°C continuous – Electrical fast transient • IEEE C 37. 90. 1: 4 k. V / IEC 60255 -22 -4 Class 3 / IEC 61000 -4 -4: Lev 3 • Tested to level 4 -4. 0 k. V 2. 5/5 k. Hz on power & I/O lines – Oscillatory transient • IEEE C 37. 90. 1: 2. 5 k. V / IEC 60255 -22 -1: Lev 3 / IEC 61000 -412): Lev 3 • Test level = 2. 5 k. V – Insulation test • IEEE C 37. 90. 1 / (IEC 61000 -4 -4/IEC 60255 -22 -4): Class 3 • Power, analog inputs, ext inputs, output contacts at 1. 5 V, 50/60 Hz, 1 min 34

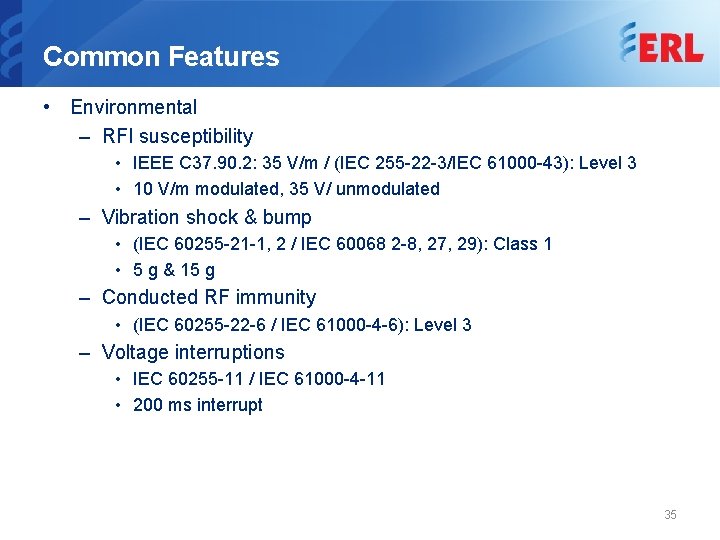

Common Features • Environmental – RFI susceptibility • IEEE C 37. 90. 2: 35 V/m / (IEC 255 -22 -3/IEC 61000 -43): Level 3 • 10 V/m modulated, 35 V/ unmodulated – Vibration shock & bump • (IEC 60255 -21 -1, 2 / IEC 60068 2 -8, 27, 29): Class 1 • 5 g & 15 g – Conducted RF immunity • (IEC 60255 -22 -6 / IEC 61000 -4 -6): Level 3 – Voltage interruptions • IEC 60255 -11 / IEC 61000 -4 -11 • 200 ms interrupt 35
