Ericsson Dialog 4000 telephones Built to take you

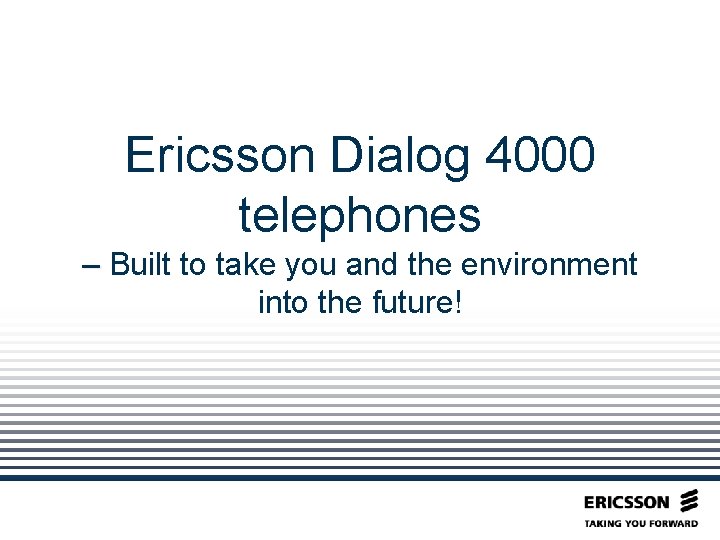

Ericsson Dialog 4000 telephones – Built to take you and the environment into the future!

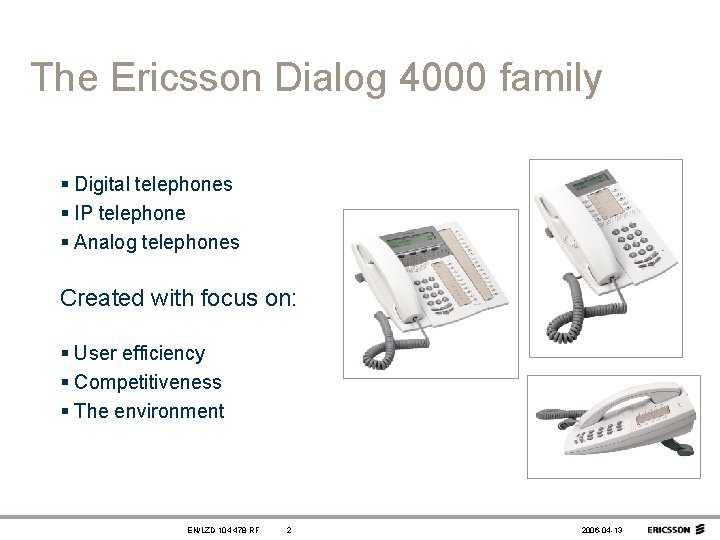

The Ericsson Dialog 4000 family § Digital telephones § IP telephone § Analog telephones Created with focus on: § User efficiency § Competitiveness § The environment EN/LZD 104 478 RF 2 2006 -04 -13

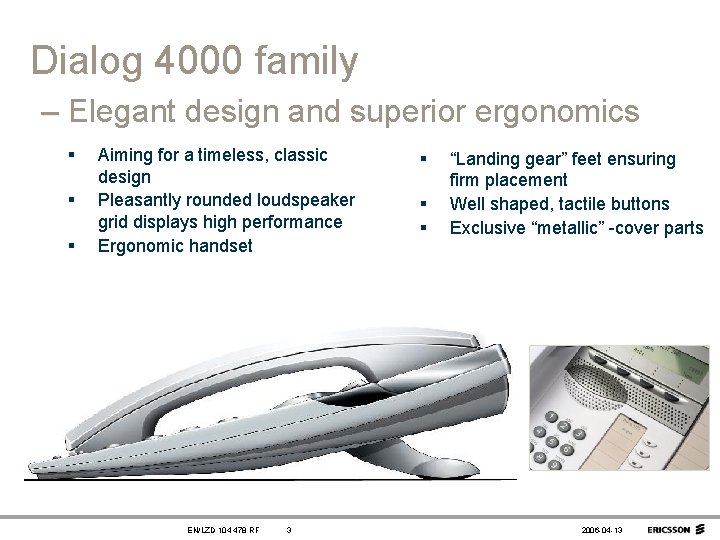

Dialog 4000 family – Elegant design and superior ergonomics § § § Aiming for a timeless, classic design Pleasantly rounded loudspeaker grid displays high performance Ergonomic handset EN/LZD 104 478 RF 3 § § § “Landing gear” feet ensuring firm placement Well shaped, tactile buttons Exclusive “metallic” -cover parts 2006 -04 -13

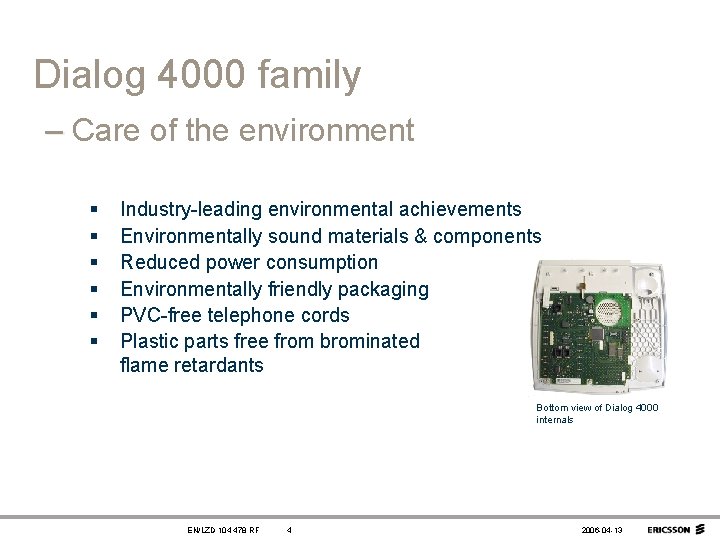

Dialog 4000 family – Care of the environment § § § Industry-leading environmental achievements Environmentally sound materials & components Reduced power consumption Environmentally friendly packaging PVC-free telephone cords Plastic parts free from brominated flame retardants Bottom view of Dialog 4000 internals EN/LZD 104 478 RF 4 2006 -04 -13

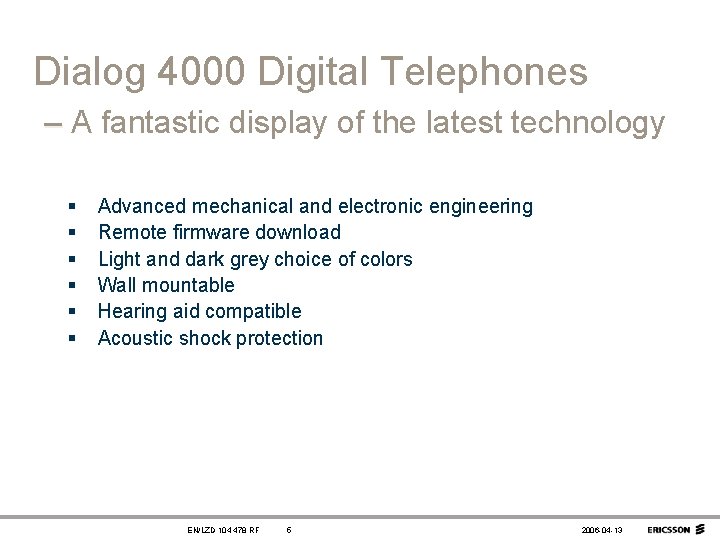

Dialog 4000 Digital Telephones – A fantastic display of the latest technology § § § Advanced mechanical and electronic engineering Remote firmware download Light and dark grey choice of colors Wall mountable Hearing aid compatible Acoustic shock protection EN/LZD 104 478 RF 5 2006 -04 -13

Dialog 4000 Digital Telephones Dialog 4220 Lite Dialog 4222 Office Dialog 4223 Professional Dialog 4225 Vision Dialog 4224 Operator EN/LZD 104 478 RF 6 2006 -04 -13

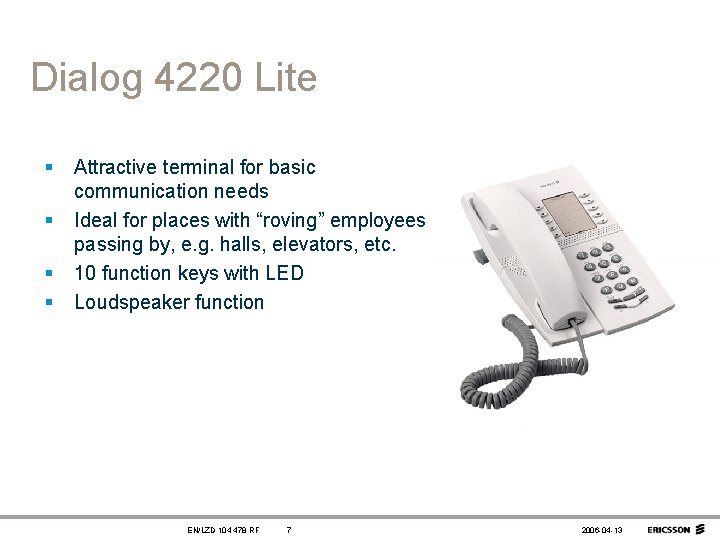

Dialog 4220 Lite § § Attractive terminal for basic communication needs Ideal for places with “roving” employees passing by, e. g. halls, elevators, etc. 10 function keys with LED Loudspeaker function EN/LZD 104 478 RF 7 2006 -04 -13

Dialog 4222 Office § § § § Well-equipped terminal with display Ideal for office usage and all-round communication needs Flexible, Graphical 2 -line display 10 function keys with LED Hands-free Integrated headset support Supports 1 extra key panel Support for Option Unit EN/LZD 104 478 RF 8 2006 -04 -13

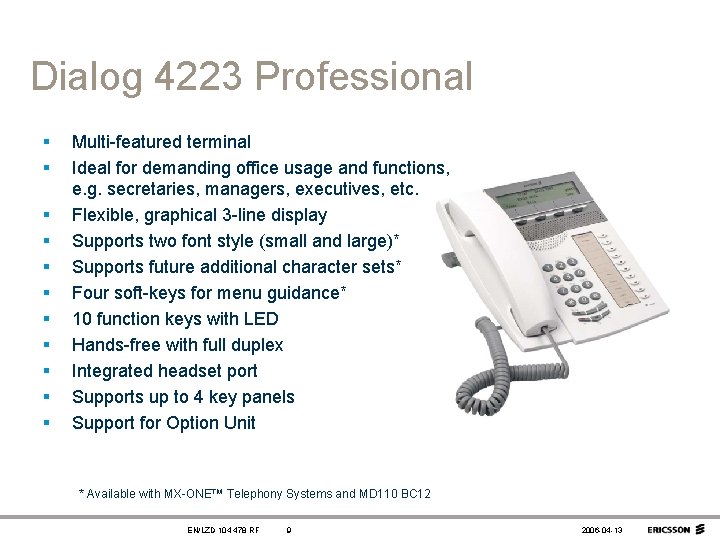

Dialog 4223 Professional § § § Multi-featured terminal Ideal for demanding office usage and functions, e. g. secretaries, managers, executives, etc. Flexible, graphical 3 -line display Supports two font style (small and large)* Supports future additional character sets* Four soft-keys for menu guidance* 10 function keys with LED Hands-free with full duplex Integrated headset port Supports up to 4 key panels Support for Option Unit * Available with MX-ONE™ Telephony Systems and MD 110 BC 12 EN/LZD 104 478 RF 9 2006 -04 -13

Dialog 4225 Vision (available for MX-ONE™ Telephony Systems and MD 110 BC 12) § § § Multi-featured telephone Ideal for very demanding and executive office usage Flexible, graphical 5 line display 3 navigation keys for navigation of top menu 4 soft-keys for dynamic menu guidance Supports three font styles (small, large, bold) Supports future additional character sets Call list for incoming and outgoing calls 20 function keys with LEDs Integrated headset support Hands-free with full-duplex (AEC) Supports up to 4 key-panels Support for Option Unit EN/LZD 104 478 RF 10 2006 -04 -13

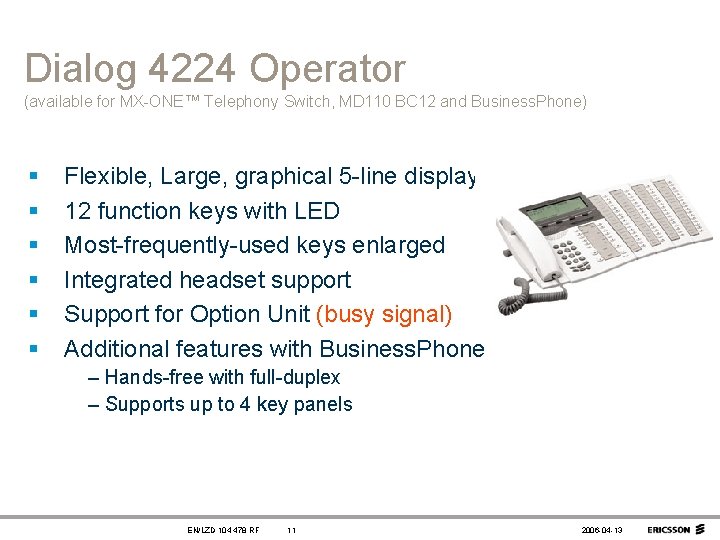

Dialog 4224 Operator (available for MX-ONE™ Telephony Switch, MD 110 BC 12 and Business. Phone) § § § Flexible, Large, graphical 5 -line display 12 function keys with LED Most-frequently-used keys enlarged Integrated headset support Support for Option Unit (busy signal) Additional features with Business. Phone – Hands-free with full-duplex – Supports up to 4 key panels EN/LZD 104 478 RF 11 2006 -04 -13

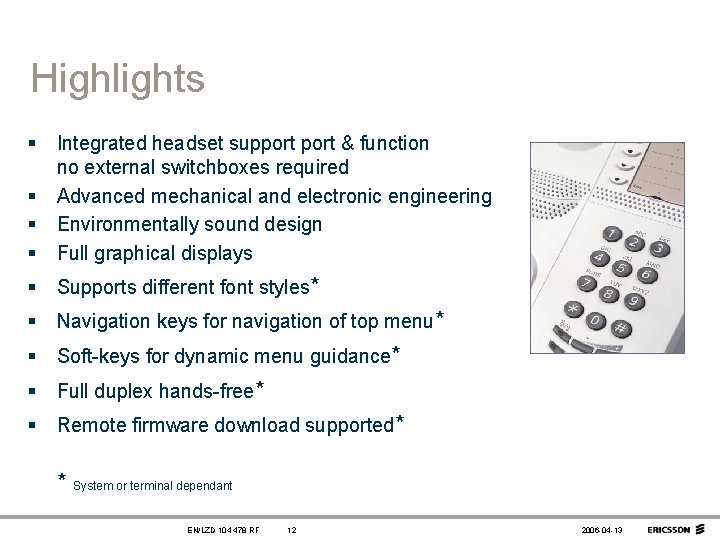

Highlights § § Integrated headset support & function no external switchboxes required Advanced mechanical and electronic engineering Environmentally sound design Full graphical displays § Supports different font styles* § Navigation keys for navigation of top menu* § Soft-keys for dynamic menu guidance* § Full duplex hands-free* § Remote firmware download supported* * System or terminal dependant EN/LZD 104 478 RF 12 2006 -04 -13

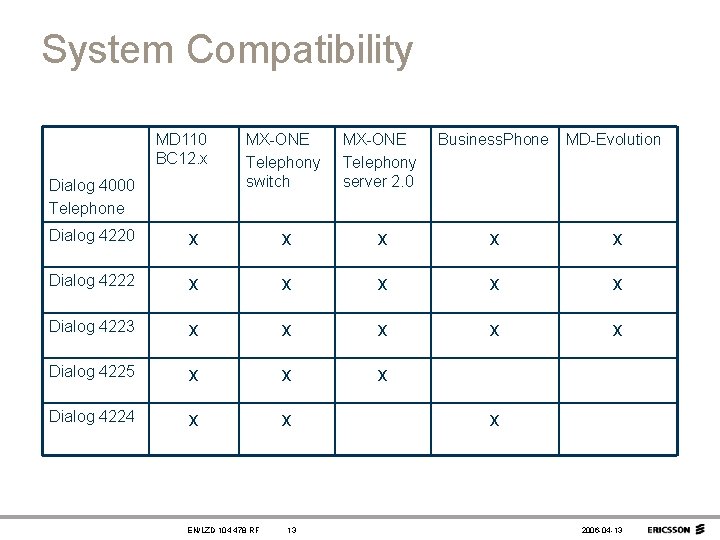

System Compatibility MD 110 BC 12. x Dialog 4000 Telephone MX-ONE Telephony switch MX-ONE Telephony server 2. 0 Business. Phone MD-Evolution Dialog 4220 x x x Dialog 4222 x x x Dialog 4223 x x x Dialog 4225 x x x Dialog 4224 x x EN/LZD 104 478 RF 13 x 2006 -04 -13

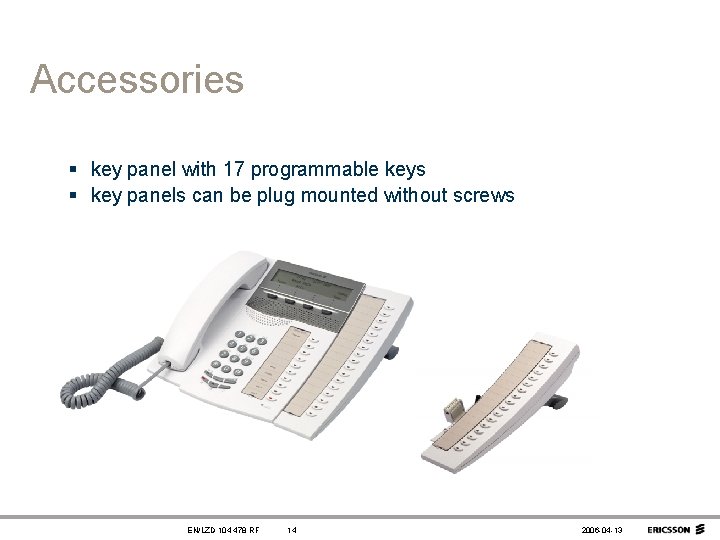

Accessories § key panel with 17 programmable keys § key panels can be plug mounted without screws EN/LZD 104 478 RF 14 2006 -04 -13

Accessories § Pull-out leaf kit that includes designation card Pull-out leaf kit § Terminal cords (2. 2 or 4 meters / 7. 2 or 13. 1 feet) § Designation-card manager kit § Option unit (external bell and busy signal) Designation Card Manager Option unit § Handset with press-to-talk switch EN/LZD 104 478 RF 15 2006 -04 -13

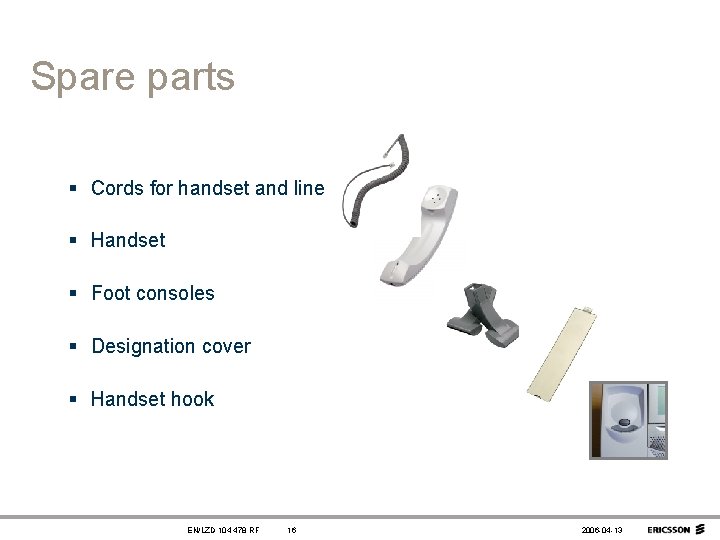

Spare parts § Cords for handset and line § Handset § Foot consoles § Designation cover § Handset hook EN/LZD 104 478 RF 16 2006 -04 -13

User guides and software tools The Quick reference guide package for each Dialog 4000 Digital Telephone: § Printed quick reference guides in all available language versions § Telephone Toolbox CD • User guides all available language versions • Quick reference guides in all available language versions • DCM (Designation Card Manager) in English (tool and cards) and localized versions (cards) EN/LZD 104 478 RF 17 2006 -04 -13

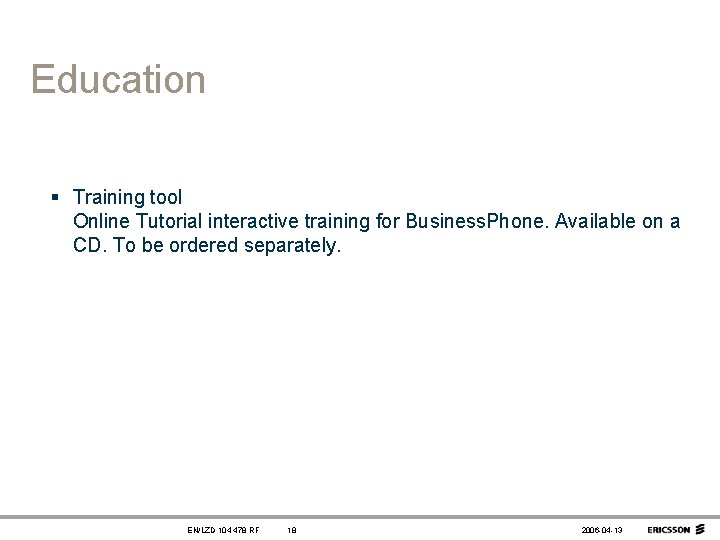

Education § Training tool Online Tutorial interactive training for Business. Phone. Available on a CD. To be ordered separately. EN/LZD 104 478 RF 18 2006 -04 -13

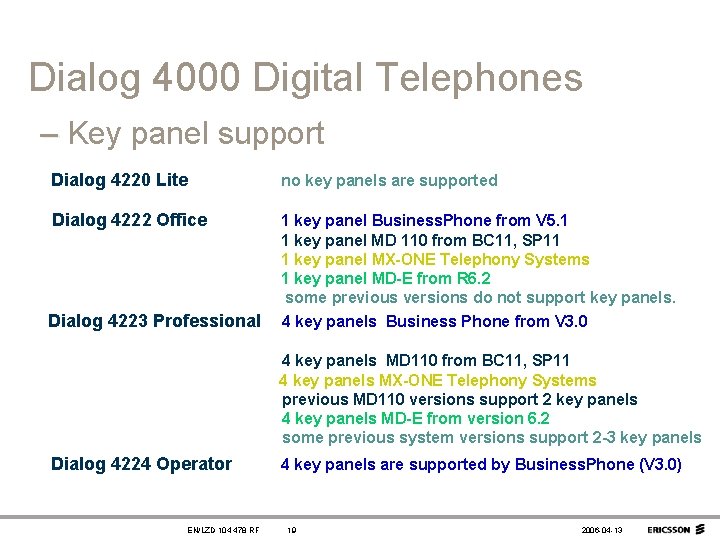

Dialog 4000 Digital Telephones – Key panel support Dialog 4220 Lite no key panels are supported Dialog 4222 Office 1 key panel Business. Phone from V 5. 1 1 key panel MD 110 from BC 11, SP 11 1 key panel MX-ONE Telephony Systems 1 key panel MD-E from R 6. 2 some previous versions do not support key panels. Dialog 4223 Professional 4 key panels Business Phone from V 3. 0 4 key panels MD 110 from BC 11, SP 11 4 key panels MX-ONE Telephony Systems previous MD 110 versions support 2 key panels 4 key panels MD-E from version 6. 2 some previous system versions support 2 -3 key panels Dialog 4224 Operator EN/LZD 104 478 RF 4 key panels are supported by Business. Phone (V 3. 0) 19 2006 -04 -13

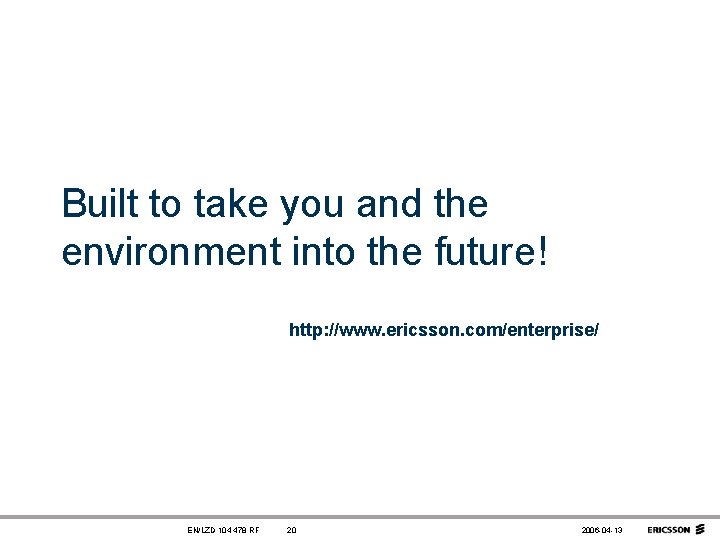

Built to take you and the environment into the future! http: //www. ericsson. com/enterprise/ EN/LZD 104 478 RF 20 2006 -04 -13
