ERickshaw Type Approval Procedure Guidelines Information As per

E-Rickshaw Type Approval* (Procedure, Guidelines & Information) *As per draft notification

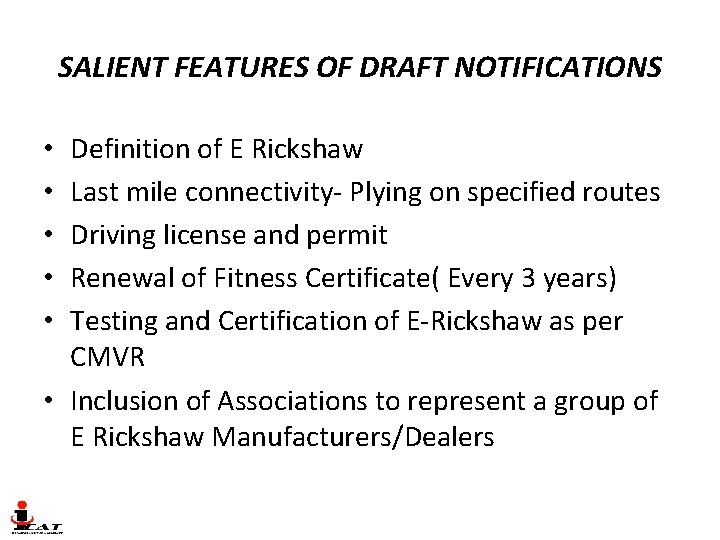

SALIENT FEATURES OF DRAFT NOTIFICATIONS Definition of E Rickshaw Last mile connectivity- Plying on specified routes Driving license and permit Renewal of Fitness Certificate( Every 3 years) Testing and Certification of E-Rickshaw as per CMVR • Inclusion of Associations to represent a group of E Rickshaw Manufacturers/Dealers • • •

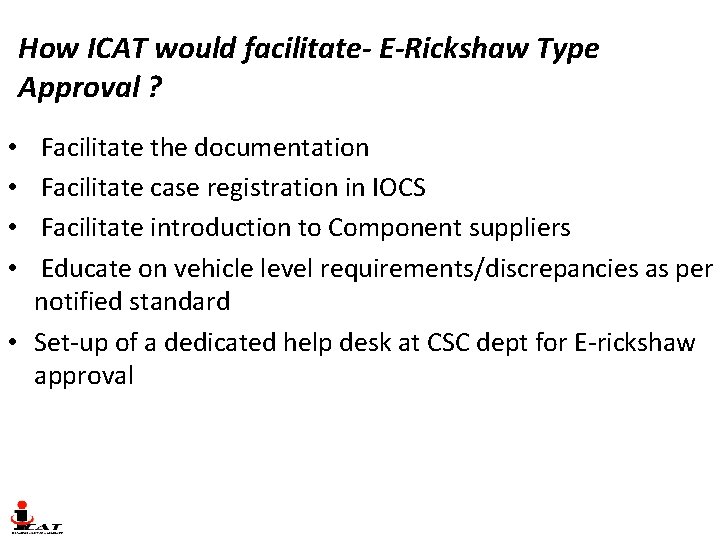

How ICAT would facilitate- E-Rickshaw Type Approval ? Facilitate the documentation Facilitate case registration in IOCS Facilitate introduction to Component suppliers Educate on vehicle level requirements/discrepancies as per notified standard • Set-up of a dedicated help desk at CSC dept for E-rickshaw approval • •

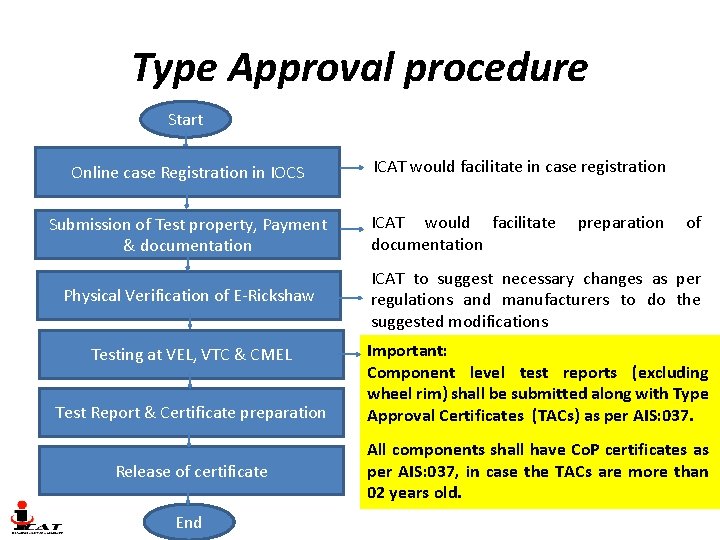

Type Approval procedure Start Online case Registration in IOCS Submission of Test property, Payment & documentation Physical Verification of E-Rickshaw Testing at VEL, VTC & CMEL Test Report & Certificate preparation Release of certificate End ICAT would facilitate in case registration ICAT would facilitate documentation preparation of ICAT to suggest necessary changes as per regulations and manufacturers to do the suggested modifications Important: Component level test reports (excluding wheel rim) shall be submitted along with Type Approval Certificates (TACs) as per AIS: 037. All components shall have Co. P certificates as per AIS: 037, in case the TACs are more than 02 years old.

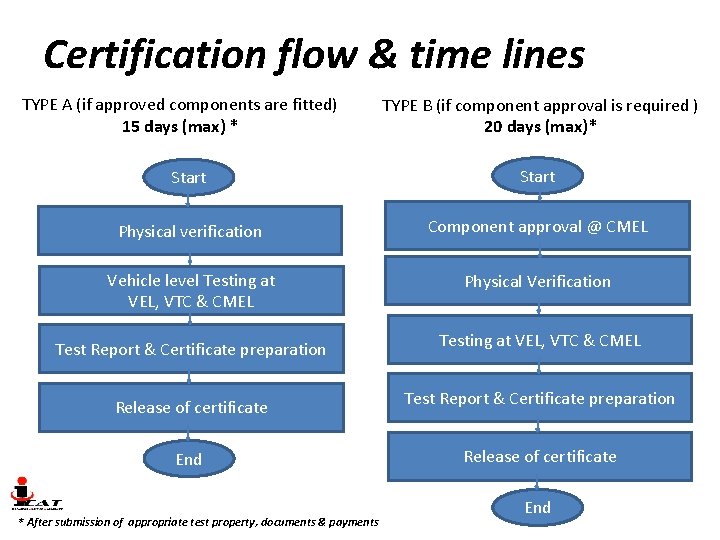

Certification flow & time lines TYPE A (if approved components are fitted) 15 days (max) * TYPE B (if component approval is required ) 20 days (max)* Start Physical verification Component approval @ CMEL Vehicle level Testing at VEL, VTC & CMEL Physical Verification Test Report & Certificate preparation Release of certificate End * After submission of appropriate test property, documents & payments Testing at VEL, VTC & CMEL Test Report & Certificate preparation Release of certificate End

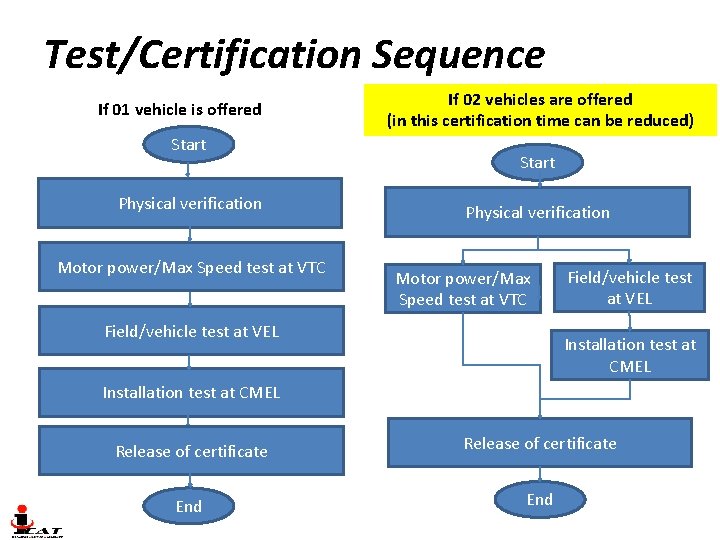

Test/Certification Sequence If 01 vehicle is offered Start Physical verification Motor power/Max Speed test at VTC If 02 vehicles are offered (in this certification time can be reduced) Start Physical verification Motor power/Max Speed test at VTC Field/vehicle test at VEL Installation test at CMEL Release of certificate End

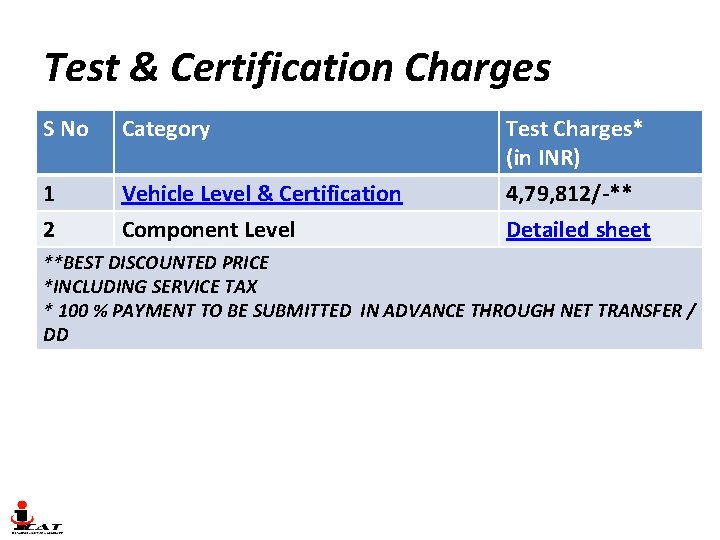

Test & Certification Charges S No Category 1 2 Vehicle Level & Certification Component Level Test Charges* (in INR) 4, 79, 812/-** Detailed sheet **BEST DISCOUNTED PRICE *INCLUDING SERVICE TAX * 100 % PAYMENT TO BE SUBMITTED IN ADVANCE THROUGH NET TRANSFER / DD

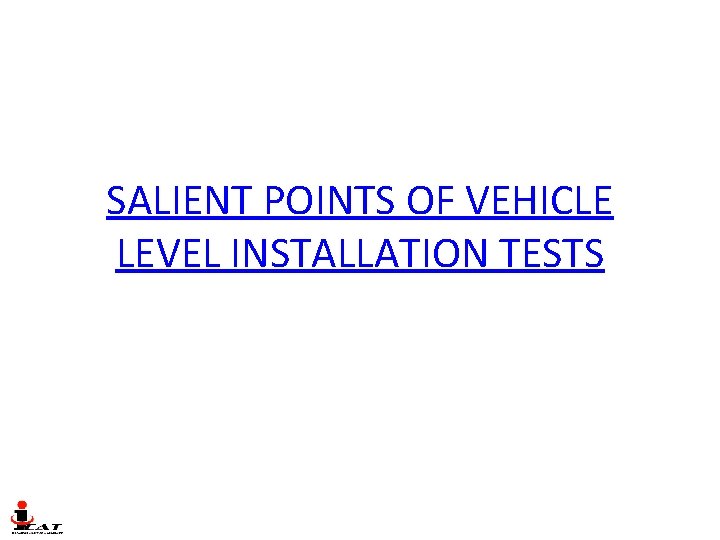

SALIENT POINTS OF VEHICLE LEVEL INSTALLATION TESTS

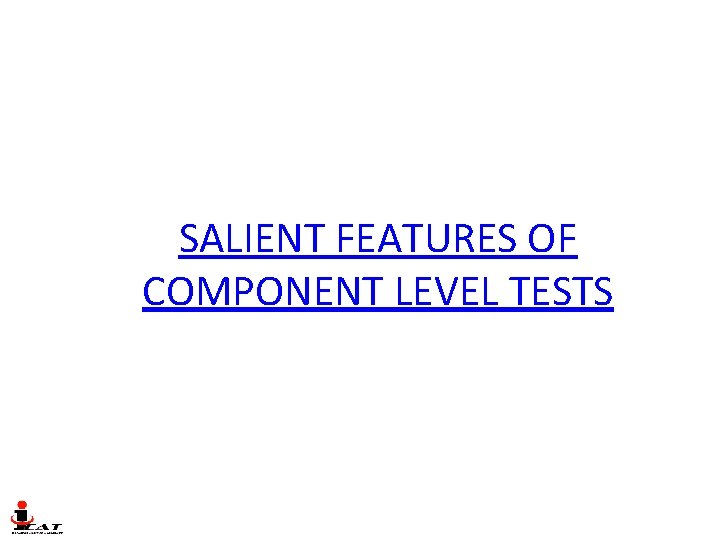

SALIENT FEATURES OF COMPONENT LEVEL TESTS

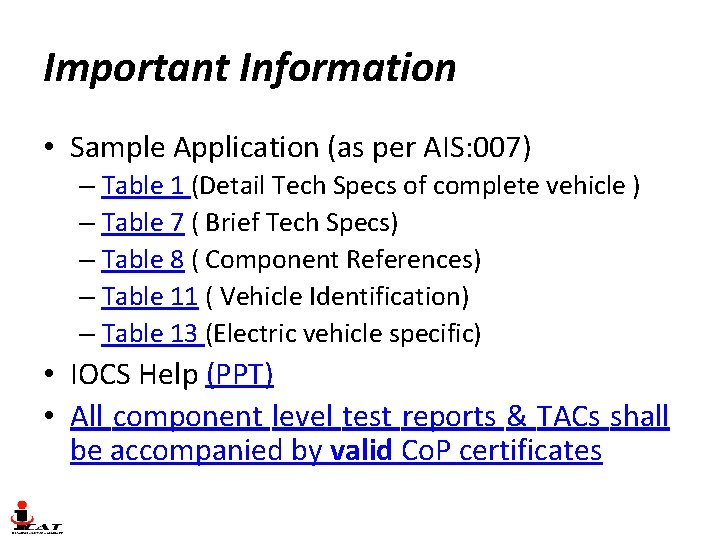

Important Information • Sample Application (as per AIS: 007) – Table 1 (Detail Tech Specs of complete vehicle ) – Table 7 ( Brief Tech Specs) – Table 8 ( Component References) – Table 11 ( Vehicle Identification) – Table 13 (Electric vehicle specific) • IOCS Help (PPT) • All component level test reports & TACs shall be accompanied by valid Co. P certificates

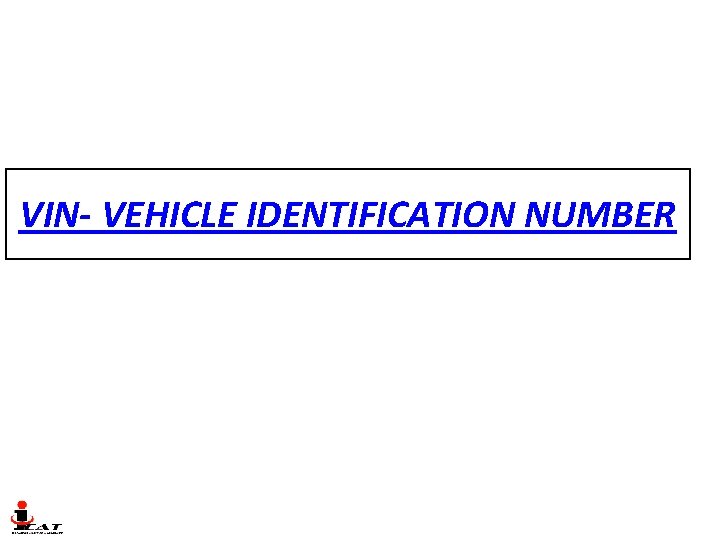

VIN- VEHICLE IDENTIFICATION NUMBER

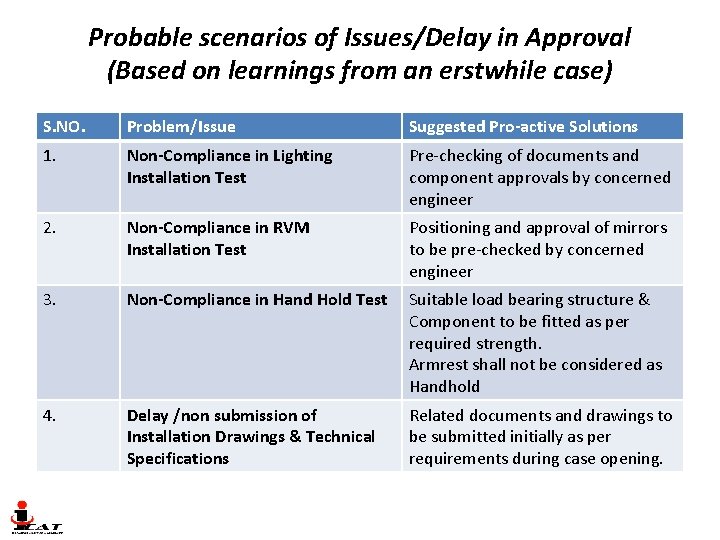

Probable scenarios of Issues/Delay in Approval (Based on learnings from an erstwhile case) S. NO. Problem/Issue Suggested Pro-active Solutions 1. Non-Compliance in Lighting Installation Test Pre-checking of documents and component approvals by concerned engineer 2. Non-Compliance in RVM Installation Test Positioning and approval of mirrors to be pre-checked by concerned engineer 3. Non-Compliance in Hand Hold Test Suitable load bearing structure & Component to be fitted as per required strength. Armrest shall not be considered as Handhold 4. Delay /non submission of Installation Drawings & Technical Specifications Related documents and drawings to be submitted initially as per requirements during case opening.

THANKS

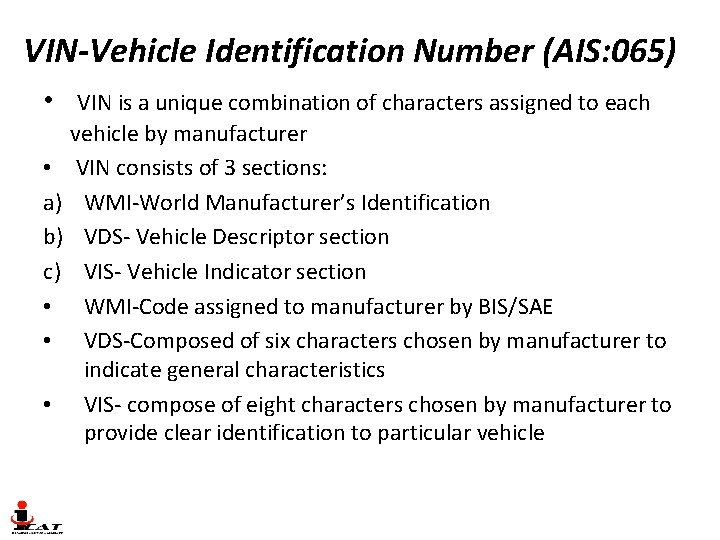

VIN-Vehicle Identification Number (AIS: 065) • VIN is a unique combination of characters assigned to each vehicle by manufacturer • VIN consists of 3 sections: a) WMI-World Manufacturer’s Identification b) VDS- Vehicle Descriptor section c) VIS- Vehicle Indicator section • WMI-Code assigned to manufacturer by BIS/SAE • VDS-Composed of six characters chosen by manufacturer to indicate general characteristics • VIS- compose of eight characters chosen by manufacturer to provide clear identification to particular vehicle

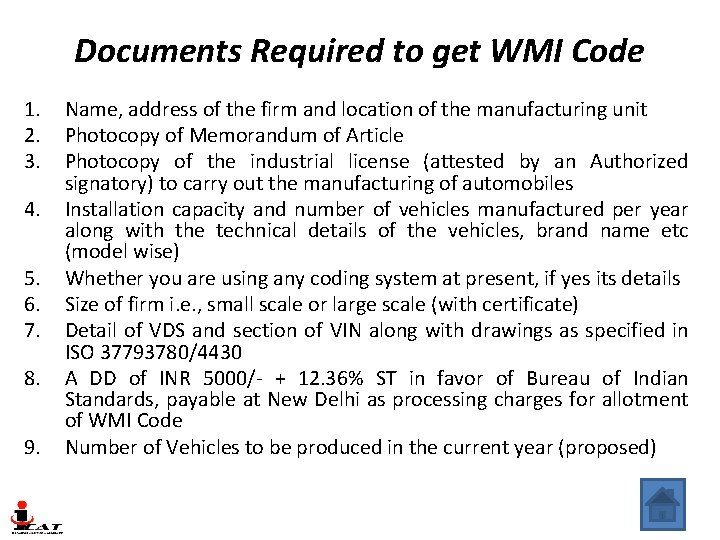

Documents Required to get WMI Code 1. 2. 3. 4. 5. 6. 7. 8. 9. Name, address of the firm and location of the manufacturing unit Photocopy of Memorandum of Article Photocopy of the industrial license (attested by an Authorized signatory) to carry out the manufacturing of automobiles Installation capacity and number of vehicles manufactured per year along with the technical details of the vehicles, brand name etc (model wise) Whether you are using any coding system at present, if yes its details Size of firm i. e. , small scale or large scale (with certificate) Detail of VDS and section of VIN along with drawings as specified in ISO 37793780/4430 A DD of INR 5000/- + 12. 36% ST in favor of Bureau of Indian Standards, payable at New Delhi as processing charges for allotment of WMI Code Number of Vehicles to be produced in the current year (proposed)

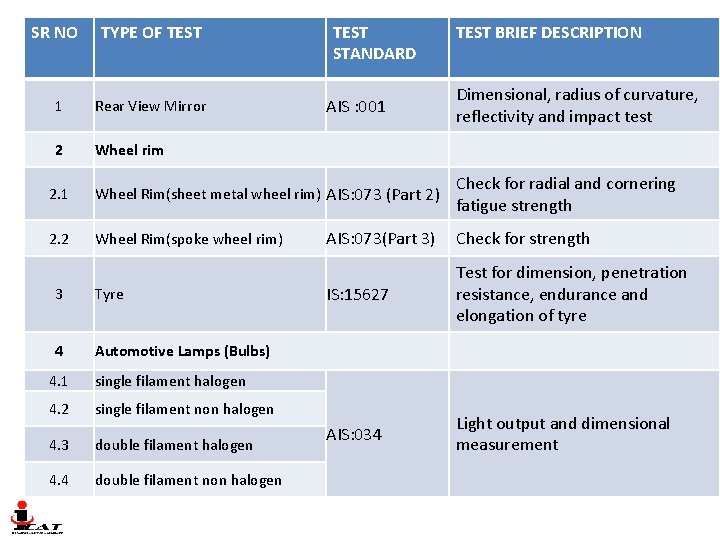

SR NO TYPE OF TEST 1 Rear View Mirror 2 Wheel rim TEST STANDARD AIS : 001 2. 1 Wheel Rim(sheet metal wheel rim) AIS: 073 (Part 2) 2. 2 Wheel Rim(spoke wheel rim) 3 Tyre 4 Automotive Lamps (Bulbs) 4. 1 single filament halogen 4. 2 single filament non halogen 4. 3 double filament halogen 4. 4 double filament non halogen TEST BRIEF DESCRIPTION Dimensional, radius of curvature, reflectivity and impact test Check for radial and cornering fatigue strength AIS: 073(Part 3) Check for strength IS: 15627 Test for dimension, penetration resistance, endurance and elongation of tyre AIS: 034 Light output and dimensional measurement

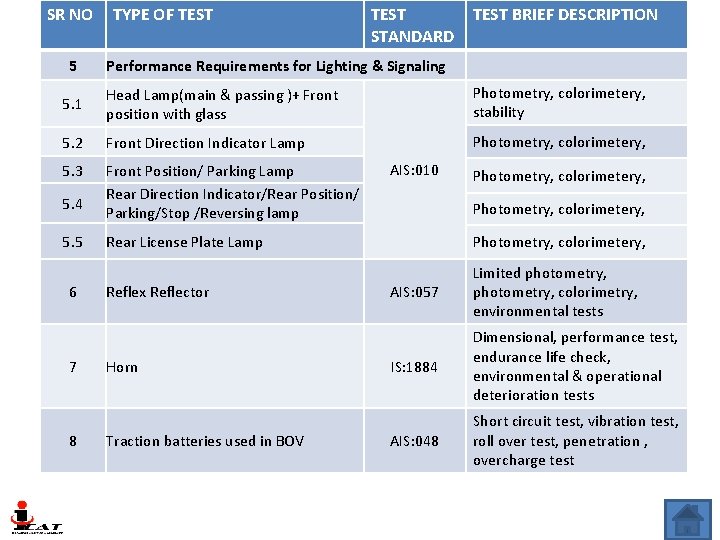

SR NO 5 TYPE OF TEST STANDARD TEST BRIEF DESCRIPTION Performance Requirements for Lighting & Signaling 5. 1 Head Lamp(main & passing )+ Front position with glass Photometry, colorimetery, stability 5. 2 Front Direction Indicator Lamp Photometry, colorimetery, 5. 3 Front Position/ Parking Lamp Rear Direction Indicator/Rear Position/ Parking/Stop /Reversing lamp 5. 4 5. 5 6 7 8 AIS: 010 Photometry, colorimetery, Rear License Plate Lamp Photometry, colorimetery, Reflex Reflector AIS: 057 Limited photometry, colorimetry, environmental tests IS: 1884 Dimensional, performance test, endurance life check, environmental & operational deterioration tests AIS: 048 Short circuit test, vibration test, roll over test, penetration , overcharge test Horn Traction batteries used in BOV

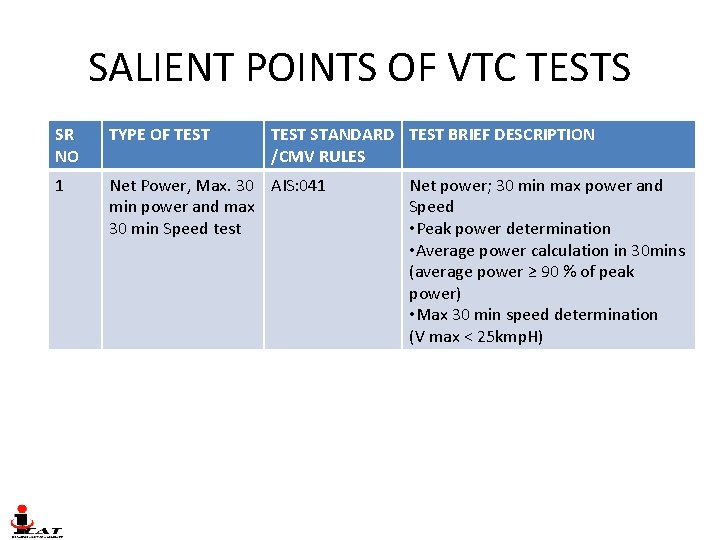

SALIENT POINTS OF VTC TESTS SR NO TYPE OF TEST STANDARD TEST BRIEF DESCRIPTION /CMV RULES 1 Net Power, Max. 30 AIS: 041 min power and max 30 min Speed test Net power; 30 min max power and Speed • Peak power determination • Average power calculation in 30 mins (average power ≥ 90 % of peak power) • Max 30 min speed determination (V max < 25 kmp. H)

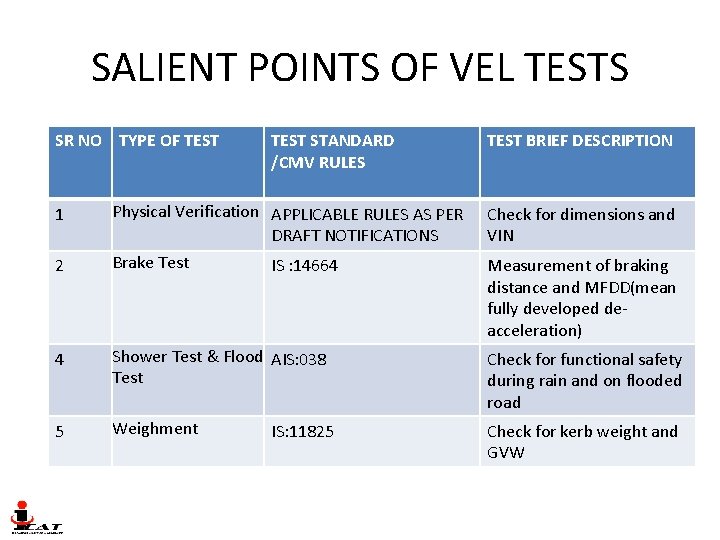

SALIENT POINTS OF VEL TESTS SR NO TYPE OF TEST STANDARD /CMV RULES TEST BRIEF DESCRIPTION Physical Verification APPLICABLE RULES AS PER DRAFT NOTIFICATIONS Brake Test IS : 14664 Check for dimensions and VIN 4 Shower Test & Flood AIS: 038 Test Check for functional safety during rain and on flooded road 5 Weighment Check for kerb weight and GVW 1 2 IS: 11825 Measurement of braking distance and MFDD(mean fully developed deacceleration)

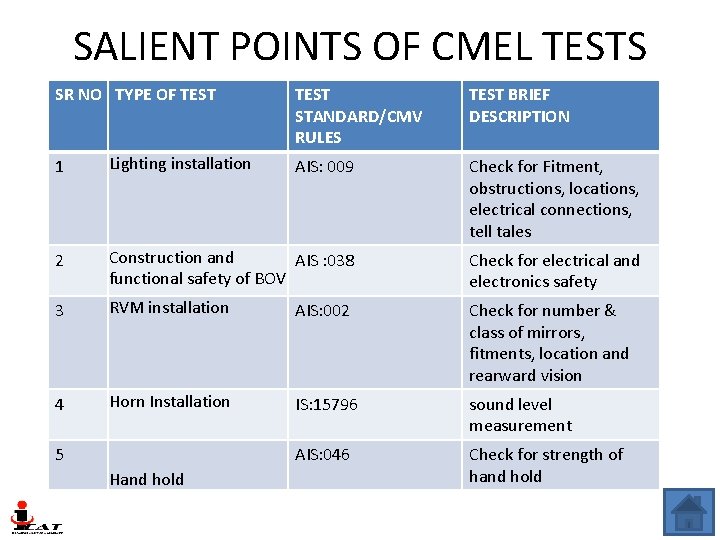

SALIENT POINTS OF CMEL TESTS SR NO TYPE OF TEST STANDARD/CMV RULES TEST BRIEF DESCRIPTION 1 Lighting installation AIS: 009 Check for Fitment, obstructions, locations, electrical connections, tell tales 2 Construction and AIS : 038 functional safety of BOV Check for electrical and electronics safety 3 RVM installation AIS: 002 Check for number & class of mirrors, fitments, location and rearward vision 4 Horn Installation IS: 15796 sound level measurement AIS: 046 Check for strength of hand hold 5 Hand hold
