ERD Entity Relationship Diagram Diagram Hubungan Entitas 1

ERD (Entity Relationship Diagram) Diagram Hubungan Entitas

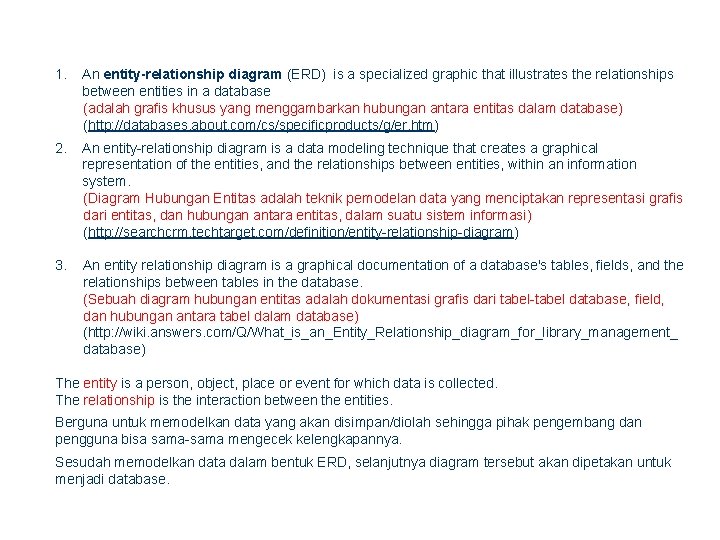

1. An entity-relationship diagram (ERD) is a specialized graphic that illustrates the relationships between entities in a database (adalah grafis khusus yang menggambarkan hubungan antara entitas dalam database) (http: //databases. about. com/cs/specificproducts/g/er. htm) 2. An entity-relationship diagram is a data modeling technique that creates a graphical representation of the entities, and the relationships between entities, within an information system. (Diagram Hubungan Entitas adalah teknik pemodelan data yang menciptakan representasi grafis dari entitas, dan hubungan antara entitas, dalam suatu sistem informasi) (http: //searchcrm. techtarget. com/definition/entity-relationship-diagram) 3. An entity relationship diagram is a graphical documentation of a database's tables, fields, and the relationships between tables in the database. (Sebuah diagram hubungan entitas adalah dokumentasi grafis dari tabel-tabel database, field, dan hubungan antara tabel dalam database) (http: //wiki. answers. com/Q/What_is_an_Entity_Relationship_diagram_for_library_management_ database) The entity is a person, object, place or event for which data is collected. The relationship is the interaction between the entities. Berguna untuk memodelkan data yang akan disimpan/diolah sehingga pihak pengembang dan pengguna bisa sama-sama mengecek kelengkapannya. Sesudah memodelkan data dalam bentuk ERD, selanjutnya diagram tersebut akan dipetakan untuk menjadi database.

ERD often use symbols to represent three different types of information. 1. Boxes are commonly used to represent entities: 2. Diamonds are normally used to represent relationships and 3. Ovals are used to represent attributes.

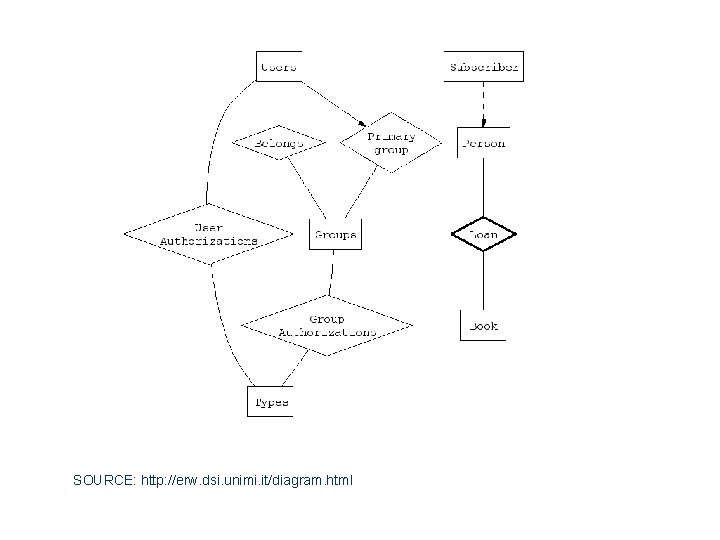

SOURCE: http: //erw. dsi. unimi. it/diagram. html

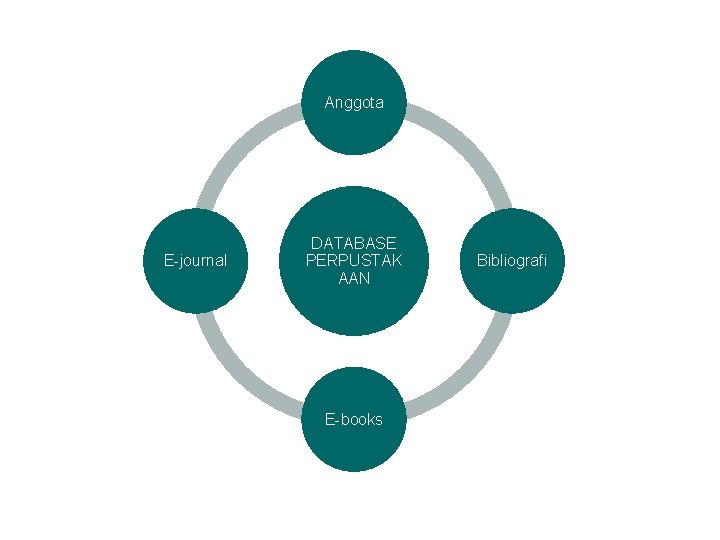

Anggota E-journal DATABASE PERPUSTAK AAN E-books Bibliografi

Source: http: //creately. com/diagram/example/h 7 iin 2581/E-R+Diagram+for+Hotel+management+system

SOURCE: http: //creately. com/diagram/example/h 7 cw 0 wrb 1/+E-R+Diagram+of+Library+Management+System

Proses Jasa: Layanan Perpustakaan Perjalanan ke Perpustakaan Pustakawan Memproses Peminjaman Koleksi Perjalanan Pulang Pustakwan Melaksanakan Jasa/Layanan Kembali, dan Mengembalikan Pinjaman Suatu saat pinjam koleksi lagi

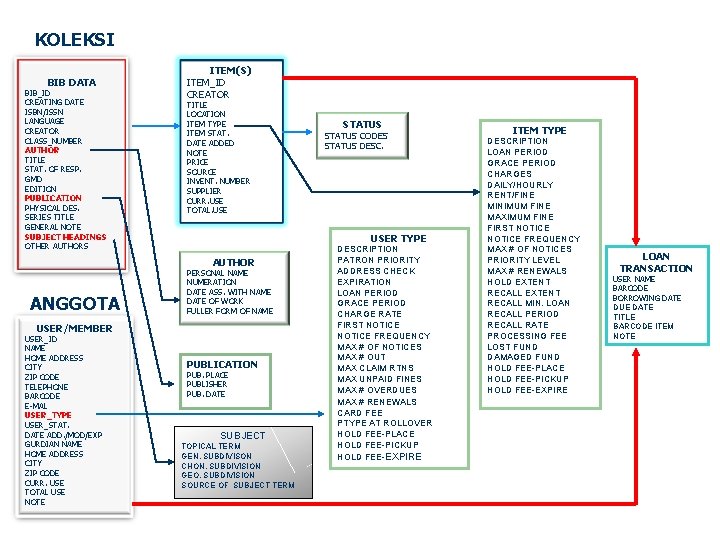

KOLEKSI BIB DATA BIB_ID CREATING DATE ISBN/ISSN LANGUAGE CREATOR CLASS_NUMBER AUTHOR TITLE STAT. OF RESP. GMD EDITION PUBLICATION PHYSICAL DES. SERIES TITLE GENERAL NOTE SUBJECT HEADINGS OTHER AUTHORS ITEM(S) ITEM_ID CREATOR TITLE LOCATION ITEM TYPE ITEM STAT. DATE ADDED NOTE PRICE SOURCE INVENT. NUMBER SUPPLIER CURR. USE TOTAL. USER TYPE AUTHOR ANGGOTA PERSONAL NAME NUMERATION DATE ASS. WITH NAME DATE OF WORK FULLER FORM OF NAME USER/MEMBER USER_ID NAME HOME ADDRESS CITY ZIP CODE TELEPHONE BARCODE E-MAL USER_TYPE USER_STAT. DATE ADD. /MOD/EXP GURDIAN NAME HOME ADDRESS CITY ZIP CODE CURR. USE TOTAL USE NOTE STATUS CODES STATUS DESC. PUBLICATION PUB. PLACE PUBLISHER PUB. DATE SUBJECT TOPICAL TERM GEN. SUBDIVISON CHON. SUBDIVISION GEO. SUBDIVISION SOURCE OF SUBJECT TERM DESCRIPTION PATRON PRIORITY ADDRESS CHECK EXPIRATION LOAN PERIOD GRACE PERIOD CHARGE RATE FIRST NOTICE FREQUENCY MAX # OF NOTICES MAX # OUT MAX CLAIM RTNS MAX UNPAID FINES MAX # OVERDUES MAX # RENEWALS CARD FEE PTYPE AT ROLLOVER HOLD FEE-PLACE HOLD FEE-PICKUP HOLD FEE-EXPIRE ITEM TYPE DESCRIPTION LOAN PERIOD GRACE PERIOD CHARGES DAILY/HOURLY RENT/FINE MINIMUM FINE MAXIMUM FINE FIRST NOTICE FREQUENCY MAX # OF NOTICES PRIORITY LEVEL MAX # RENEWALS HOLD EXTENT RECALL MIN. LOAN RECALL PERIOD RECALL RATE PROCESSING FEE LOST FUND DAMAGED FUND HOLD FEE-PLACE HOLD FEE-PICKUP HOLD FEE-EXPIRE LOAN TRANSACTION USER NAME BARCODE BORROWING DATE DUE DATE TITLE BARCODE ITEM NOTE

KOLEKSI BIB DATA BIB_ID CREATING DATE ISBN/ISSN LANGUAGE CREATOR CLASS_NUMBER AUTHOR TITLE STAT. OF RESP. GMD EDITION PUBLICATION PHYSICAL DES. SERIES TITLE GENERAL NOTE SUBJECT HEADINGS OTHER AUTHORS akses ITEM(S) ITEM_ID CREATOR TITLE LOCATION ITEM TYPE ITEM STAT. DATE ADDED NOTE PRICE SOURCE INVENT. NUMBER SUPPLIER CURR. USE TOTAL. USE PERSONAL NAME NUMERATION DATE ASS. WITH NAME DATE OF WORK FULLER FORM OF NAME USER/MEMBER USER_ID NAME HOME ADDRESS CITY ZIP CODE TELEPHONE BARCODE E-MAL USER_TYPE USER_STAT. DATE ADD. /MOD/EXP GURDIAN NAME HOME ADDRESS CITY ZIP CODE CURR. USE TOTAL USE NOTE STATUS CODES STATUS DESC. USER TYPE AUTHOR ANGGOTA OPAC PUBLICATION PUB. PLACE PUBLISHER PUB. DATE SUBJECT TOPICAL TERM GEN. SUBDIVISON CHON. SUBDIVISION GEO. SUBDIVISION SOURCE OF SUBJECT TERM DESCRIPTION PATRON PRIORITY ADDRESS CHECK EXPIRATION LOAN PERIOD GRACE PERIOD CHARGE RATE FIRST NOTICE FREQUENCY MAX # OF NOTICES MAX # OUT MAX CLAIM RTNS MAX UNPAID FINES MAX # OVERDUES MAX # RENEWALS CARD FEE PTYPE AT ROLLOVER HOLD FEE-PLACE HOLD FEE-PICKUP HOLD FEE-EXPIRE ITEM TYPE DESCRIPTION LOAN PERIOD GRACE PERIOD CHARGES DAILY/HOURLY RENT/FINE MINIMUM FINE MAXIMUM FINE FIRST NOTICE FREQUENCY MAX # OF NOTICES PRIORITY LEVEL MAX # RENEWALS HOLD EXTENT RECALL MIN. LOAN RECALL PERIOD RECALL RATE PROCESSING FEE LOST FUND DAMAGED FUND HOLD FEE-PLACE HOLD FEE-PICKUP HOLD FEE-EXPIRE akses LOAN TRANSACTION USER NAME BARCODE BORROWING DATE DUE DATE TITLE BARCODE ITEM NOTE
