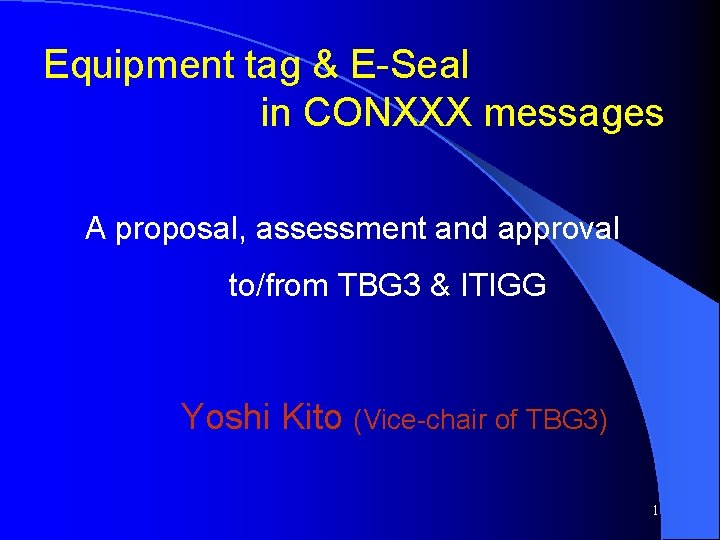

Equipment tag & E-Seal in CONXXX messages A proposal, assessment and approval to/from TBG 3 & ITIGG Yoshi Kito (Vice-chair of TBG 3) 1

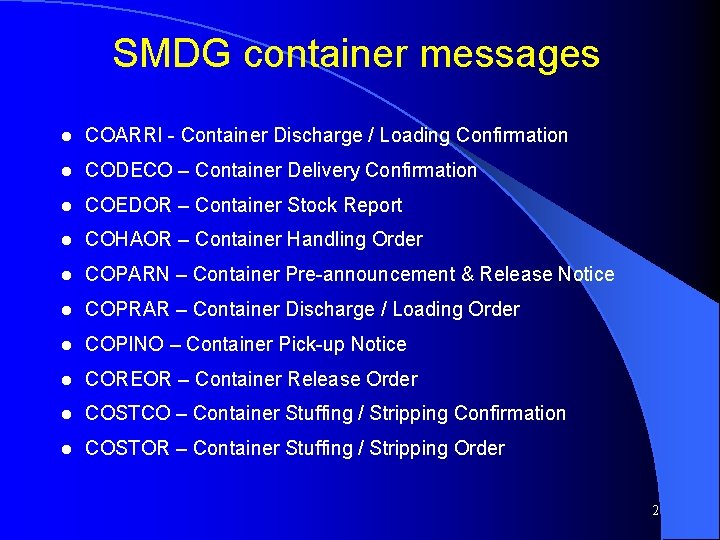

SMDG container messages l COARRI - Container Discharge / Loading Confirmation l CODECO – Container Delivery Confirmation l COEDOR – Container Stock Report l COHAOR – Container Handling Order l COPARN – Container Pre-announcement & Release Notice l COPRAR – Container Discharge / Loading Order l COPINO – Container Pick-up Notice l COREOR – Container Release Order l COSTCO – Container Stuffing / Stripping Confirmation l COSTOR – Container Stuffing / Stripping Order 2

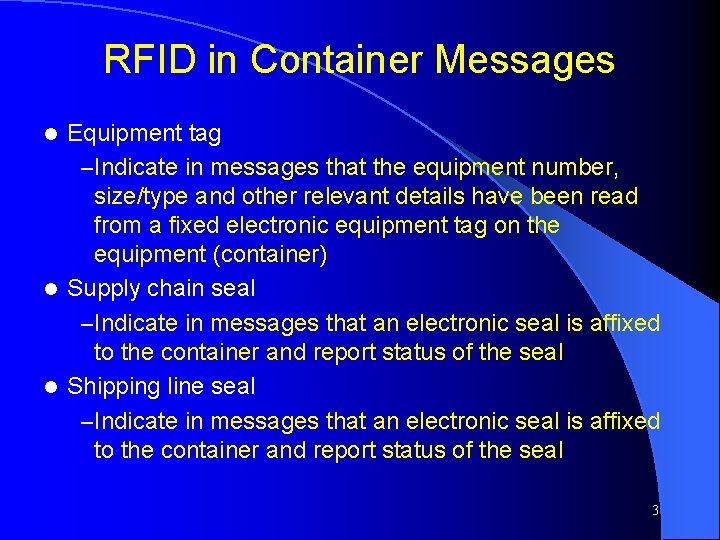

RFID in Container Messages Equipment tag – Indicate in messages that the equipment number, size/type and other relevant details have been read from a fixed electronic equipment tag on the equipment (container) l Supply chain seal – Indicate in messages that an electronic seal is affixed to the container and report status of the seal l Shipping line seal – Indicate in messages that an electronic seal is affixed to the container and report status of the seal l 3

Supply chain seal & shipping line seal To be reported in SEL segment : SEL e 9308 C 215 e 4517 C 208 Seal identifier Seal Issuer Seal condition code Identity number range 4

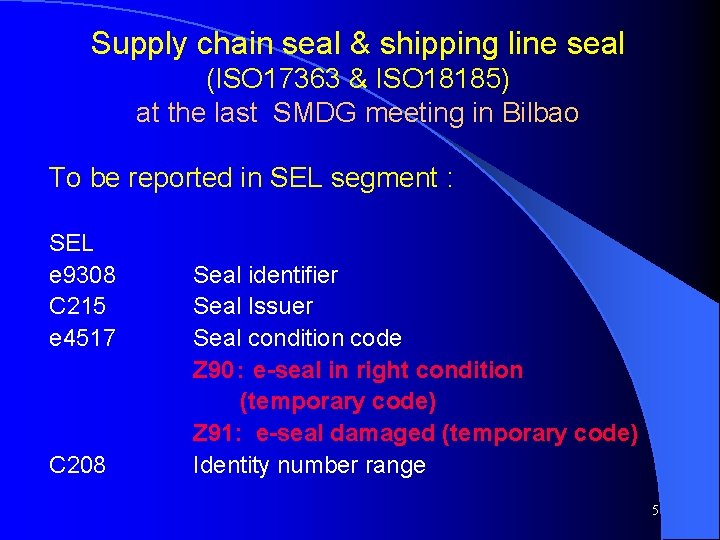

Supply chain seal & shipping line seal (ISO 17363 & ISO 18185) at the last SMDG meeting in Bilbao To be reported in SEL segment : SEL e 9308 C 215 e 4517 C 208 Seal identifier Seal Issuer Seal condition code Z 90： e-seal in right condition (temporary code) Z 91: e-seal damaged (temporary code) Identity number range 5

Supply chain seal & shipping line seal (ISO 17363 & ISO 18185) at the last TBG 3/ITIGG meeting in Paris To be reported in SEL segment : SEL e 9308 C 215 e 4517 C 208 9 XX 9 Seal identifier Seal Issuer Seal condition code Identity number range Seal type, coded Definition: To specify a type of seal such as electronic, plastic or metal, etc. 6

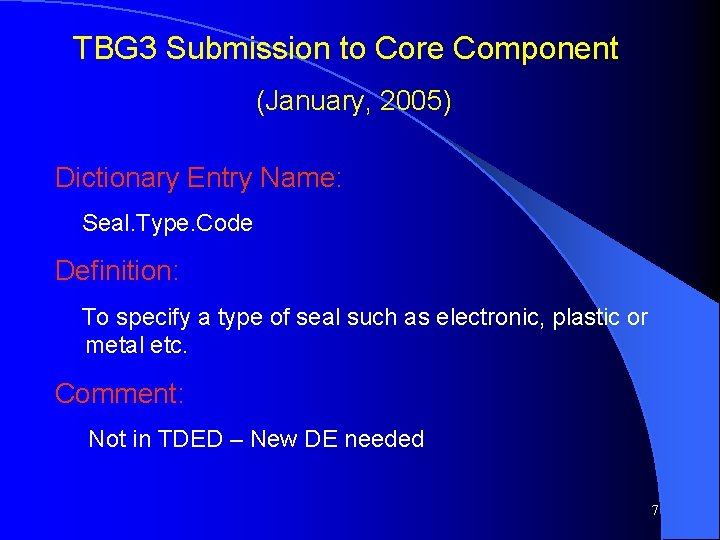

TBG 3 Submission to Core Component (January, 2005) Dictionary Entry Name: Seal. Type. Code Definition: To specify a type of seal such as electronic, plastic or metal etc. Comment: Not in TDED – New DE needed 7

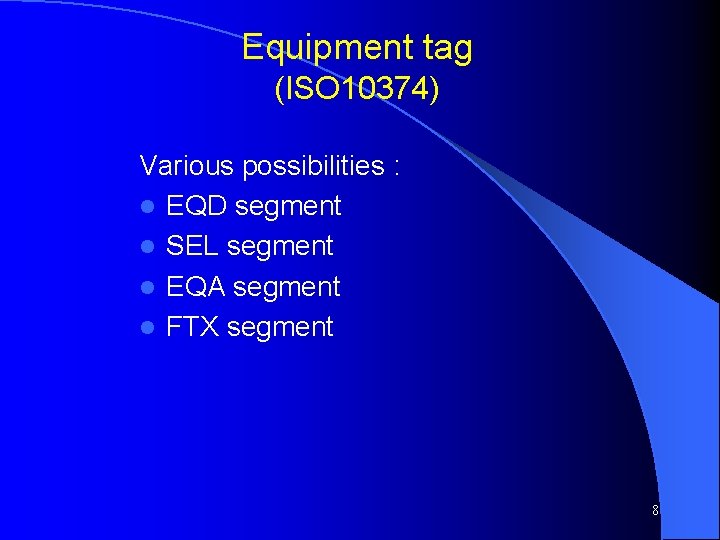

Equipment tag (ISO 10374) Various possibilities : l EQD segment l SEL segment l EQA segment l FTX segment 8

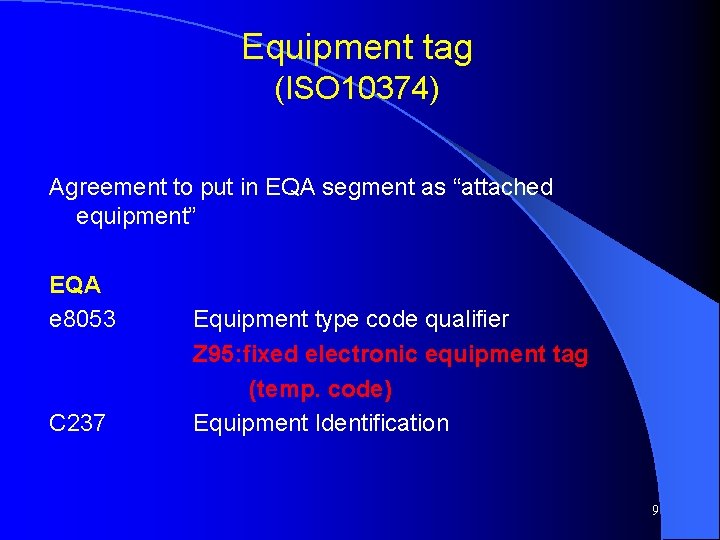

Equipment tag (ISO 10374) Agreement to put in EQA segment as “attached equipment” EQA e 8053 C 237 Equipment type code qualifier Z 95: fixed electronic equipment tag (temp. code) Equipment Identification 9

Agreements & actions l l l Agreement & approval from TBG 3 Proposal the result to SMDG meeting in April Final agreement from SMDG DMRs will be prepared and submitted by Japan DMRs will be assessed at the next UN/CEFACT Forum, September 2006 10
