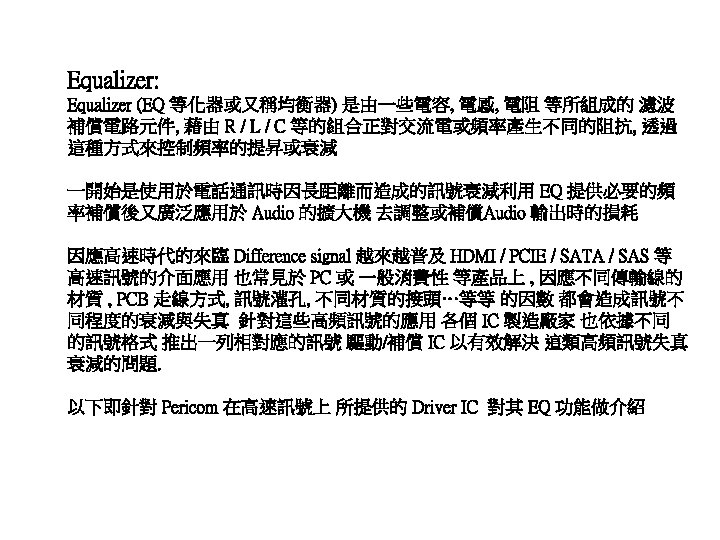

Equalizer function Pericom High speed Driver Product Techmosa / FAE Michael 2007/3/20

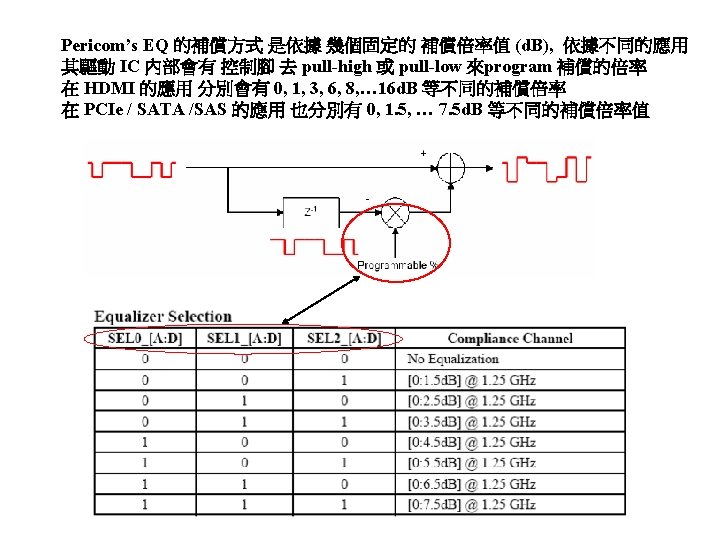

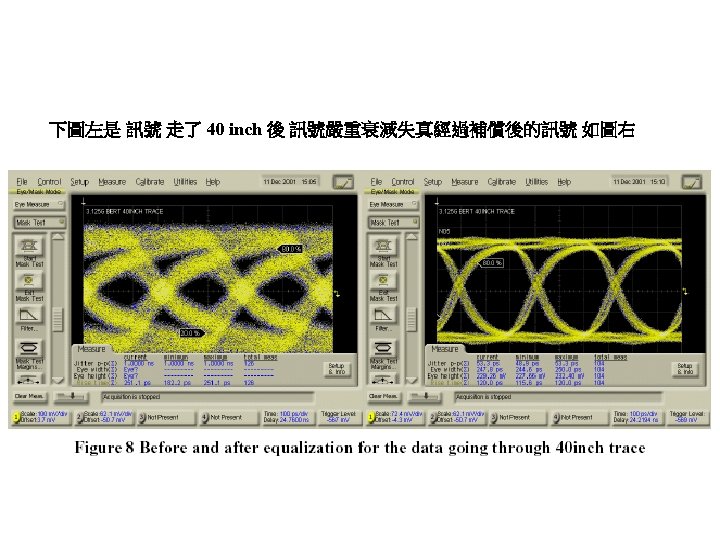

CML With internal 50 Ohm Termination Equalizer Pin Program De-Emphasis Pin Program CML With Internal Termination & Deemphasis

Pericom’s solution: HDMI Active switch PI 3 HDMI 411 AD/412 AD PI 3 HDMI 341 AR/421 AR 產品特性: . Revision HDMI 1. 3 Compatible up to 12 bit/channel 2. 5 Gbps. HPD, SCL and SDA switch integrated. 8 KV contact ESD protection on high speed signals. No external transistors required. Up to 16 d. B Equalization max, with adjustable levels. – 9, 5 d. B de-emphasis max, with adjustable levels

PCIe: PI 2 EQX 4401 / 4402 SATA/SAS: PI 2 EQX 3201 / 3202 產品特性: . Support driving of SAS, SATA, XAUI & FC signals up to 32” of FR 4 trace lengths on PCB boards. 3. 125 – 4. 5 Gbps performance @ 1. 8 V, Low power 100 m. W. Flow-Thru signal path. Provides Integrated clock buffer to support need in SSC. LFBGA & Small package using TQFN technology. 0. 18 u Technology. Programmable trace equalization and programmable driver de-emphasis END!! 資料來源. 網路. Pericom Semiconductor Corporation (www. pericom. com)
