Equalization in a wideband TDMA system Three basic

Equalization in a wideband TDMA system • Three basic equalization methods • Linear equalization (LE) • Decision feedback equalization (DFE) • Sequence estimation (MLSE-VA) • Example of channel estimation circuit

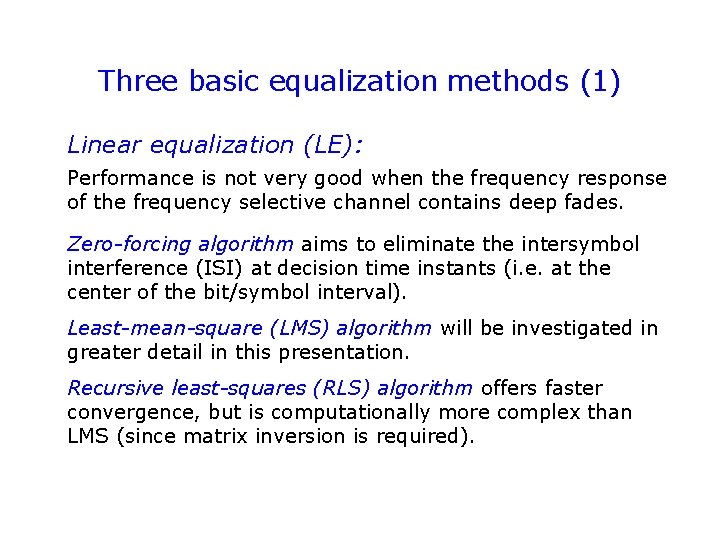

Three basic equalization methods (1) Linear equalization (LE): Performance is not very good when the frequency response of the frequency selective channel contains deep fades. Zero-forcing algorithm aims to eliminate the intersymbol interference (ISI) at decision time instants (i. e. at the center of the bit/symbol interval). Least-mean-square (LMS) algorithm will be investigated in greater detail in this presentation. Recursive least-squares (RLS) algorithm offers faster convergence, but is computationally more complex than LMS (since matrix inversion is required).

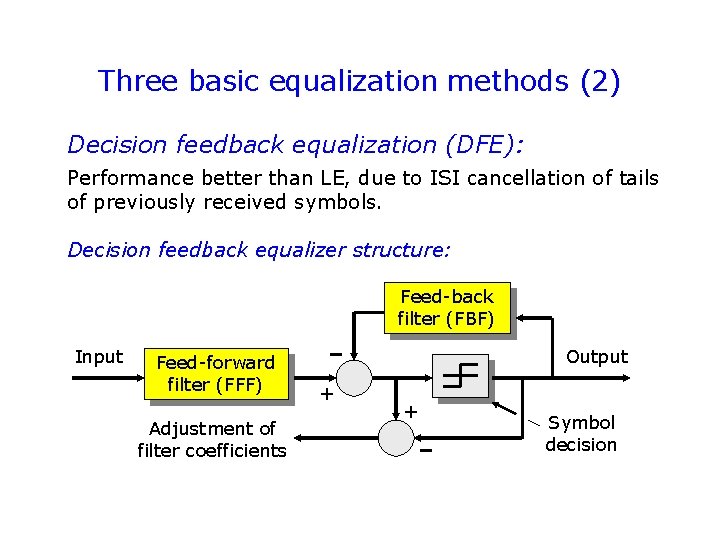

Three basic equalization methods (2) Decision feedback equalization (DFE): Performance better than LE, due to ISI cancellation of tails of previously received symbols. Decision feedback equalizer structure: Feed-back filter (FBF) Input Feed-forward filter (FFF) Adjustment of filter coefficients Output + + Symbol decision

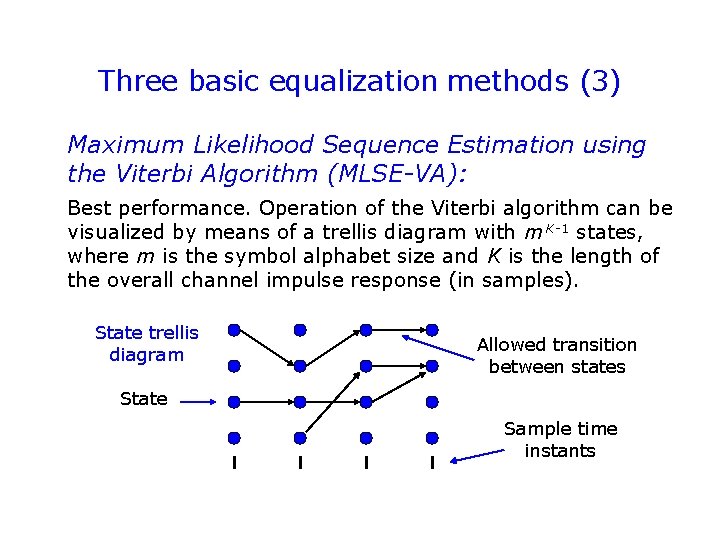

Three basic equalization methods (3) Maximum Likelihood Sequence Estimation using the Viterbi Algorithm (MLSE-VA): Best performance. Operation of the Viterbi algorithm can be visualized by means of a trellis diagram with m K-1 states, where m is the symbol alphabet size and K is the length of the overall channel impulse response (in samples). State trellis diagram Allowed transition between states State Sample time instants

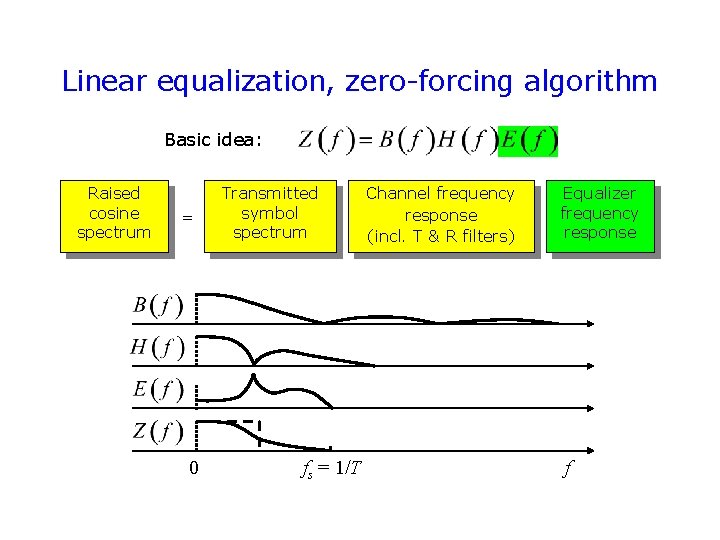

Linear equalization, zero-forcing algorithm Basic idea: Raised cosine spectrum = 0 Transmitted symbol spectrum fs = 1/T Channel frequency response (incl. T & R filters) Equalizer frequency response f

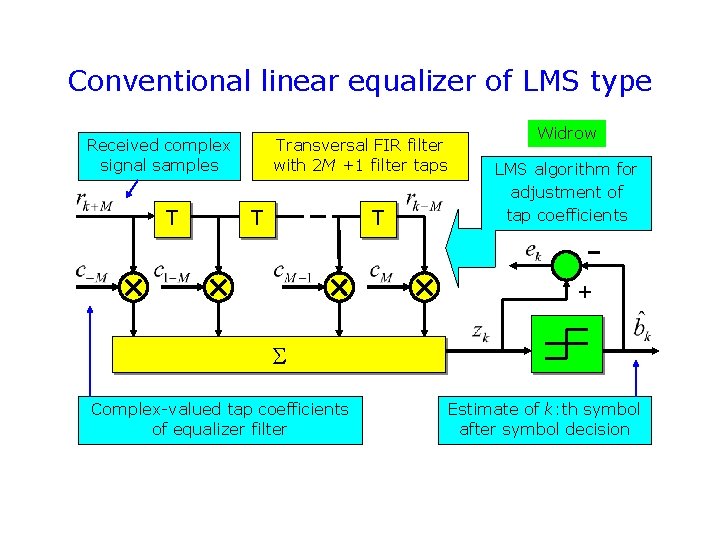

Conventional linear equalizer of LMS type Received complex signal samples T Transversal FIR filter with 2 M +1 filter taps T T Widrow LMS algorithm for adjustment of tap coefficients + Complex-valued tap coefficients of equalizer filter Estimate of k: th symbol after symbol decision

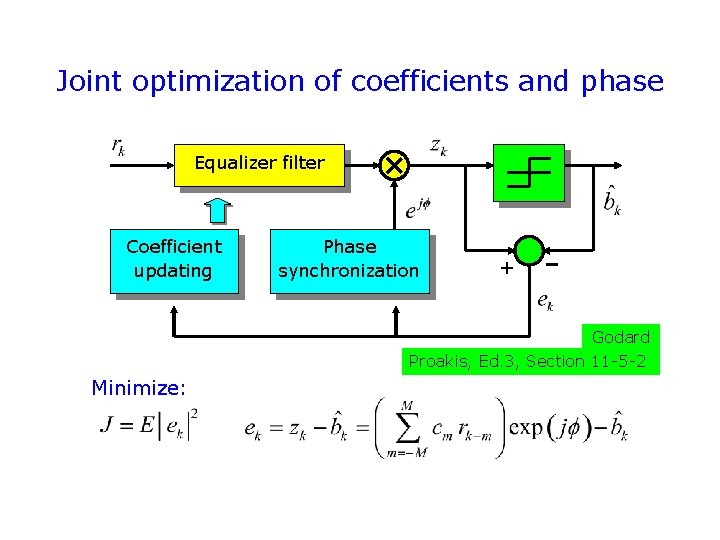

Joint optimization of coefficients and phase Equalizer filter Coefficient updating Phase synchronization + Godard Proakis, Ed. 3, Section 11 -5 -2 Minimize:

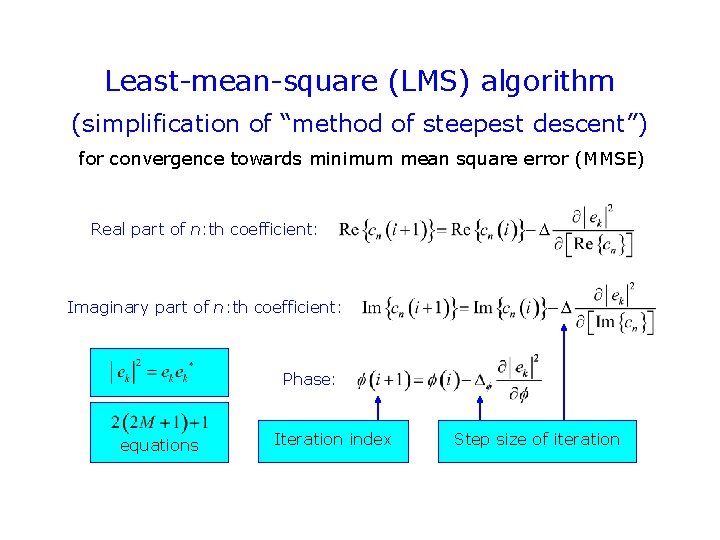

Least-mean-square (LMS) algorithm (simplification of “method of steepest descent”) for convergence towards minimum mean square error (MMSE) Real part of n: th coefficient: Imaginary part of n: th coefficient: Phase: equations Iteration index Step size of iteration

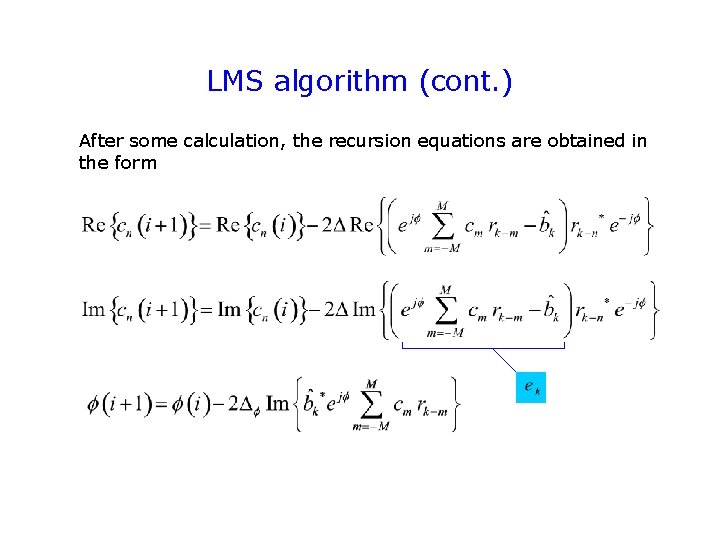

LMS algorithm (cont. ) After some calculation, the recursion equations are obtained in the form

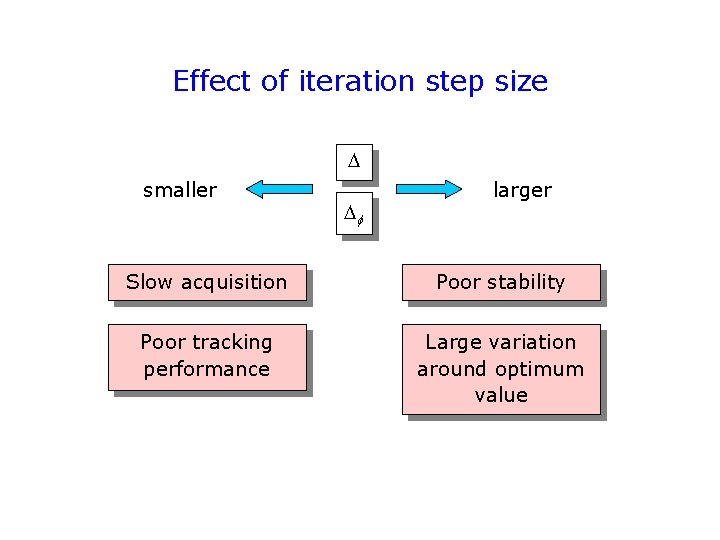

Effect of iteration step size smaller larger Slow acquisition Poor stability Poor tracking performance Large variation around optimum value

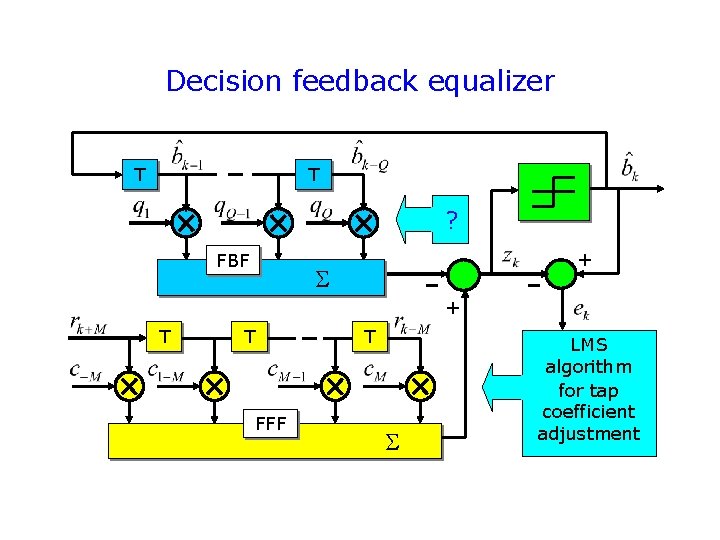

Decision feedback equalizer T T ? FBF + + T T T FFF LMS algorithm for tap coefficient adjustment

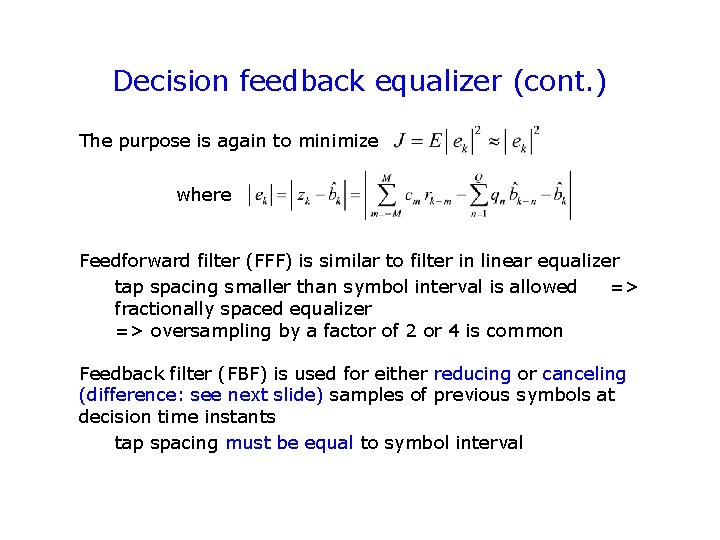

Decision feedback equalizer (cont. ) The purpose is again to minimize where Feedforward filter (FFF) is similar to filter in linear equalizer tap spacing smaller than symbol interval is allowed => fractionally spaced equalizer => oversampling by a factor of 2 or 4 is common Feedback filter (FBF) is used for either reducing or canceling (difference: see next slide) samples of previous symbols at decision time instants tap spacing must be equal to symbol interval

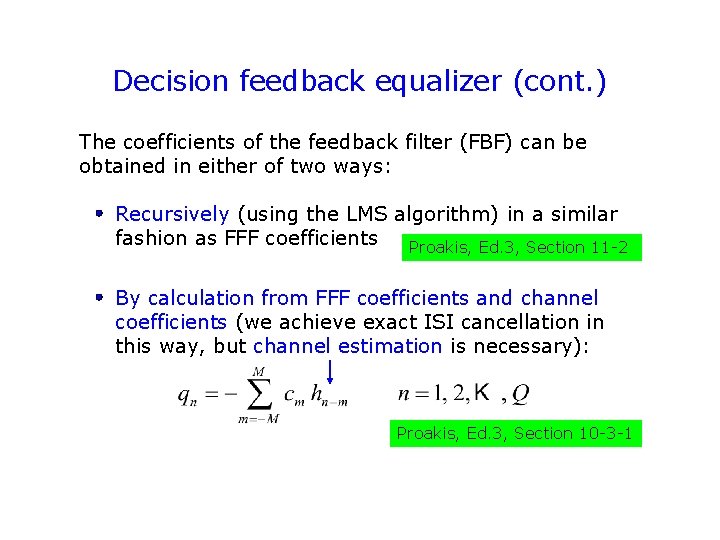

Decision feedback equalizer (cont. ) The coefficients of the feedback filter (FBF) can be obtained in either of two ways: Recursively (using the LMS algorithm) in a similar fashion as FFF coefficients Proakis, Ed. 3, Section 11 -2 By calculation from FFF coefficients and channel coefficients (we achieve exact ISI cancellation in this way, but channel estimation is necessary): Proakis, Ed. 3, Section 10 -3 -1

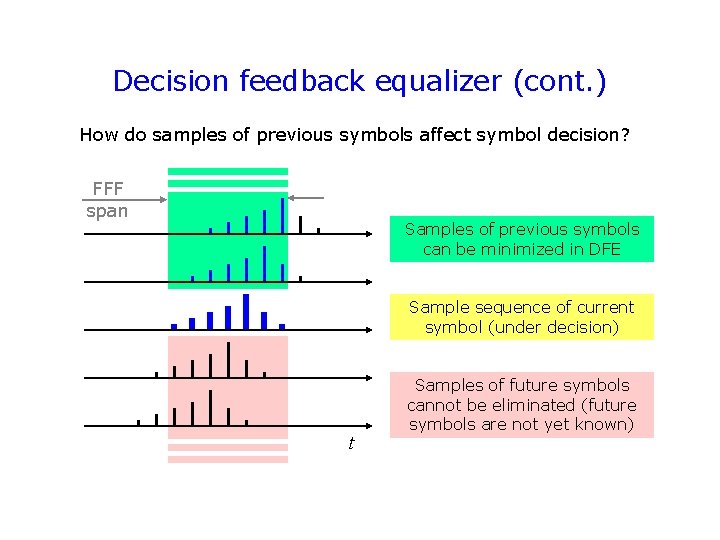

Decision feedback equalizer (cont. ) How do samples of previous symbols affect symbol decision? FFF span Samples of previous symbols can be minimized in DFE Sample sequence of current symbol (under decision) t Samples of future symbols cannot be eliminated (future symbols are not yet known)

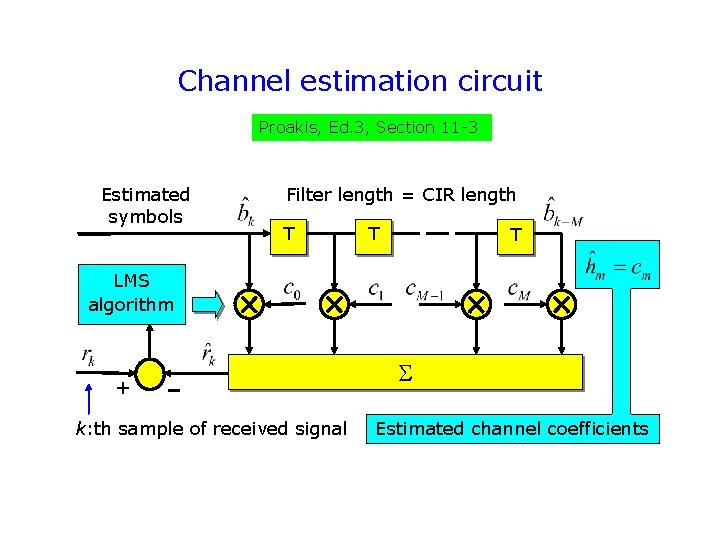

Channel estimation circuit Proakis, Ed. 3, Section 11 -3 Estimated symbols Filter length = CIR length T T T LMS algorithm + k: th sample of received signal Estimated channel coefficients

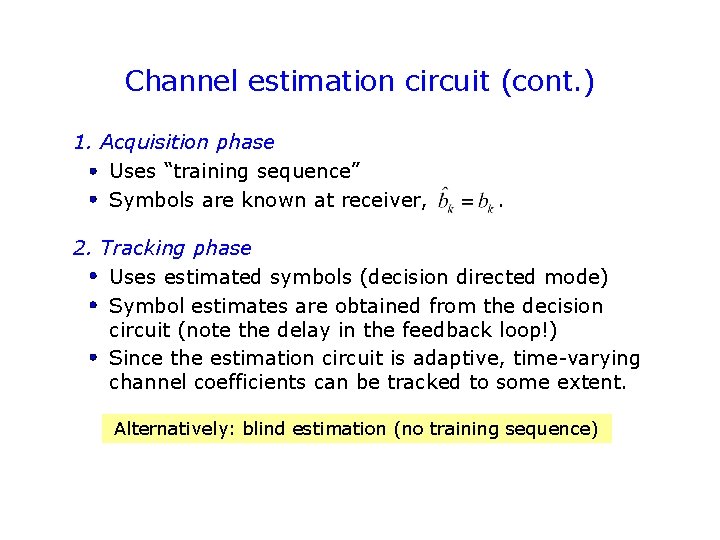

Channel estimation circuit (cont. ) 1. Acquisition phase Uses “training sequence” Symbols are known at receiver, . 2. Tracking phase Uses estimated symbols (decision directed mode) Symbol estimates are obtained from the decision circuit (note the delay in the feedback loop!) Since the estimation circuit is adaptive, time-varying channel coefficients can be tracked to some extent. Alternatively: blind estimation (no training sequence)

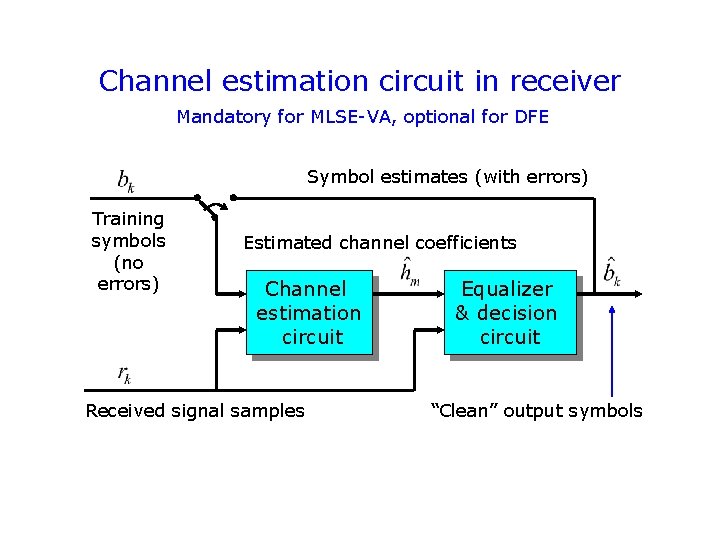

Channel estimation circuit in receiver Mandatory for MLSE-VA, optional for DFE Symbol estimates (with errors) Training symbols (no errors) Estimated channel coefficients Channel estimation circuit Received signal samples Equalizer & decision circuit “Clean” output symbols

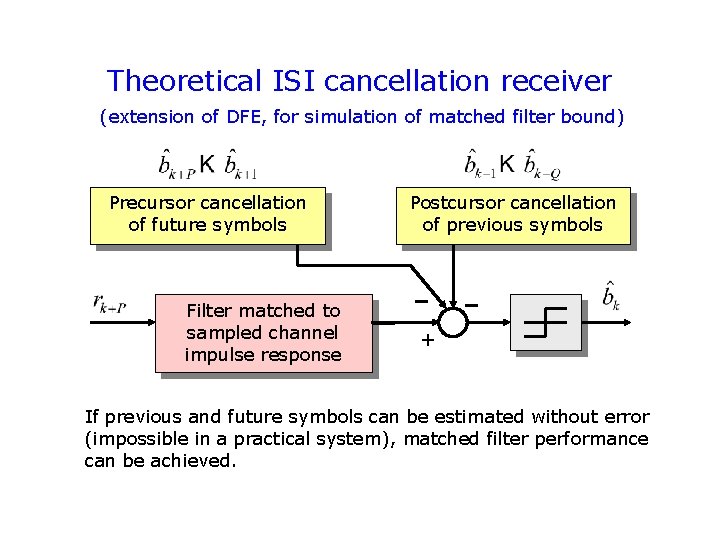

Theoretical ISI cancellation receiver (extension of DFE, for simulation of matched filter bound) Precursor cancellation of future symbols Filter matched to sampled channel impulse response Postcursor cancellation of previous symbols + If previous and future symbols can be estimated without error (impossible in a practical system), matched filter performance can be achieved.

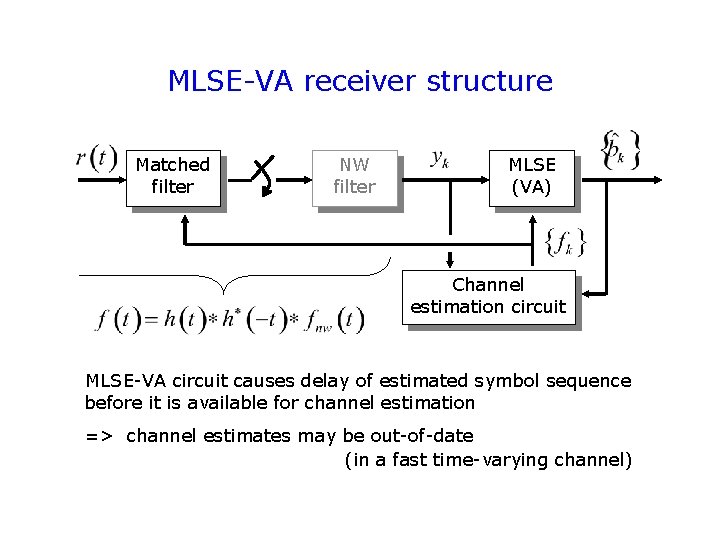

MLSE-VA receiver structure Matched filter NW filter MLSE (VA) Channel estimation circuit MLSE-VA circuit causes delay of estimated symbol sequence before it is available for channel estimation => channel estimates may be out-of-date (in a fast time-varying channel)

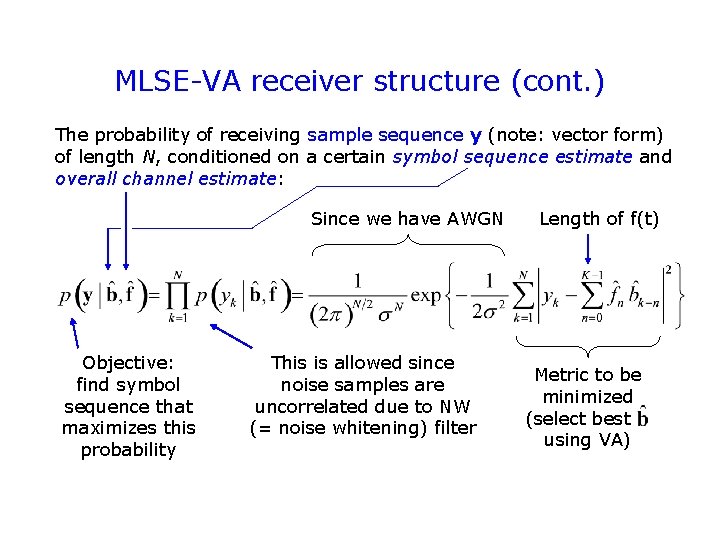

MLSE-VA receiver structure (cont. ) The probability of receiving sample sequence y (note: vector form) of length N, conditioned on a certain symbol sequence estimate and overall channel estimate: Since we have AWGN Objective: find symbol sequence that maximizes this probability This is allowed since noise samples are uncorrelated due to NW (= noise whitening) filter Length of f(t) Metric to be minimized (select best. . using VA)

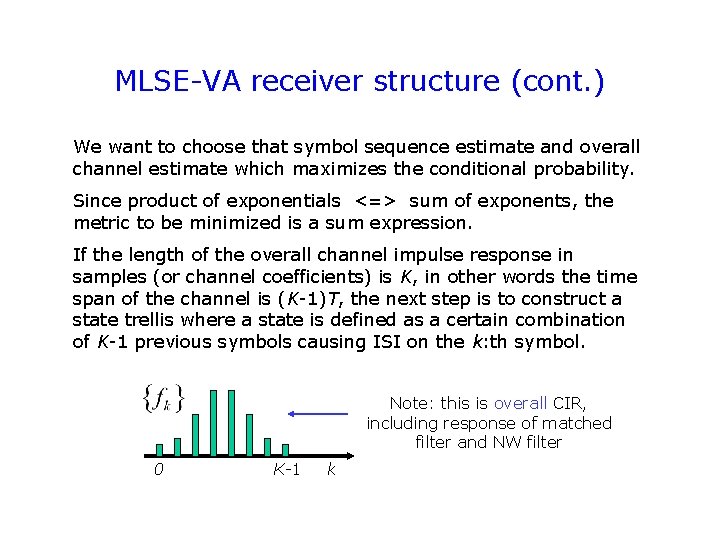

MLSE-VA receiver structure (cont. ) We want to choose that symbol sequence estimate and overall channel estimate which maximizes the conditional probability. Since product of exponentials <=> sum of exponents, the metric to be minimized is a sum expression. If the length of the overall channel impulse response in samples (or channel coefficients) is K, in other words the time span of the channel is (K-1)T, the next step is to construct a state trellis where a state is defined as a certain combination of K-1 previous symbols causing ISI on the k: th symbol. Note: this is overall CIR, including response of matched filter and NW filter 0 K-1 k

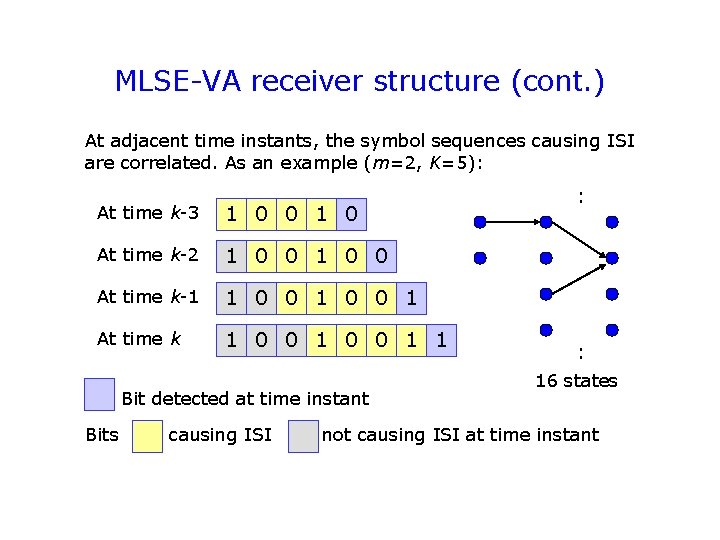

MLSE-VA receiver structure (cont. ) At adjacent time instants, the symbol sequences causing ISI are correlated. As an example (m=2, K=5): At time k-3 1 0 0 1 0 At time k-2 1 0 0 At time k-1 1 0 0 1 At time k 1 0 0 1 1 Bit detected at time instant Bits causing ISI : : 16 states not causing ISI at time instant

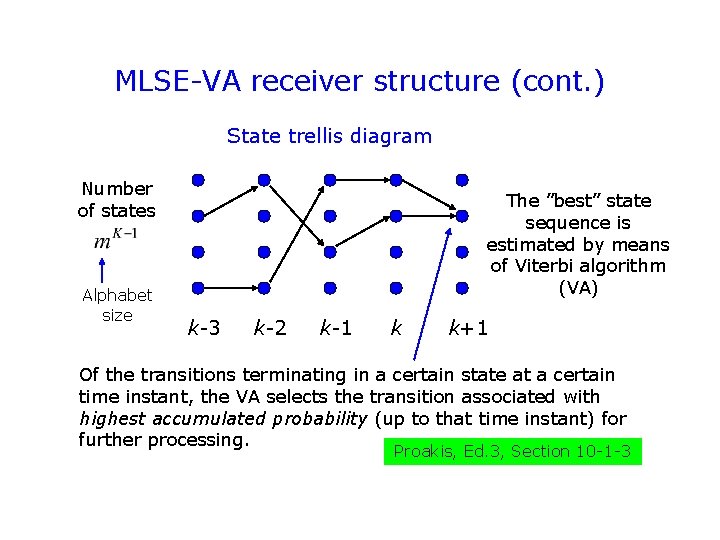

MLSE-VA receiver structure (cont. ) State trellis diagram Number of states Alphabet size The ”best” state sequence is estimated by means of Viterbi algorithm (VA) k-3 k-2 k-1 k k+1 Of the transitions terminating in a certain state at a certain time instant, the VA selects the transition associated with highest accumulated probability (up to that time instant) for further processing. Proakis, Ed. 3, Section 10 -1 -3
