Epoxy Putty SRJC, Engr 45, Fall 2010 Jinwoo Lee Steven Flores Christian Rosko

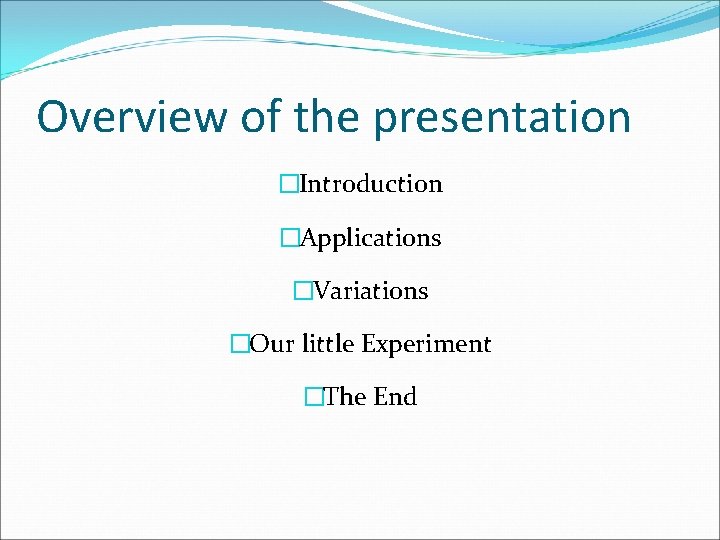

Overview of the presentation �Introduction �Applications �Variations �Our little Experiment �The End

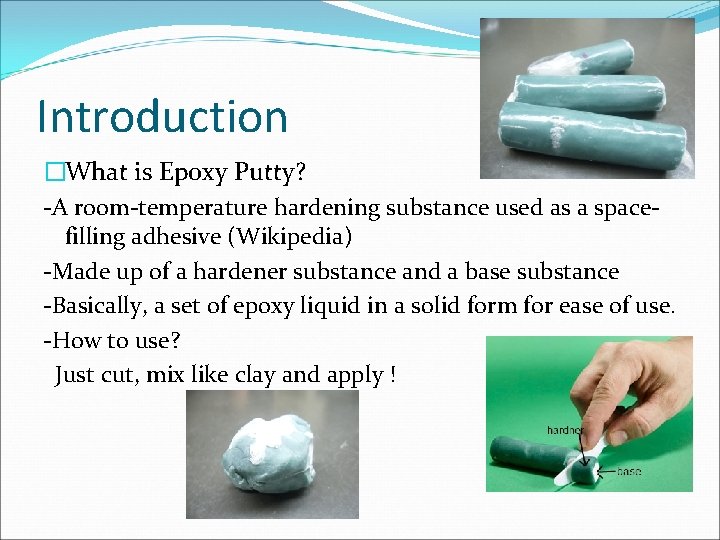

Introduction �What is Epoxy Putty? -A room-temperature hardening substance used as a spacefilling adhesive (Wikipedia) -Made up of a hardener substance and a base substance -Basically, a set of epoxy liquid in a solid form for ease of use. -How to use? Just cut, mix like clay and apply !

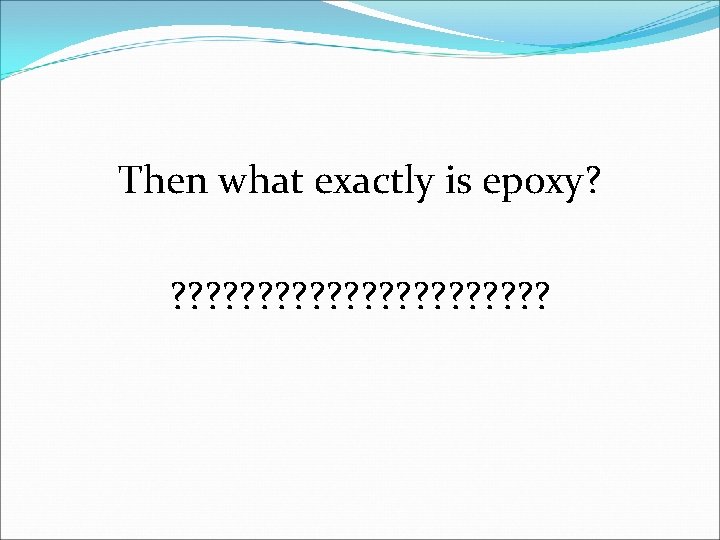

Then what exactly is epoxy? ? ? ? ? ?

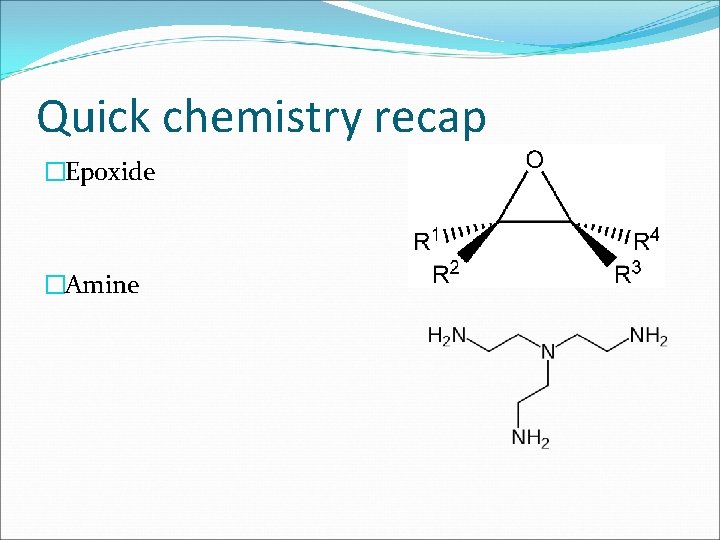

Quick chemistry recap �Epoxide �Amine

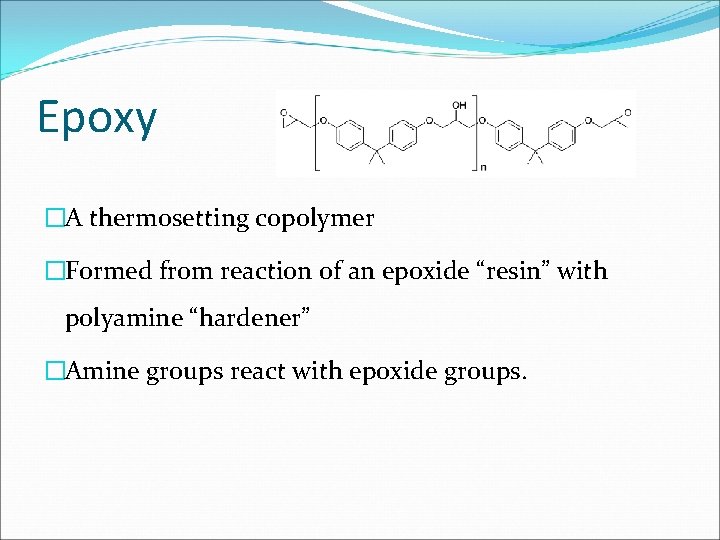

Epoxy �A thermosetting copolymer �Formed from reaction of an epoxide “resin” with polyamine “hardener” �Amine groups react with epoxide groups.

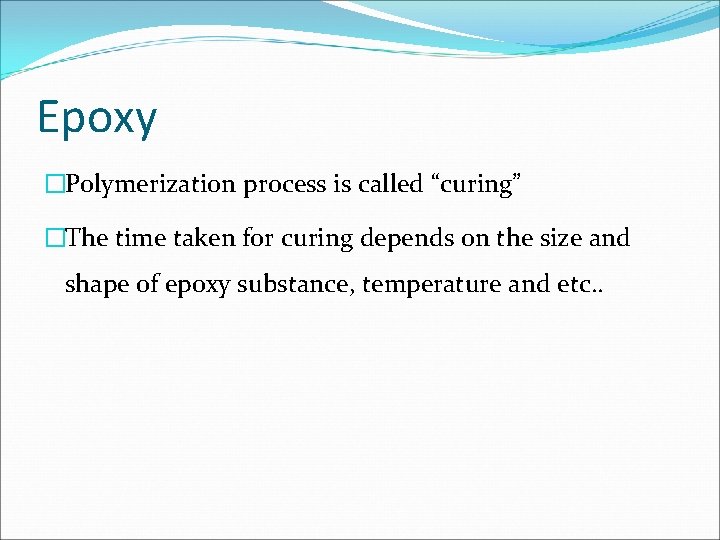

Epoxy �Polymerization process is called “curing” �The time taken for curing depends on the size and shape of epoxy substance, temperature and etc. .

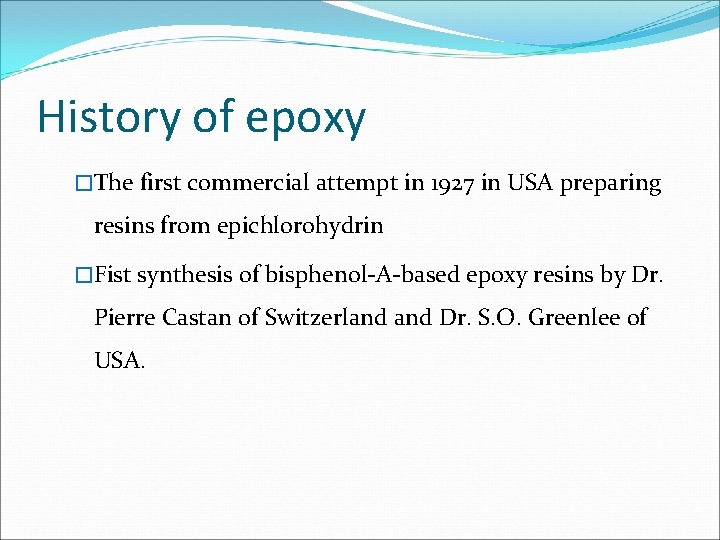

History of epoxy �The first commercial attempt in 1927 in USA preparing resins from epichlorohydrin �Fist synthesis of bisphenol-A-based epoxy resins by Dr. Pierre Castan of Switzerland Dr. S. O. Greenlee of USA.

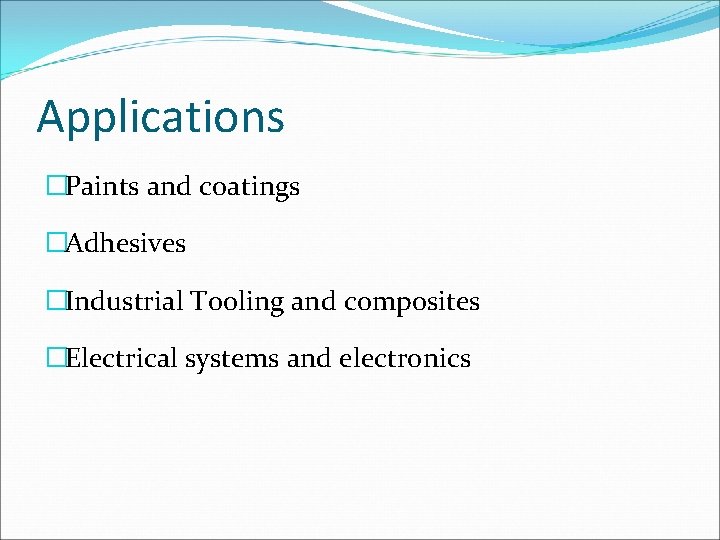

Applications �Paints and coatings �Adhesives �Industrial Tooling and composites �Electrical systems and electronics

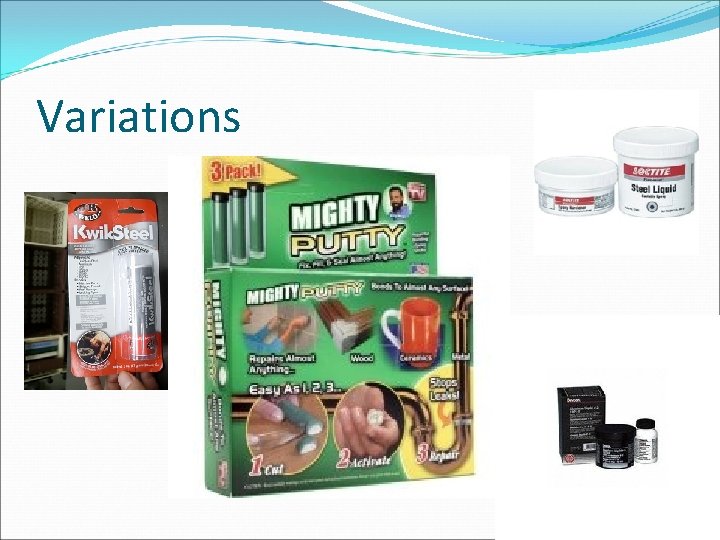

Variations

Experiment �Mighty Putty Claims to do these things.

Test #1 Leaking Pipe

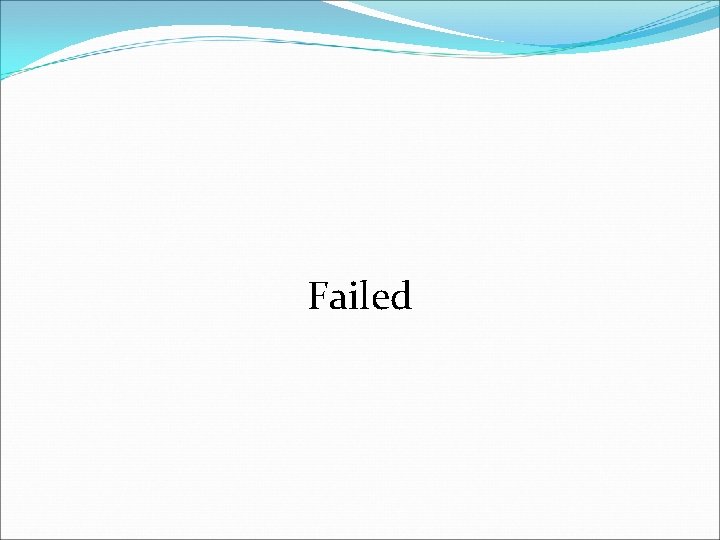

Failed

Test #2 Leaking Pipe

Failed

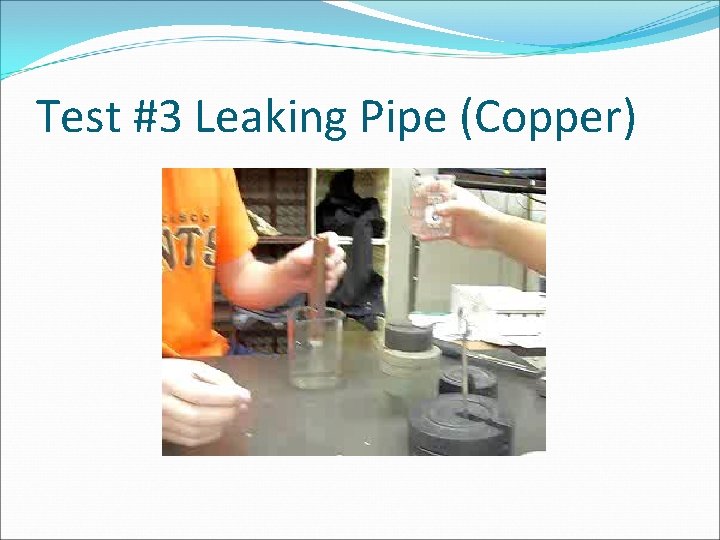

Test #3 Leaking Pipe (Copper)

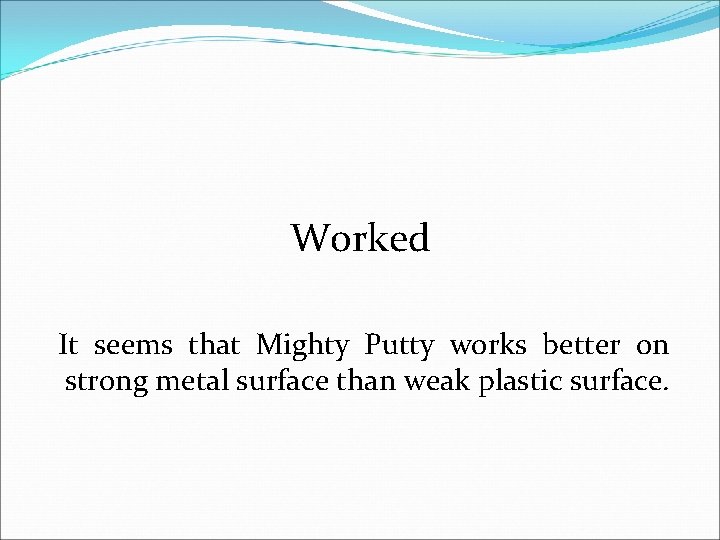

Worked It seems that Mighty Putty works better on strong metal surface than weak plastic surface.

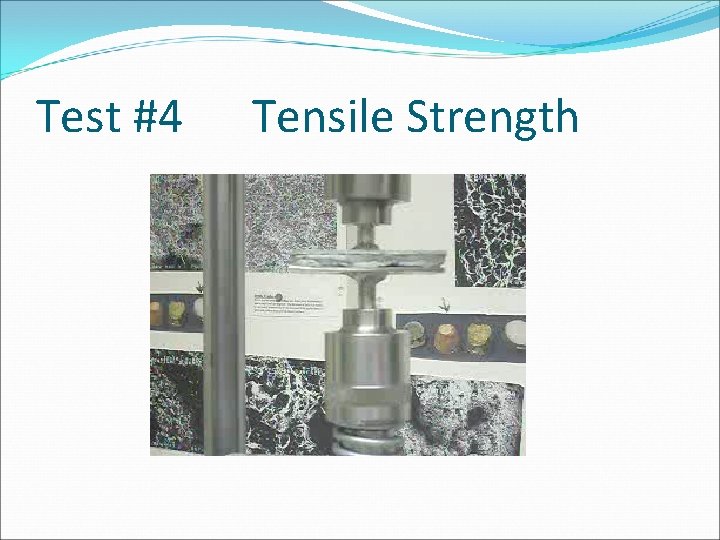

Test #4 Tensile Strength

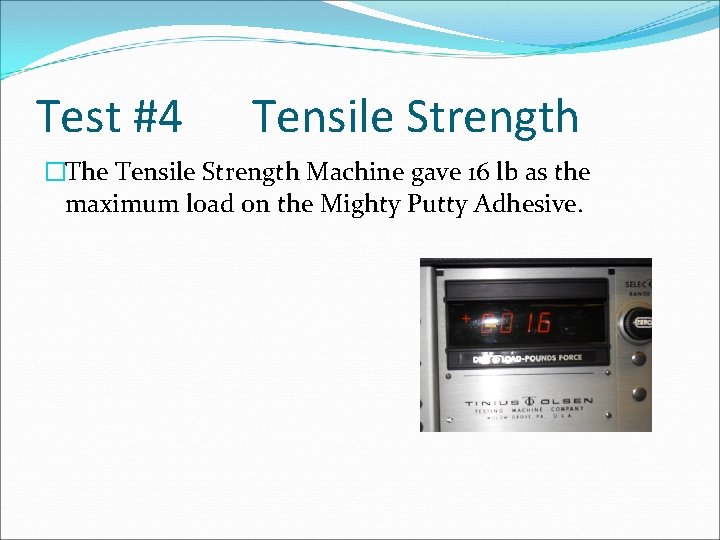

Test #4 Tensile Strength �The Tensile Strength Machine gave 16 lb as the maximum load on the Mighty Putty Adhesive.

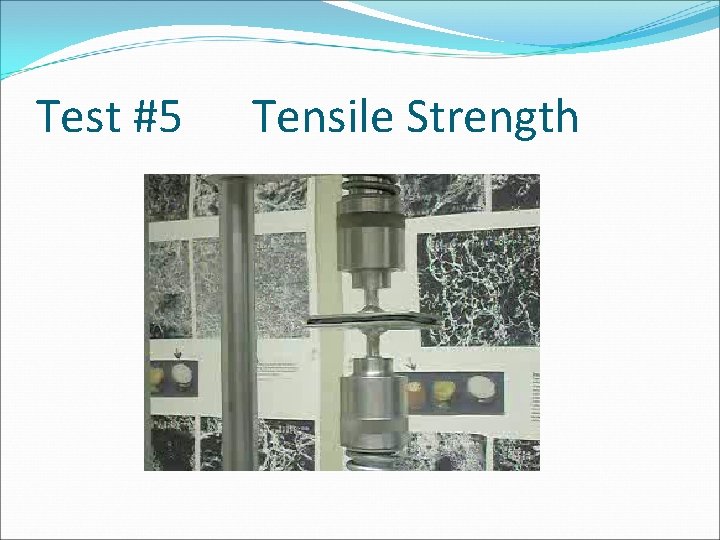

Test #5 Tensile Strength

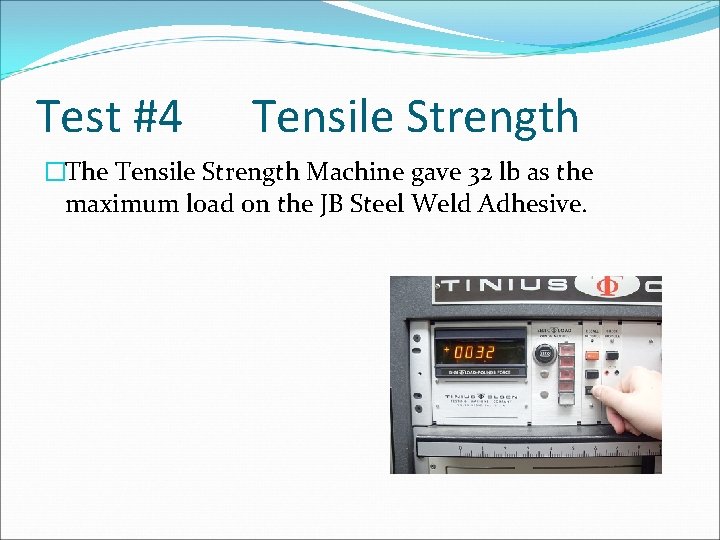

Test #4 Tensile Strength �The Tensile Strength Machine gave 32 lb as the maximum load on the JB Steel Weld Adhesive.

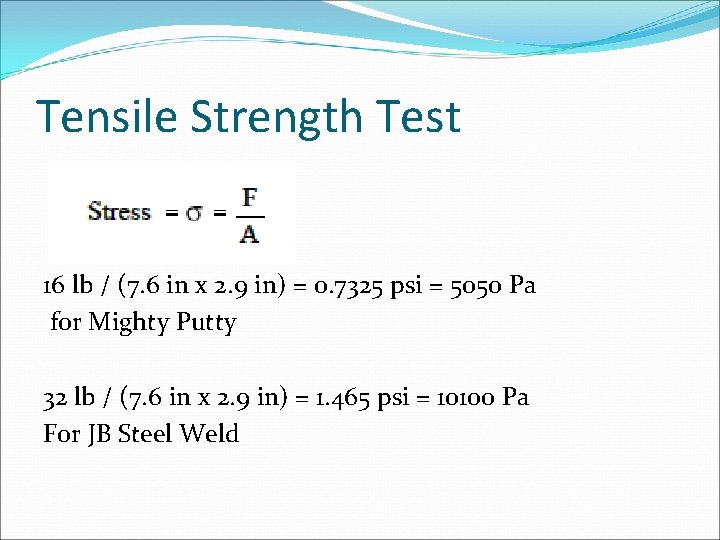

Tensile Strength Test 16 lb / (7. 6 in x 2. 9 in) = 0. 7325 psi = 5050 Pa for Mighty Putty 32 lb / (7. 6 in x 2. 9 in) = 1. 465 psi = 10100 Pa For JB Steel Weld

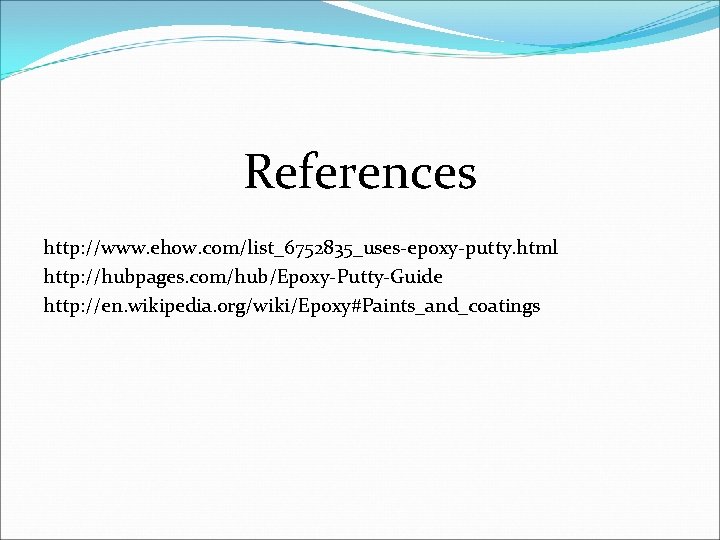

References http: //www. ehow. com/list_6752835_uses-epoxy-putty. html http: //hubpages. com/hub/Epoxy-Putty-Guide http: //en. wikipedia. org/wiki/Epoxy#Paints_and_coatings
