Epipolar Geometry and the Fundamental Matrix F The

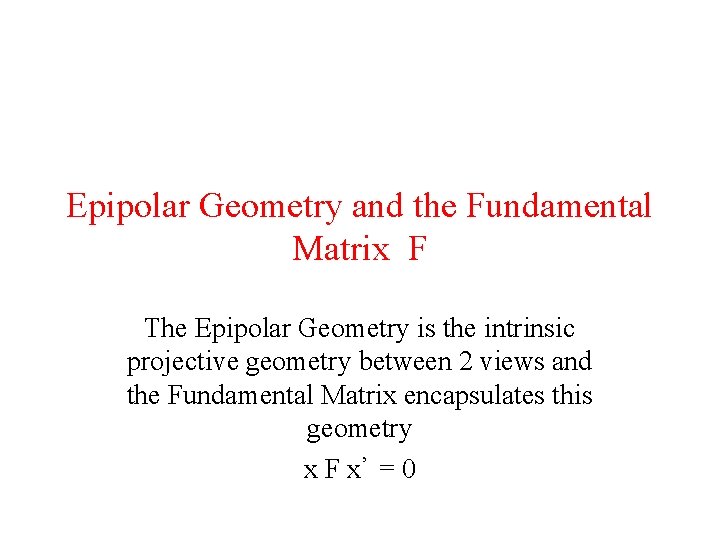

Epipolar Geometry and the Fundamental Matrix F The Epipolar Geometry is the intrinsic projective geometry between 2 views and the Fundamental Matrix encapsulates this geometry x F x’ = 0

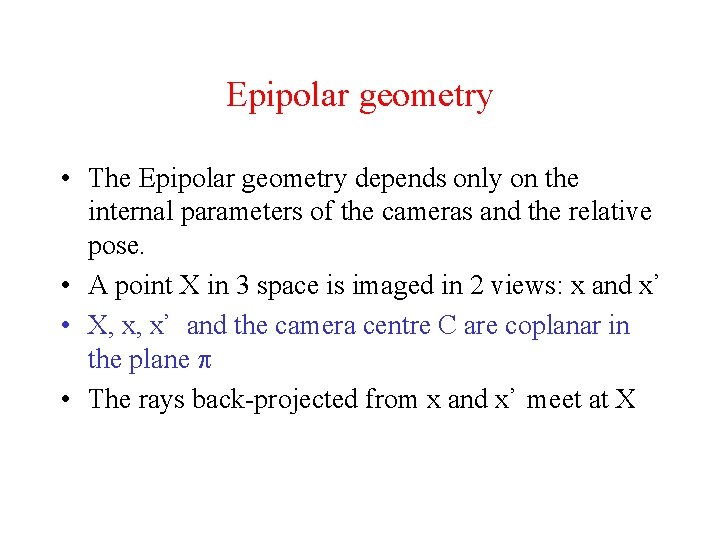

Epipolar geometry • The Epipolar geometry depends only on the internal parameters of the cameras and the relative pose. • A point X in 3 space is imaged in 2 views: x and x’ • X, x, x’ and the camera centre C are coplanar in the plane p • The rays back-projected from x and x’ meet at X

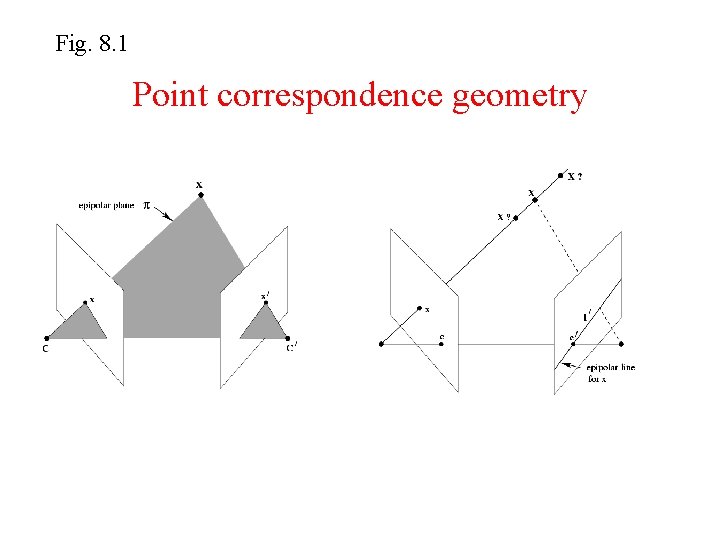

Fig. 8. 1 Point correspondence geometry

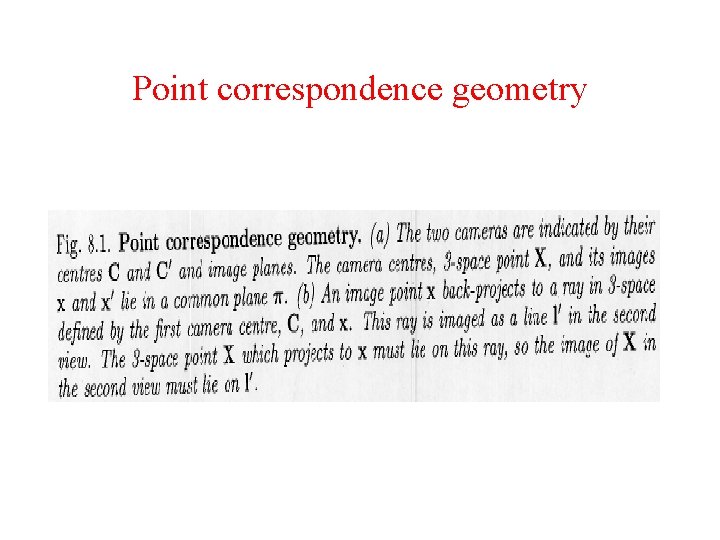

Point correspondence geometry

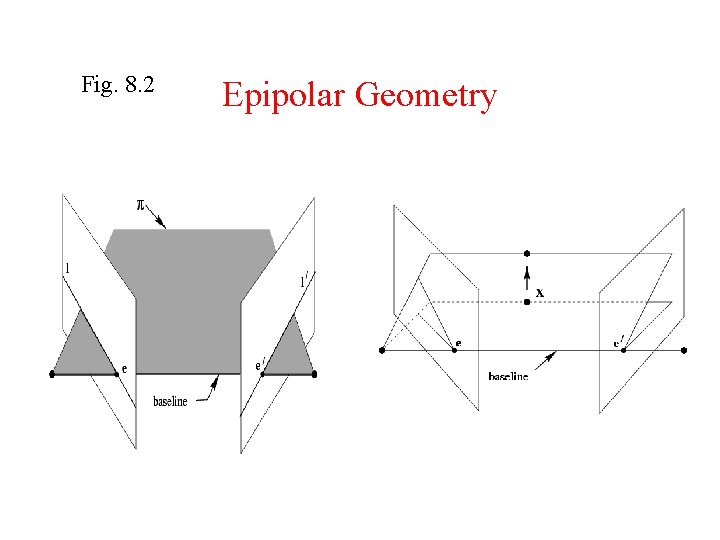

Fig. 8. 2 Epipolar Geometry

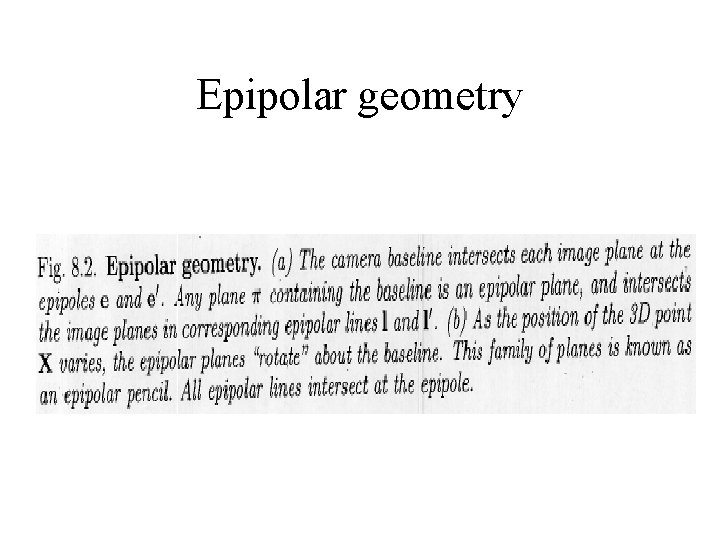

Epipolar geometry

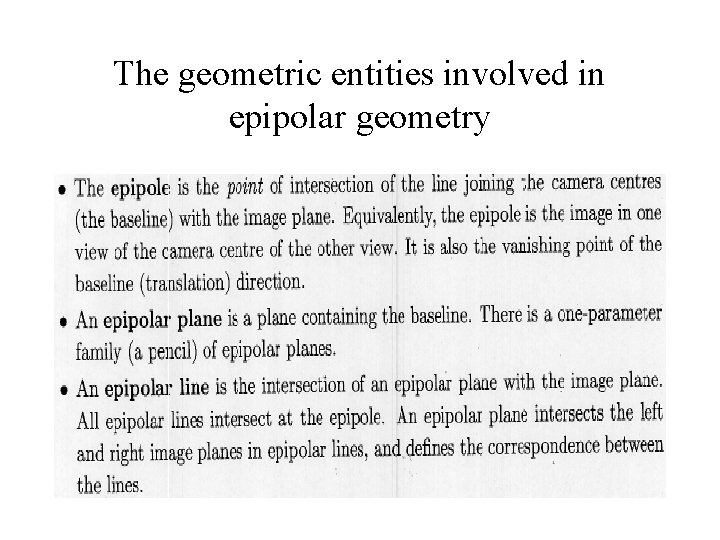

The geometric entities involved in epipolar geometry

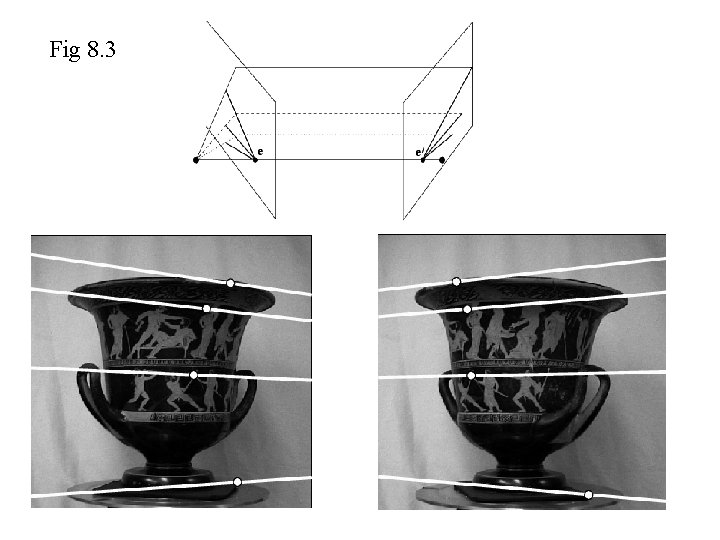

Fig 8. 3

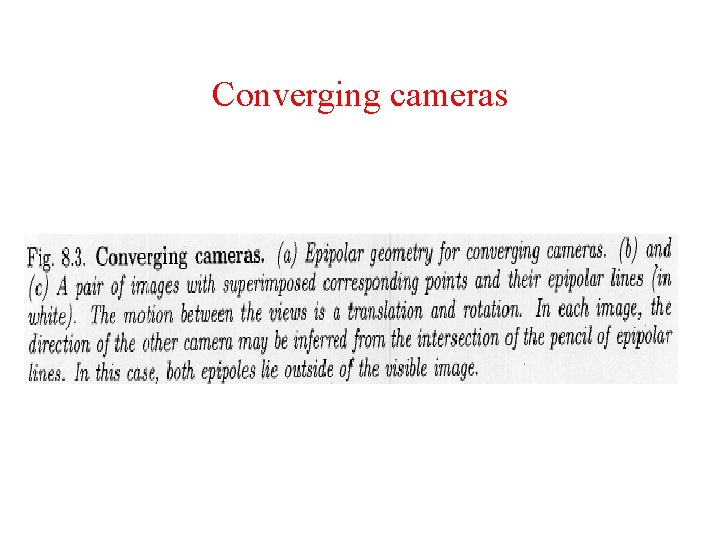

Converging cameras

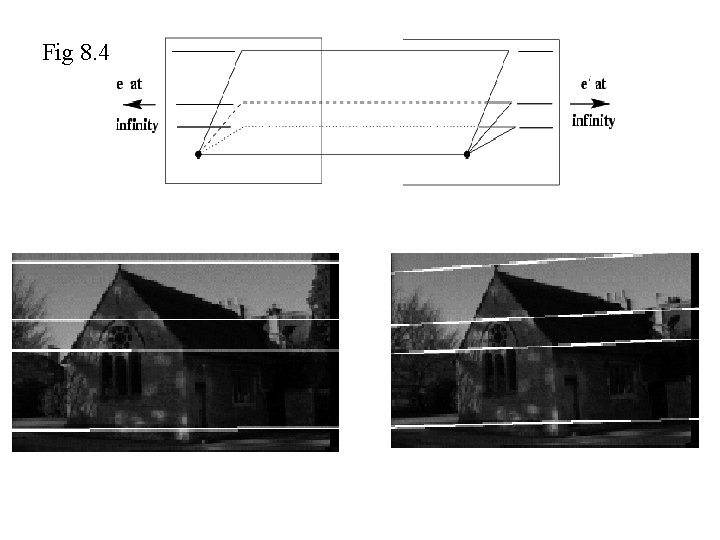

Fig 8. 4

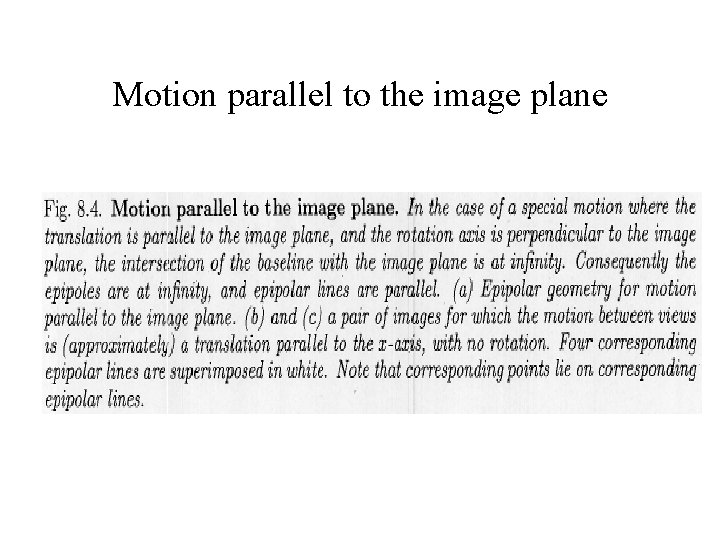

Motion parallel to the image plane

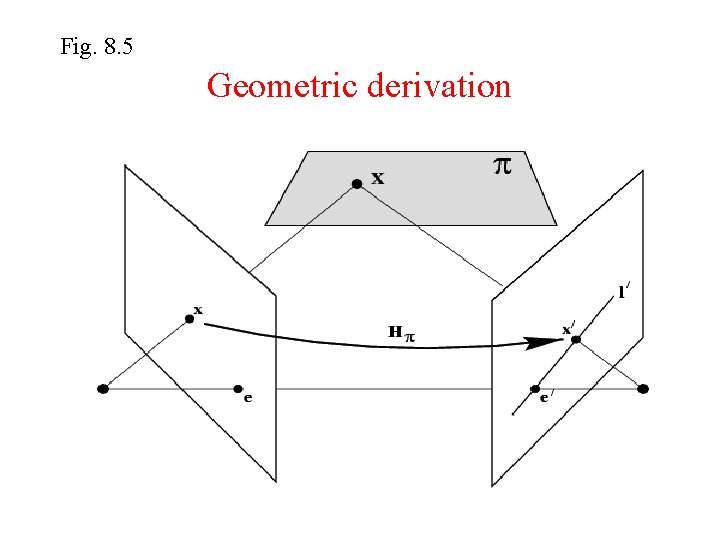

Fig. 8. 5 Geometric derivation

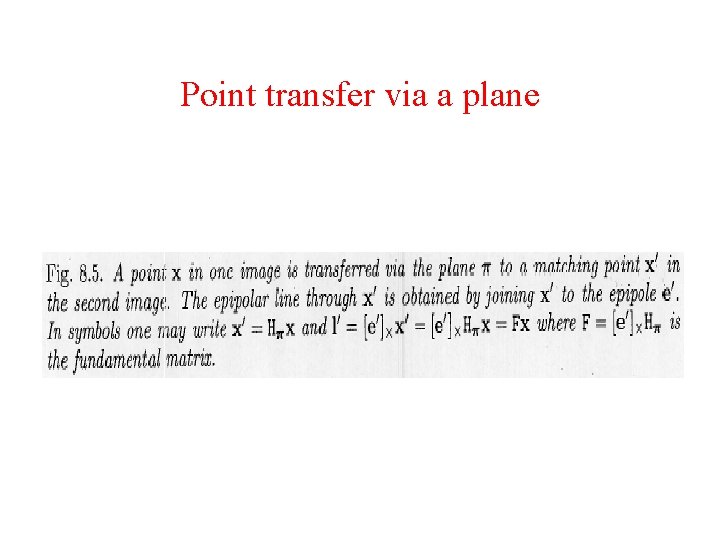

Point transfer via a plane

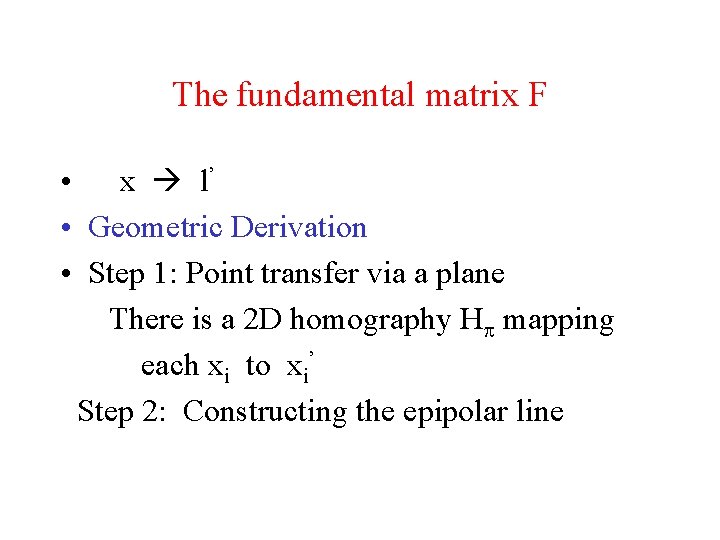

The fundamental matrix F • x l’ • Geometric Derivation • Step 1: Point transfer via a plane There is a 2 D homography Hp mapping each xi to xi’ Step 2: Constructing the epipolar line

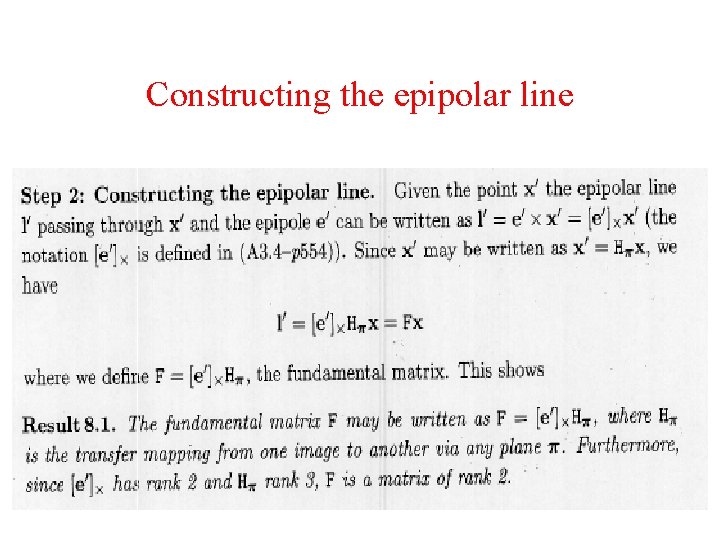

Constructing the epipolar line

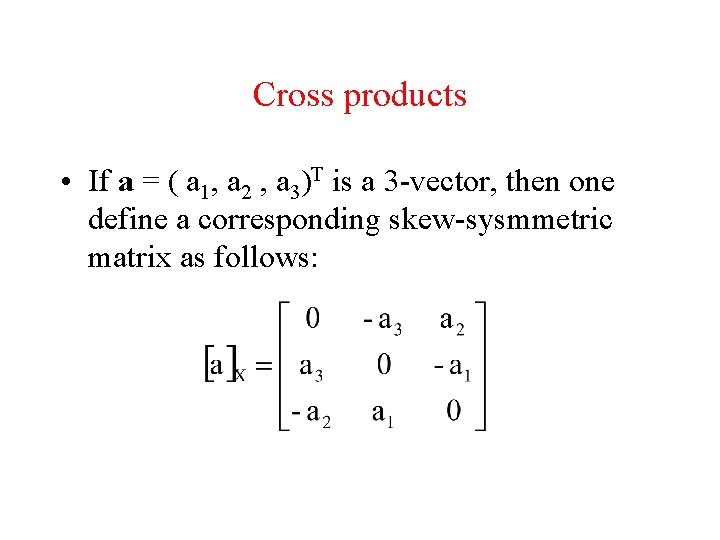

Cross products • If a = ( a 1, a 2 , a 3)T is a 3 -vector, then one define a corresponding skew-sysmmetric matrix as follows:

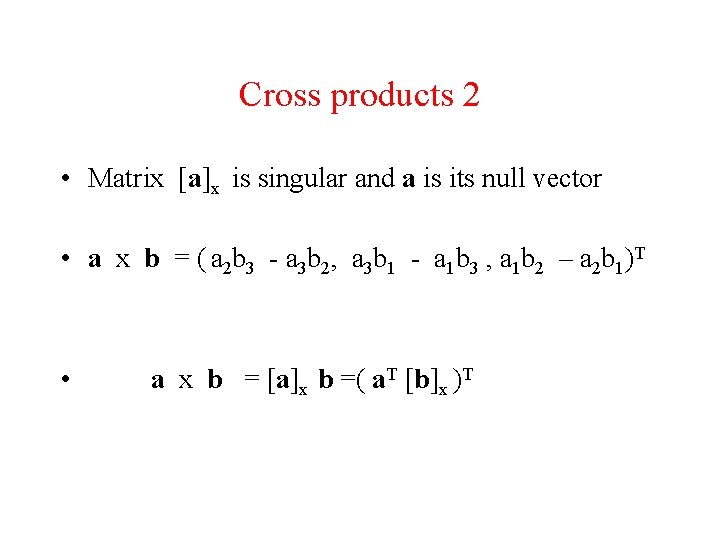

Cross products 2 • Matrix [a]x is singular and a is its null vector • a x b = ( a 2 b 3 - a 3 b 2, a 3 b 1 - a 1 b 3 , a 1 b 2 – a 2 b 1)T • a x b = [a]x b =( a. T [b]x )T

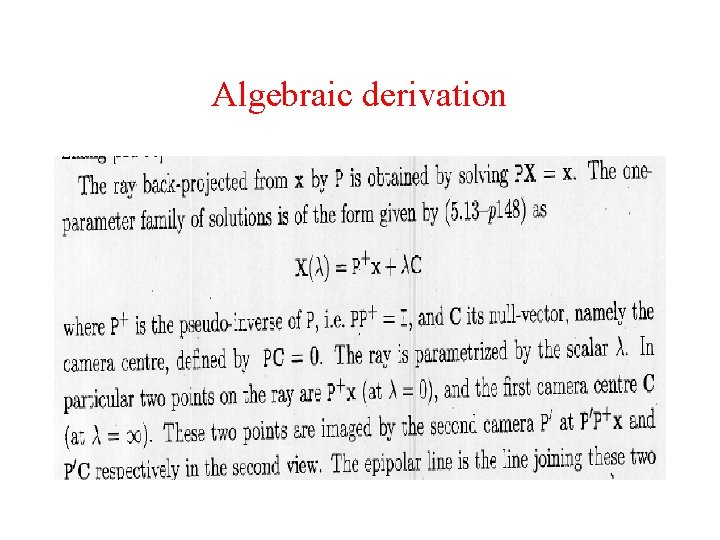

Algebraic derivation

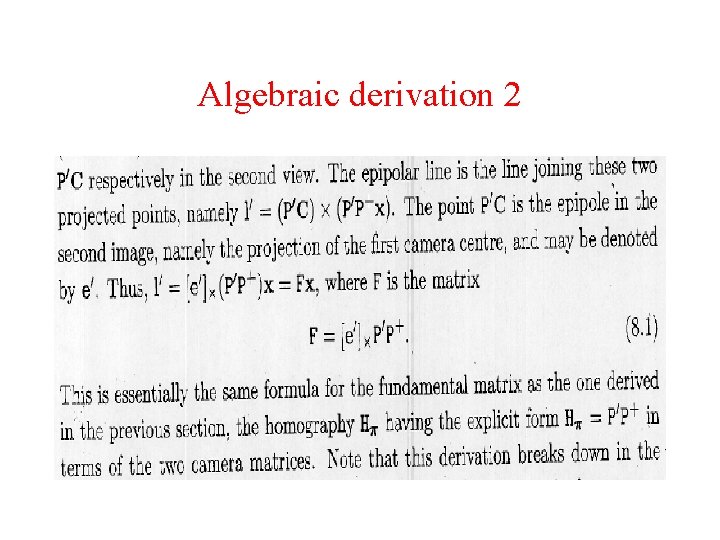

Algebraic derivation 2

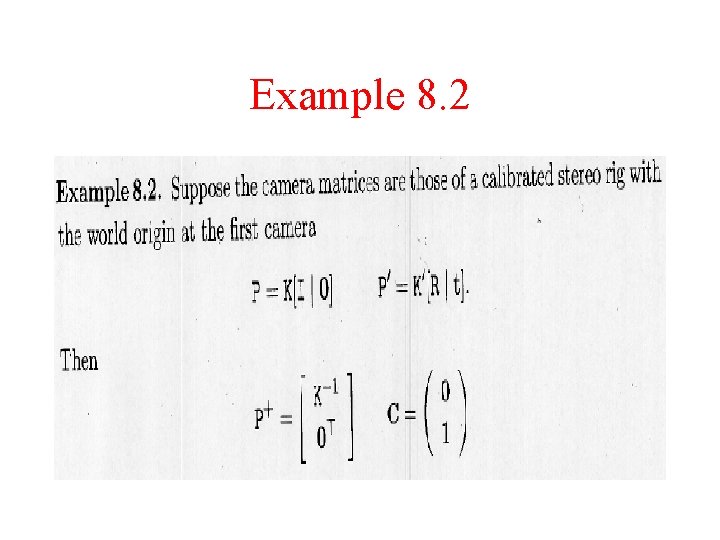

Example 8. 2

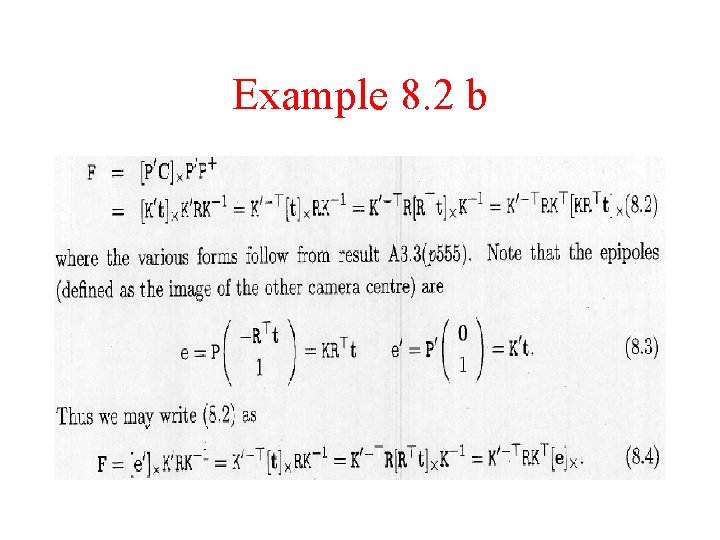

Example 8. 2 b

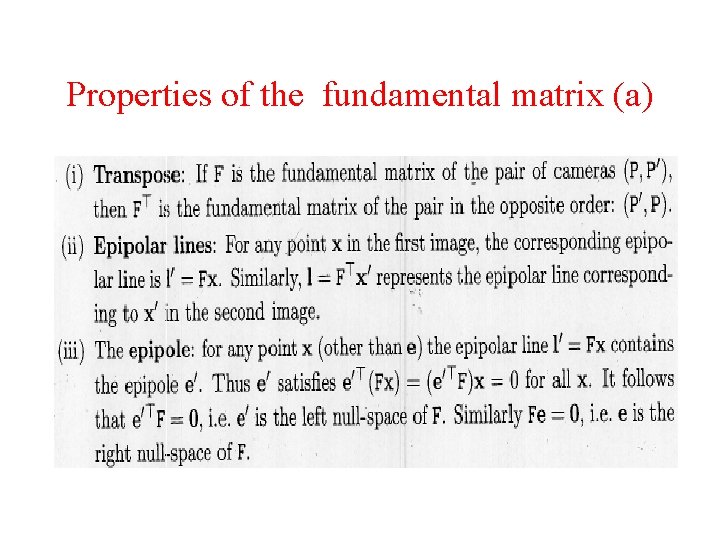

Properties of the fundamental matrix (a)

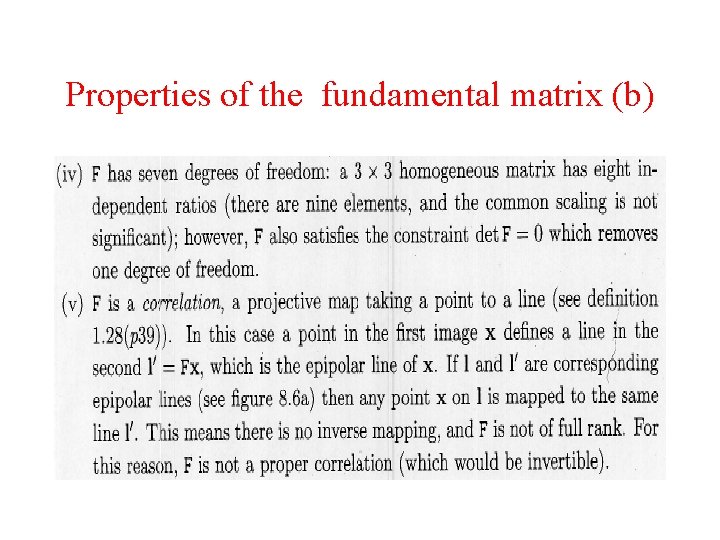

Properties of the fundamental matrix (b)

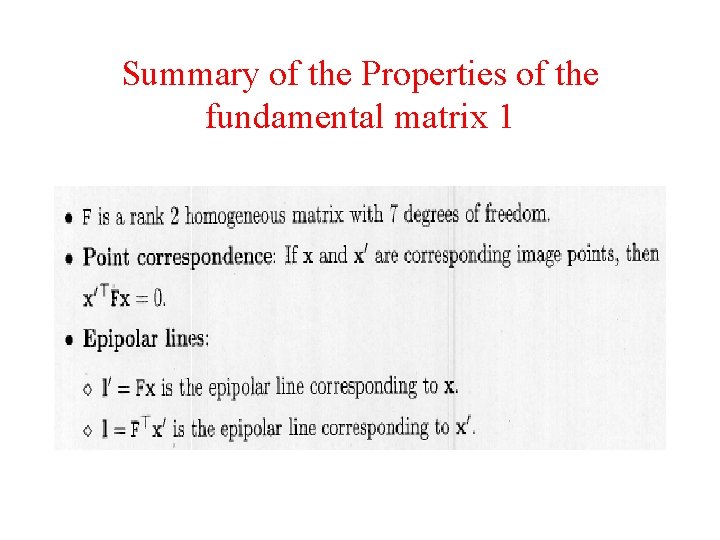

Summary of the Properties of the fundamental matrix 1

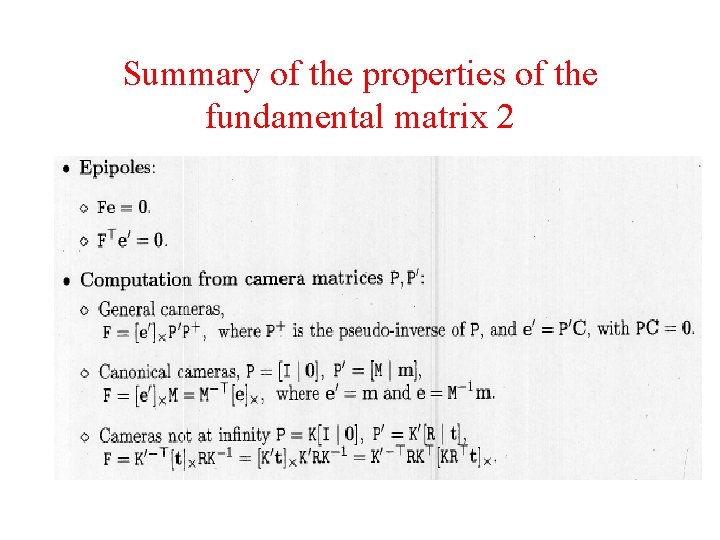

Summary of the properties of the fundamental matrix 2

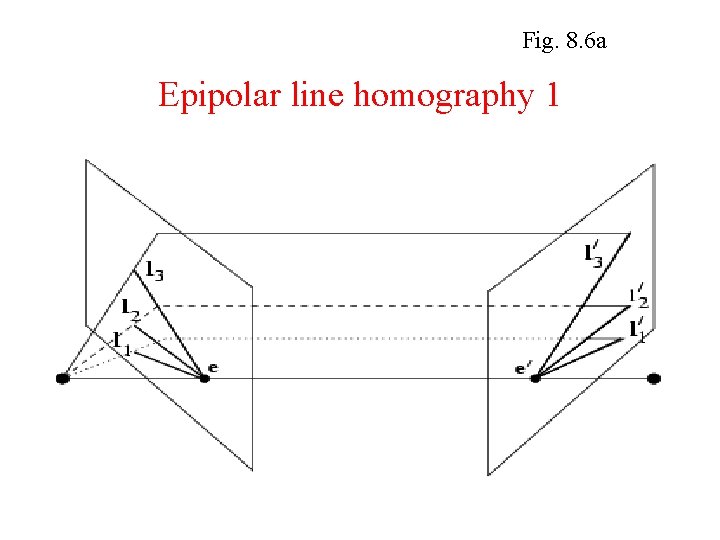

Fig. 8. 6 a Epipolar line homography 1

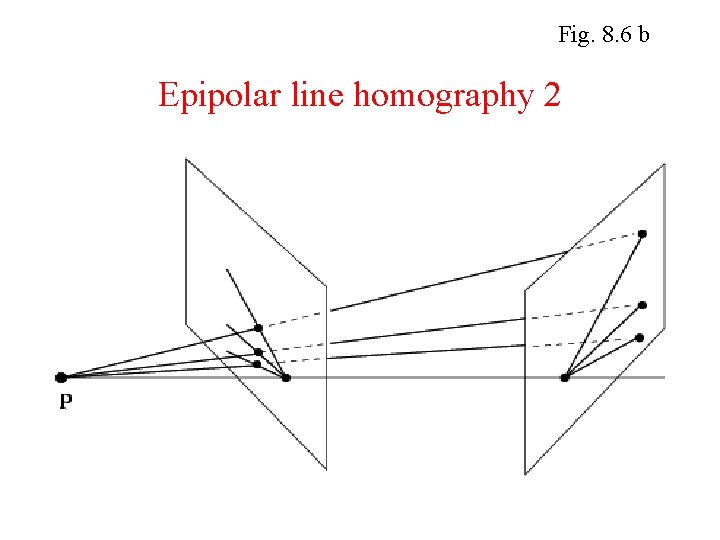

Fig. 8. 6 b Epipolar line homography 2

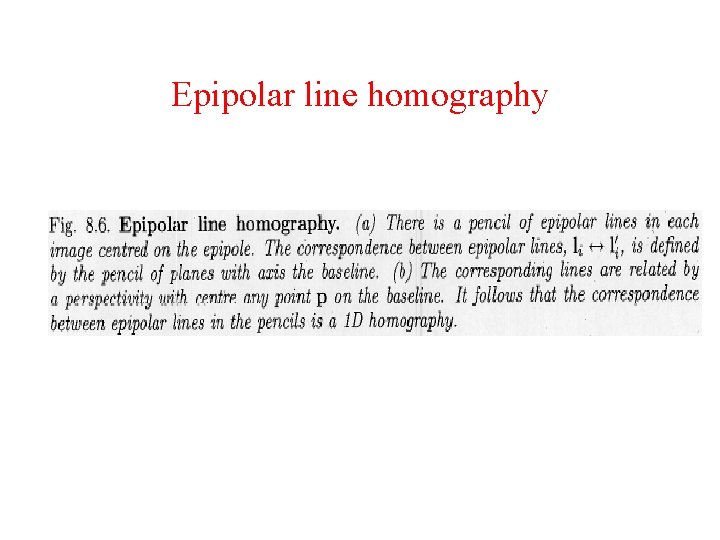

Epipolar line homography

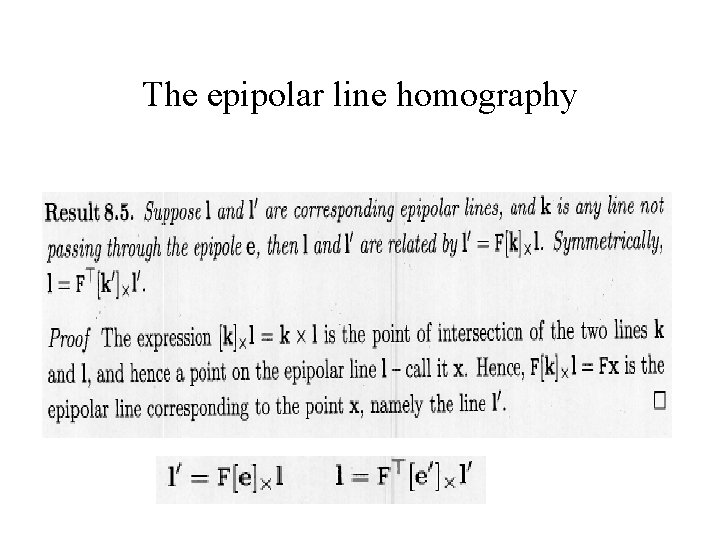

The epipolar line homography

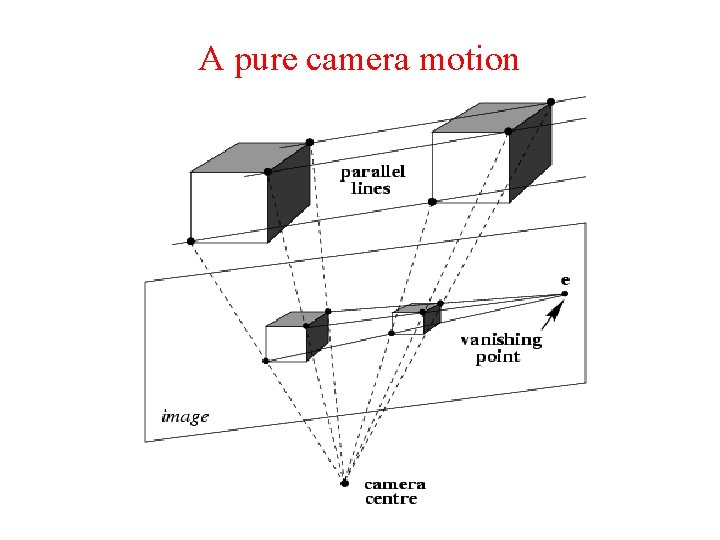

A pure camera motion

Pure translation

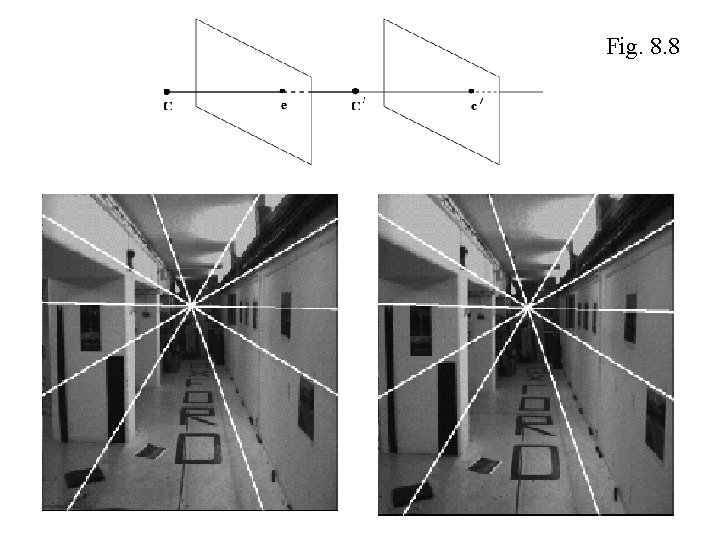

Fig. 8. 8

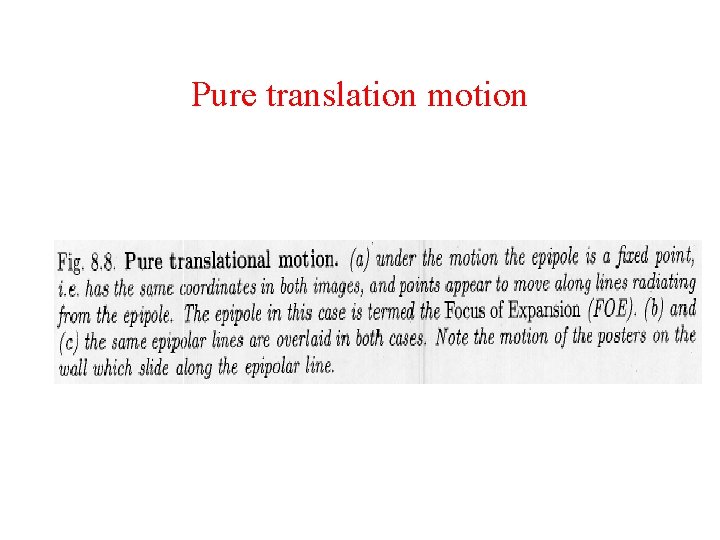

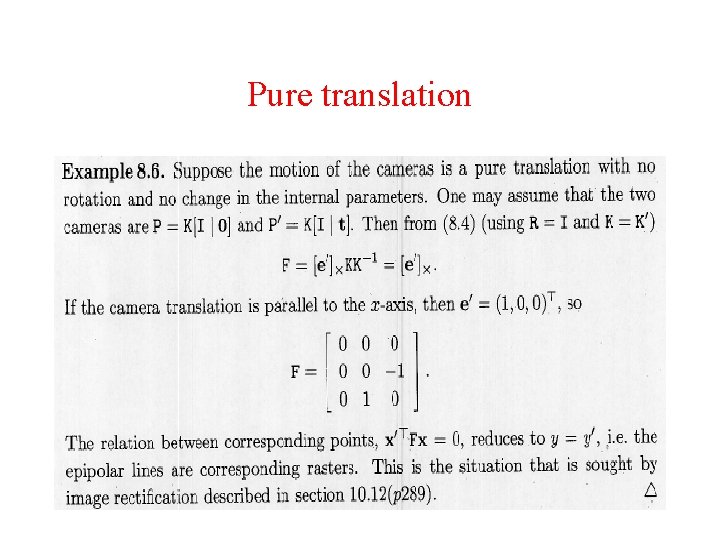

Pure translation motion

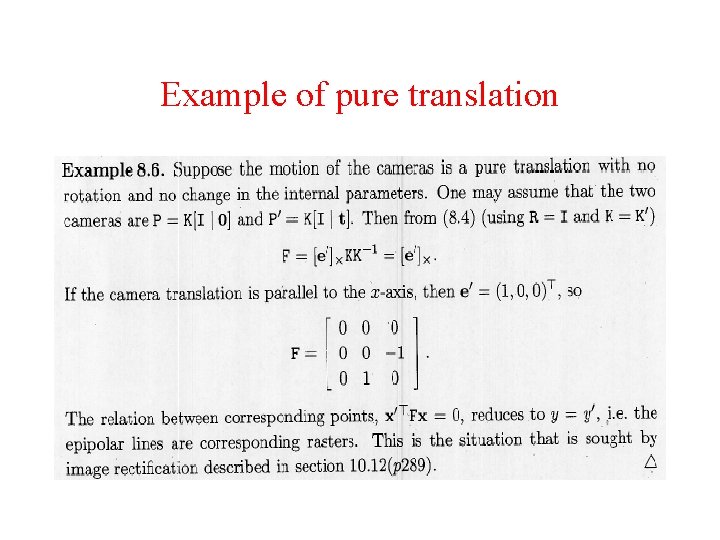

Example of pure translation

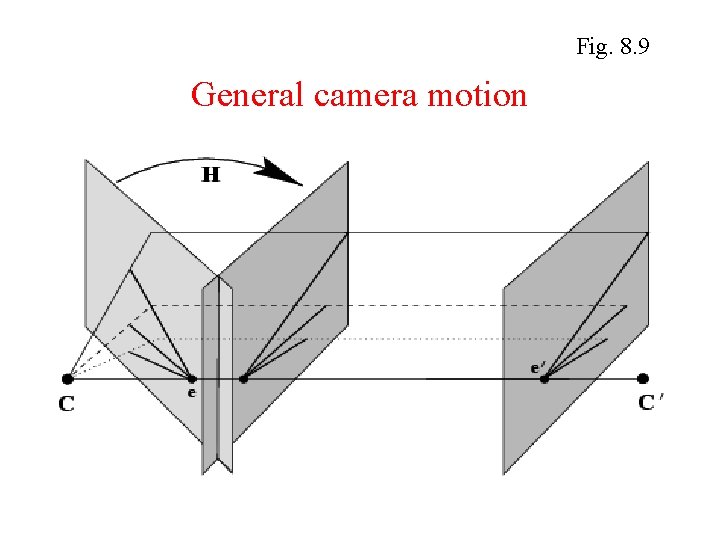

Fig. 8. 9 General camera motion

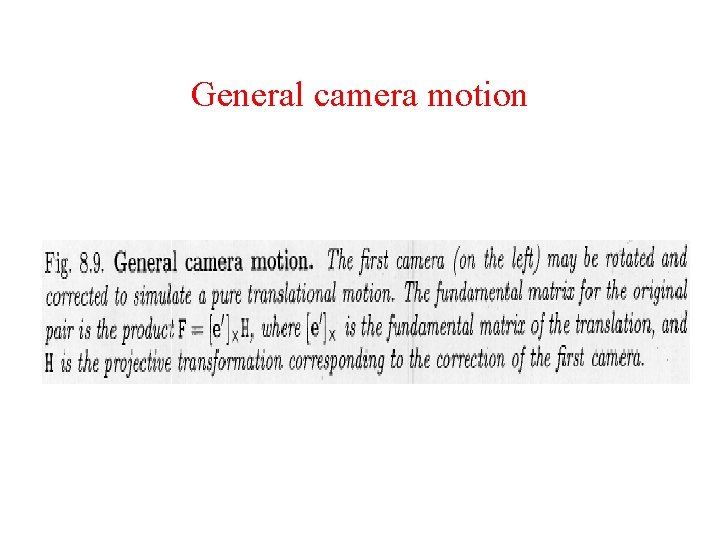

General camera motion

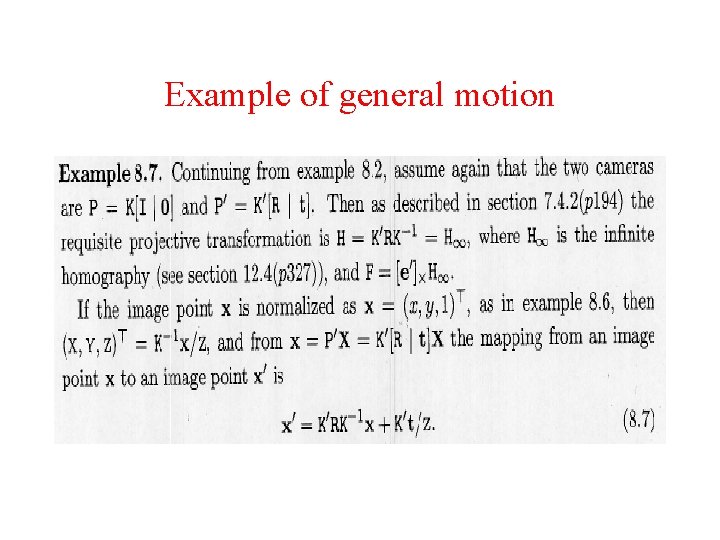

Example of general motion

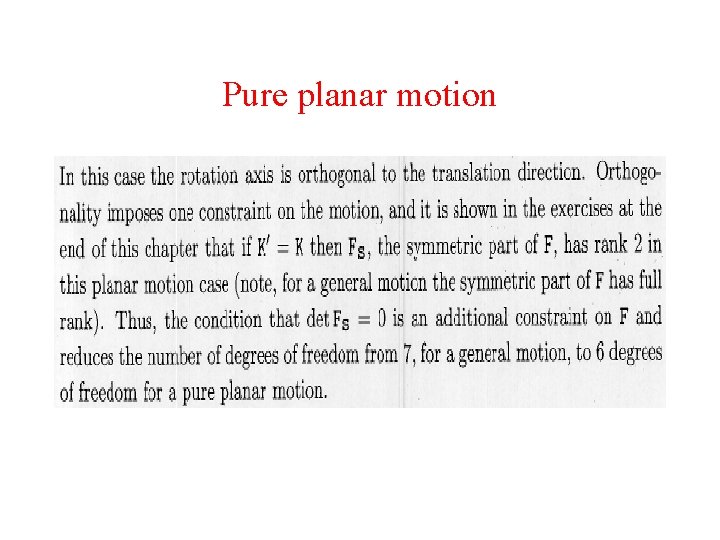

Pure planar motion

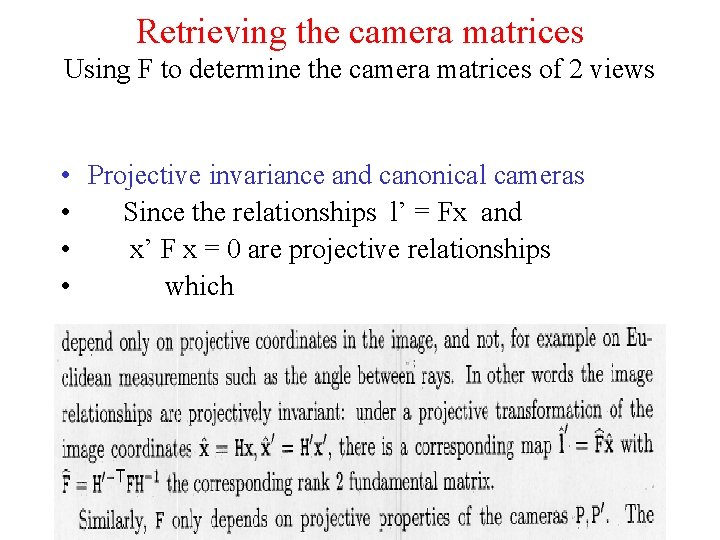

Retrieving the camera matrices Using F to determine the camera matrices of 2 views • Projective invariance and canonical cameras • Since the relationships l’ = Fx and • x’ F x = 0 are projective relationships • which

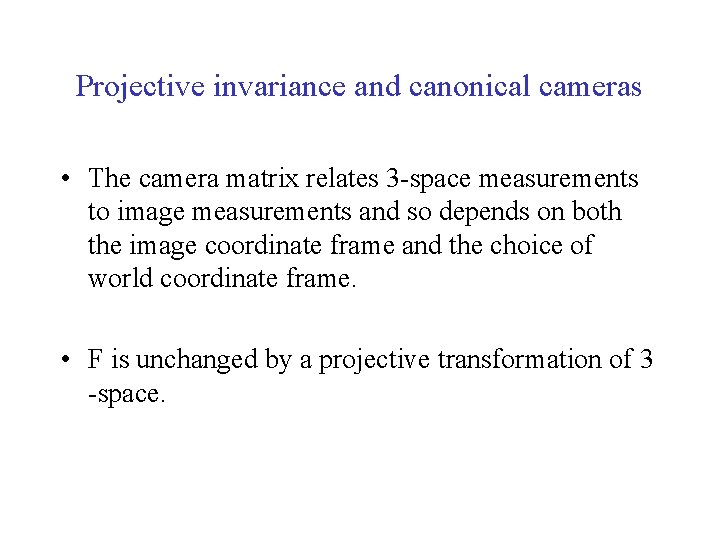

Projective invariance and canonical cameras • The camera matrix relates 3 -space measurements to image measurements and so depends on both the image coordinate frame and the choice of world coordinate frame. • F is unchanged by a projective transformation of 3 -space.

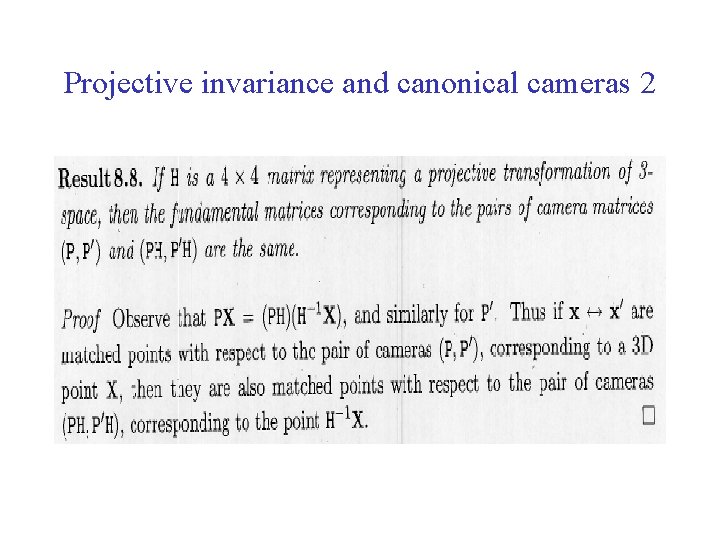

Projective invariance and canonical cameras 2

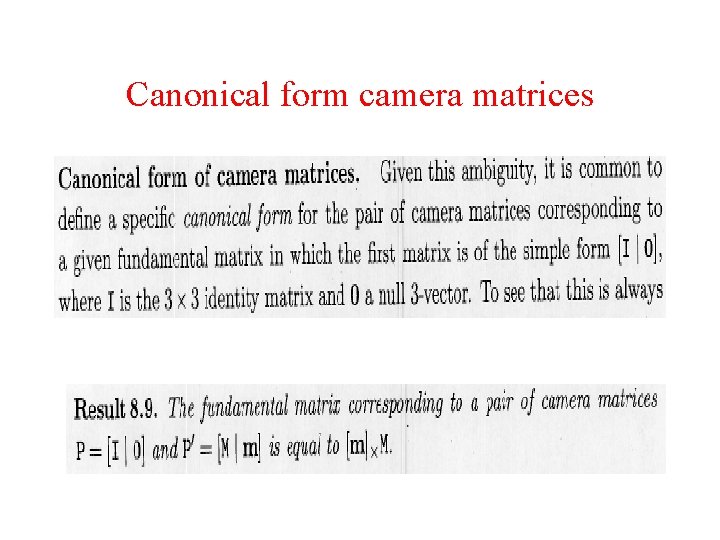

Canonical form camera matrices

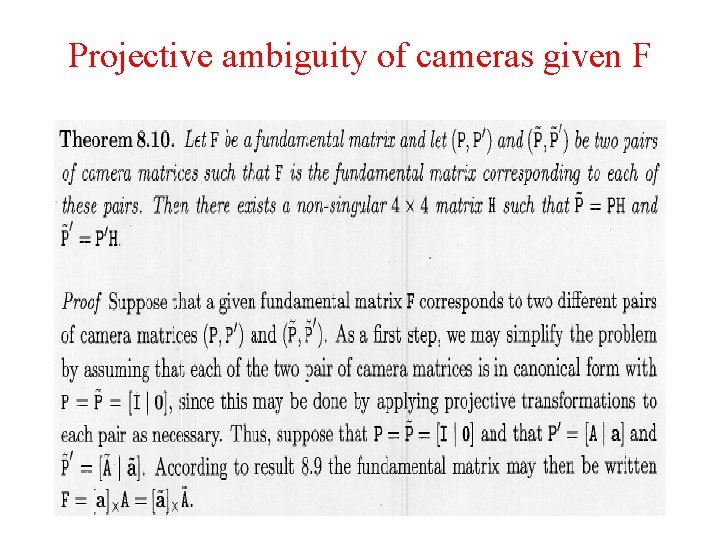

Projective ambiguity of cameras given F

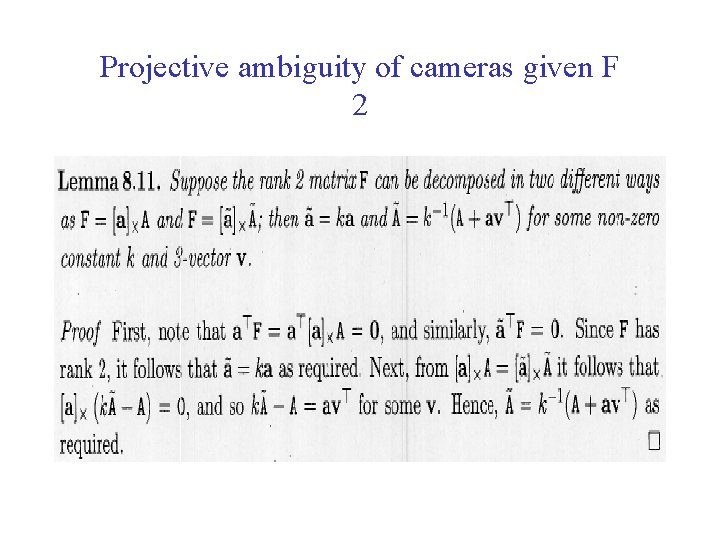

Projective ambiguity of cameras given F 2

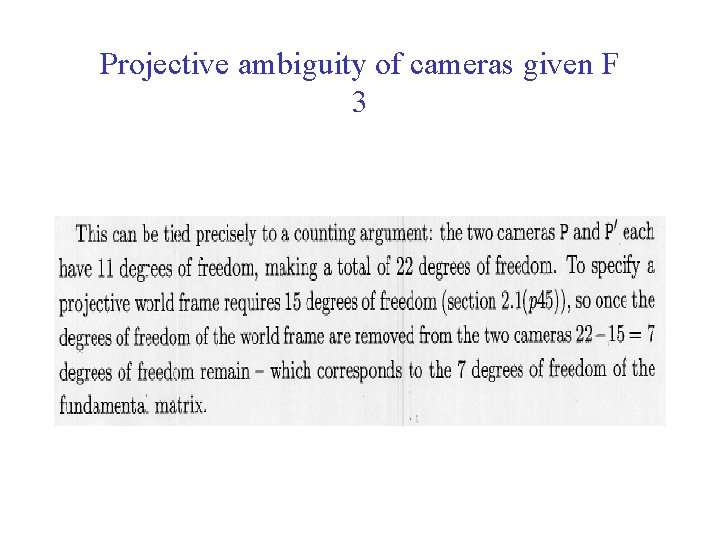

Projective ambiguity of cameras given F 3

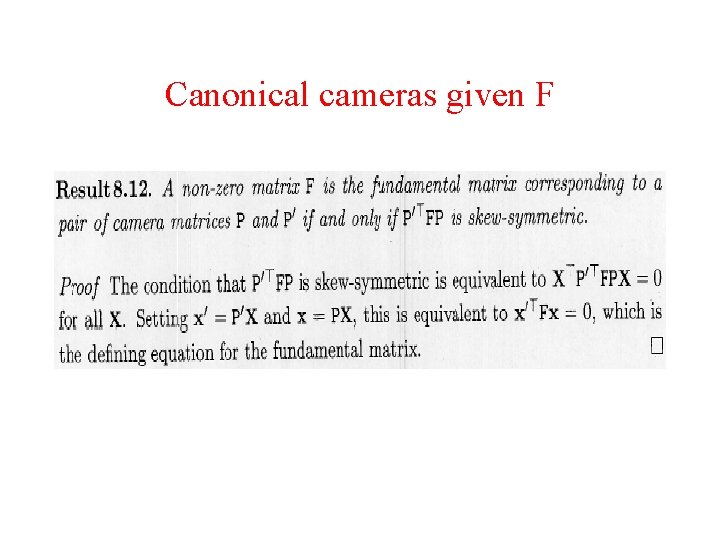

Canonical cameras given F

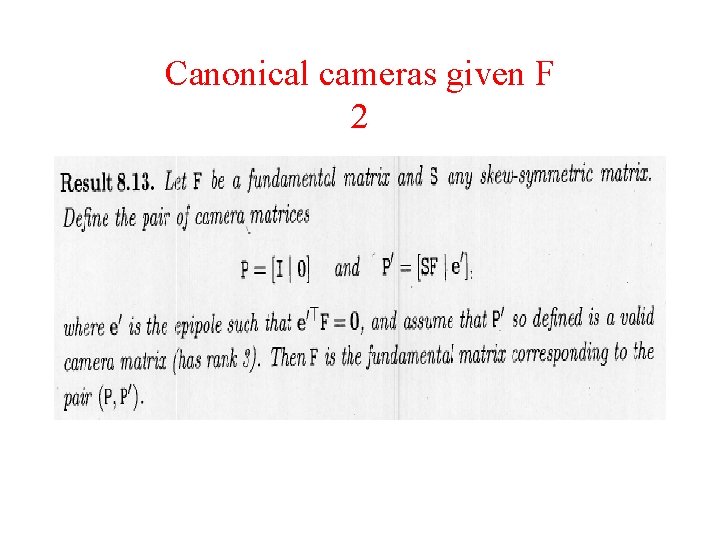

Canonical cameras given F 2

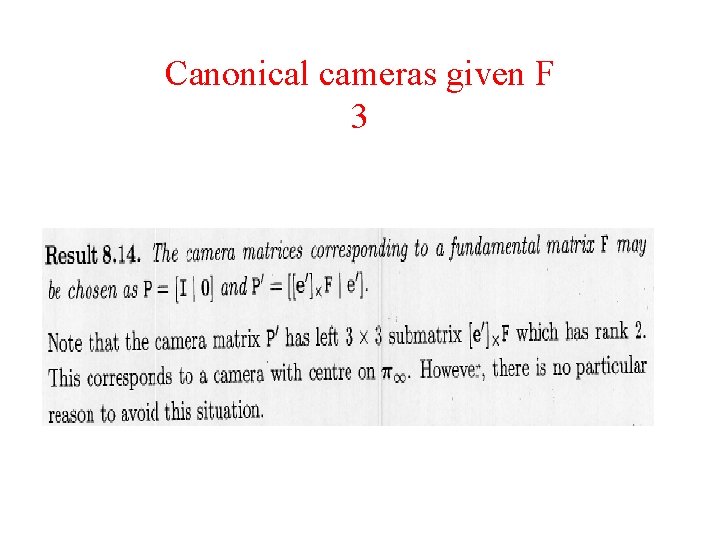

Canonical cameras given F 3

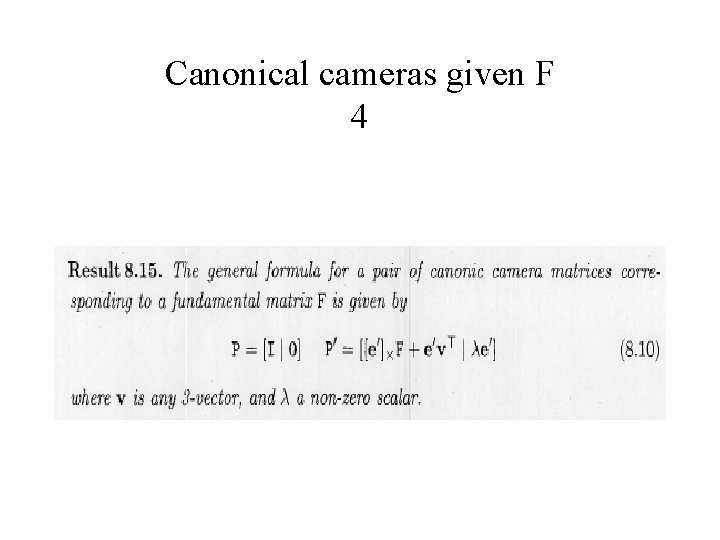

Canonical cameras given F 4

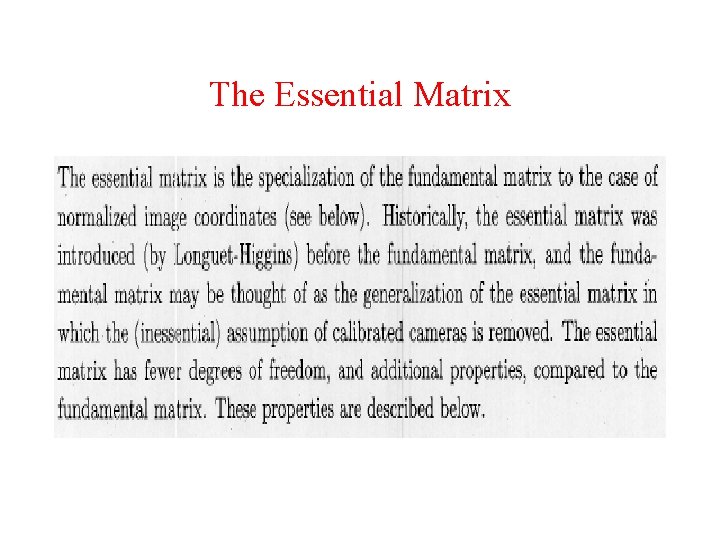

The Essential Matrix

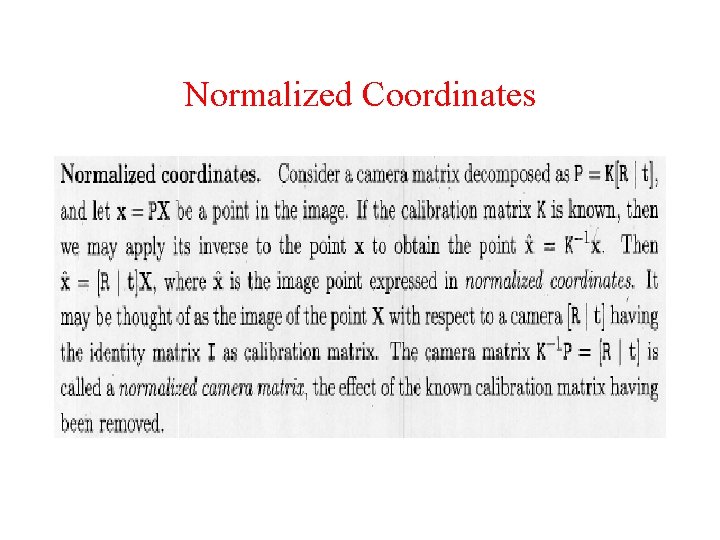

Normalized Coordinates

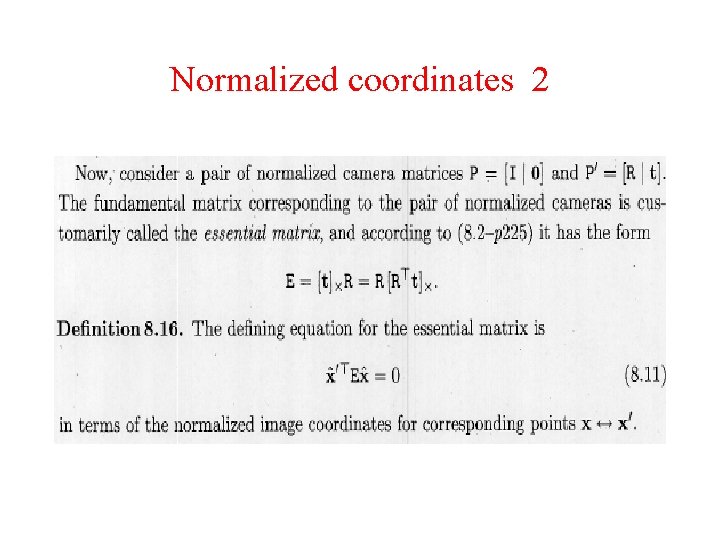

Normalized coordinates 2

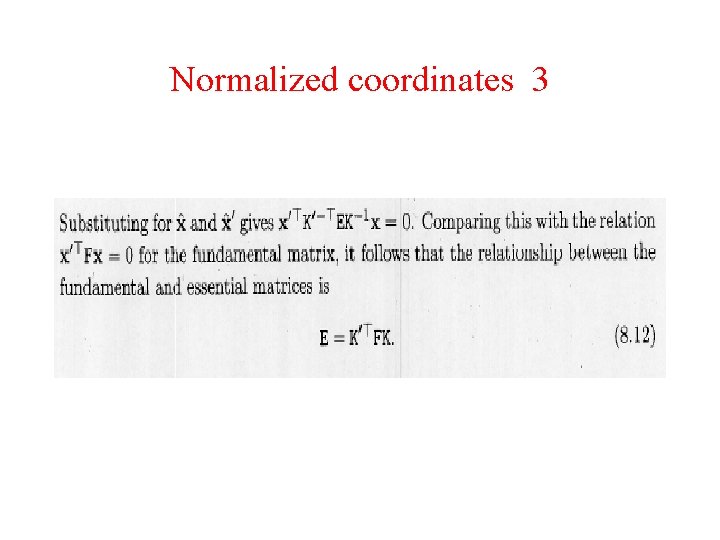

Normalized coordinates 3

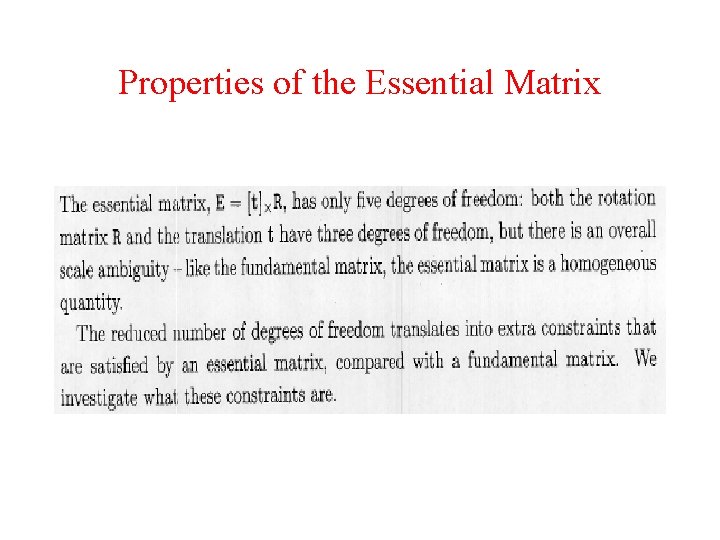

Properties of the Essential Matrix

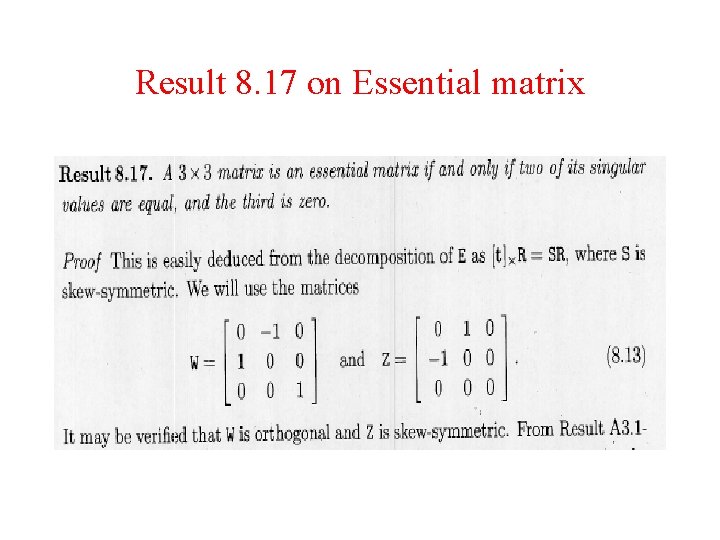

Result 8. 17 on Essential matrix

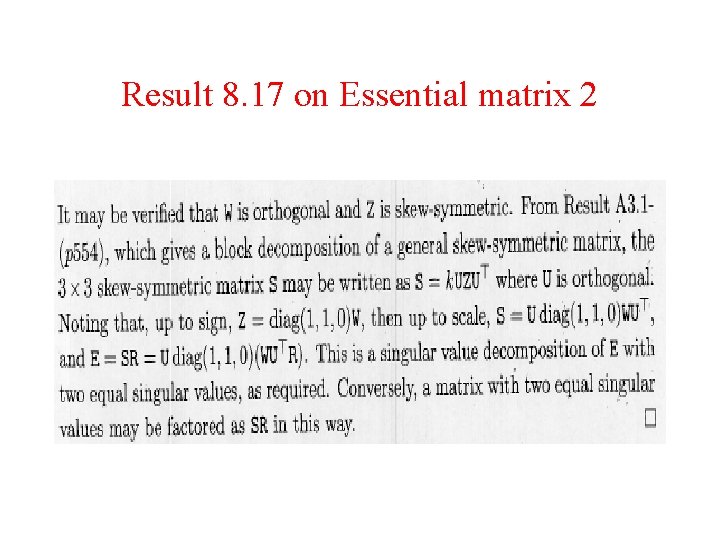

Result 8. 17 on Essential matrix 2

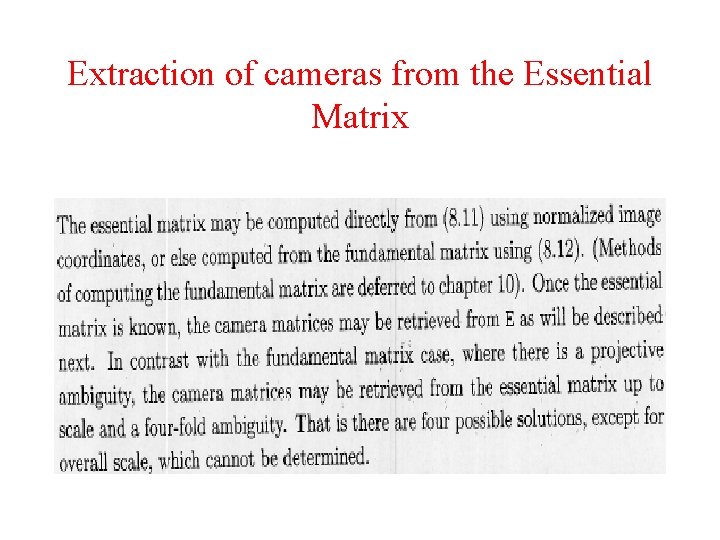

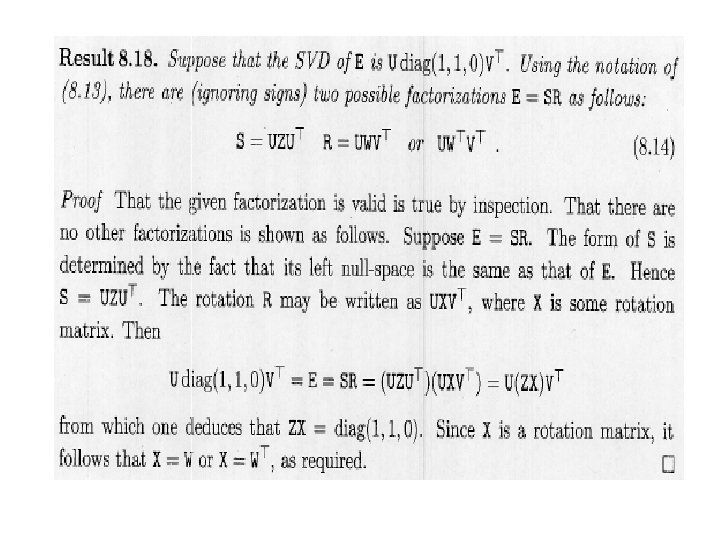

Extraction of cameras from the Essential Matrix

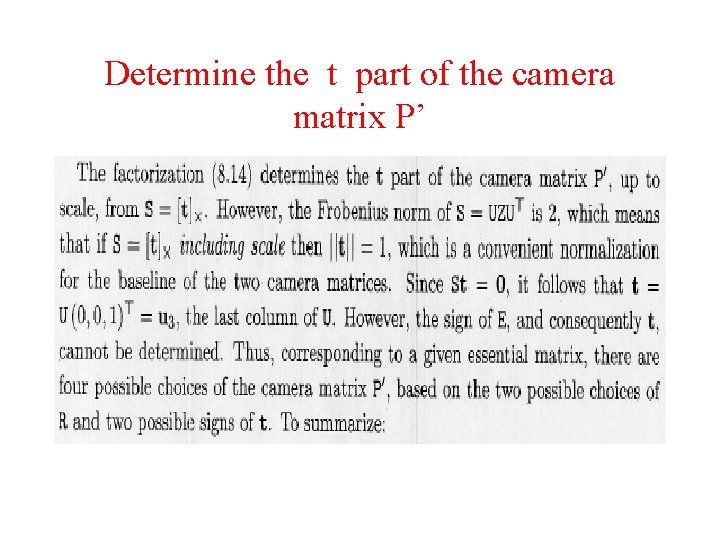

Determine the t part of the camera matrix P’

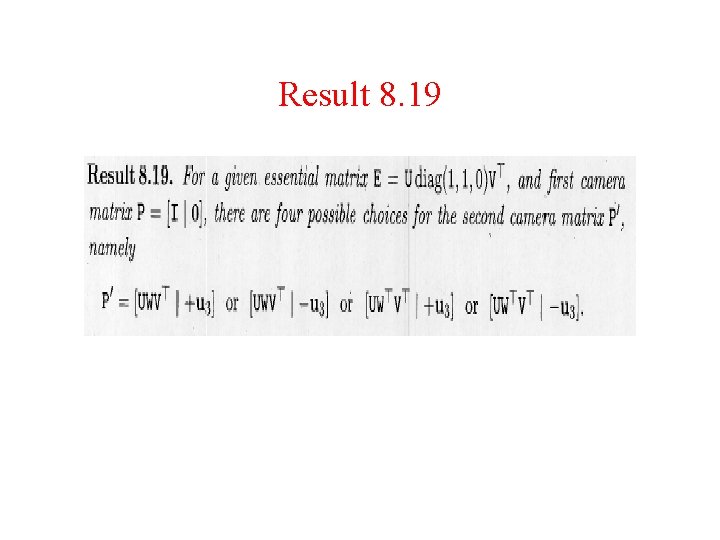

Result 8. 19

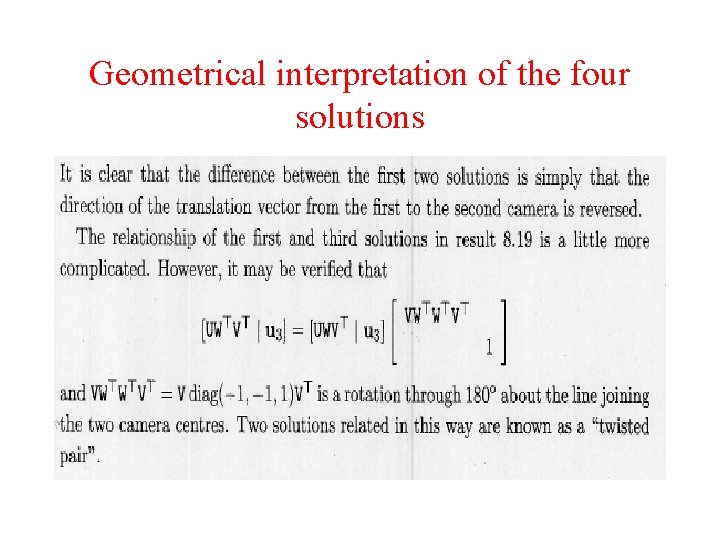

Geometrical interpretation of the four solutions

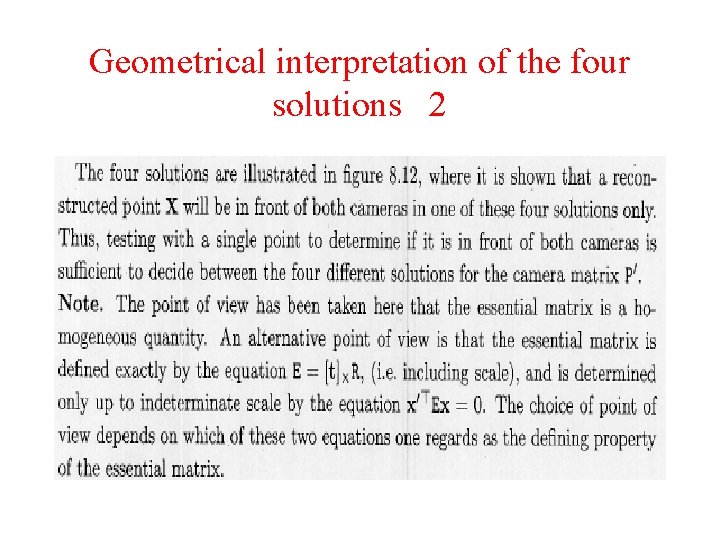

Geometrical interpretation of the four solutions 2

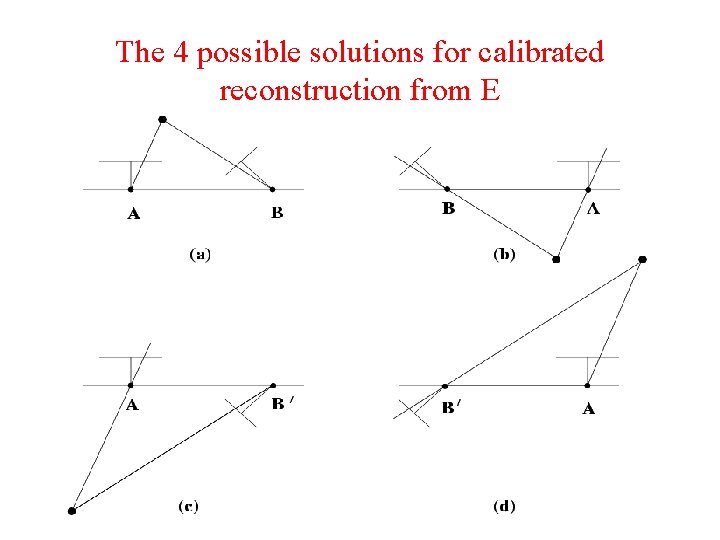

The 4 possible solutions for calibrated reconstruction from E
