EPICS Collaboration Meeting SNS Machine Protection System SNS

EPICS Collaboration Meeting SNS Machine Protection System SNS Timing System Coles Sibley 2000 -0 xxxx/vlb SNS Integrated Control System

MPS Design Assumptions l Machine Protection System is not a “Safety Class” or “Safety Significant” System. l SNS will be built and commissioned in Phases, MPS must accommodate this schedule. l Reliability – The Machine Protection System must inhibit the beam when required. It must fail in a SAFE state. l Availability – The machine availability should be as high as possible. The MPS must be easy to configure and have a “friendly” operator interface. False trips must be minimized. SNS Integrated Control System

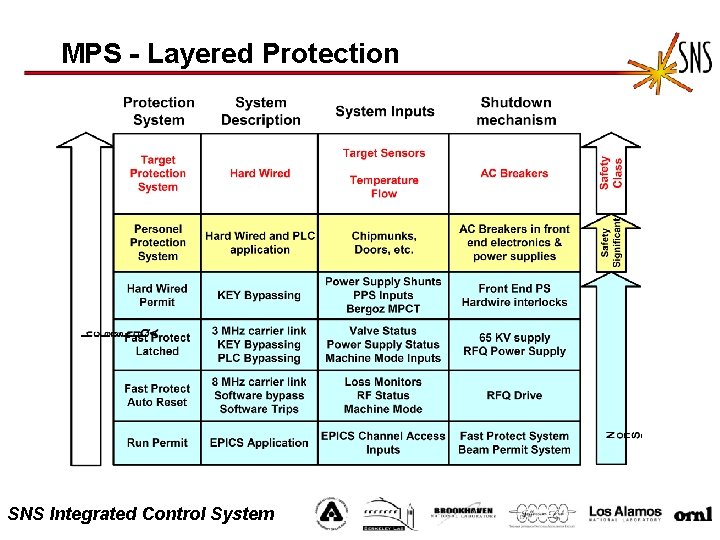

MPS - Layered Protection SNS Integrated Control System

Machine Protection System l Run Permit System (1 second) » Coordinates machine mode changes. » Scans IOC configurations for Software Configuration errors. » EPS interface for masking equipment inputs. l Hard Wired Protect (~ 33 msec) » Latched in Hardware » Redundancy through FPLS inputs l Fast Protect Latched System (< 20 microseconds) » Latches fault conditions until fault clears and Operator resets condition. FPS_PERMIT_LINK_A carrier interrupted and inhibits beam through front end devices. l Fast Protect Auto Reset (20 microseconds) » Inhibits beam for duration of macro pulse by disabling FPS_PERMIT_LINK_B carrier to the front end. Restores Fast Protect link for next pulse if fault restored to normal. SNS Integrated Control System

Machine Protection System Layout SNS Integrated Control System

Fast Protect – Auto Reset l ALARA – Pulse Width Modulation l Concentrates Permit Inputs l Inhibits carrier link to disable Beam l Inputs: » Loss Monitors – Software trip points, bypass » Beam position monitors – Software trip points, bypass » RF Low level Controls SNS Integrated Control System

Fast Protect - Latched System l Concentrates Permit Inputs l Inhibits carrier link to disable beam l Devices bypassed by Key or PLC l Inputs disabled by machine mode (event link) l Equipment maintained in locked racks l Documentation control of changes l System verification after changes SNS Integrated Control System

Fast Protect Inputs SNS Integrated Control System

MPS Input Bypass Mechanisms l Mode Mask » Global database contains operating mode dependant devices. Devices not required for present mode are masked through hardware. Masks changed with database reconfiguration and IOC reboot. l Jumper / Key / PLC Bypass » Software bypass requires set of closed contacts from a jumper, key, or PLC contacts. l Software Bypass » If hardware configuration allows, input bypassed through software with appropriate EPICS Access Security permissions. SNS Integrated Control System

MPS Input channels SNS Integrated Control System

MPS Configuration Data SNS Integrated Control System

MPS PMC Module (Also nice generic digital IO module) SNS Integrated Control System

MPS System Hardware SNS Integrated Control System

MPS Software l Database (Oracle) » » l Access Security Files EPICS database RPS configuration database Alarms, IOC startup scripts, Archives Run Permit System » SNL programs » Machine mode changes » System Verification l Beam current (Loss) accounting system l Operator Interface - EDM l Device / Driver support routines. SNS Integrated Control System

EPICS CA Security SNS Integrated Control System

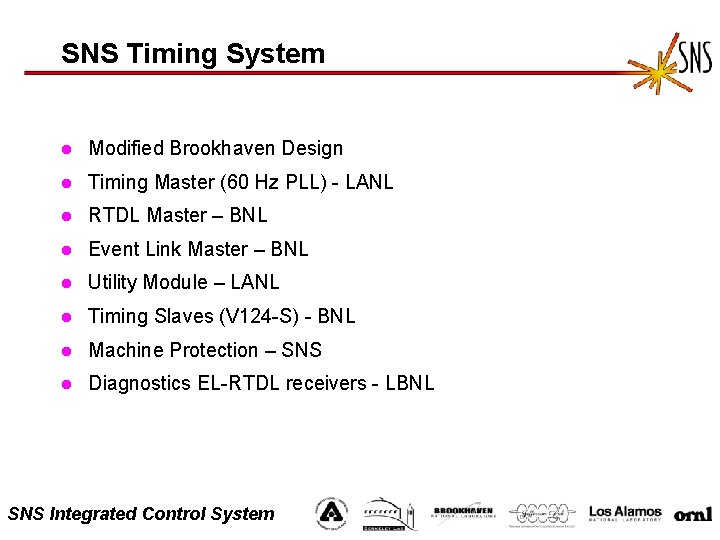

SNS Timing System l Modified Brookhaven Design l Timing Master (60 Hz PLL) - LANL l RTDL Master – BNL l Event Link Master – BNL l Utility Module – LANL l Timing Slaves (V 124 -S) - BNL l Machine Protection – SNS l Diagnostics EL-RTDL receivers - LBNL SNS Integrated Control System

Timing System Components SNS Integrated Control System

Neutron Selection, Timing SNS Integrated Control System

Timing Master l Provides 60 / 120 Hz system pulses l Follows line to within +/- 500 usec l Extraction time fixed ~5 msec in advance l Neutron Choppers follow Timing Master (60 Hz system pulses) l Accelerator timing follows Timing Master SNS Integrated Control System

SNS Timing Links (Drivers in progress at BNL) l Event Link (16 x Ring RF frequency) » Phase locked to Ring RF » 256 Events or triggers, 64 hardware – 192 software » Events Prioritized (High priority, no jitter) l RTDL – Real Time Data Link (10 MHz Carrier) » Design based on RHIC RTDL System » Up to 256 Frames (1 start bit, 8 address bits, 24 data bits, 8 CRC bits per frame) » Provides Synchronous data facility wide. » One broadcast per machine cycle SNS Integrated Control System

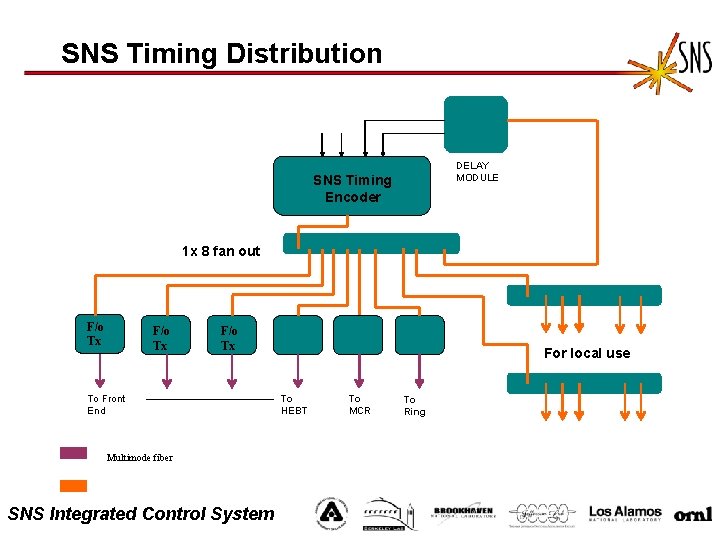

SNS Timing Distribution DELAY MODULE SNS Timing Encoder 1 x 8 fan out F/o Tx To Front End Multimode fiber SNS Integrated Control System For local use To HEBT To MCR To Ring

Event Link l Event link – PLL 16 * Ring RF » LEBT Chopper – 4 * EL carrier to create mini and macro pulses » Event link distributes timing for accelerator, diagnostics, extraction and high resolution time stamps » Diagnostics – PLL 4 * EL carrier l Timing Slave (V 124 S module - BNL) » Gate Width – 16 bits, Carrier * 2 (~33. 9 MHz) » Gate Delays – Revolution delay - 16 bit, Ring RF frequency – Sub revolution delay – 8 bit, 16 * RF – Line delay – delays from 12 to 139 nsec » Jitter < 5 nsec SNS Integrated Control System

Data Transmitted on RTDL l Time of day (IOC time stamps) l Event Link Period (psecs) to converts counts to real time l Operating Mode (beam area, beam power, pulse length limits) l 60 Hertz phase difference l Beam Parameters for LEBT Chopper l Previous pulse beam data l Data acquisition mode l Beam profile ID l IOC Reset Address (Beam aborted if CRC error detected) SNS Integrated Control System

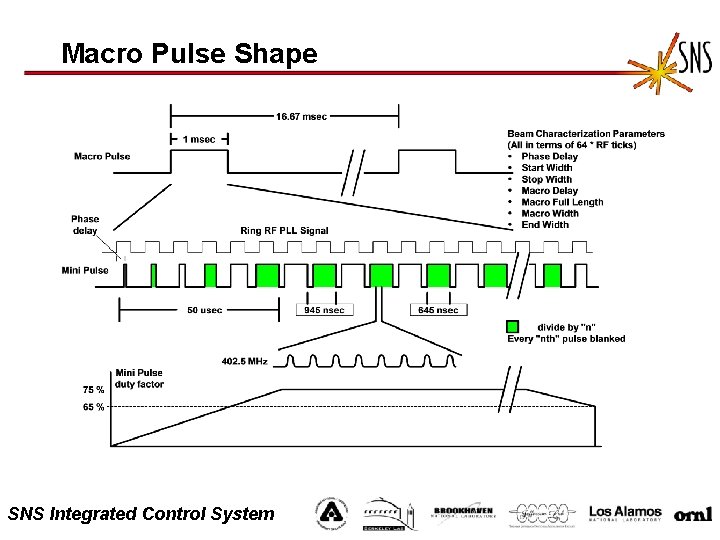

Macro Pulse Shape SNS Integrated Control System

SNS Accelerator Timing Sequence SNS Integrated Control System

RPS – Beam Mode Parameters SNS Integrated Control System

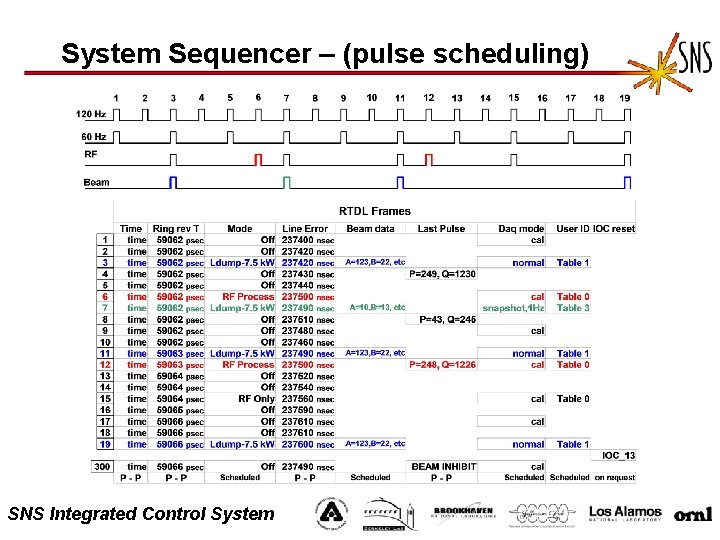

System Sequencer – (pulse scheduling) SNS Integrated Control System

Application Interface SNS Integrated Control System
