EPIC System Technology Total Water Management Because water

EPIC System Technology Total Water Management “Because water is too precious to waste”

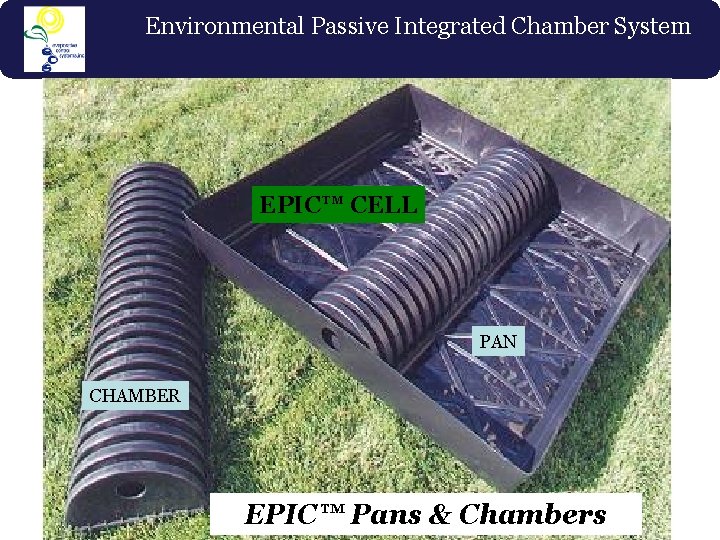

Environmental Passive Integrated Chamber System EPIC™ CELL PAN CHAMBER EPIC™ Pans & Chambers

USDA Texture Triangle – 12 Textural Classes Besides a variable organic content… All soils are a proportionate ratio of clay, silt, and sand particles. EPIC’S EXCLUSIVE CHOICE

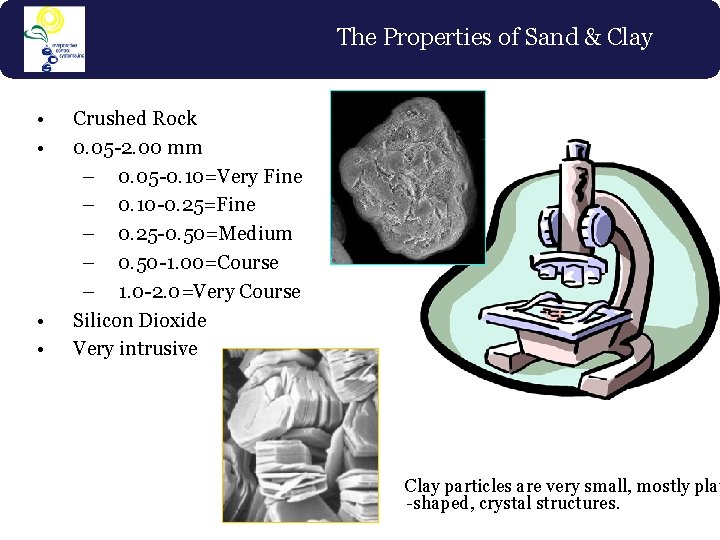

The Properties of Sand & Clay • • Crushed Rock 0. 05 -2. 00 mm – 0. 05 -0. 10=Very Fine – 0. 10 -0. 25=Fine – 0. 25 -0. 50=Medium – 0. 50 -1. 00=Course – 1. 0 -2. 0=Very Course Silicon Dioxide Very intrusive Clay particles are very small, mostly plat -shaped, crystal structures.

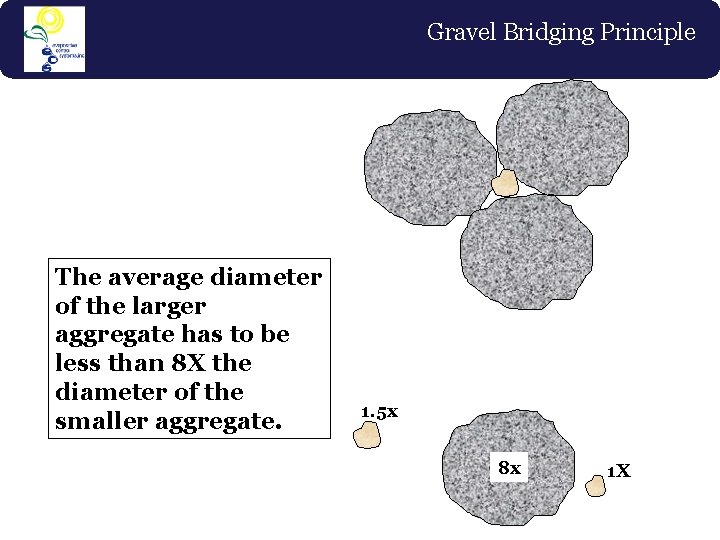

Gravel Bridging Principle The average diameter of the larger aggregate has to be less than 8 X the diameter of the smaller aggregate. 1. 5 x 8 x 1 X

THE PHYSICS OF CAPILLARY RISE

4 Dry mold free crown zone EPIC™ Profile 1 Chamber Capillary Zone (note root depth) 3 2 Saturated Zone (Water Reservoir)

EPIC™ test comparison to top watering IS SLOW WATERING FROM BELOW BETTER THAN FAST WATERING FROM ABOVE? BEAN ROOTS GROWN IN IDENTICAL SAND TOP WATERED EPIC™ BED

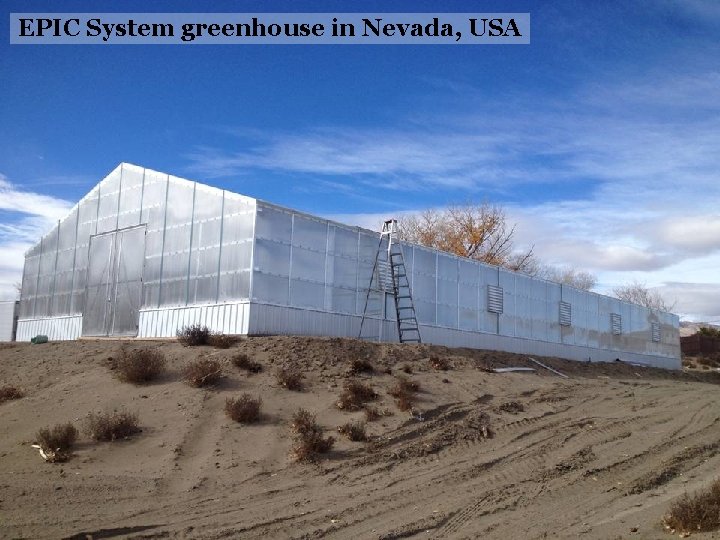

EPIC System greenhouse in Nevada, USA

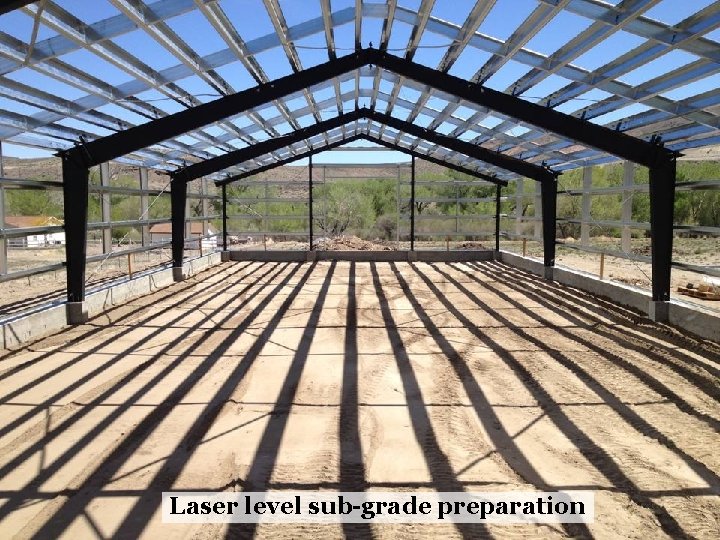

Laser level sub-grade preparation

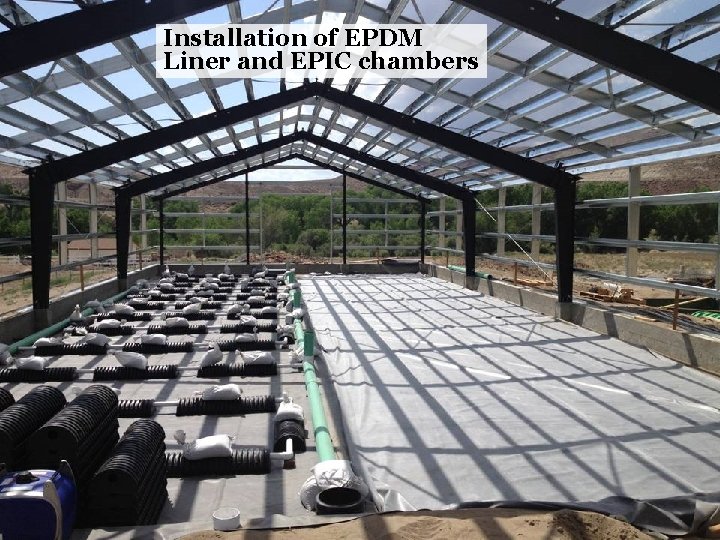

Installation of EPDM Liner and EPIC chambers

EPIC System prior to sand gravel fill

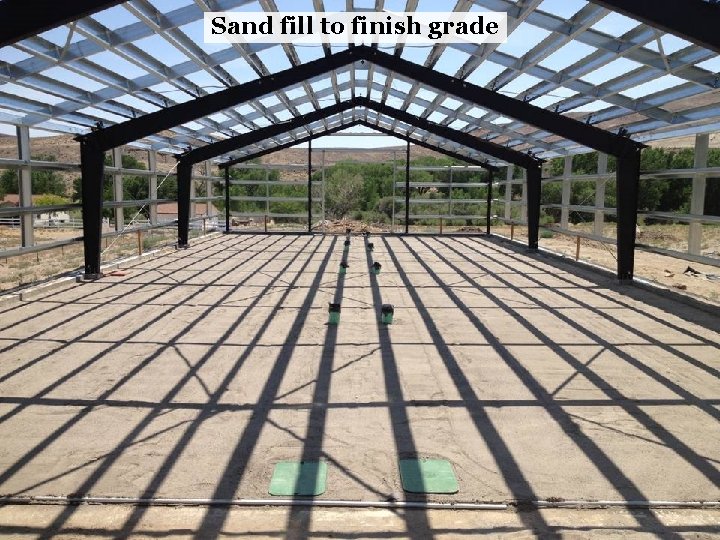

Sand fill to finish grade

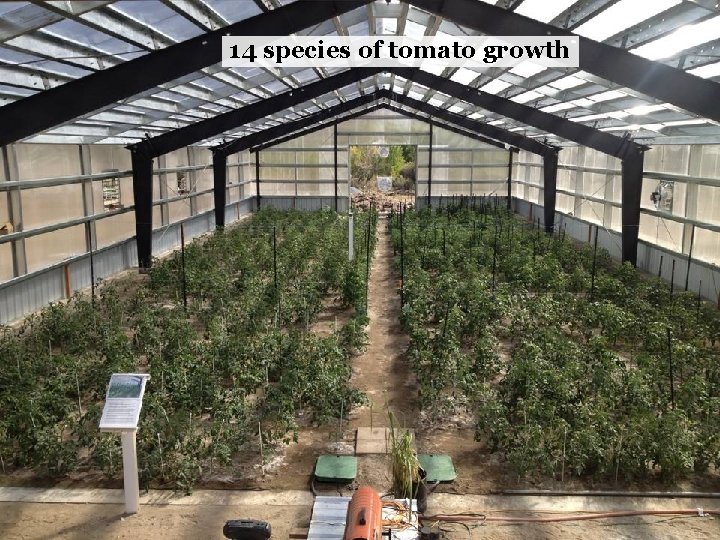

14 species of tomato growth

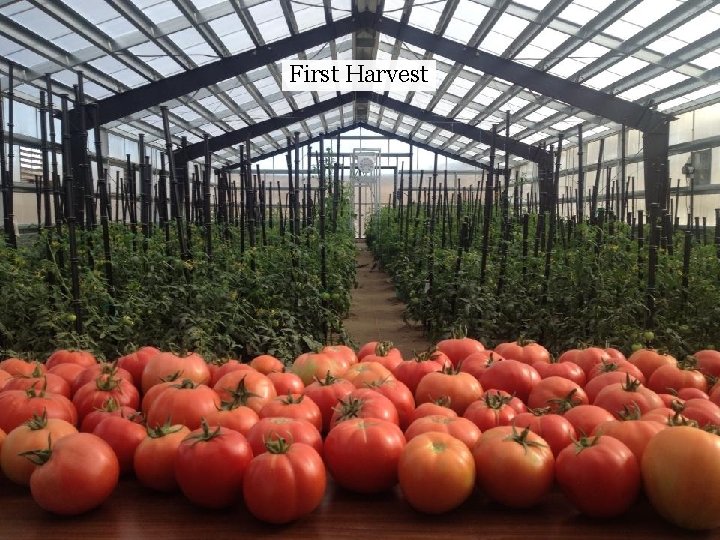

First Harvest

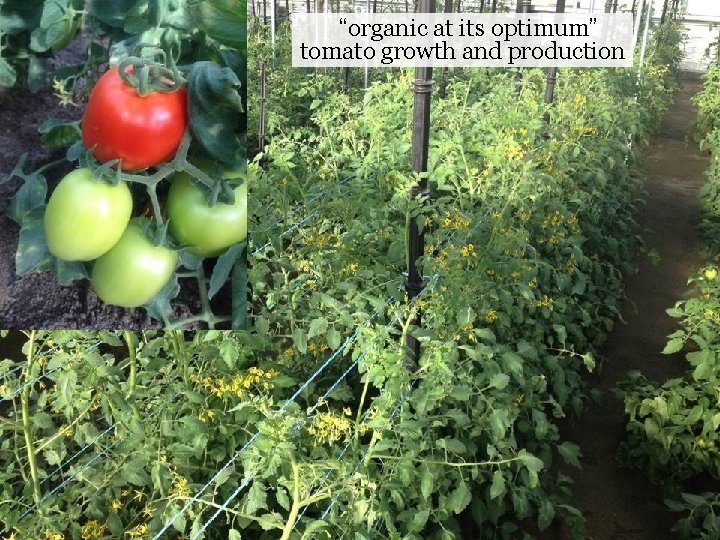

“organic at its optimum” tomato growth and production

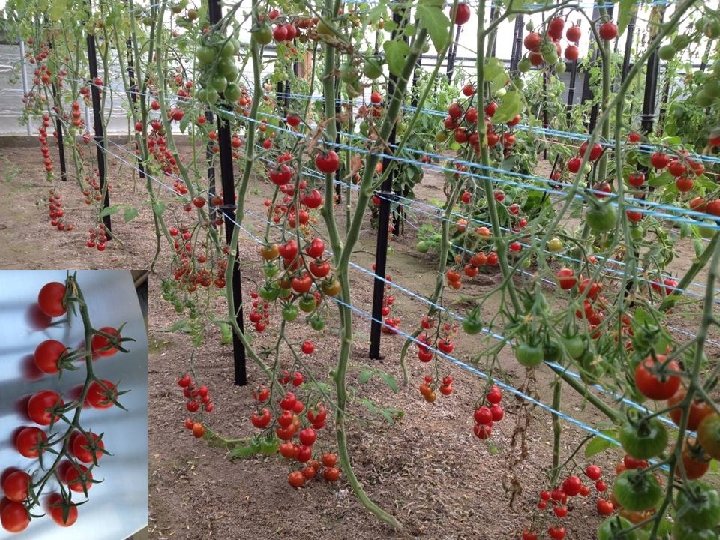

Exceptional Quality and Size “Half the water Twice the Crop”

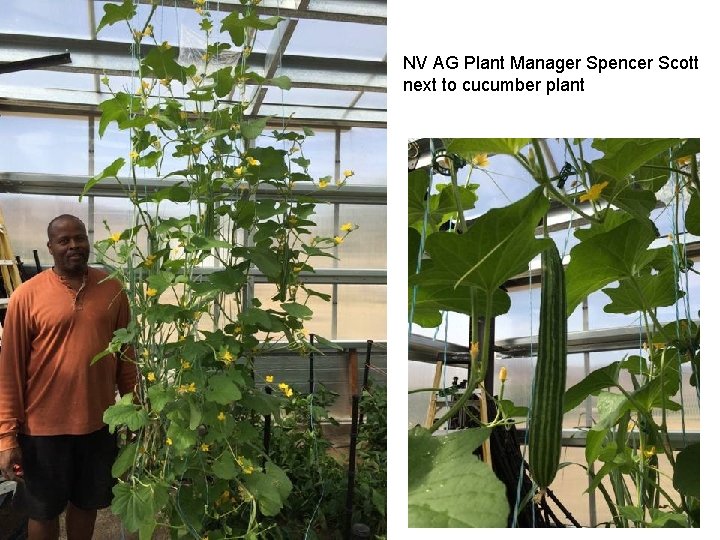

NV AG Plant Manager Spencer Scott next to cucumber plant

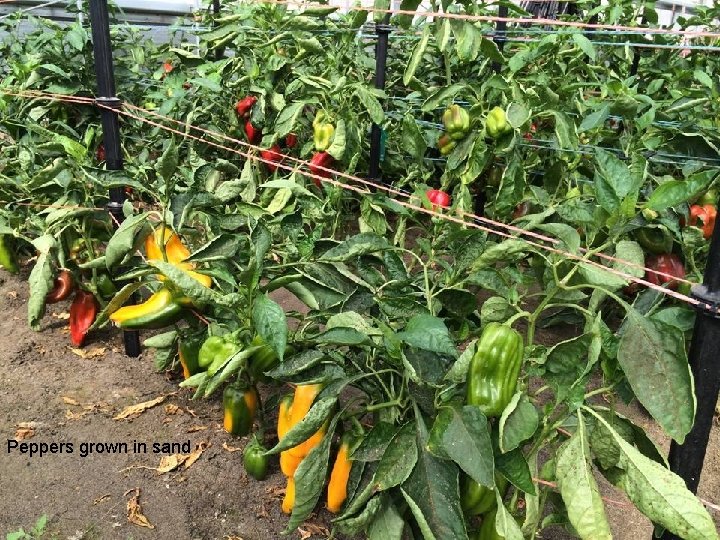

Peppers grown in sand

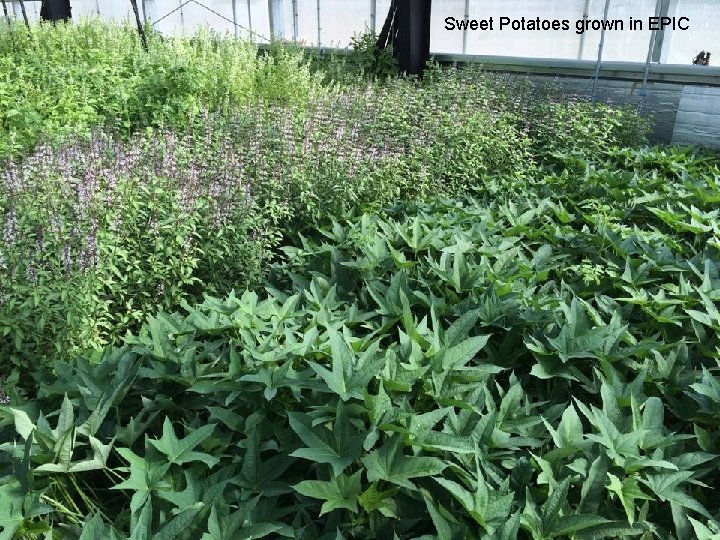

Sweet Potatoes grown in EPIC

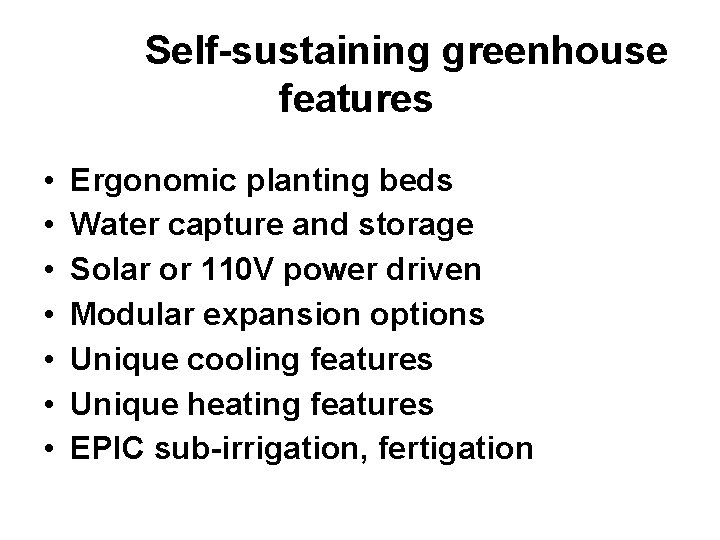

Self-sustaining greenhouse features • • Ergonomic planting beds Water capture and storage Solar or 110 V power driven Modular expansion options Unique cooling features Unique heating features EPIC sub-irrigation, fertigation

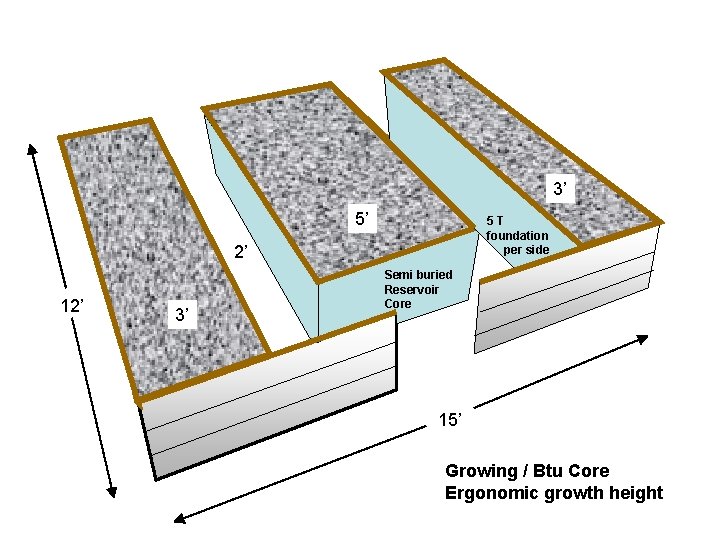

3’ 5’ 5 T foundation per side 2’ 12’ 3’ Semi buried Reservoir Core 15’ Growing / Btu Core Ergonomic growth height

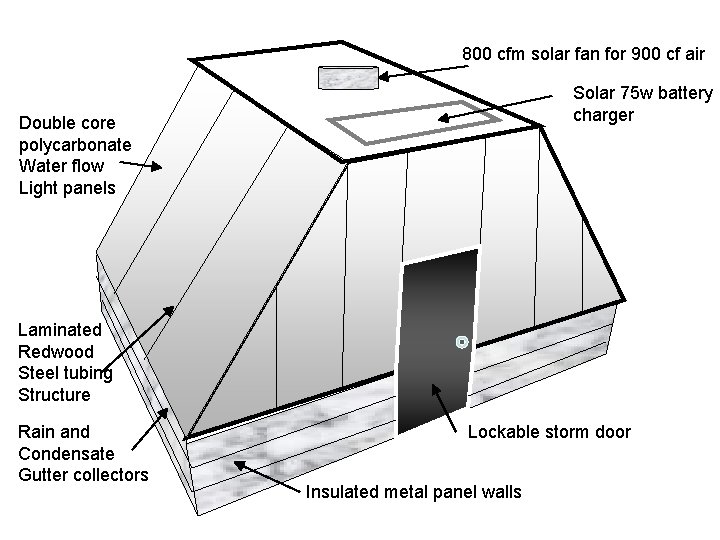

800 cfm solar fan for 900 cf air Solar 75 w battery charger Double core polycarbonate Water flow Light panels Laminated Redwood Steel tubing Structure Rain and Condensate Gutter collectors Lockable storm door Insulated metal panel walls

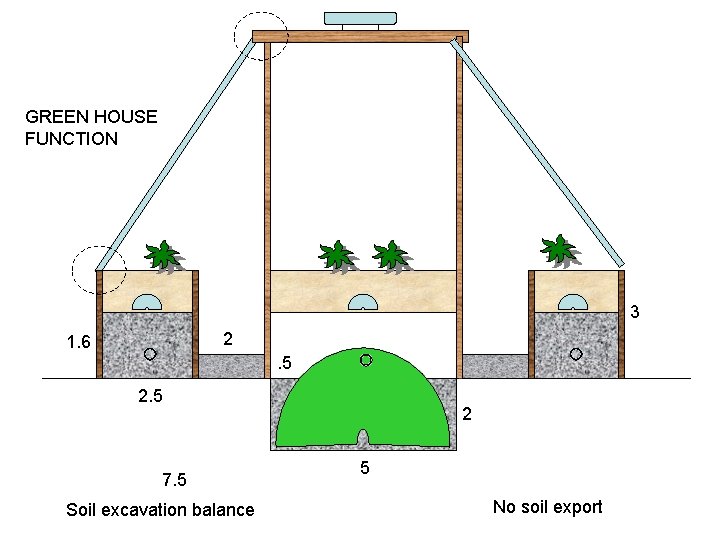

GREEN HOUSE FUNCTION 3 2 1. 6 . 5 2. 5 7. 5 Soil excavation balance 2 5 No soil export

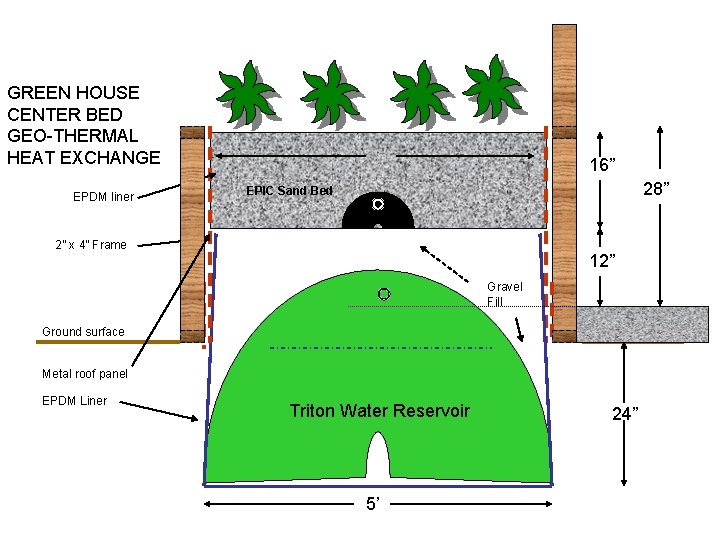

GREEN HOUSE CENTER BED GEO-THERMAL HEAT EXCHANGE EPDM liner 16” 28” EPIC Sand Bed 2” x 4” Frame 12” Gravel Fill Ground surface Metal roof panel EPDM Liner Triton Water Reservoir 5’ 24”

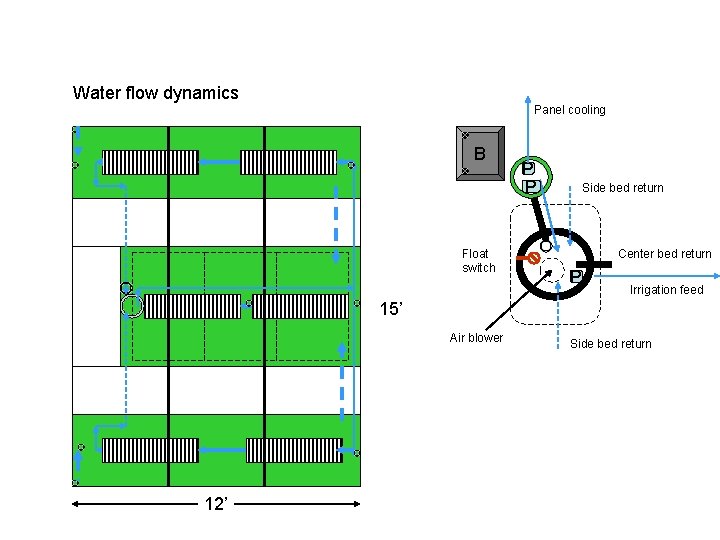

Water flow dynamics Panel cooling B Float switch P P Side bed return Center bed return P Irrigation feed 15’ Air blower 12’ Side bed return

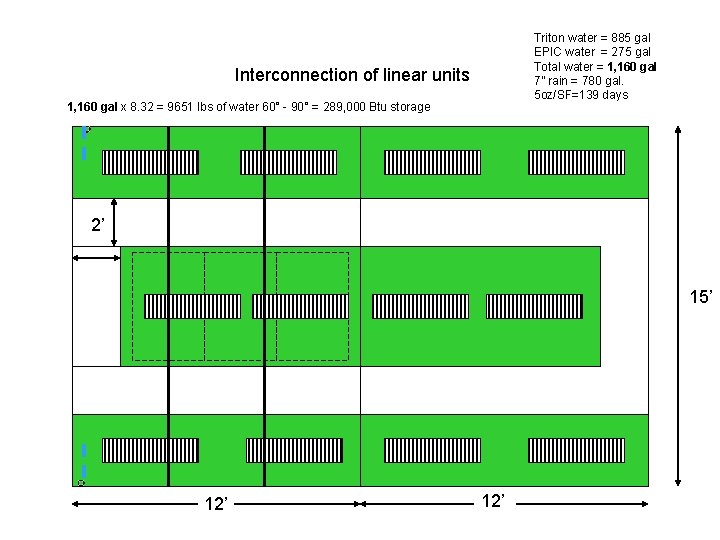

Triton water = 885 gal EPIC water = 275 gal Total water = 1, 160 gal 7” rain = 780 gal. 5 oz/SF=139 days Interconnection of linear units 1, 160 gal x 8. 32 = 9651 lbs of water 60° - 90° = 289, 000 Btu storage 2’ 15’ 12’

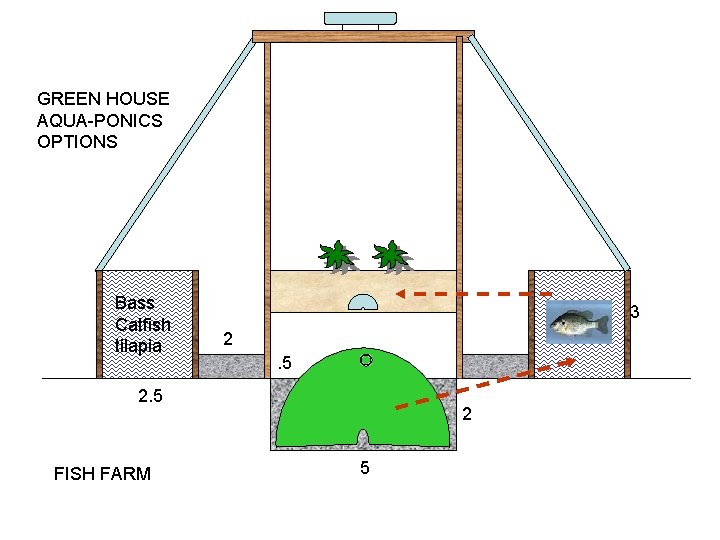

GREEN HOUSE AQUA-PONICS OPTIONS Bass Catfish tilapia 3 2. 5 FISH FARM 2 5

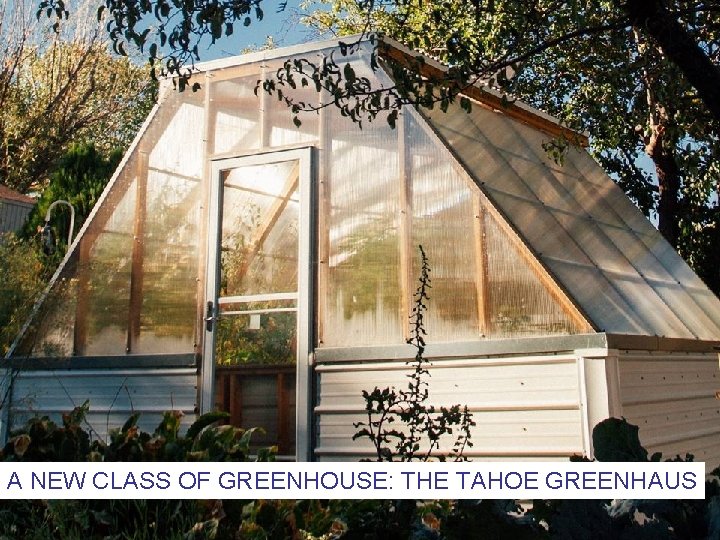

A NEW CLASS OF GREENHOUSE: THE TAHOE GREENHAUS

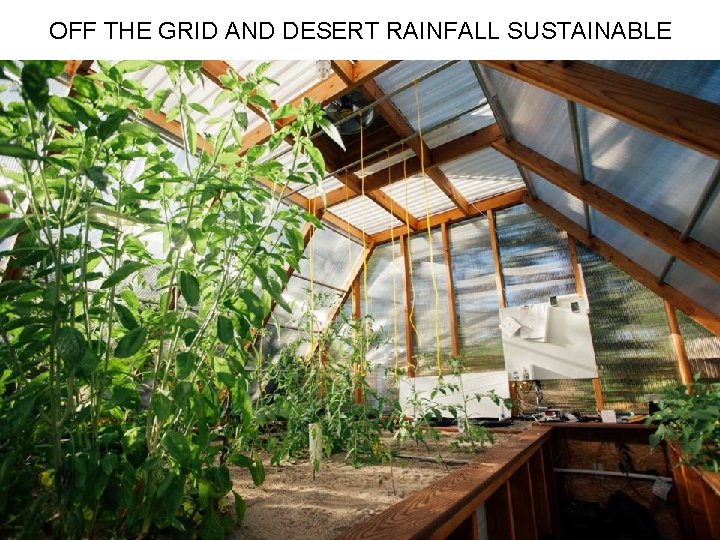

OFF THE GRID AND DESERT RAINFALL SUSTAINABLE

TURN-KEY, AUTOMATIC, SOLAR POWERED WITH EROGO EPIC SYSTEM GROWING BEDS AND SUBSURFACE RESERV

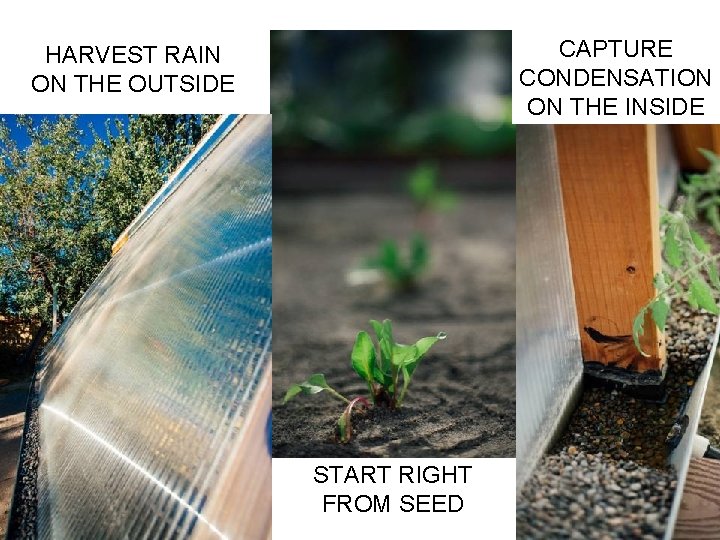

CAPTURE CONDENSATION ON THE INSIDE HARVEST RAIN ON THE OUTSIDE START RIGHT FROM SEED

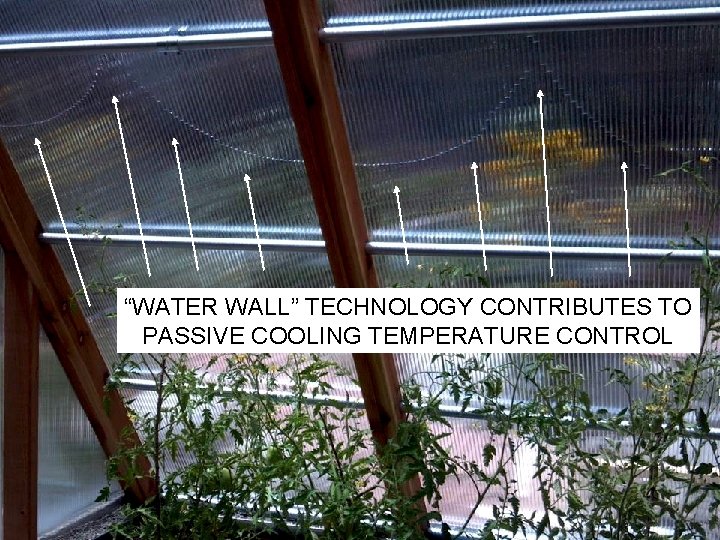

“WATER WALL” TECHNOLOGY CONTRIBUTES TO PASSIVE COOLING TEMPERATURE CONTROL

12955 Mahogany Drive Reno, NV, 89511 USA www. ecs-green. com 775 -813 -3272
