EPIB 698 E Lecture 3 Instructor Raul CruzCano

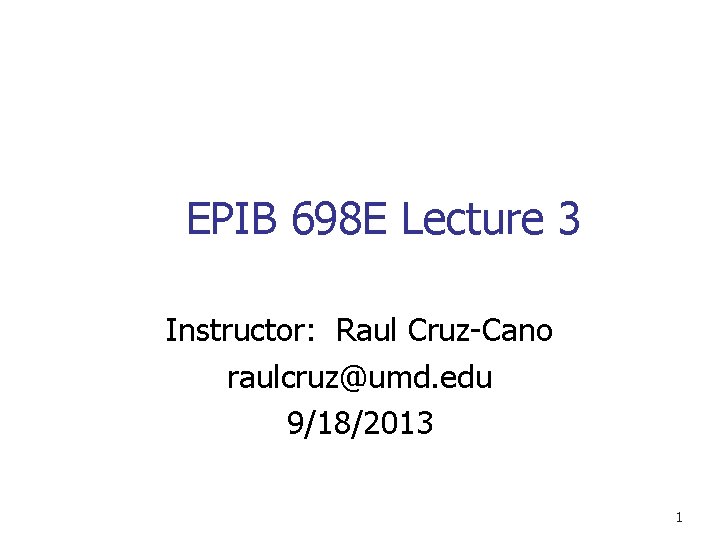

EPIB 698 E Lecture 3 Instructor: Raul Cruz-Cano raulcruz@umd. edu 9/18/2013 1

Creating Data in SAS, an overview n n n Creating datasets by hand entry (Viewtable window, CARDS, DATALINES statement) Reading dataset from external files (not SAS data, INFILE statement) Using Import/Export facility (a point-and-click approach) 2

Entering Data with Viewtable window n n To open viewtable window, select “Table Editor” from the Tools menu. An empty viewtable window will appear The letters at the tops of columns are default variable names. Right click on the letter and open the Column attributes window. You can replace variables name, type, etc 3

Entering Data with Viewtable window n n Entering you data once you have defined your columns. To save your table, select “Save as” from the File menu, then select a library and specify the name of your table (SAS dataset) To open an existing table, go to Tools Table editor, the view table window will be opened. Then go the File menu, click Open choose library select Table name. To switch from browse mode (default) to edit mode, select “Edit Mode” from the Edit menu Using Viewtable you can easily create a data table by setting the columns, you can add rows to the table. However, you can not add columns once you finish defining your columns. This is a considerable disadvantage. 4

Reading Data Inline, CARDS Statement n n You enter the actual data points inside the PROGRAM EDITOR Example: CARDS statement data instructor; input name $ gender $ age; cards; Jane F 30 Mary F 29 Mike M 28 ; run; 5

Examples n Reading multiple observations in each line of data by adding the @@ symbol at the end of the input statement data aaa; input x y @@; datalines; 1 12. 4 1 11. 3 1 1. 4 2 2. 1 2 19. 4 1 10. 0 2 13. 2 1 11. 6 ; run; 6

Reading Dataset from External Files: INFILE Statement n n n Identifies the external file that contains the data and has options that control how the records in file are read into SAS Must be used before the input statement because it locates the data file to be read Syntax data_set_name; Infile directory_and_file_name; input variable_list; run; 7

Reading raw data separated by spaces—list input n n List input (also called free formatted input) can read data separated by at least one space. By default, SAS assumes data values are separated by one or more blanks. Will read all the data in a record, no skipping unwanted values n Any missing data must by indicated with a period n Character data must be simple, no embedded spaces 8

Reading raw data separated by spaces—list input Example: data demographics; infile ’E: mydata. txt'; input Gender $ Age Height Weight; run; § $ sign after gender means that gender is a character variable 9

Specify missing values with list input n We use a period to represent missing values M 50 168 155 F 23 160 101 F . 160 101 M 65 172 220 F 35 165 133 M 15 171 166 10

Reading raw data separated by commas n Comma separated values file (csv file) use commas as data delimiters n They may or may not enclose character values in quotes. n Example: mydata. csv "M", 50, 68, 155 "F", 23, 60, 101 "M", 65, 72, 220 "F", 35, 65, 133 "M", 15, 71, 166 11

Reading raw data separated by commas data demographics; infile ‘E: mydata. csv' dsd; input Gender $ Age Height Weight; run; Dsd: means delimiter sensitive data. It has several functions. (1)change the default delimiter from a blank to a comma. (2)If there are two delimiters in a row, it assumes there is a missing value in between (3)If character values are placed in quotes, the quotes are stripped from the value 12

INFILE statement, useful options DSD n It recognizes two consecutive delimiters as a missing value. Example: 20, 30, , 50, SAS will treat this as 20 30 50. but with the dsd option SAS will treat it as 20 30. 50. It allows you to include the delimiter within quoted strings. Example: a comma separated file and your data included values like "George Bush, Jr. ” With the dsd option, SAS will recognize that the comma in "George Bush, Jr. " is part of the name, and not a separator indicating a new variable. n 13

INFILE statement (cont. ) DLM= The dlm= option can be used to specify the delimiter that separates the variables in your raw data file. dlm=‘, ’ indicates a comma is the delimiter (e. g. , a comma separated file, . csv file). dlm='09'x indicates that tabs are used to separate your variables dlm=‘: ’ indicates a colon is the delimiter 14

INFILE statement (cont. ) We can use dsd and dlm at the same time: infile ‘file-description’ dsd dlm=‘: ’ ; n This combination of options performs all the actions requested by the DSD option, but overrides the default delimiter (comma) with a delimiter of your choice 15

INFILE statement (cont. ) n useful options continued… n n n missover: if number of variables in file does not match number of variables in input file all remaining variables are set to missing. obs: specifies the last record to be read into the data set firstobs: specifies the first line of data to be read into data set. Useful if there is a header row in the dataset. Data mydata 2; infile ‘E: mydata. txt' missover obs=4 firstobs=2; input Gender $ Age Height Weight; run; 16

Filename statement n Filename statement identifies the file and associate it with a reference name then use this reference in your INFILE statement instead of the actual file name filename myfile ‘E: mydata. csv'; data demographics; infile myfile dsd; input Gender $ Age Height Weight; run; 17

Specifying INFILE options with the DATALINES statement data demographics; infile datalines dsd; input gender $ Age Height Weight; datalines; "M", 50, 68, 155 "F", 23, 60, 101 "M", 65, 72, 220 "F", 35, 65, 133 "M", 15, 71, 166 ; Run; 18

Reading data from fixed columns n Many raw data files store specific information in fixed columns The advantage of fixed column files: (1) don’t need to worry about missing values (2) you can choose which variables to read and in what order to read them n 19

Bank data 12345678901 columns 00110/ 21/1955 M 1145 00211/ 18/2001 F 18722 Column 1 -3 : subject ID Column 4 -13: Date of birth Column 14 -14: gender Column 15 -21: Account balance 20

Column Input data financial; infile ‘E: bank. txt'; input Subj $ 1 -3 DOB $ 4 -13 Gender $ 14 Balance 15 -21; run; 21

Formatted Input n n n Formatted input can read both character and standard numerical values as well as nonstandard numerical values, such as numbers with dollar signs and commas, and dates. Formatted input is the most common and powerful of all input methods SAS Formats and Informats: An informat is a specification for how raw data should be read. A format is a layout specification for how a variable should be printed or displayed. 22

Formatted Input The bank data: data financial; infile ‘E: bank. txt'; input @1 Subj $3. @4 DOB mmddyy 10. @14 Gender $1. @15 Balance 7. ; run; n 23

Formatted Input n n The @ sign the INPUT statement are called column pointers. @4 tells SAS to go to column 4. Following variable names are SAS informats. Informats are built-in instructions that tell SAS how to read a data value 24

Formatted Input n Two of the most basic informats are w. d and $w. The w. d informat reads standard numeric values. The w tells SAS how many columns to read; the optional d tells SAS that there is an implied decimal point in the value. For examples: data value is 123, With informat 3. 0, SAS will save it as 123; With informat 3. 1, SAS will save it as 12. 3; n If the data value already has a decimal in it, then SAS ignores the d option. For examples: data value is 1. 23, With informat 4. 1, SAS will it as 1. 23; n 25

Formatted Input n n n The $w Informat tells SAS to read w columns of character data The MMDDYY 10. informat tells SAS that the date you are reading is in the mm/dd/yyyy form. SAS reads the date and converts the value into a SAS date. SAS stores dates as numeric values equal to the number of days from January 1, 1960. Eg, if you read 01/01/1960, SAS stores a value of 0. The data 01/02/1960 is stored as a value of 1. 26

The format statement n n The format statements are built-in SAS command that allow you to display data in easily readable ways. All SAS formats command ends either in a period or in a period follows by a number. title "Listing of FINANCIAL"; proc print data=financial; format DOB mmddyy 10. Balance dollar 11. 2; run; The dollar 11. 2 tells SAS to put a $ sign in front of the number, and allow up to 11 columns to print the balance values, the 2 tells SAS to include two decimal places after the decimal points. 27

Using a format/informat statement in a DATA step n n It is usually more useful to place your format statement with a SAS data step. There is a permanent association of the formats and variables in the data set. You can override any permanent format by placing a FORMAT statement in a particular procedure. 28

A informat statement with list input n Following the key word informat, you list each variable and information you want to use to read each variable data list_example; informat Subj $3. Creates Name $20. space DOB mmddyy 10. I just declare that comma is my delimiter, hence SAS is Salary dollar 8. going to read all the characters that it might encounter until a ; comma is found, right? Nope, wrong. infile ‘E: list. csv' dsd; input Subj Name DOB Salary; format DOB date 9. Salary dollar 8. ; run; 29

data list_example; infile ‘E: list. csv ' dsd; input Subj : $3. Name : $20. DOB : mmddyy 10. Salary : dollar 8. ; format DOB date 9. Salary dollar 8. ; run; 1. there is a colon (called an informat modifier) preceding of each informat. It tells SAS to use informat supplied but to stop reading the values for this variable when a delimiter is met. 2. Without it, SAS may read past a delimiter to satisfy the width specified in the informat. 30

What are the Differences n Ø Informats used at input Usually reading external data Formats used during output cycle Write formatted value to output

Selected date informats Informats Data form Input data Input statement Datew. ddmmmyyyy ddmmmyy 1 Feb 1961 Input date Date 9. 1 Feb 61 Input date Date 7. ddmmyy 01 -02 -61 Input date ddmmyy 8. ddmmyyyy 01/02/1961 Input date ddmmyy 10. mmddyy 02 -01 -61 mmddyy 02 -01 -1961 Input date mmddyy 10. DDMMYYw. MMDDYYw. Input date mmddyy 8.

Selected date formats Data displayed Input data format statement Results Datew. ddmmmyyyy 366 format date Date 9. 01 Jan 1961 ddmmmyy 366 format date Date 7. 01 Jan 61 366 format date mmddyy 8. 01/01/61 366 format date mmddyy 10. 01/01/1961 MMDDYYw. mmddyyyy

More examples of informat for numeric data Informat Definition COMMAw. d Input data INPUT statement Results Removes embedded $1, 000 commas and $, converts left parentheses to (1, 234) minus sign Input income comma 6. 0; 1000 Input income comma 7. 0; -1234 Percentw. Converts percent to numbers (20%) Input value -0. 2 Percent 5. ; w. d Reads standard numeric data -12. 3 Input value -12. 3 5. 1;

More examples of informat for character data Informat Definition Input data INPUT statement $CHARw. my cat Input animal my cat $char 10. ; my cat Input animal my cat $char 10. ; $w. Reading character data, do not trim leading or trailing blanks Read character data, my cat trim blanks my cat Results Input animal my cat $char 10. ;

Import/Export Data n n To Export SAS datasets § Go to the File menu and select “Export Data” § Choose the data file ( from the library Work) § Locate and select file type using the browse button § Save the data set and finish § Check the log to make sure the data set was created § This method does not require a data step, but any modification may require a data step § Convenient for Excel file Import a SAS data set follows similar step 36

Read data in Excel file (1) Use Import procedure File Import data Choose Microsoft Excel Click “Next” Select work sheet using browse select “Table” you want to import Click “Next” Select Library and assign a file name Click “Next” if you want Proc import SAS code generated, otherwise click “Finish” Check the log window to make sure the data was created successfully. n n (2) Save Excel file as a csv file, then read in using the infile statement with dsd option. 37

PROC IMPORT OUT= WORK. auto 1 DATAFILE= "C: auto. xlsx" DBMS=xlsx REPLACE; SHEET="auto"; GETNAMES=YES; RUN; • OUT option in the proc import tells SAS what the name should be for the newly-created SAS data file and where to store the data set once it is imported. • DATAFILE option tells SAS where to find the file we want to import. • DBMS option is used to identify the type of file being imported. • REPLACE option will overwrite an existing file. • SHEET specifies which sheet SAS should import to. The default is for SAS to read the first sheet. • GETNAMES is the default setting and SAS will automatically use the first row of data as variable names. If the first row of your sheet does not contain variable names use the GETNAMES=no. 38

PROC EXPORT DATA= WORK. auto 2 OUTFILE= "C: auto. xlsx" DBMS=xlsx REPLACE; RUN; • OUTFILE option in the proc export tells SAS what the name should be for the newly-created Excel data file and where to store it. • DATA option tells SAS where to find the dataset we want to export. • DBMS option is used to identify the type of file being imported. • REPLACE option will overwrite an existing file. How to create nicer files (reports) will be addressed in future lectures 39
