EPC Business Process 1 Proyek EPC Kontraktor mengerjakan

EPC Business Process 1

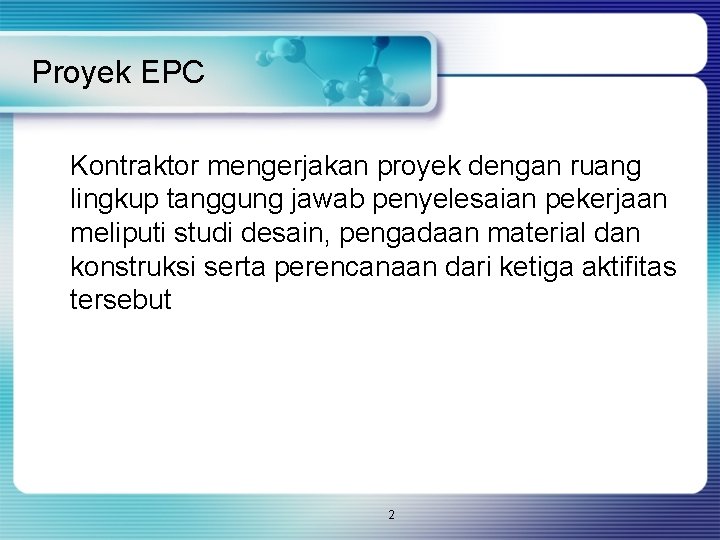

Proyek EPC Kontraktor mengerjakan proyek dengan ruang lingkup tanggung jawab penyelesaian pekerjaan meliputi studi desain, pengadaan material dan konstruksi serta perencanaan dari ketiga aktifitas tersebut 2

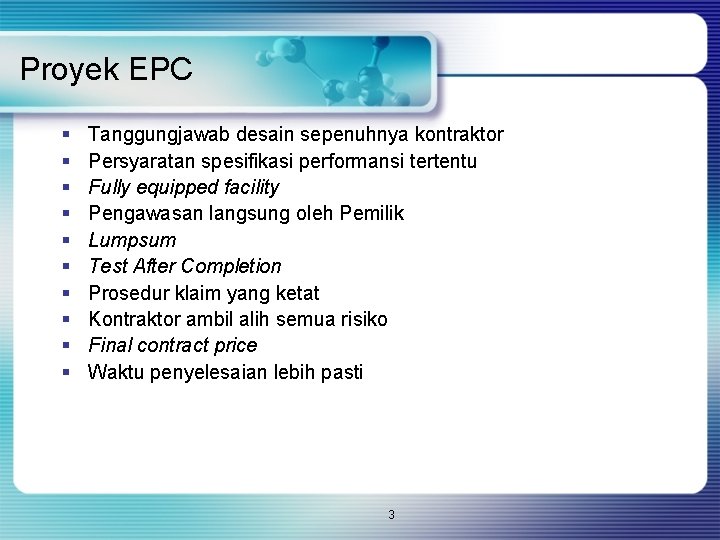

Proyek EPC § § § § § Tanggungjawab desain sepenuhnya kontraktor Persyaratan spesifikasi performansi tertentu Fully equipped facility Pengawasan langsung oleh Pemilik Lumpsum Test After Completion Prosedur klaim yang ketat Kontraktor ambil alih semua risiko Final contract price Waktu penyelesaian lebih pasti 3

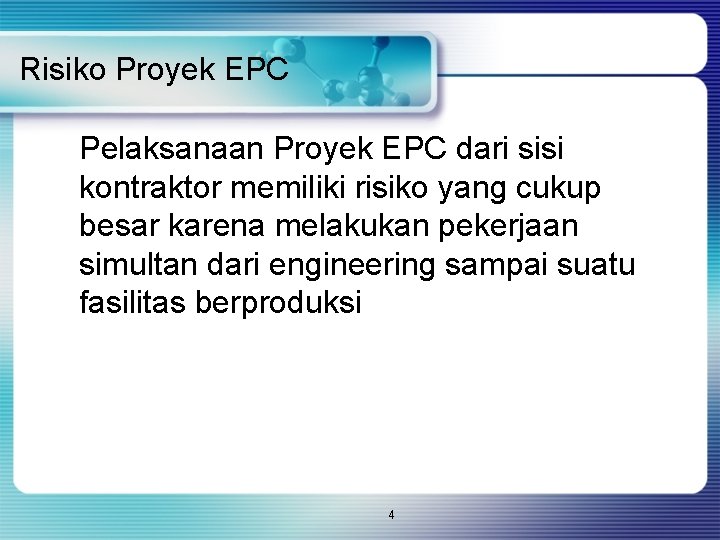

Risiko Proyek EPC Pelaksanaan Proyek EPC dari sisi kontraktor memiliki risiko yang cukup besar karena melakukan pekerjaan simultan dari engineering sampai suatu fasilitas berproduksi 4

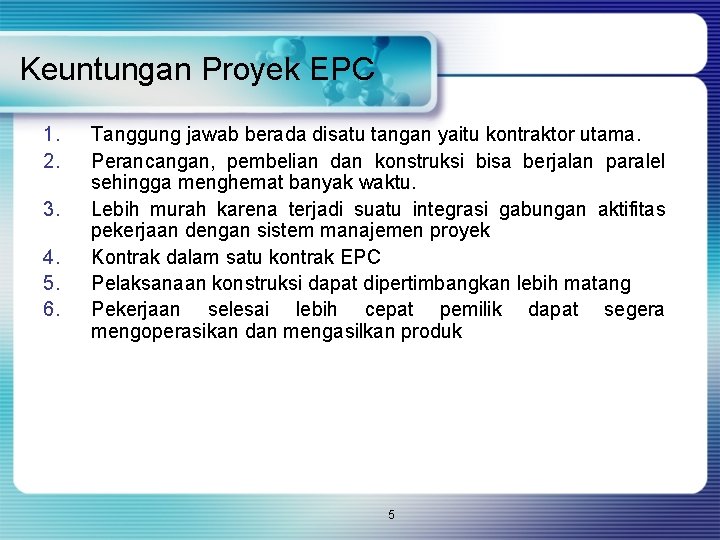

Keuntungan Proyek EPC 1. 2. 3. 4. 5. 6. Tanggung jawab berada disatu tangan yaitu kontraktor utama. Perancangan, pembelian dan konstruksi bisa berjalan paralel sehingga menghemat banyak waktu. Lebih murah karena terjadi suatu integrasi gabungan aktifitas pekerjaan dengan sistem manajemen proyek Kontrak dalam satu kontrak EPC Pelaksanaan konstruksi dapat dipertimbangkan lebih matang Pekerjaan selesai lebih cepat pemilik dapat segera mengoperasikan dan mengasilkan produk 5

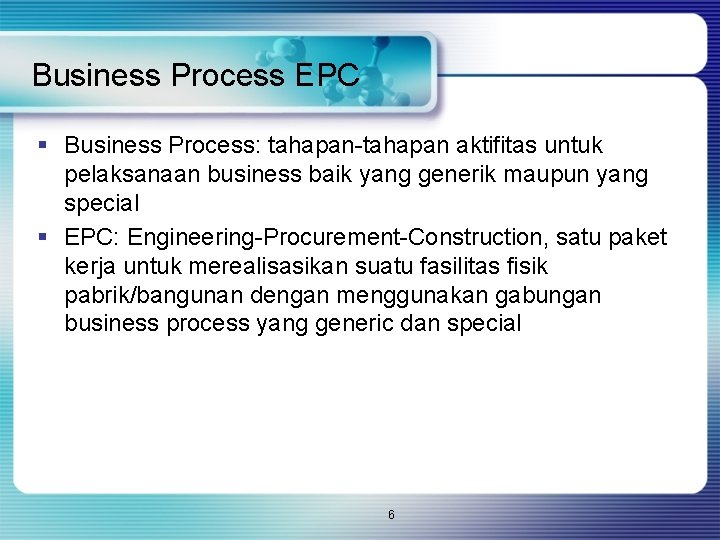

Business Process EPC § Business Process: tahapan-tahapan aktifitas untuk pelaksanaan business baik yang generik maupun yang special § EPC: Engineering-Procurement-Construction, satu paket kerja untuk merealisasikan suatu fasilitas fisik pabrik/bangunan dengan menggunakan gabungan business process yang generic dan special 6

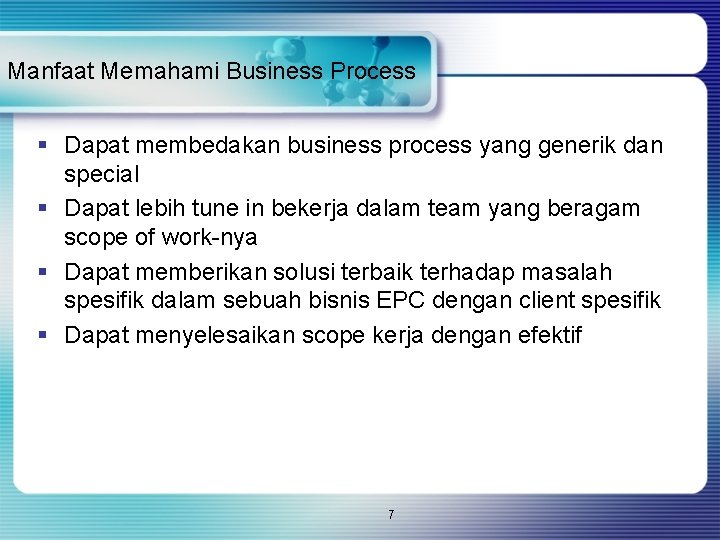

Manfaat Memahami Business Process § Dapat membedakan business process yang generik dan special § Dapat lebih tune in bekerja dalam team yang beragam scope of work-nya § Dapat memberikan solusi terbaik terhadap masalah spesifik dalam sebuah bisnis EPC dengan client spesifik § Dapat menyelesaikan scope kerja dengan efektif 7

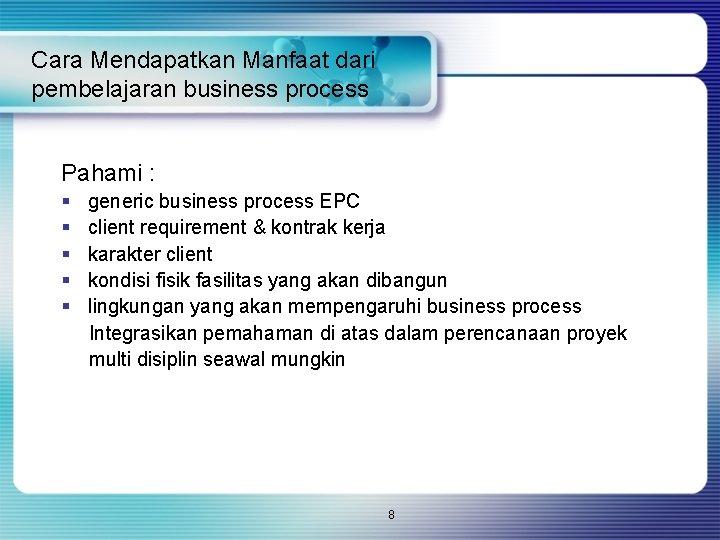

Cara Mendapatkan Manfaat dari pembelajaran business process Pahami : § generic business process EPC § client requirement & kontrak kerja § karakter client § kondisi fisik fasilitas yang akan dibangun § lingkungan yang akan mempengaruhi business process Integrasikan pemahaman di atas dalam perencanaan proyek multi disiplin seawal mungkin 8

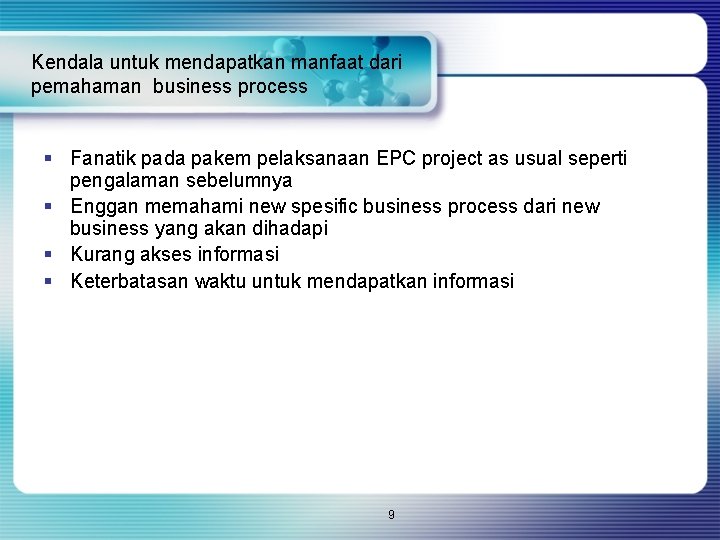

Kendala untuk mendapatkan manfaat dari pemahaman business process § Fanatik pada pakem pelaksanaan EPC project as usual seperti pengalaman sebelumnya § Enggan memahami new spesific business process dari new business yang akan dihadapi § Kurang akses informasi § Keterbatasan waktu untuk mendapatkan informasi 9

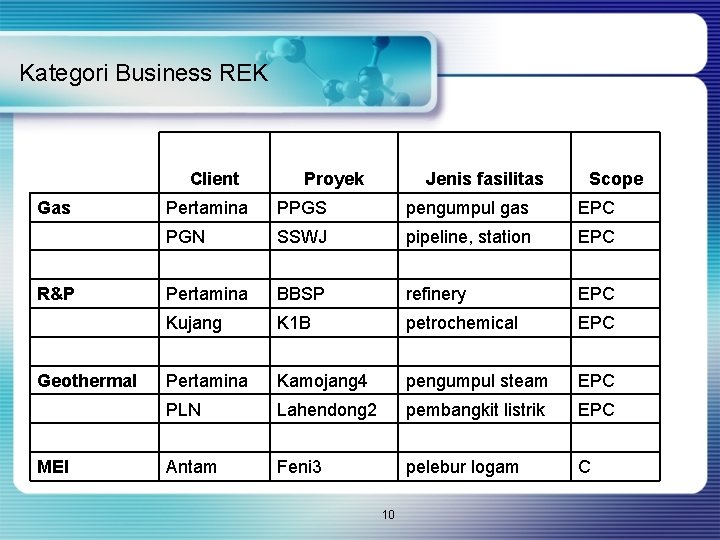

Kategori Business REK Client Proyek Jenis fasilitas Scope Gas Pertamina PPGS pengumpul gas EPC PGN SSWJ pipeline, station EPC R&P Pertamina BBSP refinery EPC Kujang K 1 B petrochemical EPC Geothermal Pertamina Kamojang 4 pengumpul steam EPC PLN Lahendong 2 pembangkit listrik EPC MEI Antam Feni 3 pelebur logam C 10

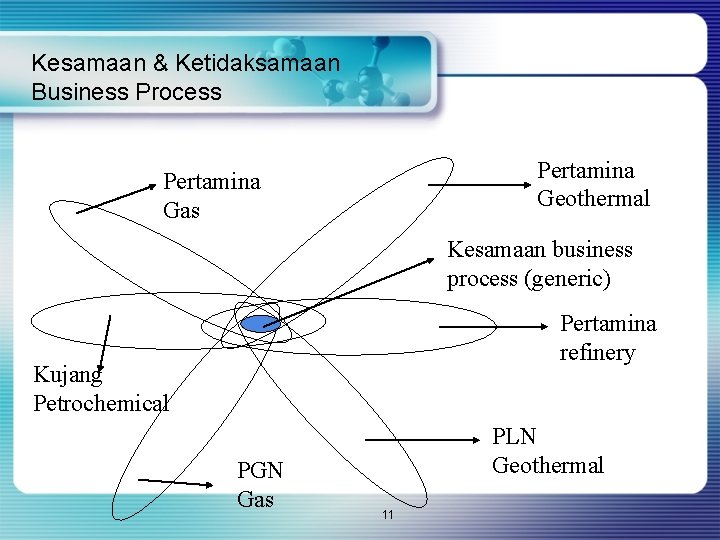

Kesamaan & Ketidaksamaan Business Process Pertamina Geothermal Pertamina Gas Kesamaan business process (generic) Pertamina refinery Kujang Petrochemical PGN Gas PLN Geothermal 11

Project Life Cycle Eng M/C P/A Procurement Construction Com Warranty EPC period 12 F/A

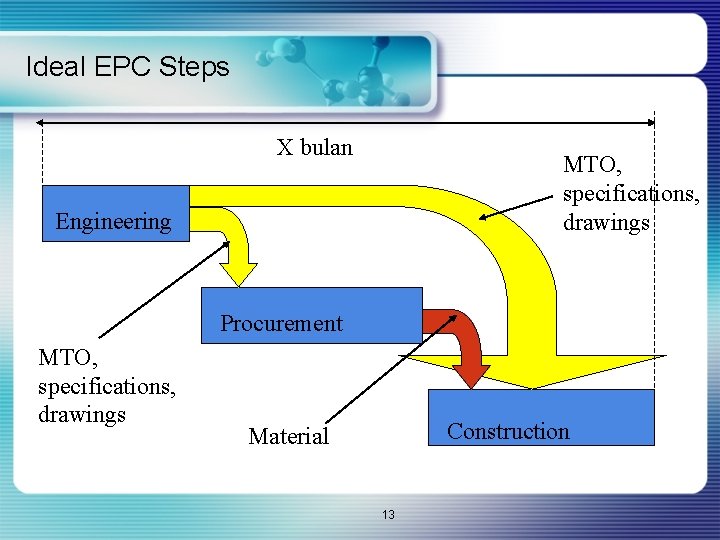

Ideal EPC Steps X bulan MTO, specifications, drawings Engineering Procurement MTO, specifications, drawings Construction Material 13

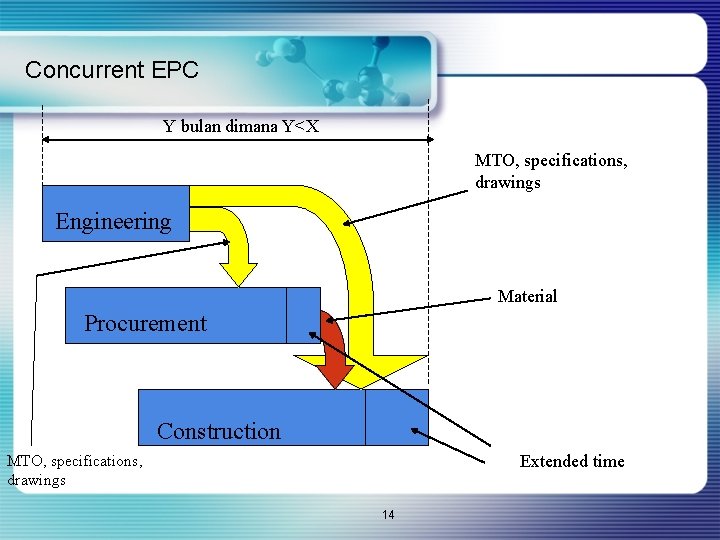

Concurrent EPC Y bulan dimana Y<X MTO, specifications, drawings Engineering Material Procurement Construction Extended time MTO, specifications, drawings 14

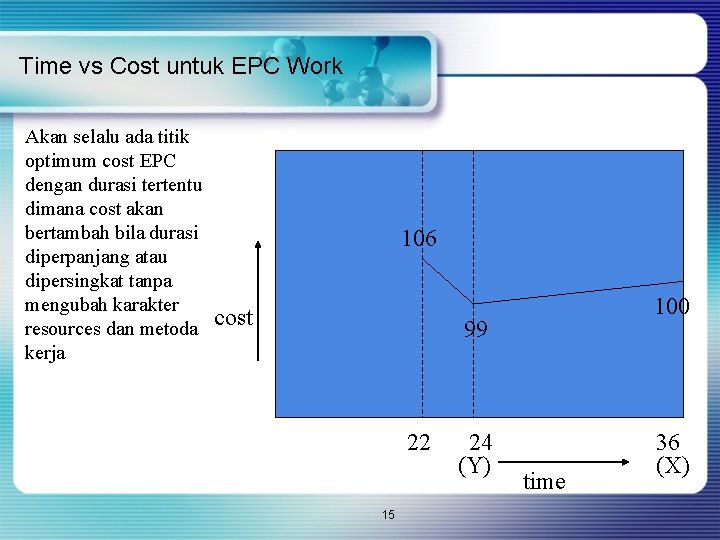

Time vs Cost untuk EPC Work Akan selalu ada titik optimum cost EPC dengan durasi tertentu dimana cost akan bertambah bila durasi diperpanjang atau dipersingkat tanpa mengubah karakter resources dan metoda kerja 106 cost 100 99 22 15 24 (Y) time 36 (X)

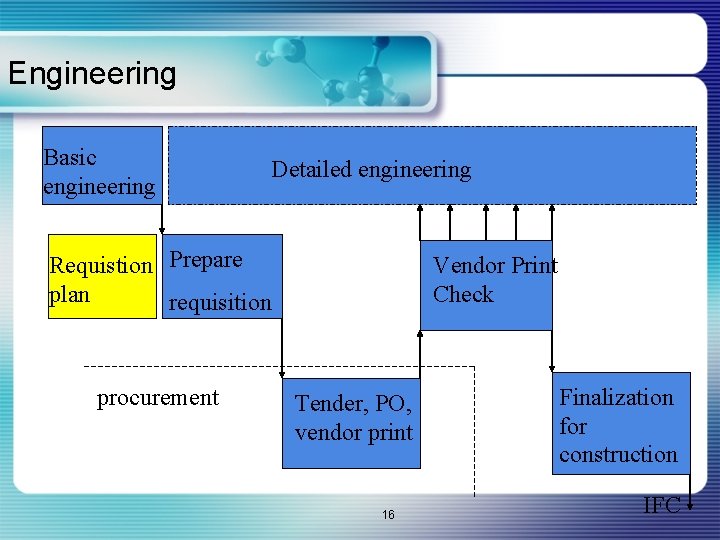

Engineering Basic engineering Detailed engineering Requistion Prepare plan requisition procurement Vendor Print Check Tender, PO, vendor print 16 Finalization for construction IFC

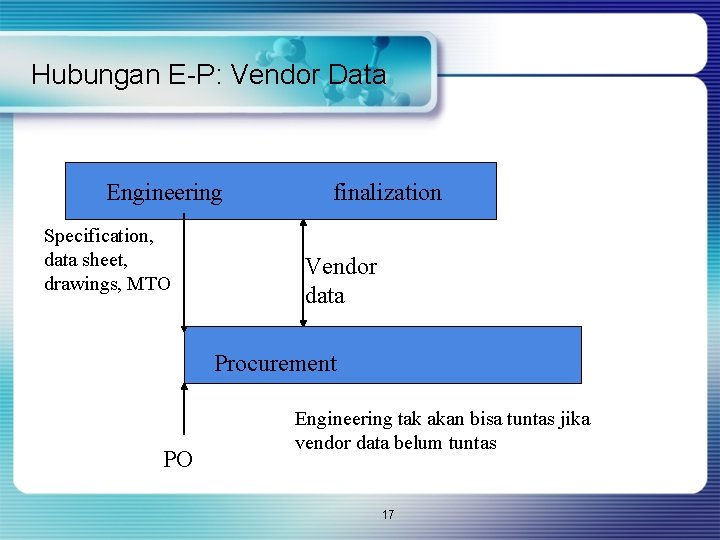

Hubungan E-P: Vendor Data Engineering Specification, data sheet, drawings, MTO finalization Vendor data Procurement PO Engineering tak akan bisa tuntas jika vendor data belum tuntas 17

Hubungan E-C: As built data updating Engineering Drawings, specifications, MTO As built for earlier built facilities As built procurement Construction Engineering dan Procurement selalu perlu mendampingi konstruksi untuk antisipasi ketidaksesuaian hasil design dengan actual hasil erection di site 18

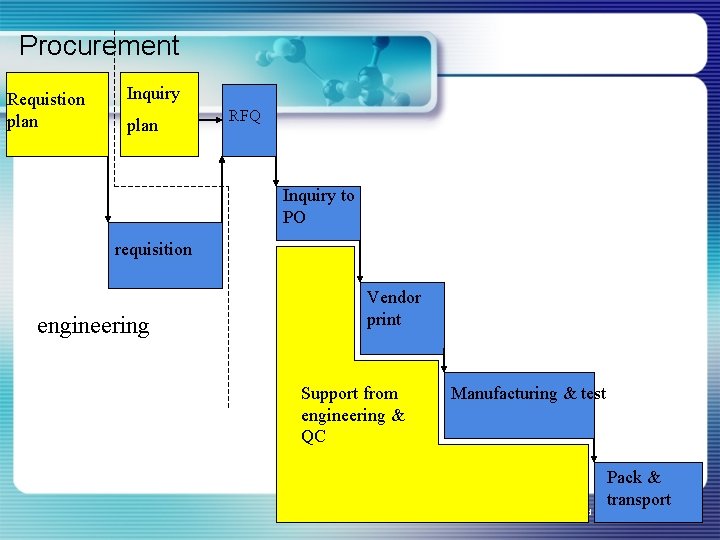

Procurement Requistion plan Inquiry plan RFQ Inquiry to PO requisition engineering Vendor print Support from engineering & QC 19 Manufacturing & test Pack & transport To become a new and innovative energy company

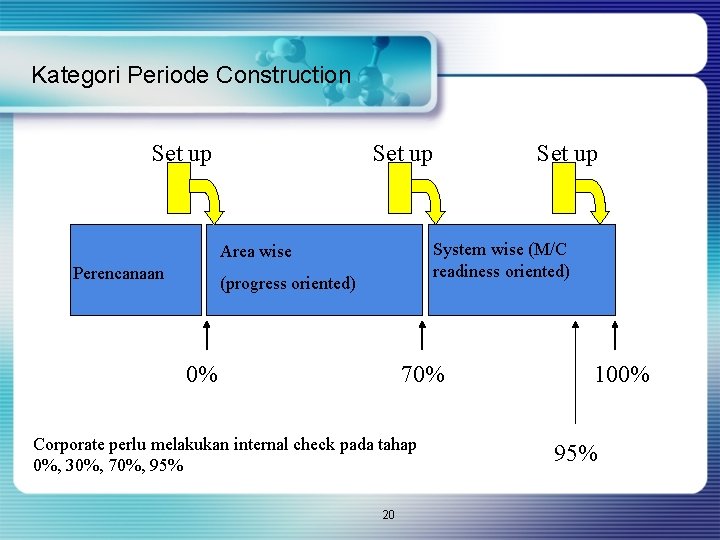

Kategori Periode Construction Set up System wise (M/C readiness oriented) Area wise Perencanaan Set up (progress oriented) 0% 70% Corporate perlu melakukan internal check pada tahap 0%, 30%, 70%, 95% 20 100% 95%

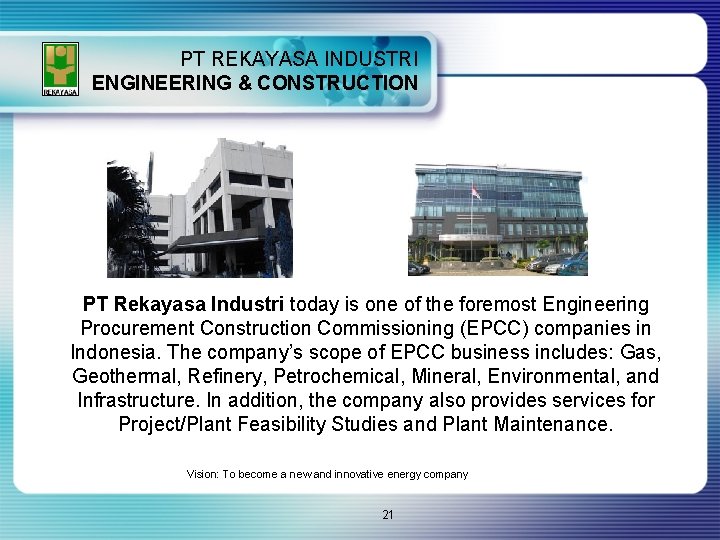

PT REKAYASA INDUSTRI ENGINEERING & CONSTRUCTION PT Rekayasa Industri today is one of the foremost Engineering Procurement Construction Commissioning (EPCC) companies in Indonesia. The company’s scope of EPCC business includes: Gas, Geothermal, Refinery, Petrochemical, Mineral, Environmental, and Infrastructure. In addition, the company also provides services for Project/Plant Feasibility Studies and Plant Maintenance. Vision: To become a new and innovative energy company 21

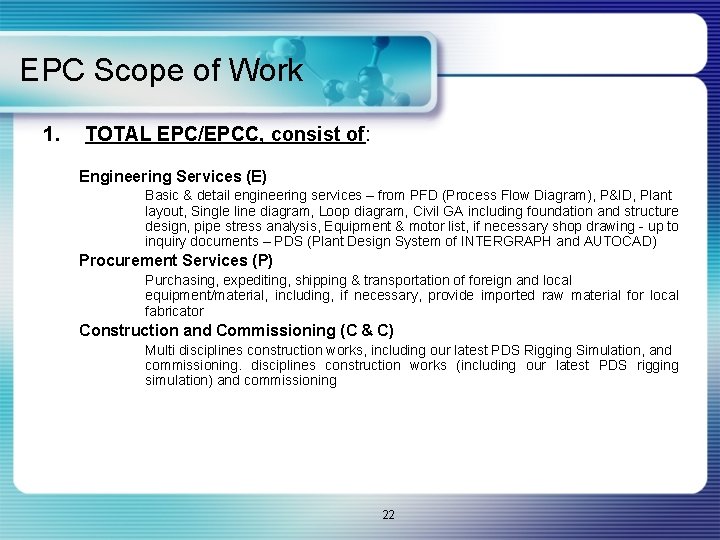

EPC Scope of Work 1. TOTAL EPC/EPCC, consist of: Engineering Services (E) Basic & detail engineering services – from PFD (Process Flow Diagram), P&ID, Plant layout, Single line diagram, Loop diagram, Civil GA including foundation and structure design, pipe stress analysis, Equipment & motor list, if necessary shop drawing - up to inquiry documents – PDS (Plant Design System of INTERGRAPH and AUTOCAD) Procurement Services (P) Purchasing, expediting, shipping & transportation of foreign and local equipment/material, including, if necessary, provide imported raw material for local fabricator Construction and Commissioning (C & C) Multi disciplines construction works, including our latest PDS Rigging Simulation, and commissioning. disciplines construction works (including our latest PDS rigging simulation) and commissioning 22

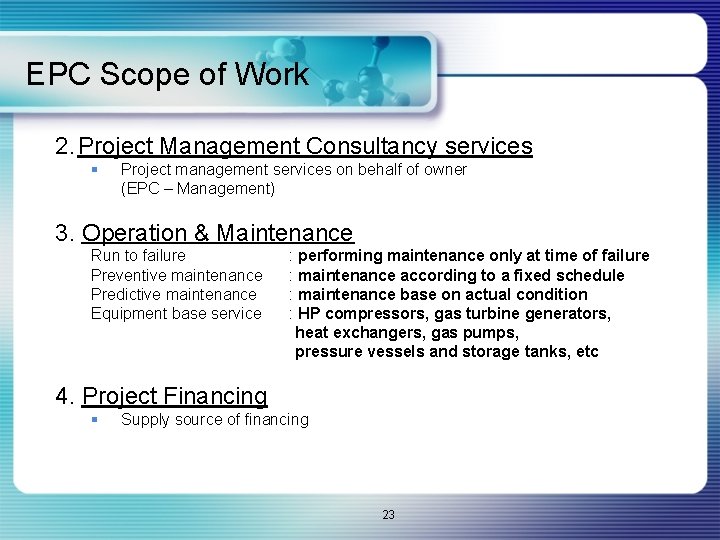

EPC Scope of Work 2. Project Management Consultancy services § Project management services on behalf of owner (EPC – Management) 3. Operation & Maintenance Run to failure : performing maintenance only at time of failure Preventive maintenance : maintenance according to a fixed schedule Predictive maintenance : maintenance base on actual condition Equipment base service : HP compressors, gas turbine generators, heat exchangers, gas pumps, pressure vessels and storage tanks, etc 4. Project Financing § Supply source of financing 23

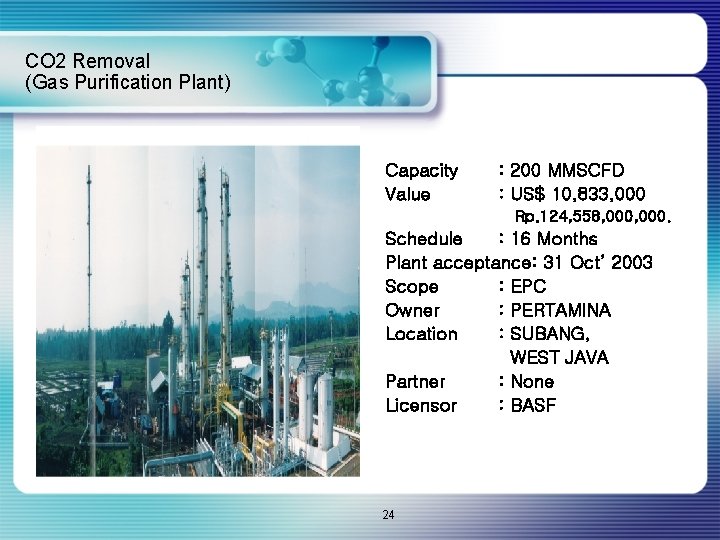

CO 2 Removal (Gas Purification Plant) Capacity Value : 200 MMSCFD : US$ 10, 833, 000 Rp. 124, 558, 000. Schedule : 16 Months Plant acceptance: 31 Oct’ 2003 Scope : EPC Owner : PERTAMINA Location : SUBANG, WEST JAVA Partner : None Licensor : BASF 24

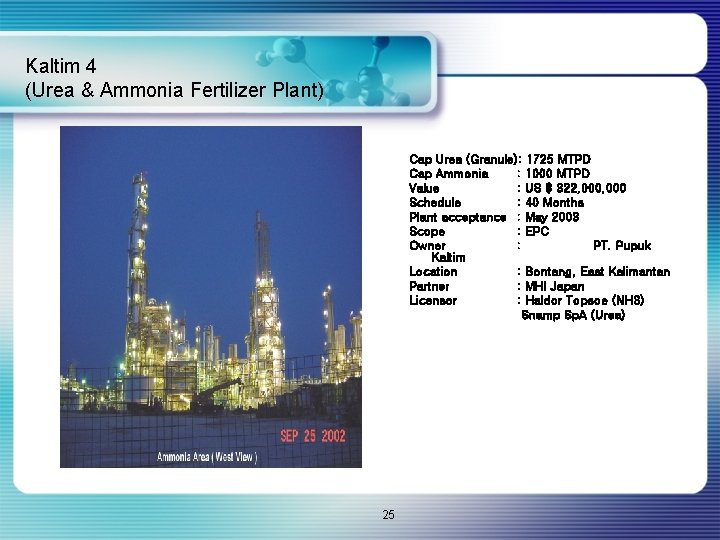

Kaltim 4 (Urea & Ammonia Fertilizer Plant) Cap Urea (Granule): 1725 MTPD Cap Ammonia : 1000 MTPD Value : US $ 322, 000 Schedule : 40 Months Plant acceptance : May 2003 Scope : EPC Owner : PT. Pupuk Kaltim Location : Bontang, East Kalimantan Partner : MHI Japan Licensor : Haldor Topsoe (NH 3) Snamp Sp. A (Urea) 25

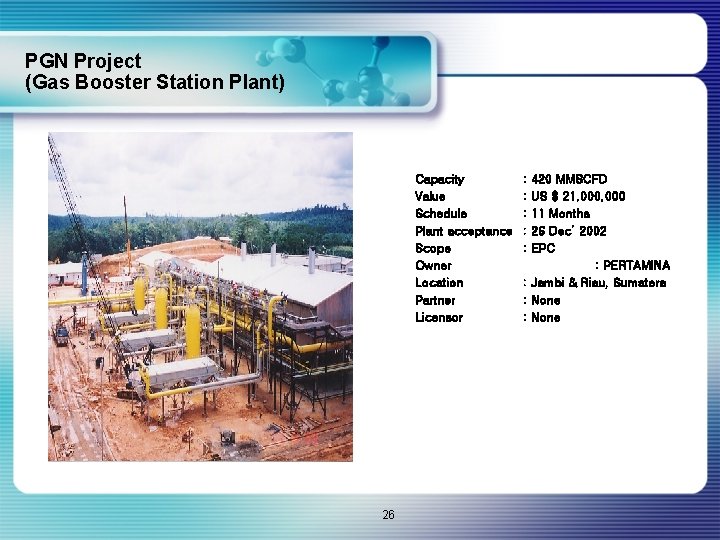

PGN Project (Gas Booster Station Plant) Capacity Value Schedule Plant acceptance Scope Owner Location Partner Licensor 26 : : : 420 MMSCFD US $ 21, 000 11 Months 26 Dec’ 2002 EPC : PERTAMINA : Jambi & Riau, Sumatera : None

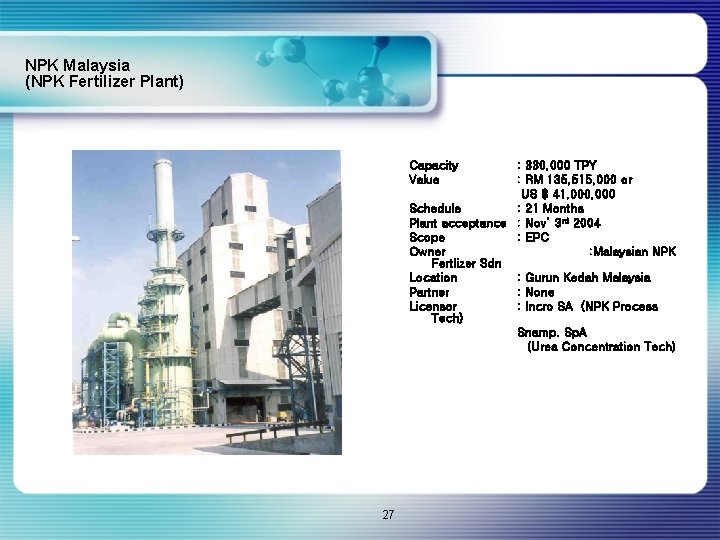

NPK Malaysia (NPK Fertilizer Plant) Capacity Value : 330, 000 TPY : RM 135, 515, 000 or US $ 41, 000 Schedule : 21 Months Plant acceptance : Nov’ 3 rd 2004 Scope : EPC Owner : Malaysian NPK Fertlizer Sdn Location : Gurun Kedah Malaysia Partner : None Licensor : Incro SA (NPK Process Tech) Snamp. Sp. A (Urea Concentration Tech) 27

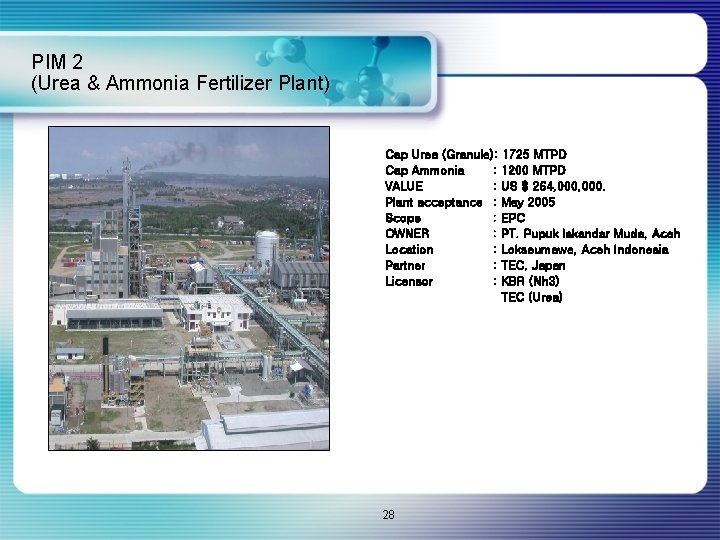

PIM 2 (Urea & Ammonia Fertilizer Plant) Cap Urea (Granule): 1725 MTPD Cap Ammonia : 1200 MTPD VALUE : US $ 264, 000. Plant acceptance : May 2005 Scope : EPC OWNER : PT. Pupuk Iskandar Muda, Aceh Location : Lokseumawe, Aceh Indonesia Partner : TEC, Japan Licensor : KBR (Nh 3) TEC (Urea) 28

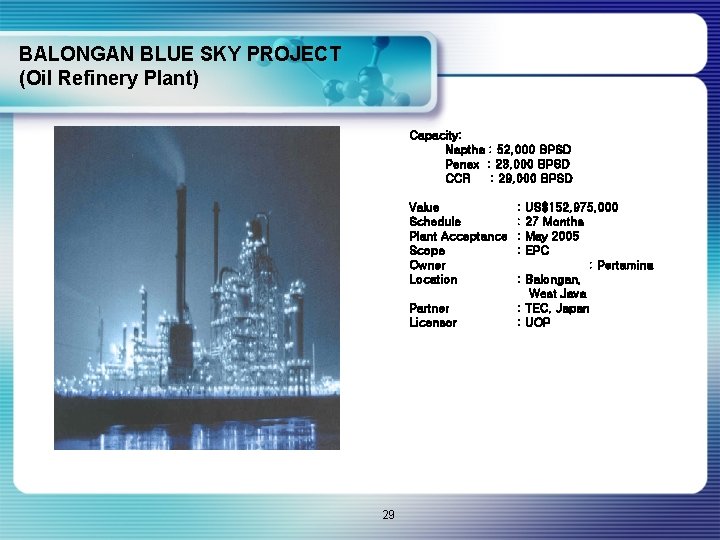

BALONGAN BLUE SKY PROJECT (Oil Refinery Plant) Capacity: Naptha : 52, 000 BPSD Penex : 23, 000 BPSD CCR : 29, 000 BPSD Value Schedule Plant Acceptance Scope Owner Location Partner Licensor 29 : : US$152, 975, 000 27 Months May 2005 EPC : Pertamina : Balongan, West Java : TEC, Japan : UOP

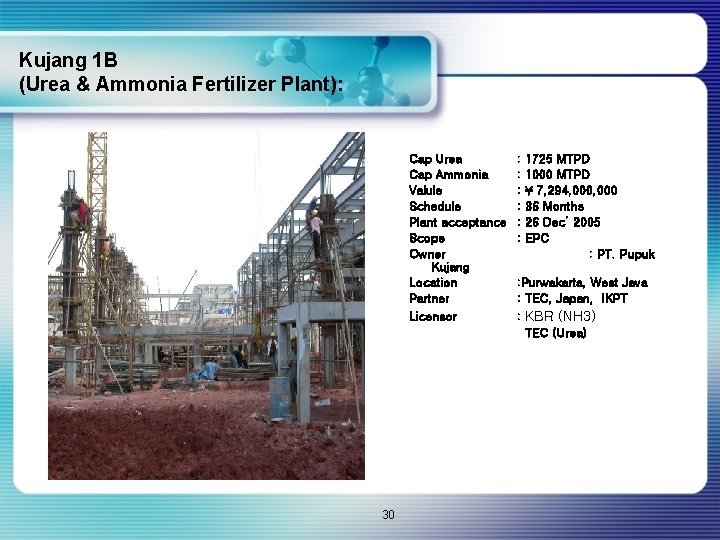

Kujang 1 B (Urea & Ammonia Fertilizer Plant): 30 Cap Urea Cap Ammonia Valule Schedule Plant acceptance Scope Owner Kujang Location Partner : : : 1725 MTPD 1000 MTPD ¥ 7, 294, 000 36 Months 26 Dec’ 2005 EPC : PT. Pupuk Licensor : KBR (NH 3) TEC (Urea) : Purwakarta, West Java : TEC, Japan, IKPT

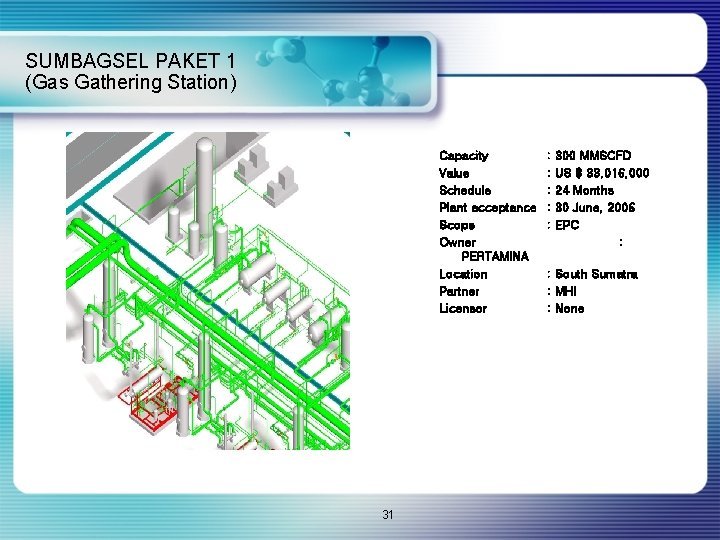

SUMBAGSEL PAKET 1 (Gas Gathering Station) Capacity Value Schedule Plant acceptance Scope Owner PERTAMINA Location Partner Licensor 31 : : : 300 MMSCFD US $ 33, 016, 000 24 Months 30 June, 2006 EPC : : South Sumatra : MHI : None

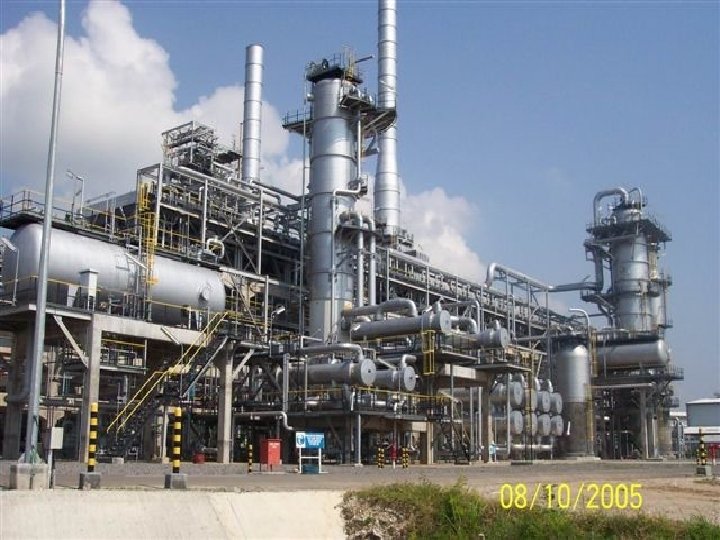

32

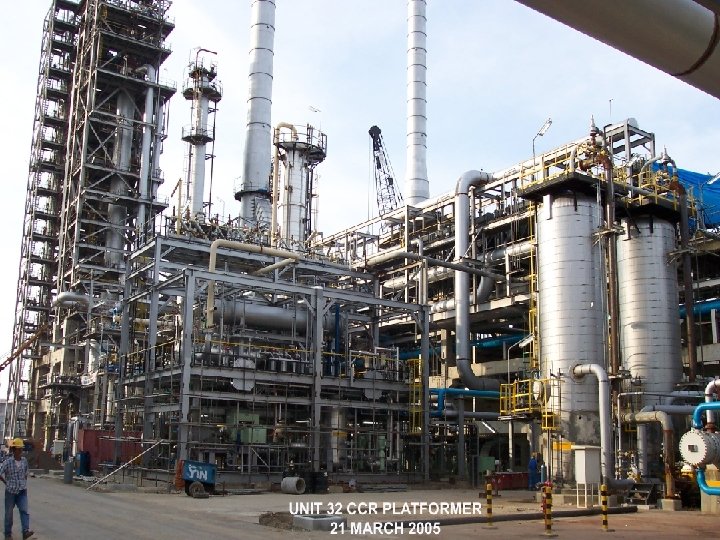

33

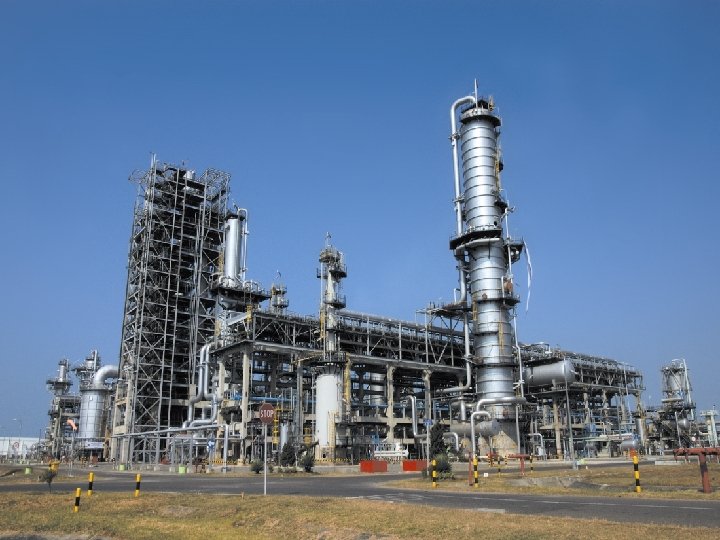

34

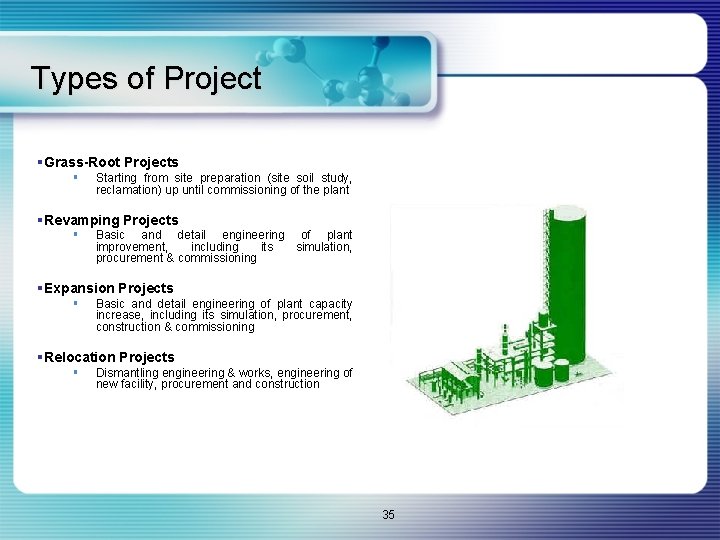

Types of Project §Grass-Root Projects § Starting from site preparation (site soil study, reclamation) up until commissioning of the plant §Revamping Projects § Basic and detail engineering of plant improvement, including its simulation, procurement & commissioning §Expansion Projects § Basic and detail engineering of plant capacity increase, including its simulation, procurement, construction & commissioning §Relocation Projects § Dismantling engineering & works, engineering of new facility, procurement and construction 35

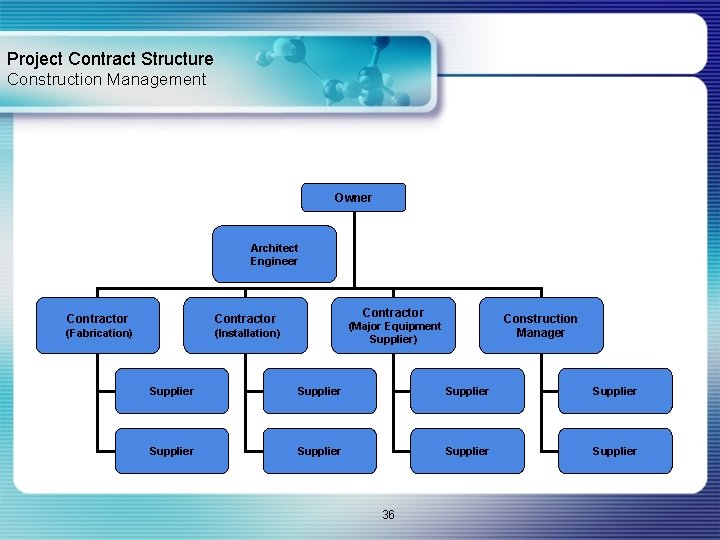

Project Contract Structure Construction Management Owner Architect Engineer Contractor (Fabrication) (Installation) Contractor Construction Manager (Major Equipment Supplier) Supplier Supplier 36

Project Contract Structure Traditional EPC : Single Point of Responsibility Preliminary Design/ FEED Contractor Owner EPC Contractor Subcontracts Subcontractor Supplier Supplier 37 Supplier

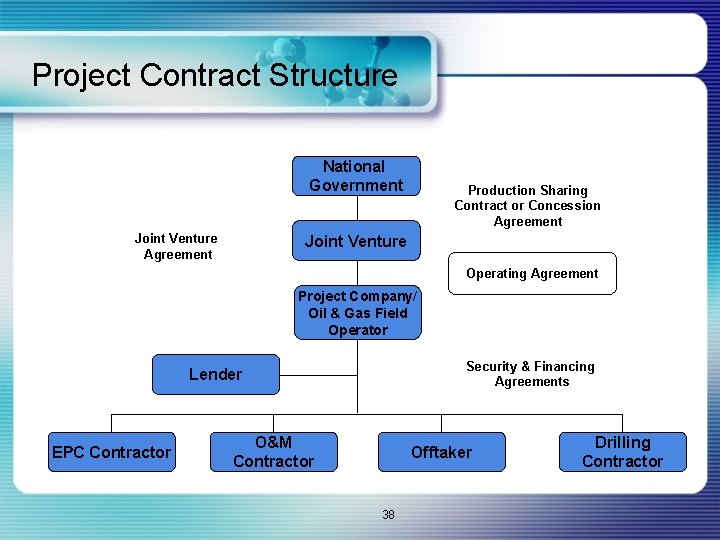

Project Contract Structure National Government Joint Venture Agreement Production Sharing Contract or Concession Agreement Joint Venture Operating Agreement Project Company/ Oil & Gas Field Operator Security & Financing Agreements Lender EPC Contractor O&M Contractor Offtaker 38 Drilling Contractor

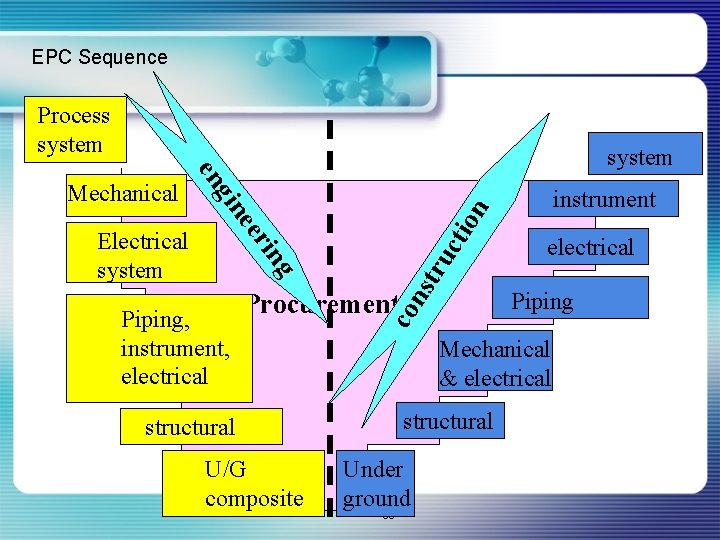

EPC Sequence Process system Piping, instrument, electrical co ns g tru rin cti ee Electrical system electrical Piping Procurement Mechanical & electrical structural U/G composite instrument on gin en Mechanical system Under ground 39

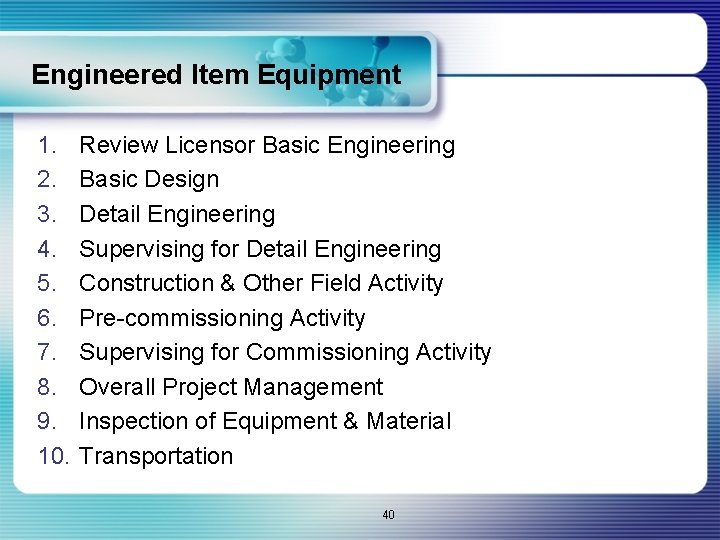

Engineered Item Equipment 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. Review Licensor Basic Engineering Basic Design Detail Engineering Supervising for Detail Engineering Construction & Other Field Activity Pre-commissioning Activity Supervising for Commissioning Activity Overall Project Management Inspection of Equipment & Material Transportation 40

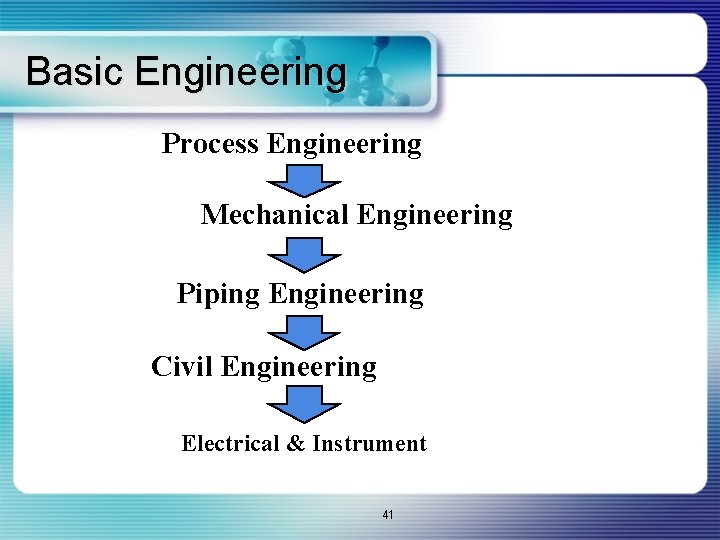

Basic Engineering Process Engineering Mechanical Engineering Piping Engineering Civil Engineering Electrical & Instrument 41

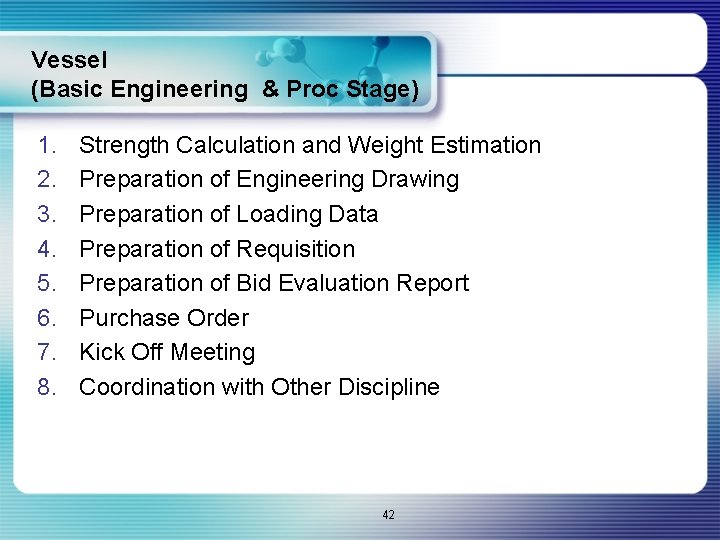

Vessel (Basic Engineering & Proc Stage) 1. 2. 3. 4. 5. 6. 7. 8. Strength Calculation and Weight Estimation Preparation of Engineering Drawing Preparation of Loading Data Preparation of Requisition Preparation of Bid Evaluation Report Purchase Order Kick Off Meeting Coordination with Other Discipline 42

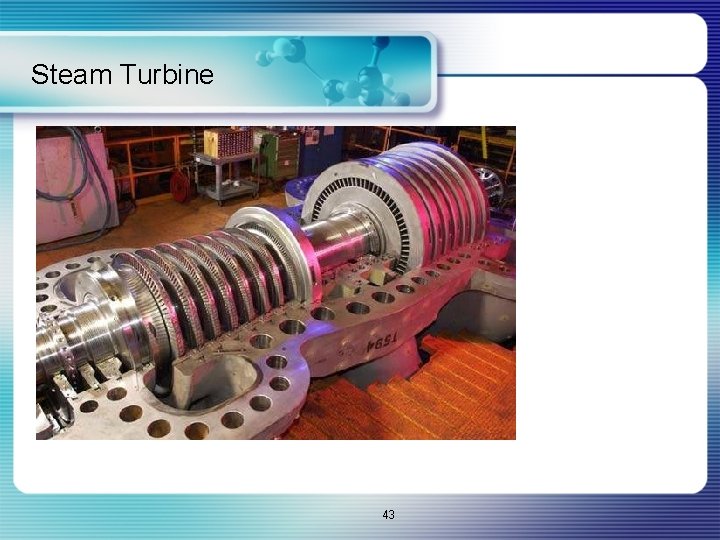

Steam Turbine 43

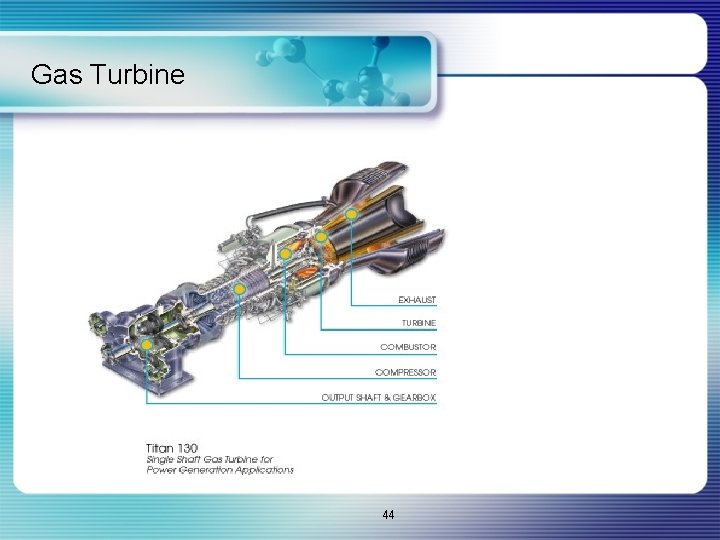

Gas Turbine 44

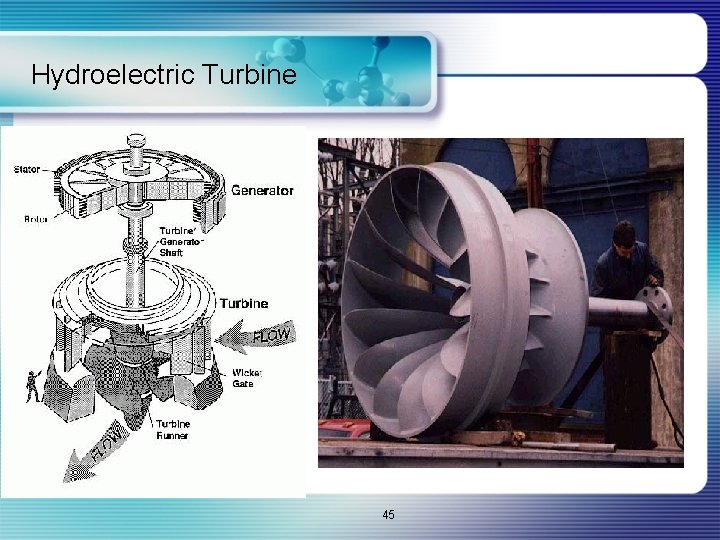

Hydroelectric Turbine 45

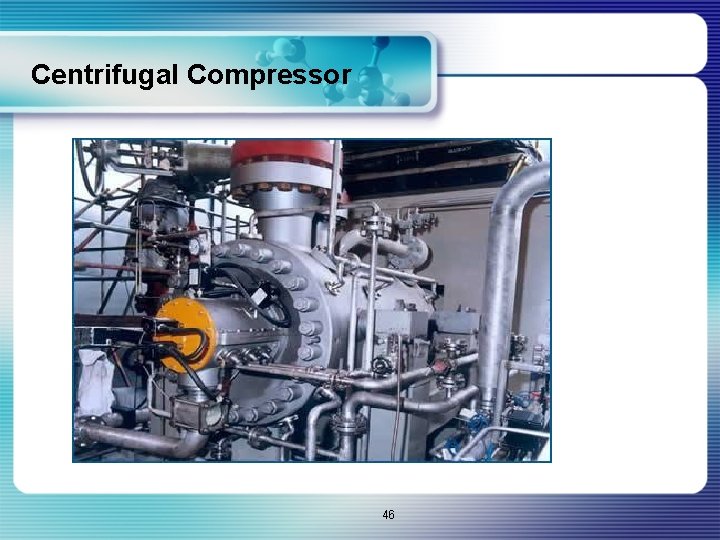

Centrifugal Compressor 46

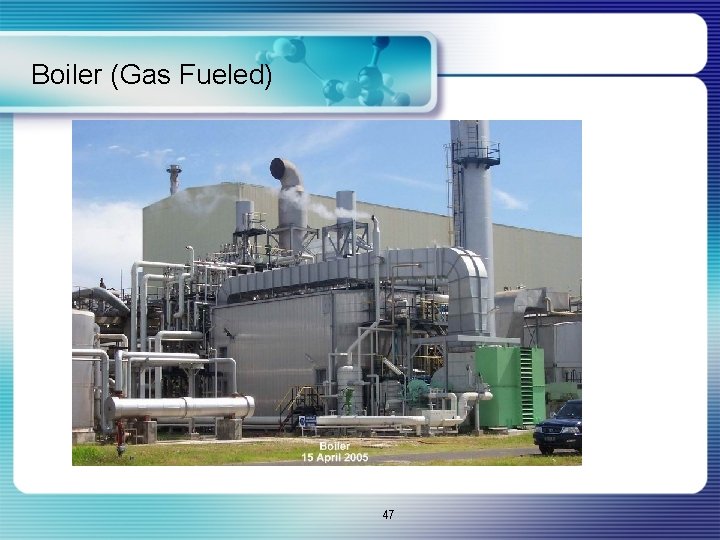

Boiler (Gas Fueled) 47

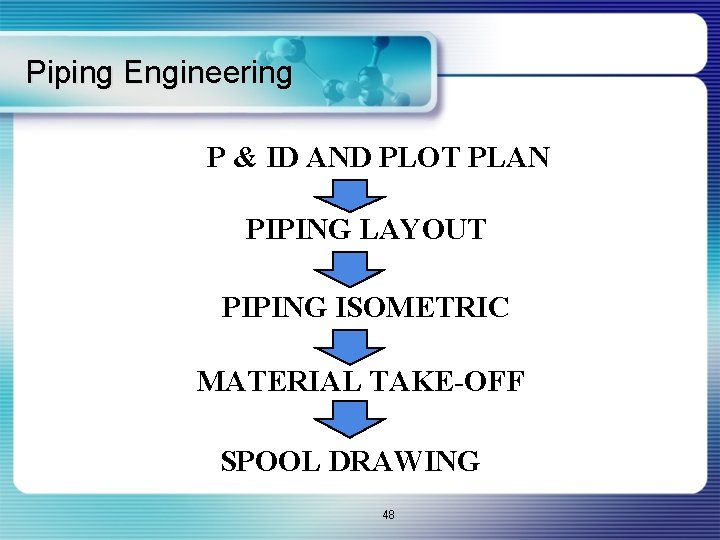

Piping Engineering P & ID AND PLOT PLAN PIPING LAYOUT PIPING ISOMETRIC MATERIAL TAKE-OFF SPOOL DRAWING 48

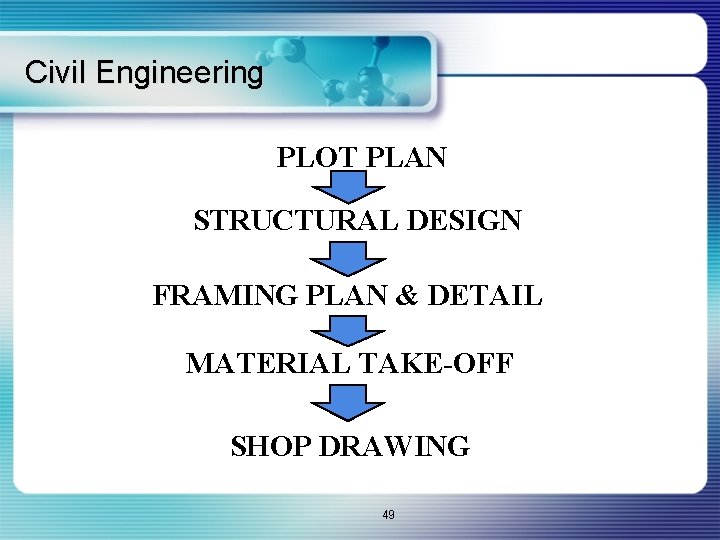

Civil Engineering PLOT PLAN STRUCTURAL DESIGN FRAMING PLAN & DETAIL MATERIAL TAKE-OFF SHOP DRAWING 49

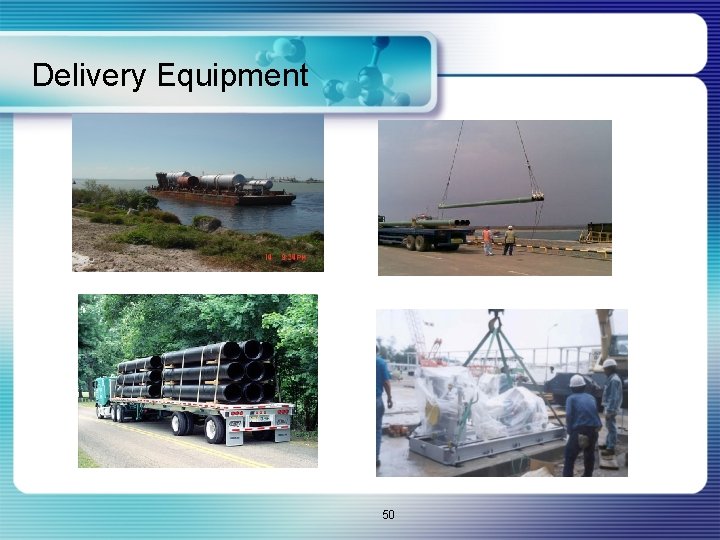

Delivery Equipment 50

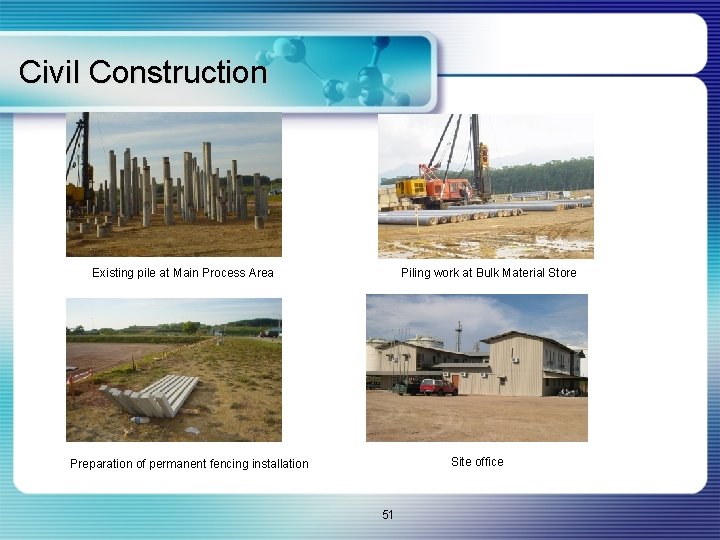

Civil Construction Existing pile at Main Process Area Piling work at Bulk Material Store Site office Preparation of permanent fencing installation 51

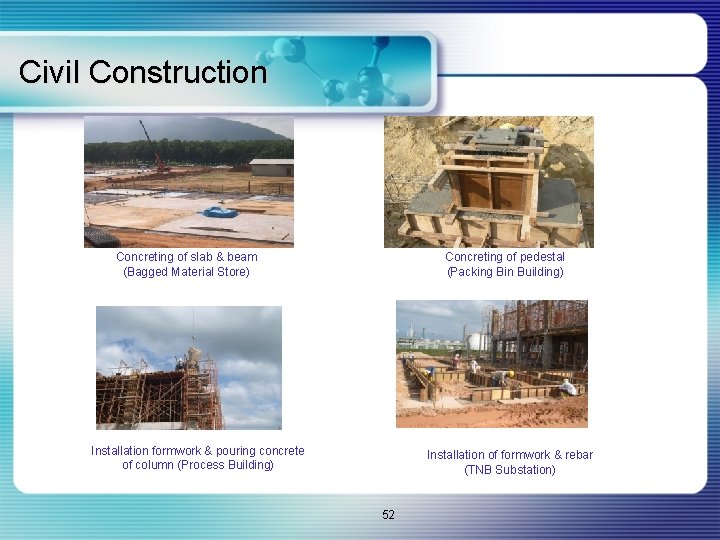

Civil Construction Concreting of slab & beam (Bagged Material Store) Concreting of pedestal (Packing Bin Building) Installation formwork & pouring concrete of column (Process Building) Installation of formwork & rebar (TNB Substation) 52

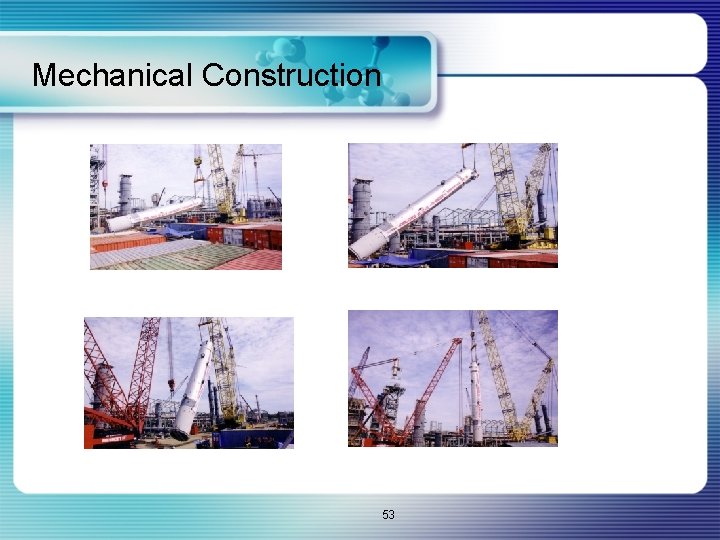

Mechanical Construction 53

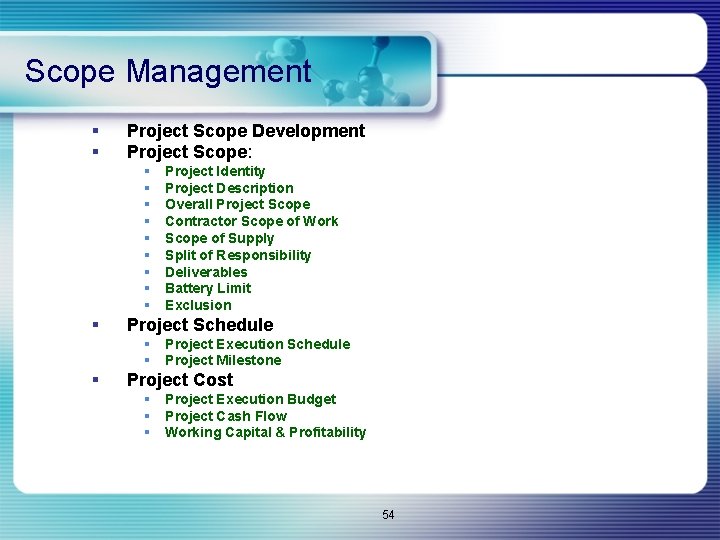

Scope Management § § Project Scope Development Project Scope: § § § § § Project Identity Project Description Overall Project Scope Contractor Scope of Work Scope of Supply Split of Responsibility Deliverables Battery Limit Exclusion Project Schedule § Project Execution Schedule § Project Milestone § Project Cost § Project Execution Budget § Project Cash Flow § Working Capital & Profitability 54

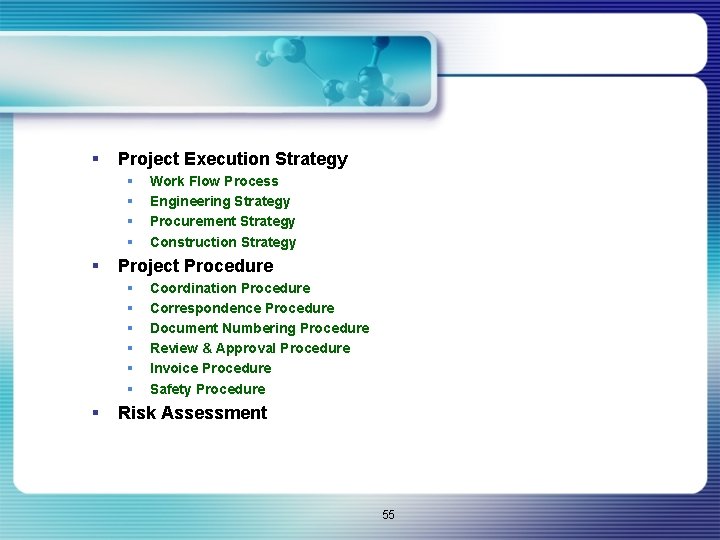

§ Project Execution Strategy § § § Project Procedure § § § § Work Flow Process Engineering Strategy Procurement Strategy Construction Strategy Coordination Procedure Correspondence Procedure Document Numbering Procedure Review & Approval Procedure Invoice Procedure Safety Procedure Risk Assessment 55

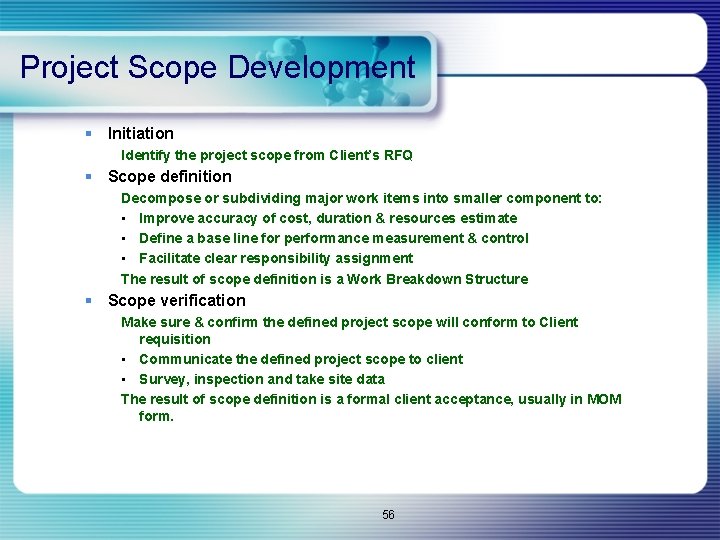

Project Scope Development § Initiation Identify the project scope from Client’s RFQ § Scope definition Decompose or subdividing major work items into smaller component to: • Improve accuracy of cost, duration & resources estimate • Define a base line for performance measurement & control • Facilitate clear responsibility assignment The result of scope definition is a Work Breakdown Structure § Scope verification Make sure & confirm the defined project scope will conform to Client requisition • Communicate the defined project scope to client • Survey, inspection and take site data The result of scope definition is a formal client acceptance, usually in MOM form. 56

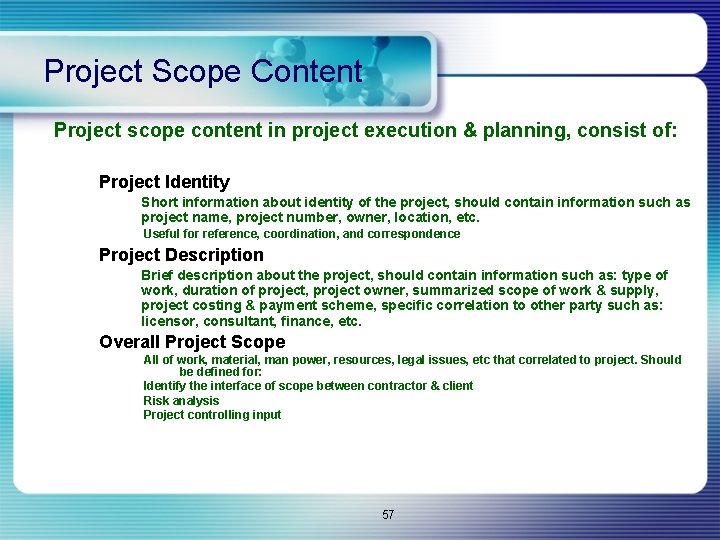

Project Scope Content Project scope content in project execution & planning, consist of: Project Identity Short information about identity of the project, should contain information such as project name, project number, owner, location, etc. Useful for reference, coordination, and correspondence Project Description Brief description about the project, should contain information such as: type of work, duration of project, project owner, summarized scope of work & supply, project costing & payment scheme, specific correlation to other party such as: licensor, consultant, finance, etc. Overall Project Scope All of work, material, man power, resources, legal issues, etc that correlated to project. Should be defined for: Identify the interface of scope between contractor & client Risk analysis Project controlling input 57

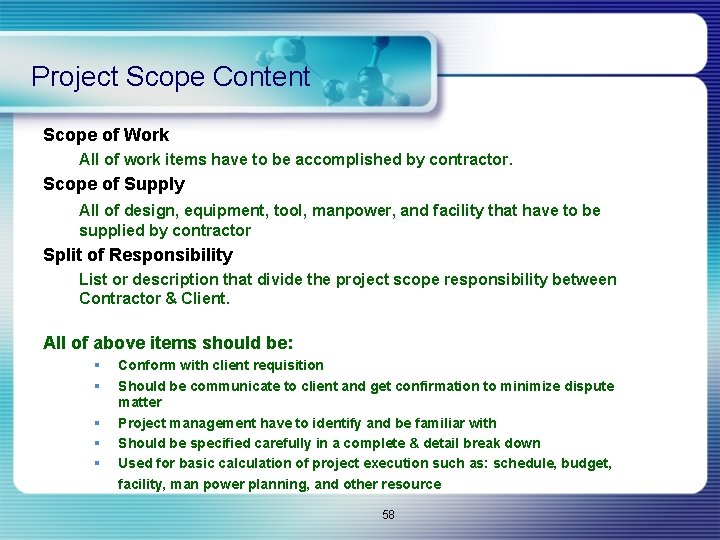

Project Scope Content Scope of Work All of work items have to be accomplished by contractor. Scope of Supply All of design, equipment, tool, manpower, and facility that have to be supplied by contractor Split of Responsibility List or description that divide the project scope responsibility between Contractor & Client. All of above items should be: § § § Conform with client requisition Should be communicate to client and get confirmation to minimize dispute matter Project management have to identify and be familiar with Should be specified carefully in a complete & detail break down Used for basic calculation of project execution such as: schedule, budget, facility, man power planning, and other resource 58

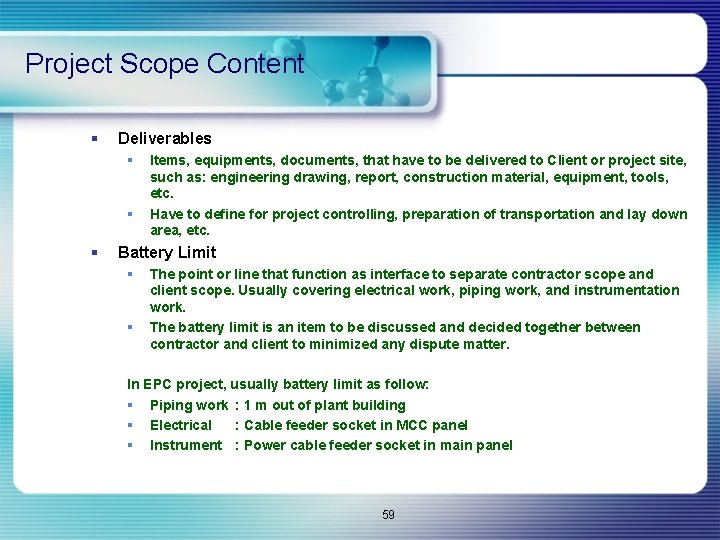

Project Scope Content § Deliverables § § § Items, equipments, documents, that have to be delivered to Client or project site, such as: engineering drawing, report, construction material, equipment, tools, etc. Have to define for project controlling, preparation of transportation and lay down area, etc. Battery Limit § § The point or line that function as interface to separate contractor scope and client scope. Usually covering electrical work, piping work, and instrumentation work. The battery limit is an item to be discussed and decided together between contractor and client to minimized any dispute matter. In EPC project, usually battery limit as follow: § Piping work : 1 m out of plant building § Electrical : Cable feeder socket in MCC panel § Instrument : Power cable feeder socket in main panel 59

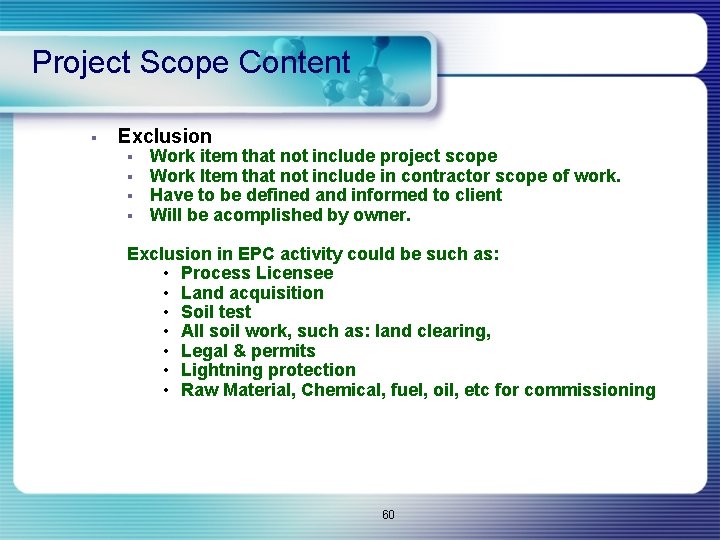

Project Scope Content § Exclusion § § Work item that not include project scope Work Item that not include in contractor scope of work. Have to be defined and informed to client Will be acomplished by owner. Exclusion in EPC activity could be such as: • Process Licensee • Land acquisition • Soil test • All soil work, such as: land clearing, • Legal & permits • Lightning protection • Raw Material, Chemical, fuel, oil, etc for commissioning 60

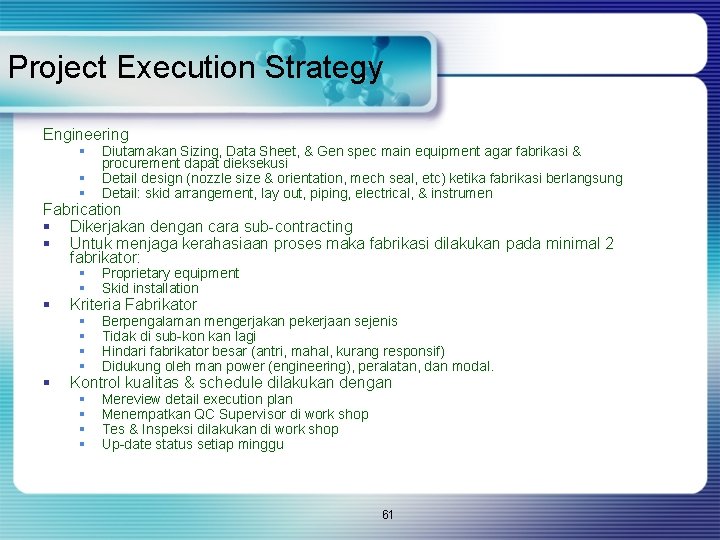

Project Execution Strategy Engineering § § § Diutamakan Sizing, Data Sheet, & Gen spec main equipment agar fabrikasi & procurement dapat dieksekusi Detail design (nozzle size & orientation, mech seal, etc) ketika fabrikasi berlangsung Detail: skid arrangement, lay out, piping, electrical, & instrumen § § Proprietary equipment Skid installation § § Berpengalaman mengerjakan pekerjaan sejenis Tidak di sub-kon kan lagi Hindari fabrikator besar (antri, mahal, kurang responsif) Didukung oleh man power (engineering), peralatan, dan modal. § § Mereview detail execution plan Menempatkan QC Supervisor di work shop Tes & Inspeksi dilakukan di work shop Up-date status setiap minggu Fabrication § Dikerjakan dengan cara sub-contracting § Untuk menjaga kerahasiaan proses maka fabrikasi dilakukan pada minimal 2 fabrikator: § Kriteria Fabrikator § Kontrol kualitas & schedule dilakukan dengan 61

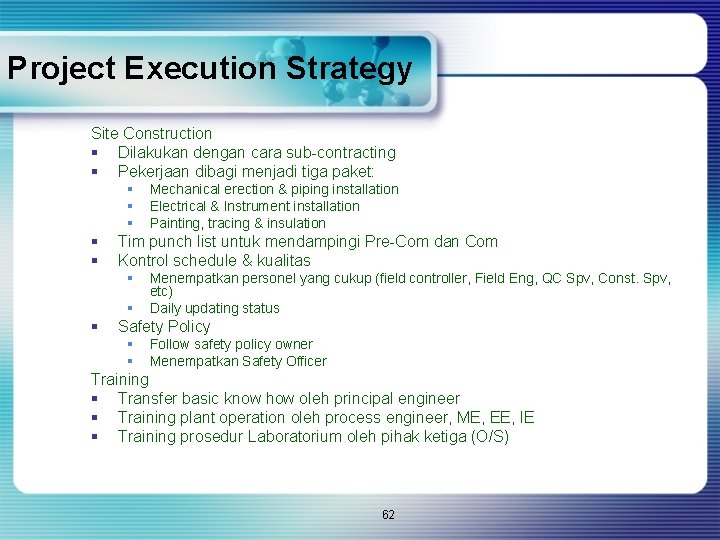

Project Execution Strategy Site Construction § Dilakukan dengan cara sub-contracting § Pekerjaan dibagi menjadi tiga paket: § § § Tim punch list untuk mendampingi Pre-Com dan Com Kontrol schedule & kualitas § § § Mechanical erection & piping installation Electrical & Instrument installation Painting, tracing & insulation Menempatkan personel yang cukup (field controller, Field Eng, QC Spv, Const. Spv, etc) Daily updating status Safety Policy § § Follow safety policy owner Menempatkan Safety Officer Training § Transfer basic know how oleh principal engineer § Training plant operation oleh process engineer, ME, EE, IE § Training prosedur Laboratorium oleh pihak ketiga (O/S) 62

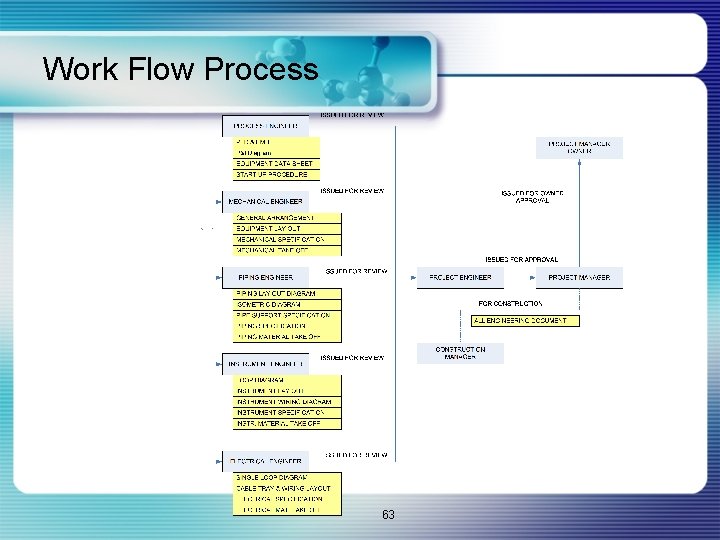

Work Flow Process 63

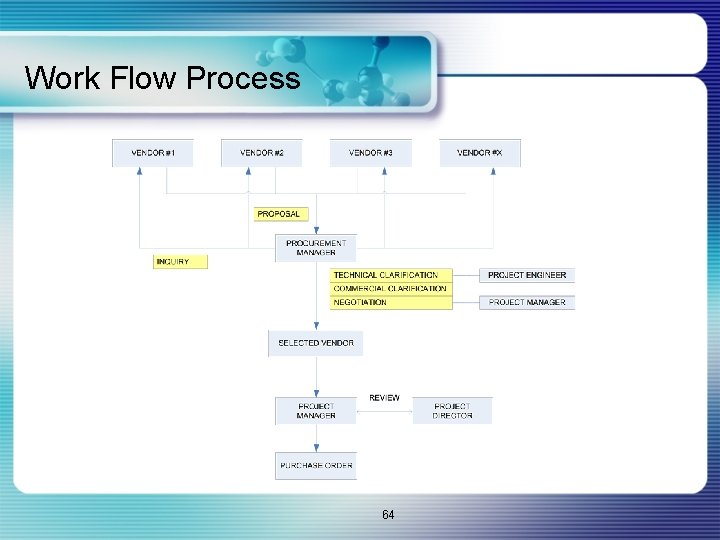

Work Flow Process 64

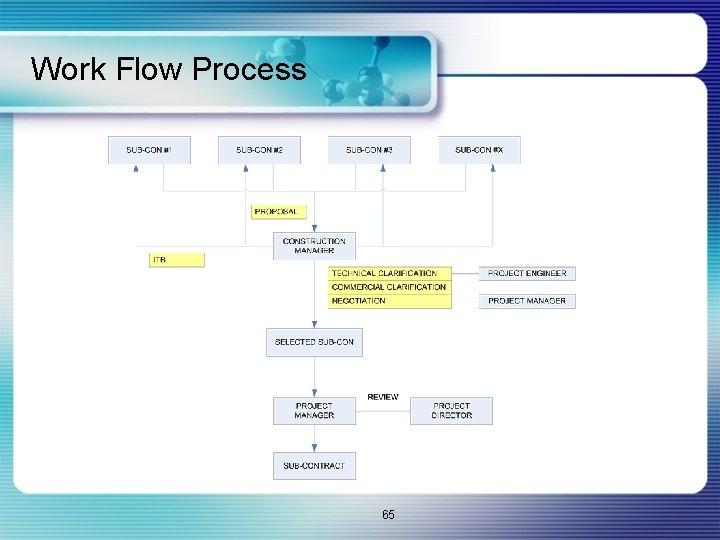

Work Flow Process 65

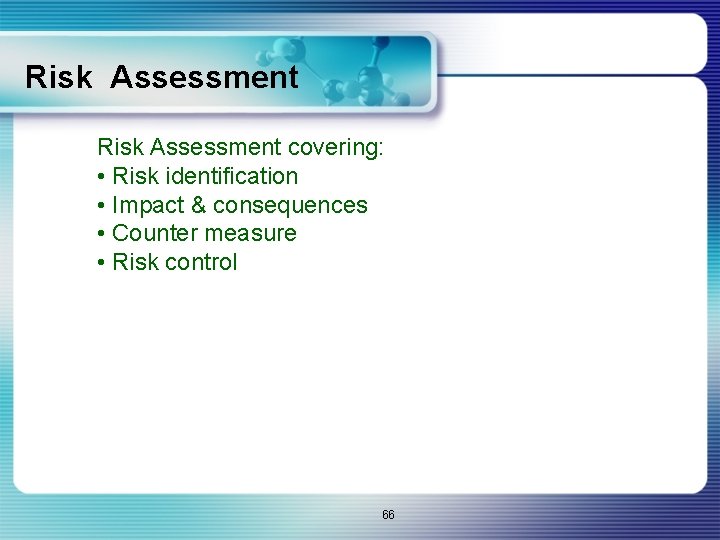

Risk Assessment covering: • Risk identification • Impact & consequences • Counter measure • Risk control 66
