Enzymes What do you remember about enzymes Create

Enzymes What do you remember about enzymes?

Create a mind map • Include – What they are made of – How they work – What factors affect them – Any good examples

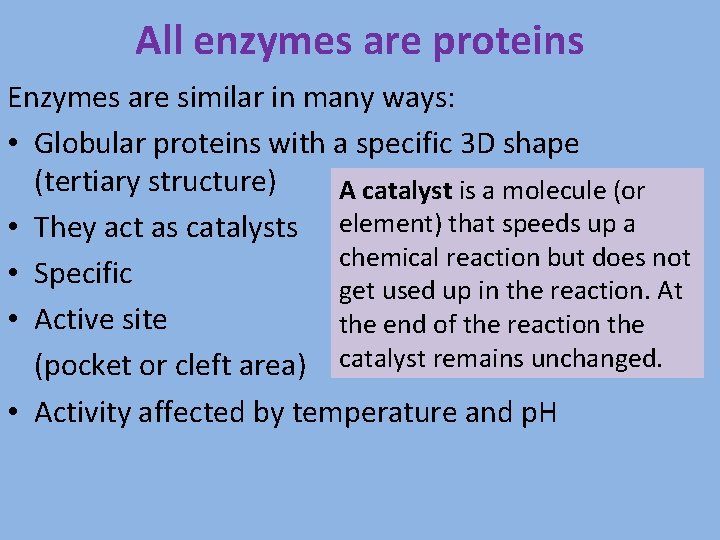

All enzymes are proteins Enzymes are similar in many ways: • Globular proteins with a specific 3 D shape (tertiary structure) A catalyst is a molecule (or • They act as catalysts element) that speeds up a chemical reaction but does not • Specific get used up in the reaction. At • Active site the end of the reaction the (pocket or cleft area) catalyst remains unchanged. • Activity affected by temperature and p. H

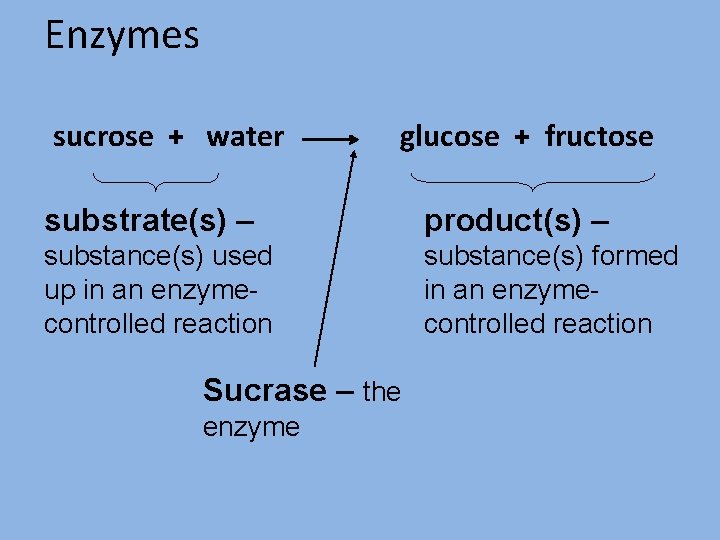

Enzymes sucrose + water glucose + fructose substrate(s) – product(s) – substance(s) used up in an enzymecontrolled reaction substance(s) formed in an enzymecontrolled reaction Sucrase – the enzyme

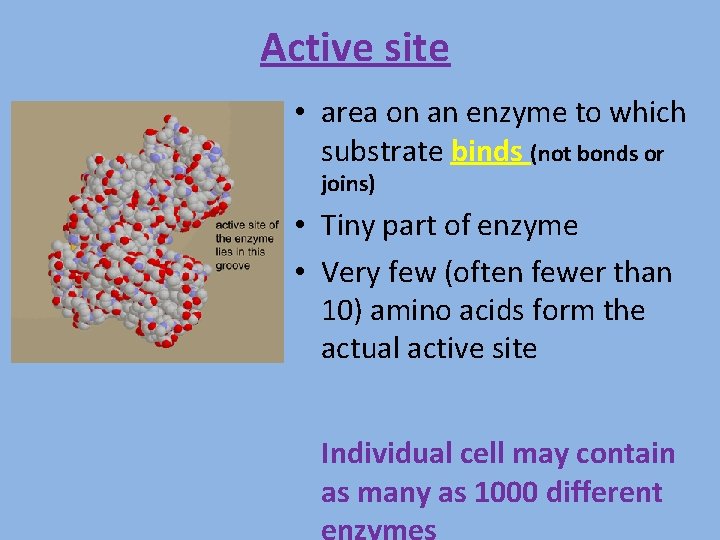

Active site • area on an enzyme to which substrate binds (not bonds or joins) • Tiny part of enzyme • Very few (often fewer than 10) amino acids form the actual active site Individual cell may contain as many as 1000 different

Inside and out • Intracellular (enzymes catalyse reactions inside the cell)

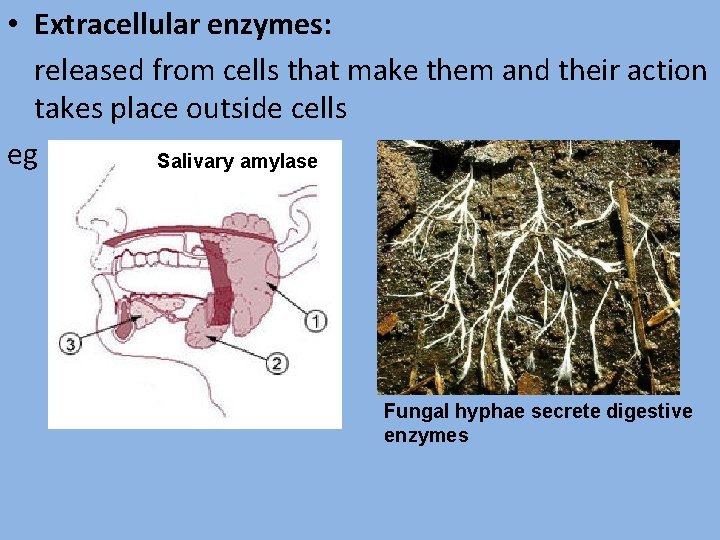

• Extracellular enzymes: released from cells that make them and their action takes place outside cells eg Salivary amylase Fungal hyphae secrete digestive enzymes

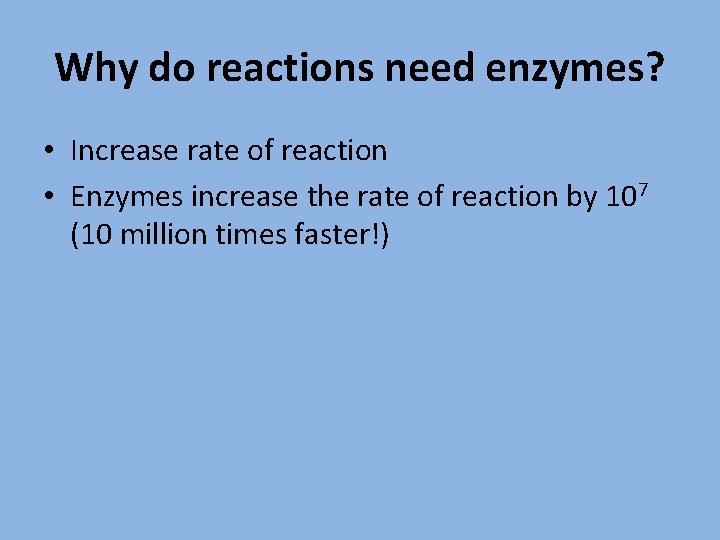

Why do reactions need enzymes? • Increase rate of reaction • Enzymes increase the rate of reaction by 107 (10 million times faster!)

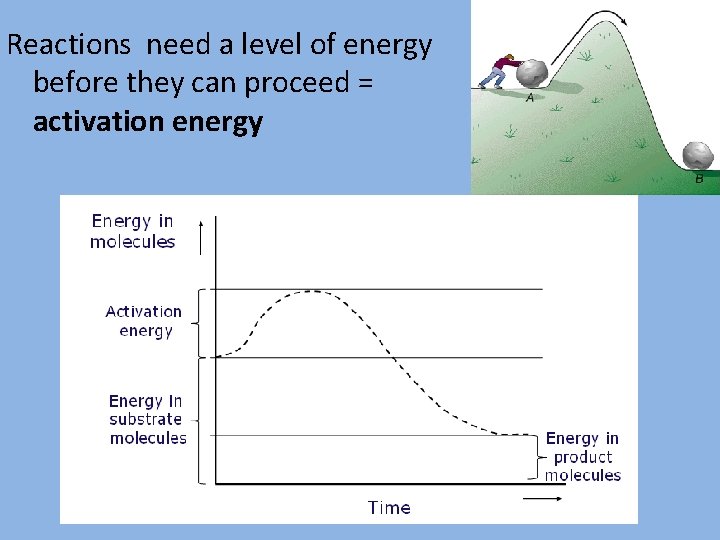

Reactions need a level of energy before they can proceed = activation energy

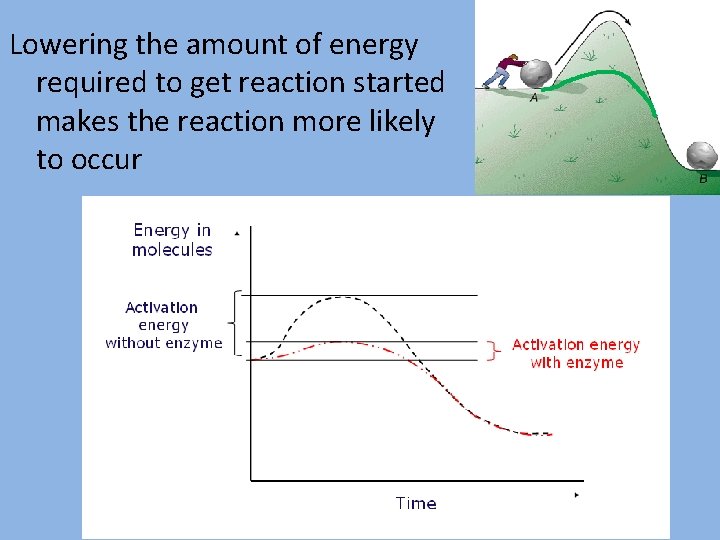

Lowering the amount of energy required to get reaction started makes the reaction more likely to occur

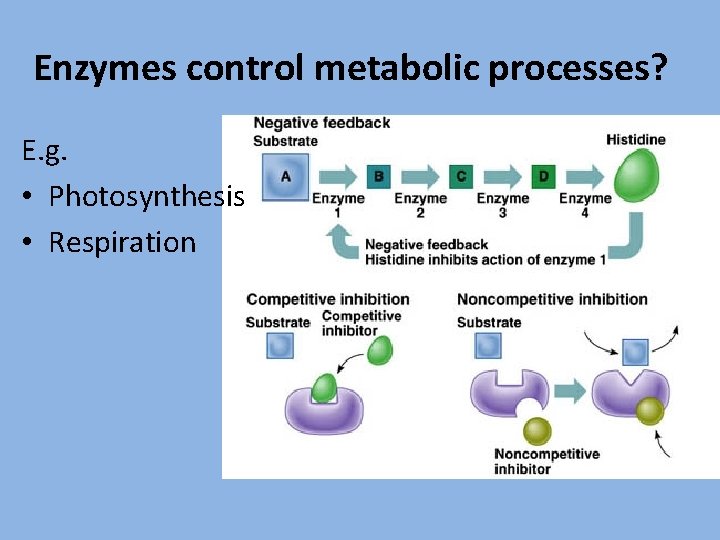

Enzymes control metabolic processes? E. g. • Photosynthesis • Respiration

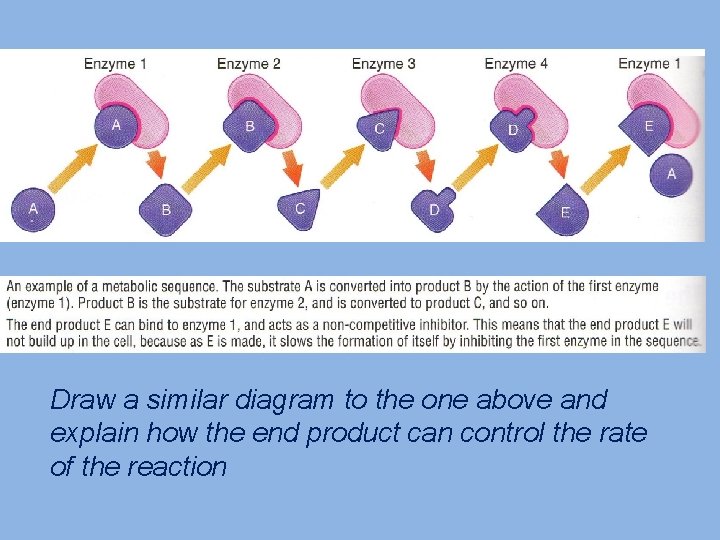

Draw a similar diagram to the one above and explain how the end product can control the rate of the reaction

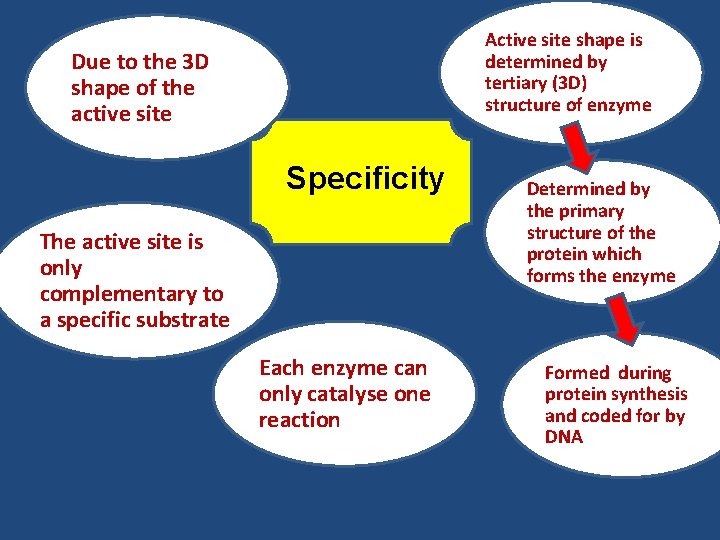

Active site shape is determined by tertiary (3 D) structure of enzyme Due to the 3 D shape of the active site Specificity The active site is only complementary to a specific substrate Each enzyme can only catalyse one reaction Determined by the primary structure of the protein which forms the enzyme Formed during protein synthesis and coded for by DNA

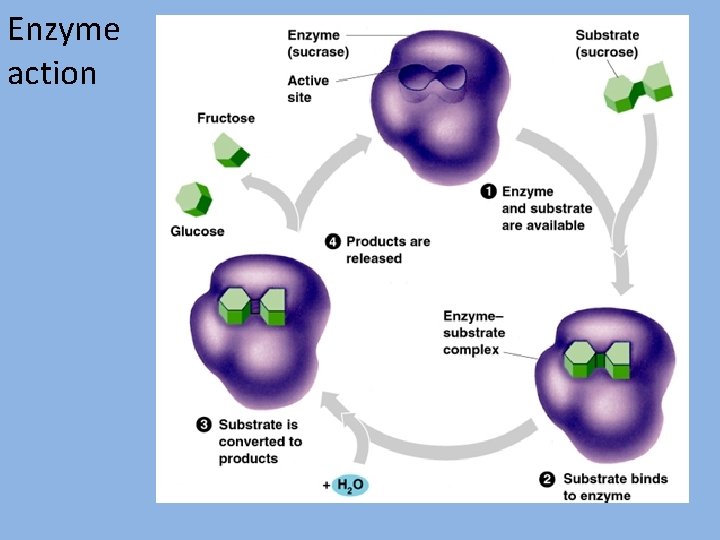

Enzyme action

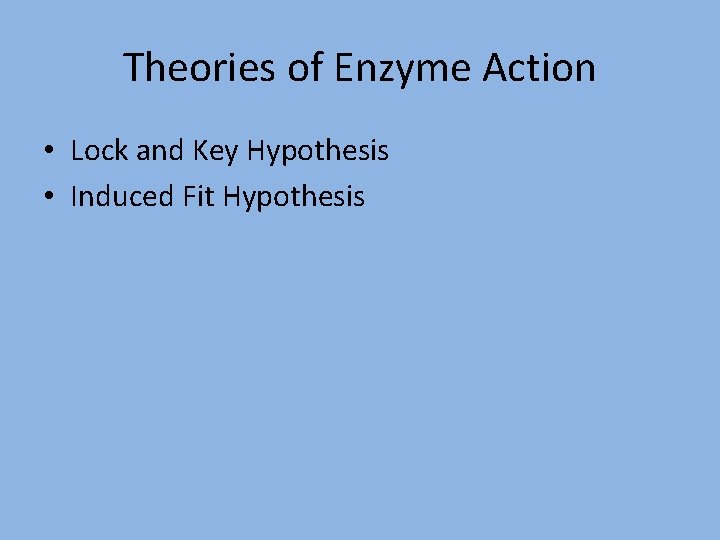

Theories of Enzyme Action • Lock and Key Hypothesis • Induced Fit Hypothesis

Lock and key hypothesis Lock = Enzyme Key = Substrate This theory relies on the complementary shapes of the substrate and active site creating enzymesubstrate complexes Textbook p 126 -127

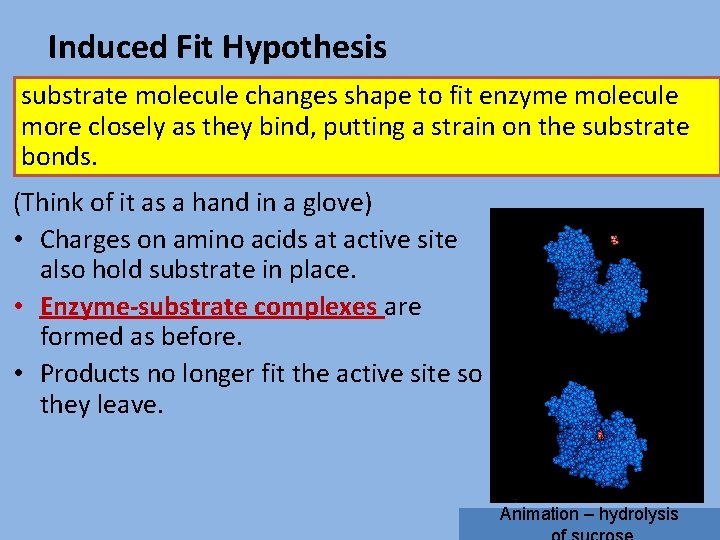

Induced Fit Hypothesis substrate molecule changes shape to fit enzyme molecule more closely as they bind, putting a strain on the substrate bonds. (Think of it as a hand in a glove) • Charges on amino acids at active site also hold substrate in place. • Enzyme-substrate complexes are formed as before. • Products no longer fit the active site so they leave. Animation – hydrolysis

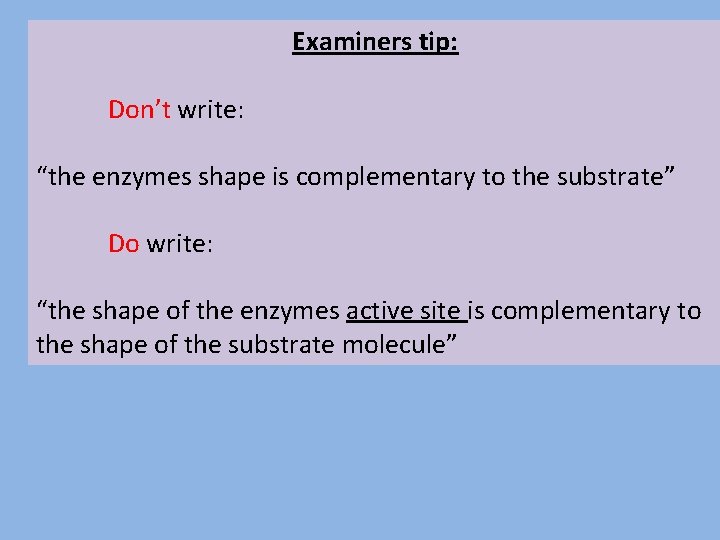

Examiners tip: Don’t write: “the enzymes shape is complementary to the substrate” Do write: “the shape of the enzymes active site is complementary to the shape of the substrate molecule”

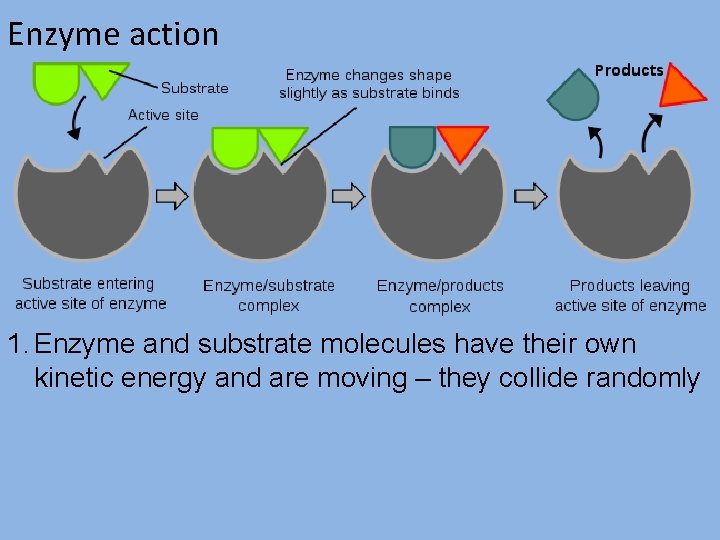

Enzyme action 1. Enzyme and substrate molecules have their own kinetic energy and are moving – they collide randomly

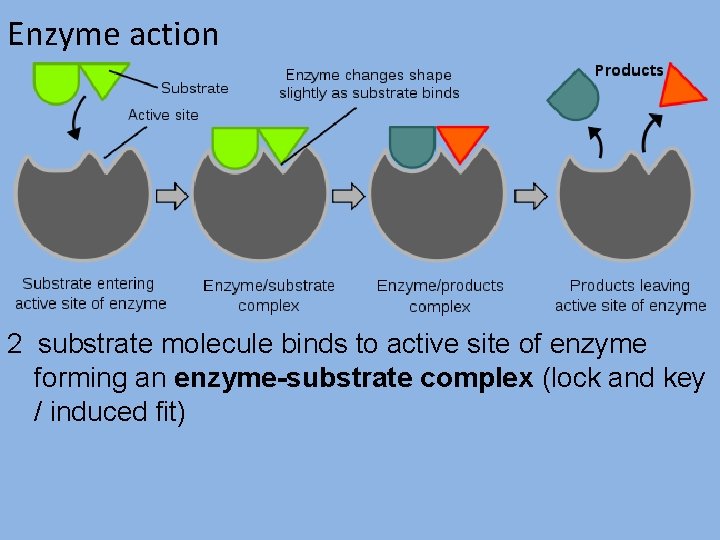

Enzyme action 2 substrate molecule binds to active site of enzyme forming an enzyme-substrate complex (lock and key / induced fit)

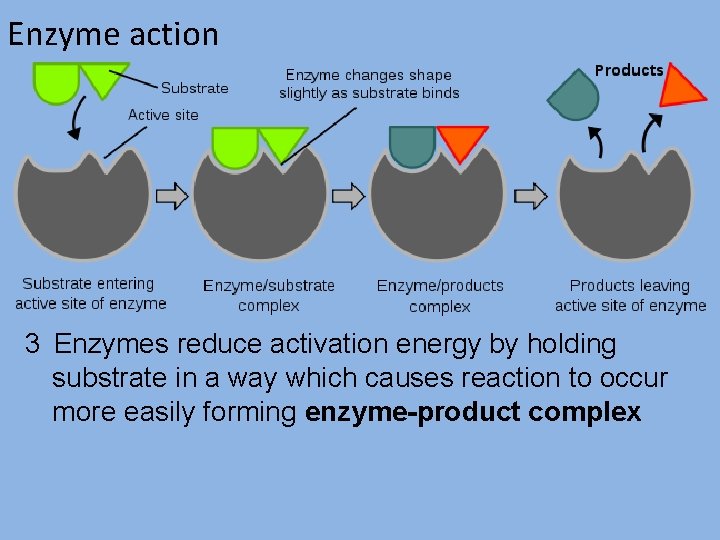

Enzyme action 3 Enzymes reduce activation energy by holding substrate in a way which causes reaction to occur more easily forming enzyme-product complex

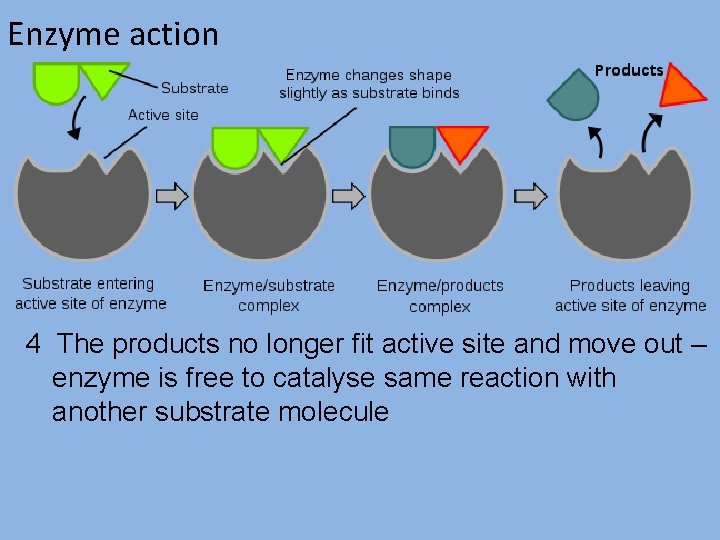

Enzyme action 4 The products no longer fit active site and move out – enzyme is free to catalyse same reaction with another substrate molecule

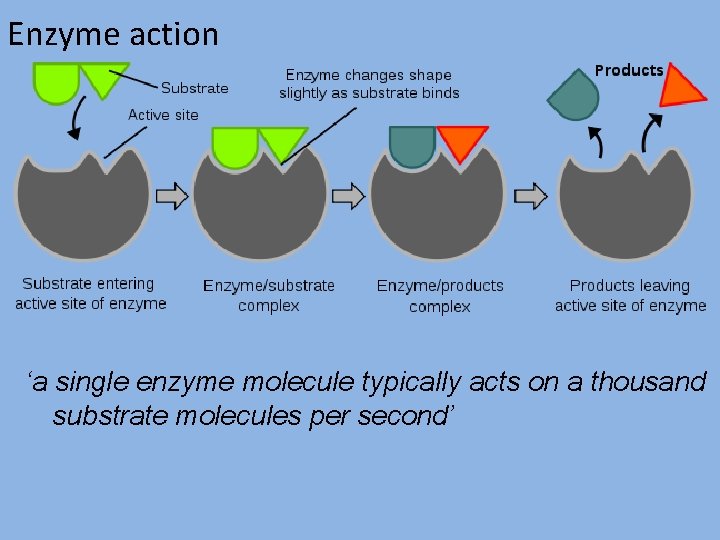

Enzyme action ‘a single enzyme molecule typically acts on a thousand substrate molecules per second’

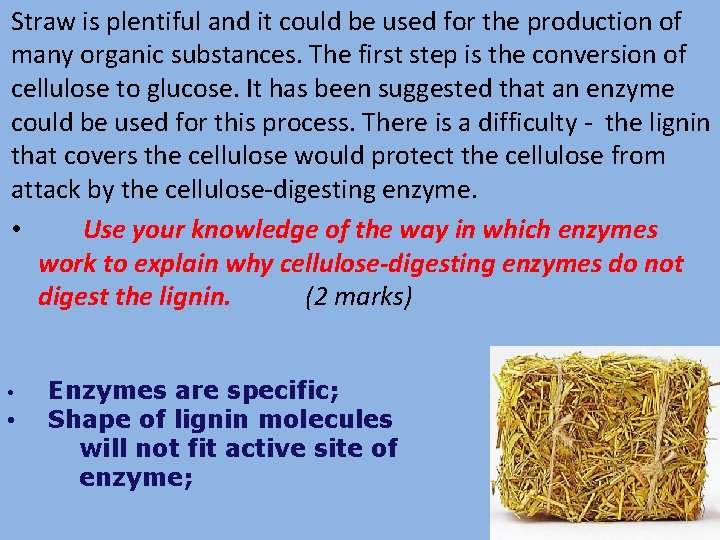

Straw is plentiful and it could be used for the production of many organic substances. The first step is the conversion of cellulose to glucose. It has been suggested that an enzyme could be used for this process. There is a difficulty - the lignin that covers the cellulose would protect the cellulose from attack by the cellulose-digesting enzyme. • Use your knowledge of the way in which enzymes work to explain why cellulose-digesting enzymes do not digest the lignin. (2 marks) • • Enzymes are specific; Shape of lignin molecules will not fit active site of enzyme;

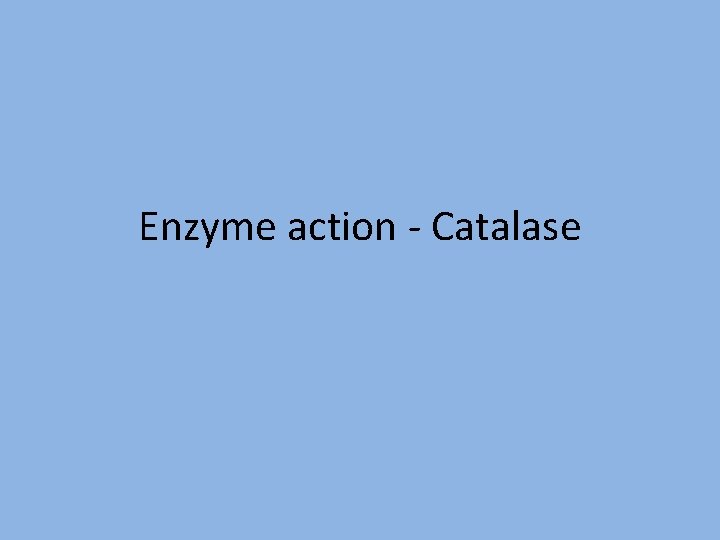

Enzyme action - Catalase

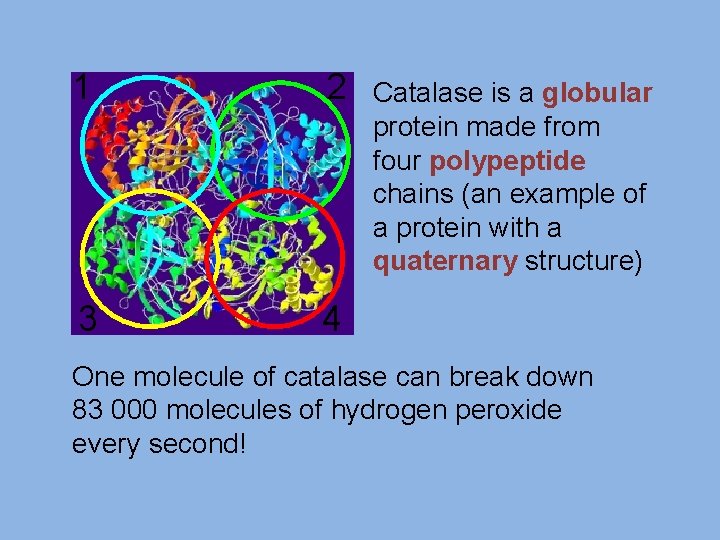

1 2 3 4 Catalase is a globular protein made from four polypeptide chains (an example of a protein with a quaternary structure) One molecule of catalase can break down 83 000 molecules of hydrogen peroxide every second!

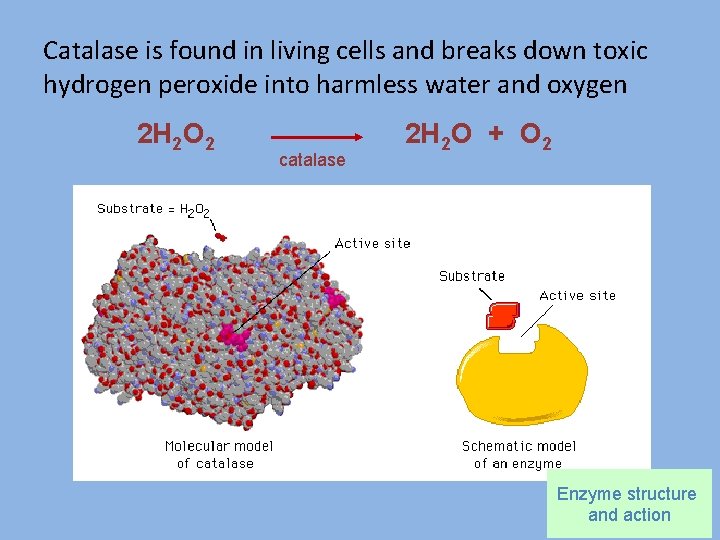

Catalase is found in living cells and breaks down toxic hydrogen peroxide into harmless water and oxygen 2 H 2 O 2 catalase 2 H 2 O + O 2 Enzyme structure and action

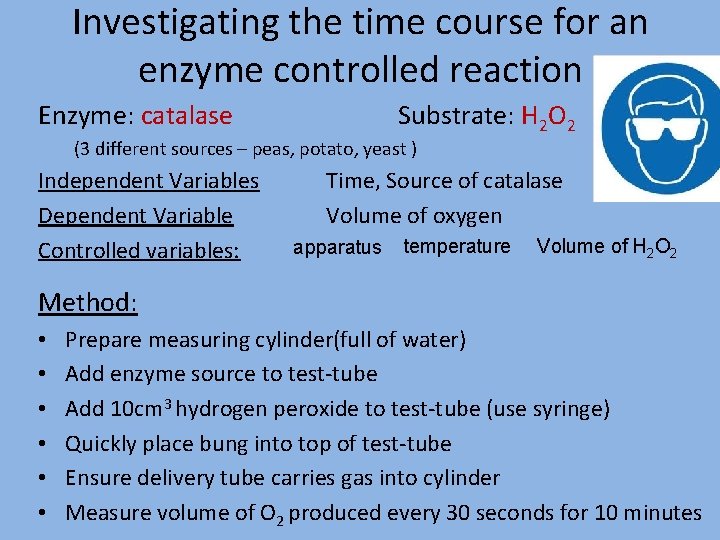

Investigating the time course for an enzyme controlled reaction Enzyme: catalase Substrate: H 2 O 2 (3 different sources – peas, potato, yeast ) Independent Variables Dependent Variable Controlled variables: Time, Source of catalase Volume of oxygen apparatus temperature Volume of H 2 O 2 Method: • • • Prepare measuring cylinder(full of water) Add enzyme source to test-tube Add 10 cm 3 hydrogen peroxide to test-tube (use syringe) Quickly place bung into top of test-tube Ensure delivery tube carries gas into cylinder Measure volume of O 2 produced every 30 seconds for 10 minutes

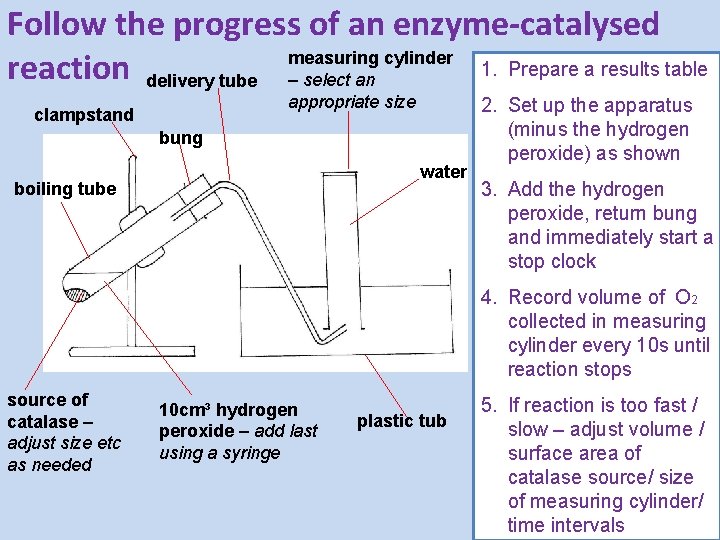

Follow the progress of an enzyme-catalysed cylinder 1. Prepare a results table reaction delivery tube measuring – select an appropriate size clampstand bung water boiling tube 2. Set up the apparatus (minus the hydrogen peroxide) as shown 3. Add the hydrogen peroxide, return bung and immediately start a stop clock 4. Record volume of O 2 collected in measuring cylinder every 10 s until reaction stops source of catalase – adjust size etc as needed 10 cm³ hydrogen peroxide – add last using a syringe plastic tub 5. If reaction is too fast / slow – adjust volume / surface area of catalase source/ size of measuring cylinder/ time intervals

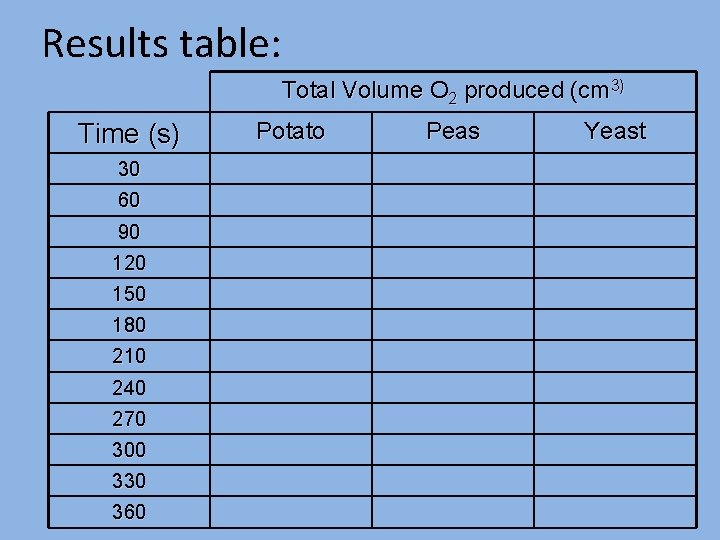

Results table: Total Volume O 2 produced (cm 3) Time (s) 30 60 90 120 150 180 210 240 270 300 330 360 Potato Peas Yeast

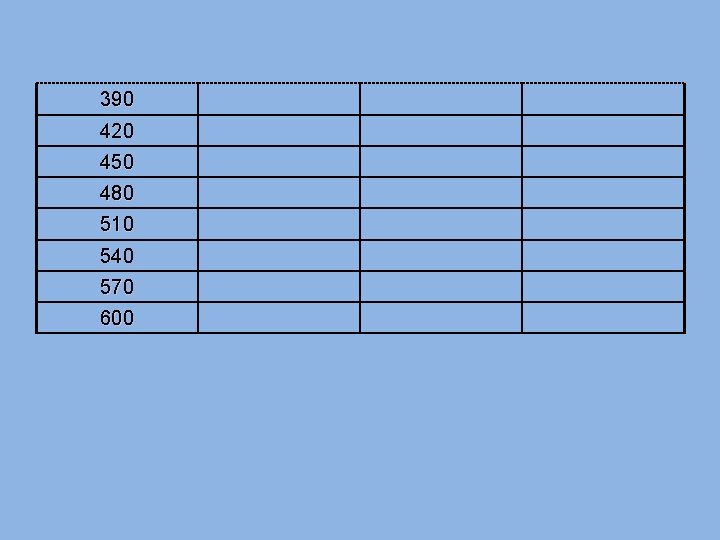

390 420 450 480 510 540 570 600

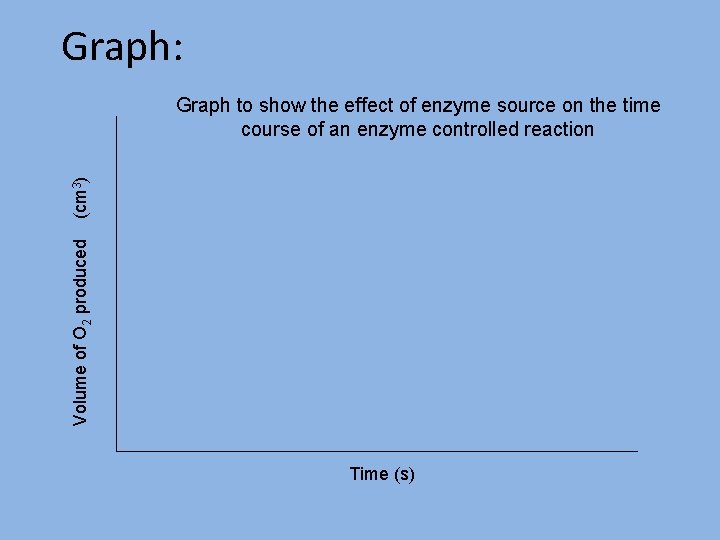

Graph: Volume of O 2 produced (cm 3) Graph to show the effect of enzyme source on the time course of an enzyme controlled reaction Time (s)

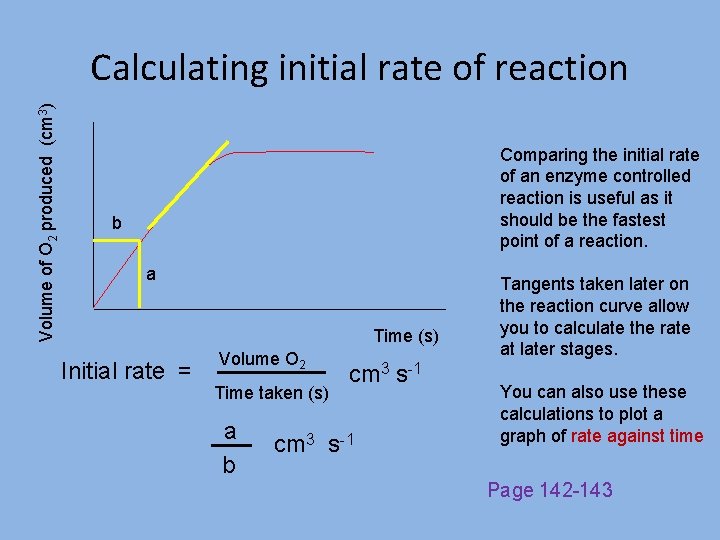

Volume of O 2 produced (cm 3) Calculating initial rate of reaction Comparing the initial rate of an enzyme controlled reaction is useful as it should be the fastest point of a reaction. b a Time (s) Initial rate = Volume O 2 Time taken (s) a b cm 3 s-1 Tangents taken later on the reaction curve allow you to calculate the rate at later stages. You can also use these calculations to plot a graph of rate against time Page 142 -143

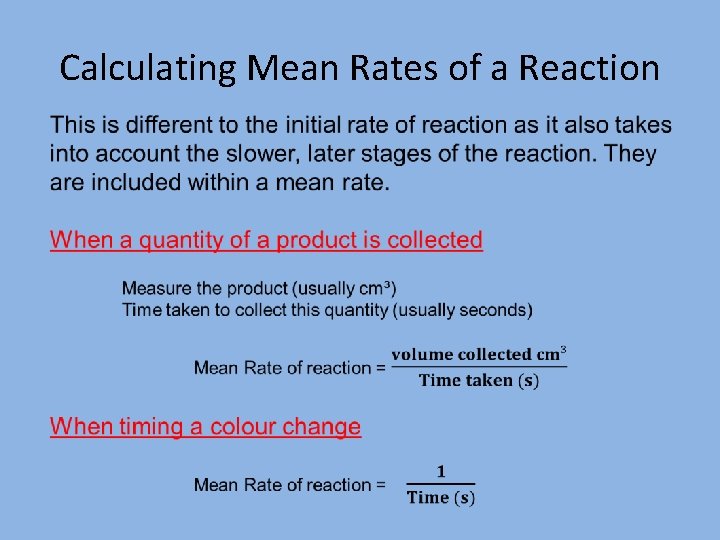

Calculating Mean Rates of a Reaction

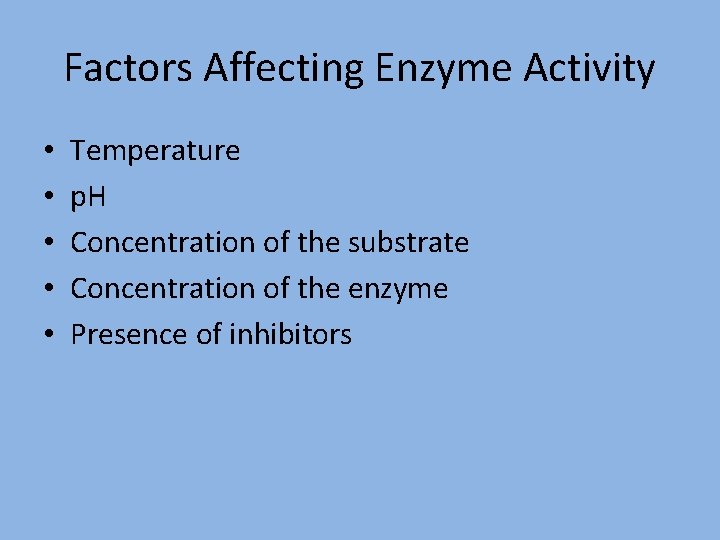

Factors Affecting Enzyme Activity • • • Temperature p. H Concentration of the substrate Concentration of the enzyme Presence of inhibitors
