Enzyme Kinetics and Mechanism Karen Cao Edward Lee
- Slides: 33
Enzyme Kinetics and Mechanism Karen Cao, Edward Lee, Jennifer Liu, Dea Yong Park, Sharmila Railkar, Jyotsna Ramachanadran, Jason Stickel, Laura Tiedemann, Lindsay Vendetta, Kurt Weiberth, Caitlin Williams • http: //biomechanics. e cs. umass. edu/HHPAJ X/hhpajx 5. gif
What is an enzyme? • Catalyzes a chemical reaction by lowering activation energy • Affected by temperature and p. H • Essential within human body Chasin, Lawrence & Mowshowitz, Deborah. (2006, September). Lec. 6. Biol C 2005/F 2401 Columbia University. New York, NY. Retrieved on 8 August, 2007 from http: //www. columbia. edu/cu/biology/courses/c 2005/pu rves 6/figure 06 -14. jpg
Examples of Enzymes Enzyme Nonenzymatic t 1/2 knon (s-1) kcat (s-1) Rate enhancement (kcat/knon) OMP decarboxylase 78 000 years 2. 8 x 10 -16 39 1. 4 x 1017 Staphylococcal nuclease 130 000 years 1. 7 x 10 -13 95 5. 6 x 1014 Adenosine deaminase 120 years 1. 8 x 10 -10 370 2. 1 x 1012 AMP nucleosidase 69 000 years 1. 0 x 10 -11 60 6. 0 x 1012 Cytidine deaminase 69 years 3. 2 x 10 -10 299 1. 2 x 1012 CITATION
Enzymes • Active Site- the specific portion of an enzyme that attaches to the substrate • Substrate- the reactant on which an enzyme works Campbell, N. A. & Reece J. B. (2005). Biology. pp. 123
Adenosine Deaminase (ADA) • T cell development • Neurotransmission • Blood flow • Platelet aggregation • Regulates adenosine levels Adenosine Deaminase 1 VFL. png. (2007). Wikipedia. Retrieved August 1, 2007 from http: //en. wikipedia. org/wiki/Image: Adenosine_deaminase_1 VFL. png
Adenosine • Critical nucleoside • Backbone of various biological structures ØAdenosine triphosphate (ATP) ØCellular receptors (G-proteins) • Prevents tissue damage during hypoxia, ischemia, and seizure activity
Adenosine to Inosine NH 2 N CH 2 OH O N N NH 3 HO OH Adenosine NH H 2 O HO Inosine OH N
ADA Complications • Severe Combined Immunodeficiency Syndrome (SCIDS) • Lymphoma • Hemolytic Anemia “A T Cell killing a cancer cell. ” (2007). Tcells. Retrieved August 3, 2007 from http: //www. sciencemuseum. org. uk/online/lifecycle/116. asp Cavazzana-Calvo, M. & Hacein-Bey, S. Gene Therapy: Bursting the Bubble of SCIDS. (2001). University of Arizone. Retrieved August 1, 2007 from http: //student. biology. arizona. edu/honors 2000/group 08/ images/babybubble. jpg
How ADA catalyzes Wilson, D. K. et. al. Atomic Structure of Adenosine Deaminase Complexed with a Transition-State Analog: Understanding Catalysis and Immunodeficiency Mutations. (1991. ) Science 252 (5010). 1278.
How ADA catalyzes Wilson, D. K. et. al. Atomic Structure of Adenosine Deaminase Complexed with a Transition-State Analog: Understanding Catalysis and Immunodeficiency Mutations. (1991. ) Science 252 (5010). 1278.
How ADA catalyzes Wilson, D. K. et. al. Atomic Structure of Adenosine Deaminase Complexed with a Transition-State Analog: Understanding Catalysis and Immunodeficiency Mutations. (1991. ) Science 252 (5010). 1278.
How ADA catalyzes Wilson, D. K. et. al. Atomic Structure of Adenosine Deaminase Complexed with a Transition-State Analog: Understanding Catalysis and Immunodeficiency Mutations. (1991. ) Science 252 (5010). 1278.
How ADA catalyzes Wilson, D. K. et. al. Atomic Structure of Adenosine Deaminase Complexed with a Transition-State Analog: Understanding Catalysis and Immunodeficiency Mutations. (1991. ) Science 252 (5010). 1278.
Purpose • Begin attempts to identify the functional group which protonates the amine leaving group • p. H dependence of two ? substrates ØAdenosine Ø 6 -Chloroadenosine Wilson, D. K. et. al. Atomic Structure of Adenosine Deaminase Complexed with a Transition-State Analog: Understanding Catalysis and Immunodeficiency Mutations. (1991. ) Science 252 (5010). 1278.
Adenosine 6 -Chloroadenosine NH 2 N N HO Cl N N HO O H H H H OH OH Adenosine H H H OH OH 6 -Chloroadenosine N N
Overview of experiment • Determine rates of reaction of both adenosine and 6 -chloroadenosine at varying concentrations and p. Hs. • Calculate and compare rate constants to establish which reaction is more sensitive to p. H
Why This Works • At higher p. Hs, the solution will neutralize the acidic side chain before it can protonate the NH 2 • 6 -Chloroadenosine does not need a proton to continue with reaction • Therefore, 6 -Chloroadenosine will be less dependent on p. H and show higher reaction rates. The Science Company. (2007). Toward Understanding p. H. Retrieved 7 August, 2007 from www. sciencecompany. com/iages/phscale. gif
Projected k 2 Graphs Case 1: p. H dependence comes from the protonation of the amine group Adenosine Case 2: p. H dependence comes from the protonation of the 1 N or denaturation of the protein 6 -Chloroadenosine
Materials • • Adenosine solution Adenosine deaminase 6 -Chloroadenosine Buffers of varying p. H Micropipette. (2007). Biokits. com. Retrieved 8 August, 2007 from http: //www. biokits. com DU® 530 Life Science UV/Visible Spectrophotometers. (2007). Retrieved 8 August from http: //www. biocompare. com • • Distilled Water Micropipettes Microcentrifuge tubes Spectrophotometer
Procedure • Use varying concentrations of adenosine solution and 6 -chloroadenosine solution at each p. H • Add adenosine deaminase • Run sample through spectrophotometer for duration of reaction to analyze rate of reaction – Beer’s Law: Abs. concentration • Compress data and compare reaction rates of adenosine deaminase and 6 -chloroadenosine

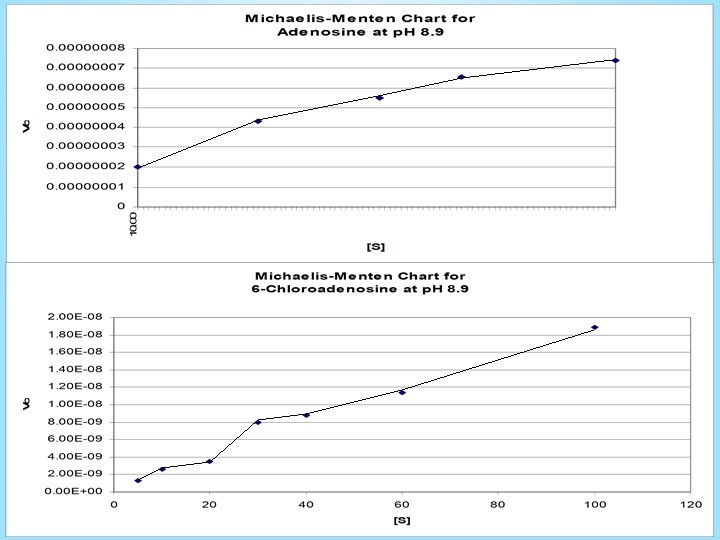

Michaelis-Menten Kinetics Berg, J. M. , Tymoczko, J. L. , & Stryer, L. (2007. ) Biochemistry. (6 th ed. ) New York: W. H. Freeman and Company.

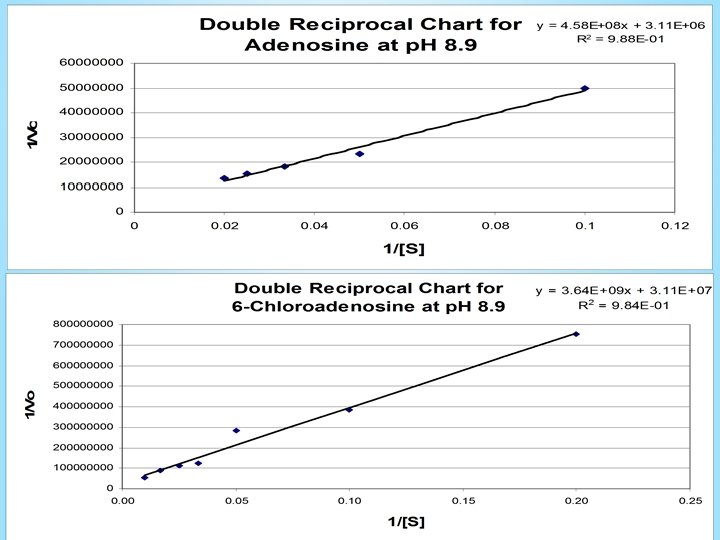

Double Reciprocal Plot y = m • x + b Berg, J. M. , Tymoczko, J. L. , & Stryer, L. (2007. ) Biochemistry. (6 th ed. ) New York: W. H. Freeman and Company.
p. H k 2(Ad) p. H k 2(Cl-Ad) 7. 3 68. 3 7. 3 0. 26 8. 4 30. 6 8. 4 0. 319 8. 9 4. 62 8. 9 0. 77 9. 4 1. 63 9. 4 <0. 08
Conclusions § 2 preliminary conclusions ØAdenosine is more p. H sensitive than 6 chloroadenosine ØImportance of acidic side chains and protonation of amine group in p. H dependence
Further Testing • Determinations of more k₂ values ØTest adenosine and 6 -Cl-adenosine at more p. H’s and more concentrations • Testing of individual amino acid groups within enzyme ØReplacement of amino acid groups via mutagenesis
Applications • Comprehension of underlying ADA catalysis mechanism allows for more effective ADA inhibitors • Major medical implications ØSCIDS ØLymphomas ØMetabolic disorders
Thank You • Prudential and other sponsors • Dr. Miyamoto • Dr. Steven Surace • Dr. Paul Victor Quinn, Sr. • Myrna Papier • Dr. Adam Cassano • Jen Cowell
Questions? Comments? Concerns? • Email us at ØT 1 ballers@gmail. com
Sources 1. 2. 3. 4. 5. 6. Campbell, N. A. & Reece J. B. (2005). Biology. 123 Adenosine Deaminase 1 VFL. png. (2007). Wikipedia. Retrieved August 1, 2007 from http: //en. wikipedia. org/wiki/Image: Adenosine_deaminase_1 VFL. png “A T Cell killing a cancer cell. ” (2007). T-cells. Retrieved August 3, 2007 from http: //www. sciencemuseum. org. uk/on-line/lifecycle/116. asp Cavazzana-Calvo, M. & Hacein-Bey, S. Gene Therapy: Bursting the Bubble of SCIDS. (2001). University of Arizone. Retrieved August 1, 2007 from http: //student. biology. arizona. edu/honors 2000/group 08/images/babybub ble. jpg Wilson, D. K. et. al. Atomic Structure of Adenosine Deaminase Complexed with a Transition-State Analog: Understanding Catalysis and Immunodeficiency Mutations. (1991. ) Science 252 (5010). 1278. Berg, J. M. , Tymoczko, J. L. , & Stryer, L. (2007. ) Biochemistry. (6 th ed. ) New York: W. H. Freeman and Company.
Sources • Catalysis. http: //www. columbia. edu/cu/biology/courses/c 2005/purves 6/figure 06 -14. jpg • http: //upload. wikimedia. org/wikipedia/commons/thumb/c/c 6/Adenosine_deaminase_1 VFL. pn g/593 px-Adenosine_deaminase_1 VFL. png • Slide 1 http: //biomechanics. ecs. umass. edu/HHPAJX/hhpajx 5. gif
